Belkin F5D8013 v3 User manual

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 1 of 56
Belkin
N Wireless Notebook Card
User Manual
F5D8013 v3
P75448-A
mk-OK 9/10/07
Table of Contents
1 Introduction......................................................................................................x
Benefits of a Home Network .................................................................................x
Advantages of a Wireless Network.......................................................................x
Placement of your Wireless Networking Hardware for
Optimal Performance............................................................................................x
2 Overview...........................................................................................................x
Product Features ..................................................................................................x
Applications and Advantages................................................................................x
Product Specifications ......................................................................................... x
System Requirements...........................................................................................x
Package Contents.................................................................................................x
3 Installing and Setting up the Card................................................................. x
A — Installation Process for Windows Vista.........................................................x
B — Installation Process for Windows Operating Systems other than Windows
Vista........................................................................................................................
C — Configuration ............................................................................................... x
4 Using the Belkin Wireless Networking Utility............................................... x
Accessing the Belkin Wireless Networking Utility from
the Windows System Tray ....................................................................................x
Network Status......................................................................................................x
Available Networks ...............................................................................................x
Network Status and Solution Tips.........................................................................x
Setting Wireless Network Profiles.........................................................................x
Securing your Wi-Fi Network ................................................................................x
Configuring your Card to use Security..................................................................x
5 Troubleshooting...............................................................................................x
6 Information...................................................................................................... x
Introduction
Thank you for purchasing the Belkin N Wireless Notebook Card. Now you can
take advantage of this great new technology and gain the freedom to network

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 2 of 56
your home and office computers wirelessly. This Card allows you to connect a
notebook computer to your network. Please be sure to read through this User
Manual completely, and pay special attention to the section entitled “Placement
of your Wireless Networking Hardware for Optimal Performance”.
Benefits of a Home Network
Your Belkin Home Network will allow you to:
• Share one high-speed Internet connection with all the computers
in your home
• Share resources, such as files, and hard drives among all the
connected computers in your home
• Share a single printer with the entire family
• Share documents, music, video, and digital pictures
• Store, retrieve, and copy files from one computer to another
• Simultaneously play games online, check Internet email,
and chat
Advantages of a Wireless Network
• Mobility –you’ll no longer need a dedicated “computer room”—now you can
work on a networked laptop or desktop computer anywhere within your wireless
range
• Easy installation – Belkin Easy Installation Wizards make setup simple
• Flexibility – set up and access printers, computers, and other networking
devices from anywhere in your home
• Easy expansion – the wide range of Belkin networking products let you expand
your network to include devices such as printers and gaming consoles
• No cabling required – you can spare the expense and hassle of retrofitting
Ethernet cabling throughout the home or office
• Widespread industry acceptance – choose from a wide range of
interoperable networking products
Placement of your Wireless Networking Hardware for Optimal Performance
Your wireless connection will be stronger the closer your computer is to your
wireless router (or access point). Typical indoor operating range for your wireless
devices is between 100 and 200 feet. In the same way, your wireless connection
and performance will degrade somewhat as the distance between your wireless
router (or access point) and connected devices increases. This may or may not
be noticeable to you. As you move farther from your wireless router (or access
point), connection speed may decrease. Factors that can weaken signals simply
by getting in the way of your network’s radio waves are metal appliances or
obstructions, and walls.

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 3 of 56
If you have concerns about your network’s performance that might be related to
range or obstruction factors, try moving the computer to a position between five
and 10 feet from the wireless router (or access point) in order to see if distance is
the problem. If difficulties persist even at close range, please contact Belkin
Technical Support.
Note: While some of the items listed below can affect network performance, they
will not prohibit your wireless network from functioning; if you are concerned that
your network is not operating at its maximum effectiveness, this checklist may
help.
1. Placement of your Wireless Router (or Access Point)
Place your wireless router (or access point), the central connection point of your
network, as close as possible to the center of your wireless network devices.
To achieve the best wireless network coverage for your “wireless clients,” (i.e.
computers enabled by Belkin Wireless Notebook Cards, Wireless Desktop Cards,
and Wireless USB Adapters):
• Ensure that your wireless router’s (or access point’s) antennas are parallel to
each other, and are positioned vertically (toward the ceiling). If your wireless
router (or access point) itself is positioned vertically, point the antennas as much
as possible in an upward direction.
• In multistory homes, place the wireless router (or access point) on a floor that is
as close to the center of the home as possible. This may mean placing the
wireless router (or access point) on an upper floor.
• Try not to place the wireless router (or access point) near a cordless 2.4GHz
phone.
2. Avoid Obstacles and Interference
Avoid placing your wireless router (or access point) near devices that may emit
radio “noise”, such as microwave ovens. Other objects that can inhibit wireless
communication can include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 4 of 56
If your wireless signal seems weak in some spots, make sure that objects such
as these are not blocking the signal’s path between your computers and wireless
router (or access point).
3. Cordless Phone Placement
If the performance of your wireless network is impaired after attending to the
above issues, and you have a cordless phone:
• Try moving cordless phones away from the wireless router (or access point)
and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that operates on the
2.4GHz band (check manufacturer’s information). If this fixes the problem, your
phone may be interfering.
• If your phone supports channel selection, change the channel on the phone to
the farthest channel from your wireless network as possible. For example,
change the phone to channel 1 and move your wireless router (or access point)
to channel 11. (Your channel selection will vary depending on your region.) See
your phone’s user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
4. Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment
buildings or office complexes, there may be wireless networks nearby that can
conflict with yours. Use the Site Survey capabilities of your Belkin Wireless
Networking Utility to locate any other wireless networks, and move your wireless
router (or access point) and computers to a channel as far away from other
networks as possible.
Experiment with more than one of the available channels in order to find the
clearest connection and avoid interference from neighboring cordless phones or
other wireless devices.
For more Belkin wireless networking products, use the detailed Site Survey and
wireless channel information included in your User Manual.
5. Secure Connections, VPNs, and AOL
Secure connections typically require a user name and password, and are used
where security is important. Secure connections include:
• Virtual Private Network (VPN) connections, often used to connect remotely to
an office network
• The “Bring Your Own Access” program from America Online (AOL), which lets
you use AOL through broadband provided by another cable or DSL service
• Most online banking websites

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 5 of 56
• Many commercial websites that require a user name and password to access
your account
Secure connections can be interrupted by a computer’s power management
setting, which causes it to “go to sleep.” The simplest solution to avoid this is to
simply reconnect by re-running the VPN or AOL software, or by re-logging into
the secure website.
A second alternative is to change your computer’s power management settings
so it does not go to sleep; however, this may not be appropriate for portable
computers. To change your power management setting in Windows, see the
“Power Options” item in the Control Panel.
If you continue to have difficulty with Secure Connections, VPNs, and AOL,
please review steps 1–4 in the previous pages to be sure you have addressed
these issues.
These guidelines should allow you to cover the maximum possible area with your
wireless router. Should you need to cover an even wider area, we suggest the
Belkin Wireless Range Extender/Access Point.
For more information regarding our networking products, visit our website at
www.belkin.com/networking or call Belkin Technical Support.
Overview
Product Features
The Card complies with the IEEE draft-802.11n specification to communicate
with other draft-802.11n-compliant wireless devices at up to 300Mbps*. The Card
is also compatible with 802.11g devices at 54Mbps as well as 802.11b products
at 11Mbps. The Card operates on the same 2.4GHz frequency band as
802.11b/g Wi-Fi®products.
• 2.4GHz ISM (Industrial, Science, and Medical) band operation
• Integrated easy-to-use Belkin Wireless Networking Utility
• CardBus interface, for operation in virtually any notebook computer
• WPA, WPA2, 64-bit WEP (Wired Equivalent Privacy), or 128-bit encryption
• Wireless access to networked resources
• Data rate of up to 300Mbps* (draft 802.11n), 54Mbps (802.11g), or 11Mbps
(802.11b)
• Easy installation and use
• LED power and network link/activity indicators

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 6 of 56
Applications and Advantages
• Wireless roaming with a laptop around the home or office
Offers the freedom of networking without cables
• Connection rates of up to 300Mbps*
Provides immediate high-speed wireless connectivity at home, work, and hotspot
locations without compromising the use of existing 802.11b/g products
• Compatibility with 802.11b/g products
The Card is backward-compatible with existing Wi-Fi (IEEE 802.11b/g) products
• Difficult-to-wire environments
Enables networking in buildings with solid or finished walls, or open areas where
wiring is difficult to install
• Frequently changing environments
Adapts easily in offices or environments that frequently rearrange
or change locations
• SOHO (Small Office/Home Office) networking needs
Provides the easy and quick, small network installation SOHO users need
Product Specifications
Host Interface: 32-bit CardBus
Operating Temperature: 32–140 degrees F (0–60 degrees C)
Storage Temperature: -4–176 degrees F (-20–80 degrees C)
Humidity: Max. 90% (non-condensing)
Typical Operating Range: Up to 1,200 ft. (365.8m)**
*NOTE: The standard transmission rate—300Mbps—is the physical data rate.
Actual data throughput will be lower.
**Wireless performance
may vary depending on the
networking environment.
(Insert image of F5D8013 v1000 with blue LEDs)
(a) Power LED
Lights up when the Card is powered up
(b) Link/Activity LED
Lights up when the Card is connected; flashes when wireless activity is detected
(c) Card Connector
Part of the Card that fits into your computer’s CardBus slot

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 7 of 56
System Requirements
•PC-compatible computer with one available 32-bit, CardBus slot
•Windows® 2000, XP with SP2, or Vista™*** (clients are not Mac OS
compatible)
•Minimum 64MB of RAM
•CD-ROM drive
•Internet browser
Package Contents
• N Wireless Notebook Card
• Quick Installation Guide
• Installation Software and User Manual on CD-ROM
Installing and Setting up the Card
A. Installation Process for Windows Vista
***NOTE: For information on updated drivers, please visit the Belkin website at
www.belkin.com/support
.
IMPORTANT: INSTALL THE SOFTWARE BEFORE INSERTING THE CARD.
A.1 Insert the Installation Software CD into your CD-ROM drive.
A.2 Click “Next” to begin the installation process. [Insert screen shot]

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 8 of 56
Note: If the Belkin Wireless Card Installer screen does not appear within 20
seconds, access your CD-ROM by double-clicking on the “My Computer” icon;
then, double-click on the CD-ROM drive into which the installation CD has been
placed. If the Installer does not start automatically, double-click on the icon
named “Setup.exe”.

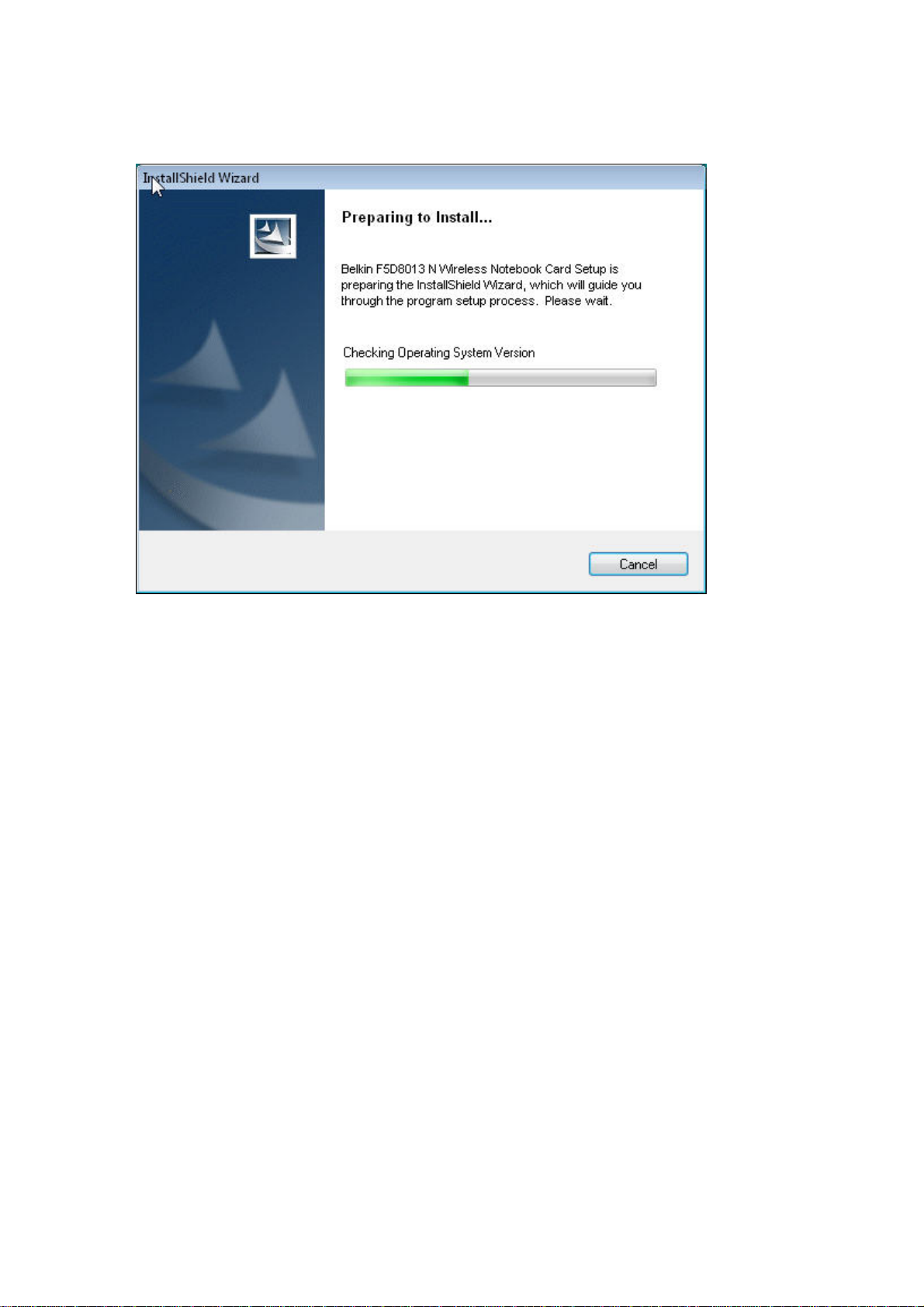

A.3 The InstallShield Wizard starts installation process.

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 9 of 56
A.4 Select a destination folder for the software installation by clicking
“Browse”; or, simply click “Next” to select a default location.
[insert 8011_Install_2.tif – to be updated 8/1]

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 10 of 56
A.5 A Setup Status screen will let you know where you are in the setup
process.
[insert 8011_Install_3.tif]

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 11 of 56

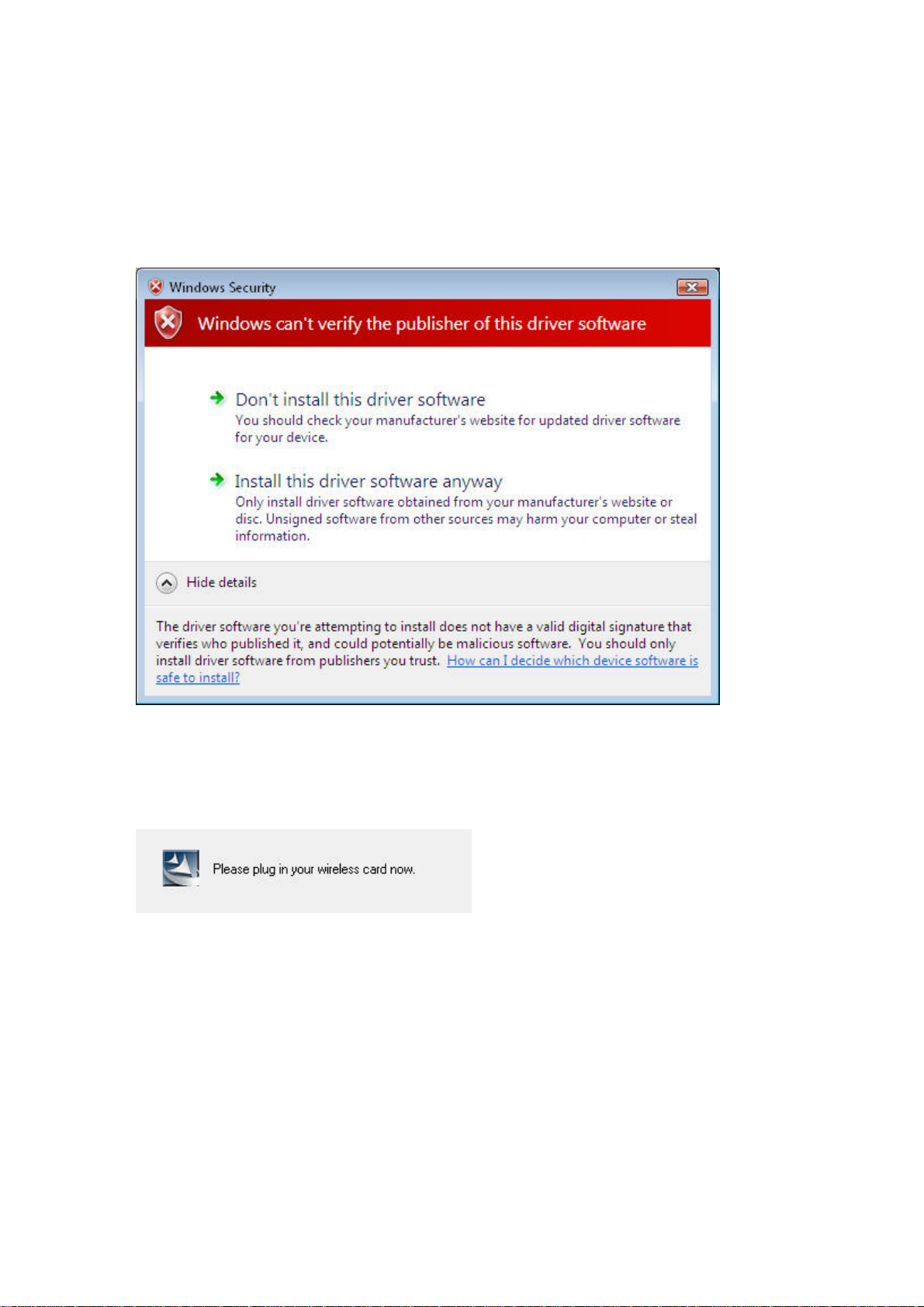

A.6 A window may appear a second time showing the message, “Windows
can’t verify the publisher of this driver software”. This DOES NOT
indicate a problem. Our software has been fully tested and is compatible
with this operating system. (Insert screen shot)
A.7 When prompted, turn off your computer and plug in your Card. Your
installation is now complete. (Insert screen shot)
A.8 When the installation completes, click on “Finish”. (Insert screen shot)

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 12 of 56
A.9 The Found New Hardware Wizard might appear within 3–15 seconds. If
it does, continue to follow the prompts. Select “Locate and install the
driver software” to continue.

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 13 of 56
A.10 You might see a screen similar to the one pictured below. This DOES
NOT mean there is a problem. Our software has been fully tested and is
compatible with this operating system. Select “Install this driver software
anyway” and follow the on-screen instructions.
Next, a screen appears indicating that hardware installation is taking place; then,
another indicates that the process is complete.

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 14 of 56
A.11 To connect to the Internet, open the Network and Sharing Center by first
opening the Control Panel from the “Start” menu. (Insert screen shot)
A.12 In the Control Panel, click on “View network status and tasks”. (Insert
screen shot)

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 15 of 56
A.13 In the Network and Sharing Center, click on “Connect to a network”.
(Insert screen shot)
A.14 In the next screen, select an available wireless network and click
“Connect”. (Insert screen shot)

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 16 of 56
A.15 Your Card will attempt to connect to the selected network. (Insert
screen shot)

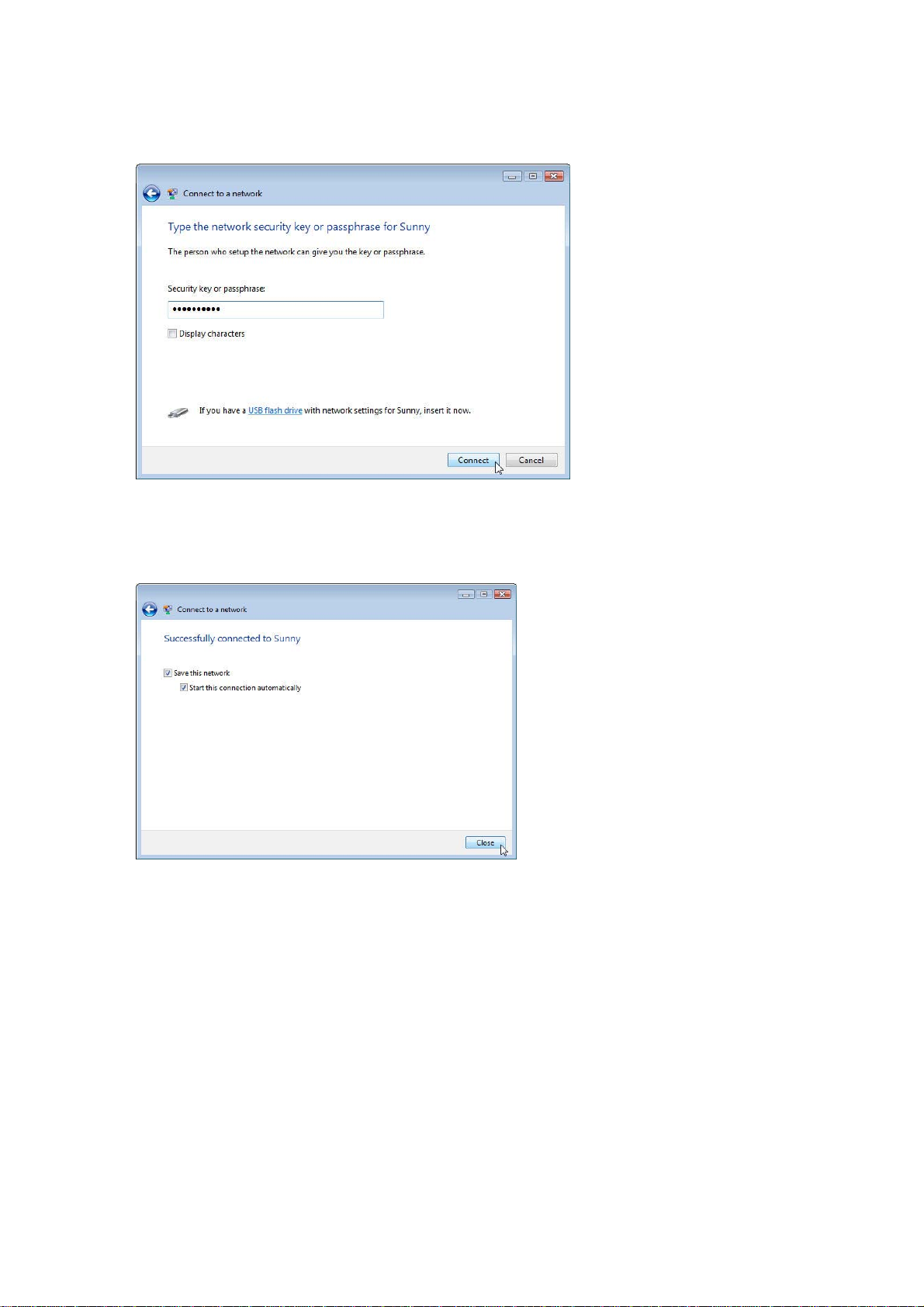

A.16 Depending on the security settings of your wireless network, you may
be prompted to enter a network security key or a passphrase. Click
“Connect” after you have done so. (Insert screen shot)

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 17 of 56
A.17 After connecting to the network, you can choose to save this network
and connect automatically when your Card is in range. (Insert screen
shot)

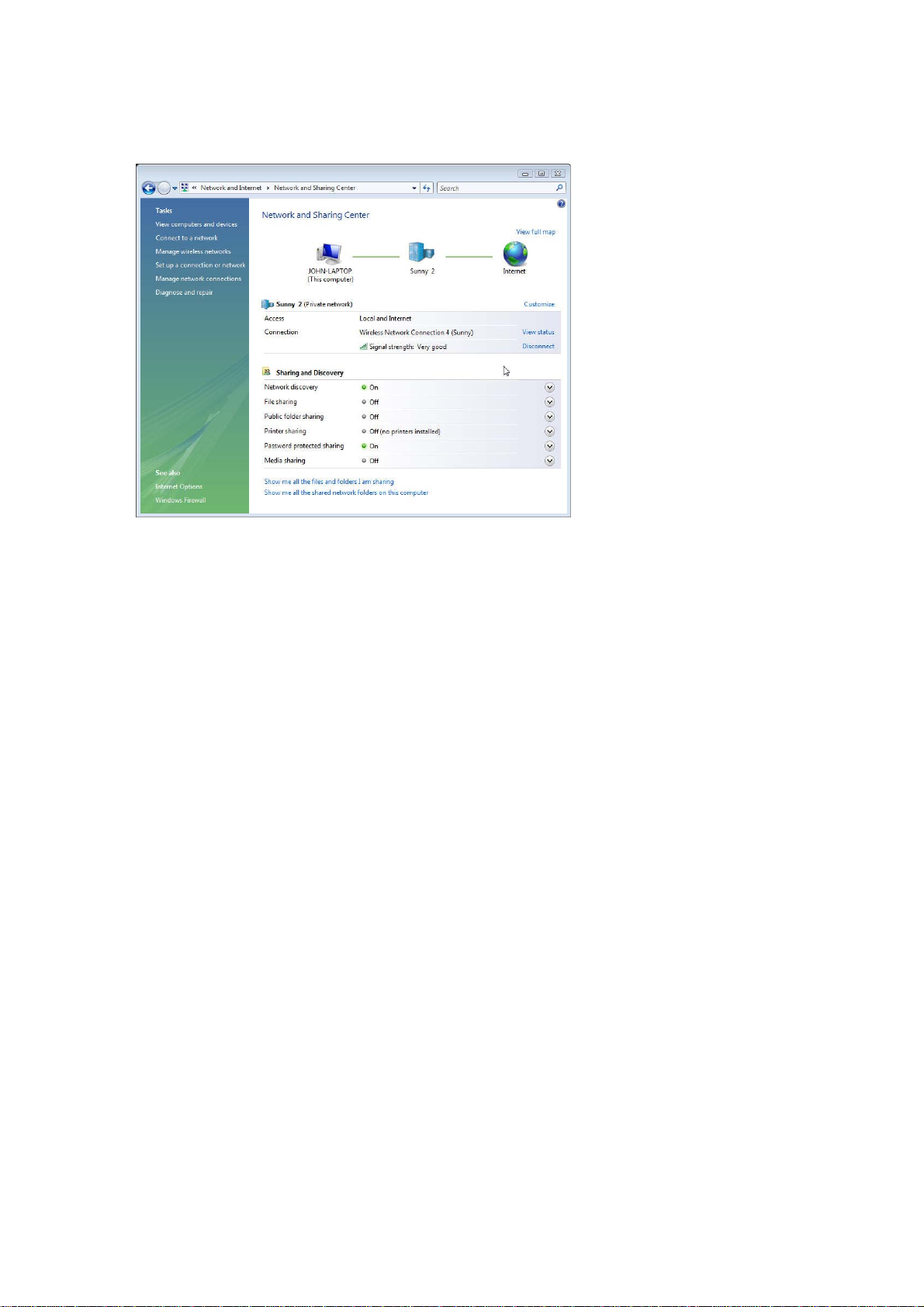

A.18 The Network and Sharing Center now indicates the network connection
that you have just made. The links on the left of the window allow you to
configure your network connections. (Insert screen shot)

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 18 of 56
B. Installation Process for Windows Operating Systems other than
Windows Vista
IMPORTANT: INSTALL THE SOFTWARE BEFORE INSERTING THE CARD.
B.1 Insert the Installation Software CD into your CD-ROM drive.

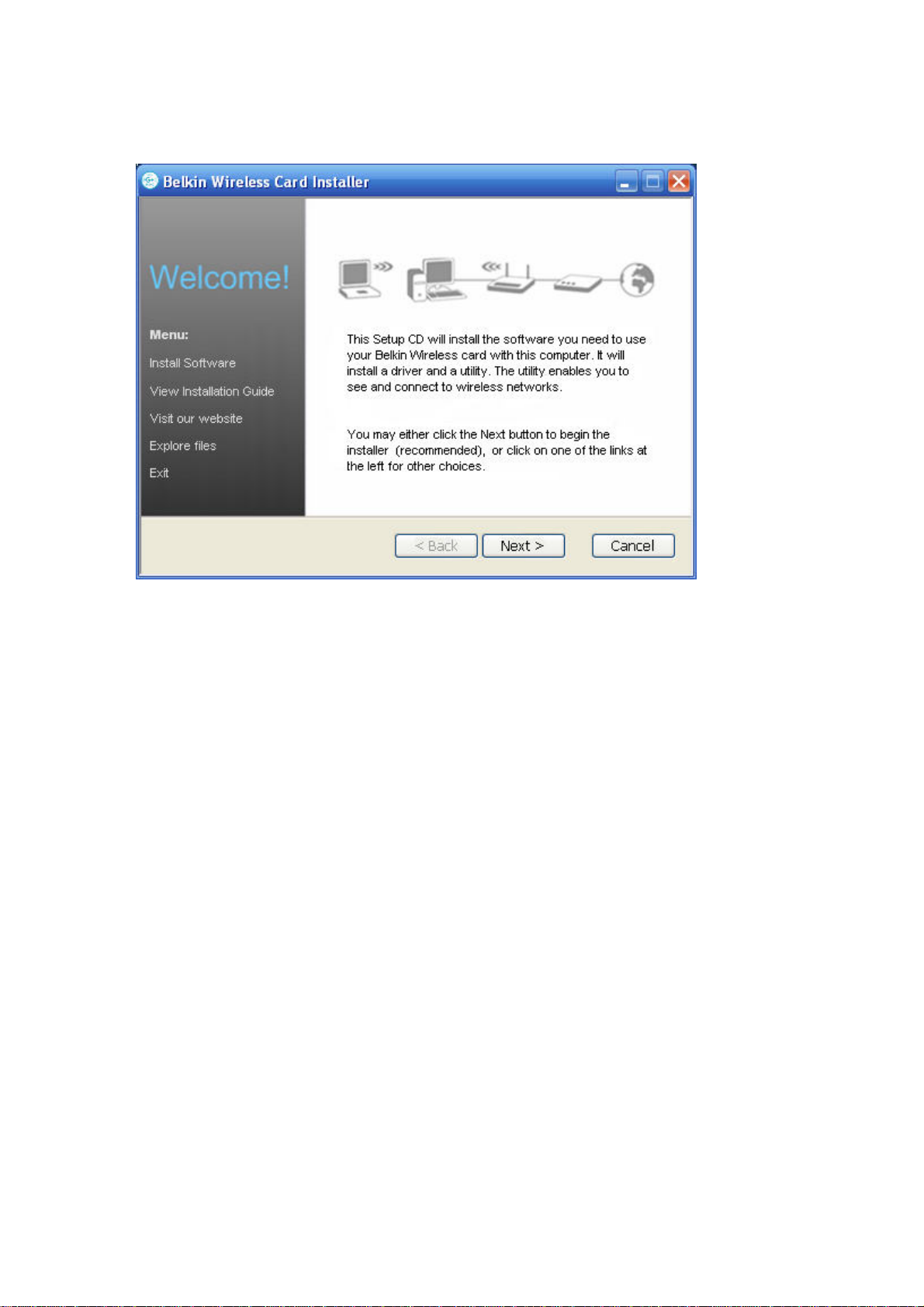

B.2 The Belkin Wireless Card Installer screen will automatically appear
within up to 20 seconds. Click “Install Software” or “Next” to start the
installation.

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 19 of 56
Note: If the Belkin Wireless Card Installer screen does not appear within 20
seconds, access your CD-ROM by double-clicking on the “My Computer” icon;
then, double-click on the CD-ROM drive into which the installation CD has been
placed. Then, double-click on the icon named “Setup.exe”.
B.3 The InstallShield Wizard starts the installation process.

790504_WN7312A-LF-AK_UserManua_Final version_1005-2007l.doc
Page 20 of 56
B.4 Select a destination folder for the software installation by clicking
“Browse”; or, simply click “Next” to select a default location.
B.5 A Setup Status screen lets you know where you are in the setup
process.
