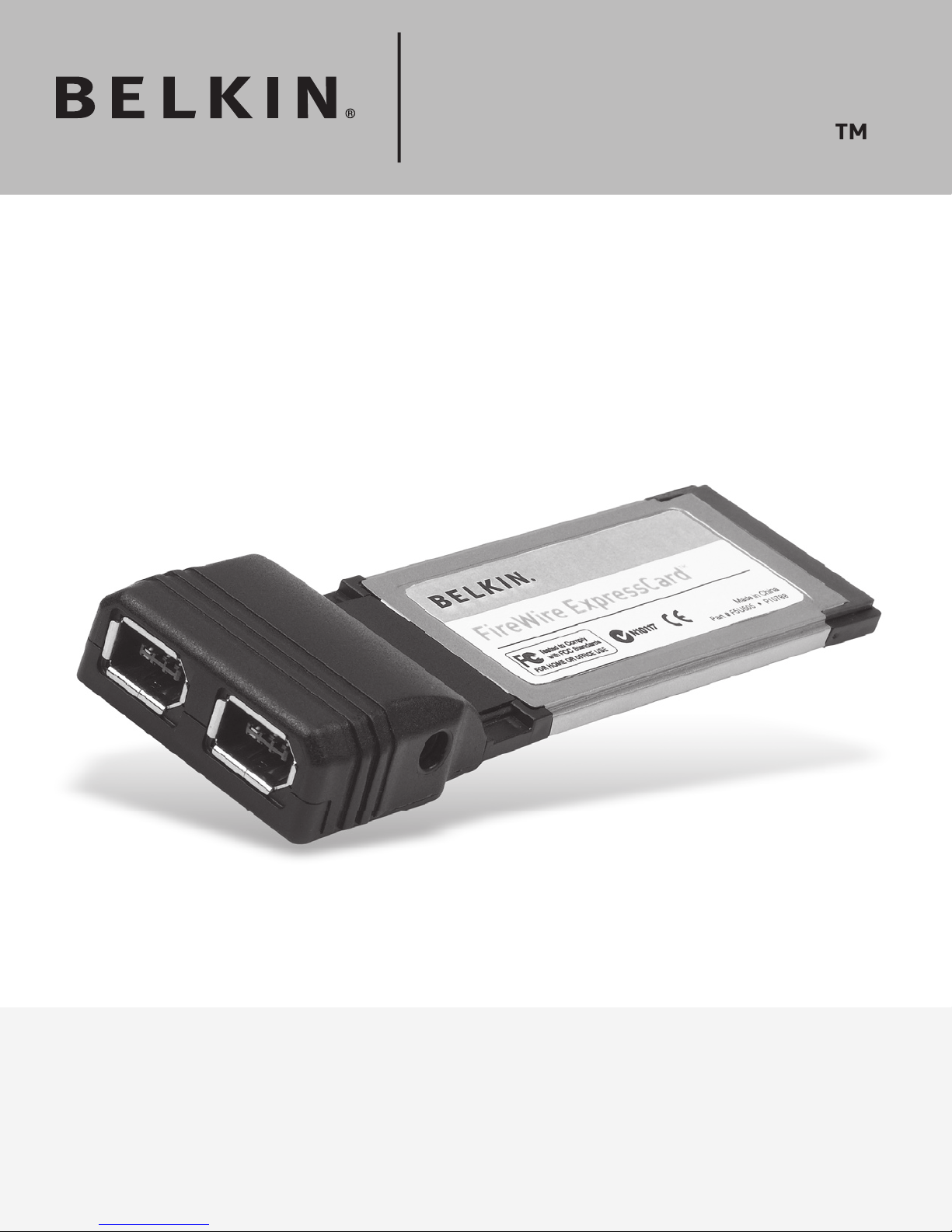

Belkin F5U514 User manual

FireWire 800
ExpressCard
™
User Manual
F5U514

1. Introduction
......................................................................
1
Benefits
.........................................................................
2
System Requirements
...................................................
3
Package Contents
.........................................................
3
2. Software Setup
.................................................................
4
3. Hardware Installation
......................................................
5
4. Verifying Proper Installation
...........................................
6
5. Troubleshooting
...............................................................
7
6. Information
......................................................................
9
Table of Contents

1
2
3
4
1
Congratulations and thank you for purchasing the FireWire
800 ExpressCard (the ExpressCard) from Belkin. This
ExpressCard offers notebook users a fast and convenient
way to add a FireWire
®
port that can take advantage of the
increased bandwidth and features the new ExpressCard I/O
interconnection standard delivers.
Why ExpressCard?
ExpressCard, the standard destined to replace CardBus,
quadruples your computing bandwidth. This results in faster
music downloads, smoother streaming video, and
lightning-fast access to mass-storage devices.
The ExpressCard provides the perfect solution for
simultaneously streaming movies and downloading video
from your camcorder to your hard drive—without risking
that your computer will freeze, crash, or slow to a trickle.
ExpressCard future-proofs your computer with technology
so advanced that it exceeds the processing speed of many
devices currently on the market. This means that installing
the ExpressCard now assures you of device-upgrade
expansion room for many years to come.
Please carefully review this User Manual so that you can
take full advantage of all the capabilities the Belkin FireWire
800 ExpressCard offers.
Introduction
1
2
3
4
5
6

2
Introduction
1
2
3
4
5
6
Benefits
• Meets PCI Express Base Specification Revision 1.1
• Delivers single-lane (x1) PCI Express throughput support
rates of 2.5Gbps
• Complies with ExpressCard 34mm-wide
module specification
• Builds in 2 external, independent 6-pin FireWire 800 ports
• Supports 1394 Open Host Controller Interface (OHCI)
Specification 1.1
• Features IEEE 1394b-compliant ports at 100-, 200-, 400-,
and 800Mbps
• Equips 1 DC jack for using power adapter to provide
12VDC power output
• Complies with IEEE 1394, 1394a, and 1394b
• Allows you to connect/disconnect devices without
powering down the system (hot-swappable)

3
System Requirements
• Windows
®
-based or Mac
®
notebook with available
ExpressCard slot
• Windows 2000 and XP
• Mac OS
®
X v10.4.x and above
Package Contents
• FireWire 800 ExpressCard
• CD Driver
• User Manual
Introduction
1
2
3
4
5
6

4
1
2
3
4
5
6
IMPORTANT NOTE: You must install the FireWire 800
ExpressCard drivers prior to installing the hardware to
your computer.
1.
Insert the FireWire 800 ExpressCard installation CD into
your CD-ROM drive. After a few moments, the main menu
automatically starts.
Note:
If the main CD does not auto-start, click the “Start”
button and select “Run”. From the “Run” dialog box,
enter “<driver>:\setup_xp2.exe” and click “OK” (where
“<driver>” represents the letter driver that identifies your
CD-ROM drive under “My Computer”—e.g., if the CD is in
drive D, enter “D:\setup_xp2.exe”).
2.
Select “FireWire 800 Driver”. The Software Installation
Wizard appears and begins to download the drivers.
3.
If you receive the following “Software Installation”
notice, click on “Continue Anyway” to continue with the
installation process.
4.
After the files successfully copy over, you are ready to
install the hardware.
Software Setup

5
Hardware Installation
1.
Locate your notebook’s ExpressCard bus slot(s).
2.
With your notebook on, slide the ExpressCard into the
unused 34mm or 54mm ExpressCard bus slot.
Note: Do not plug any devices into the
ExpressCard until you have completely finished
the driver installation.
3.
The “New Hardware Wizard” launches and recognizes
the ExpressCard.
4.
Windows OS automatically installs the correct driver.
5.
Installation is now complete and the ExpressCard is ready
to use.
1
2
3
4
5
6

666
Verifying Proper Installation
1
2
3
4
5
6
Check the “Windows Device Manager” to confirm that
your ExpressCard has been properly installed.
1.
Right-click on “My Computer” and
select “Manage”.
2.
Select the “Device Manager” tab.
3.
Click the (+) sign next to “IEEE 1394 Bus host
controllers”. The “IEEE 1394 Bus host controllers”
will now include one entry that reads “OHCI IEEE
1394b Host Controller”.

The ExpressCard and devices connected to the
computer do not work properly.
Please do the following:
1.
Check that all the cables you are using are the
correct types, and that they are all securely
connected.
2.
Make sure all devices are powered on and
connected to the proper power supply and source.
3.
Reconnect daisy-chained devices you may have
disconnected for installation. If reconnecting does
not clear up the problem, restart your computer.
4.
Make sure you have properly installed
the ExpressCard.
The computer did not detect the ExpressCard.
1.
Make sure that the ExpressCard is correctly
plugged into the ExpressCard 34/54mm slot; if not,
plug in it securely.
2.
If the ExpressCard is plugged in correctly, see
if its gold connectors are clean; if not, clean the
connector surface.
3.
Follow the procedure on page 6 titled “Verifying
Proper Installation”. If the ExpressCard designation
“OHCI IEEE 1394b Host Controller” does not
appear in the Device Manager, update your
computer BIOS to the latest version (contact your
Troubleshooting
1
2
3
4
5
6
777

888
Troubleshooting
1
2
3
4
5
6
computer manufacturer for details). If after updating
your BIOS your computer still does not detect the
ExpressCard, contact your computer manufacturer
for advanced support for BIOS.
I cannot install the ExpressCard driver.
Ensure that your Microsoft
®
Windows operating
system is upgraded to the latest “Service Pack”
(please check the Microsoft website). It is highly
recommended that you update your system to
Windows 2000 service pack 4, Windows XP
service pack 2, or Windows Server 2003 service
pack 1 (or later).

999
Information
CE Declaration of Conformity
We, Belkin Corporation, declare under our sole responsibility that the F5U514,
to which this declaration relates, is in conformity with Generic Emissions Standard
EN55022:1998 Class B, EN50081-1, and with Generic Immunity Standard
EN50082-1 1992.
Belkin Corporation Limited Lifetime Product Warranty
What this warranty covers.
Belkin Corporation warrants to the original purchaser of this Belkin product that
the product shall be free of defects in design, assembly, material, or workmanship.
What the period of coverage is.
Belkin Corporation warrants the Belkin product for the lifetime of the product.
What will we do to correct problems?
Product Warranty.
Belkin will repair or replace, at its option, any defective product free of charge
(except for shipping charges for the product).
What is not covered by this warranty?
All above warranties are null and void if the Belkin product is not provided to
Belkin Corporation for inspection upon Belkin’s request at the sole expense of the
purchaser, or if Belkin Corporation determines that the Belkin product has been
improperly installed, altered in any way, or tampered with. The Belkin Product
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220,
declare under our sole responsibility that the product,
F5U514
to which this declaration relates,
Complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
FCC Statement
1
2
3
4
5
6

10
Warranty does not protect against acts of God (other than lightning) such as flood,
earthquake, war, vandalism, theft, normal-use wear and tear, erosion, depletion,
obsolescence, abuse, damage due to low voltage disturbances (i.e. brownouts or
sags), non-authorized program, or system equipment modification or alteration.
How to get service.
To get service for your Belkin product you must take the following steps:
1. Contact Belkin Corporation at 501 W. Walnut St., Compton CA 90220, Attn:
Customer Service, or call (800)-223-5546, within 15 days of the Occurrence.
Be prepared to provide the following information:
a. The part number of the Belkin product.
b. Where you purchased the product.
c. When you purchased the product.
d. Copy of original receipt.
2. Your Belkin Customer Service Representative will then instruct you on how to
forward your receipt and Belkin product and how to proceed with your claim.
Belkin Corporation reserves the right to review the damaged Belkin product. All
costs of shipping the Belkin product to Belkin Corporation for inspection shall
be borne solely by the purchaser. If Belkin determines, in its sole discretion, that
it is impractical to ship the damaged equipment to Belkin Corporation, Belkin
may designate, in its sole discretion, an equipment repair facility to inspect and
estimate the cost to repair such equipment. The cost, if any, of shipping the
equipment to and from such repair facility and of such estimate shall be borne
solely by the purchaser. Damaged equipment must remain available for inspection
until the claim is finalized. Whenever claims are settled, Belkin Corporation
reserves the right to be subrogated under any existing insurance policies the
purchaser may have.
How state law relates to the warranty.
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN
CORPORATION, THERE ARE NO OTHER WARRANTIES, EXPRESSED
OR, EXCEPT AS REQUIRED BY LAW, IMPLIED, INCLUDING THE IMPLIED
WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, AND SUCH IMPLIED WARRANTIES, IF ANY,
ARE LIMITED IN DURATION TO THE TERM OF THIS WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you.
Information
1
2
3
4
5
6

11
IN NO EVENT SHALL BELKIN CORPORATION BE LIABLE FOR INCIDENTAL,
SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR MULTIPLE DAMAGES
SUCH AS, BUT NOT LIMITED TO, LOST BUSINESS OR PROFITS ARISING OUT
OF THE SALE OR USE OF ANY BELKIN PRODUCT, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights,
which may vary from state to state. Some states do not allow the exclusion or
limitation of incidental, consequential, or other damages, so the above limitations
may not apply to you.
Information
1
2
3
4
5
6

Belkin Tech Support
US: 800-223-5546, ext. 2263
310-898-1100, ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand: 0800 235 546
Belkin Corporation
501 West Walnut Street
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
[phone]
[phone] fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of
respective manufacturers listed. FireWire, Mac OS, and Mac are trademarks of Apple Computer, Inc.,
registered in the U.S. and other countries. Microsoft and Windows are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other countries.
P75226
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, The Netherlands
[phone]
[phone] fax
Belkin Ltd.
7 Bowen Crescent, West Gosford
NSW 2250, Australia
[phone]
[phone] fax
FireWire 800
ExpressCard
™
