Belkin PureAV AP21100-12 User manual

Home Theater Power Protection with PureFilter™ Technology
Power Console PF31
User Manual
Clear Picture Clean Sound
AP21100-12

PureAV Power Console
Table of Contents
1
Page
Introduction ......................................................................................... 2
Safety Precautions ............................................................................. 3
Package Contents ............................................................................... 4
Power Console Features .................................................................... 5
Hookup and Installation
Step 1 Mounting your Power
(optional) Console ................................................................ 6
Step 2 Remote AC Operation ....................................... 7
Step 3 Remote DC Operation ....................................... 8

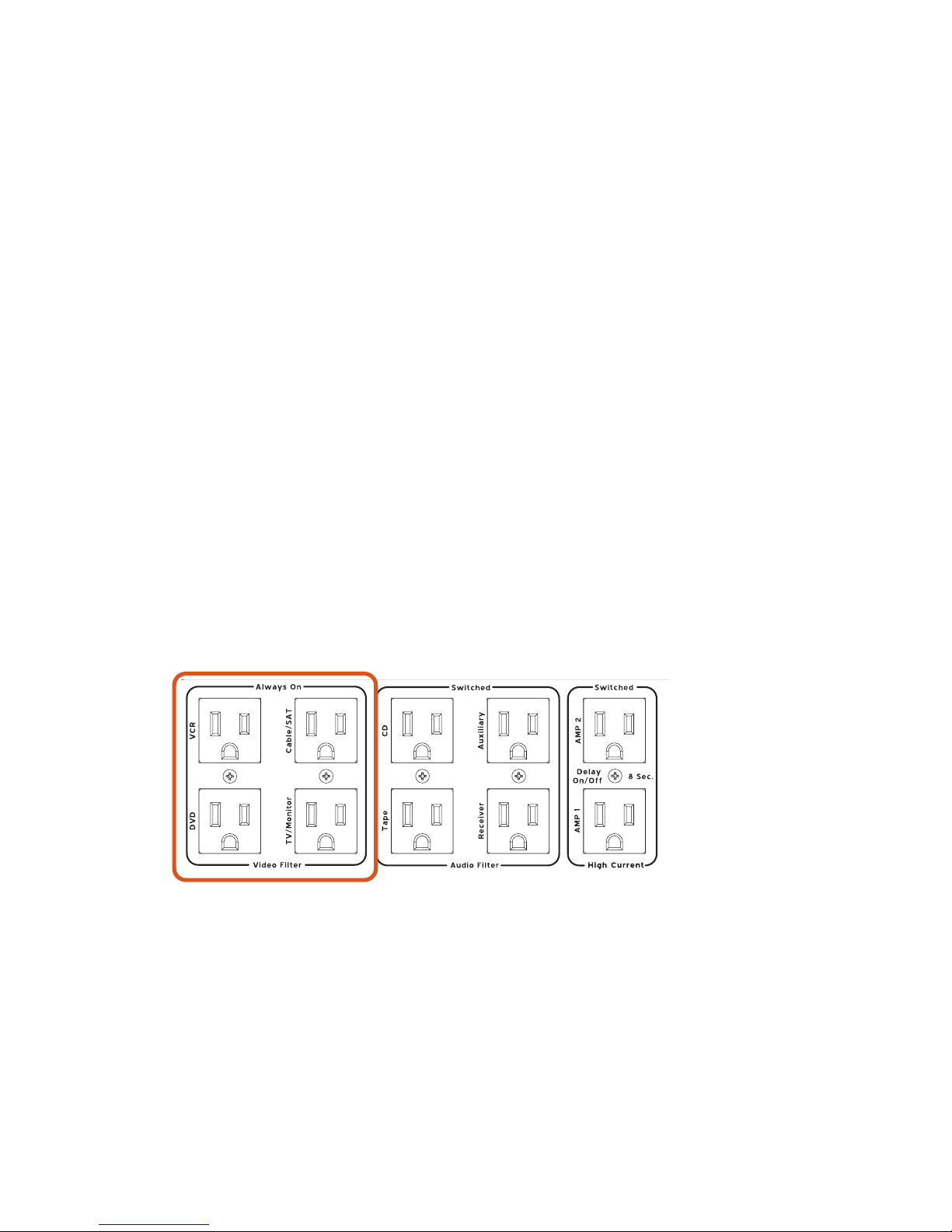

Step 4 Connect Video Components
to the Video Filter ............................................. 9

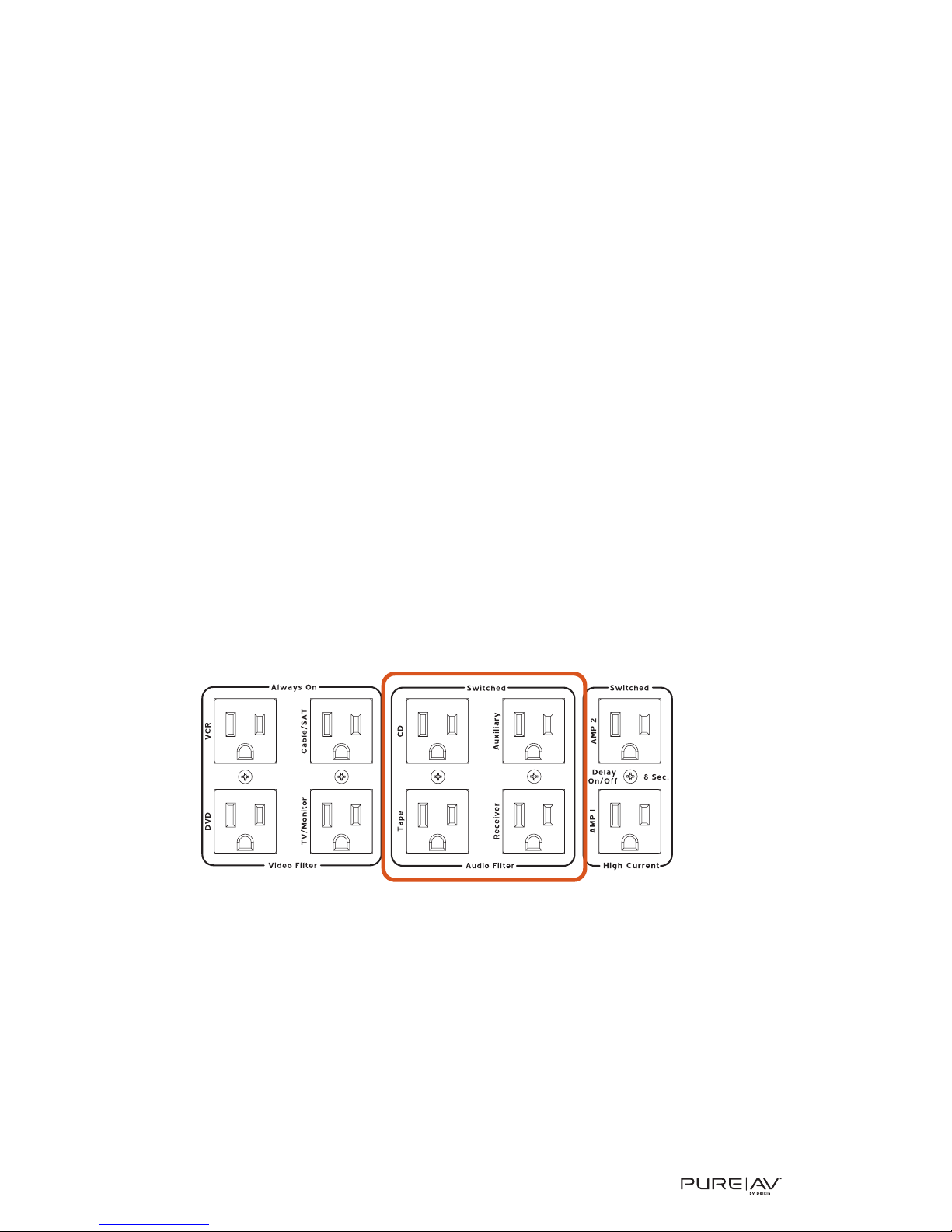

Step 5 Connect Audio Components
to the Audio Filter ............................................ 10
Step 6 Connect High-Current Audio Filter
(Delay capable) .................................................. 11
Step 7 Connect your Pay-Per-View/Phone Line ..... 12
Step 8 Connect your Coaxial-Cable/DSS Lines ....... 13

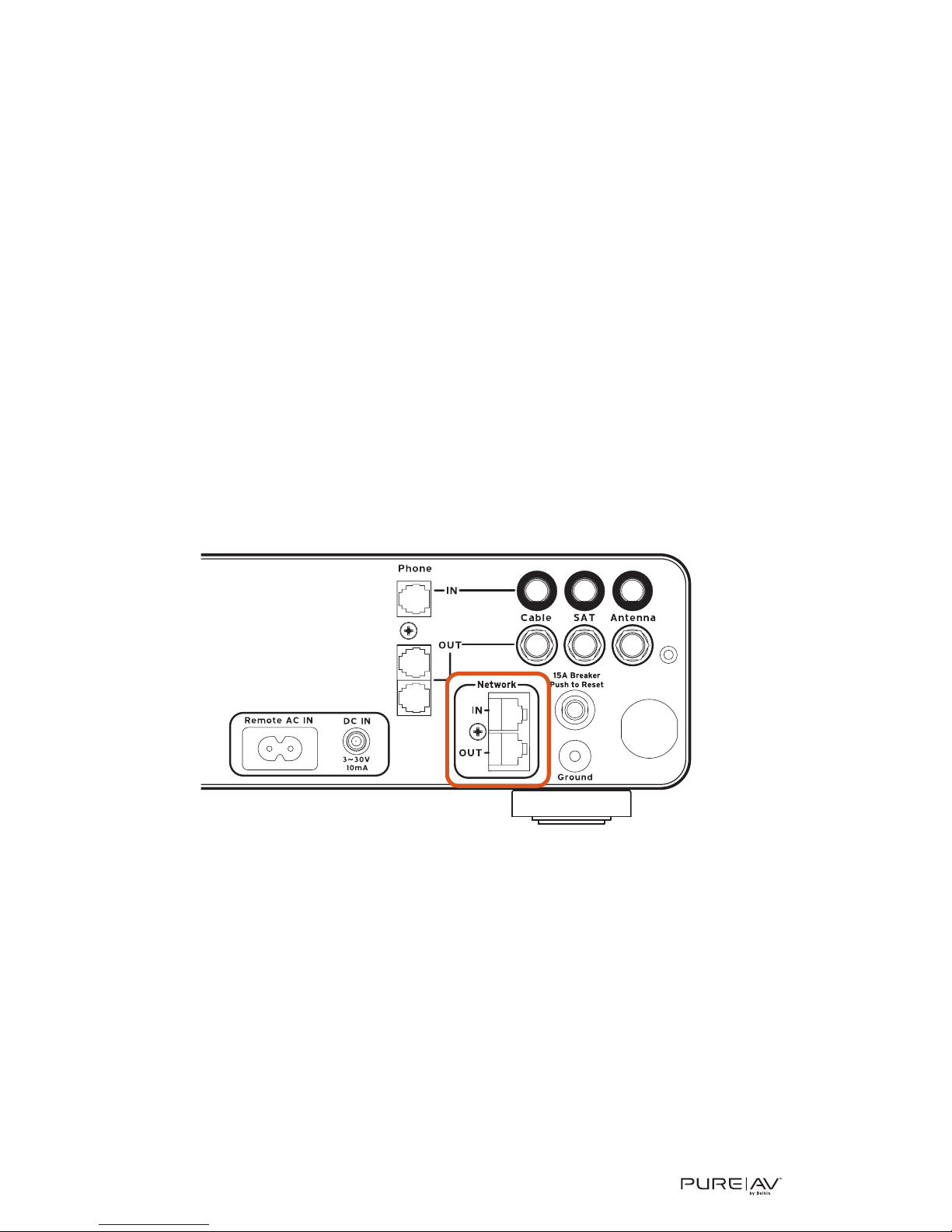

Step 8 Connect your Broadband Ethernet Line ...... 14
Operation ...................................................................................... 15
Troubleshooting ........................................................................... 17
Glossary of Power Terms ............................................................ 19
Belkin Connected Equipment Warranty ................................... 20

Introduction
PureAV Power Console
Thank you for purchasing the PureAV Power Console PF31. The Power
Console is designed to clean, protect, and efficiently distribute power to
your valuable home theater system. The PureAV Power Console ensures
that every movie you watch and every album you hear is as clean and
clear as possible.
The Power Console is packed with innovative features to provide you with
the best home theater experience. Ordinary household AC power that is
delivered to your home is polluted with "noise" from many sources within
your home, including digital components and household appliances. The
Power Console’s advanced Phase 3 PureFilter Circuitry is optimized to
remove electrical noise and provide clean and clear power to all of your
valuable audio, video, and high-current equipment. The multiphase
PureFilter Circuitry also provides true isolation between audio, video,
and high-current components. This isolation prevents noise created by
components that are already connected to the Power Console from
contaminating other connected equipment. In addition, the Power Console
contains Advanced Overvoltage Protection, which automatically
disconnects power from your equipment when the input voltage reaches a
dangerous level, and restores power automatically when the voltage
returns to a safe level.
We also realize that the aesthetics of your system are very important. For
this reason we enlisted some of the top industrial designers in the country
to design the housing for the PureAV Power Console. The minimalist
styling of the Power Console combines function with a simplistic yet
elegant design and is a great complement to any system. The integrated
multifunction front LED display combines all essential controls with a
versatile voltage and current monitor.
As you may know, your AC power source is not the only threat to the
safety of your equipment. This is why the PureAV Power Console has three
sets of coaxial connections to protect your coaxial cable lines. The Power
Console also includes telephone jacks to protect Pay-Per-View lines and
broadband Ethernet jacks to protect data lines that stream digital content
to your home theater system.
Providing the ultimate home theater experience is the driving force behind
the PureAV brand, providing the clearest picture and cleanest sound from
your components to you. Thank you again for purchasing the PureAV
Power Console PF31.
Clear Picture – Clean Sound. PureAV.
2

PureAV Power Console
Safety Precautions
Warning – Grounding and Polarization
This product must be plugged directly into a grounded AC power outlet
(3-prong). Do not use a 3-to-2-prong adapter to defeat the grounding pin.
Do not plug or "daisy-chain" this product into other electrical products such
as surge protectors, power strips, or UPSes. Do not plug this product into an
extension cord. Failure to plug this product directly into a grounded outlet
may result in personal injury or damage to your equipment. Call a licensed
electrician if you are unsure if your AC outlets are properly grounded.
Warning – Rooftop Antennas and Satellite Dishes
If you use rooftop antennas, satellite dishes, or any other rooftop hardware
that connects to your PureAV Power Console, make sure that all the wires
leading from these components are properly grounded. This will protect
against voltage surges from lightning strikes or static charges.
Warning – Lightning Storm Protection
Although your PureAV Power Console is built to withstand large power
surges, we cannot guarantee that it will protect all of your equipment in
the event of a large lightning storm. In the event of a lightning storm, it is
best to unplug your Power Console from the wall. Once you have done this,
there is no need to unplug any of the equipment that is connected to the
Power Console.
Warning – Water and other Liquids: Shock Hazard
Do not use this product with aquariums or other water-related products.
Use indoors and in dry locations only. Do not operate the Power Console if
any liquid is spilled on or in the unit. Failure to follow these guidelines
could result in serious bodily injury or death.
Warning – Cleaning
Always unplug the Power Console before cleaning. It is only necessary to
clean the Power Console with a clean, dry cloth or duster. Do not use any
cleaning solutions, sprays, or water.
Warning – No User-Serviceable Parts Inside
If for any reason your Power Console is malfunctioning, do not attempt to
repair or dismantle the unit in any way. Unplug the unit and consult this
User Manual for warranty and service contact information.
Warning – Power Cord Safety
Do not route the Power Console’s AC power cord near heat sources. This
could damage the power cord and cause it to malfunction, creating a
shock hazard.
Do not route the Power Console’s AC power cord in heavy foot-traffic areas
where it could create a trip hazard (hallways, doorways, across room).
If the power cord is frayed, ripped, cut, or damaged in any way, please
discontinue use immediately and refer to the warranty section of this
Manual for instructions.
3

Package Contents
PureAV Power Console
•User Manual
•PureAV Power Console PF31
•Remote AC Control Cable
•Remote DC Control Cable (1/8” mini-plug cable)
•RJ45 Ethernet Patch Cable – For broadband connectivity
•RJ11 Phone Cable
•PureAV Coaxial Video Cable
•One sheet of PureAV cable labels
•One pair of rack-mount brackets and bag of assembly screws
•Warranty registration card
4

PureAV Power Console

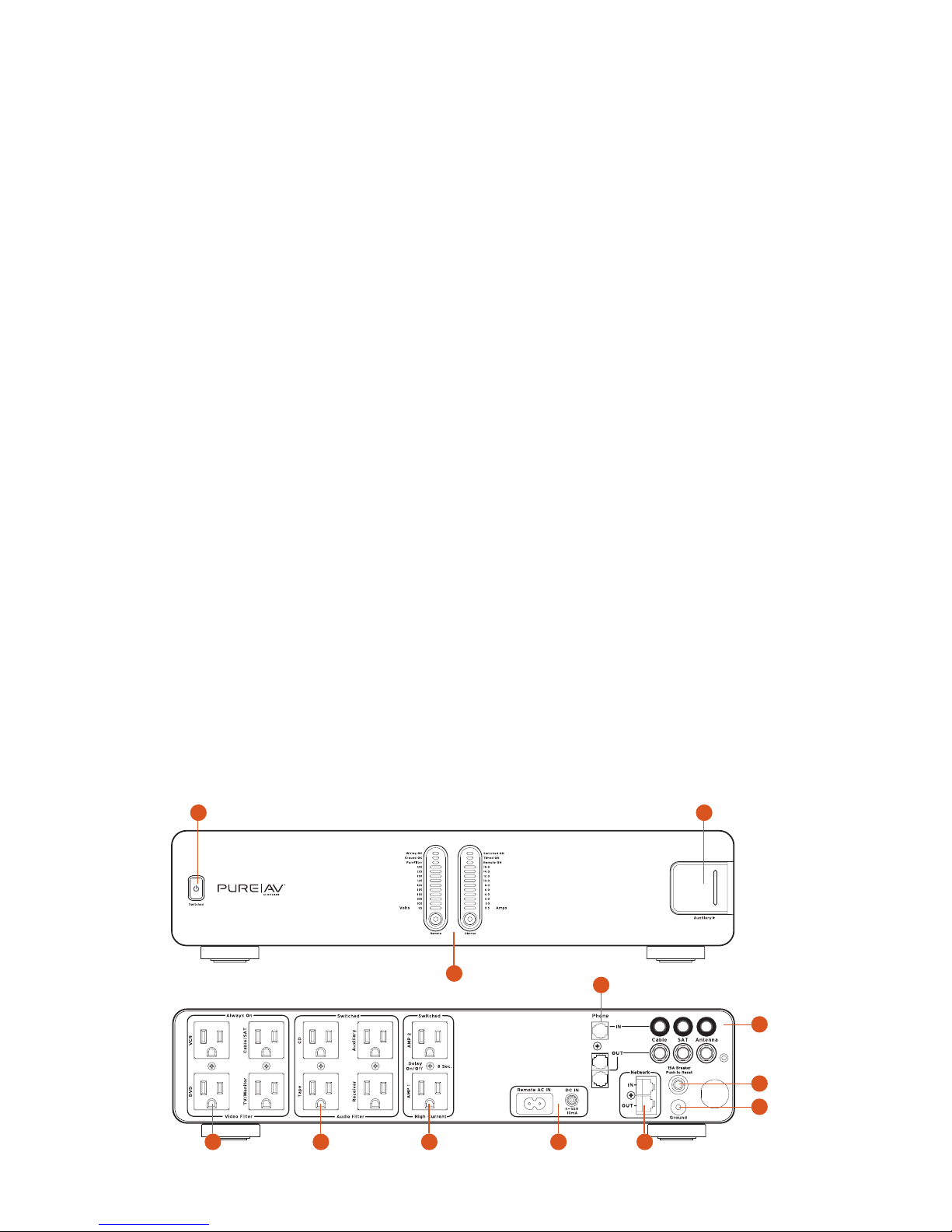

Power Console Features
5
1. Switched button – turns the power on and off to the Power Console’s
“switched” outlets
2. Auxiliary outlet – offers optimal connection for video components and
is ideal for temporary connection of equipment such as video/digital
cameras, game consoles, or any device you which to power

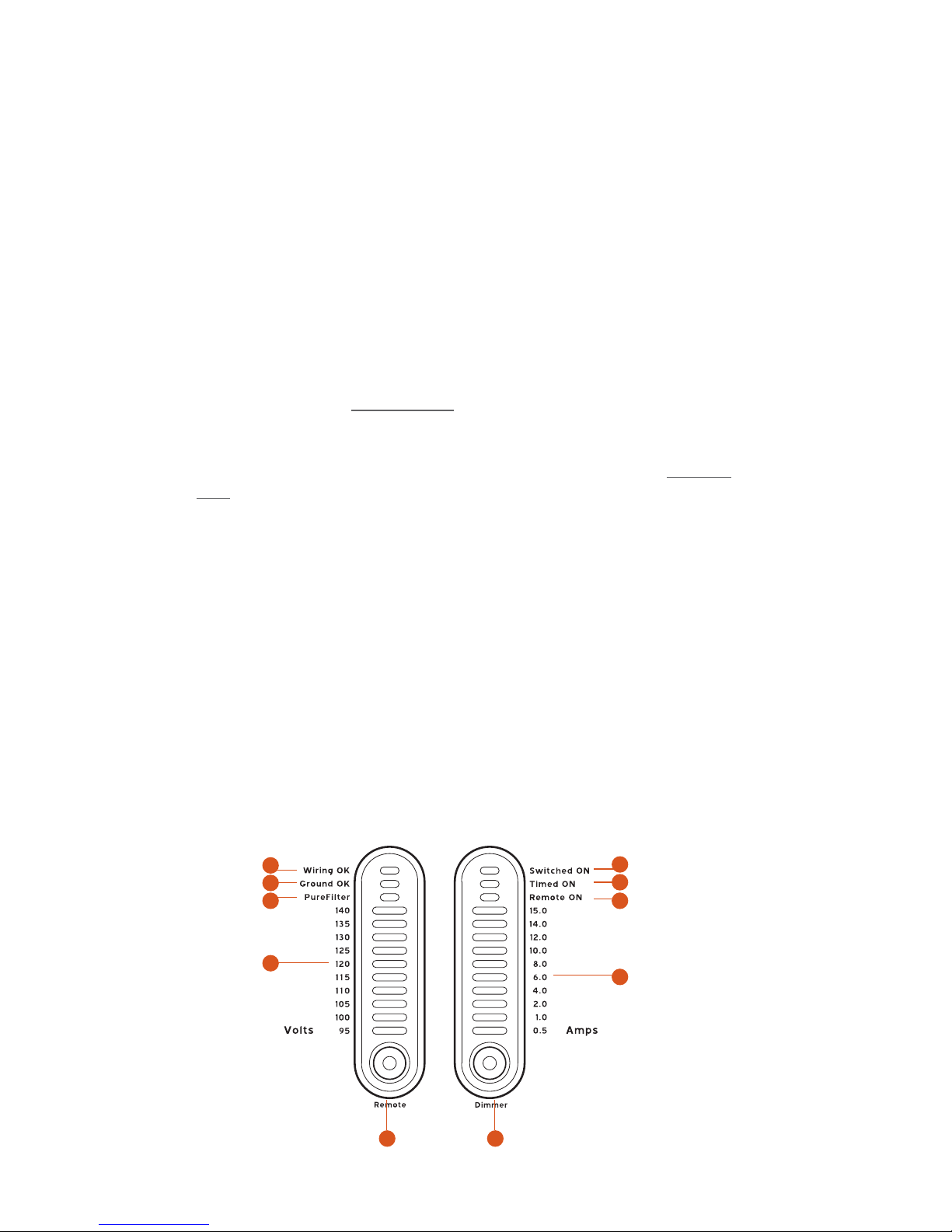

3. Central LED Control – controls and monitors the Power Console’s
vital functions
4. Video Filter – ensures optimum reduction of line noise and
interference to your video components
5. Audio Filter – ensures optimum reduction of line noise and
interference to your audio components
6. HiCurrent™ Filter – delivers high current to power-hungry amplifiers
and receivers; optimized to filter out line noise to these components
7. Remote AC/DC trigger – allows for remote turn ON/OFF of switched
outlets on the Power Console (equipped with both AC and DC inputs)
8. Pay-Per-View/Phone Line Input/Output – protects Pay-Per-View,
phone, or DSL lines from dangerous power surges that can damage
your equipment; built-in splitter turns one line into two
9. Coaxial-Cable Line Input/Output – protects your system from
dangerous electrical disturbances that can travel down your coaxial-
cable lines
10. Broadband Ethernet Input/Output – protects broadband Ethernet
lines used for digital media receivers, gaming, or broadband Internet
access from dangerous power surges
11. 15-Amp Circuit Breaker – offers safety of resettable circuit breaker
12. Ground – provides a grounding point for ungrounded components
1
3
2
8
107654
9
11
12

Hookup & Installation
PureAV Power Console

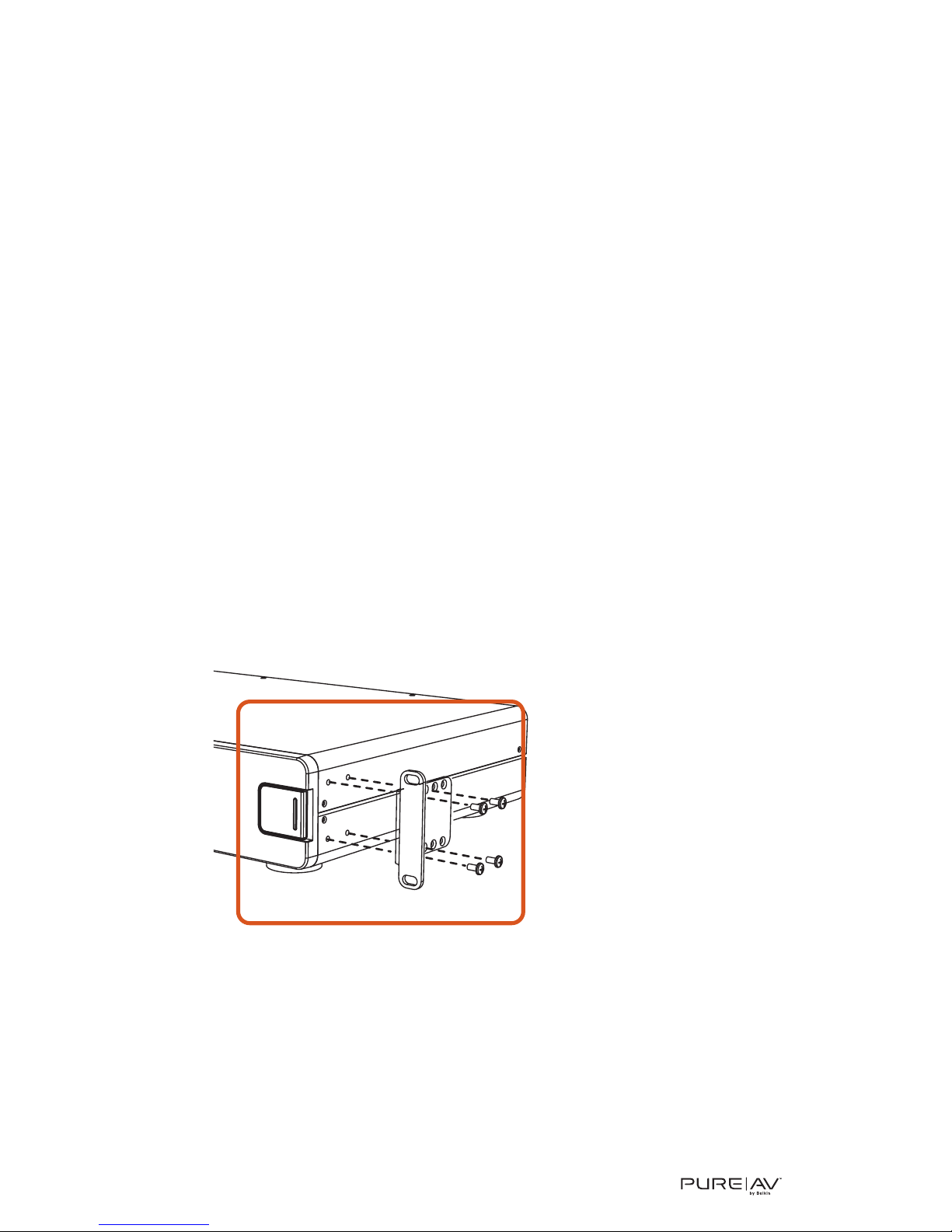

Step 1 (optional)
Mounting your Power Console
The PureAV Power Console can be mounted to a standard AV equipment
rack or inside a cabinet equipped with an equipment rack.
A. Remove the brackets and mounting screws from the box.
B. Make sure that the Power Console is unplugged.
C. Align the bracket with the front of the Power Console for flush
installation in the rack.
D. Attach the bracket to the side of the Power Console with the screws
provided (Fig. 1). You must use a minimum of four screws to mount
each bracket.
E. Repeat steps C and D for installation of the bracket to the other side
of the Power Console.
F. Mount the Power Console to the equipment rack. Screws for mounting
the Power Console to the equipment rack are not provided as they are
made specifically for the particular equipment rack that you own.
Contact the manufacturer of the rack if you do not have the correct
mounting screws.
6
Figure 1

PureAV Power Console
Hookup and Installation

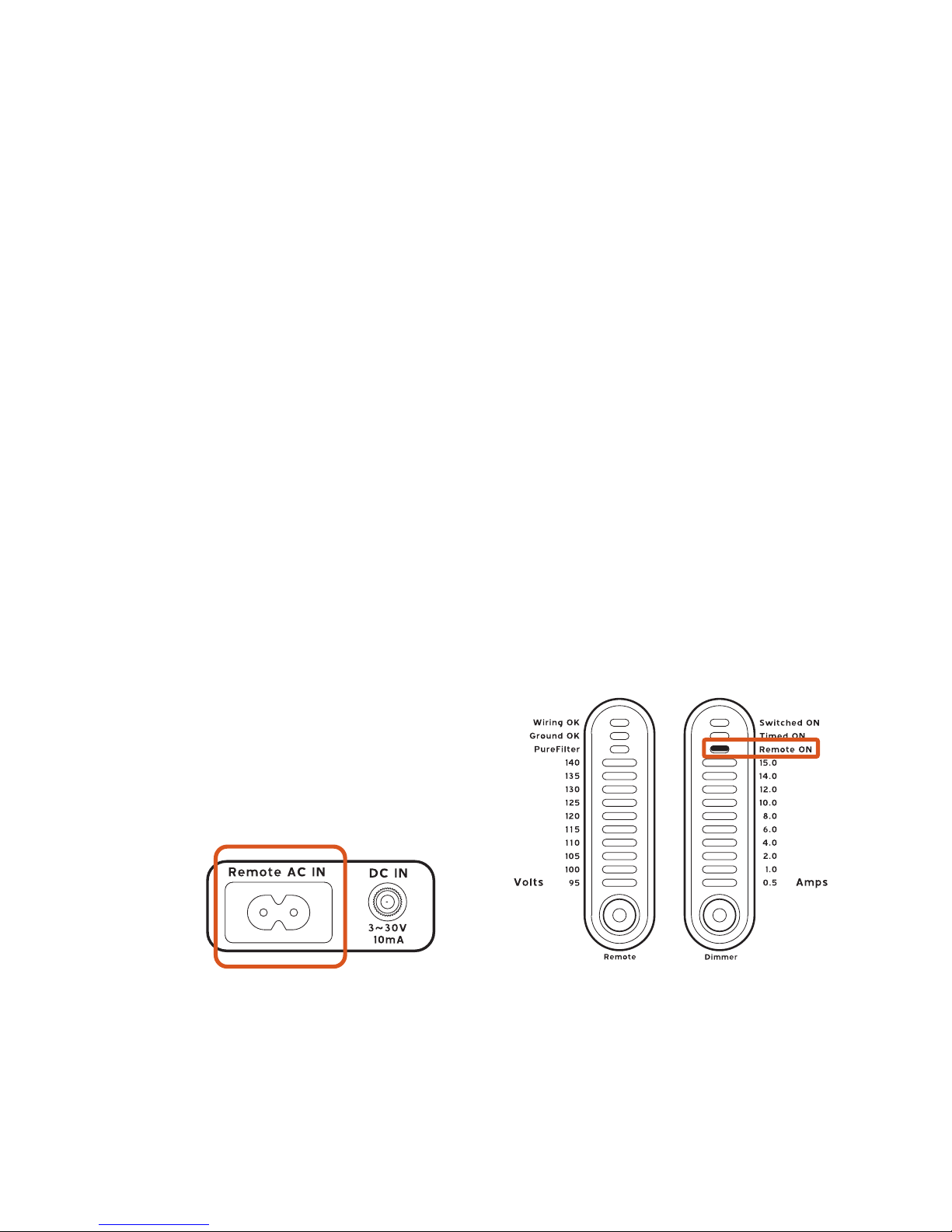

Step 2
Remote AC Operation
This function allows you to turn your Power Console on and off via your
preamplifier or receiver equipped with a switched AC power outlet.
Note: You cannot turn off the switched outlets on the Power Console
with the switched button on the front of the unit when there
is any external power signal supplied to either the AC or DC
remote inputs.
To install the Remote AC Control Cable:
A. Plug the female end of the included Remote AC Control Cable into the
‘Remote AC IN’ outlet located on the back of the Power Console. (Fig. 2a)
B. Press the “Remote” button on the front of the Power Console to turn on
the remote function. The "Remote ON" indicator should be lit. (Fig. 2b)
C. Press the “Switched” button on the front of the Power Console to turn
off the switched outlets.
E. Connect the 2-pronged male end of the Remote AC Control Cable into
a switched power outlet on a preamplifier or receiver. When you turn
on the receiver or preamplifier the outlets on the Power Console that
are programmed as “Switched” will be turned on immediately and the
“Switched/ Delayed” outlets will come on after an 8 second delay.
7
Figure 2bFigure 2a

Hookup and Installation
PureAV Power Console

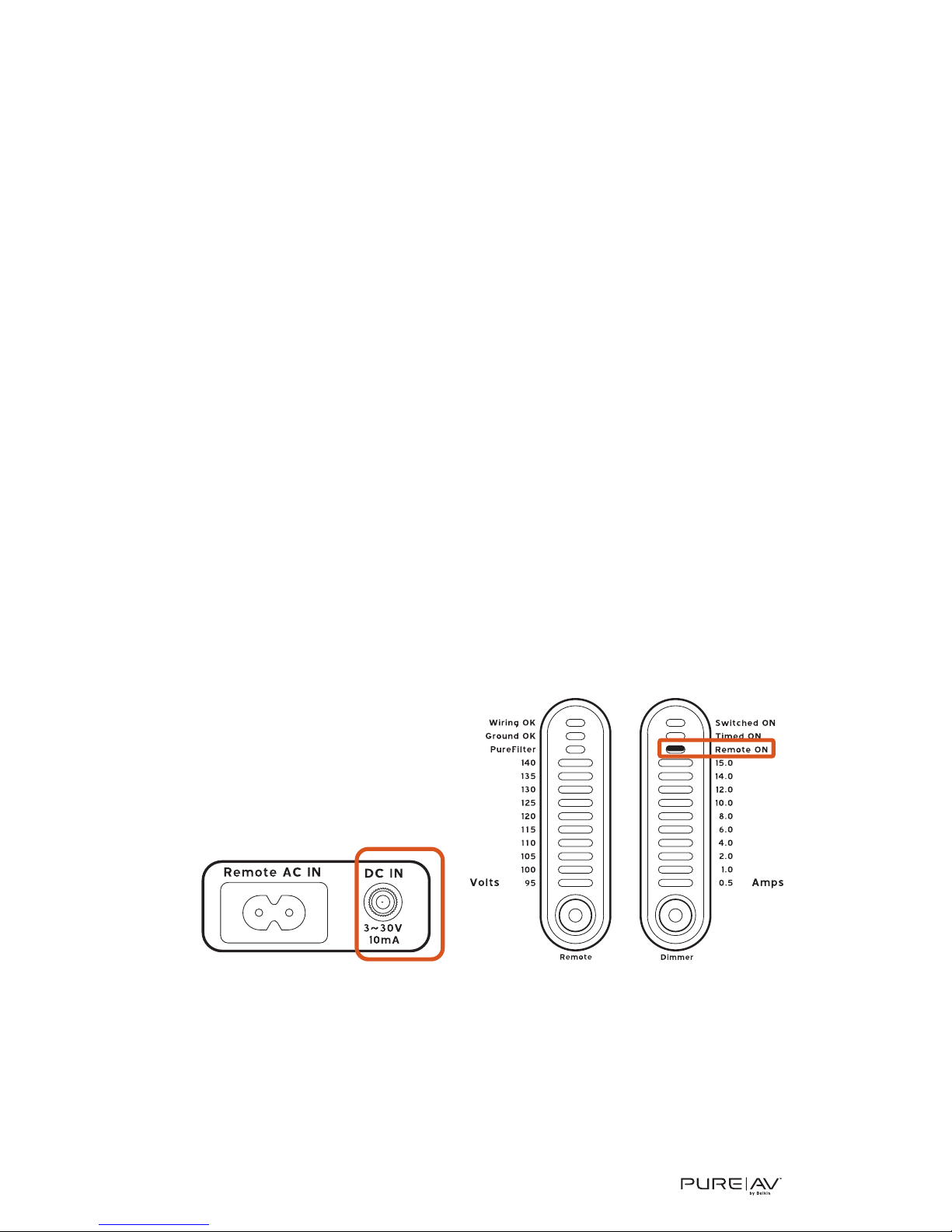

Step 3
Remote DC Operation
This function allows you to turn your Power Console on and off via any
component that is equipped with a 3~30V DC output (low-voltage trigger out).
Note: You cannot turn off the switched outlets on the Power Console
with the switched button on the front of the unit when there is any
external power signal supplied to either the AC or DC remote inputs.
To install the Remote DC Control Cable:
A. Connect the Remote DC Control Cable (included) into the outlet labeled
“DC IN” on the rear panel of the Power Console. (Fig. 3a)
B. Press the “Remote” button on the front of the Power Console to turn
on the remote function. The "Remote ON" indicator should be lit. (Fig. 3b)
C. Press the “Switched” button on the front of the Power Console to turn
off the switched outlets.
D. Connect the other end of the Remote DC Control Cable into the 3~30V
output (low-voltage trigger out) on your component. When you turn on
the component the outlets on the Power Console programmed as
“Switched” will be turned on immediately and the “Switched/ Delayed”
outlets will come on after an 8 second delay.
8
Figure 3a Figure 3b

PureAV Power Console
Hookup and Installation
9
Step 4
Connect Video Components to the Video Filter
The PureAV Power Console PF31 contains an isolated Video Filter that is
optimized to clean and condition the power to all of your video components.
The Video Filter also isolates your video components from connected
audio and high-current audio components. The video filter outlets are
"Always on" when the Power Console is plugged into a live AC outlet.
A. Attach PureAV power cord labels to each component’s power cord
before you plug the cord into the corresponding outlet on the Power
Console.
B. VCR – Connect your VCR power cord to the outlet labeled “VCR”.
C. DVD – Connect your DVD power cord to the outlet labeled “DVD”.
D. Cable/Satellite – Connect your cable or satellite receiver power cord to
the outlet labeled “Cable/SAT”.
E. TV – Connect your TV or monitor power cord to the outlet labeled
“TV/Monitor”.
Note: You can connect any type of video component into any of the
Video Filter outlets. You are not limited to the components
listed above.

Hookup and Installation
PureAV Power Console
10
Step 5
Connect Audio Components to the Audio Filter
The PureAV Power Console PF31 contains an isolated Audio Filter that is
optimized to clean and condition the power to all of your audio
components. The Audio Filter also isolates your audio components from
connected video and high-current audio components. The audio filter
outlets are "Switched" and are controlled by the "Switched" button the
front of the Power Console.
A. Attach PureAV power cord labels to each component’s power cord
before you plug the cord into the corresponding outlet on the Power
Console.
B. CD – Connect your CD player power cord to the outlet labeled “CD”.
C. Tape – Connect your tape player power cord to the outlet labeled “Tape”.
D. Auxiliary – This outlet can be used to connect any other audio
equipment you may have.
E. Receiver (Preamp) – Connect your receiver or preamp power cord to
the outlet labeled “Receiver”.
Note: You can connect any type of audio component into the Audio
Filter outlets. You are not limited to the components listed above

PureAV Power Console
Hookup and Installation
Step 6
Connect High-Current Audio Filter (8 second delay)
These outlets are specifically designed to filter out AC line noise while
delivering maximum current to power-hungry amplifiers and other high-
current audio components. The High-Current outlets are also equipped
with an 8 second delay. This allows your high-current amplifiers to turn on
last and turn off first, avoiding that annoying “thump” from getting to your
speakers and potentially damaging them.
A. Attach PureAV power cord labels to each component’s power
cord before you plug the cord into the corresponding outlet on the
Power Console.
B. AMP 1 - Connect your main amplifier power cord to the outlet labeled
“AMP 1”.
C. AMP 2 – Connect your secondary amplifier power cord to the outlet
labeled “AMP 2”.
Note: You can connect any type of high-current audio component into
any of the High-Current outlets. You are not limited to the
components listed above.
11

Hookup and Installation
PureAV Power Console
12
Step 7
Connect your Pay-Per-View/Phone Line
Your PureAV Power Console comes equipped with Pay-Per-View/phone-line
protection with a built-in splitter. These are standard RJ11 phone jacks and
are labeled “Phone”.
A. Connect one end of your telephone cable to the wall outlet to which you
normally connect your phone line. Connect the other end of your
telephone cable to the Power Console Phone jack labeled “IN”.
B. Connect one end of the PureAV phone cable (included) to the Power
Console Phone jack labeled “OUT”. Connect the other end of this cable
to the Pay-Per-View phone jack on your DSS receiver.
C. To connect a telephone - Connect one end of another phone cable to
the other Power Console Phone jack labeled “OUT”. Connect the other
end of this cable to the telephone you want to use.
Note: We have included labels for the Phone IN and Phone OUT lines if
needed for better organization.

13
PureAV Power Console
Hookup and Installation
Step 8
Connect your Coaxial-Cable/DSS Lines
Your PureAV Power Console comes with three pairs of coaxial-cable
connections to protect your system from dangerous electrical disturbances
that can travel down your coaxial-cables lines. You will need additional
coaxial cables to connect the Power Console to your home theater
components.
A. Cable TV – Connect the incoming cable television coaxial-cable line to
the connector labeled “Cable IN”. Connect one end of a second coaxial
cable to the connector labeled “Cable OUT”. Connect the other end of
this cable to your cable TV tuner.
B. Satellite (DSS) TV – Connect the incoming satellite television coaxial-
cable line to the connector labeled “SAT IN”. Connect one end of a
second coaxial cable to the connector labeled “SAT OUT”. Connect the
other end of this cable to your satellite TV tuner.
C. Antenna – Connect the incoming TV or radio antenna cable line to the
connector labeled “Antenna IN”. Connect one end of a second coaxial
cable to the connector labeled “Antenna OUT”. Connect the other end
of this cable to your TV or radio equipment.
Note: We have included labels for the Coax IN and Coax OUT lines if
needed for better organization.
IMPORTANT WARNING - To sufficiently safeguard all of your
equipment from damage resulting from a power surge, all of your
incoming coaxial-cable lines should be properly grounded. Contact a
licensed electrician to verify that all of your cable lines are properly
grounded to a cold-water pipe or ground rod.

14
Hookup and Installation
Step 9
Connect your Broadband Ethernet Line
Your PureAV Power Console comes equipped with broadband Ethernet line
protection. These are standard RJ45 Ethernet jacks and they are labeled
“Network”.
A. Connect one end of an RJ45 network patch cable to a network jack
(either directly to a router or wired network wall jack). Connect the
other end of the network patch cable to the Network jack labeled “IN”.
B. Connect one end of the broadband Ethernet cable (included) to the
Network jack labeled “OUT”. Connect the other end of this cable to the
networked device (digital media receiver, gaming console, etc.)
Note: We have included labels for the Network IN and Network OUT lines if
needed for better organization.
PureAV Power Console

15
PureAV Power Console
Operation
Central LED Control Panel
The PureAV Power Console PF31 is equipped with an advanced LED Control
Panel. Most functions of the Power Console can be monitored from this display.
A. PureFilter indicator – indicates that the multiphase PureFilter Circuitry
is functioning properly.
B. Voltmeter – displays the input voltage (the amount of voltage coming
from the AC wall outlet to the Power Console).
C. Current Meter – displays the output current (the amount of current
output [in Amps] from the Power Console’s outlets).
D. Wiring OK indicator light – indicates whether the AC outlet to which
the Power Console is connected is wired properly, or cross-wired. If the
Wiring OK indicator does not light, then the hot and neutral wires are
reversed. See page 18 of the Troubleshooting section for more information.
E. Ground OK indicator light – indicates if the Power Console is connected
to a properly grounded AC outlet. If the Ground OK indicator does not
light, this indicates that the AC wall outlet is not properly grounded.
See page 18 of the Troubleshooting section for more information.
F. Switched ON indicator light – indicates that the “Switched” outlets are
switched ON.
G. Timed ON indicator light – indicates that the delayed outlets are
switched ON after a delay.
H. Remote ON indicator light – indicates that the Remote function is ON
(controlled with the “Remote” button).
I. Remote Button – switches the Power Console to Remote ON status
when pressed. (When in Remote ON status, the Power Console outlets
that are programmed as switched are turned ON/OFF via external
remote signal [see pages 7-8])
J. Dimmer Button – adjusts the brightness of the LED Control Panel;
press it repeatedly to change the brightness level.
JI
F
G
H
C
B
A
E
D

16
Operation
Auxiliary Power Outlet
The Power Console is equipped with a front auxiliary power outlet. This
outlet contains a noise filter that is optimized for video and is a convenient
place to connect video cameras, digital still cameras, MP3 players, or any
other portable device in need of AC power. Simply remove the small door
covering the outlet by sliding it to the right (Fig. 4) and plug in your device.
This outlet is always live (always-on) when the Power Console is plugged
into AC power. The “Switched” button does not control the auxiliary outlet.
Figure 4
PureAV Power Console

PureAV Power Console
Troubleshooting
17
Power Console is not providing power
•Check to ensure that the Power Console is plugged into a properly
grounded AC wall outlet. Some outlets require a wall switch to be turned
on in order to deliver power to the outlet.
•Too many devices may be plugged into the Power Console, which are
overloading the unit and tripping the overload circuit breaker. The Power
Console is not designed to handle current loads larger than 15 Amps or
1800 watts. Try unplugging some devices and resetting the circuit
breaker located on the end of the Power Console.
To reset the circuit breaker: Wait at least 10 minutes after the circuit
breaker was tripped before attempting to reset the breaker. Press in
the button located next to the power cord on the end of the unit to
reset. Power should be restored to the outlets on the Power Console.
•Your components may be plugged into a “Switched” outlet and the
outlet is not Switched On. Check to ensure that the Switched ON
indicator on the Control Panel is illuminated. If the light is not
illuminated, press the Switched button on the front of the Power Console
unit until the Switched ON indicator is illuminated. You should now have
power to all of the switched outlets.
•Your components may not be turned on. Power may be flowing from the
Power Console, but if the power switch on your component is not turned
on then your component cannot receive power. Turn on the power switch
on your component.
•The Power Console is designed to stop delivering power to all outlets
when the surge-protection circuitry is not functioning properly or is
expired. Call Belkin Customer Service for assistance.
•The Power Console may be defective. Call Belkin Customer Service for
assistance.

Troubleshooting
PureAV Power Console
18
Ground OK indicator light is not lit
•Check to make sure that the Power Console is plugged into a grounded
AC wall outlet. (3-prong AC outlets only. Do not use 2–3-prong adapters.)
•If the Ground OK indicator light is still not lit, you have a ground-wiring
problem. Connecting the PureAV Power Console to an improperly
grounded outlet is not safe and will void all Belkin Corporation
warranties. Unplug the Power Console and consult an electrician to
properly ground the outlet. If the outlet is properly grounded and the
Ground OK indicator light is still not lit, the Power Console may be
malfunctioning. Please call Belkin Customer Service for assistance.
Wiring OK indicator light is not lit
•Check to make sure that the Power Console is plugged into a grounded
AC wall outlet. (3-prong AC outlets only. Do not use 2–3-prong adapters.)
•If the Wiring OK indicator light is still not lit, this indicates that the hot
and neutral (L-N) wires are reversed. Unplug the Power Console and
consult an electrician.
For all other technical questions or troubleshooting issues, please
contact Belkin Customer Service at 800-223-5546.

PureAV Power Console
19
Glossary of Power Terms
Alternating Current (AC): The current that is commonly flowing through
the electrical outlets in your home. It is an electrical current in the form of
a sine wave that oscillates up and down continuously.
Amp: An abbreviation for Ampere. This is a unit of electrical current.
Direct Current (DC): An electrical current flowing in one direction only.
DC current does not have a wave form.
Electromagnetic Interference (EMI): Electrical interference generated by
appliances and many other electrical components that cause degradation
of sound and picture quality in audio and video equipment.
Ground: A conducting object, such as a wire, that is connected to a
position of zero-voltage potential. Common connecting points are ground
rods or cold-water pipes that are connected to the Earth.
Joule Rating: A measure of electrical energy. The higher the joule rating,
the more electrical surges a device can absorb before failing.
Maximum Spike Current: The maximum current (in Amps) that can be
absorbed before failing. The higher the maximum spike current, the more
current a device can absorb without failing.
Radio Frequency Interference (RFI): Electromagnetic radiation, which is
emitted by electrical circuits carrying rapidly changing signals as a by-
product of their normal operation, and which causes interference or noise
to be induced in other circuits.
Spike: A very fast transient variation in voltage or current. Many small
transients, over time, cause components to wear and fail.
Surge: An increase in voltage or current significantly above the designated
level in a flow of electricity.
