Bellfires Derby Large Tunnel 3 CF User manual

Derby Large Tunnel 3 CF
Direct Vent Gas Fireplace
Installation manual
- Do not store or use gasoline or other fl ammable vapors and liquids in
the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fi re department.
- Installation and service must be performed by a qualifi ed installer,
service agency or the gas supplier.
WARNING: If the information in these instructions are not
followed exactly, a fi re or explosion may result causing property damage,
personal injury or loss of life.
This appliance may be installed in an aftermarket, permanently located,
manufactured home (USA only) or mobile home, where not prohibited by
local codes. This appliance is only for use with the types of gas indicated
on the rating plate. A conversion kit is supplied with the appliance.
WARNINGS
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING INSTALLER: Leave this manual with
the appliance.
CONSUMER: Retain this manual for
future reference.

3
Bellfi res Installation instructions
CONTENTS
Page
IMPORTANT SAFETY INSTRUCTIONS ................................................
....... ... 5
CODE APPROVAL ..................................................... ....... ......... ... .... . .. ... . 7
PRE INSTALLATION INSTRUCTIONS ............................
............... ........... ..... . 8
GENERAL ................................................................ ...... .. .... .. .... ..... ...... ... 8
CONCENTRIC FLUE SYSTEMS ............................... ......... .... .. .......... . . .. . 9
INCLUDED WITH THE APPLIANCE .......................... ...................... ........ 10
OPTIONS AND ACCESSORIES .............................................................. 11
CLEARANCES .................................................................
. ... ... .. ..................... .. 12
VENT INSTALLATION ...................................................... ....... . ....... ...... ... ........ 16
POSITIONING THE APPLIANCE ................................................... ....... ........... 28
GAS LINE INSTALLATION ........................................................... ... .... .......... ... 35
BUILDING IN THE APPLIANCE ......................................................... ...... ........ 40
PLACING OF CERAMIC LOG SET ................................. ......... .... ............ ....... . 41
MOUNTING OF FLUE GAS RESTRICTION PLATE ........................... ........ ..... 45
ANNUAL MAINTENANCE ....................................................
.......... ... ............ ... 47
FAULTS ............................................................................. ........................... ..... 48
POSSIBLE REASONS ................................................... ....... .. ........ ......... 48
SAFETY MEASURES IN THE APPLIANCE ............ .............. ...... .... ........ . 48
DISMANTLING / ASSEMBLING OF THE GLASS .............
....... ...... ......... ......... 49
DIAGRAM ELECTRICITY AND GAS ................................................................ 53
DIMENSIONS ...........................................................................
.................... .... 54
OPERATING UNIT ......................................................... ............. ..... .... ....... ..... . 56
TECHNICAL DETAILS ............................... .................. ................................... . 57
REPLACEMENT PART LIST ..........
......................... ........... ................ ........ ...... . 58
PROPANE CONVERSION KIT ...........................................................
.... .. .... .... 61
WARRANTY TERMS ...................................................... .... . ... ........ ......... ......... 62

4
Bellfi res Installation instructions

5
Bellfi res Installation instructions
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Improper installation, adjustment, alteration,
services or maintenance can cause serious injury or property damage.
Refer to this manual.
SAVE THESE INSTRUCTIONS
Make yourself fully aware of all the following instructions and the many
features of the Bellfi res direct vent gas fi replace appliance.
INSTALLER: Leave this manual with the appliance
CONSUMER: Retain this manual for future reference.
1. This appliance reaches high temperatures. Keep children and adults away from
hot surfaces to avoid burns or clothing ignition. The appliance will remain hot for
a time after shutdown. Allow surfaces to cool before touching.
2. Young children MUST be carefully supervised when they are in the same room
as the appliance. Toddlers, young children and others may be susceptible to
accidental contact burns. The remote control handset should be kept out of
reach of children. A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a fi replace or stove, install an
adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
3. Keep the area around your appliance clear of combustible materials, gasoline
and other fl ammable vapor and liquids.
4. Do not place embers, vermiculite granules or wood logs against the pilot light
burner. Make sure that the pilot flame can burn at all times freely over the
main burner. Only in this way is proper ignition of the main burner ensured.
Ignoring these directions could lead to a dangerous situation.
5. Never place anything on top of the appliance.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
WARNING

6
Bellfi res Installation instructions
IMPORTANT SAFETY INSTRUCTIONS
6. Do not use this appliance to cook food or burn paper or other objects.
7. Do not use any solid or liquid fuels in this appliance. Use only the gas type
indicated on the rating plate.
8. This appliance is only for use with the type of gas indicated on the rating plate.
This appliance is convertible for use with other gases. A conversion kit is supplied
with this appliance.
WARNING: The conversion kit shall be installed by a qualifi ed
service agency in accordance with the manufacturer’s instructions and all
applicable codes and requirements of the authority having jurisdiction.
If the information in these instructions is not followed exactly, a fi re,
explosion or production of carbon monoxide may result causing property
damage, personal injury or loss of life. The qualifi ed service agency is
responsible for the proper installation of this kit. The installation is not
proper and complete until the operation of the converted appliance, is
checked as specifi ed in the manufacturer’s instruction supplied with this
kit.
9. This appliance must not be connected to a chimney fl ue serving a separate
solid-fuel burning appliance.
10. Installation and service must be performed by a qualifi ed installer, service agency
or gas supplier.
11. DO NOT operate the appliance with glass removed, cracked or broken.
12. DO NOT use abrasive cleaners on the panels. DO NOT attempt to clean the
glass when it is hot.
13. DO NOT strike or slam the glass panel.
14. DO NOT modify the appliance under any circumstances. Any parts removed for
servicing must be replaced prior to operating the appliance.
15. Turn the appliance off and let cool before servicing, installing or repairing.
ONLY a qualifi ed service person should install, service or repair the appliance.
Have burner system inspected annually by a qualifi ed service person.
16. Keep control compartments, burners and circulating air passages clean. More
frequent cleaning may be needed due to excessive lint and dust. Turn off the
gas valve and appliance (OFF on remote control) before cleaning the appliance.
17. The venting system MUST checked annually by a qualifi ed service person.
If needed, have the venting system cleaned or repaired.
18. When the appliance is installed directly on carpeting, tile or other combustible
material, it must be set on a metal panel or hearth pad extending at least the full
width and depth of the appliance.
19. DO NOT obstruct the fl ow of combustion and ventilation air in any way. Provide
adequate clearances around air openings into the combustion chamber along
with adequate accessibility clearance for servicing and proper operation.

7
Bellfi res Installation instructions
IMPORTANT SAFETY INSTRUCTIONS
20. DO NOT use the appliance if any part has been exposed to or has been under
water. Immediately call a qualifi ed service technician to inspect the appliance and
replace any part of the control system and any gas control which has been
submerged in water.
21. DO NOT operate the appliance if any log is broken.
22. The installation must conform with local codes or, in the absence of local codes,
with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and
Propane Installation Code, CSA B149.1.
23. This appliance, when installed, must be electrically grounded in accordance with
local codes or in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
24. The appliance is equipped with a safety system, whereby the door will extract
any over-pressure in a controlled way. In this, the door will briefl y open.
A safety strip limits the maximum degree to which te door can be tilted.
To avoid any possible personal harm when the door opens due to an
over-pressure, always maintain a minimum distance of 8 inch (20 cm) to the
appliance, when igniting and when burning. If an over-pressure situation occurs,
the appliance should be thorougly checked by the installer.
WARNING: Never connect unit to private (non-utility) gas wells.
This gas is commonly known as well-headed gas.
CODE APPROVAL
Direct Vent type appliances draw all combustion air from outside of the dwelling through
the vent pipe.
These appliances have been tested by CSA and found to comply with the established
standards for VENTED GAS FIREPLACES in the USA and Canada as follows:
LISTED VENTED GAS FIREPLACES
Derby Large Tunnel 3 CF tested to:
- ANSI Z21. 88 - 2009 / CSA 2.33 - 2009 Vented Gas Fireplace Heaters
- ANSI Z21.88a - 2012 / CSA 2.33a - 2012 - Addenda 1 to ANSI Z21.88 - 2009 /
CSA 2.33 - 2009
- CSA P4.1 - 09 Testing method for measuring annual fi replace effi ciency (Canada).
A manufactured home (USA only) or mobile home OEM installation must conform with
the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part
3280, or when such a standard is not applicable, the Standard for Manufactured
Home installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped
Recreational Vehicles and Mobile Housing, CSA Z240.4.

8
Bellfi res Installation instructions
GENERAL
This ‘direct vent’ gas appliance must be installed by a qualifi ed installer in accordance
with local building codes, or in the absence of local codes, with the current CAN/CSA-
B149.1 or .2 Installation Code (in Canada) or the current National Fuel Gas Code
Z223.1-NFPA 54 when installed in the United States.
This appliance, when installed, must be electrically connected and grounded in
accordance with local codes, or in the absence of local codes, with the current CSA
C22.1 Canadian Electrical Code or with the National Electrical Code; ANSI/NFPA 70
when installed in the United States. If you have any queries regarding the installation,
please consult your local gas company.
The appliance is supplied with a “Centre Fire” double burner. This burner has a specifi c
fl ame image which is defi ned by the perforation pattern in the burner cover.
See Chapter “DIAGRAM ELECTRICITY AND GAS” and the Operating Manual.
The appliance is factory set to the correct nominal heat input. The pilot light is set to the
correct level of consumption.
The appliance will be delivered from the factory with a or 5”- 8” concentric connection
for extracting the fl ue gases and supply of combustion air.
It is possible to install the appliance with either a wall or roof outlet. The roof connection
must be carried out using a reducer (5” - 8” → 4” - 6⅝”) and the concentric fl ue
system 4” - 6⅝”. The fumes are exhausted naturally to the outside environment through
the inner 4” pipe whereas the combustion air supply passes between the 4” and 6⅝”
pipes.
PRE INSTALLATION INSTRUCTIONS
IMPORTANT:
Before beginning the installation, check that the details on the rating
plate correspond to the gas type and pressure to which the appliance
will be connected.
WARNING: Due to high temperatures, the appliance should be
located out of traffi c and away from furniture and draperies.

9
Bellfi res Installation instructions
The wall connection must be carried out using the concentric fl ue system 5” - 8”. The
fl ue gases are evacuated outside by means of natural draft through the internal pipe of
5”, whereas the combustion air is supplied between the pipes of Ø5” and Ø8”.
The appliance can be installed in a completely sealed or mechanically ventilated house
without extra ventilation and/or fume extraction.
The appliance can be installed as an insert into an existing open fi re place or as a built-
in appliance in a new fi re place. In order to prevent the fi replace heating up excessively,
it must be properly ventilated by installing vents at the top and bottom of the fi replace.
A barrier safety screen designed to reduce the risk of burns from the hot viewing glass
shall be installed.
The appliance can be fi tted with a convection package as an optional extra. This is a
“convection jacket” (convection casing) for around and above the appliance, two fl exible
aluminium pipes and two built-in convection vents. This enables hot air to be circulated
into the room.
If required, two additional convector grills can be fi tted (= 1x extra convection set). If
an existing chimney is to be used, please consult your installer fi rst. If the chimney was
previously used for a wood or coal fi re, then it should be cleaned by an expert.
CONCENTRIC FLUE SYSTEMS 4” - 6⅝” and 5” - 8”
• DuraVent - DirectVent Pro
The appliance, in combination with the concentric flue system [4” - 6⅝”] and/or [5”- 8”]
(rigid and/or fl exible) for the brand, DuraVent (DirectVent Pro), has been approved in
accordance with the Canadian CSA standard for direct vented gas appliances and may
therefore be used only with these systems.
The permitted components for these systems are listed in Chapter “Vent Installation”.
The guarantee on the appliance lapses if it is installed, fully or partially, with other
components or a different flue system.
The concentric flue [4” - 6⅝”] and [5”- 8”] systems can be used with either a newly-built
or existing chimney.
PRE INSTALLATION INSTRUCTIONS

10
Bellfi res Installation instructions
INCLUDED WITH THE APPLIANCE
N.B. If any part is missing, please contact your dealer.
Set documentation - Instructions for use
- Installation instructions
Attributes - Ceramic log set
- Hook (for opening the frame and the glass)
PRE INSTALLATION INSTRUCTIONS

11
Bellfi res Installation instructions
PRE INSTALLATION INSTRUCTIONS
OPTIONS AND ACCESSORIES
The following options and accessories can be supplied by your dealer:
Part no Accessorie
312829 Convection set General: (for convection air extraction)
302188 • 1x Flexible aluminium pipe Ø5” (125 mm), L=10 feet (3 m) (max.)
310178 • 2x Fitting box 5.3” x 5.3” (135 x 135 mm)
309872 • 2x Convection exit grid, white, 5.7” x 5.7” (145 x 145 mm)
309730 • 2x Collar adaptor Ø5” (125 mm)
304040 • 4x Hose clamp Ø5” (125 mm)
329874 Set carrying brackets (2 pieces)
3....... Barrier
DuraVent - DirectVent Pro concentric fl ue system
See component summary
Part no Option
Convection package Derby Large Tunnel 3
332054 • 1x Convection top plate
312829 • 1x Convection set General
330361 Set of high adjustable feet (4 pieces)
311967 Mantle iron L = 1250 mm
3..... High altitude kit 2 000 - 4 500 ft
Derby Large Tunnel 3 CF

12
Bellfi res Installation instructions
The appliance must be installed on a non-combustible fl oor. If installed on, for example,
carpet or vinyl fl ooring, the appliance shall be placed on a plate of non-combustible
material extending the full width and depth of the appliance.
All clearances to combustible and non-combustible materials must be maintained as
described in this manual.
Clearances are in accordance with local installation codes and the requirements of the
gas supplier.
Never use combustible materials during the installation.
During installation of the appliance, a clearance of 0.12 in (3 mm) should be maintained
on all sides of the appliance to allow for expansion of the appliance during operation.
Do not insulate the appliance! Only the top and sides may be fi tted with a strip of white,
loose insulation wool (heat-resistant to 1832°F (1000°C)), width 5.9 in (15 cm) max. to
protect the wall.
Do not use fi breglass or Rockwool, or any other sort of insulating material. These emit
a pungent odour. This is considered extremely unpleasant. They may also cause
discolouring of the column.
Combustible materials, such as curtains, should not be placed in the vicinity of the
appliance. Minimum safe distance: 40 in.
Never place the appliance directly to a combustible or non-combustible rear wall and
side wall.
Clearances to combustible material
Always place a non-combustible insulation plate with a thickness of min. 1” (2.54 cm)
between the appliance and the rear wall and the side wall according to fi gure 1.
Minimum clearances to combustible material must be maintained.
Clearance to combustible ceiling: Place a non-combustible insulation plate with a
thickness of min. 1¼” (30 cm) at a height of minimum 20” above the appliance. Maintain
a free space of 4” (10 cm) between the insulation plate and a combustible ceiling.
CLEARANCES
WARNING: Follow these instructions carefully to ensure safe
installation. Failure to follow instructions exactly can create a fi re hazard.

13
Bellfi res Installation instructions
CLEARANCES

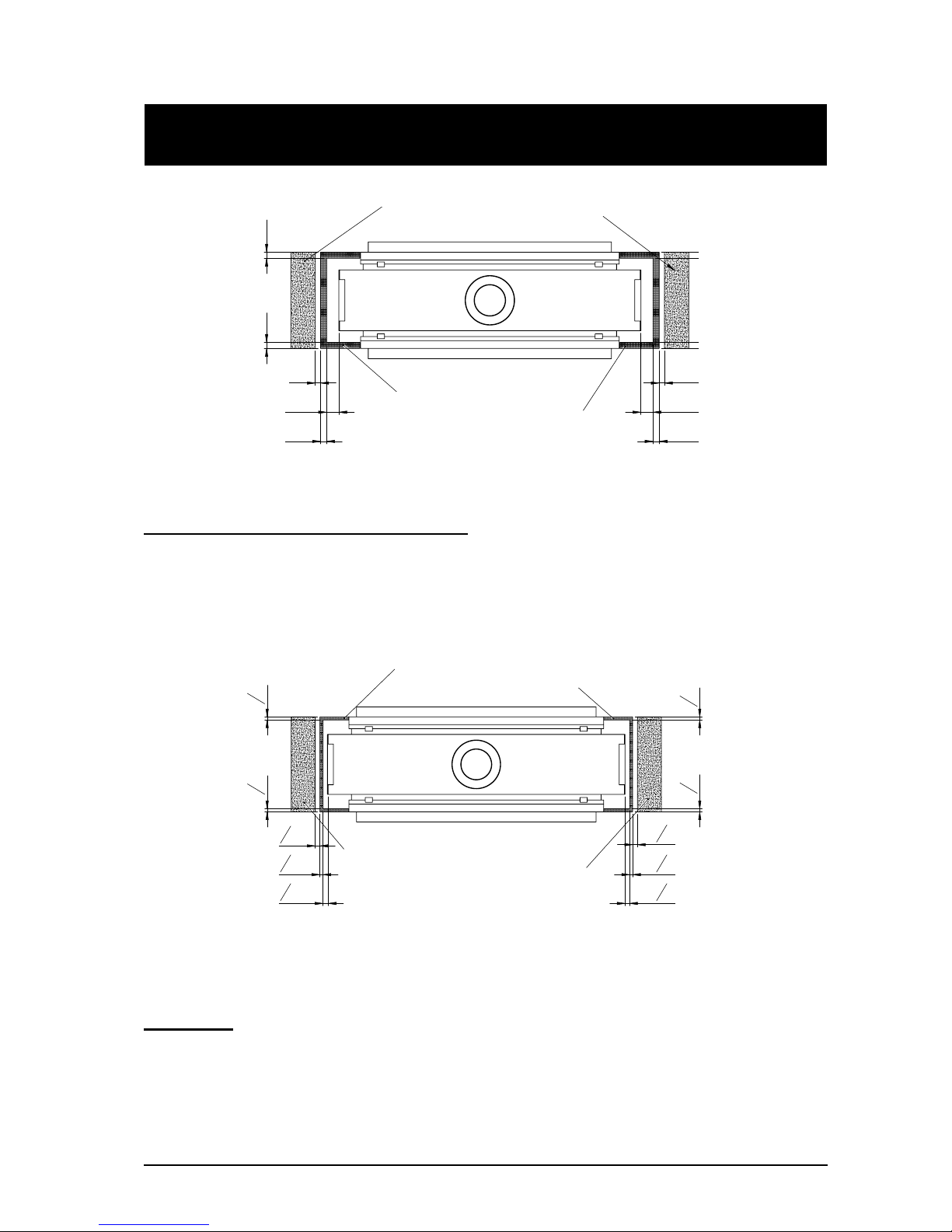

Figure 1: Clearances to combustible material
Clearance to non-combustible material
Always place a non-combustible insulation plate, at least ½" (12 mm) thick between
the appliance and a non-combustible rear and side wall. Maintain a free space of at
least ¾" (2 cm) on either side of the insulation plate.
Minimum clearances as shown in fi gure 2 must be maintained.


&RPEXVWLEOHPDWHULDO
0DWqULHOFRPEXVWLEOHV
,QVXODWLRQERDUG
3DQQHDXGLVRODWLRQ$SSOLDQFH
$SSDUHLO




















1RQFRPEXVWLEOHPDWHULDO
0DWqULHOLQFRPEXVWLEOHV
,QVXODWLRQERDUG3DQQHDXGLVRODWLRQ$SSOLDQFH
$SSHUHLO
Figure 2: Clearances to non-combustible material
Ventilation
Ventilate the fi replace/chimney breast:
• all spaces between the appliance and the insulation plates
• all spaces between the insulation plates an all surrounding walls
by allowing vents above and below.

14
Bellfi res Installation instructions
CLEARANCES
Insulation plate/board
Any used insulation plates must have a maximum thermal conductivity of 0.69 BTU/
(ft2.h.°F/in) (0.10 W/m.K). Suitable insulation materials are listed in table 1.
Do not use fi breglass or Rockwool, or similar material. These materials emit a pungent
odour, which is considered extremely unpleasant.
Mantel clearances
Any mantel piece made of combustible material should be placed at least 2" from the
side and top of the fi replace opening. Minimum mantel clearances are shown in fi gure
3 to 5.
Table 1: Suitable insulation material
Figure 3: Mantel clearances
10” Minimum
Insulation board
12” Max. Depth
5”
Min. to combustables
20” Minimum ceiling
From opening
2” Min.
From opening
12” Min.
From opening
2” Min.
2” Max. Depth
Plate material Thermal conductivity BTU/(ft2.h.°F/in) (W.m.K)
Promat Promatect L insulating board 0.57 (0.083)
Skamol Skamotec 225 0.416 (0.06)
Skamol Super-Isol 0.55 (0.08)

15
Bellfi res Installation instructions
CLEARANCES

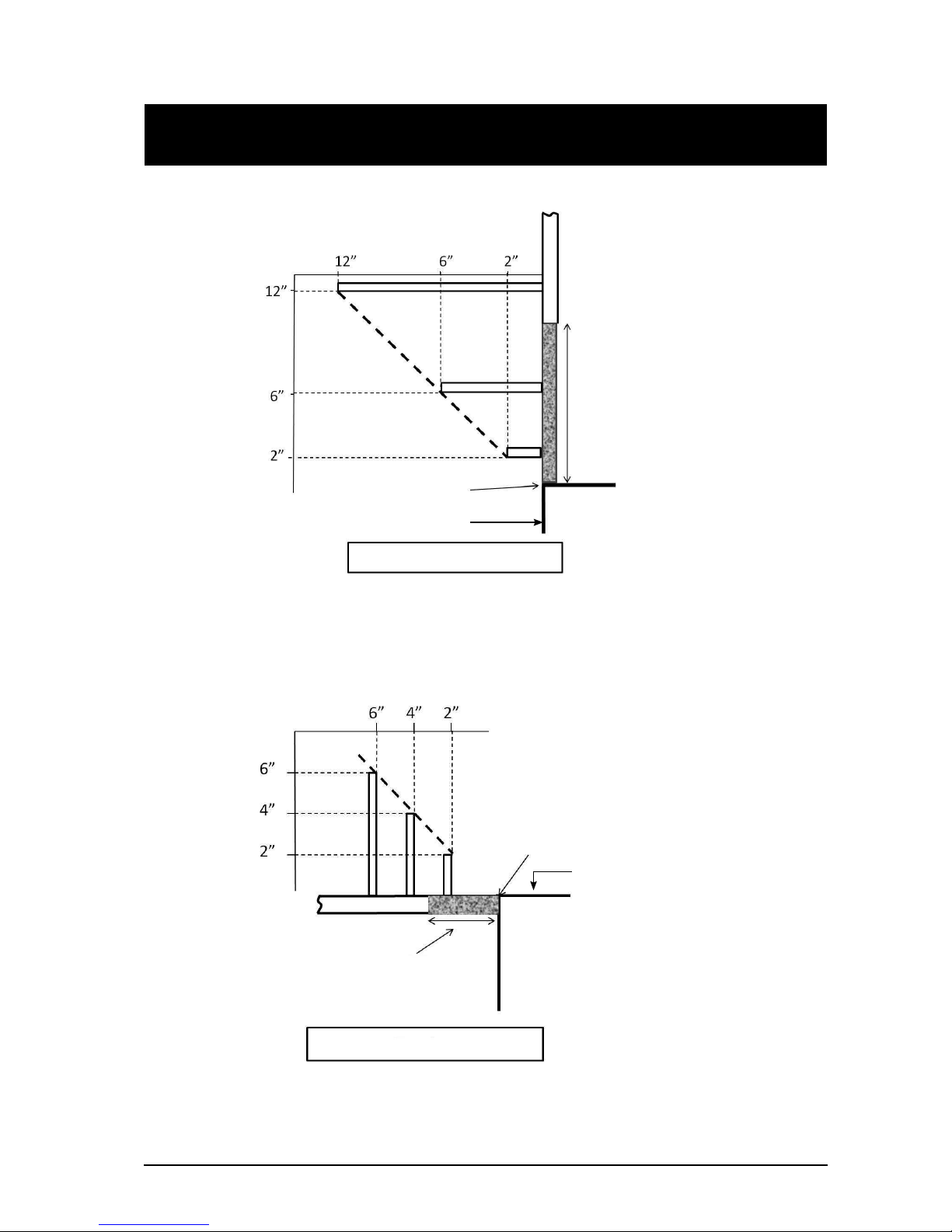

Figure 4: Top mantel clearances
Figure 5: Side mantel clearances
Min. 10” non-combustible
material
Top of fi replace opening
Depth of mantel [inch]
Side view
Heigth of mantel [inch]
Glass front appliance
Min. 3” non-combustible
material
Side of fi replace opening
Width of mantel [inch]
Top view
Depth of mantel [inch]
Glass front
appliance

16
Bellfi res Installation instructions

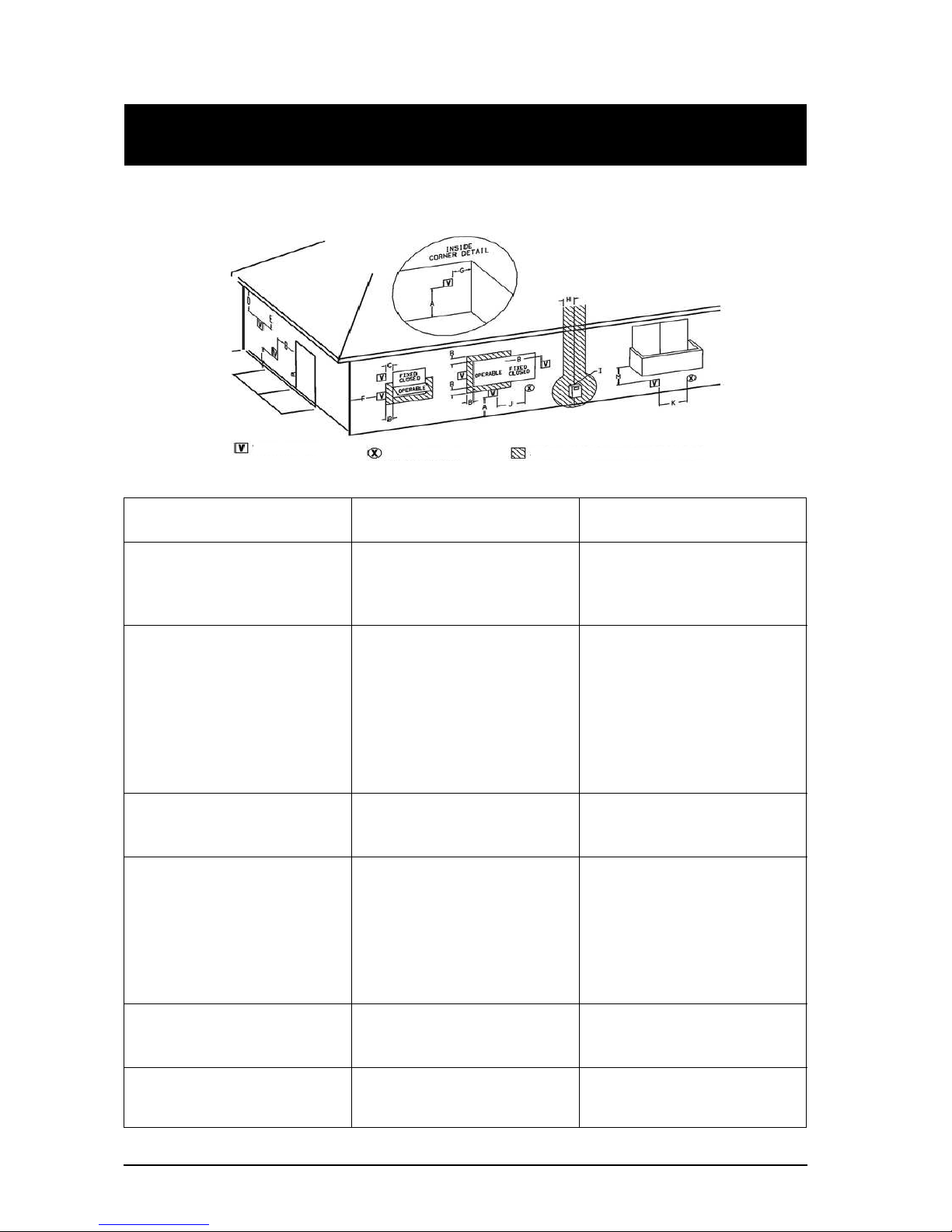

VENT INSTALLATION
Canadian Installations1 US Installations2
A= Clearance above, grade, 12 in (30 cm) 12 in (30 cm)
veranda, porch, deck or
balcony
B= Clearance to window, 6 in (15 cm) for appliances 6 in (15 cm) for appliances
or door that may be ≤ 10,000 Btuh (3 kW), 12 ≤ 10,000 Btuh (3 kW), 9 in
opened in (30 cm) for appliances > (23 cm) for appliances >
10,000 Btuh (3 kW) and ≤ 10,000 Btuh (3 kW) and ≤
100,000 Btuh (30 kW), 36 50,000 Btuh (15 kW), 12
in (91 cm) for appliances > in (30 cm) for appliances >
100,000 Btuh (30 kW) 50,000 Btuh (15 kW)
C= Clearance to permanent- 3 ft (91 cm) 3 ft (91 cm)
ly closed window
D= Vertical clearance to 18 in (46 cm) 18 in (46 cm)
ventilated soffi t located
above the terminal within
a horizontal distance of
2 feet (610 mm) from the
center line of the terminal
E= Clearance to 12 in ( 30.5 cm) 12 in ( 30.5 cm)
unventilated soffi t
F= Clearance to outside 20 in (50.8 cm) 20 in (50.8 cm)
corner
Area where terminal is not permitted
Vent terminal Air supply inlet

17
Bellfi res Installation instructions
VENT INSTALLATION
Canadian Installations1 US Installations2
G=Clearance to inside 20 in (50.8 cm) 20 in (50.8 cm)
corner
H= Clearance to each inside 3 ft (91 cm) within a height 3 ft (91 cm) within a height
of center line extended 15 ft (4.5m) above the 15 ft (4.5m) above the
above meter/regulator meter/regulator assembly meter/regulator assembly
assembly
I = Clearance to service 3 ft (91 cm) 3 ft (91 cm)
regulator vent outlet
J= Clearance to non- 6 in (15 cm) for appliances 6 in (15 cm) for appliances
mechanical air supply ≤ 10,000 Btuh (3 kW), 12 ≤ 10,000 Btuh (3 kW), 9 in
inlet to building or the in (30 cm) for appliances > (23 cm) for appliances >
combustion air inlet to 10,000 Btuh (3 kW) and ≤ 10,000 Btuh (3 kW) and ≤
any other appliance 100,000 Btuh (30 kW), 36 50,000 Btuh (15 kW), 12
in (91 cm) for appliances > in (30 cm) for appliances >
100,000 Btuh (30 kW) 50,000 Btuh (15 kW)
K= Clearance to a mechani- 6 ft (1.83 m) 3 ft (91 cm) above if within
cal air supply inlet 10 ft (3 m) horizontally
L= Clearance above paved 7 ft (2.13 m) † 7 ft (2.13 m) †
sidewalk or paved drive-
way located on public
property
M= Clearance under veranda, 20 in (51 cm) ‡ 20 in (51 cm) ‡
porch, deck or balcony
1 In accordance with the current CSA-B149 Installation Codes.
2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes.
† A vent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck or balcony is fully open on a minimum
of two sides beneath the fl oor.
NOTE: Local codes or regulations may require different clearances. Interfocos
assumes no responsibility for the improper performance of the appliance when
the venting system does not meet these requirements.

18
Bellfi res Installation instructions
AVAILABLE COMPONENTS FOR THE M&G DuraVent - DirectVent Pro
CONCENTRIC FLUE SYSTEM
4” - 6⅝”
VENT INSTALLATION
Item no Description DuraVent Part no
1 Horizontal Termination-Round Termination Cap 46DVA-HRCS
2 Horizont al Termination-High Wi nd Squ are Termination Cap 46DVA-HC
3 Horizontal Termination-Sconce Termination Cap 46DVA-HSC
4 Horizont al Terminati on-H igh Wi nd Scon ce Terminat ion Ca p 46DVA-HSCH
5 Vertical Termination-Low Profi le Termination Cap 46DVA-VC
6 Vertical Termination-High Wind Termination Cap 46DVA-VCH
7 Vertical Wind Guard-Only for High Wind Termination Cap 46DVA-VWG
8 6” Pipe Length 46DVA-06
9 9” Pipe Length 46DVA-09
10 12” Pipe Length 46DVA-12
11 18” Pipe Length 46DVA-18
12 24” Pipe Length 46DVA-24
13 36” Pipe Length 46DVA-36
14 48” Pipe Length 46DVA-48
15 60” Pipe Length 46DVA-60
16 8½” Pipe Extension 46DVA-08A
17 16” Pipe Extension 46DVA-16A
18 11”-17” Adjustable Pipe 46DVA-17TA
19 17”-24” Adjustable Pipe 46DVA-24TA
20 30° Elbow 46DVA-E30
21 45° Elbow 46DVA-E45
22 60° Elbow 46DVA-E60
23 90° Elbow 46DVA-E90
24 Flashing, 0/12 to 6/12 Roof Pitch 46DVA-F6
25 Steep Roof Flashing, 7/12 to 12/12 Roof Pitch 46DVA-F12
26 Flat Roof Flashing 46DVA-FF
27 Dead Soft Aluminum Flashing, 0/12 to 6/12 Roof Pitch 46DVA-F6DS
28 Dead Soft Aluminum Flashing, 7/12 to 12/12 Roof Pitch 46DVA-F12DS
29 Storm Collar 46DVA-SC
30 Ceiling Firestop 46DVA-FS
31 Vinyl Siding Standoff 46DVA-VSS
32 Attic Insulation Shield 46DVA-IS
33 Wall strap 46DVA-WS

19
Bellfi res Installation instructions
VENT INSTALLATION
Item no Description DuraVent Part no
34 Bellfi res Adapter Ø130 mm-200 mm(*) Bellfi res → 46DVA-ADB
4” x 6 5/8” DirectVent Pro
35 Flex liner 4” 4DFA-25
36 Connector 4SL-316

20
Bellfi res Installation instructions
VENT INSTALLATION
AVAILABLE COMPONENTS FOR THE M&G DuraVent - DirectVent Pro
CONCENTRIC FLUE SYSTEM
5” - 8”
Item no Description DuraVent Part no
101 Horizontal Termination-Round Termination Cap 58DVA-HRCS
102 Horizont al Termination-High Wi nd Squ are Termination Cap 58DVA-HC
103 Horizontal Termination-Sconce Termination Cap 58DVA-HSC
104 Horizont al Terminati on-H igh Wi nd Scon ce Terminat ion Ca p 58DVA-HSCH
105 Vertical Termination-Low Profi le Termination Cap 58DVA-VC
106 Vertical Termination-High Wind Termination Cap 58DVA-VCH
107 Vertical Wind Guard-Only for High Wind Termination Cap 58DVA-VWG
108 6” Pipe Length 58DVA-06
109 9” Pipe Length 58DVA-09
110 12” Pipe Length 58DVA-12
111 18” Pipe Length 58DVA-18
112 24” Pipe Length 58DVA-24
113
36” Pipe Length 58DVA-36
114 48” Pipe Length 58DVA-48
115 60” Pipe Length 58DVA-60
116 8½” Pipe Extension 58DVA-08A
117 16” Pipe Extension 58DVA-16A
118 11”-17” Adjustable Pipe 58DVA-17TA
119 17”-24” Adjustable Pipe 58DVA-24TA
120 30° Elbow 58DVA-E30
121 45° Elbow 58DVA-E45
122 60° Elbow 58DVA-E60
123 90° Elbow 58DVA-E90
124 Flashing, 0/12 to 6/12 Roof Pitch 58DVA-F6
125 Steep Roof Flashing, 7/12 to 12/12 Roof Pitch 58DVA-F12
126 Flat Roof Flashing 58DVA-FF
127 Dead Soft Aluminum Flashing, 0/12 to 6/12 Roof Pitch 58DVA-F6DS
128 Dead Soft Aluminum Flashing, 7/12 to 12/12 Roof Pitch 58DVA-F12DS
129 Storm Collar 58DVA-SC
130 Ceiling Firestop 58DVA-FS
131 Vinyl Siding Standoff 58DVA-VSS
132 Attic Insulation Shield 58DVA-IS
133 Flex Adapter Starter DVFF8A/8
