Bellfires UNICA-2 55 Installation and operation manual

INSTRUCTIONS FOR USE &
MANUAL DAILY MAINTENANCE
UNICA-2 55
Gas •re with open combustion system
This document is an essential part of your gas •re.
Read it carefully before use of the gas •re and keep it in a safe place!
Serial number:
Production date:
Bell•res wishes you many cosy evenings with your new Bell•res gas •re

3
Bellfires English
Instructions for use
BELLFIRES GAS FIRE WITH OPEN COMBUSTION SYSTEM:
Unica-2 55 (UNC-2 55)

4
Bellfires English
Instructions for use

5
Bellfires English
Instructions for use
CONTENTS
Page
1. WARRANTY TERMS ................................................................................. 7
2. INSTRUCTIONS FOR USE ....................................................................... 9
3. USING THE APPLIANCE FOR THE FIRST TIME ..................................... 30
4. DAILY MAINTENANCE ......................................
........... ......... ....... .. . . ...... ... 31
5. ANNUAL MAINTENANCE .
.............. ................................... ................ ........ 32

6
Bellfires English
Instructions for use

7
Bellfires English
Instructions for use
1 WARRANTY TERMS
Interfocos
Warranty terms
Interfocos B.V. guarantees the quality of the supplied Bellfires hearth and the quality
of the materials used. All Bellfires hearths are developed and manufactured according
to the highest possible quality standards. If, despite all this, something should prove
amiss with the Bellfires hearth you have purchased, Interfocos B.V. offers the following
manufacturer’s warranty.
Article 1: Warranty
1.1. If Interfocos B.V. determines that the Bellfires hearth you have purchased is
defective as a result of a flaw in the construction or material, Interfocos B.V.
guarantees to repair or replace the hearth free of charge, without charging any
costs for labour or spare parts.
1.2. Repair or replacement of the Bellfires hearth will be undertaken by Interfocos B.V.
or by a Bellfires dealer as designated by Interfocos B.V.
1.3. This warranty is supplementary to the existing legal national warranty of Bellfires
dealers and Interfocos B.V. in the country of purchase and is not intended to
restrict your rights and claims based on the applicable legal provisions.
Article 2: Warranty conditions
2.1. Should you wish to claim under the warranty, please contact your Bellfires dealer.
2.2. Complaints should be reported as quickly as possible after they have manifested
themselves.
2.3. Complaints will only be accepted if they are reported to the Bellfires dealer,
together with the serial number of the Bellfires hearth which is stated on the front
of the instructions for use.
2.4. In addition, the original receipt (invoice, receipt, cash receipt) showing the date of
purchase must also be submitted.
2.5. Repairs and replacements during the warranty period do not give any entitlement
to an extension of the warranty period. After a repair or replacement of warranty
parts, the warranty period shall be deemed to have started on the date of
purchasing the Bellfires hearth.
2.6. If a certain part is eligible for the warranty and the original part is no longer
available, Interfocos B.V. shall ensure that an alternative part of at least the
same quality shall be provided.
Article 3: Warranty exclusions
3.1. The warranty on the Bellfires hearth ceases to be in effect if:
a. it is not installed according to the supplied installation instructions, and to
national and/or local regulations;
b. it has been installed, connected or repaired by a non-Bellfires dealer;

8
Bellfires English
Instructions for use
c. it has not be used or maintained according to the instructions for use;
d. it has been changed, neglected or roughly treated;
e. it has been damaged as a result of external causes (outside the hearth
itself), for example, lightning strike, water damage or fire;
3.2. In addition, the warranty lapses if the original purchase receipt shows any
change, deletion, removal or if it is illegible.
Article 4: Warranty area
4.1. The warranty is only valid in those countries where Bellfires hearths are sold
through an official dealer network.
Article 5: Warranty period
5.1. This warranty will only be granted during the warranty period.
5.2. The body of the Bellfires hearth is guaranteed for a period of 10 years against
construction and/or material faults, starting from the moment of purchase.
5.3. For other parts of the Bellfires hearth, a similar warranty applies from the moment
of purchase for a period of one year.
5.4. For user parts such as glass, glass (cord), thermocouple and the interior of the
combustion chamber, a similar guarantee is given until after the first burning.
Article 6: Liability
6.1. A claim granted by Interfocos B.V. under this warranty does not automatically
imply that Interfocos B.V. also accepts liability for any possible damage.
The liability of Interfocos B.V. never extends further than that stated in these
warranty conditions. Any liability of Interfocos B.V. for consequential damage is
expressly excluded.
6.2. That stated in this provision is not valid if and to the extent that is derives from
a mandatory provision.
6.3. All agreements entered into by Interfocos B.V. are, unless specifically stated
otherwise in writing and to the extent that they are permitted based on applicable
law, subject to the Conditions of the Dutch Metal and Engineering Association
(METAALUNIEVOORWAARDEN), as filed with the registrar of the Court of
Rotterdam on 1 January 2014.
Interfocos B.V.
Hallenstraat 17
5531 AB Bladel
The Netherlands
Tel: [phone]
Email: info@Bellfires.com
Carefully retain the instructions for use; they show the serial number of the hearth.
You will need this if you wish to claim under the warranty.

9
Bellfires English
Instructions for use
2 INSTRUCTIONS FOR USE
2.1 INTRODUCTION
Congratulations on your purchase of this modern Bellfires gas fire with an open
combustion system.
This quality product will provide you with many years of enjoyment due to the flame
effect and warmth that it provides.
Please read the instructions for use carefully before using the appliance for the first
time. Keep this booklet in a safe place.
2.2 BUILT-IN PROTECTION OF THE APPLIANCE
The appliance is fully protected by means of a thermo-electric pilot light shut off in the
event of a gas escape from the main burner. Furthermore, the appliance is fitted with
an “oxy-stop” pilot flame that shuts down the burner if the flue gas is insufficiently
exhausted.
This atmosphere protection; the “oxy-stop” pilot light, should not replace an in-
dependently installed carbon monoxide detector.
2.2.1 Safety
Do not place embers, vermiculite granules, wood logs or pebbles against
the pilot light burner. Make sure that the pilot flame can burn at all times
freely over the main burner. Only in this way is proper ignition of the main
burner ensured.
Ignoring these directions could lead to a dangerous situation.
Do not place flammable objects within 100 cm of the appliance. Pay
special attention to furnishings and ornaments around the fire.
When igniting the pilot light and burner, always keep a minimum
distance of 100 cm from the front of the appliance.
If the pilot flame goes out for any reason, wait for 5 minutes before
attempting to re-light it.
It is essential that the appliance, the flue and the burner air intake are
cleaned and inspected annually by a recognised fitter/gas specialist.
The safe operation of the appliance will thus remain guaranteed. For this,
please refer to the Installation instructions (Chapter 2: Maintenance),
that are supplied separately with each appliance.
The gas fire must never be used with the door open or the door glass
removed.

10
Bellfires English
Instructions for use
2.3 OPERATION: REMOTE CONTROL
Remote control Remote control
Standard appliance Appliance equipped with ambient
lighting and/or convection fan (option)
Figure 1: Remote control
Never place flammable material on the ceramic log set.
The filling of the main burner with embers and wood logs, or pebbles,
may not under any circumstances be changed or added to.
Do not place easily-flammable materials, such as nylon clothing or
flammable liquids, in the vicinity of the gas fire.
Ensure at all times that children and other people who are not
aware of the operation of the gas appliance are only in the vicinity
of the appliance exclusively under supervision.
Use a fireguard to protect the people and children mentioned
above against possible burns.

11
Bellfires English
Instructions for use
2.3.1 General
Read these instructions carefully before lighting the fire ""
The appliance is opperated by radio remote control.
This comprises a hand-held transmitter and a receiver. The receiver is part of the gas
control block assembly.
The receiver and the gas control block are under in the appliance.
The appliance is supplied with ambient lighting and/or convection fan:
Electrical connections and batteries:
Standard appliance:
Hand-held 2x 1.5V battery
transmitter Type LR03 or AAA
Receiver 4x 1.5V battery Option:
Type LR06 or AA 6VDC adapter (230VAC).
Available from your fitter.
Note: Remove batteries from receiver"
*) During a power outage, you can temporarily install batteries in the receiver so that
the appliance continues to operate.
Note: Hand-held transmitter and receiver are not interchangeable with previous models.
The pilot light is situated in the front of the burner, behind a cowl. Should the pilot light
go out, you must wait five (5) minutes before attempting to re-ignite the fire.
Important
Once the fire is lit, it must burn at maximum for approx. 10 minutes to allow the chimney
to come up to temperature"
Hand-held 2x 1.5V batterij
transmitter Type LR03 or AAA
Receiver 6VDC Note:
via the 5 wire cable No batteries in the
from the Light-Module receiver. *)
Module - Light and/or 230 VAC
Convection fan

12
Bellfires English
Instructions for use

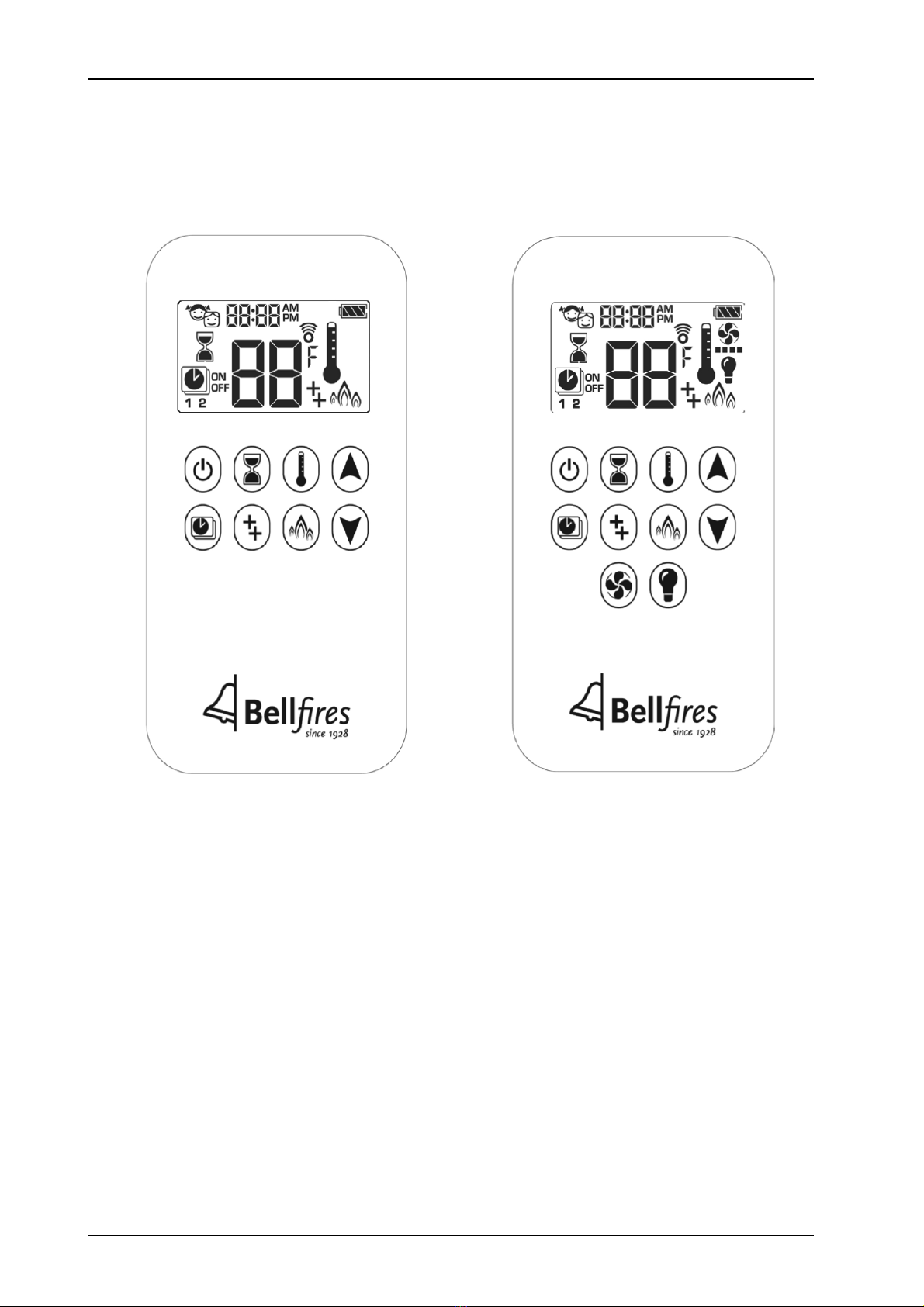

Hand-held transmitter standard Hand-held transmitter including
operation ambient lighting and/or
convection fan (option)
Figure 2: Hand-held transmitter
2.3.2 Hand-held transmitter
The remote control works by radio signal. The hand-held transmitter is configured in the
factory with a unique signal code.

13
Bellfires English
Instructions for use
Display hand-held transmitter standard
Display hand-held transmitter including operation ambient lighting and/or
convection fan (option)
Figure 3: Display hand-held transmitter
-Symbol:
has no function for the appliance
Eco Mode
Temperature
Program
Mode
Child proof
Signal
Indicator
Battery Status
Time
Thermostatic Mode
Countdown
Timer Fahrenheit or
Celsius:
°F/12 hour or
°C/24 hour
Child proof
Battery Status
Time
-Symbol:
has no function
for the appliance
Eco ModeTemperature
Light-Symbol:
Operation Ambient
lighting/Dimmer.
(option)
Fan-Symbol:
Operating convection
fan (option)
Fan speed levels:
1 to 4 bars
Signal
Indicator
Thermostatic Mode
Count-
down
Timer
Program
Mode
Fahrenheit or Celsius:
°F/12 or °C/24 hour

14
Bellfires English
Instructions for use
1 2
ON
AM
PM
OFF
1 2
ON
AM
PM
OFF
1 2
ON
AM
PM
OFF

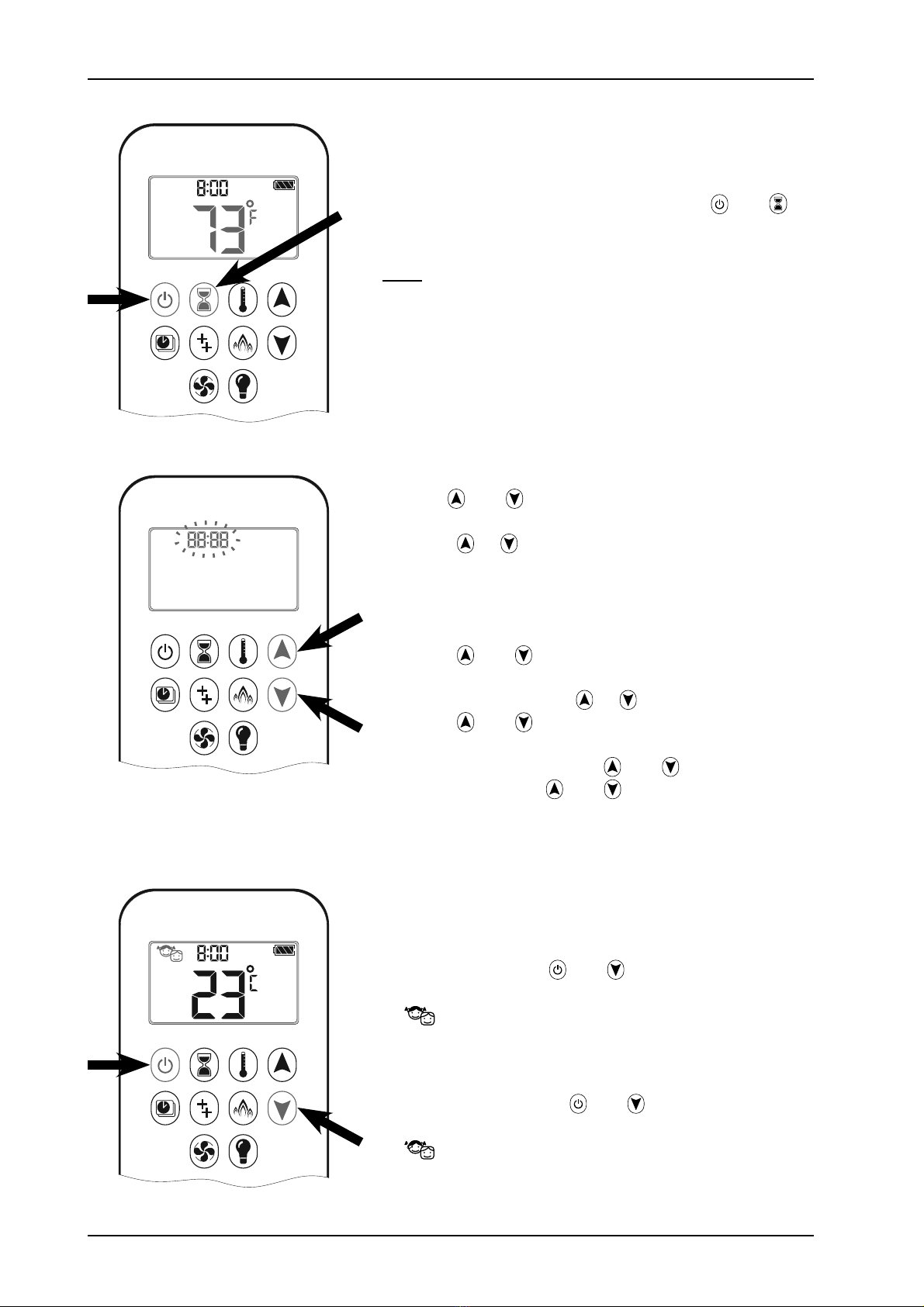

SETTING FAHRENHEIT OR CELSIUS
• To change between °C and °F, press and
buttons simultaneously.
Note:
Choosing °F results in a 12 hour clock.
Choosing °C results in a 24 hour clock.
SETTING THE TIME
• Pres and buttons simultaneously.
Day flashes.
• Press or button to select a number to
correspond with the day of the week (e. g.
1= Monday, 2=Tuesday, 3= Wednesday,
4=Thursday, 5= Friday, 6 = Saturday,
7= Sunday).
• Press and buttons simultaneously.
Hour flashes.
• To select hour press or button.
• Press and buttons simultaneously.
Minutes flash.
• To select minutes press and button.
• To confirm press and buttons
simultaneously or wait.
CHILD PROOF
ON:
• To activate press and buttons
simultaneously.
• displayed and the hand-held transmitter is
rendered inoperable, except for the off function.
OFF:
• To deactivate press and buttons
simultaneously.
• disappears.

15
Bellfires English
Instructions for use
Figure 4: Receiver “RESET” button
IMPORTANT: SETTING UP SIGNAL CODE BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
Before the appliance can be used, the receiver must first learn the hand-held
transmitter’s signal code.
• Press the “RESET” button on the receiver, and keep this pressed until 2 beeps are
heard. See figure 4.
Release the “RESET” button after the second (somewhat longer) beep.
• Press, within 20 seconds, the button (small flame) on the hand-held transmitter,
until 2 short beeps are heard. The signal code has now been set up on the receiver.
If, however, a single long beep is heard, this means that setting the signal code
has failed or that the wiring has been connected incorrectly.
You only need to set up the signal code once. It is not necessary when changing the
batteries of the hand-held transmitter or receiver.

16
Bellfires English
Instructions for use
1 2
ON
AM
PM
OFF
2.3.3 Operation (Remote control)
MANUAL MODE (HAND-HELD TRANSMITTER)
SWITCH ON THE APPLIANCE / IGNITING THE FIRE
• Open the gas supply valve in the gas pipe to the fire.
Warning
When the pilot light is ignited, the motor turns
automatically to maximum flame height.
Hand-Held Transmitter One-Button Operation
(Default Setting)
• Press button until two short beeps and a
blinking series of lines confirms the start
sequence has begun; release button.
• Main gas flows once pilot ignition is confirmed.
• Hand-held transmitter automatically goes into
Manual Mode after main burner ignition.
Note
Change from one-button to two-button ignition operation by pressing
and holding button for 10 sec. immediately after installing batteries.
ON is displayed and 1is flashing. When change is complete 1will
change to 2.

17
Bellfires English
Instructions for use
1 2
ON
AM
PM
OFF
Hand-Held Transmitter Two-Button Operation
• Press and button simultaneously until
two short beeps and a blinking series of lines
confirms the start sequence has begun; release
buttons.
• Main gas flows once pilot ignition is confirmed.
• Hand-held transmitter automatically goes into
Manual Mode after main burner ignition.
Note
Change from two-button to one-button ignition operation by pressing
and holding button for 10 sec. immediately after installing batteries.
ON is displayed and 2is flashing. When change is complete 2will
change to 1.
Important: • If the pilot flame goes out for any reason, wait for 5 minutes
before attempting to re-light it.
• If the pilot light does not ignite after 3 ignition attempts;
close the gas tap and warn the fitter.
• Once the pilot light is burning, the main burner must ignite
within 10 seconds automatically.
If this does not happen, immediately close the gas tap and
warn the fitter.
• If the main burner ignites with a pop; immediately close the
gas tap and warn the fitter.

18
Bellfires English
Instructions for use
Figure 5: Gas regulating block
• Possible error messages:
* 3 seconds: short beeps, audible when the motor-knob operates:
Receiver batteries need changing soon (having heard this signal, the
appliance can be ignited another ten times approximately).
* 5 seconds: unbroken beeps:
Error. For example, one of the cables may not be properly connected.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
1 2
ON
AM
PM
OFF
Motor-knob
Microswitch8-wire Receiver Jack
Pilot gas adjustment screw
(Factory set) (Puncture the casing
with a small screwdriver)
Adjustment screw
Maximum burner pressure
(Factory set and sealed)
• Press button and hold to set appliance to
pilot light.
STAND-BY MODE (PILOT LIGHT)
We recommend to let the pilot light
burn in the winter months, to prevent
condensation on the inside of the glass.

19
Bellfires English
Instructions for use
Gradually decrease flame height / Extinguishing
the fire
• After ignition, the burner automatically sets the
flames to the maximum height.
• Press button to lower the flames and to turn
off the burner. (Extinguishing the fire: Press
button and hold: pilot light remains burning
(standby position)!)
(Pressing briefly the button gradually lowers
the flames to the low position.)
SETTING THE FLAME HEIGHT / EXTINGUISHING THE FIRE (STAND-BY)
Flame height directly to minimum position
• Pressing the button twice, automatically
lowers the flames to the low position. (When this
happens, the flames will first automatically go
to maximum!) This is indicated by “ ” on the
display.
Note: Backlight must be on for high fire and
low fire double-click operation!
1 2
ON
AM
PM
OFF
AM
2x
1 2
ON
AM
PM
OFF
Gradually increase flame height
• Press button and hold to increase the flame
level and to turn on the burner from the stand-by
position.
(Pressing briefly the button gradually
increases the flames to the high position.)

20
Bellfires English
Instructions for use
AM
2x
LIGHT / DIMMER OPERATION (Option)
AM
Flame height directly to maximum position
• Pressing the button twice automatically
increases the flames to the high position.
This is indicated by “ ” on the display.
Note: Backlight must be on for high fire and
low fire double-click operation!
Important: • If you turn on the burner by pressing the button, it must
ignite within 10 seconds.
If this does not happen, immediately close the gas tap and
warn the fitter.
• If the burner ignites with a pop; immediately close the gas
tap and warn the fitter.
ON
• Press button.
• displayed.
• Light is on at preset level.
OFF
• Press button.
• disappears.
SETTING
• Press button and hold until flashes.
• To adjust light between 20…100 % press or
button.
• To confirm setting either press button or
wait.
• displayed.
Note:
The Light works independently of the Pilot flame. If you want the light on but no flame,
press button. If the main burner and pilot light are switched off, with button, the
light will switch off automatically.
