Bellfires UNICA 200 L Technical manual

INSTRUCTIONS FOR USE &
INSTALLATION INSTRUCTIONS
UNICA 200 L/R
UNICA 300
Gas •re with open combustion system
Bell•res wishes you many cosy evenings with your new Bell•res gas •re
This document is an essential part of your gas •re.
Read it carefully before use of the gas •re and keep it in a safe place!
Serial number:
Production date:

3
Bellfires English
Instructions for use & Installation instructions
CONTENTS
Page
1. INSTRUCTIONS FOR USE .................................................................... 7
2. INSTALLATION INSTRUCTIONS ....................................................
... .... 17
3. MAINTENANCE ........................................................
............... ......... . ..... 28
4. FAULTS ......................................................
....................... .... .. ... ..... ........ 29
5. ELECTRICAL DIAGRAM ................................................
....................... . 30
6. DIMENSIONS ..............................................
................................. ... ....... 31
7. TECHNICAL DETAILS/REGULATIONS .............
....................... ....... ... .. . . 34
8. REPLACEMENT PARTS LIST ..................
....... . .. ...... ................... ..... ... ... 35

4
Bellfires English
Instructions for use & Installation instructions

5
Bellfires English
Instructions for use & Installation instructions
Interfocos
Warranty terms
Interfocos B.V. guarantees the quality of the supplied Bellfires hearth and the quality
of the materials used. All Bellfires hearths are developed and manufactured according
to the highest possible quality standards. If, despite all this, something should prove
amiss with the Bellfires hearth you have purchased, Interfocos B.V. offers the following
manufacturer’s warranty.
Article 1: Warranty
1.1. If Interfocos B.V. determines that the Bellfires hearth you have purchased is
defective as a result of a flaw in the construction or material, Interfocos B.V.
guarantees to repair or replace the hearth free of charge, without charging any
costs for labour or spare parts.
1.2. Repair or replacement of the Bellfires hearth will be undertaken by Interfocos B.V.
or by a Bellfires dealer as designated by Interfocos B.V.
1.3. This warranty is supplementary to the existing legal national warranty of Bellfires
dealers and Interfocos B.V. in the country of purchase and is not intended to
restrict your rights and claims based on the applicable legal provisions.
Article 2: Warranty conditions
2.1. Should you wish to claim under the warranty, please contact your Bellfires dealer.
2.2. Complaints should be reported as quickly as possible after they have manifested
themselves.
2.3. Complaints will only be accepted if they are reported to the Bellfires dealer,
together with the serial number of the Bellfires hearth which is stated on the front
of the instructions for use.
2.4. In addition, the original receipt (invoice, receipt, cash receipt) showing the date of
purchase must also be submitted.
2.5. Repairs and replacements during the warranty period do not give any entitlement
to an extension of the warranty period. After a repair or replacement of warranty
parts, the warranty period shall be deemed to have started on the date of
purchasing the Bellfires hearth.
2.6. If a certain part is eligible for the warranty and the original part is no longer
available, Interfocos B.V. shall ensure that an alternative part of at least the
same quality shall be provided.
Article 3: Warranty exclusions
3.1. The warranty on the Bellfires hearth ceases to be in effect if:
a. it is not installed according to the supplied installation instructions, and to
national and/or local regulations;
b. it has been installed, connected or repaired by a non-Bellfires dealer;

6
Bellfires English
Instructions for use & Installation instructions
c. it has not be used or maintained according to the instructions for use;
d. it has been changed, neglected or roughly treated;
e. it has been damaged as a result of external causes (outside the hearth
itself), for example, lightning strike, water damage or fire;
3.2. In addition, the warranty lapses if the original purchase receipt shows any
change, deletion, removal or if it is illegible.
Article 4: Warranty area
4.1. The warranty is only valid in those countries where Bellfires hearths are sold
through an official dealer network.
Article 5: Warranty period
5.1. This warranty will only be granted during the warranty period.
5.2. The body of the Bellfires hearth is guaranteed for a period of 10 years against
construction and/or material faults, starting from the moment of purchase.
5.3. For other parts of the Bellfires hearth, a similar warranty applies from the moment
of purchase for a period of one year.
5.4. For user parts such as glass, glass (cord), thermocouple and the interior of the
combustion chamber, a similar guarantee is given until after the first burning.
Article 6: Liability
6.1. A claim granted by Interfocos B.V. under this warranty does not automatically
imply that Interfocos B.V. also accepts liability for any possible damage.
The liability of Interfocos B.V. never extends further than that stated in these
warranty conditions. Any liability of Interfocos B.V. for consequential damage is
expressly excluded.
6.2. That stated in this provision is not valid if and to the extent that is derives from
a mandatory provision.
6.3. All agreements entered into by Interfocos B.V. are, unless specifically stated
otherwise in writing and to the extent that they are permitted based on applicable
law, subject to the Conditions of the Dutch Metal and Engineering Association
(METAALUNIEVOORWAARDEN), as filed with the registrar of the Court of
Rotterdam on 1 January 2014.
Interfocos B.V.
Hallenstraat 17
5531 AB Bladel
The Netherlands
Tel: [phone]
Email: info@Bellfires.com
Carefully retain the instructions for use; they show the serial number of the hearth.
You will need this if you wish to claim under the warranty.

7
Bellfires English
Instructions for use & Installation instructions
1 INSTRUCTIONS FOR USE
1.1 INTRODUCTION
Congratulations on your purchase of this modern BARBAS gas fire.
This quality product will provide you with many years of enjoyment due to the flame
effect and warmth that it provides.
Please read the instructions for use carefully before using the appliance for the first
time. Keep this booklet in a safe place.
1.2 BUILT-IN PROTECTION OF THE APPLIANCE
The appliance is fully protected by means of a thermo-electric pilot light shut off in the
event of a gas escape from the main burner.
Additionally, the gas fire is fitted with a thermal one-way protection safety system.
This system shuts off the appliance if the flue gas is not exhausted.
1.2.1 Safety
The gas fire must never be used with the door glass removed.
Never place flammable material on the ceramic log set.
Do not place easily-flammable materials, such as nylon clothing
or flammable liquids, in the vicinity of the gas fire.
Children and others unfamiliar with the operation of a gas fire
should be allowed in the vicinity of the appliance only under
supervision.
Use a fire guard to protect children and other persons mentioned
above against possible burns.

8
Bellfires English
Instructions for use & Installation instructions
1.3 OPERATION GENERAL
The gas regulating block, with which the fire is operated, is located behind the operating
hatch. The fire has one main burner which can be operated by the thermostatic knob
and/or the sliding knob.
The thermostatic knob is used to choose the correct setting and the modulating
thermostat ensures that the set temperature (13 - 38°C) is maintained.
The slider, is used to select the desired position, the burner will now continueously burn
as an atmospheric burner until the setting is changed.
Both operating knobs can be used in combination.
If the appliance is equipped with a convection fan, the fan speed can be adjusted
steplessly with the knob, located on the right-hand side of the gas regulating block.
When the appliance reaches a temperature of 40°C, the convection fan will automati-
cally be activated. After the appliance has been switched off, the fan will continue until
the temperature has fallen below 35°C.

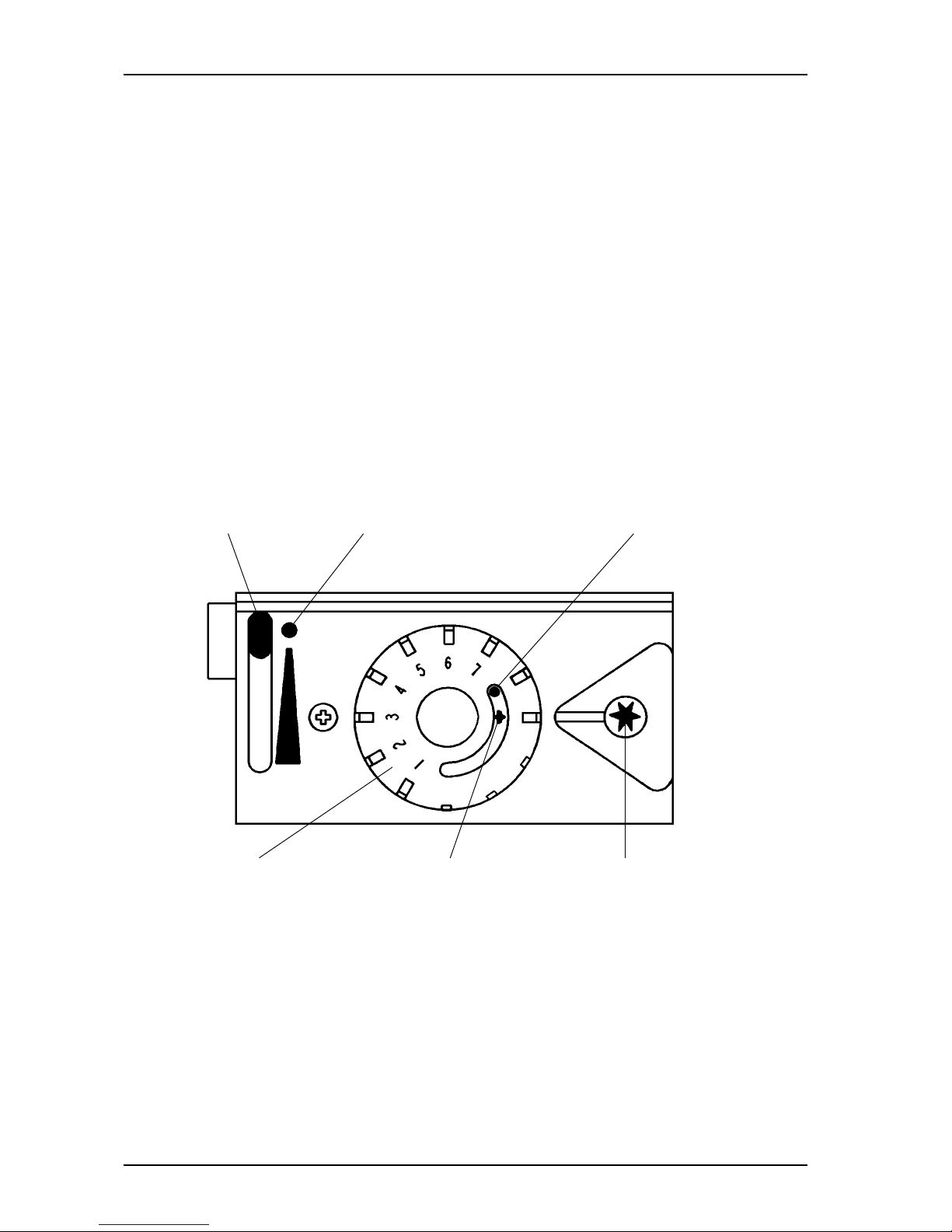

Figure 1: Operation
“OFF” POSITION
SLIDER SLIDER “OFF” POSITION
THERMOSTAT “IGNITION” “IGNITION”
KNOB POSITION KNOB

9
Bellfires English
Instructions for use & Installation instructions
1.4 IGNITING THE FIRE
• Open the gas supply valve in the gas pipe to the fire.
• Lock the slider into “l“ position.
• Turn the thermostat knob to the ignition position “«“ and then push the knob in.
• While keeping the thermostat knob pushed in, press the ingition button a few times to
ignite the pilot light. Check through the glass that the pilot light has been lit.
•
When the pilot light is lit, keep the thermostat knob pushed in for a further 10 seconds,
after which it can be released.
Important : If the pilot flame goes out, then wait for at
least 5 minutes before repeating the above
procedure.
• By turning the thermostat knob to the required setting and/or pushing the slider into a
downward position: the burner will now ignite.
1.5 TURNING OFF THE FIRE
• Turn the thermostat knob to the ignition position “«“.
• Lock the slider to the “l“ position.
The burner will now be fully extinguished.
If the thermostat knob is turned back to the “1” position, then the burner will continue to
operate for as long as the room temperature remains below 13°C.
1.6 EXTINGUISHING THE PILOT LIGHT
• Extinguish the pilot by setting the thermostat knob to the “l“ position.
• If the gas fire is not going to be used for a long period of time, it is recommended to
close the gas supply valve to the fire.
Important : If the pilot flame goes out for any reason,
wait for 5 minutes before attempting to
re-light it.
• If the pilot light frequently goes out, then please contact your installer.

10
Bellfires English
Instructions for use & Installation instructions
1.7 CONTROL OF THE APPLIANCE MODELS:
UNICA 200 L - 400 / UNICA 200 R - 400 / UNICA 300 - 400
1.7.1 In general
The pilot light and burner are switched to “ON “ or “OFF” by means of the control knob
A. The flame height of the burner is regulated by control knob B.
The desired position is selected and the burner will burn continuously in this position,
until this is changed.
The control knob Bcan be used in different ways:
1. Manually, by turning the knob by hand in the desired position.
2. By means of the cordless remote control, where the desired position of the knob and
also the flame height are regulated by ultra-sonic signals.
B A
Figure 2: Operating switch model -400
1.7.2 Igniting the !re
• Open the gas valve in the gas supply pipe to the appliance
• Turn the control knob Bto the position where the “big flame”-symbol is located.
• Turn the control knob Aa little to the left until the stop.
• Press knob Aand keep the button pressed approximately 5 seconds (the gas flows
to the pilot light).
• Continue turning the pressed knob Afurther to the left to the ignition position (from
the «-symbol to the “small flame” symbol). A “click” is heard indicating the ignition
spark for the pilot light.
If necessary, click a few times until the pilot light burns.
• As soon as the pilot light burns, keep knob Apressed for
another 10 seconds, then
release.

11
Bellfires English
Instructions for use & Installation instructions
Battery compartment
LED indication

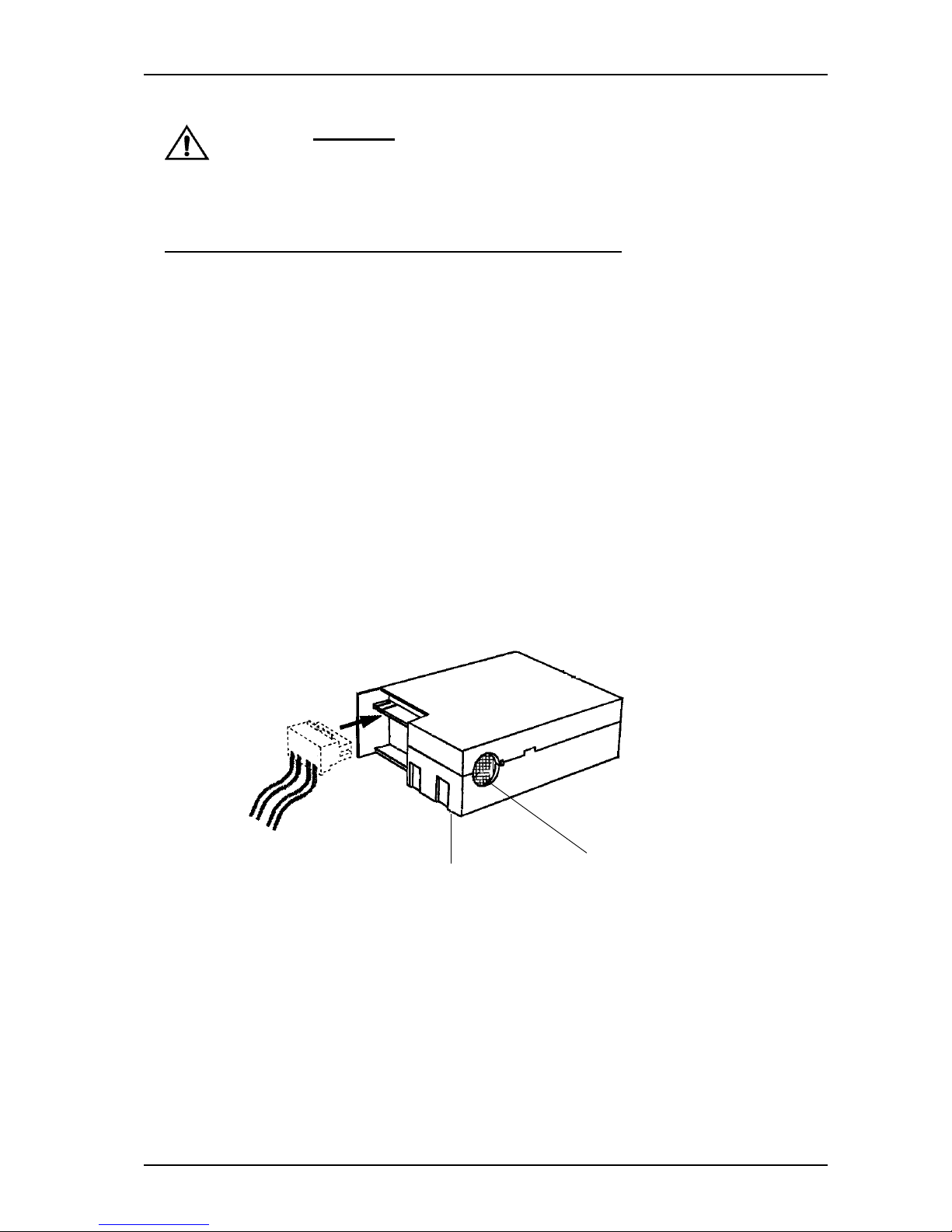

Figure 3: Receiver
Important : If the pilot light goes out, then wait for at
least 5 minutes before repeating the above
mentioned procedure.
• Continue turning knob Afully to the left until the “ON” position, (the “big flame”
symbol) and the main burner is ignited.
Beware: it takes a few seconds for the burner to ignite!
1.7.3 Flame height
The flame height of the main burner can now be adjusted by means of control knob B.
Manually in approximately 20 steps or by means of the cordless remote control
(continuous). Turning knob Bto the left in the direction of the “big flame” symbol
increases the flame height, to the right in the direction of the l-symbol decreases the
gas supply from the minimum position to the “OFF” position.
1.7.4 Remote control
The remote control operates according to the “ultrasonic” principle and consists of a
hand-held transmitter and a reciever. For a correct operation, aim the front of the hand-
held transmitter towards the eye of the reciever in the appliance.
The appliance must already be switched on with the control knob A.
It is recommended to adjust always the flame height to the minimum or “OFF” position,
before entirely switching off the appliance with the control knob A.

12
Bellfires English
Instructions for use & Installation instructions
Figure 4: Hand-held transmitter Unica 200 L - 400, Unica 200 R - 400 and
Unica 300 - 400
Figure 5: 4 x Connectors to gascontrols
Changing batteries signal
Temperature display
°C - °F
Heating period
P1 and P2
Time display
Button
High MAN
Setting TIMER
Setting TIME
Button
Low MAN
Setting TIMER
Setting TIME
SENDsymbol
AUTO
TIMER
MAN
display
Button AUTO
Button TIMER
Room temperature /
Set roomtemperature

13
Bellfires English
Instructions for use & Installation instructions
1.7.5 Extinguishing the !re
Turn knob B, possibly with the remote control, fully to the right to the l-symbol and/or
turn the control knob Ato the right until the stop (“small flame” symbol = pilot light
position).
The main burner will still burn for a few seconds, after which it will be extinguished
completely.
1.7.6 Set the display
• After connecting the batteries or when simultaneously pressing AUTO and TIMER,
the display will flash. You are now in “SET” mode.
• Press AUTO to switch from °F (and standard time) to °C (and military time) or
vice versa.
• The display will automatically return to manual mode after some time, but
you may immediately return to MAN by pressing the TIMER button.
1.7.7 Set the current time
• After connecting the batteries or when simultaneously pressing AUTO and TIMER,
the display flashes. You are in SET mode.
• Press
to set the hour and to set the minute.
• Wait or press TIMER to return to MAN mode.
1.7.8 Programming the desired temperature
• Press AUTO until display flashes.
• Press or to set the temperature.
• Wait or press AUTO to switch to automatic mode.
1.7.9 Programming the timer
• Press TIMER until P1
flashes (heating period 1, heat ON)
• Set the time for the beginning of the first heating period by pressing for hour
and for minute’setting.
• Press TIMER again; P1 appears on the display.
Set the time for the end of the first heating period.
• Press TIMER again to set the second heating period P2
(heat ON) and P2
(heat OFF).
• Store both heating periods by pressing TIMER again.
• If only one heating period is desired, program the same time for P2 and P1.

14
Bellfires English
Instructions for use & Installation instructions
1.7.10 MAN mode for manual flame height adjustment
• Press to turn on the fire (main burner) or to increase flame height.
• Press to decrease flame height or to turn down the main burner. The pilot
stays on.
• To incrementally increase or decrease the flame height lightly tap either the
or
button.
• The SEND symbol appears in the upper left corner of the display when either
button or is depressed.
• The LED of the receiver flashes if you reach the end stops of the valve.
1.7.11 Automatic mode for temperature control
• Briefly press AUTO. The set temperature will appear briefly before the display
reverts to the room temperature.
1.7.12 TIMER mode (TIMER in display)
• During heating periods P1 and P2, the temperature is controlled in the same manner
as in AUTO mode.
• When the timer program turns to (heating cycle off), the motor will turn the valve
to pilot and there is no temperature control. This minimizes battery consumption.
• You may press AUTO to verify the set-temperature and then press TIMER to
return to timer mode.
• Press either the
or button from any mode for manual override.
• For the AUTO or TIMER mode to function correctly, the transmitter must remain with
range of the receiver.
1.7.13 Changing the battery
• If BATT appears in upper right corner of the display or if the LED of the receiver
becomes faint, please change the battery from transmitter or receiver.
See also 1.7.15
• If the batteries lose power, the flame height can be adjusted by manually turning
knob B.
1.7.14 Extinguishing the pilot light
• The pilot light extinguishes by slightly pressing the spring loaded control knob Aand
by turning it to the right to the “OFF” position (l-symbol).
• If the gas fire is not going to be used for a long period of time, it is recommended to
close the gas supply valve to the fire.
Important: If the pilot light goes out for any reason,
wait for 5 minutes before attempting to
re-light it.

15
Bellfires English
Instructions for use & Installation instructions
1.7.15 Replacing the batteries
The batteries of the hand-held transmitter and reciever have a lifespan of approximately
one year.
If BATT appears in upper right corner of the display, please change the battery from the
hand-held transmitter.
If the LED of the reciever becomes faint, please change the battery from the reciever.
Hand-held transmitter:
• Open the cover at the back of the hand-held transmitter.
• Carefully remove the 9V block battery and release it from the contact maker.
Do not pull the wires!
• Connect the new battery and re"t. Close the cover.
Receiver:
• Remove the battery support from the housing and release it from the contact holder.
• Remove the batteries from the battery support.
• Place the 4 new batteries of 1,5V (type LR6 or AA) in the battery support as
indicated. The pressure spring always against the negative pole (-) of the battery.
Connect the battery support with the contact maker. Replace the support and close
the cover. Incorrect placement of the batteries or the battery support can lead to
irreparable damage to the electronics or the electric propulsion.
NOTE:
Please note, the placement of the transmitter (temperature sensor) is important to as-
sure proper temperature regulation. Generally, a more constant temperature will be as-
sured, if the transmitter is not too far from the gas appliance. Before switching to AUTO
or TIMER mode, press either knob or
to verify the reception (when the SEND
symbol appears in the transmitter display, the receiver’s LED must illuminate).

16
Bellfires English
Instructions for use & Installation instructions
1.8 USING THE APPLIANCE FOR THE FIRST TIME
The gas fire is coated with a lacquer layer resistant to high temperature.
During the first hours of operation, the burning in of the lacquer may result in an
unpleasant smell. This is harmless, however. Operating the gas fire at full capacity for a
few hours, while ventilating the room, will eliminate the smell. Moreover, deposits may
form on the inside off the glass; these can be removed with a dry cloth when the gas fire
has cooled down.
1.9 DAILY MAINTENANCE
• Regulary check that the air supply is still open.
• Ensure that as little dust, and as few particles of cigarette smoke, candles and
oil lamps as possible pollute the air in the room in which the appliance is used.
Heating of these particles by the convection system of the appliance could lead to
discoloration of the walls and ceiling. It is therefore very important to ensure that the
room in which the appliance is located is sufficiently ventilated. Regularly remove any
dust deposits from behind the control flap by means of a vacuum cleaner.
Important: If the glass is broken or cracked, it must be
immediately replaced before operating the
gas !re again.
• If anything is spilt on the fire, switch it off immediately and wait for it to cool down
sufficiently before cleaning. Never use scouring powder, aggressive cleaners or fire
polish on the gas fire. Use only a dry lint free cloth.
• Heat resistant lacquer in aerosols can be obtained from your distributor.
During the yearly maintenance, the lacquer can be used to repair small areas of
damage.
The installation must only be carried out by a
“Gas Safe Register” registered installation engineer.
IMPORTANT

17
Bellfires English
Instructions for use & Installation instructions
2 INSTALLATION INSTRUCTIONS
2.1 GENERAL
The gas fire must be positioned and connected as a “open” appliance by a “Gas Safe
Register” registered gas installation engineer in accordance with the following instal-
lation instructions, nationally and locally applicable regulations (see “Technical Details/
Regulations” at the rear of this manual).
If you have any queries regarding the installation, please consult your local gas
company.
If an existing chimney is to be used, please consult your installer first. If the chimney
was previously used for a wood or coal fire, then it should be cleaned by an expert.
A chimney draw of approximately 5 Pa (=0,05 mbar) is sufficient for full load of the
appliance. If the chimney draw is more than 20 Pa (=0,2 mbar), then it is recommended
to reduce it.
Before beginning the installation, check that the details on the rating plate
correspond to the gas type and pressure to which the appliance will be connected.
2.2 FLUE PROTECTION
The appliance is supplied with a security system T.T.B. It is a thermostat which shuts off
the pilot light and main burner under any of the following circumstances:
• insufficient chimney draw.
• under-pressure in the house due to a mechanical exhaust system.
• bad connection between the appliance and the flue.
• partial or total blockage of the flue, for instance, due to falling debris.
• insufficient external air supply in an entirely closed house.
• flue down draught due to wind.
After the problem has been rectified, the appliance can be put back into operation. It
is not permitted to bypass the security system. Always call your installer in case of any
problem.
Replace the security system only with parts identical to those originally supplied!

18
Bellfires English
Instructions for use & Installation instructions
2.3 PREPARATIONS BEFORE INSTALLATION
Before installing the appliance, first observe the following instructions.
2.3.1 The most important facilities according to the regulations
1 NATURALLY VENTILATED HOUSE (see Figure 6).
• The room in which the appliance is to be fitted must have a non-
closable combustion air supply opening. The minimum dimensions
are detailed in “Technical Details/Regulations” at the rear of this
manual (see also Paragraph 2.4, point 2).
• The flue gas exhaust must exit at “outlet area I”.
OUTLET AREA I
AIR SUPPLY
OPENING GAS

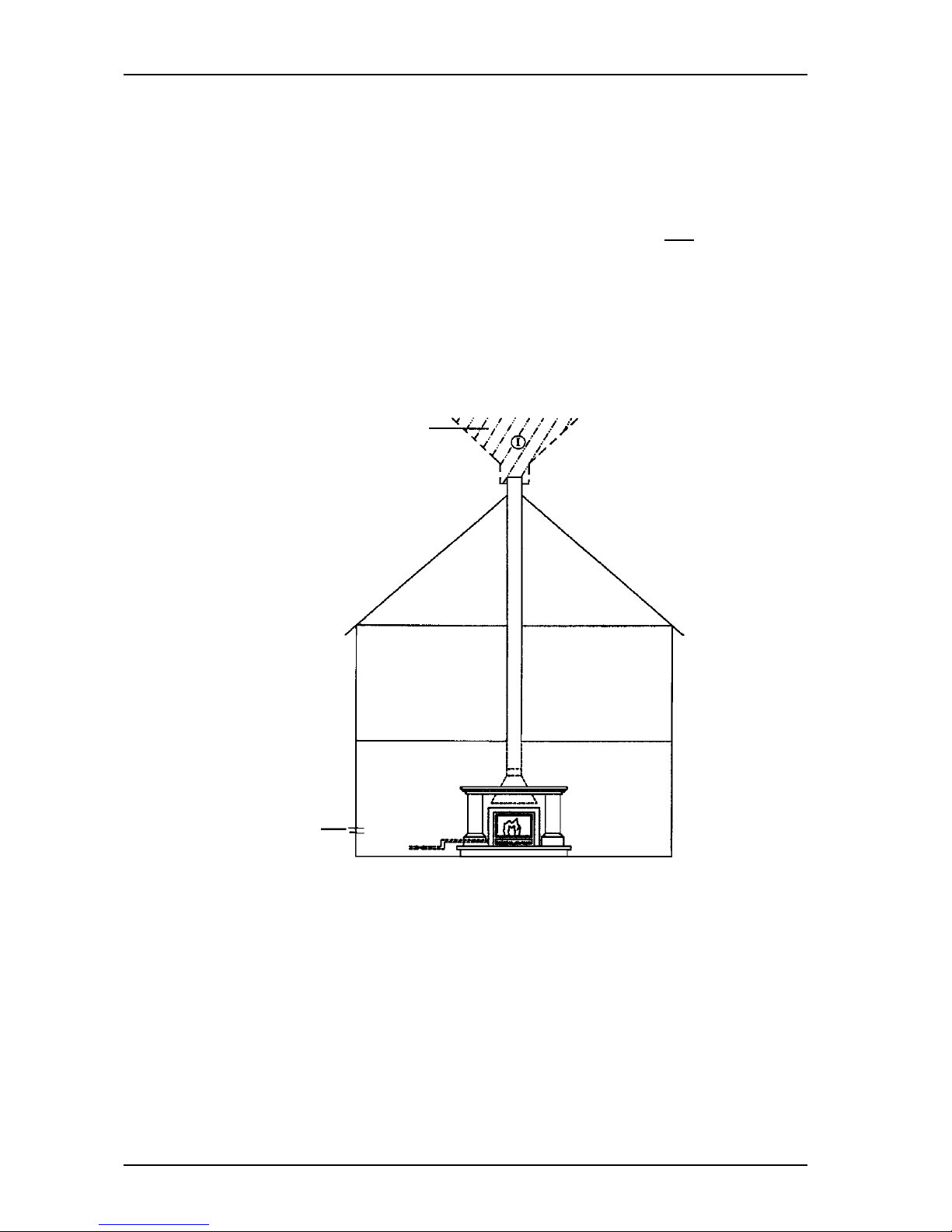

Figure 6: Naturally ventilated house

19
Bellfires English
Instructions for use & Installation instructions
2 MECHANICALLY VENTILATED HOUSE (see Figure 7)
• The room in which the appliance is to be fitted must have a non-
closable combustion air supply opening. The minimum dimensions
are detailed in “Technical Details/Regulations” at the rear of this
manual (see also Paragraph 2.4, point 2).
• The flue gases must be extracted by means of a flue extraction fan.
FLUE EXTRACTION FAN
AIR SUPPLY
OPENING
GAS

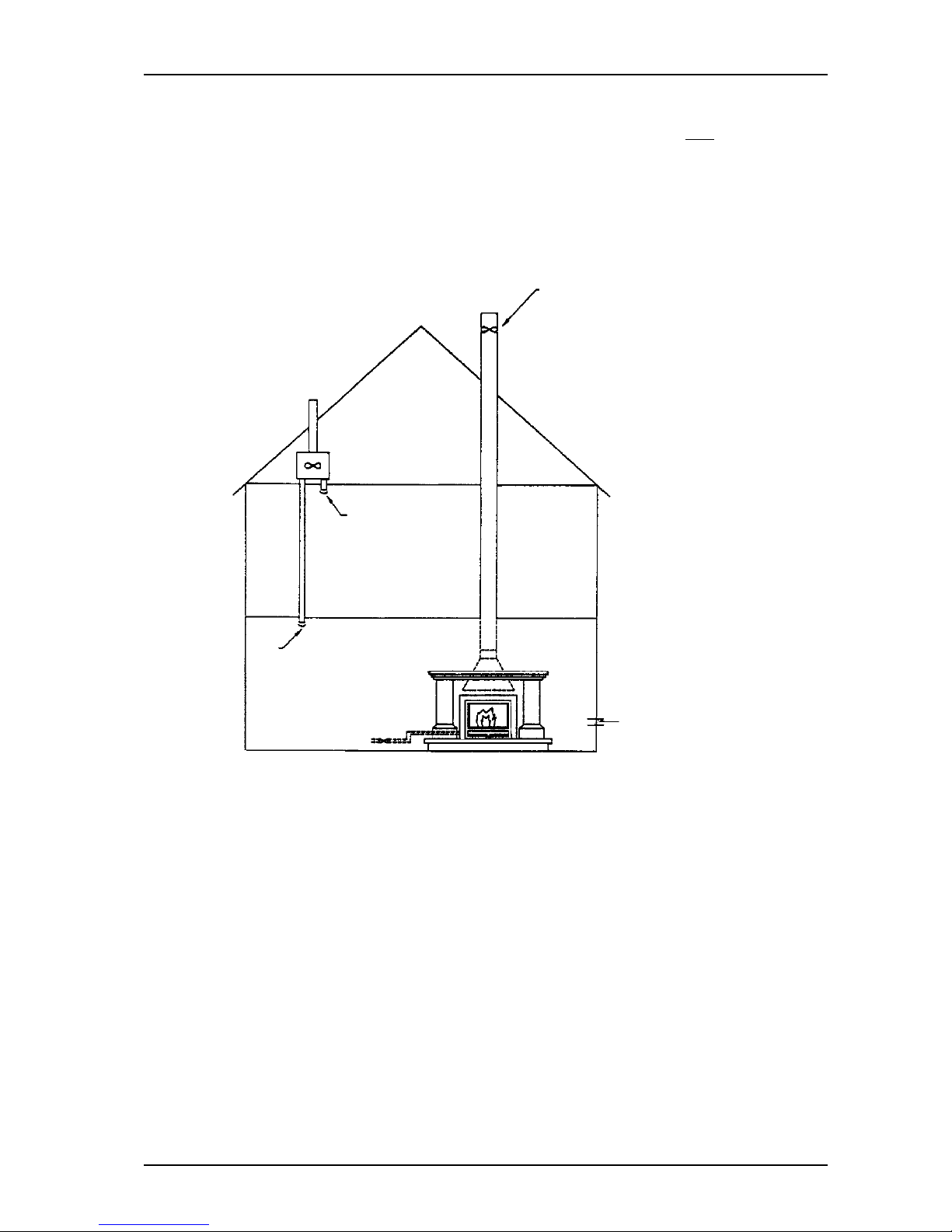

Figure 7: Mechanically ventilated house

20
Bellfires English
Instructions for use & Installation instructions
2.4 GENERAL SERVICES
1. FLUE
Before installation, it must be verified that the flue has sufficient draw.
Remove all flue gas dampers (if present) in the flue or fix them in the open position.
The flue must be at least 2 metres long. In order to prevent condensation in a
masonry flue and, if necessary, to improve correct operation of the appliance, it is
recommended that the flue be fitted with an, (insulated) aluminium or (flexible)
stainless steel pipe of Ø100 mm (minimum).
An protective cap must be placed on top of the chimney to prevent rain entering.
2. COMBUSTION AIR SUPPLY
The combustion air supply has to comply with national and local regulations. The
minimum dimensions are detailed in “Technical Details / Regulations” at the rear of
this manual. The air supply opening must be non-closable.
3. THERMOSTAT SENSOR
The appliance is equipped with a thermostat sensor which is normally fitted to the
bottom plate. The thermostat function can be improved by positioning the sensor in
the bottom left- or right hand side, or at the height of the plinth underneath the
appliance. Ensure that the sensor remains easily accessible at all times for service
and maintenance.
4. GAS CONNECTION
The Ø12 mm or Ø15 mm gas connection is located on the bottom or the rear side of
the appliance. Connect the gas supply to the appliance using the compression
coupling. Use only gas piping with a minimum diameter of 1/2” G with a shut-off
valve.
5. ELECTRICAL CONNECTION
If the appliance is equipped with a convection fan, there must be a wall socket with
earth connection, preferably at the right-hand side of the appliance. The socket
should be accessible at all times.
