Bellfires Corner Bell Large 3 L/R CF Installation and operation manual

INSTRUCTIONS FOR USE &
MANUAL DAILY MAINTENANCE
CORNER BELL LARGE 3 L/R
CF / LF
Gas •re with closed combustion system
Bell•res wishes you many cosy evenings with your new Bell•res gas •re
This document is an essential part of your gas •re.
Read it carefully before use of the gas •re and keep it in a safe place!
Serial number:
Production date:

3
English
Instructions for use
BELLFIRES GAS FIRE WITH CLOSED COMBUSTION SYSTEM:
Corner Bell Large 3 L/R CF (Centre Fire) (CBL3 L/R CF)
Corner Bell Large 3 L/R LF (Line Fire) (CBL3 L/R LF)

4
English
Instructions for use

5
English
Instructions for use
CONTENTS
Page
1. WARRANTY TERMS ................................................................................. 7
2. INSTRUCTIONS FOR USE ....................................................................... 9
3. USING THE APPLIANCE FOR THE FIRST TIME ..................................... 29
4. DAILY MAINTENANCE ......................................
........... ......... ....... .. . . ...... ... 30
5. ANNUAL MAINTENANCE .
.............. ................................... ................ ........ 32

6
English
Instructions for use

7
English
Instructions for use
1 WARRANTY TERMS
Barbas Bellfires
Warranty terms
Barbas Bellfires B.V. guarantees the quality of the supplied Bellfires appliance and the
quality of the materials used. All Bellfires appliances are developed and manufactured
according to the highest possible quality standards. If, despite all this, something
should prove amiss with the Bellfires appliance you have purchased, Barbas Bellfires
B.V. offers the following manufacturer’s warranty.
Article 1: Warranty
1.1. If Barbas Bellfires B.V. determines that the Bellfires appliance you have
purchased is defective as a result of a flaw in the construction or material, Barbas
Bellfires B.V. guarantees to repair or replace the appliance free of charge, without
charging any costs for labour or spare parts.
1.2. Repair or replacement of the Bellfires appliance will be undertaken by Barbas
Bellfires B.V. or by a Bellfires dealer as designated by Barbas Bellfires B.V.
1.3. This warranty is supplementary to the existing legal national warranty of Bellfires
dealers and Barbas Bellfires B.V. in the country of purchase and is not intended
to restrict your rights and claims based on the applicable legal provisions.
Article 2: Warranty conditions
2.1. Should you wish to claim under the warranty, please contact your Bellfires dealer.
2.2. Complaints should be reported as quickly as possible after they have manifested
themselves.
2.3. Complaints will only be accepted if they are reported to the Bellfires dealer,
together with the serial number of the Bellfires appliance which is stated on the
front of the user manual.
2.4. In addition, the original receipt (invoice, receipt, cash receipt) showing the date of
purchase must also be submitted.
2.5. Repairs and replacements during the warranty period do not give any entitlement
to an extension of the warranty period. After a repair or replacement of warranty
parts, the warranty period shall be deemed to have started on the date of
purchasing the Bellfires appliance.
2.6. If a certain part is eligible for the warranty and the original part is no longer
available, Barbas Bellfires B.V. shall ensure that an alternative part of at least the
same quality shall be provided.
Article 3: Warranty exclusions
3.1. The warranty on the Bellfires appliance ceases to be in effect if:
a. it is not installed according to the supplied installation instructions, and to
national and/or local regulations;
b. it has been installed, connected or repaired by a non-Bellfires dealer;

8
English
Instructions for use
c. it has not be used or maintained according to the instructions for use;
d. it has been changed, neglected or roughly treated;
e. it has been damaged as a result of external causes (outside the hearth itself),
for example, lightning strike, water damage or fire;
3.2. In add ition, the wa rranty lapses if t he or iginal purchase receipt shows any change,
deletion, removal or if it is illegible.
Article 4: Warranty area
4.1. The warranty is only valid in those countries where Bellfires appliances are sold
through an official dealer network.
Article 5: Warranty period
5.1. This warranty will only be granted during the warranty period.
5.2. Th e body of th e Bellfires appliance is guaranteed for a period of 10 years aga inst
construction and/or material faults, starting from the moment of purchase.
5.3. For other parts of the Bellfires appliance, a similar warranty applies from the
moment of purchase for a period of two years.
5.4. For user parts such as glass, glass (cord), thermocouple and the interior of the
combustion chamber, a similar guarantee is given until after the first burning.
Article 6: Liability
6.1.
A claim granted by Barbas Bellfires B.V. under this warranty does not automatically
imply that Barbas Bellfires B.V. also accepts liability for any possible damage.
The liability of Barbas Bellfires B.V. never extends further than that stated in
these warranty conditions. Any liability of Barbas Bellfires B.V. for consequential
damage is expressly excluded.
6.2. That stated in this provision is not valid if and to the extent that is derives from
a mandatory provision.
6.3. All agreements entered into by Barbas Bellfires B.V. are, unless specifically
stated otherwise in writing and to the extent that they are permitted based on
applicable law, subject to the FME-CWM general sales and delivery conditions
for the technology industry.
Barbas Bellfires B.V.
Hallenstraat 17
5531 AB Bladel
The Netherlands
Tel: [phone]
Email: info@Bellfires.com
Carefully retain the instructions for use; they show the serial number of the hearth.
You will need this if you wish to claim under the warranty.

9
English
Instructions for use
2 INSTRUCTIONS FOR USE
2.1 INTRODUCTION
Congratulations on your purchase of this modern Bellfires gas fire. This quality product
will provide you with many years of enjoyment due to the flame effect and warmth that it
provides.
Please read the instructions for use carefully before using the appliance for the first time.
Keep this booklet in a safe place.
2.2 BUILT-IN PROTECTION OF THE APPLIANCE
The appliance is fully protected by means of a thermo-electric pilot light shut off in the
event of a gas escape from the main burner.
In addition, the appliance is equipped with a safety system, whereby hatches will extract
any over-pressure that arises in a controlled way. In this, the hatches in the ceiling of
the combustion chamber, briefly open.
A loud noise can occur. If this happens, immediately close the gas tap and contact the
fitter.
2.2.1 Safety
Do not place embers, vermiculite granules, wood logs or pebbles against
the pilot light burner. Make sure that the pilot flame can burn at all times
freely over the main burner. Only in this way is proper ignition of the main
burner ensured.
Ignoring these directions could lead to a dangerous situation.
Do not place flammable objects within 100 cm of the appliance.
Pay special attention to furnishings and ornaments around the fire.
When igniting the pilot light and burner, always keep a minimum
distance of 100 cm from the front of the appliance.
If the pilot flame goes out for any reason, wait for 5 minutes before
attempting to re-light it.
It is essential that the appliance, the complete concentric flue system and
the outlet are cleaned and inspected annually by a recognised fitter/gas
specia lis t. The safe operation of the appliance w ill thus remain gu arante ed.
For this, please refer to the Installation instructions (Chapter 2:
Maintenance), that are supplied separately with each appliance.
The gas fire must never be used with the door open or the door glass
removed.

10
English
Instructions for use

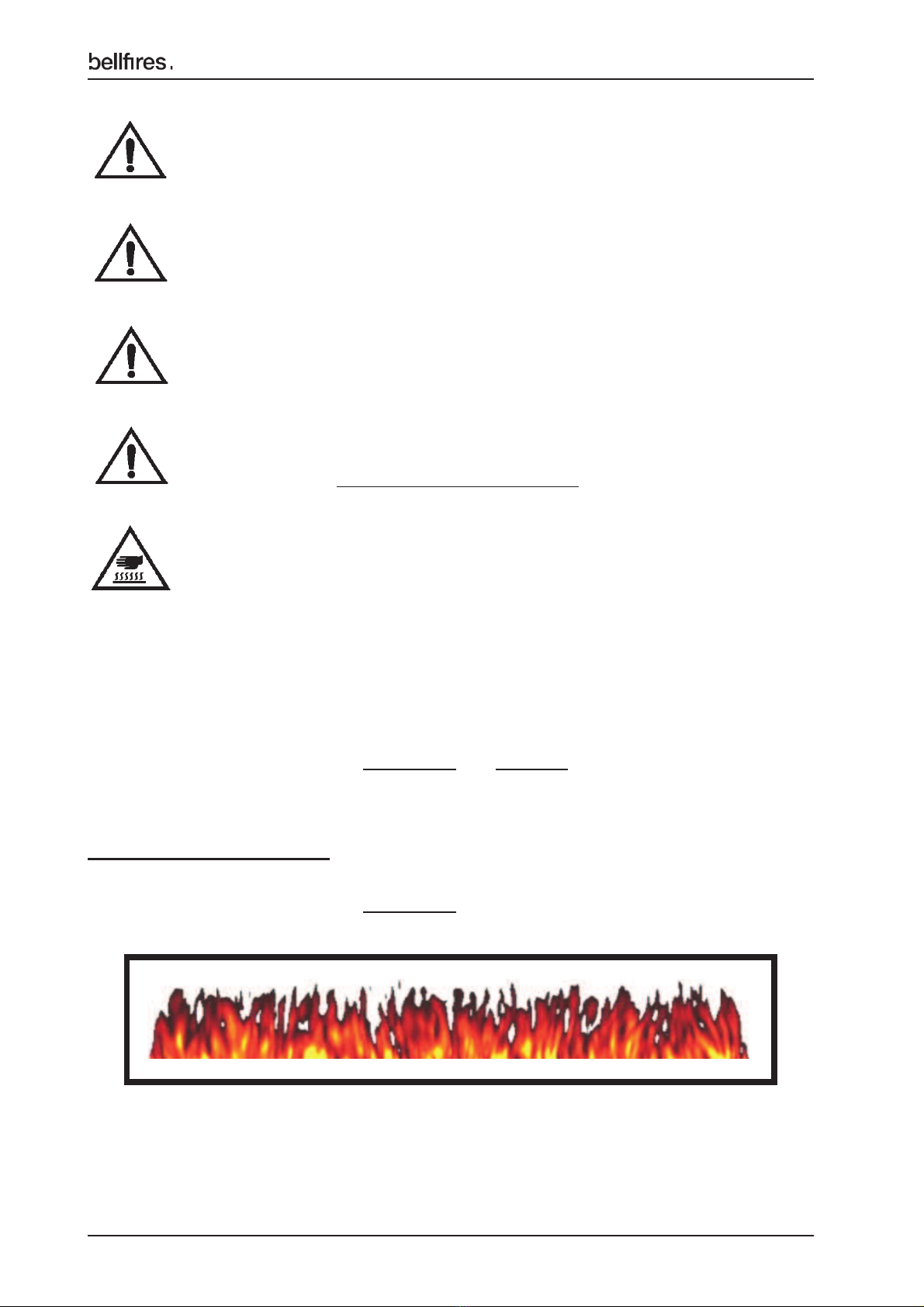

Never place flammable material on the ceramic log set.
The filling of the main burner with embers, vermiculite granules,
wood logs or pebbles may not under any circumstances be changed
or added to.
Do not place easily-flammable materials, such as nylon clothing or
flammable liquids, in the vicinity of the gas fire.
Ensure at all times that children and other people who are not
aware of the operation of the gas appliance are only in the vicinity
of the appliance exclusively under supervision.
Use a fireguard to protect the people and children mentioned
above against possible burns.
2.3 FLAME EFFECT
The appliance is supplied with a “Centre Fire” or “Line Fire” double burner,
as ordered, from the factory. These burners each have their own specific flame effect,
see below for an impression.
Corner Bell Large 3 L/R CF
The appliance is supplied with a “Centre Fire” double burner:
Both burners ON

11
English
Instructions for use
Natural gas: The above sketches provide an impression of the flame effect.
This can differ from reality. The flame effect is namely
dependant on the composition and supply pressure of the
natural gas present.

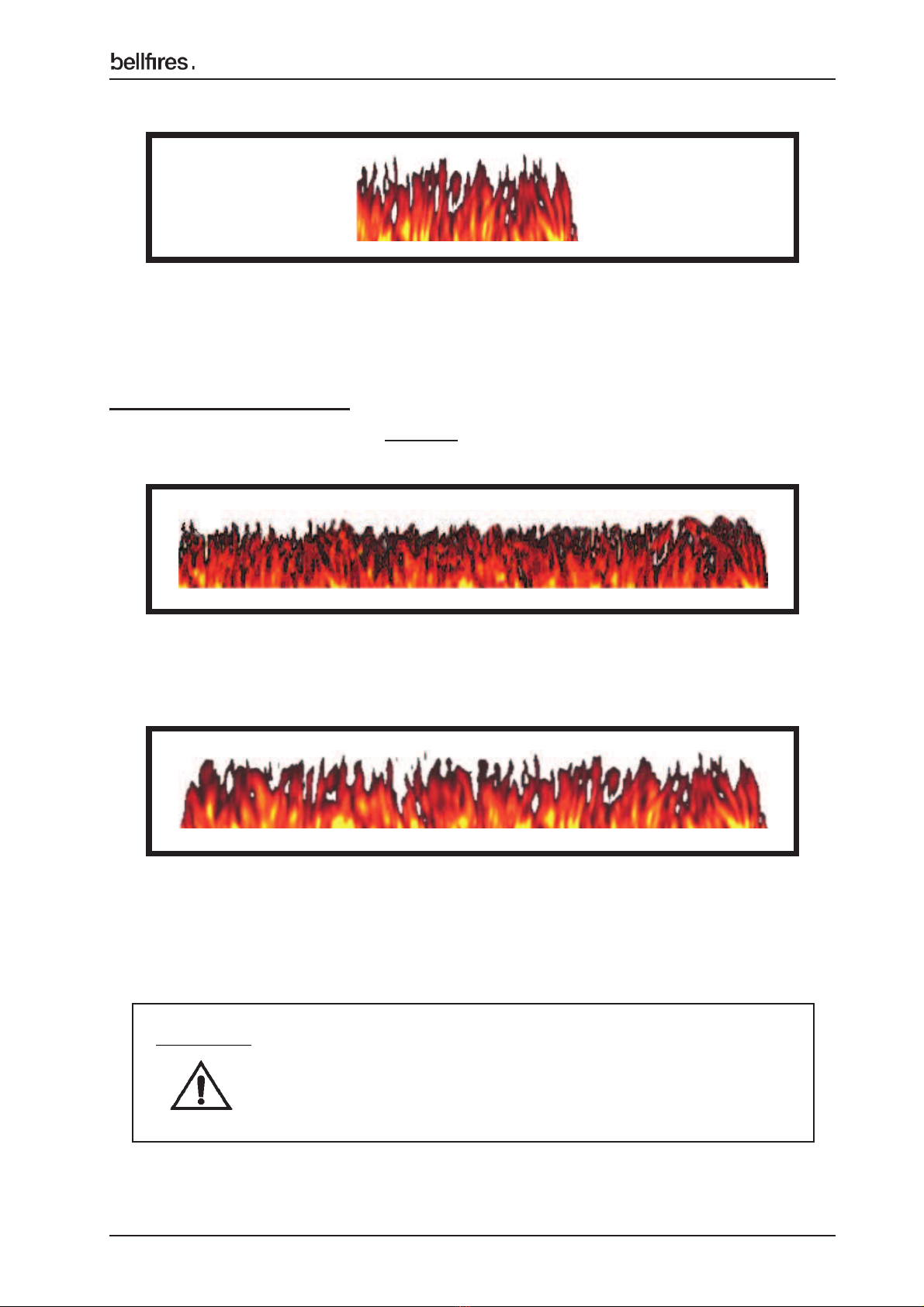

Only front burner ON
Corner Bell Large 3 L/R LF
The appliance is supplied with a “Line Fire” double burner:
Both burners ON
Only front burner ON

12
English
Instructions for use
Butane en Propane: The flame effect produced by butane and
propane is less realistic than with natural gas.
The flame effect is less as far as flame
volume and height are concerned"
2.4 OPERATION: REMOTE CONTROL
2.4.1 General
Read these instructions carefully before lighting the #re ""
The appliance is operated by radio remote control. This comprises a hand-held
transmitter and a receiver. The receiver is part of the gas control block assembly.

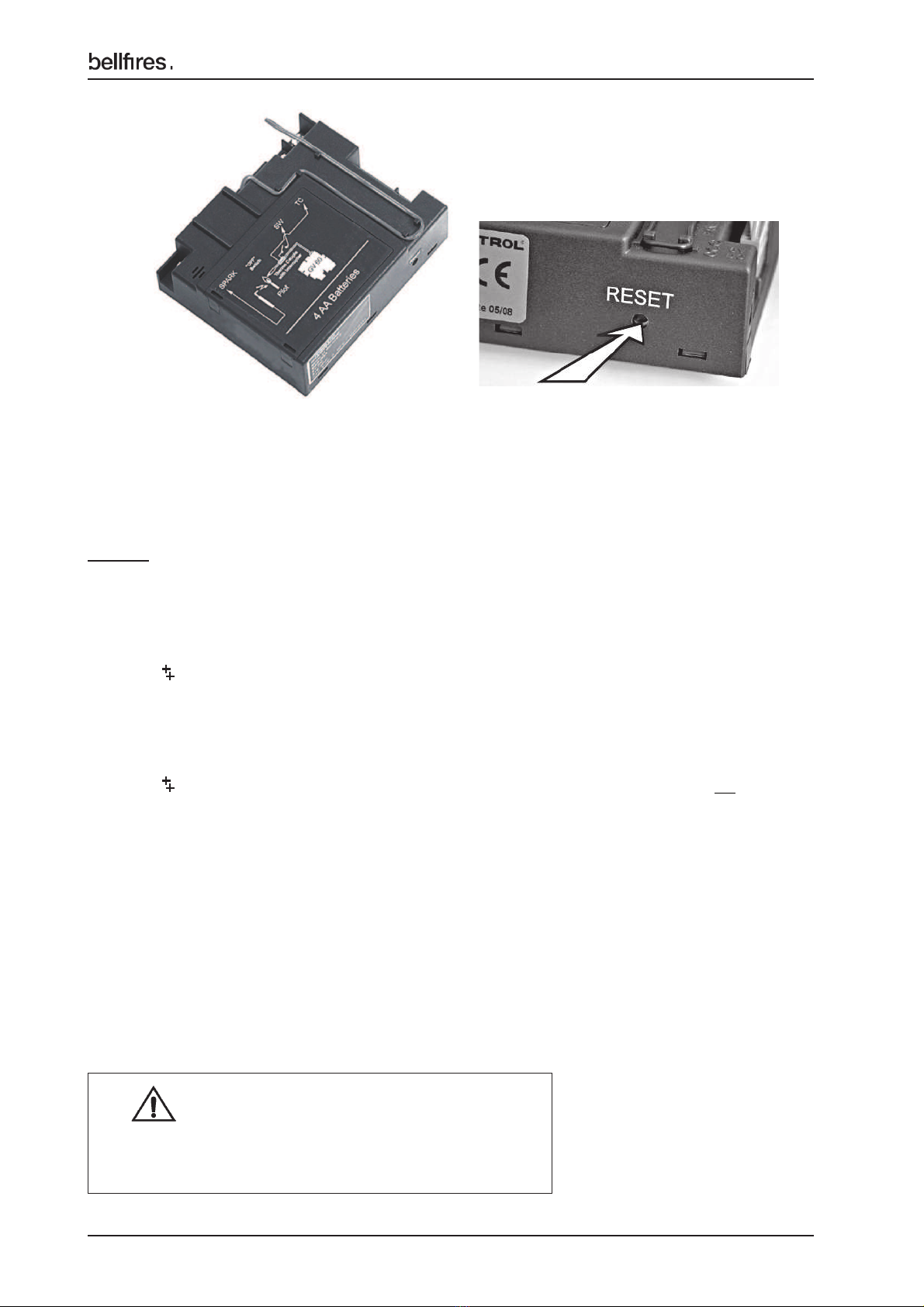

The receiver and the gas control block are behind the (white) panel door (operating unit)
next to the appliance. Press the door inwards to open; this will release the catch and the
door will spring out.

13
English
Instructions for use

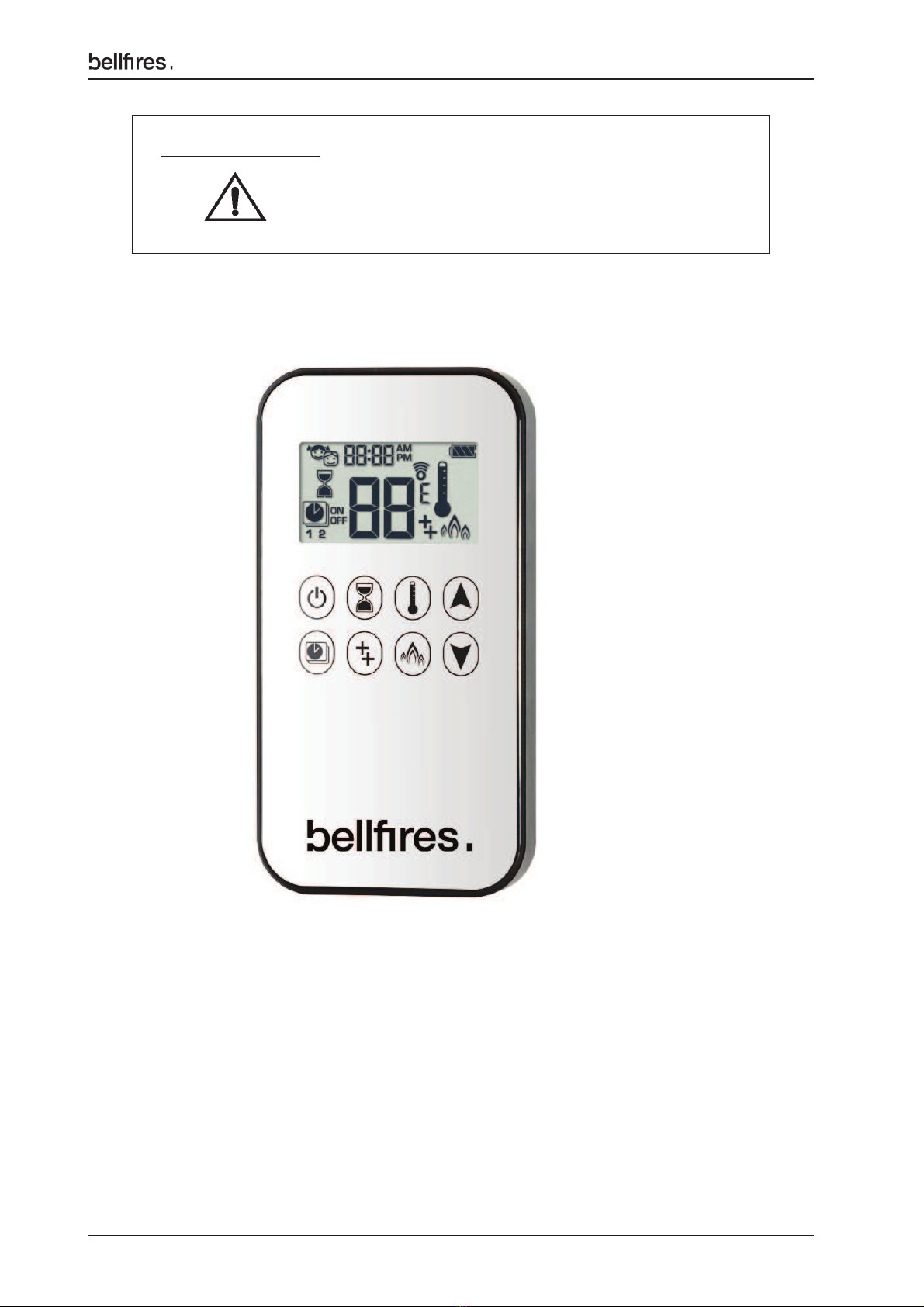

Figure 1: Hand-held transmitter
The hand-held transmitter and receiver are powered by batteries.
Hand-held transmitter : 2x 1.5V battery type LR03 or AAA.
Receiver : 4x 1.5V battery type LR06 or AA.
Option : 6V adapter (230 VAC).
Available from your fitter.
Note: Hand-held transmitter and receiver are not interchangeable with previous models.
The pilot light is situated in the front of the burner, behind a cowl. Should the pilot light
go out, you must wait five (5) minutes before attempting to re-ignite the fire.
Important
Once the fire is lit, it must burn at maximum for approx. 10 minutes to allow the chimney
to come up to temperature"
2.4.2 Hand-held transmitter
The remote control works by radio signal. The hand-held transmitter is configured in the
factory with a unique signal code.

14
English
Instructions for use
Figure 2: Display hand-held transmitter (8-Symbol display)
SETTING FAHRENHEIT OR CELSIUS
• To change between °C and °F, press and
buttons simultaneously.
Note:
Choosing °F results in a 12 hour clock.
Choosing °C results in a 24 hour clock.

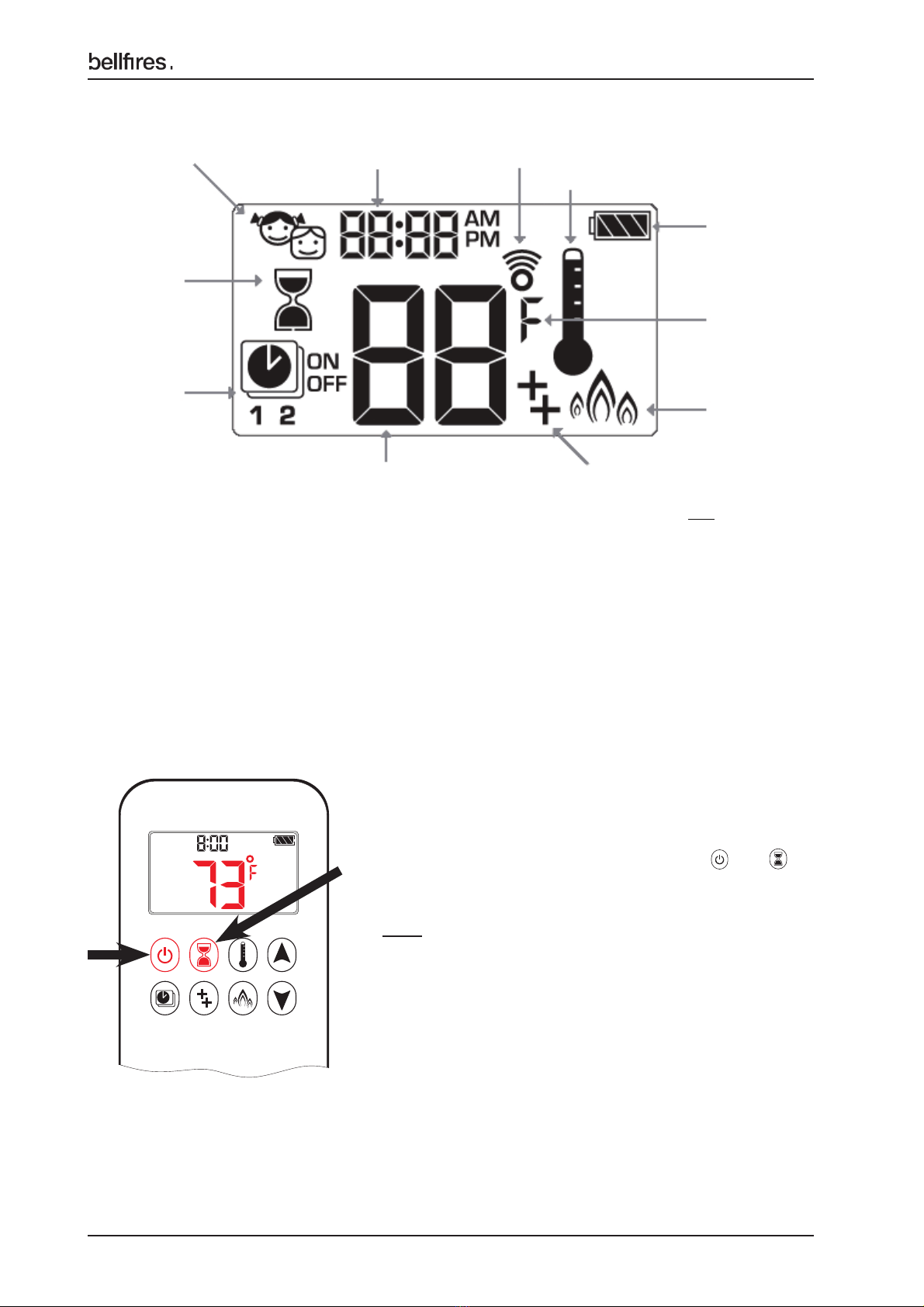

ON
AM
PM
OFF
Countdown
Timer
Program
Mode
Child proof
Signal
Indicator
Battery
Status
Time
Fahrenheit or
Celsius:
°F/12 hour or
°C/24 hour
Thermostatic
Mode
AUX-Function:
indicates that both
“front burner” and
“rear burner” are ON
Eco Mode
Temperature

15
English
Instructions for use
SETTING THE TIME
• Pres and buttons simultaneously.
Day flashes.
• Press or button to select a number to
correspond with the day of the week (e. g.
1= Monday, 2=Tuesday, 3= Wednesday,
4=Thursday, 5= Friday, 6 = Saturday,
7= Sunday).
• Press and buttons simultaneously.
Hour flashes.
• To select hour press or button.
• Press and buttons simultaneously.
Minutes flash.
• To select minutes press and button.
• To confirm press and buttons
simultaneously or wait.

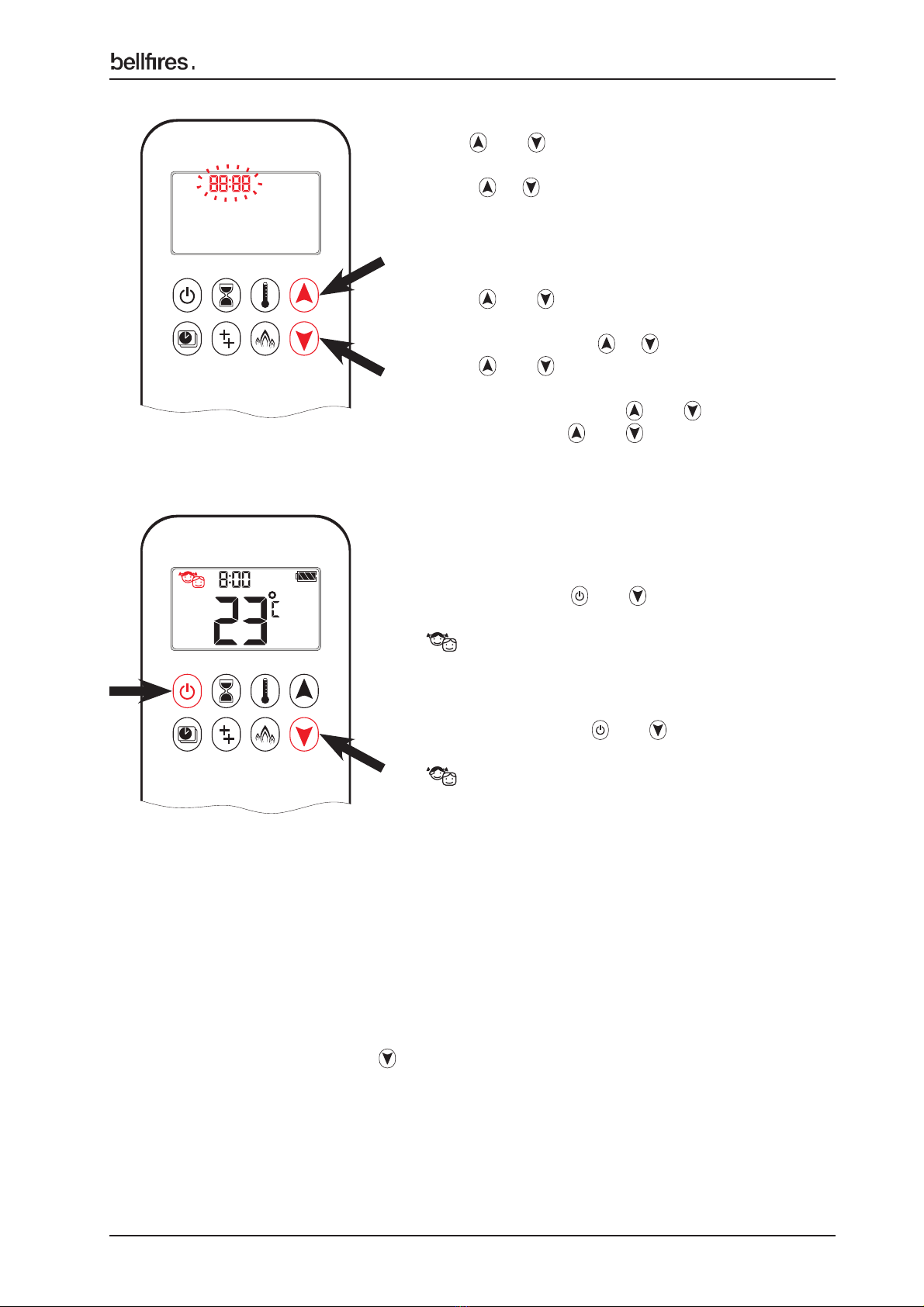

CHILD PROOF
ON:
• To activate press and buttons
simultaneously.
• displayed and the hand-held transmitter is
rendered inoperable, except for the off function.
OFF:
• To deactivate press and buttons
simultaneously.
• disappears.
ON
AM
PM
OFF
ON
AM
PM
OFF
IMPORTANT: SETTING UP SIGNAL CODE BEFORE USING THE APPLIANCE
FOR THE FIRST TIME
Before the appliance can be used, the receiver must first learn the hand-held
transmitter’s signal code.
• Press the “RESET” button on the receiver, and keep this pressed until 2 beeps are
heard. See figure 3.
Release the “RESET” button after the second (somewhat longer) beep.
• Press, within 20 seconds, the button (small flame) on the hand-held transmitter,
until 2 short beeps are heard. The signal code has now been set up on the receiver.
If, however, a single long beep is heard, this means that setting the signal code
has failed or that the wiring has been connected incorrectly.
You only need to set up the signal code once. It is not necessary when changing the
batteries of the hand-held transmitter or receiver.

16
English
Instructions for use
Burner:
The appliance’s entire burner consists of a “front burner” and a “rear burner”.
Burner operation described below applies to:
1 Both “front burner” and “rear burner”.
(The -symbol (AUX -function) on the hand-held transmitter’s display is visible.)
or
2 Only “front burner”. The “rear burner” is turned off.
(The -symbol (AUX -function) on the hand-held transmitter’s display is not visible.)
2.4.3 Operation (Remote control)
MANUAL MODE (HAND-HELD TRANSMITTER)
SWITCH ON THE APPLIANCE / IGNITING THE FIRE
• Open the gas supply valve in the gas pipe to the fire.
Figure 3: Receiver “RESET” button
Warning
When the pilot light is ignited, the motor turns
automatically to maximum flame height.

17
English
Instructions for use
ON
AM
PM
OFF
Hand-Held Transmitter One-Button Operation
(Default Setting)
• Press button until two short beeps and a
blinking series of lines confirms the start
sequence has begun; release button.
• Main gas flows once pilot ignition is confirmed.
• Hand-held transmitter automatically goes into
Manual Mode after main burner ignition.
Hand-Held Transmitter Two-Button Operation
• Press and button simultaneously until
two short beeps and a blinking series of lines
confirms the start sequence has begun; release
buttons.
• Main gas flows once pilot ignition is confirmed.
• Hand-held transmitter automatically goes into
Manual Mode after main burner ignition.
ON
AM
PM
OFF
Note
Change from one-button to two-button ignition operation by pressing
and holding button for 10 sec. immediately after installing batteries.
ON is displayed and 1is flashing. When change is complete 1will
change to 2.
Note
Change from two-button to one-button ignition operation by pressing
and holding button for 10 sec. immediately after installing batteries.
ON is displayed and 2is flashing. When change is complete 2will
change to 1.

18
English
Instructions for use
Figure 4: Gas regulating block
• Possible error messages:
* 3 seconds: short beeps, audible when the motor-knob operates:
Receiver batteries need changing soon (having heard this signal, the
appliance can be ignited another ten times approximately).
* 5 seconds: unbroken beeps:
Error. For example, one of the cables may not be properly connected.
Important: If the pilot flame goes out, then wait for
at least 5 minutes before repeating the
above procedure.
Important: • If the pilot flame goes out for any reason, wait for 5 minutes
before attempting to re-light it.
• If the pilot light does not ignite after 3 ignition attempts;
close the gas tap and warn the fitter.
• Once the pilot light is burning, the main burner must ignite
within 10 seconds automatically.
If this does not happen, immediately close the gas tap and
warn the fitter.
• If the main burner ignites with a pop; immediately close the
gas tap and warn the fitter.
Motor-knob
Microswitch8-wire Receiver Jack
Pilot gas adjustment screw
(Factory set) (Puncture the casing
with a small screwdriver)
Adjustment screw
Maximum burner pressure
(Factory set and sealed)

19
English
Instructions for use
• Press button and hold to set appliance to
pilot light.
Gradually decrease flame height / Extinguishing
the fire
• After ignition, the burner automatically sets the
flames to the maximum height.
• Press button to lower the flames and to turn
off the burner. (Extinguishing the fire: Press
button and hold: pilot light remains burning
(standby position)!)
(Pressing briefly the button gradually lowers
the flames to the low position.)
STAND-BY MODE (PILOT LIGHT)
SETTING THE FLAME HEIGHT / EXTINGUISHING THE FIRE (STAND-BY)
ON
AM
PM
OFF
ON
AM
PM
OFF
We recommend to let the pilot light
burn in the winter months, to prevent
condensation on the inside of the glass.
Flame height directly to minimum position
• Pressing the button twice, automatically
lowers the flames to the low position. (When this
happens, the flames will first automatically go
to maximum!) This is indicated by “ ” on the
display.
Note: Backlight must be on for high fire and
low fire double-click operation!
AM
2x

20
English
Instructions for use

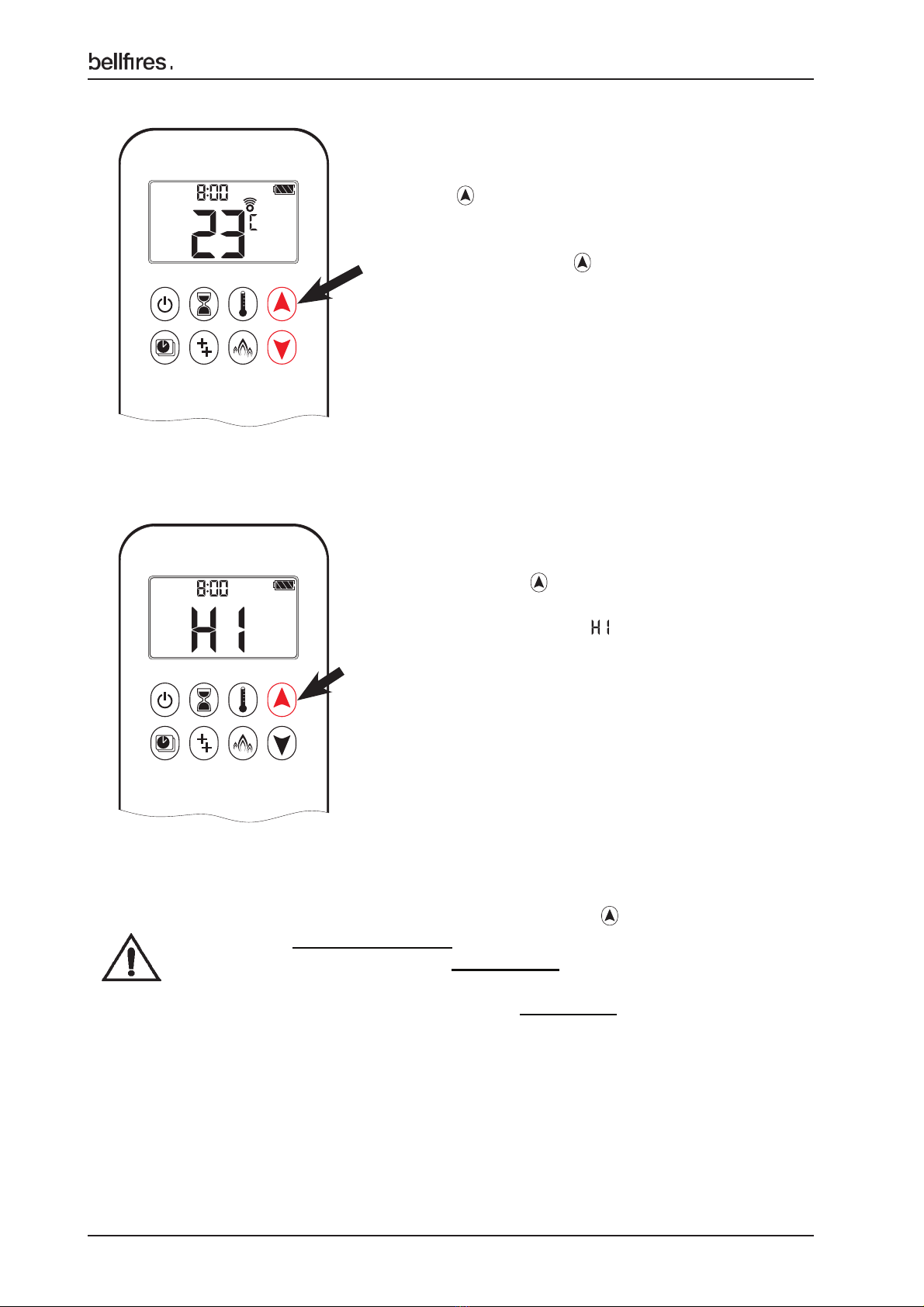

Flame height directly to maximum position
• Pressing the button twice automatically
increases the flames to the high position.
This is indicated by “ ” on the display.
Note: Backlight must be on for high fire and
low fire double-click operation!
Important: • If you turn on the burner by pressing the button, it must
ignite within 10 seconds.
If this does not happen, immediately close the gas tap and
warn the fitter.
• If the burner ignites with a pop; immediately close the gas
tap and warn the fitter.
AM
2x
Gradually increase flame height
• Press button and hold to increase the flame
level and to turn on the burner from the stand-by
position.
(Pressing briefly the button gradually
increases the flames to the high position.)
ON
AM
PM
OFF
