SAFE DRIVING GUARD DVRSAFE DRIVING GUARD DVR
(Pictures are for reference only)
Instruction Manual

AV
ON OFF
H-L-T
USB
NEXT MEMU
STATE 12V
TF
START/STOP
Structure and Buttons

Information of Functions
Specifications of the products
Connected to PND ( Portable Navigation Device) as
the monitor for recording and viewing simultaneously
Camera angle: 120°
Sensitive chip: 1/4colorCMOS
Shooting pixels: 640x480 pixels
Shooting format: video format AVI, photo format jpg.
They Can be connected to mobile phones, navigation
systems etc. for real-time playback
Power supply: connected to appliances charger or car
charger of 12V / 24V. The internal lithium battery of
3.7V
200 mah supplies power to RTC.
Automatic cycle recording. Record continuously the
latest storing clip according to the memory capacity. The
latest video will cover the starting video.
Automatically start recording when the power is on
Recording video time is set for 5 minutes.
Time display: In recording video mode, the time
displayed is recorded time, while in pause mode, it is
The time left for recording.
The maximum storage card for recording is 32 GB MMC
Card.
Size of the products: 128mm x 70mm x 114m
The advantages of the product
Automatically start recording video when the power is
on. Photographing and playback can be switched at any
time.

Connected to PND as monitor, larger and clearer video
can be seen.
The maximum storage card is 32 GB
The removable storage card can be changed when it is
full. And the video can be played in other devices such
as mobile phones and MP4.
Time watermark marks essential evidence.
Colorful high-quality video with sound.
Accessories
Car charger, stand sucker, USB data cable, instruction
manual in Chinese and English, AV-in line
Basic functions
SH-616 save driving guard is the perfect combination of
radar and traffic recorder. Combined with PND and
navigator, four functions can be realized in one device:
flow velocity measurement, fixed velocity measurement,
video navigation and driving record.
Driving record
(1)Video
A. Automatically start video and sound recording when
the power is on; switched to video recording mode from
other modes, automatically start video recording without
any operation.
B. Video format is 640x480. Five-minute clip. cycle
recording video will continue without a pause.
C. There are time information on video and photos for
reference. Internal lithium battery can ensure accurate
time.
2

D. When the storage card is full, cycle cover will keep the
latest video.
E. When external power supply suddenly fails, the
internal lithium battery can ensure the machine to go on
working for about 30 seconds. The machine will finish
saving monitoring file and exit the system.
(2)TV_out
TV_out: real-time monitoring video can be displayed on
PND, so it's convenient to adjust camera angle for the best
monitoring effect.
(3) Indicator: Double-color LED indicator
A. The green light is on in video recording mode and it
will flash continuously when video recording is
abnormal.
B. The yellow light is on in photographing mode and it
will flash continuously when photographing is abnormal.
C. The red light is on in playback mode and it will flash
continuously when playback is abnormal.
(4)Buttons
A. MENU: to switch modes. The default mode is video
recording. Press this button to switch between video,
photograph and playback.
B. Start/ stop: to start stop mode.
In video recording mode: Press this button to display
“stop” to stop video recording. Press it again to display
“start video recording” to start recording.
In photographing mode: press this button and the sound
“kacha” will be heard and one picture will be taken.
In playback mode: press this button to browse pictures or
start video. Used with “Next” button, press start / stop

Button for five seconds to enter time setting screen in the
mode of stopping recording or photographing
C.NEXT
In playback mode, press this button to browse the next
picture or video clip.
In non-video recording mode, press this button for five
seconds to formatted TF card.
In time-setting mode, long press increases 10 and short
press increases 1.
D. Combined buttons: Press the above three buttons at the
same time can save the recording video.
II. Clip radar
（1Radar early warning function
A. Early warning of flow and fixed velocity measurement
can be realized combined with DSA software. The latest
VCO sweep-frequency technique is used in flow velocity
measurement, which can ensure prompt adjustment of the
sampling monitoring frequency.
B. Dynamic satellite-sensing filtering system
（2）Voice switch
This device has a switch of voice switch to realize the
switch early warning from clip radar or navigator PND.
Turn to “on” for external broadcast from clip radar.
Turn to “off” for internal broadcast from PND.
（3）Program switch
）

This device has a program switch which ensure the
perfect adaptation to the primary PND programs sold in
market.
There are three gears for program switch: H, L and T.
Switch to suitable position according to different
programs. The line connected to PND is a line of 3 in 1.
The parameters of the whole machine
Operating voltage: DC 12V/24V
Operating current: 200 mA
Standby current: <1mA
The parameters of rechargeable battery:
Capacity: 200mAh
Charge current: 120m A
Charge time: 2.5 hours
Speaker: 8 ohm 1.5w runway model
Electrical parameters

The parameters of camera
Functions setting
I. Formatting
Long press of the “NEXT” button for five seconds will
format TF card in stop recording video or
items
Pixels
Dynamic image resolution
Shooting image resolution
Remarks
P0A030
VGA
VGA
Number of colors
Camera structure
Focal length
F-number
Shooting range
Field of view
Distortion
Relative illumination
properties
30 million
640x480
640x480
24 Bits True Color
4E+1R aspheric lenses
2.9 mm
0.2m→∞
120.0°
1%
63%
F2.0
Image transfer rate 15/30 FpsSXGA/SVGA
White balancee Automatic
Gain Automatic
Exposure control Automatic
Output signal RGB 5:6:5
Encoding Output analog video
Output pin 24 pin
Flash NC
Operating voltage 3.3 v
Light sensitivity 1.0 LUX
Power dissipation 40 mW/ 30mW
Outline dimension 43mmx13mmx20.6mm
Operating temperature 10° 60°
±0.2

Photographing mode and the word “formatting” will
appear on the screen.
II. Mode switch
Only after stopping recording video, can you switch to
another mode when pressing the “MENU” button: video
recording→photographing→playback. If video is being
recorded, please press START/STOP and then MENU to
switch.
III. Mode description
(1) Video recording mode: the default mode when power
is on. When this mode is started, there is voice prompt
“video recording”.
Press MENU to switch to other modes.
Press START/STOP to stop or start video recording with
voice prompts “Stop video recording” or “start video
recording”.
Video recording mode is as follows :
Symbol of
DV mode
Resolution
Recording
state indicator
Recorded time/time
left to record The state of SD card
Battery state

Recorded time / time left to record
In video recording mode, recorded time is displayed, in
STOP mode, the time left is displayed.
(2) Photographing mode: Press MENU to switch to this
mode with voice prompt “photographing”. Press
START/STOP to photograph and “kacha” will be heard.
（3）picture playback: belongs to playback mode
Press MENU to switch to this mode with voice prompt
“playback”. Press NEXT to browse the next page.

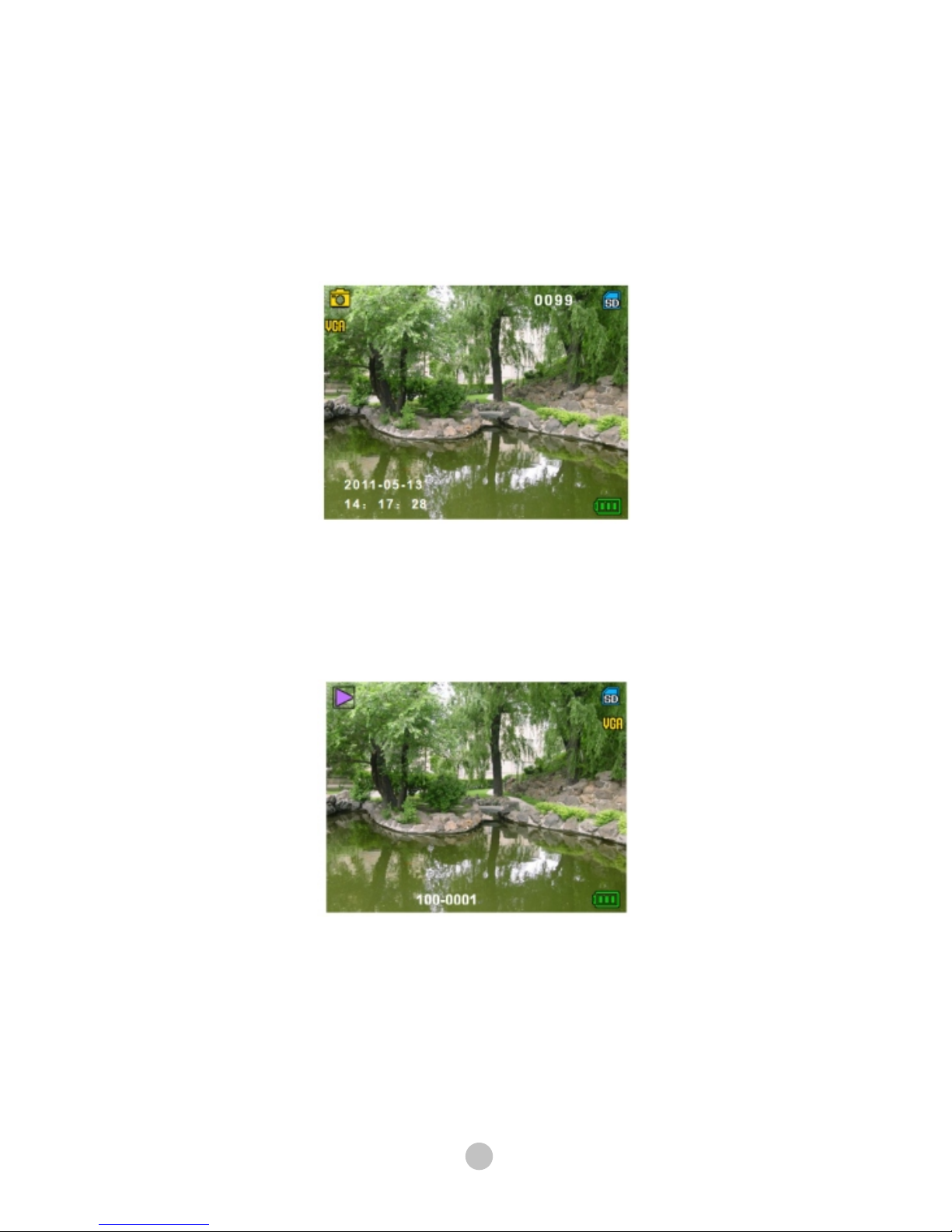

Pictures playback is as follows:
(4) video playback: belongs to playback mode
Press MENU to switch to this mode with voice prompt
“playback”. Press START/STOP to play
8

video or stop video; Press NEXT to browse the next
page.
Video playback is as follows:

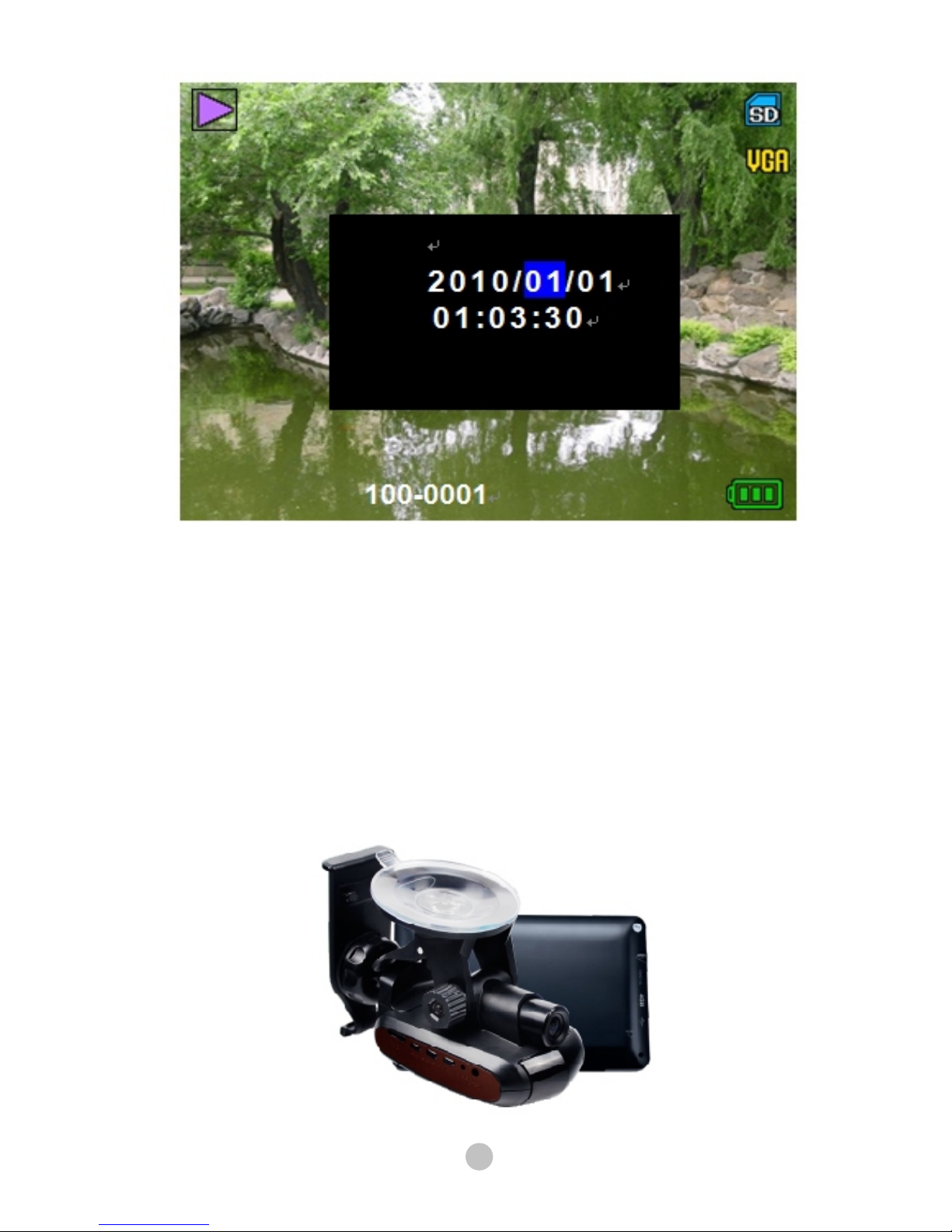

(5)Time setting:
A. Press START/STOP for five minutes to enter time
setting interface in the mode of stopping recording video
or photographing.
B. On time setting page, Year, Month, Day, Hour, Minute
and Second can be switched by pressing MENU button.
C. On time setting page, press NEXT to increase number,
a long press increases 10 while a short press increases 1.
D. On time setting page, press START /STOP to confirm
changes and then exit and return to the previous state.
E. In time setting mode, if users do not operate after 10
seconds, it will return to previous state automatically and
will not save the time setting. It will start recording video
in video recording mode.
9

Installation Instruction
SH-616 is connected to navigator to make a four-in-one
machine.
10

Installation Instruction

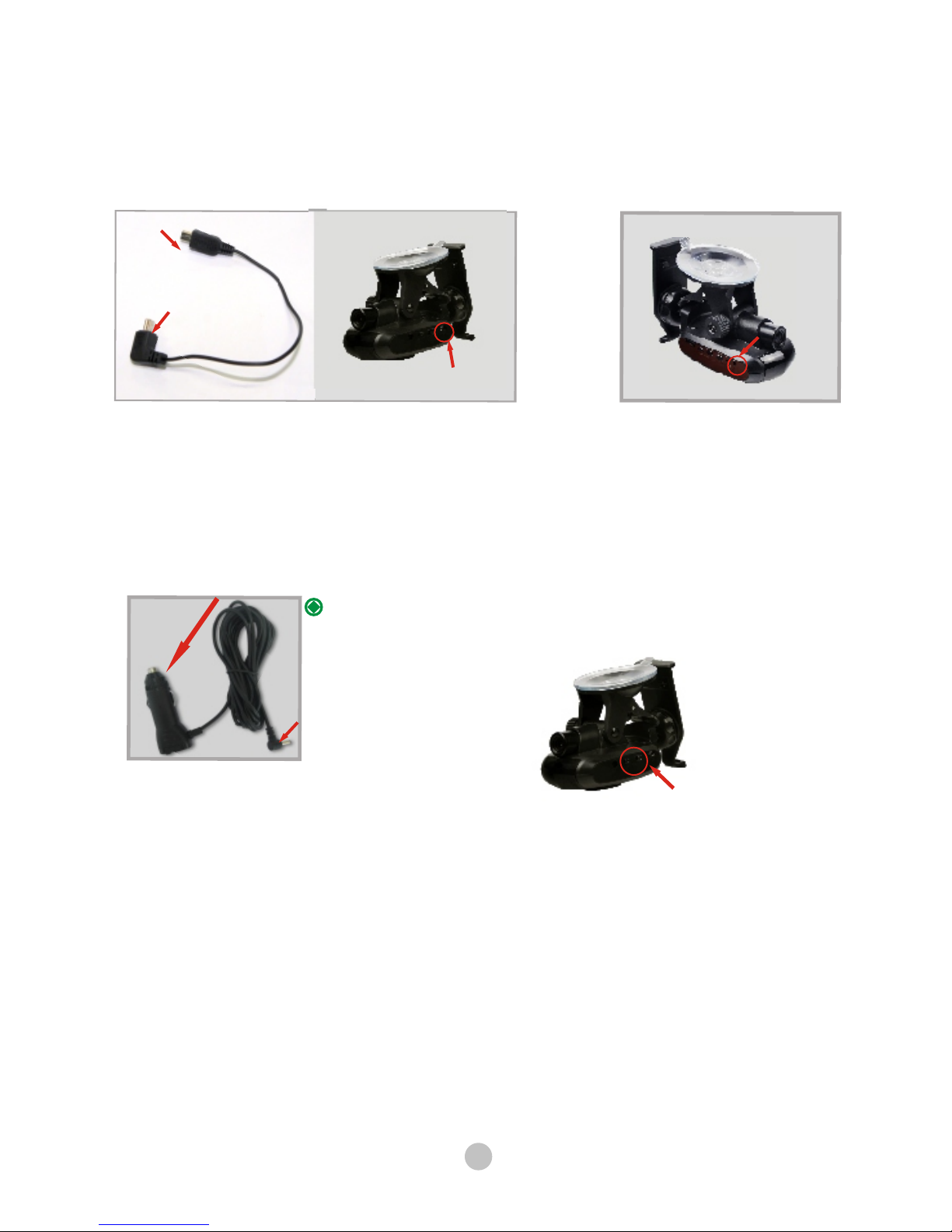

Installation instruction is shown as the following
pictures:
Connect SH-616 automobile data recorder navigator with
USB cable. (note: make sure the tonavigator is off before
inserting the plug into it. )
1) Function description (only SH-616 with voice has the
following functions)
a. Combined with navigator, it can realize the functions of
3 in 1: GPS navigation, fixed velocity measurement, flow
velocity measurement.
b. Voice switch
2) Turn to ON, automatically choose voice warning from
radar or navigator.
Connect to PND
Connect to radar
USB interface
Power interface
12V power plug
cigarette lighter
You can turn on navigator after setting as above, and
Enter DSA system and make various setting according to the
instruction of DSA.
Insert the car charger into the position of
cigarette lighter and check if the indicator
Is on. dial switch
Instruction of dial switch is shown on next page.
11

1)When the power is on, there will be a voice, “Safety
early warning system is being started”.
2)If not connected to navigator, automatically use voice
warning from SH-616. When flow velocity measurement
is detected, there will be voice prompt, “tick, tick, tick,
radar signal is detected, tick… tick…”
Turn to OFF to turn off voice warning from radar and
switch to PND warning
1)when power is on, the machine is mute.
Note: before using, please make sure that the model of
SH-616 is correspondent to that of navigation host.
3-pin dial switch, three positions are
marked as H, L and T.
The configuration of corresponding program is as
follows:
Posi tion Voltage requi red Corresponding program
PND progr am requi res hi gh
elect ri cal level for No. 4p. Yuanf eng progr am
PND progr am requi res hi gh
elect ri cal level for No. 4p.
Jinbai sheng progr am, shanl ing
4358T progr am
PND progr am requi res ra dar
signal for No. 4p.
MTK program, Aipeik e progra m,
zhangxunprogra m, meisaid a program
( 5 pin)
12
H
L
T

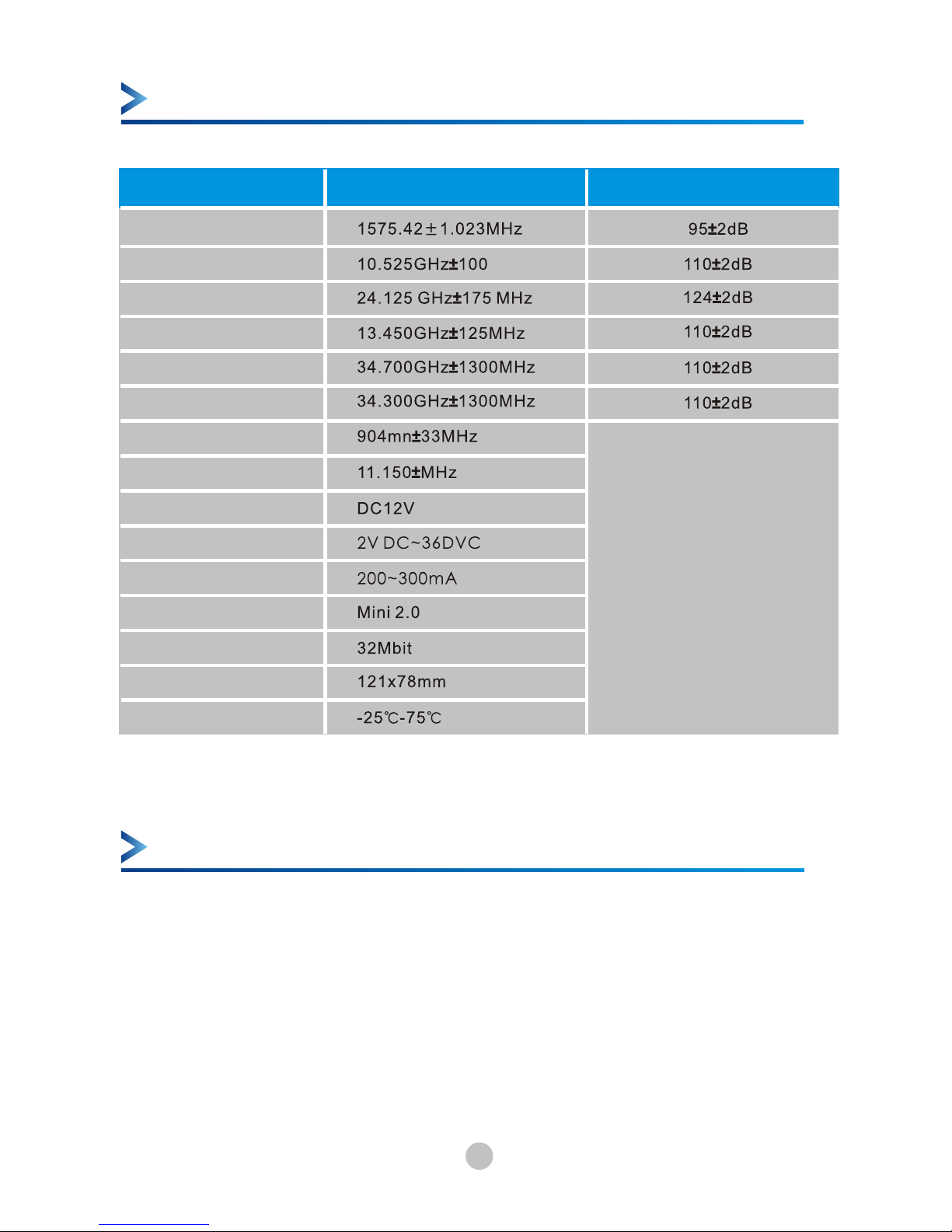

Main specifications
Main specification
Satellite frequency
Receiving frequency range Sensitivity value
Police car X-band
Tripod K-band
Police car Ka-band
Tripod car-band
Laser gun laser beam
Anti-detection Vg2
Voltage
Car power supply
Current value
USB
Memory
outline size
Operatin g temperature
1.Data storage capacity:
360000
2.Distance error: ±10m
3.distance display: 0.999m
4.Electronic compass: east,
south,west,north,northeast,
southeast,northwest,southwest
.
5. power supply: DC 12V
6. 360 ° detection of laser band
Present police standard system

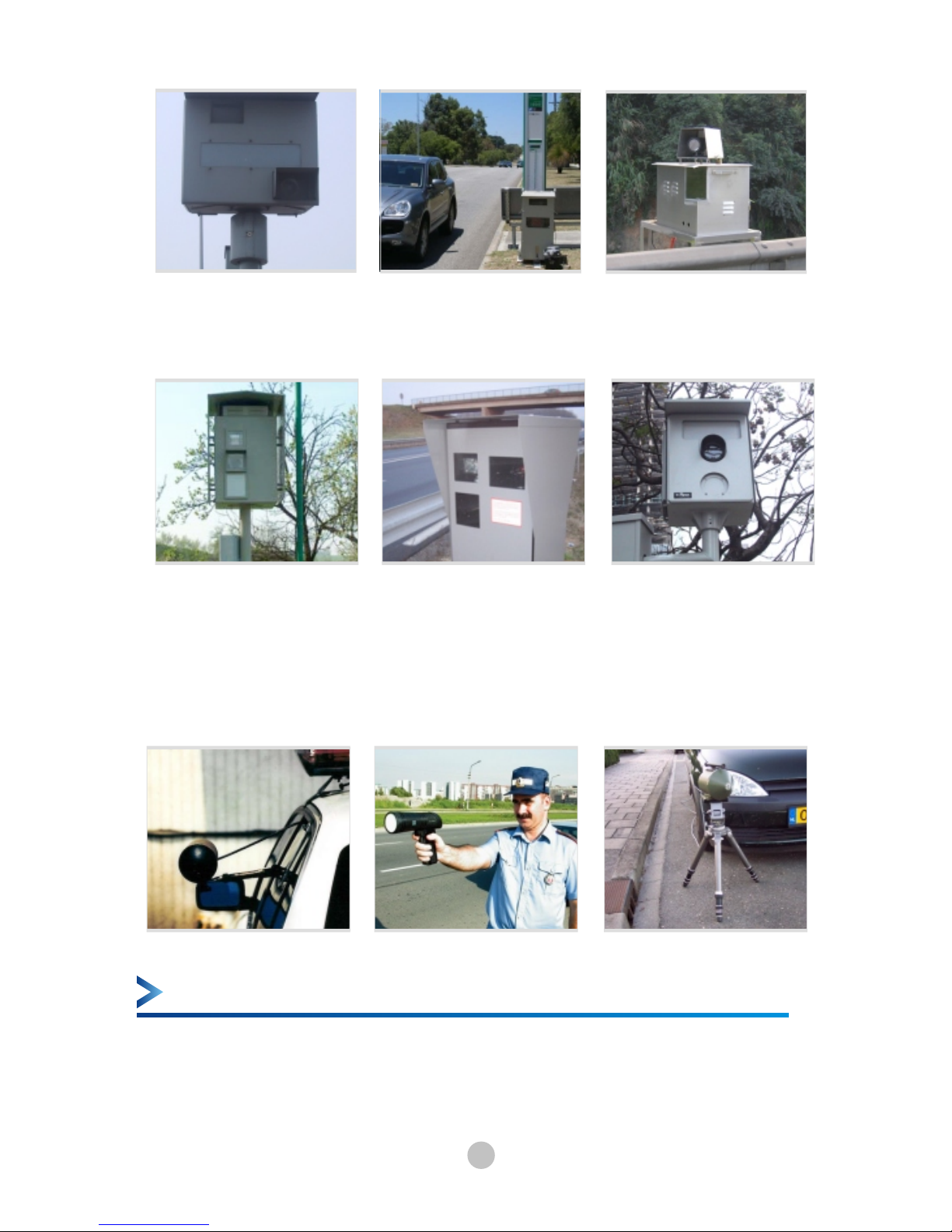

1-4. Ku fixed photographing system. Lock the
photographing distance at 10m to 30m.
GPS satellite locates the distance for radar receiving
signal and gives warning about the distance according
to speed limit.
Requirement
13

(pictures 1-5)
1-6. cross-section X-band system: Lock the phot ogr aphi ng
distanc e at 300m to 450m .
(pictures 1-4)
(pictures 1-6)
Present police standard system
1-7. Flow Ku-band phot ogr aphi ng system: Lock the
phot ogr aphi ng distanc e at 10m to 35m .
Radar det ector receives signal at a distanc e of 3002500
meters.
1-5. Flow Ku-band phot ogr aphi ng system: Lock the
phot ogr aphi ng distanc e at 10m to 35m .
14

Rad ar d et ec tor r ec ei ve s sig na l at a d is tan ce o f
350 -1 50 0m ete rs .
(pictures 1-7)
(pictures 1-8)
(pictures 1-9)
1-8. Flow K-band photographing system: Lock the
photographing distance at 10m to 35m.
Radar detector receives signal at a distance of 2501500
meters.
1 - 9 . Fl o w K ph o t o g r a p h i n g s y s t e m : Lo c k t h e
photographing distance at 10m to 30m.
Radar detector receives signal at a distance of 2501500
meters.
15

Moving photographing system usually take pictures in
a moving invisible way. So it is not easy to be found. In
today's market, only the radar detector of our company
can detect the moving invisible photographing traces.
The detecting distance is decided by the quality of
radar detectors. This product can receive signal at a
long distance, so it can help avoid being fined.
At present, Ka photographing system in China is
mainly used witnessing Ka radar and Ka system made
in Germany according to European rules. The
frequency of Ka photographing system is so short and
its reflecting signal is so weak that traditional radar can
only receive signal at a short distance, so if there is Ka-
band warning, you have to be especially careful, then
you can avoid being photographed.
The toxic and hazardous substances are described as
follows according to the requirements of description in
The Managing methods to prevent Pollution of
Electronic Products and The Managing methods to
prevent the pollution of Electronic Information
Products:
Toxic and hazardous substances or chemical elements
Parts Lead Mercury Cadmium
Hexavalent
chr om ium
Polybrominated
biphenyl
polybrominated
diphenylethers
Circuit board
Shell
Wire type
Power supply
16
Pb Hg Cd Cr6+ PBB PBDE

○: indicates that the toxic and hazardous substances are not
included in all homogeneous materials of that part or the
content of them is less than the limited
content required in the standard of SJ/T11363-200.
X : indicates the content of toxic and hazardous substances in
one of the homogeneous materials in
this part is more than the limited content required in
The standard of SJ/T11363-200.
Note: Most parts of this product are made of eco-friendly
materials which are not toxic or hazardous.
17
