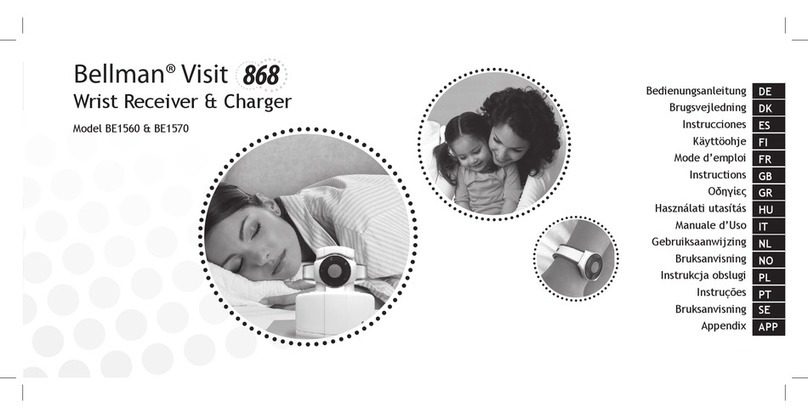

Bellman & Symfon Visit User manual

Buttons and controls
In the box
BE1560 Visit wrist receiver
BE1570 Charger
Elastic wrist band
Power supply
Power and battery
Mains power: 7.5 V DC/1500 mA
Power consumption
Receiver: Active: 100 mA, Idle: 3 mA
Charger: Active: 650 mA, Idle: 70 mA
Battery power
Receiver: 1 x 1.2 V V40H rechargeable
Charger: 4 x 1.2 V NiMH rechargeable
Operating and charging time
Receiver: ~30 h, Charging time: ~8 h
Charger: Battery charging time: ~24 h
Environment
For indoor use only
Operating temperature
15° to 35° C, 59° to 95° F
Relative humidity
5% to 95%, non-condensing
Frequency and coverage
Radio frequency
314.91 MHz, 433.92 MHz or 868.30
MHz, depending on the region
Coverage
50 – 250 m, 55 - 273 yd. depending
on the radio frequency and the
characteristics of the building
Accessories
BE1270 Bed shaker
BE9086 External trigger cable
Dimensions and weight
Receiver Charger
Height 49 mm 100 mm
Width 38 mm 95 mm
Depth 12 mm 117 mm
Weight 27 g 185 g
Visit LEDS
The Visit LEDs normally indicates
the following:
Orange LED, pacier symbol
The baby monitor is activated
Green LED, door symbol
The door transmitter is activated
Yellow LED, telephone symbol
The phone transmitter is activated
Red LED, re symbol
The smoke alarm is activated
Technical specications

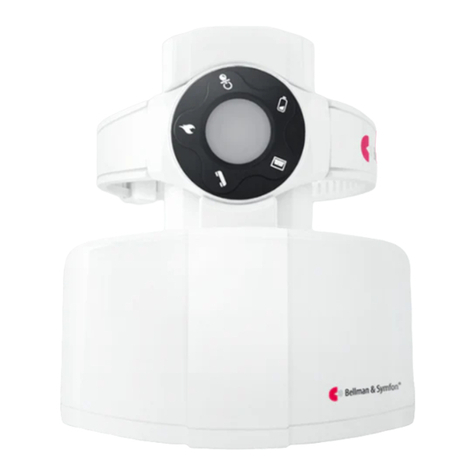

Visit wrist receiver BE8102
Visit LEDs
Silicone wrist band 3.5 mm bed shaker input
Charger Charging LED
BE1270 bed shaker
Function button Mains LED
Bed shaker
test button
Battery LED
Power supply

”click”
1 2 3
Getting started
1Pull the battery tab on the charger and connect the power supply to the mains outlet. The mains LED lights up in green.
Place the wrist receiver in the charger and charge it for at least 2 hours. The charging LED is green during charging.
2To test the radio link you need a Visit transmitter. Press the test button/s on the transmitter.
3The receiver starts to vibrate and lights up a Visit LED. If a bed shaker is connected during charging, it will vibrate.
If nothing happens, see Troubleshooting.
Default signal pattern
When a transmitter is activated, the wrist receiver lights up a LED and starts to vibrate with a certain pace. This is called
signal pattern. The transmitters determine the pattern, and the default is as follows:
Activated transmitter Wrist receiver LED Wrist receiver / bed shaker vibration
Door transmitter Green Slow
Push button transmitter Green Slow
Telephone transmitter Yellow Medium
Baby monitor Orange Fast
Smoke alarm Red Long
Changing the signal pattern
The signal pattern can only be changed on the transmitters. See Changing the signal pattern for the relevant transmitter.
LED indications
When the wrist receiver battery is nearly depleted, the battery LED starts to blink in yellow. The charging time is up to 8 h.
The charger is equipped with a battery backup and the charger LEDs indicate the following:
LED Indication Status
Charging LED Green light The receiver battery is being charged.
Mains LED Green light The charger is powered by mains voltage.
Mains LED Green blinks The charger is powered by the battery backup.
Visit wrist receiver

Changing the radio key
If your Visit system is activated for no reason, there is probably a nearby system that triggers yours. In order to avoid radio
interference you need to change the radio key on all units. The radio key switches are located on the transmitters.
Here is how you change the radio key:
1Open the transmitter cover and move any radio key switch to the up = on position to change
the radio key. See Changing the radio key for the relevant transmitter.
2Press and hold the function button on the wrist receiver until the green and yellow Visit LEDs
blink alternately. Release the button.
3Press the test button/s on the transmitter within 30 seconds to send the new radio key.
4All Visit LEDs on the receiver blink 5 times to show that the radio key has been changed. It then returns to normal mode.
Please note: All Visit units must be set to the same radio key in order to operate as a group.
1 2 3 4
x 5
Visit wrist receiver
Accessories
The wrist receiver can be complemented with the following accessory:
BE1270 Bed shaker
Wakes you with vibrations if anything happens while
you are asleep. Connect it to the charger and slide it
under your pillow or mattress.
Note: The bed shaker only works when the wrist receiver
is placed in the charger. The receiver will not vibrate
during charging, but the Visit LEDs will act as usual.
Press the bed shaker test button on top of the charger to
try the bed shaker vibration.
On
O
Warning! The wrist receiver and charger can ONLY USE RECHARGEABLE NiMH BATTERIES. Non-
rechargeable batteries will start to leak during charging and the battery acid will damage the electronics
in the wrist receiver and charger. The resulting damage is not covered by warranty.
BE1270

If Try this
The receiver seems to be turned o The battery is depleted. Charge or replace it with a VARTA V40H NiHM battery.
The battery LED blinks in yellow The battery level is low. Charge or replace it with a VARTA V40H NiHM battery.
The receiver is not charging Check that the receiver is placed correctly in the charger and that the power supply
is connected. The mains LED and charging LED should be lit.
Charge or replace the backup batteries with four 1.2 V NiMH rechargeable batteries.
The receiver does not respond
when a transmitter is activated
Check the transmitter batteries and connections.
Move the receiver closer to the transmitter to make sure it’s within radio range.
Check that the receiver is set to the same radio key as the other units in the Visit
system, see Changing the radio key.
The receiver is activated for no
apparent reason
There is probably another Visit system installed nearby that triggers your system.
Change the radio key on all units, see Changing the radio key.
The bed shaker does not vibrate Check that the bed shaker is connected and that the receiver is placed in the charger.
Advanced programming
By using advanced programming, you can customize the signal pattern from a specic transmitter and event, displaying
the LED colour and vibration pattern of your choice. The advanced programming overrides the radio key and pairs the
units via the serial number. Please note that smoke alarms cannot be programmed for safety reasons.
Note: The transmitter must be activated as it is intended to be used in the system to generate the right signal.
This means that you can’t always use the transmitter test button (see Default signal pattern for the relevant transmitter).
Here is how you program the wrist receiver:
1Press and hold the function button on the receiver. The green and yellow Visit LEDs will start to blink alternately.
While still holding down the button, activate the desired transmitter as intended. The battery LED on the receiver lights
up in yellow to show that you are in advanced programming mode. Release the button.
2Scroll through the dierent Visit LED options by pressing the function button on the receiver. Select the desired Visit
LED colour by holding down the function button until the battery LED goes out and lights up again.
3Scroll through the dierent vibration options by pressing the function button on the receiver. Select the desired
vibration pattern by holding down the function button until the battery LED goes out and lights up again.
4The wrist receiver will now show the new Visit LED colour and vibration pattern. Press the function button briey to end
the demonstration. After a short while, it will return to normal mode.
Deleting the advanced programming
Follow the procedure below to delete the advanced programming.
1Hold down the function button on the receiver until the green and yellow Visit LEDs blink alternately. Release the button.
2Press the function button on the receiver 3 times in quick succession.
3All Visit LEDs will light up for ~2 seconds to show that it has been deleted.
Troubleshooting
Most problems with the wrist receiver can be solved quickly by following the advice below.
Visit wrist receiver
