Belmont FMS2000 User manual

OPERATOR’S MANUAL
The Belmont®Rapid Infuser, FMS2000
780 Boston Road
Billerica, MA 01821, USA
866-663-0212 US/Canada
978-663-0212 Worldwide

The Belmont®RAPID INFUSER, FMS2000
OPERATOR’S MANUAL
Belmont Instrument Corporation
780 Boston Road
Billerica, MA 01821, USA
Wellkang Tech Consulting
Suite B, 29 Harley Street
London, W1G 9QR
England, United Kingdom
Tel: [phone]
Fax: [phone]
All service calls & questions should be directed to
855-397-4547 US/Canada
978-663-0212 Worldwide
CAUTION: Federal law (USA) restricts this device to sale by or on the order of a physician.
P/N 702-00001 Rev AH

i
The Belmont®Rapid Infuser FMS2000
Operator=s Manual
Table of Contents
Page No.
CHAPTER 1: INTRODUCTION - SYSTEM OVERVIEW
Introduction .........................................................................................................................1
Indications for Use ..............................................................................................................1
Contraindications ................................................................................................................1
Overview of the Belmont®FMS2000 ..................................................................................2
Control Panel: Display and Keys ........................................................................................3
CHAPTER 2: OPERATION
Introduction .........................................................................................................................4
Step-by-Step Operating Procedures...................................................................................5
IV Pole Mounting....................................................................................................5
Installing the Disposable Set..................................................................................6
Installing the Optional Large Reservoir..................................................................7
Powering On the System .......................................................................................8
Installing Fluid Bag.................................................................................................8
Priming the Main System.......................................................................................9
Priming the Patient Line ..................................................................................9
Connecting to Patient...........................................................................................10
Match the Infusion Set to Flow Rate and Fluid Type ....................................10
Initiating Infusion..................................................................................................10
Maintain Infusion..................................................................................................11
Pressure Control............................................................................................11
Automatic Air Purging....................................................................................11
Bolus Infusion (Infuse a Fixed Volume).........................................................11
Recirculation..................................................................................................12
Stop ...............................................................................................................12
Battery Operation..............................................................................................................12
Low Battery....................................................................................................12
Accidental Power Off.........................................................................................................13
End of Procedure..............................................................................................................13
Emergency Manual Operation ..........................................................................................13

ii
Page No.
CHAPTER 3: ALARMS AND TROUBLESHOOTING GUIDE
Introduction .......................................................................................................................14
A. Operational Alarms ..............................................................................................14
Air Detection..................................................................................................14
Door Open.....................................................................................................15
Fluid Out........................................................................................................15
High Pressure................................................................................................16
Low Battery....................................................................................................16
Missing Disposable........................................................................................16
B. Heating Alarms.....................................................................................................17
Heating Fault .................................................................................................17
Over Temperature.........................................................................................17
C. Hardware Alarms .................................................................................................18
Air Detector Fault...........................................................................................18
Heater Fault Latch.........................................................................................18
Heater Power Read Back Fault.....................................................................18
Heater Over Power Fault...............................................................................18
Power Module Overtemp...............................................................................18
Pump Fault ....................................................................................................19
Valve Fault.....................................................................................................19
Watchdog.......................................................................................................19
Troubleshooting Other Operational Difficulties.................................................................20
CHAPTER 4: PARAMETERS SETTING AND PREVENTIVE MAINTENANCE
Introduction ................................................................................................................22
A. System Setup.......................................................................................................23
1. Date/Time ....................................................................................................24
2. Display Brightness.......................................................................................25
3. Key Rate ......................................................................................................25
4. Bolus Volume...............................................................................................25
5. Pressure Limit..............................................................................................25
B. Service and Preventive Maintenance Schedule ..................................................26
Schedule 1 ...........................................................................................................26
Schedule 2 ...........................................................................................................26
C. Routine Maintenance...........................................................................................27
1. Clean and/or Disinfect Exterior....................................................................27
2. Fluid Out and In-Line Air Detectors .............................................................27
3. Power Cord..................................................................................................27
4. Temperature Probes....................................................................................27
5. Fan Guards..................................................................................................27
6. Seals............................................................................................................27
7. Instrument Door and Ceramic Disks............................................................28
8. Rubber Feet.................................................................................................28

iii
Page No.
D. Testing the System and Operational Check-Out.................................................29
1. Visual Inspection..........................................................................................29
2. System Operational Checkout.....................................................................30
3. Battery Run Time.........................................................................................30
4. Electrical Safety Test - Leakage Current.....................................................31
5. Hardware Verification...................................................................................33
6. Clean the pump head...................................................................................38
E. Checklist...............................................................................................................39
F. Electromagnetic Compatibility..............................................................................41
G. Fuse .....................................................................................................................43
H. Calling for Service................................................................................................43
CHAPTER 5: TECHNICAL SPECIFICATIONS
Dimensions .......................................................................................................................44
Power AC..........................................................................................................................44
Battery...............................................................................................................................44
Environment......................................................................................................................45
Operating Parameters.......................................................................................................45
Operating Panel ................................................................................................................46
Safety and Monitoring.......................................................................................................46
Alarm States and Controls................................................................................................47
Disposable Set..................................................................................................................47
Classifications ...................................................................................................................48
Symbols and Definition .....................................................................................................49

1
It is essential that you read and understand this manual
before operating the system.
The Belmont®Rapid Infuser, FMS2000,warms blood, colloid, and crystalloid to physiologic
temperature at user-set rates from 10 to 750 milliliters per minute (ml/min) with a 1000 ml/min as
an option. 2.5 and 5.0 ml/min (150 and 300ml/hr) are also available to keep the venous line open
but no heating is provided at these rates.
The system monitors temperature, line pressure, and air in the fluid path to ensure safe operation
and alarms at all unsafe conditions. A hardware override circuit prevents unsafe operation in
case of system computer failure. A touch screen displays flow rate, total fluid infused,
temperature, line pressure, alarm and status messages and proper procedures to proceed safely
after an alarm situation. Keys appropriate to a particular point in the operation are displayed on
the touch screen.
A battery backup allows for mobile transport of the patient. During battery operation, fluid
warming is disabled while pump operation and safety monitoring remain active. The built-in
rechargeable battery automatically charges whenever the system is connected to line power.
INDICATIONS FOR USE
Infusion of crystalloid, colloid, or blood product, including packed red blood cells, as
volume replacement for patients suffering from blood loss due to trauma or surgery.
Infusion of warmed fluid to re-warm patients after surgery or for hypothermia.
Infusion of warmed fluid for irrigation in urology procedures.
CONTRAINDICATIONS
The system should not be used where the desired flow rate is below 2.5 ml/min or above
1000 ml/min.
The system should not be used to warm platelets, cryo-precipitates, or granulocyte
suspensions.
This system is not intended for drug administration.
The Belmont® FMS2000 should not be used where rapid infusion is medically
contraindicated.
Lactated Ringer’s solution, dextrose in water, and hypotonic sodium chloride solutions
should not be added to blood components (AABB Technical Manual 17th edition, page
624)

2
Fluid Out(1)
Detector
Display(4)
IR (5)
Probe
Air (6)
Detector
Valve (7)
Wand
IR Probe
(8)
Power(2)
Switch
RollerPump
(3)
OVERVIEW OF THE BELMONT FMS2000
The complete system consists of the FMS2000 Control System, which is mounted on an IV pole,
and the FMS2000 Disposable Set. The FMS2000 can be used only with the supplied
disposables. A large volume 3-liter reservoir is available as an optional accessory for
convenience in cases involving very large infusion volumes, see page 7.
The Disposable Set is preconnected and has a sterile fluid path. It is intended for single
patient use only.

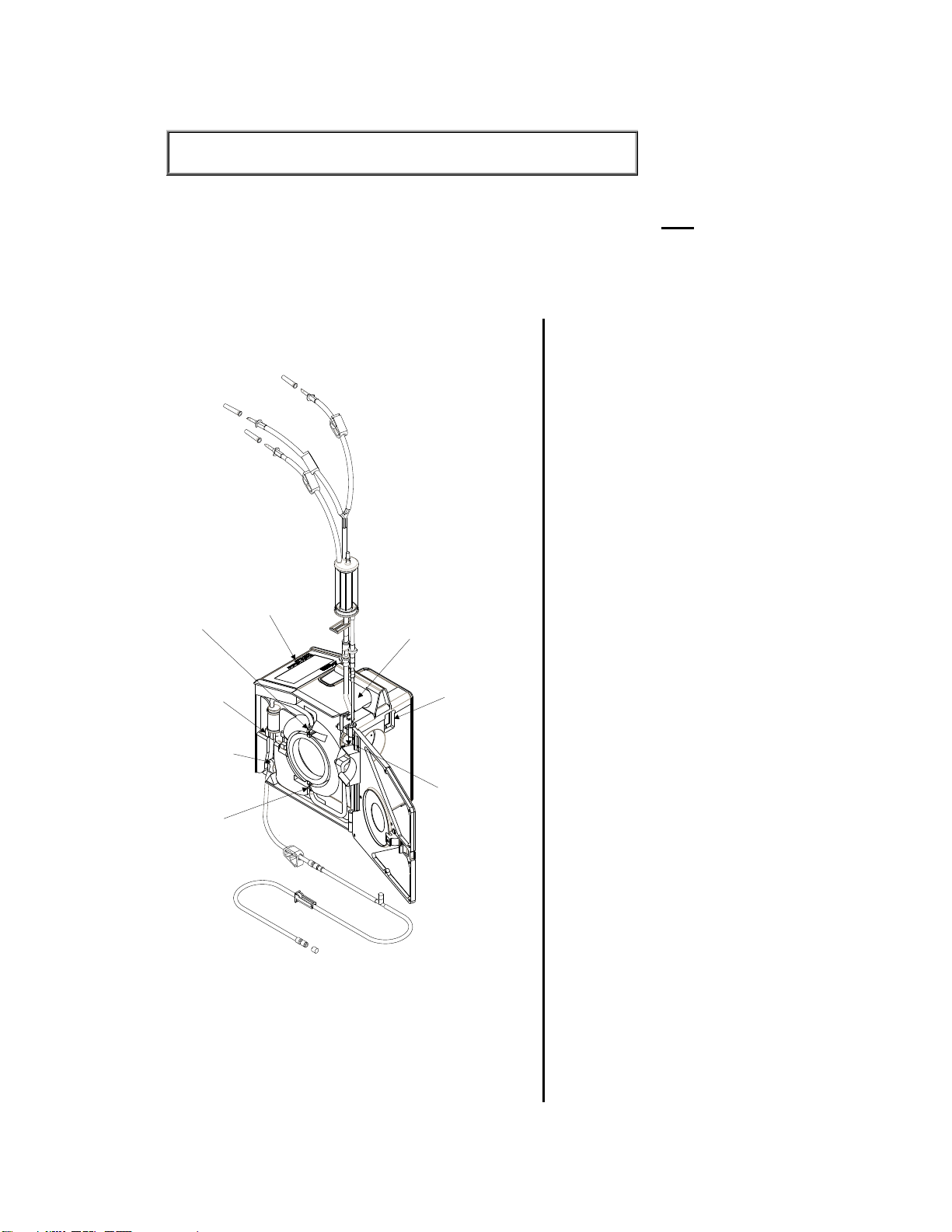

System Diagram Showing Main Components
Major components of the Control System:
1. Fluid Out Detector detects and alarms at
an out of fluid situation.
2. Power Switch turns system power on and
off.
3. Roller Pump is designed for pumping
accuracy and reliability.
4. Display and control panel show status and
alarm messages with touch keys at the
bottom of the screen.
5. IR Temperature Probe (Output Probe)
monitors output fluid temperature as it
exits the Heat Exchanger.
6. Air Detector detects air in the line. If air is
detected the valve wand is closed
immediately to prevent air into the patient.
Pumping and heating stop, alarm sounds
and “Air Detection” message is displayed
on screen.
7. Valve wand closes off the recirculation
line when the system is in the infusion
mode and closes off the infusion line
when the system is in the recirculation
mode. It immediately closes the infusion
line to the patient when an error condition
occurs which may require user
intervention.
8. IR Temperature Probe (Input Probe)
monitors input fluid temperature as it
enters the Heat Exchanger.

3
CONTROL PANEL: DISPLAY AND KEYS
The control panel consists of the touch screen display, which incorporates a bright graphical
display with touch pad keys. The display shows status and alarm messages at the top and
middle, and contains the touch keys at the bottom.
CONTROL PANEL SUMMARY
Status Display:
Flow Rate in ml/min
Volume Infused
Infusate Temperature in ºC
Pressure in the Fluid Line in mm Hg
Bolus Volume (when infusion of a
fixed bolus of fluid is desired).
Function Keys: The keys that control all system functions are displayed on the screen. The
screen is changed each time a function key is pressed. Only keys that are
relevant to the desired function are presented. The active key is highlighted.
There are three (3) different levels of sensitivity: Fast, Medium, and Slow. The
key sensitivity is set at the factory to medium, but can be adjusted by the
operator in SERVICE MODE.
See Chapter 4, page 25 for ‘Key Rate’ sensitivity setup.
Alarm Display: Graphical alarm messages indicating where errors have occurred and suggested
operator action.

Chapter 2: Operation
4
OPERATION
This chapter explains the procedure for setting up and initiating safe and effective operation
of the Belmont®Rapid Infuser, FMS2000.
WARNING!
Do not use this product in the presence of flammable anesthetics.
WARNING!
To avoid risk of electric shock, this device must only be connected to a
supply main with protective earth.
WARNING!
Do not use with pressure infusers or “bag squeezers”. The system pump
provides adequate pressure to infuse fluid.
WARNING!
The Belmont® Rapid Infuser, FMS2000, is not for use in warming platelets,
cryo-precipitates, or granulocyte suspensions.
WARNING!
The Belmont® Rapid Infuser, FMS2000,is intended for infusion of high
volume warm replacement fluid or blood component. It is not intended for
drug administration.
WARNING!
Do not mix lactated Ringer’s or other solutions containing calcium with
citrated blood products.
Use only anticoagulated blood products

Chapter 2: Operation
5
STEP-BY-STEP SUMMARY OF OPERATING PROCEDURES
SET-UP
INSPECT THE SYSTEM
Power cord
Reservoir Support
Disposable Set
Large Reservoir and holder, if needed
Inspect the system to ensure that you have all
necessary components.
Use only supplied power cord.
IV POLE MOUNTING
IV Pole: 5 wheel, maximum diameter 1
1/4"
Install the Support Assembly 30" from
the ground, if not already installed.
Mount the FMS2000 on the IV Pole
above the Support Assembly
Install the Reservoir Support app. 9"
above the top of the system
CAUTION:
Check that the system is securely clamped
to an IV pole and will not tip over
1. Install the support assembly (support clamp and
washer) approximately 30" from the ground.
While holding clamp closed, loosen the
screw to open up the clamp. Install clamp
on the IV pole, holding clamp close and
tighten screw using the supplied 3/16 Allen
wrench.
Snap the plastic washer onto the IV pole
above the support clamp.
2. Lift up on the “Pole Clamp Release Handle” to
open. Mount the system onto the IV pole, above
the support assembly, by pushing down on the
pole clamp release handle. Check that the
system is locked in place before proceeding.
3. Clamp the reservoir support onto the IV pole
approximately 9" above the FMS2000.
Make certain that there is nothing
obstructing the air vents at the bottom of
the system.

Chapter 2: Operation
6
INSTALLING DISPOSABLE SET
WARNING:
The disposable set is for single patient
use only. Do not reuse.
Store the disposable set in a dry well-
ventilated area free from exposure to
chemical vapors.
We strongly recommend loading and
priming the disposable set just prior to the
procedure.

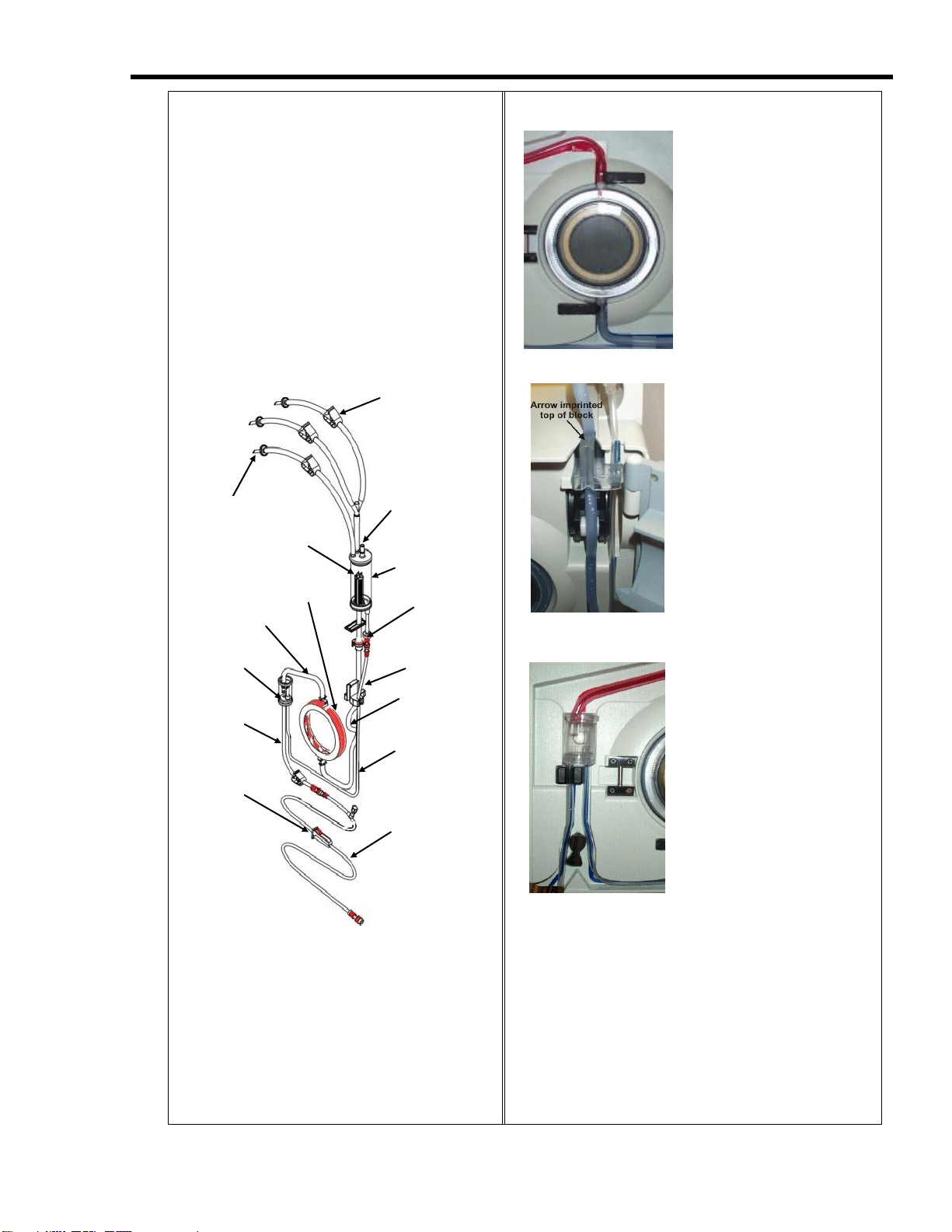

3-Spike Disposable set with key components
1. Snap reservoir
chamber into the
reservoir support
clamp.
2. Open the door. Insert
heat exchanger with
red arrow pointing up
(Red tinted tubing to
red stripe on unit.)
3. Firmly position the
interlock block into the
fluid out detector.
4. Guide the curved piece
of pump tubing (Blue
tinted tubing) over the
pump head. Check that
the thinner recirculate
line is in the grove to
the right.
Do not kink or twist
the tubing
5. Place the pressure
chamber into the
pressure chamber well.
Firmly insert the wider
infuse line into the air
detector and to the left
of valve wand.
Do not apply excessive
pressure to the
pressure transducer.
The pressure
transducer can be
damaged with
excessive force. Do not
use the system if the
pressure transducer is
damaged.
6. Place the thinner recirculate line to the right of
the air detector, and to the right of the valve
wand.
7. Close and latch the door. Make certain the
pump tubing is not caught. Connect the patient
line.
Check Valve
Roller Clamp
Infuse
Line
Bag Clamps
Air Vent
Reservoir
Chamber
Interlock Block
Pump Tubing
Recirculate
Line
Patient
Line
Pressure
Chamber
Red Tinted
Tubing
Coarse
Filter
Heat Exchanger
Bag Spikes

Chapter 2: Operation
7
INSTALL OPTIONAL LARGE RESERVOIR,
IF NEEDED
Install large reservoir holder
Install large reservoir
CAUTION:
Do not pressurize or apply a vacuum to
the reservoir
1. Using aseptic techniques, remove the reservoir
chamber from the 3-Spike disposable set by
disconnecting the luer connectors.
Disconnect the larger pump
tubing by pressing in the luer lock tab and
pulling out the connector.
Disconnect the thinner
recirculate line by unscrewing the
connector.
2. Attach the large reservoir holder onto the IV
pole and place the reservoir into the holder.
3. Assemble the large reservoir using aseptic
techniques by attaching the three fluid supply
tails onto the top of the reservoir.
4. Connect the large reservoir to the luer of the 3-
Spike disposable set.
5. Adjust the reservoir holder to make sure that
the two connection leads underneath the
reservoir are not stretched or kinked.
Stretched or kinked connection leads can
cause flow restrictions and frequent Fluid Out
alarms.

Chapter 2: Operation
8
POWER ON
Check that the detachable power cable
is securely seated in the main power
receptacle.
Plug the system power cord into a
grounded, 3-prong, 20 Amp, AC
receptacle. Do not use an adaptor for
ungrounded outlets.
Power-Up Screen
U
Missing Disposable Screen
1. Turn power on by firmly pressing the circuit
breaker to the ON position. The system will
perform a self-check to check the integrity of
system parameters.
2. AC POWER PRESENT appears at the logo
screen when the system first powers up.
Check the power cord and AC receptacle
connections if the statement does not appear.
3. PRIME screen will appear.
4. Press NEXT to go to the PRIME screen.
If you turn power ON without the
disposable set, MISSING DISPOSABLE
audible alarm message will appear.
Open the door or press MUTE to silence
the alarm then install the disposable set.
INSTALLING FLUID BAG
Install solution compatible with blood for
the main system prime.
,
Prime Screen
1. Hang fluid bag(s) on the IV pole.
2. Completely close bag clamps, remove the bag
spike cap(s). Spike fluid bag(s), pierce it fully
to ensure that fluids flow freely.
3. Open bag clamps.
When hanging the fluid bag above the
machine, the pump tubing that is seated in
the fluid out detector should not be
stretched. Stretching the pump tubing may
cause false Fluid Out alarms.
The recirculate line must not be kinked or
restricted.

Chapter 2: Operation
9
PRIME THE MAIN SYSTEM
Prime the main system with solution
compatible with blood. Do not prime with
blood.
System Priming Screen
CAUTION:
Immediately wipe any spills from the device
1. Press PRIME to recirculate 100 ml of fluid at
500 ml/min to remove air and replace the
main system with fluid.
2. The prime volume, 100 ml, countdown is
displayed on the screen. Stop automatically
when countdown reaches 0 ml. SYSTEM
PRIMED screen appears.
If after 30 seconds and the prime volume
remains at 100 ml, the system will stop,
alarm and instruct the user to unclamp the
lines and resume prime.
If prime has to be stopped, press STOP.
The prime volume countdown will remain
on the screen. Press RESUME PRIME to
continue prime.
PRIME THE PATIENT LINE
System Primed Screen
Patient Line Primed Screen
To remove air from the patient line.
1. Open the roller clamp and remove the luer
cap from the patient line.
2. Press PT. LINE PRIME
Press once, prime at 50 ml/min. Press and
hold, prime at 200 ml/min.
3. Press STOP after no air in patient line.
WARNING!
Before continuing, you must inspect and make
certain that the patient line is completely primed
and free of air. Any air bubbles after the valve
wand in the patient line must be removed before
the procedure can safely continue.

Chapter 2: Operation
10
CONNECT TO THE PATIENT

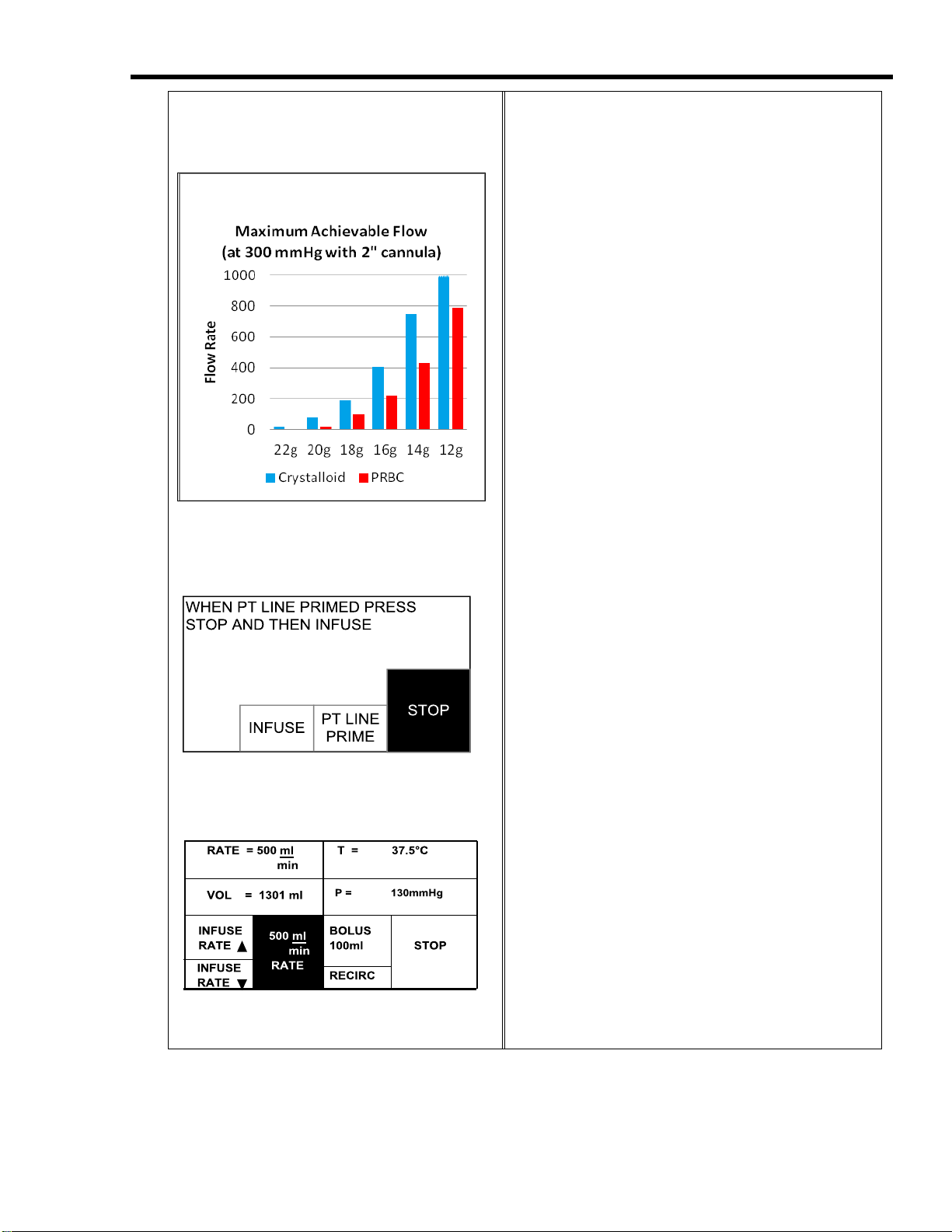

Match infusion set to flow rate and fluid
type, see chart.
INITIATING INFUSION
Patient Line Primed and Infuse Screen
Infuse Screen
1. Select an appropriate cannula size for decided
flow rate.
2. Using aseptic technique, make patient
connection without entrapping air.
CAUTION:
A single dedicated intravenous access should
be used exclusively for infusing blood
components and solutions compatible with
blood.
1. Press INFUSE to start infusing at 10 ml/min.
2. Press 500 ML/MIN key to infuse at 500 ml/min
or adjust flow rate, as needed, by pressing
INFUSE RATE /INFUSE RATE key
(increase/decrease by 10 ml/min).
There is no heat at 2.5 and 5.0 ml/min settings.
Message ‘LOW FLOW, NO HEAT’ will flash on
the screen indicates there is no heat at these
rates.
WARNING:
Do not mix lactated Ringer’s or other solutions
containing calcium with citrated blood products.
Use only anticoagulated blood products

Chapter 2: Operation
11

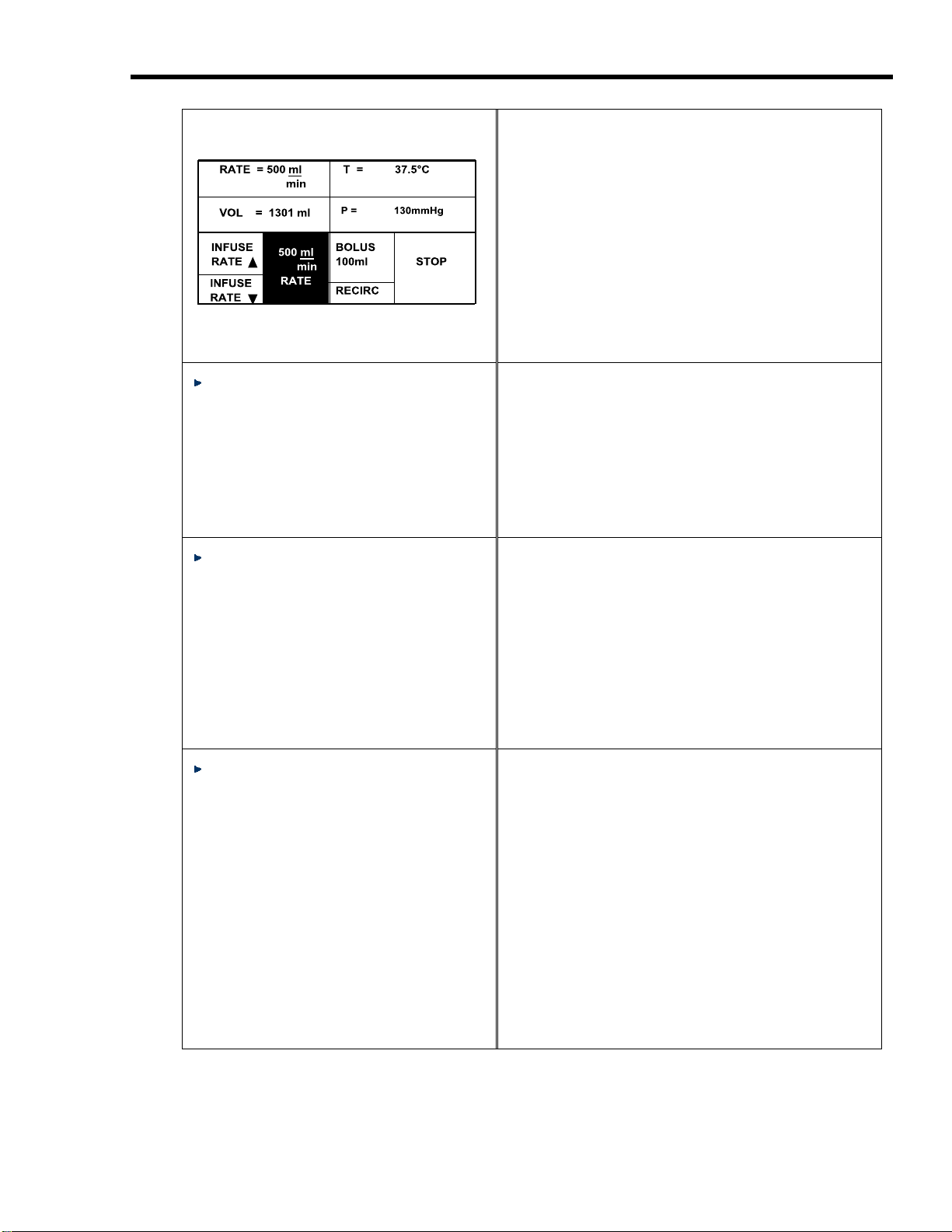

MAINTAIN INFUSION
Infuse Screen
Routinely check patient and system parameters, on
screen. Respond to and correct system alarms.
CAUTION:
Replace reservoir chamber or disposable set
when the filter becomes clogged. If it becomes
occluded the fluid out sensor will activate, an
audible alarm will sound, a message “Fluid Out,
Check inlet tubing and Filter. Add more fluid” will
appear and the pump will stop.
Pressure Control
Regulate the pump speed to keep line
pressure under the user-set pressure
limit.
The pressure limit is set at the factory to the
maximum limit of 300 mmHg. Limit can be changed,
see Chapter 4, page 25.
The pressure status line flashes and periodically
beeps while the system is under pressure control.
Pressure control is due mainly to the small orifice of
the infusion set or any occlusions in the line.
Automatic Air Purging
After every 500 ml of fluid infused, the
system automatically purges air from
the system by closing the infusion line
and opening the recirculation line for
a few seconds.
The recirculate rate is temporarily set to 500 ml/min,
if the flow rate is at or below 500 ml/min, and at the
actual flow rate, if the flow rate is above 500 ml/min.
The RATE status line displays REMOVING AIR
during this process. The volume readout (VOL)
remains unchanged during automatic air purging and
resumes counting when infusion resumes.
When infusion resumes, the system returns to the
previously set rate.
Bolus
Deliver fixed volume, factory set to
200 ml, at a rate of 200 ml/min.
To change the flow rate during the
bolus infusion, press the INFUSE
RATE or INFUSE RATE or 500
ml/min RATE key.
Bolus volume can be changed in the Parameters
Set-Up screen (Chapter 4, page 25) or by pressing
and holding the BOLUS key in the Infuse screen.
The new bolus volume will appear in the VOL
(volume) status line with the prefix of BOL (bolus).
Releasing the Bolus key will start the infusion.
Two sets of numbers are displayed within the
BOLUS key space. The top number is the bolus
value set and the bottom number is the volume
pumped, and is counting up from 0 to the volume set
on the key. At the end of the bolus volume, the
system beeps and returns to the previously selected
flow rate if the previous rate was 50 ml/min or lower.
If the previous rate was higher than 50 ml/min, the
flow rate will be set to 50 ml/min.

Chapter 2: Operation
12
RECIRC
Recirculate fluid, warm, and remove
air in the main system at a preset rate
of 200 ml/min. Recirculation
automatically stops and beeps after 5
minutes.
WARNING:
Excessive or prolonged recirculation may
damage red blood cells by exposing them
repeatedly to the rollers inside the pump head.
STOP
Temporarily halts pumping and heating. Status
display continues to be active.
BATTERY OPERATION

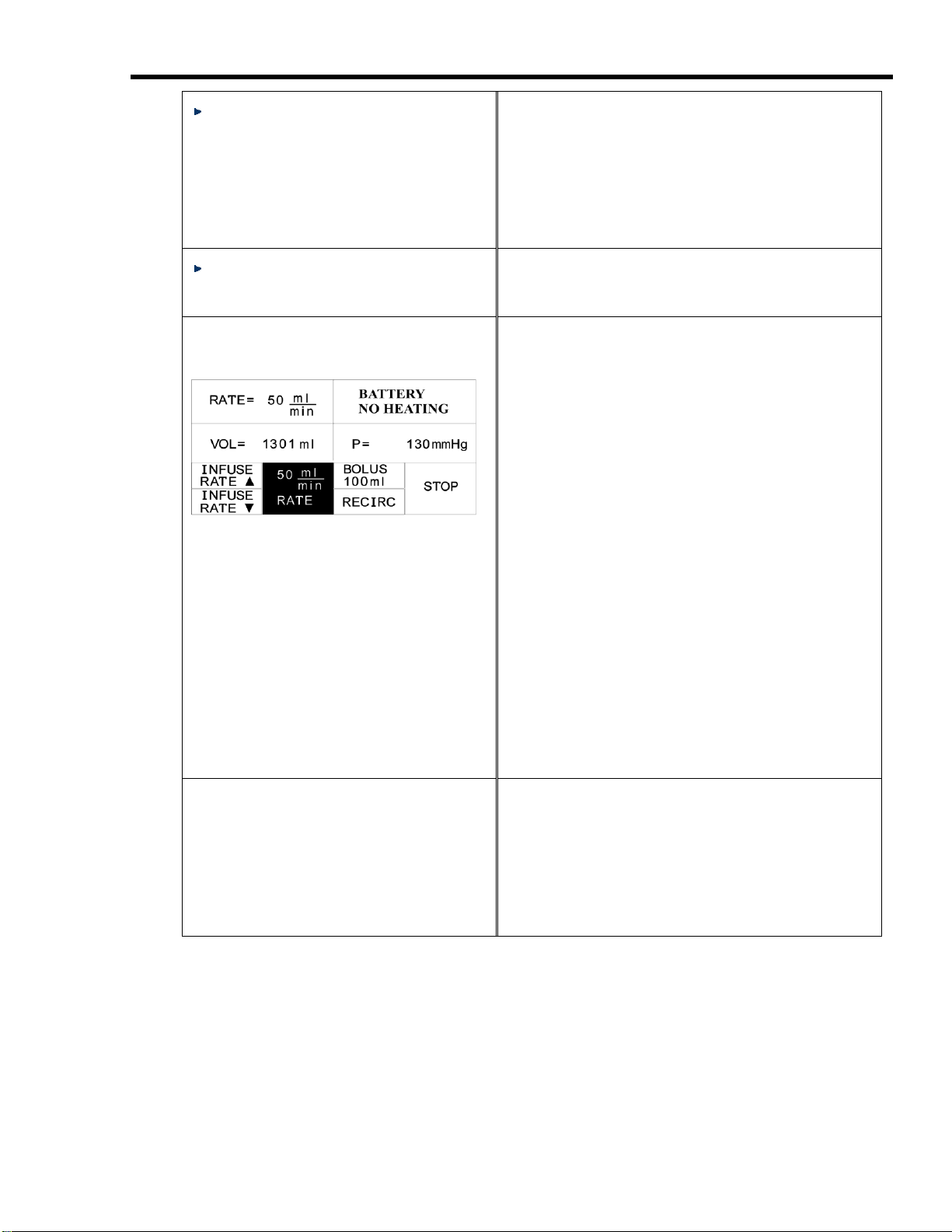

Battery Operation Screen
CAUTION
Battery operation should be used only
briefly or at very low flow rates because
there is no heating.
1. Press RECIRC key to preheat fluid in the
reservoir chamber.
2. Unplug the system from the wall outlet. The
status line that displays temperature will be
flashing BATTERY NO HEATING to indicate
the system is now in battery mode, the
maximum flow rate is 50 ml/min, and heating is
suspended.
3. Adjust the flow rate by pressing INFUSE RATE
or INFUSE RATE or press 50 ML/MIN to
immediately set the infuse rate to the
maximum rate of 50 ml/min.
4. When the system is plugged back to the AC
outlet, the flow rate stays at 50 ml/min if the
previous flow rate was greater than 50 ml/min.
The system will return to the previous flow rate
if the previous rate was 50 ml/min or lower.
5. The normal running time in battery is at least
30 minutes.
LOW BATTERY
When the battery runs low, the system will display
BATT LOW message and sound an audible alarm.
The system should be plugged into an AC outlet to
continue operation and charge the battery.
The normal recharge time is 8 hours.

Chapter 2: Operation
13
ACCIDENTAL POWER OFF
o

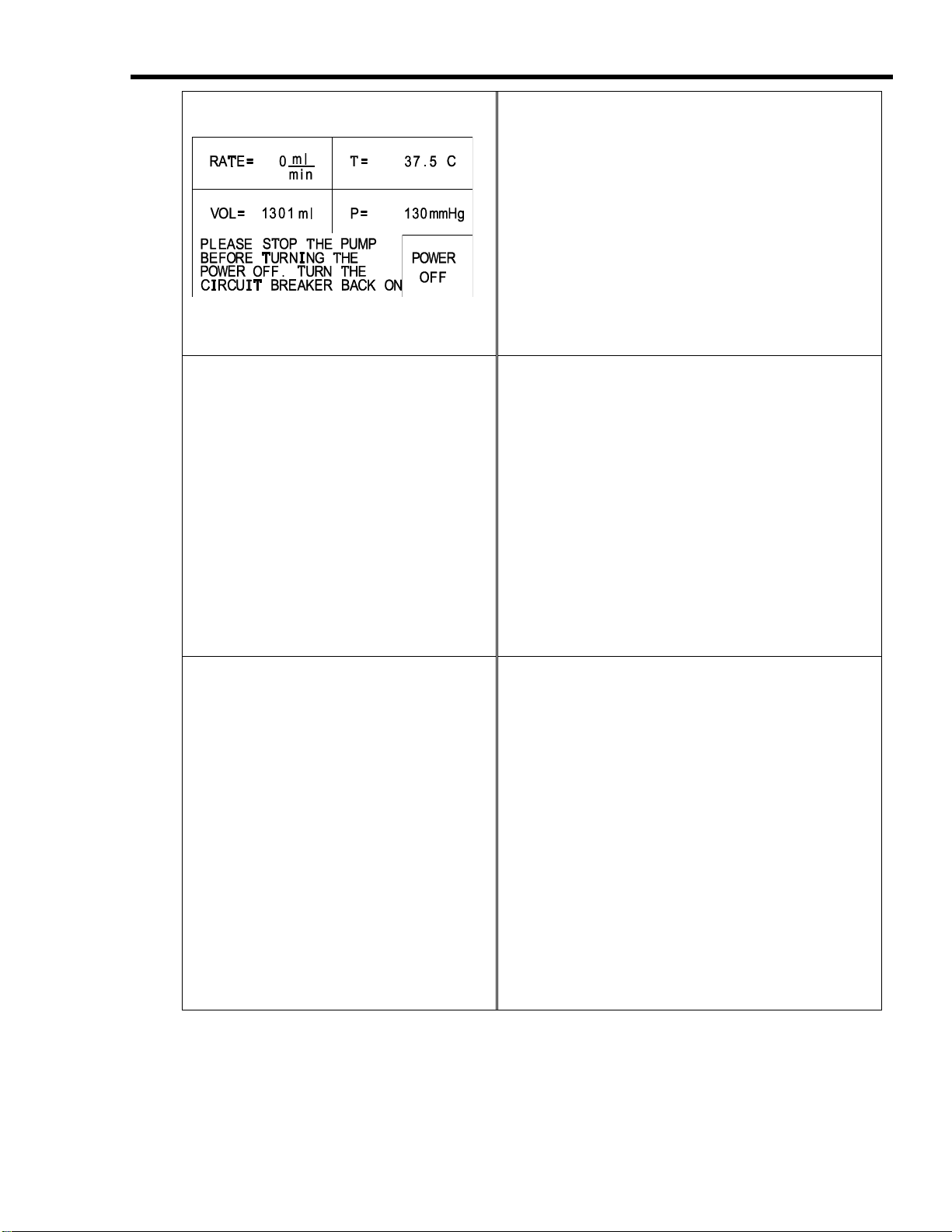

Accidental Power Off Screen
If the circuit breaker was turned to the STANDBY
position while the system is pumping, the system will
stop pumping, and alarm. This message is to protect
the system from being accidentally powered down
during a procedure.
To power down the system, press POWER OFF key,
on screen.
To continue with the procedure, turn the circuit
breaker back to the ON position and resume
operation.
END OF PROCEDURE
CAUTION:
With fluid in the disposable set and the
system not powered on, keep the
patient line clamped closed when
opening the door to prevent
uncontrolled fluid flow.
1. If the pump is on, press STOP.
2. Clamp off the patient line and bag spikes.
3. Turn the system to STANDBY, using the circuit
breaker.
4. Open the door and remove the disposable set
from the system. Practice standard hospital
policy when handling and disposing the bio-
hazardous materials.
5. Follow the cleaning procedures outlined in
Chapter 4, page 27 to clean and disinfect the
system.
EMERGENCY MANUAL OPERATION
In the event the system is not operational
during a procedure, fluid can be infused
manually on an emergency basis using
pressure or gravity.
WARNING!
In emergency manual operation, all
safety features of the system have been
bypassed. Monitor the patient line to
insure that air is not allowed to enter
the patient. Do not apply excessive
force on the fluid bag to avoid rupturing
the disposable set or damaging blood
cells.
1. Bypass the system by switching to STANDBY
on the circuit breaker.
2. Open the door to allow the fluid to bypass the
roller pump.
3. Remove the infuse line from the valve wand.
The rest of the disposable set may be left
intact in the instrument or may be removed.
4. Open bag clamps and patient line. Apply
pressure at the fluid bag to aid flow.
To avoid rupturing the disposable set or
damaging blood cells, do not use excessive
force on the bag.

Chapter 3: Alarms and Troubleshooting Guide
14
ALARMS AND TROUBLESHOOTING GUIDE
This chapter describes possible causes for alarm messages with suggestions for corrective
actions. When the FMS2000 recognizes a situation that is compromising effective infusing, it
stops pumping, heating, moves the valve wand into the recirculate position, displays alarm
message, instructions for corrective measure, and sounds an audible alarm. To mute an alarm
and return to normal operation, select the MUTE key on the alarm message screen and follow the
on-screen instructions. When the MUTE key has been selected it will appear to be highlighted on
the display screen.
A. OPERATIONAL ALARMS
ALARM MESSAGE
POSSIBLE
CONDITION
OPERATOR ACTION
AIR DETECTION
Air Detection Alarm Message Screen
Reprime Screen
Air in the line.
Tubing in the air
detection sensor
is not seated
firmly in the
detector.
Leak in the
disposable.
Air detector
sensor dirty.
Air detector
electronics
defective.
Open the door to silence the alarm.
Check for air bubbles and possible
leaks.
Squeeze the tubing directly below air
detector to clear any trapped air out
of the sensor. There should be no
trapped air remaining within the air
detector.
Check the air detector and make
certain that it is clean and nothing is
obstructing the sensor.
Reseat the tubing in the air detector
and make certain that it is seated
firmly in the sensor.
Press REPRIME to reprime main
system. If the system does not
complete the reprime because the
filter in the reservoir chamber is
clogged, replace the reservoir
chamber or the disposable set and
reprime. The system will resume
infusion upon completion of the
Reprime.
Power down and service the machine
if error persists.
U
.

Chapter 3: Alarms and Troubleshooting Guide
15
DOOR OPEN
Door Open Alarm Screen
The door is open.
No magnet in the
door latch.
Close the door to silence the alarm
and resume.
Check magnet in the door latch.
If the door is opened while the system
is pumping, the system will
immediately stop heating and
pumping. The valve moves to the
recirculate position and an audible
alarm sounds.
FLUID OUT
Fluid Out Alarm Screen
Fluid Out Message after Pressing
REPRIME Screen
Out of fluid.
Bag clamps not
fully opened or
fully spiked.
Tubing in the Fluid
out sensor is not
seated firmly in
the detector, or
tubing is stretched
or pulls away from
the sensor, due to
vacuum in the
line.
Clogged air vent
filter or coarse
blood filter.
Reservoir or
recirculate line is
obstructed.
Detector
electronics
defective.
Press MUTE to silence the alarm.
If out of fluid, add additional fluid and
press REPRIME.
Open bag clamp or fully spike the
bag.
Reseat the tubing in the fluid out
detector and make certain that it is
seated firmly in the sensor.
If the reservoir chamber stays empty
during reprime, the air vent filter, on
top of the reservoir chamber, may be
clogged. In this case, pierce the fluid
bag(s) with bag spikes and fully open
clamps to allow the air in the reservoir
chamber to escape into fluid bag(s)
and allow fluid to fill the reservoir
chamber.
High amounts of particulates in the
blood may clog the coarse blood filter
in the reservoir chamber. Replace
reservoir chamber or disposable if it
is clogged.
Power down and service the machine
if error persists.
