Benchmark 11147 User manual

OWNERS MANUAL
MODEL:
SILVER SCREEN 14
SILVER SCREEN 14
Professional Popcorn Machine
PART NUMBER:
11
11147 147
115 volts, 60 hz
WARNING: Handling the cord on this product may expose you to lead, a chemical known to the State Of California to
cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER HANDLING.
Electrical ground is required on this appliance.
1. Do not modify the power supply cord plug. If it does not fit the outlet, have a proper outlet installed by a
qualified electrician.
2. Do not use an extension cord with this appliance.
3. Check with a qualified electrician if you are in doubt as to whether the appliance is properly grounded.
SAFETY INSTRUCTIONS
1. Plug electrical cord into a certified electrical outlet with a corresponding voltage rating as listed on the
machine model labels.
2. Always unplug the electric cord when appliance is not in use and before cleaning, adjusting or maintaining
this steamer. Do not operate with a damaged cord or plug or after the machine malfunctions, has been
dropped or damaged. Use authorized service for examination, electrical or mechanical adjustment or
repair.
3 This equipment will be HOT during use and for a short time after it is turned off. BE CAREFUL. To avoid
burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep
combustible materials away from appliance.
4. Extreme caution is necessary when any appliance is used by or near children and whenever the appliance
is left operating and unattended.
5. This appliance is not intended for use in wet locations. Never locate appliance where it may fall into a
water container.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electrical shock, fire or damage to the appliance.
WARNING ELECTRICAL SHOCK HAZARD.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
concessionstands.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Benchmark USA Inc.
Benchmark USA Inc. ●25 ●25- -J Brookfield Oaks Dr. ●Greenville, SC 29607 ●T: 864 J Brookfield Oaks Dr. ●Greenville, SC 29607 ●T: 864- -312 312- -5500 ● 5500 ●
F: 864
F: 864- -312 312- -5505 5505
OPERATING INSTRUCTIONS
1. Clean the machine thoroughly before use and check for any nuts or bolts that may have loosened
during shipping of the merchandise.
2. Plug the machine into a properly grounded 120 volt power supply.
3. Install a 50 watt or smaller light bulb in the socket in the chassis (not necessary for operation). For
best results use a 50 watt R20 mini flood bulb.
4. Turn on the “POWER” switch.
5. Adjust “DECK TEMPERATURE” thermostat to desired temperature and the warming element in the
base will be activated.
6. Turn on “LIGHT” switch and the interior lamp will come on.
7. Turn on the “KETTLE” switch to activate heat to the kettle and wait approximately 5 minutes to allow
the kettle to get up to operating temperature.
8. Turn on “MOTOR” switch and the agitating motor will be activated.
9. Using the Lid Lift Handle to open the lid, place 1 ¾cup of raw popcorn kernels, ½cup of cooking oil
and 1 ½teaspoons of seasoning salt into the kettle and lower the kettle lid. (use Benchmark USA part
# 42004 – Popcorn measure kit)
10. Allow the corn to pop until the popping ceases (3 seconds between pops) then dump the kettle by
pulling downward on the handle.
11. For additional batches repeat steps 9 & 10. It will not be necessary to wait 5 minutes since the kettle
will already be up to operating temperature.
12. After popping the final batch, turn off the “MOTOR” and “KETTLE” switch. The “LIGHT” and
“POWER” switch may be left on during serving to keep popcorn fresh and warm.
13. Allow kettle to cool and then with a damp cloth, wipe any excess oil from the inside and outside of the
kettle to prevent burned on oil stains. Use caution as the kettle may still be HOT!.
KETTLE CARE
CAUTION: NEVER SUBMERGE THE KETTLE IN ANY LIQUID! IT WILL SHORT OUT THE
ELECTRONIC COMPONENTS INSIDE OF IT AND VOID THE WARRANTY!
1. Always turn off the “KETTLE” switch after popping the final batch of a session. Leaving it on will
burn any residue oil that is left in the kettle.
2. For routine cleaning: After popping the final batch of a session, use a damp cloth to wipe the excess oil
from the interior and exterior of the kettle.
3. Benchmark USA kettles are anodized to create an easy cleaning, non-stick surface. However, if excess
oil is not removed it will eventually carbonize on the surface. For heavily built-up carbon removal it is
recommended to use (Benchmark USA part # 43001 – kettle cleaning kit).
CABINET CARE
Always unplug the machine from the power supply before cleaning!
1. The Stainless steel bottom tray, old-maid drawer and drop door are removable for easy cleaning in
a sink or dishwasher. Use a mild detergent and water.
concessionstands.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

2. Use a standard glass cleaner for the glass panels and corner posts.
Page 2
concessionstands.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Page 3
concessionstands.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Page 4

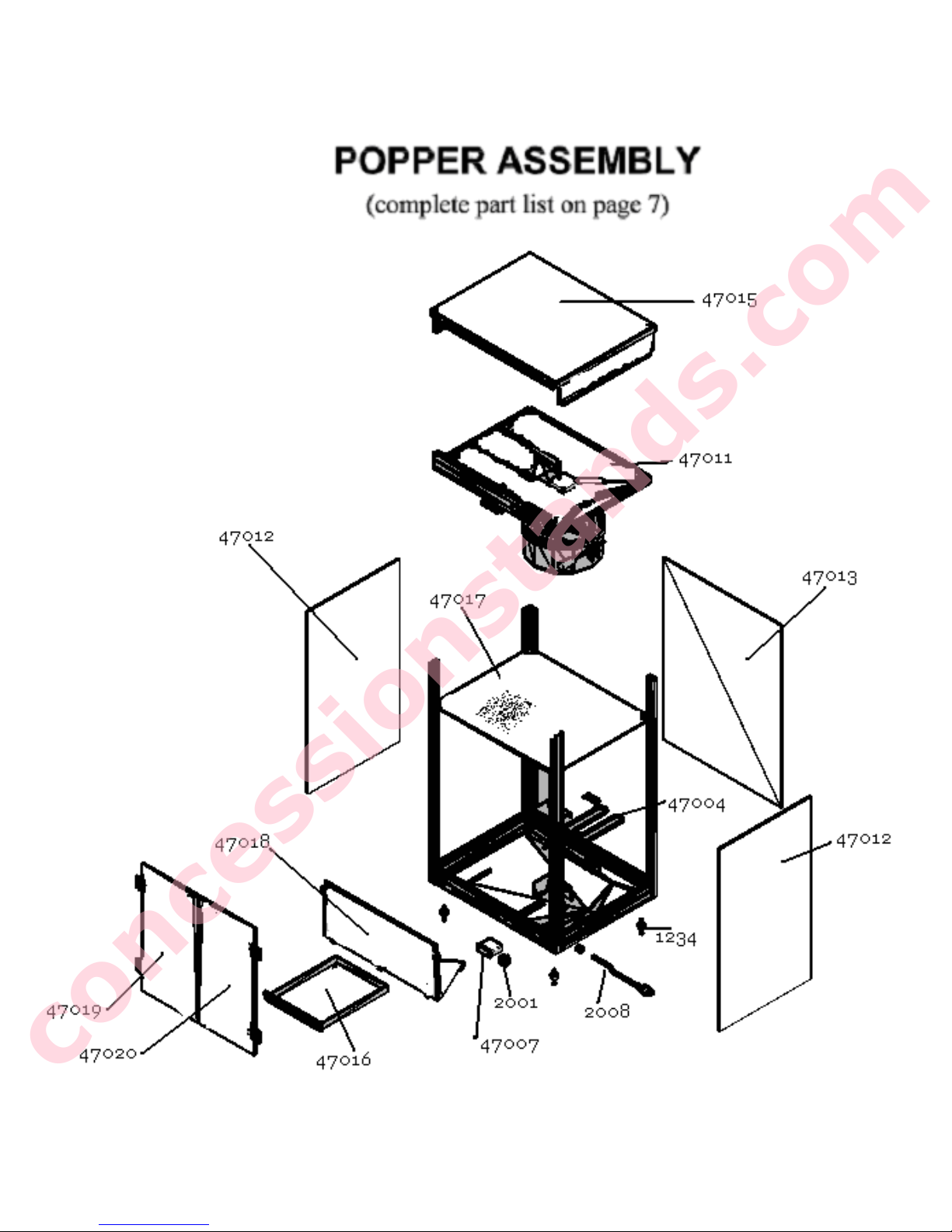

14 OUNCE KETTLE ASSEMBLY
(complete parts list on page 7)
concessionstands.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Page 5
SILVER SCREEN 14 CHASSIS ASSEMBLY
concessionstands.com
WWW.CONCESSIONSTANDS.COM
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Page 6
PARTS LIST
P/N
P/N
Description
Description
P/N
P/N
Description
Description
47014
47014
14
14 ounce kettle ounce kettle - -120 volt 120 volt
4003
4003
Glass channel set
Glass channel set
47214
47214
14
14 ounce kettle ounce kettle - -240 volt 240 volt
47015
47015
Canopy
Canopy
47001
47001
Popper Assembly
Popper Assembly
47016
47016
Drawer
Drawer
47002
47002
Chassis Assembly
Chassis Assembly
47017
47017
Stainless product tray
Stainless product tray
47003
47003

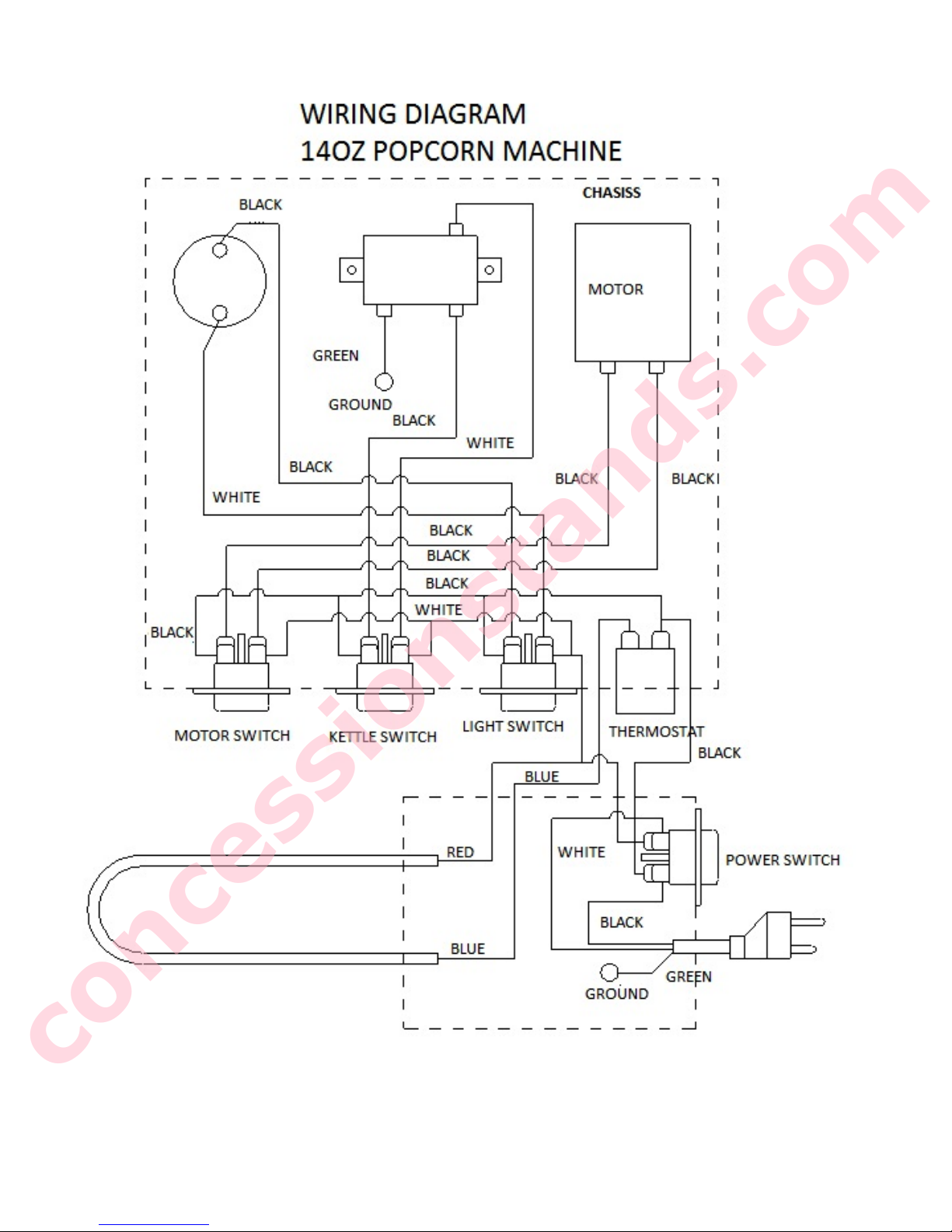

Wiring Diagram
Wiring Diagram
47018
47018
Stainless drop door
Stainless drop door
47004
47004
200
200w Warmer element w Warmer element - -120 120
volt
volt
47019
47019
Left door
Left door
47204
47204
20
200w warmer element 0w warmer element - -240 240
volt
volt
47020
47020
Right door
Right door
47005
47005
Warmer clamp
Warmer clamp
4012
4012
Door handle
Door handle
47006
47006
Deck Warmer Thermostat
Deck Warmer Thermostat
4015
4015
Door magnet
Door magnet
47007
47007
Deck Temperature Indicator
Deck Temperature Indicator
4020
4020
Door hinge set
Door hinge set
47008
47008
15
1500w kettle element 00w kettle element - -120 120
volt
volt
4035
4035
Termin
Terminal box cover al box cover
47208
47208
1500
1500w kettle element w kettle element - -240 240
volt
volt
47021
47021
Left kettle hanger SS14
Left kettle hanger SS14
1039
1039
Thermostat
Thermostat
47022
47022
Right kettle hanger SS14
Right kettle hanger SS14
2001
2001
Power switch
Power switch
47023
47023
Lid and Stirrer Crossbar
Lid and Stirrer Crossbar
2005
2005
Lamp socket
Lamp socket
5003
5003
Lamp Guard
Lamp Guard
2006
2006
Kettle socket
Kettle socket
47024
47024
1
14 ounce ket 4 ounce kettle lid tle lid
2007
2007
Kettle plug
Kettle plug
47025
47025
1
14 ounce kettle stirrer 4 ounce kettle stirrer
2008
2008
Kettle pigtail w/plug
Kettle pigtail w/plug
47026
47026
Kettle handle for SS14
Kettle handle for SS14
2009
2009
Power cord w/plug
Power cord w/plug
5021
5021
Kettle handle complete
Kettle handle complete
SS8
SS8
2018
2018
120 volt (50/60 hz) gear
120 volt (50/60 hz) gear
motor
motor
47027
47027
Lid Lift Handle
Lid Lift Handle
2028
2028
240 volt (50/60 hz
240 volt (50/60 hz) gear ) gear
motor
motor
47028
47028
Kettle Gas Spring
Kettle Gas Spring
47009
47009
Corner Post
Corner Post
47029
47029
Gas Spring Hanger
Gas Spring Hanger
47010
47010
Kettle Element
Kettle Element Clamp Clamp
5023
5023
Kettle hinge
Kettle hinge- -pin/clip pin/clip
47011
47011
Chassis
Chassis
5025
5025
Kettle lid magnet
Kettle lid magnet
47012
47012
Side glass
Side glass
47030
47030
1
14 oz. Kettle jacket 4 oz. Kettle jacket
47013
47013
Front glass
Front glass
47031
47031
1
14 oz. 4 oz. kettle inner kettle inner
