Benchmark 1277-027 User manual

Not suitable for ultra-fine dust collection such as drywall dust.
Such use will void the warranty.
5002219
JN308
50L STAINLESS STEEL
WET/DRY VACUUM
120V 60HZ 8.5AMP
5 year limited warranty
on tool

1
LENGTH OF EXTENSION CORD
110V-120V 25’(7.5 m) 50’ (15.25 m) 100’ (30.5 m) 150’ (45.7 m)
Amps AWG Wire Size
0-6 18 16 16 14
7-10 18 16 14 1 2
11-12 16 16 14 12
13-16 14 12 Not recommended
PRODUCT SPECIFICATIONS
50L STAINLESS STEEL WET/DRY VACUUM
Voltage 120V~ 60Hz
Rated Power 8.5A 6.5Peak HP
Tank Capacity 13Gal (50L)
Flexi Hose 1 1/4 in x 5 ft (32mm x 1.5m)
Flow rate 60 CFM
Power cord 13.13 ft (4m)
Replacement cartridge filter 1277-035
Replacement collection bag 1277-033
Weight 25.08 LBS (11.4 KGS)
When using an extension cord with your Wet/Dry Vac refer to the following table
to determine the required AWG wire size. Before using the cleaner make sure
the power cord and extension cord are in good working conditions. Make repairs
or replacements before using the vacuum cleaner. Only use extension cords that
are rated for outdoor use.rated for outdoor use.
NEED ASSISTANCE?
Call us on our toll-free customer support line:
1-866-349-8665
(Monday through Friday 9am – 5pm Eastern Standard Time)
• Technical questions
• Replacement parts
• Parts missing from package

1277-027
50L STAINLESS STEEL WET/DRY VACUUM
2
TABLE OF CONTENTS
Product Specifications .................................................................................. 1
Table of Contents........................................................................................... 2
General Safety Warnings ................................................................................ 3
Safety Symbols .............................................................................................. 3
Specific safety instructions for 50L Stainless Steel
WET/DRY Vacuum .................................................................................... 3 - 4
Servicing of A Double-Insulated Wet / Dry Vacuum .................................... 5 - 6
Know Your Wet/Dry Vacuum ....................................................................... 7-8
Operation ................................................................................................. 9-11
Maintenance .......................................................................................... 12-13
Troubleshooting .......................................................................................... 13

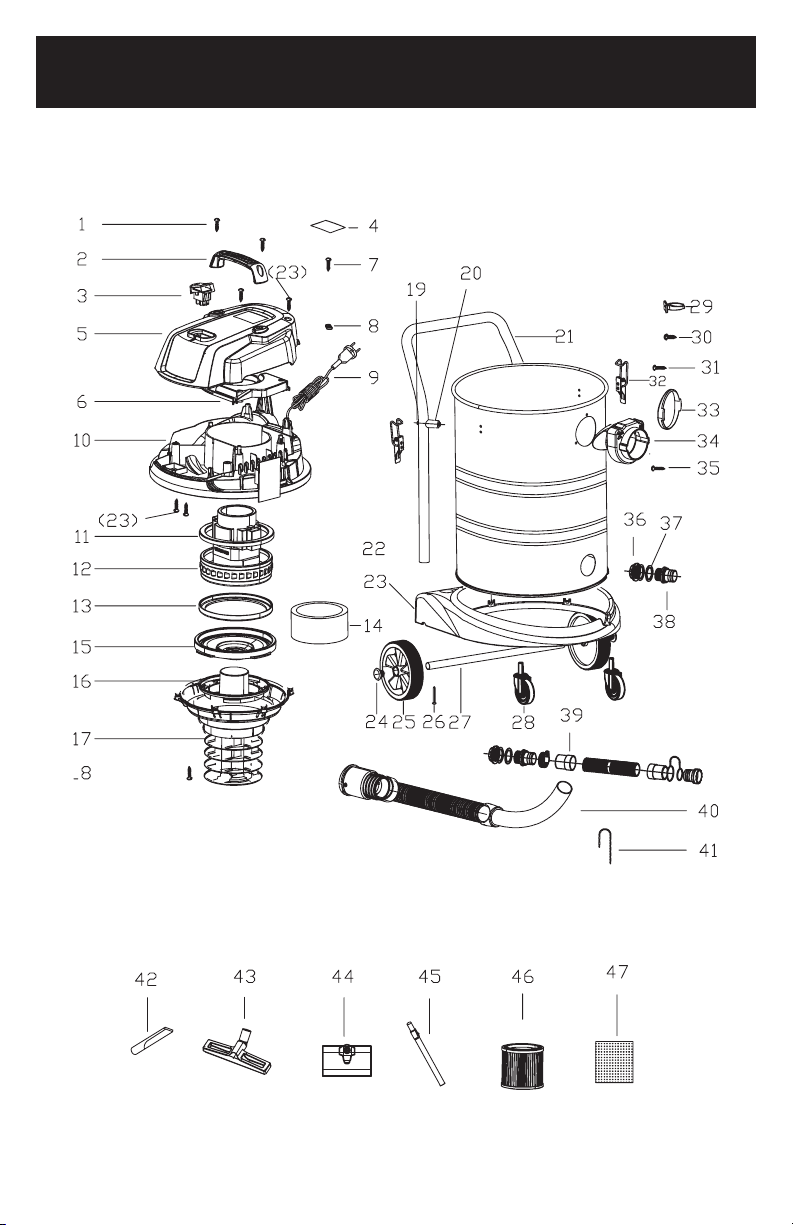

Exploded View ............................................................................................. 14
Parts List ................................................................................................ 15-16
Warranty ..................................................................................................... 17

3
SPECIFIC SAFETY INSTUCTIONS FOR 50L STAINLESS STEEL
WET/DRY VACUUM
• Read all instructions before using this appliance
• Read and understand this instruction manual and all labels on the Wet/Dry
Vacuum before using.
• Safety is a combination of common sense, staying alert and knowing
how this Wet/Dry
Vacuum works. Use this Wet/Dry Vacuum only as described in this manual.
To reduce the risk of personal injury or damage to the Wet/Dry Vacuum,
use only recommended accessories.
Save this manual for future reference.
GENERAL SAFETY WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Read and understand all safety and operational instructions. Failure to follow the
safety rules listed below and other basic safety precautions may result in serious
personal injury. Keep this manual, sales receipts, and applicable warranty forms
for future reference.
SAFETY SYMBOLS
The purpose of safety symbols is to alert you of the potential safety RISKS.
Recognize and understand them. Follow the instructions provided.
Failure to obey a DANGER safety alert WILL result in serious personal
injury or death to you or to others . Always obey all messages following
this symbol to reduce the risk of serious personal injury or death.
Failure to obey a WARNING safety alert MAY result in serious
personal injury or death to you or to others. Always obey all messages
following this symbol to reduce the risk of potential serious personal
injury or death.
Failure to obey a CAUTIONsafety alert MAY result in personal
injury or property damage to you or to others. Always obey
all messages following this symbol to reduce the risk of personal
injury or property damage.
Failure to obey a NOTICE ora CAUTION(without a safety alert)
MAY result in property damage to you or to others. Always obey all
messages following this symbol to reduce the risk of property damage.
SYMBOL MEANING

4
1277-027
50L STAINLESS STEEL WET/DRY VACUUM
When using this Wet/Dry Vacuum follow basic safety precautions
including the following:
To reduce the risk of fire, electric shock or injury:
• Do not run the Wet/Dry Vacuum unattended.
• Do not vacuum, or use this Wet/Dry Vacuum near liquids, gases, or explosive
vapours like gasoline or similar fuels, lighter fluid, cleaners, oil based paints,
natural gas or hydrogen. Do not vacuum or use this Wet/Dry Vacuum near
explosive dusts like coal dust, magnesium dust, grain dust, or gunpowder
as sparks inside the motor can ignite flammable vapours or dust.
•
Do not vacuum burning or smoking items such as cigarettes, matches, or hot ashes.
• Keep the cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use if the cord, plug or other parts are damaged.
• If the Wet/Dry Vacuum is not working correctly or has missing parts,
has been dropped or damaged, left outdoors or dropped in water, return it
to an independent service centre.
• Do not pull or carry by the cord. Do not use the cord as a handle, close
a door on the cord, or pull the cord around sharp edges or corners.
• Do not run the Wet/Dry Vacuum over the cord.
• Do not handle the plug or the Wet/Dry Vacuum with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum
toxic materials.
• Do not use or store near hazardous materials.
•
Do not use this Wet/Dry Vacuum with a torn filter or without installing the filter
except when vacuuming liquids as described in the operation section of this manual .
• Do not use the Wet/Dry Vacuum as a toy. Pay particularly close attention when
it is beinG used by or near children.
• To reduce the risk of injury from the Wet/Dry Vacuum accidentally starting,
unplug the power cord before changing or cleaning the filter.
• Do not leave the Wet/Dry Vacuum unattended when it is plugged in.
Unplug it from the power outlet when not in use and before servicing.
• Do not put any objects into the ventilation openings. Do not vacuum with the
ventilation openings blocked.
• Keep free of dust, lint, hair or any other items that may reduce the air flow.
• Keep hair, loose clothing, fingers, and all body parts away from openings and
moving parts.
To reduce the risk of falling, use extra care when cleaning on stairs.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vac as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.

5
This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate
grounding system. Use only identical replacements parts. Read the servicing
instructions before servicing the Wet/Dry Vacuum.
Use this Wet/Dry Vacuum only as described in this manual.
Observe the following warnings that appear on the motor housing of this
Wet/Dry Vacuum.
WARNING
SERVICING OF A DOUBLE-INSULATED WET/DRY VACUUM
In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided
instead of grounding. This means that no grounding is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-insulated
Wet/Dry Vacuum requires extreme care and knowledge of the system and should
be done only by qualified service personnel. Replacement parts for a double-insulated
Wet/Dry Vacuum must be identical to the parts they replace. The double-insulated
Wet/Dry Vacuum is marked with the words
“DOUBLE INSULATED” and the symbol may also be marked on the appliance.
•For household use only.
•To reduce the risk of electric shock, unplug before cleaning or servicing.
•DO NOT use without filters in place.
•To reduce the risk of electric shock, use indoors only.
WARNING
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a similarly qualified person in order to avoid a hazard.
WARNING
Remove the plug from the socket before performing maintenance. Before using
the machine make sure that the frequency and voltage shown on the rating
plate correspond with the mains voltage. Specifications and details are subject
to change without prior notice. The accessories shown in the pictures may vary
from model to model.

6
1277-027
50L STAINLESS STEEL WET/DRY VACUUM
Servicing of Double-Insulated Wet/Dry Vacuum – Continued
Warning
For your own safety, read and understand this instruction manual. Do not
operate unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes,
coals, toxic, flammable or other hazardous materials. Do not use near
explosive liquids or vapours.
WARNING
To reduce the risk of electric shock, do not expose to rain. Store indoors.
CAUTION
Do not vacuum drywall dust or cold fireplace soot or ash with a standard
wet/dry filter. This dust is very fine and hence will not be captured by the filter
and may cause damage. Refer to the operation section for proper filter selection.
CAUTION
To reduce the risk of injury from moving parts, unplug before servicing.
WARNING
MISUSE or failure to follow the safety rules stated in this instruction manual may
cause serious personal injury.
Save these instructions for reference.

7
KNOW YOUR WET/DRY VACUUM
WARNING
Attention
Before starting please read, understand, and apply the safety instructions.
Reminder: DO NOT vacuum hazardous substances.
FUNCTIONS
1. Handle 2. Power switch
3. Lid Latches 4. Vacuum port
5. Dust tank 6. Dolly
7. Casters 8. Drain
9. Carry handle 10. Extension wand
11. Floor brush 12. Crevice nozzle
13. Foam filter 14. Disposable filter bag
15. Cartridge filter 16. Flexible hose
O = OFF / I = ON
1
2
3
4
5
6
7
8
8
9
10
12
14
15
16
16
11
13

8
1277-027
50L STAINLESS STEEL WET/DRY VACUUM
Know Your Wet/Dry Vacuum – Cont’d
ATTENTION
Read the entire important safety information section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
UNPACKING & SET-UP SUMMARY
1. Pull lid latches in an outward motion, remove power head and some
accessories that may have been shipped in the tank.
2. Attach caster following the instructions as below:
a. Invert dust tank, insert two casters into hole of base.
b. Put the caster pole on the right position of the base. Align two holes of
the pole with two holes of the base. Secure with screws provided.
c.
3.
Return dust tank assembly upright.
4. Before replacing power head, refer to this manual to ensure you have
the proper filters installed for the cleaning operation.
5. Replace power head, and apply pressure with thumb to each latch until
it snaps tightly in place. Make sure all lid latches are clamped securely.
6. Insert the hose end into inlet of tank.
7. Attach the extension wands to the end of the hose. Apply slight pressure
until fitting is tight.
8.
Attach one of the cleaning accessories (depending on the cleaning requirements)
on the extension wands. Twist slightly to tighten the connection.
9. Plug the cord into the wall outlet. The cleaner is ready for use.
10. Turn the unit “ON” by pushing the switch from position “O” to position “I”.
The
Attach the drain hose to the drain on the canister.
NOTE: THE DRAIN HOSE MUST BE INSTALLED ON THE DRAIN IN ORDER
FOR THE VACUUM TO OPERATE PROPERLY.
“O” is the “OFF” position and the “I” is the “ON” position.
WARNING
To reduce the risk of fire or explosion, do not operate this vacuum in areas with
flammable gases, vapors or explosive dust in the air. Flammable gases or vapors
include but are not limited to: lighter fluid, solvent-type cleaners, oil-based paints,
gasoline, alcohol or aerosol sprays. Explosive dusts include but are not limited to:
coal, magnesium, aluminum, and grain or gun powder. Do not vacuum explosive
dust, flammable or combustible liquids or hot ashes. Do not use this vacuum as
a sprayer for any flammable or combustible liquid. To reduce the risk of health
hazards from vapors or dusts, do not vacuum toxic materials.
WARNING
The operation of any utility vacuum can result in foreign objects being blown
into the eyes, which can result in severe eye damage. Always wear safety eyewear
complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before starting operation.
CAUTION
To reduce risk of hearing damage, wear ear protectors when using the vacuum
for extended hours or when using it in a noisy area.

DRY PICK-UP
1. The filter must always bein correct position to reduce the risk of leaks
and possible damage to the vacuum. Make sure that the filter is completely
covering the filtercage. Make sure there are no gaps between the filter
andthe lid. (See illustration). It is very important to assemble the filter
to the cage without allowingany possible leaksor tears. Any leaks will
allow the pickedup debris to be blown out ofthe blower port and back
into the surrounding environment.
2. When using the vacuum to pick up very fine dust, it willbe necessary
to empty the dust tank and clean or replace the filter at more frequent
intervalsto maintain peak vacuum performance. Shake excessdust
NOTICE
A dry filter is necessary to pick up dry material. If you use the vacuum to pick up
If the filter gets wet, replace it before continuing to do dry pickups.
INSTALLING DISPOSABLE FILTER BAG
1. Slide the cardboard collar opening firmly onto the vacuum port deflector
until it stops against the deflector wall.
2. Position the bag so that it is distributed around the inside of the tank.
3. Replace and secure the power head onto the tank.

1277-027
50L STAINLESS STEEL WET/DRY VACUUM
WET PICK-UP
1. Install a foam filter over the filter basket.
NOTE:
Wet pick-up accessories should be washed periodically, especially after picking
up wet, sticky kitchen accidents. This can be accomplished with a warm solution
of soap and water.
2. Insert the exhaust water pipe into the down drain hole. Tighten the screw of exhaust
water pipe with screwdriver. Put the exhaust water pipe in the hook of the tank.
Makes sure it higher than the tank.
3. This wet/dry vac is equipped with a float mechanism which will rise automatically
and the motor noise becomes higher in pitch due to increased motor speed.
The liquid capacity may vary with the rate of pickup.
IMPORTANT:
To reduce the risk of damage to the vacuum, do not run motor with float
in raised position.
NOTE:
If accidentally tipped over, the vacuum could lose its suction ability. If this occurs,
to its normal position, and you will be able to continue operation.

11
EMPTYING THE TANK
WARNING
To reduce the risk of injury from accidental starting, unplug power cord before
emptying the dust tank.
FOR DRY USE
1. Remove the power head assembly of the wet/dry vacuum by pulling
power head assembly.
2. Dump the tank contents into the proper waste disposal container.
FOR WET USE
Take down the exhaust water pipe from the hook, the liquid of the tank
will drain from it.
BLOWING OPERATION
WARNING
Always wear safety eyewear complying with ANSI Z87.1 (or in Canada CSA Z94.3)
when using as a blower. To avoid injury to bystanders, keep them clear
of blowing debris.
CAUTION
Wear a dust mask if blowing creates dust which might be inhaled. To reduce
the risk of hearing damage, wear ear protectors when using the vac/blower
for extended hours or or in confined space.
The vacuum contains a blowing feature. Follow the steps below to use
the vacuum as a blower.
1. Locate blowing port on the vacuum.
2. Insert one end of the 6 ft x 1-7/8 in / 1.8 m x 48 mm hose into
the blower port.
3. Turn the vacuum “ON”.

12
1277-027
50L STAINLESS STEEL WET/DRY VACUUM
MAINTENANCE
WARNING
To reduce the risk of injury from accidental starting, unplug power cord before
changing or cleaning filter. The filter should be cleaned often to maintain peak
Vacuum performance. Do not remove filter cage and float. The float prevents
water from entering the impeller and damaging the motor. The cage prevents
fingers from touching the moving impeller.
NOTICE
To avoid damage to the impeller and motor, always reinstall the reusable filter
before using the vacuum for dry pickups and always reinstall the foam filter
before using the vacuum for wet pickups.
After cleaning, check the filter for tears or small holes. Do not use a filter with holes
or tears in it. Even a small hole can cause dust to come out of the vacuum. Replace
it immediately.
Before installing the filter on the vacuum, clean the area of the lid so that the clamp
ring will seal the bag against the lid and stop small particles from bypassing the filter
bag. If the filter is clean and not damaged, replace it on the filter cage. If it cannot
be reused, place a new filter over the filter cage.
Clean the filter in an open area.
CLEANING
To keep the wet/dry vacuum looking its best, clean the outside with a cloth
dampened with warm water and mild soap.
To clean the tank:
1. Dump out debris.
2. Wash tank thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.
STORAGE
Before storing the vacuum, the dust tank should be emptied and cleaned.
The cord should be wrapped and hung on the unit and the accessories should
be kept in the accessory holder so they can be readily available. The vacuum
should be stored indoors.

13
TROUBLESHOOTING
WARNING
Minor problems often can be fixed without calling customer service.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Vacuum will not run No electricity Make sure electrical outlet
has voltage (A qualified
electrician may need to be
contacted)
Loss of suction,
Wet pick-up
1. Full tank
2. Clogged hose
1. Drain and clean tank
2. Remove hose and clean
Loss of suction,
dry pick-up
1. Full tank
2. Clogged hose
1. Drain and clean tank
2. Remove hose and clean
debris

14
1277-027
50L STAINLESS STEEL WET/DRY VACUUM
EXPLODED VIEW

15
WARNING
When servicing, use only original equipment replacement parts. The use of any
other parts may create a safety hazard or cause damage to the wet/dry vacuum
Any attempt to repair or replace electrical parts on this wet / dry vacuum may
create a safety hazard unless repairs are performed by a qualified technician.
PARTS LIST
Key # Part # Part Name Quantity
1
1277-027-001 Handbar screw 4 x 16 2
2 1277-027-002 Handbar 1
3 1277-027-003 Cord Sleeve 1
4
1277-027-004 Label 1
5 1277-027-005 Top cover 1
6 1277-027-006 Motor cover 1
7 1277-027-007 Top cover screw 4 x 16 2
8 1277-027-008 Power cord strain relief 1
9 1277-027-009 Power cord 1
10 1277-027-010 Bottom cover 1
11 1277-027-011 Top sealing ring of motor 1
12 1277-027-012 Motor 1
13 1277-027-013 Bottom sealing ring of motor 1
14 1277-027-014 Motor noise reduction sponge 1
15 1277-027-015 Bottom frame for motor 1
16 1277-027-016 Safety valve float 1
17 1277-027-017 Bottom cover basket 1
18 1277-027-018 Bottom cover basket screw 5 x 20 10
19 1277-027-019 Handle bar screws m5 x 60 2
20 1277-027-020 Handle bar mounting spacers 2
21 1277-027-021 Push rod 1
22 1277-027-022 Tank 1
23 1277-027-023 Bottom base 1
24 1277-027-024 Rear wheels cover 2
25 1277-027-025 Rear wheels 2
26 1277-027-026 Rear wheels axle screw 5 x 35 2
27 1277-027-027 Rear wheels axle 1
28 1277-027-028 Swiveling casters 2
29 1277-027-029 Water outlet hose hanger 1
30 1277-027-030 Hanger fastening screws 4 x 12 4

16
1277-027
50L STAINLESS STEEL WET/DRY VACUUM
Parts List – Continued
Key # Part # Part Name Quantity
31
1277-027-031 Screw 4 x 16 4
32 277-027-032 Clamps sets 2
33 1277-027-033 Vacuum-inlet sealing ring 1
34 1277-027-034 Vacuum-inlet assembly 1
35 1277-027-035 Vacuum-inlet screw 4 x 16 3
36 1277-027-036 Water outlet base threaded ring 1
37 1277-027-037 Water outlet base spacer 1
38 1277-027-038 Water outlet screw on adapter 1
39 1277-027-039 Drain hose assembly 1
40 1277-027-040 Hose assembly 1.5m 1
41 1277-027-041 Anti electro static chain 1
42 1277-027-042 Ø32 crevice tool 1
43 1277-027-043 Wet & dry square brush 1
44 1277-027-044 Dust bag 1
45 1277-027-045 Metal telescopic tube 1
46 1277-027-046 Column filter for dry vacuum 1
47 1277-027-047 Foam filter for wet vacuum 1

WARRANTY
50L STAINLESS STEEL WET/DRY VACUUM
If this Benchmark tool fails due to a defect in material or workmanship within five
years from the date of purchase, return it to any Home Hardware store with the
original bill of sale for exchange. 3-year warranty for the battery and charger.
This warranty does not include expendable parts including but not limited to blades,
brushes, belts, light bulbs.
This warranty covers defects in material or workmanship only. It does not cover
normal wear and tear, failure due to abuse/misuse, or defects caused by careless
or accidental mishandling. If this Benchmark product is used for commercial or
rental purposes, this warranty does not apply.
17

5002219
JN308
Lorem ipsum
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Not suitable for ultra-fine dust collection such as drywall dust.
Such use will void the warranty.
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK
Made in China
1277-027
BENCHMARK TOOLS CANADA
ST.JACOBS, ONTARIO N0B 2N0
© 2021 Home Hardware Stores Limited
TM
MC
CUSTOMER SERVICE/TECHSUPPORT
1-866-349-8665
* This BenchmarkTM product carries a five (5) year LIMITED warranty against defects
in workmanship and materials. See Owner’s Manual for full details.
50L STAINLESS STEEL
WET/DRY VACUUM
120V 60HZ 8.5AMP
