TK700STi
Projector RS232 Command Control
Installation Guide

2
Table of Contents
Introduction ............................................................................................................................................. 3
Wire arrangement........................................................................................................................................................3
RS232 pin assignment..................................................................................................................................................3
Connections and communication settings......................................................................................... 4
RS232 serial port with a crossover cable ...............................................................................................................4
Settings ..................................................................................................................................................................4
RS232 via LAN..............................................................................................................................................................6
Settings ..................................................................................................................................................................6
RS232 via HDBaseT.....................................................................................................................................................6
Settings ..................................................................................................................................................................6
Command table....................................................................................................................................... 8

3
Introduction
The document describes how to control your BenQ projector via RS232 from a computer. Follow the
procedures to complete the connection and settings first, and refer to the command table for RS232
commands.
Available functions and commands vary by model. Check the specifications and user manual of the purchased projector for
product functions.
Wire arrangement
Wire Arrangement
P1
Color
P2
1
Black
1
2
Brown
3
3
Red
2
4
Orange
4
5
Yellow
5
6
Green
6
7
Blue
7
8
Purple
8
9
Gray
9
Case
Drain wire
Case
RS232 pin assignment
Pin
Description
Pin
Description
1
NC
2
RXD
3
TXD
4
NC
5
GND
6
NC
7
RTS
8
CTS
9
NC

4
Connections and communication settings
Choose one of the connections and set up properly before RS232 control.

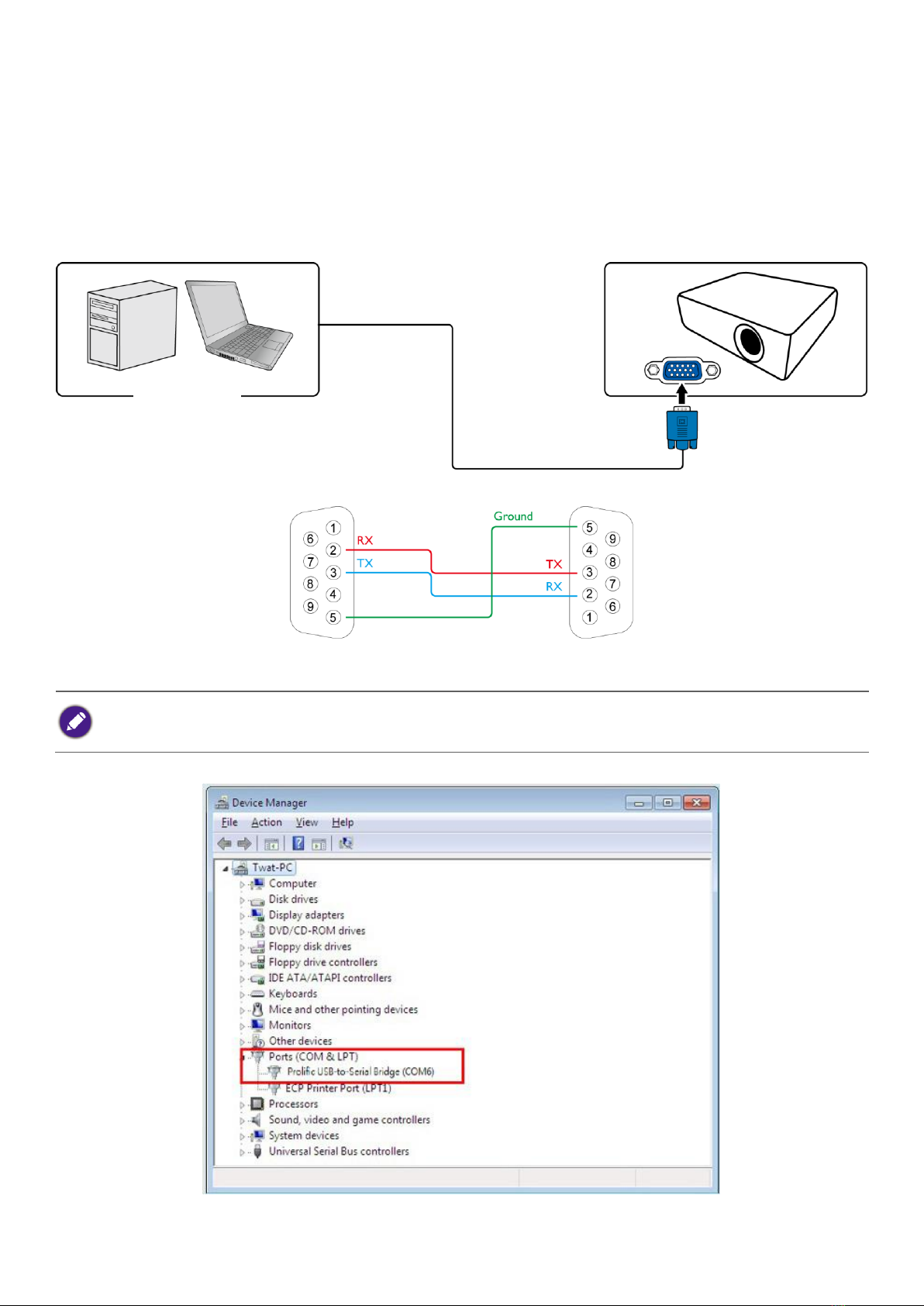

RS232 serial port with a crossover cable
Settings
On-screen images in this document are for reference only. The screens may vary depending on your Operating System,
I/O ports used for connection, and the specifications of the connected projector.
1. Determine the COM Port name used for the RS232 communications in Device Manager.
PC or laptop
Communication cable (crossover)
D-Sub 9 pin (female)
D-Sub 9 pin (male) on a projector

5
2. Choose Serial and the corresponding COM port as the communication port. In this given example,
COM6 is selected.
3. Finish Serial port setup.
Baud rate
9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps
Check the baud rate of the connected projector from its OSD menu.
Data length
8 bit
Parity check
None
Stop bit
1 bit
Flow control
None

6
RS232 via LAN
Settings
1. Find the Wired LAN IP address of the connected projector from the OSD menu and make sure the
projector and the computer are within the same network.
2. Input 8000 in the TCP port # field.
RS232 via HDBaseT
Settings
1. Determine the COM Port name used for the RS232 communications in Device Manager.
2. Choose Serial and the corresponding COM port as the communication port. In this given example,
COM6 is selected.
PC or laptop
RJ45 port on a projector
LAN cable
PC or laptop
HDBaseT compatible device
D-Sub 9 pin
RJ45
RJ45 port on a projector
LAN cable
D-Sub 9 pin

7
3. Finish Serial port setup.
Baud rate
9600 / 14400 / 19200 / 38400 / 57600 / 115200 bps
Check the baud rate of the connected projector from its OSD menu.
Data length
8 bit
Parity check
None
Stop bit
1 bit
Flow control
None

8
Command table
•Available features differ by projector specification, input sources, settings, etc..
•Commands are working if the standby power is 0.5W or a supported baud rate of the projector is set.
•Uppercase, lowercase, and a mixture of both types of characters are accepted for a command.
•If a command format is illegal, it will echo Illegal format.
•If a command with correct format is not valid for the projector model, it will echo Unsupported item.
•If a command with correct format cannot be executed under certain condition, it will echo Block item.
•If RS232 control is performed via LAN, a command works whether it starts and ends with <CR>. All the commands and
behaviors are identical with the control through a serial port.
Function
Type
Operation
ASCII
Support
Power
Write
Power On
<CR>*pow=on#<CR>
YES
Write
Power Off
<CR>*pow=off#<CR>
YES
Read
Power Status
<CR>*pow=?#<CR>
YES
Source
Selection
Write
COMPUTER/YPbPr
<CR>*sour=RGB#<CR>
NO
Write
COMPUTER 2/YPbPr2
<CR>*sour=RGB2#<CR>
NO
Write
COMPUTER 3/YPbPr3
<CR>*sour=RGB3#<CR>
NO
Write
Component
<CR>*sour=ypbr#<CR>
NO
Write
Component2
<CR>*sour=ypbr2#<CR>
NO
Write
DVI-A
<CR>*sour=dviA#<CR>
NO
Write
DVI-D
<CR>*sour=dvid#<CR>
NO
Write
HDMI(MHL)
<CR>*sour=hdmi#<CR>
YES
Write
HDMI 2(MHL2)
<CR>*sour=hdmi2#<CR>
YES
Write
HDMI 3
<CR>*sour=hdmi3#<CR>
YES
Write
Composite
<CR>*sour=vid#<CR>
NO
Write
S-Video
<CR>*sour=svid#<CR>
NO
Write
Network
<CR>*sour=network#<CR>
NO
Write
USB Display
<CR>*sour=usbdisplay#<CR>
NO
Write
USB Reader
<CR>*sour=usbreader#<CR>
NO
Write
HDbaseT
<CR>*sour=hdbaset#<CR>
NO
Write
DisplayPort
<CR>*sour=dp#<CR>
NO
Write
3G-SDI
<CR>*sour=sdi#<CR>
NO
Write
Smart System
<CR>*sour=smartsystem#<CR>
NO
Read
Current source
<CR>*sour=?#<CR>
YES
Audio Control
Write
Mute On
<CR>*mute=on#<CR>
YES
Write
Mute Off
<CR>*mute=off#<CR>
YES
Read
Mute Status
<CR>*mute=?#<CR>
YES
Write
Volume +
<CR>*vol=+#<CR>
NO
Write
Volume -
<CR>*vol=-#<CR>
NO

9
Write
Volume level for customer
<CR>*vol=value#<CR>
YES
Read
Volume Status
<CR>*vol=?#<CR>
YES
Write
Mic.Volume +
<CR>*micvol=+#<CR>
NO
Write
Mic.Volume -
<CR>*micvol=-#<CR>
NO
Read
Mic.Volume Status
<CR>*micvol=?#<CR>
NO
Audio source
select
Write
Audio pass Through off
<CR>*audiosour=off#<CR>
NO
Write
Audio-Computer1
<CR>*audiosour=RGB#<CR>
NO
Write
Audio-Computer2
<CR>*audiosour=RGB2#<CR>
NO
Write
Audio-Video/S-Video
<CR>*audiosour=vid#<CR>
NO
Write
Audio-Component
<CR>*audiosour=ypbr#<CR>
NO
Write
Audio-HDMI
<CR>*audiosour=hdmi#<CR>
NO
Write
Audio-HDMI2
<CR>*audiosour=hdmi2#<CR>
NO
Write
Audio-HDMI3
<CR>*audiosour=hdmi3#<CR>
NO
Read
Audio pass Status
<CR>*audiosour=?#<CR>
NO
Picture Mode
Write
Dynamic
<CR>*appmod=dynamic#<CR>
NO
Write
Presentation
<CR>*appmod=preset#<CR>
NO
Write
sRGB
<CR>*appmod=srgb#<CR>
NO
Write
Bright
<CR>*appmod=bright#<CR>
YES
Write
Living Room
<CR>*appmod=livingroom#<CR>
YES
Write
Game
<CR>*appmod=game#<CR>
YES
Write
Cinema(Rec.709)
<CR>*appmod=cine#<CR>
YES
Write
Standard/Vivid
<CR>*appmod=std#<CR>
NO
Write
Football
<CR>*appmod=football#<CR>
NO
Write
Football Bright
<CR>*appmod=footballbt#<CR>
NO
Write
DICOM
<CR>*appmod=dicom#<CR>
NO
Write
THX
<CR>*appmod=thx#<CR>
NO
Write
Silence mode
<CR>*appmod=silence#<CR>
NO
Write
DCI-P3 mode(D. Cinema)
<CR>*appmod=dci-p3#<CR>
NO
Write
Vivid
<CR>*appmod=vivid#<CR>
NO
Write
Infographic
<CR>*appmod=infographic#<CR>
NO
Write
User1
<CR>*appmod=user1#<CR>
YES
Write
User2
<CR>*appmod=user2#<CR>
NO
Write
User3
<CR>*appmod=user3#<CR>
NO
Write
ISF Day
<CR>*appmod=isfday#<CR>
NO
Write
ISF Night
<CR>*appmod=isfnight#<CR>
NO
Write
3D
<CR>*appmod=threed#<CR>
NO
Write
Sport
<CR>*appmod=sport#<CR>
YES
Write
HDR10
<CR>*appmod=hdr#<CR>
NO

10
Write
HLG
<CR>*appmod=hlg#<CR>
NO
Read
Picture Mode
<CR>*appmod=?#<CR>
YES
Picture Setting
Write
Contrast +
<CR>*con=+#<CR>
NO
Write
Contrast -
<CR>*con=-#<CR>
NO
Write
Set Contrast value
<CR>*con=value#<CR>
YES
Read
Contrast value
<CR>*con=?#<CR>
YES
Write
Brightness +
<CR>*bri=+#<CR>
YES
Write
Brightness -
<CR>*bri=-#<CR>
YES
Write
Set Brightness value
<CR>*bri=value#<CR>
YES
Read
Brightness value
<CR>*bri=?#<CR>
YES
Write
Color +
<CR>*color=+#<CR>
NO
Write
Color -
<CR>*color=-#<CR>
NO
Write
Set Color value
<CR>*color=value#<CR>
YES
Read
Color value
<CR>*color=?#<CR>
YES
Write
Sharpness +
<CR>*sharp=+#<CR>
NO
Write
Sharpness -
<CR>*sharp=-#<CR>
NO
Write
Set Sharpness value
<CR>*sharp=value#<CR>
YES
Read
Sharpness value
<CR>*sharp=?#<CR>
YES
Write
Flesh Tone +
<CR>*fleshtone=+#<CR>
NO
Write
Flesh Tone -
<CR>*fleshtone=-#<CR>
NO
Write
Set Flesh Tone value
<CR>*fleshtone=value#<CR>
NO
Read
Flesh Tone value
<CR>*fleshtone=?#<CR>
NO
Write
Color Temperature-Warmer
<CR>*ct=warmer#<CR>
NO
Write
Color Temperature-Warm
<CR>*ct=warm#<CR>
YES
Write
Color Temperature-Normal
<CR>*ct=normal#<CR>
YES
Write
Color Temperature-Cool
<CR>*ct=cool#<CR>
YES
Write
Color Temperature-Cooler
<CR>*ct=cooler#<CR>
NO
Write
Color Temperature-lamp native
<CR>*ct=native#<CR>
YES
Read
Color Temperature Status
<CR>*ct=?#<CR>
YES
Write
Aspect 4:3
<CR>*asp=4:3#<CR>
YES
Write
Aspect 16:6
<CR>*asp=16:6#<CR>
NO
Write
Aspect 16:9
<CR>*asp=16:9#<CR>
YES
Write
Aspect 16:10
<CR>*asp=16:10#<CR>
NO
Write
Aspect 2.35:1
<CR>*asp=2.35#<CR>
NO
Write
Aspect Auto
<CR>*asp=AUTO#<CR>
YES
Write
Aspect Real
<CR>*asp=REAL#<CR>
NO
Write
Aspect Letterbox
<CR>*asp=LBOX#<CR>
NO
Write
Aspect Wide
<CR>*asp=WIDE#<CR>
NO

11
Write
Aspect Anamorphic
<CR>*asp=ANAM#<CR>
NO
Write
Aspect Anamorphic 2.35
<CR>*asp=ANAM2.35#<CR>
NO
Write
Aspect Anamorphic 16:9
<CR>*asp=ANAM16:9#<CR>
NO
Read
Aspect Status
<CR>*asp=?#<CR>
YES
Write
Vertical Keystone +
<CR>*vkeystone=+#<CR>
YES
Write
Vertical Keystone -
<CR>*vkeystone=-#<CR>
YES
Read
Vertical Keystone value
<CR>*vkeystone=?#<CR>
YES
Write
Horizontal Keystone +
<CR>*hkeystone=+#<CR>
YES
Write
Horizontal Keystone -
<CR>*hkeystone=-#<CR>
YES
Read
Horizontal Keystone value
<CR>*hkeystone=?#<CR>
YES
Write
Overscan Adjustment +
<CR>*overscan=+#<CR>
NO
Write
Overscan Adjustment -
<CR>*overscan=-#<CR>
NO
Read
Overscan Adjustment value
<CR>*overscan=?#<CR>
NO
Write
4 Corners Top-Left-X Decrease
<CR>*cornerfittlx=-#<CR>
NO
Write
4 Corners Top-Left-X Increase
<CR>*cornerfittlx=+#<CR>
NO
Read
4 Corners Top-Left-X Status
<CR>*cornerfittlx=?#<CR>
NO
Write
4 Corners Top-Left-Y Decrease
<CR>*cornerfittly=-#<CR>
NO
Write
4 Corners Top-Left-Y Increase
<CR>*cornerfittly=+#<CR>
NO
Read
4 Corners Top-Left-Y Status
<CR>*cornerfittly=?#<CR>
NO
Write
4 Corners Top-Right-X Decrease
<CR>*cornerfittrx=-#<CR>
NO
Write
4 Corners Top-Right-X Increase
<CR>*cornerfittrx=+#<CR>
NO
Read
4 Corners Top-Right-X Status
<CR>*cornerfittrx=?#<CR>
NO
Write
4 Corners Top-Right-Y Decrease
<CR>*cornerfittry=-#<CR>
NO
Write
4 Corners Top-Right-Y Increase
<CR>*cornerfittry=+#<CR>
NO
Read
4 Corners Top-Right-Y Status
<CR>*cornerfittry=?#<CR>
NO
Write
4 Corners Bottom-Left-X Decrease
<CR>*cornerfitblx=-#<CR>
NO
Write
4 Corners Bottom-Left-X Increase
<CR>*cornerfitblx=+#<CR>
NO
Read
4 Corners Bottom-Left-X Status
<CR>*cornerfitblx=?#<CR>
NO
Write
4 Corners Bottom-Left-Y Decrease
<CR>*cornerfitbly=-#<CR>
NO
Write
4 Corners Bottom-Left-Y Increase
<CR>*cornerfitbly=+#<CR>
NO
Read
4 Corners Bottom-Left-Y Status
<CR>*cornerfitbly=?#<CR>
NO
Write
4 Corners Bottom-Right-X
Decrease
<CR>*cornerfitbrx=-#<CR>
NO
Write
4 Corners Bottom-Right-X
Increase
<CR>*cornerfitbrx=+#<CR>
NO
Read
4 Corners Bottom-Right-X Status
<CR>*cornerfitbrx=?#<CR>
NO
Write
4 Corners Bottom-Right-Y
Decrease
<CR>*cornerfitbry=-#<CR>
NO

12
Write
4 Corners Bottom-Right-Y Increase
<CR>*cornerfitbry=+#<CR>
NO
Read
4 Corners Bottom-Right-Y Status
<CR>*cornerfitbry=?#<CR>
NO
Write
Digital Zoom In
<CR>*zoomI#<CR>
NO
Write
Digital Zoom out
<CR>*zoomO#<CR>
NO
Write
Auto
<CR>*auto#<CR>
NO
Write
Brilliant color on
<CR>*BC=on#<CR>
YES
Write
Brilliant color off
<CR>*BC=off#<CR>
YES
Read
Brilliant color status
<CR>*BC=?#<CR>
YES
Write
Auto(HDR)
<CR>*hdr=auto#<CR>
NO
Write
SDR
<CR>*hdr=sdr#<CR>
NO
Write
HDR10
<CR>*hdr=hdr#<CR>
NO
Write
HLG
<CR>*hdr=hlg#<CR>
NO
Read
HDR status
<CR>*hdr=?#<CR>
NO
Write
Reset current picture settings
<CR>*rstcurpicsetting#<CR>
YES
Write
Reset all picture settings
<CR>*rstallpicsetting#<CR>
YES
Operation
Settings
Write
Projector Position-Front Table
<CR>*pp=FT#<CR>
YES
Write
Projector Position-Rear Table
<CR>*pp=RE#<CR>
YES
Write
Projector Position-Rear Ceiling
<CR>*pp=RC#<CR>
YES
Write
Projector Position-Front Ceiling
<CR>*pp=FC#<CR>
YES
Read
Projector Position Status
<CR>*pp=?#<CR>
YES
Write
Quick cooling on
<CR>*qcool=on<CR>
NO
Write
Quick cooling off
<CR>*qcool=off<CR>
NO
Read
Quick cooling status
<CR>*qcool=?<CR>
NO
Write
Quick auto search
<CR>*QAS=on#<CR>
NO
Write
Quick auto search
<CR>*QAS=off#<CR>
NO
Read
Quick auto search status
<CR>*QAS=?#<CR>
NO
Write
Menu Position - Center
<CR>*menuposition=center#<CR
>
YES
Write
Menu Position - Top-Left
<CR>*menuposition=tl#<CR>
YES
Write
Menu Position - Top-Right
<CR>*menuposition=tr#<CR>
YES
Write
Menu Position - Bottom-Right
<CR>*menuposition=br#<CR>
YES
Write
Menu Position - Bottom-Left
<CR>*menuposition=bl#<CR>
YES
Read
Menu Position Status
<CR>*menuposition=?#<CR>
YES
Write
Direct Power On-on
<CR>*directpower=on#<CR>
YES
Write
Direct Power On-off
<CR>*directpower=off#<CR>
YES
Read
Direct Power On-Status
<CR>*directpower=?#<CR>
YES
Write
Signal Power On-on
<CR>*autopower=on#<CR>
NO
Write
Signal Power On-off
<CR>*autopower=off#<CR>
NO

13
Read
Signal Power On-Status
<CR>*autopower=?#<CR>
NO
Write
Standby Settings-Network on
<CR>*standbynet=on#<CR>
NO
Write
Standby Settings-Network off
<CR>*standbynet=off#<CR>
NO
Read
Standby Settings-Network Status
<CR>*standbynet=?#<CR>
NO
Write
Standby Settings-Microphone on
<CR>*standbymic=on#<CR>
NO
Write
Standby Settings-Microphone off
<CR>*standbymic=off#<CR>
NO
Read
Standby Settings-Microphone Status
<CR>*standbymic=?#<CR>
NO
Write
Standby Settings-Monitor Out on
<CR>*standbymnt=on#<CR>
NO
Write
Standby Settings-Monitor Out off
<CR>*standbymnt=off#<CR>
NO
Read
Standby Settings-Monitor Out
Status
<CR>*standbymnt=?#<CR>
NO
Baud Rate
Write
2400
<CR>*baud=2400#<CR>
NO
Write
4800
<CR>*baud=4800#<CR>
NO
Write
9600
<CR>*baud=9600#<CR>
YES
Write
14400
<CR>*baud=14400#<CR>
YES
Write
19200
<CR>*baud=19200#<CR>
YES
Write
38400
<CR>*baud=38400#<CR>
YES
Write
57600
<CR>*baud=57600#<CR>
YES
Write
115200
<CR>*baud=115200#<CR>
YES
Read
Current Baud Rate
<CR>*baud=?#<CR>
YES
Lamp Control
Read
Lamp
<CR>*ltim=?#<CR>
YES
Read
Lamp2 Hour
<CR>*ltim2=?#<CR>
NO
Write
Normal mode
<CR>*lampm=lnor#<CR>
YES
Write
Eco mode
<CR>*lampm=eco#<CR>
YES
Write
SmartEco mode
<CR>*lampm=seco#<CR>
YES
Write
SmartEco mode 2
<CR>*lampm= seco2#<CR>
YES
Write
SmartEco mode 3
<CR>*lampm= seco3#<CR>
NO
Write
Dimming mode
<CR>*lampm=dimming#<CR>
NO
Write
Custom mode
<CR>*lampm=custom#<CR>
NO
Write
Light level for custom mode
<CR>*lampcustom=value#<CR>
NO
Read
Light level status for custom mode
<CR>*lampcustom=?#<CR>
NO
Read
Lamp Mode Status
<CR>*lampm=?#<CR>
YES
Miscellaneous
Read
Model Name
<CR>*modelname=?#<CR>
YES
Read
System F/W Version
<CR>*sysfwversion=?#<CR>
YES
Read
Scaler F/W Version
<CR>*scalerfwversion=?#<CR>
YES
Read
Format F/W version
<CR>*formatfwversion=?#<CR>
NO
Read
Lan F/W Version
<CR>*lanfwversion=?#<CR>
NO
Read
MCU F/W Version
<CR>*mcufwversion=?#<CR>
YES

14
Read
Ballast F/W Version
<CR>*ballastfwversion=?#<CR>
NO
Write
Blank On
<CR>*blank=on#<CR>
YES
Write
Blank Off
<CR>*blank=off#<CR>
YES
Read
Blank Status
<CR>*blank=?#<CR>
YES
Write
Freeze On
<CR>*freeze=on#<CR>
YES
Write
Freeze Off
<CR>*freeze=off#<CR>
YES
Read
Freeze Status
<CR>*freeze=?#<CR>
YES
Write
Menu On
<CR>*menu=on#<CR>
YES
Write
Menu Off
<CR>*menu=off#<CR>
YES
Read
Menu Status
<CR>*menu=?#<CR>
YES
Write
Up
<CR>*up#<CR>
YES
Write
Down
<CR>*down#<CR>
YES
Write
Right
<CR>*right#<CR>
YES
Write
Left
<CR>*left#<CR>
YES
Write
Enter
<CR>*enter#<CR>
YES
Write
Back
<CR>*back#<CR>
YES
Write
Source Menu On
<CR>*sourmenu=on#<CR>
YES
Write
Source Menu Off
<CR>*sourmenu=off#<CR>
YES
Read
Source Menu Status
<CR>*sourmenu=?#<CR>
YES
Write
3D Sync Off
<CR>*3d=off#<CR>
YES
Write
3D Auto
<CR>*3d=auto#<CR>
NO
Write
3D Sync Top Bottom
<CR>*3d=tb#<CR>
NO
Write
3D Sync Frame Sequential
<CR>*3d=fs#<CR>
YES
Write
3D Frame packing
<CR>*3d=fp#<CR>
NO
Write
3D Side by side
<CR>*3d=sbs#<CR>
NO
Write
3D inverter disable
<CR>*3d=da#<CR>
NO
Write
3D inverter
<CR>*3d=iv#<CR>
NO
Write
2D to 3D
<CR>*3d=2d3d#<CR>
NO
Write
3D nVIDIA
<CR>*3d=nvidia#<CR>
NO
Read
3D Sync Status
<CR>*3d=?#<CR>
YES
Write
Remote Receiver On
<CR>*rr=on#<CR>
NO
Write
Remote Receiver Off
<CR>*rr=off#<CR>
NO
Write
Remote Receiver-front+rear
<CR>*rr=fr#<CR>
NO
Write
Remote Receiver-front
<CR>*rr=f#<CR>
NO
Write
Remote Receiver-rear
<CR>*rr=r#<CR>
NO
Write
Remote Receiver-top
<CR>*rr=t#<CR>
NO
Write
Remote Receiver-top+front
<CR>*rr=tf#<CR>
NO
Write
Remote Receiver-top+rear
<CR>*rr=tr#<CR>
NO

15
Read
Remote Receiver Status
<CR>*rr=?#<CR>
NO
Write
Instant On-on
<CR>*ins=on#<CR>
NO
Write
Instant On-off
<CR>*ins=off#<CR>
NO
Read
Instant On Status
<CR>*ins=?#<CR>
NO
Write
Lamp Saver Mode-on
<CR>*lpsaver=on#<CR>
NO
Write
Lamp Saver Mode-off
<CR>*lpsaver=off#<CR>
NO
Read
Lamp Saver Mode Status
<CR>*lpsaver=?#<CR>
NO
Write
Projection Log In Code on
<CR>*prjlogincode=on#<CR>
NO
Write
Projection Log In Code off
<CR>*prjlogincode=off#<CR>
NO
Read
Projection Log In Code Status
<CR>*prjlogincode=?#<CR>
NO
Write
Broadcasting on
<CR>*broadcasting=on#<CR>
NO
Write
Broadcasting off
<CR>*broadcasting=off#<CR>
NO
Read
Broadcasting Status
<CR>*broadcasting=?<CR>
NO
Write
AMX Device Discovery-on
<CR>*amxdd=on#<CR>
NO
Write
AMX Device Discovery-off
<CR>*amxdd=off#<CR>
NO
Read
AMX Device Discovery Status
<CR>*amxdd=?#<CR>
NO
Read
Mac Address
<CR>*macaddr=?#<CR>
NO
Write
High Altitude mode on
<CR>*Highaltitude=on#<CR>
YES
Write
High Altitude mode off
<CR>*Highaltitude=off#<CR>
YES
Read
High Altitude mode status
<CR>*Highaltitude=?#<CR>
YES
Installation
Write
Load Lens memory 1
<CR>*lensload=m1#<CR>
NO
Write
Load Lens memory 2
<CR>*lensload=m2#<CR>
NO
Write
Load Lens memory 3
<CR>*lensload=m3#<CR>
NO
Write
Load Lens memory 4
<CR>*lensload=m4#<CR>
NO
Write
Load Lens memory 5
<CR>*lensload=m5#<CR>
NO
Write
Load Lens memory 6
<CR>*lensload=m6#<CR>
NO
Write
Load Lens memory 7
<CR>*lensload=m7#<CR>
NO
Write
Load Lens memory 8
<CR>*lensload=m8#<CR>
NO
Write
Load Lens memory 9
<CR>*lensload=m9#<CR>
NO
Write
Load Lens memory 10
<CR>*lensload=m10#<CR>
NO
Read
Read Lens memory status
<CR>*lensload=?#<CR>
NO
Write
save Lens memory 1
<CR>*lenssave=m1#<CR>
NO
Write
save Lens memory 2
<CR>*lenssave=m2#<CR>
NO
Write
save Lens memory 3
<CR>*lenssave=m3#<CR>
NO
Write
save Lens memory 4
<CR>*lenssave=m4#<CR>
NO
Write
save Lens memory 5
<CR>*lenssave=m5#<CR>
NO
Write
save Lens memory 6
<CR>*lenssave=m6#<CR>
NO
Write
save Lens memory 7
<CR>*lenssave=m7#<CR>
NO

16
Write
save Lens memory 8
<CR>*lenssave=m8#<CR>
NO
Write
save Lens memory 9
<CR>*lenssave=m9#<CR>
NO
Write
save Lens memory 10
<CR>*lenssave=m10#<CR>
NO
Write
Reset Lens to center
<CR>*lensreset=center#<CR>
NO
Color
Calibration
(only for
service)
Write
Tint +
<CR>*tint=+#<CR>
NO
Write
Tint -
<CR>*tint=-#<CR>
NO
Write
Set Tint value
<CR>*tint=value#<CR>
NO
Read
Get Tint value
<CR>*tint=?#<CR>
NO
Write
Set BenQ gamma value
<CR>*gamma=value#<CR>
YES
Read
Gamma value status
<CR>*gamma=?#<CR>
YES
Write
Set HDR Brightness value
<CR>*hdrbri=value#<CR>
YES
Read
Get HDR Brightness value
<CR>*hdibri=?#<CR>
YES
Write
Red Gain +
<CR>*RGain=+#<CR>
NO
Write
Red Gain -
<CR>*RGain=-#<CR>
NO
Write
Set Red Gain value
<CR>*RGain=value#<CR>
YES
Read
Get Red Gain value
<CR>*RGain=?#<CR>
YES
Write
Green Gain +
<CR>*GGain=+#<CR>
NO
Write
Green Gain -
<CR>*GGain=-#<CR>
NO
Write
Set Green Gain value
<CR>*GGain=value#<CR>
YES
Read
Get Green Gain value
<CR>*GGain=?#<CR>
YES
Write
Blue Gain +
<CR>*BGain=+#<CR>
NO
Write
Blue Gain -
<CR>*BGain=-#<CR>
NO
Write
Set Blue Gain value
<CR>*BGain=value#<CR>
YES
Read
Get Blue Gain value
<CR>*BGain=?#<CR>
YES
Write
Red Offset +
<CR>*ROffset=+#<CR>
NO
Write
Red Offset -
<CR>*ROffset=-#<CR>
NO
Write
Set Red Offset value
<CR>*ROffset=value#<CR>
YES
Read
Get Red Offset value
<CR>*ROffset=?#<CR>
YES
Write
Green Offset +
<CR>*GOffset=+#<CR>
NO
Write
Green Offset -
<CR>*GOffset=-#<CR>
NO
Write
Set Green Offset value
<CR>*GOffset=value#<CR>
YES
Read
Get Green Offset value
<CR>*GOffset=?#<CR>
YES
Write
Blue Offset +
<CR>*BOffset=+#<CR>
NO
Write
Blue Offset -
<CR>*BOffset=-#<CR>
NO
Write
Set Blue Offset value
<CR>*BOffset=value#<CR>
YES
Read
Get Blue Offset value
<CR>*BOffset=?#<CR>
YES
Write
Primary Color
<CR>*primcr=value#<CR>
YES
Read
Primary Color Status
<CR>*primcr=?#<CR>
YES

17
Write
Hue +
<CR>*hue=+#<CR>
NO
Write
Hue -
<CR>*hue=-#<CR>
NO
Write
Set Hue value
<CR>*hue=value#<CR>
YES
Read
Get Hue value
<CR>*hue=?#<CR>
YES
Write
Saturation +
<CR>*saturation =+#<CR>
NO
Write
Saturation -
<CR>*saturation =-#<CR>
NO
Write
Set Saturation value
<CR>*saturation =value#<CR>
YES
Read
Get Saturation value
<CR>*saturation =?#<CR>
YES
Write
Gain +
<CR>*gain=+#<CR>
NO
Write
Gain -
<CR>*gain=-#<CR>
NO
Write
Set Gain value
<CR>*gain=value#<CR>
YES
Read
Get Gain value
<CR>*gain=?#<CR>
YES
Write
Color Gamut Auto
<CR>*cgamut=auto#<CR>
NO
Write
Color Gamut BT.709
<CR>*cgamut=bt.709#<CR>
NO
Write
Color Gamut BT.2020
<CR>*cgamut=bt.2020#<CR>
NO
Write
Color Gamut DCI-P3
<CR>*cgamut=dci-p3#<CR>
NO
Read
Color Gamut Value
<CR>*cgamut=?#<CR>
NO
Write
Dynamic Iris ON
<CR>*diris=on#<CR>
NO
Write
Dynamic Iris OFF
<CR>*diris=off#<CR>
NO
Read
Dynamic Iris status
<CR>*diris=?#<CR>
NO
Write
Color Calibration Save
<CR>*colorsave#<CR>
NO
Write
Color Calibration pattern display
<CR>*colorpattern=value#<CR>
NO

18
BenQ.com
© 2018 BenQ Corporation
All rights reserved. Rights of modification reserved.
Version: 1.01-C
