Installation- and maintenance instruction
B 30 A
LMO24.255C2E
AS47CK
Translation of the original instructions.

2Bentone
example Beispielexempel
352011030141
Designation
Type
Model
Serial no.
Motor supply
Main supply
MADE IN SWEDEN BY
LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar
BF 1 KS 76-24
BF 1
BF 1 KS 76-24
1234567
1~230V 1,0A 50Hz IP 20
Man.Year 2019
Cap. Min-Max
3
?
1
-sv
1. Manualer på övriga språk
2. www.bentone.com\
nedladdning eller scanna
QR-koden.
3. Skriv in brännarens
artikelnummer som  nns på
din typskylt (se bild) och välj
ditt språk.
Detaljerad ecodesign
information kan laddas ner
på: www.bentone.com/
ecodesign.
-en
1. Manuals in other languages
2. www.bentone.com\
download or scan QR-code.
3. Enter the burner`s article
number on your data plate
(see picture) and select
language.
Detailed ecodesign
information can be
downloaded at:
www.bentone.com/
ecodesign.
-da
1. Manualer på andre sprog
2. www.bentone.com\
download eller scan
QR-koden.
3. Indtast brænderens
artikelnummer, der  ndes
på typeskiltet (se billede), og
vælg dit sprog.
Detaljerede oplysninger om
ecodesign kan downloades
på: www.bentone.com/
ecodesign.
-fr
1. Manuels dans d’autres
langues
2. www.bentone.com\
download ou scannez le
code QR.
3. Saisir le numéro d’article
du brûleur sur votre plaque
signalétique (consultez
l’illustration) et sélectionnez
la langue.
Des informations détaillées
sur l’écodesign peuvent être
téléchargées à l’adresse:
www.bentone.com/
ecodesign.
-de
1. Gebrauchsanweisungen in
anderen Sprachen
2. www.bentone.com\
download oder scannen Sie
den QR-Code.
3. Geben Sie die
Artikelnummer des Brenners
auf Ihrem Typenschild ein,
(siehe Bild) und wählen Sie
die Sprache aus.
Detaillierte Informationen
zum Ecodesign können unter
www.bentone.com/ecodesign
heruntergeladen werden.
2

3Bentone
Table of contents
1. General Information............................................................4
1.1 Delivery inspection........................................................................ 4
1.2 Safety ............................................................................................... 4
2. Technical data.......................................................................6
2.1 Dimensions B 30 A........................................................................ 6
2.2 Burner installation ........................................................................ 7
2.3 Workingeld.................................................................................. 7
2.4 Basic settings - Fuel oil................................................................. 7
2.5 Basic settings - HVO/XTL ............................................................. 8
2.6 Technicalspecication ................................................................. 8
2.7 Settingofignitionelectrodesandbrakeplate ....................... 9
2.8 Nozzleandpumppressure......................................................... 9
2.9 Nozzletable.................................................................................... 9
2.10 Components................................................................................. 10
3. Electric equipment.............................................................11
3.1 Safety system .............................................................................. 11
3.2 Wiringdiagram.......................................................................... 12
3.3 Function LMO14/24.................................................................... 13
3.4 ColourcodesLMO14/24............................................................ 14
3.5 FaultcodesLMO14/24............................................................... 14
4. Installation..........................................................................15
4.1 General instructions................................................................... 15
4.2 Inspectionandmaintenance.................................................... 15
4.3 Start-up ......................................................................................... 15
4.4 Delivery inspection...................................................................... 15
4.5 Preparing for installation........................................................... 15
4.6 Oildistribution............................................................................. 16
4.7 Electrical connection .................................................................. 16
4.8 Handlingandliftinginstruction ............................................... 17
5. Mounting of burner on boiler ..........................................18
5.1 Check oil line seals...................................................................... 18
5.2 Example of Basic settings.......................................................... 19
5.3 Air setting ..................................................................................... 20
5.4 Brakeplateadjustment ............................................................. 20
6. Pump ..................................................................................21
6.1 SUNTEC AS .................................................................................. 21
7. Service .................................................................................27
7.1 BurnerServiceSchedule,Oil .................................................... 27
7.2 Component replacement intervals.......................................... 27
7.3 Combustiondevice .................................................................... 28
7.4 Airdamper................................................................................... 29
7.5 Fan ................................................................................................. 30
7.6 Replace oil pump ........................................................................31
7.7 Replacement of electrical components.................................. 32
8. Fault Location.....................................................................33
8.1 Burner will not start.................................................................... 33
8.2 Burner will not start after normal use .................................... 33
8.3 Delayedignition .......................................................................... 34
8.4 Noise in pump ............................................................................. 34
8.5 Pump pressure ............................................................................ 35
9. Logofuegasanalysis.....................................................36

4Bentone
165 105 01-2 2021-12-07
1. General Information
The burner may only be used for its intended purpose in accordance with the
product’s technical data.
We reserve the right to make design changes and cannot be held liable for any
misprints or typographical errors.
Modifying the design or using accessories or components that have not been
approved by Enertech in writing is strictly prohibited.
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site.
• must be read prior to installation.
• is intended for use by authorised personnel.
1.1 Delivery inspection
• Make sure everything is delivered and the goods have not been
damaged during transit.
Transport damage must be reported to the shipping company.
• If something is wrong with a delivery, report it to the supplier.
1.2 Safety
- before installation:
• Installation and work on the burner and associated system
components may only be carried out by persons who have undergone
relevant training.
• The product is packaged to prevent damage from occurring when
handled – Handle the product with care! Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
- installation:
• The burner must be installed in accordance with local regulations for
 re safety, electrical safety, and fuel distribution.
• The premises must comply with local regulations pertaining to use of
the burner, and must have adequate air supply.
• The installation site must be free of chemicals.
• Fire extinguisher with Class BE recommended.
• Make sure when installing the burner that there is enough space to
service the burner.
• The electrical installation must be professionally carried out in
accordance with current mains electricity regulations and in a
professional manner.
• Make sure that the burner is suitable for the application (see Technical
Data).
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces that affect components.

5Bentone
• Care must be taken by the installer to ensure that no electrical cables
or fuel lines are pinched or otherwise damaged during installation or
service.
• Flame tubes, fan wheels and air dampers, for example, may contain
sharp edges.
- before  rst start:
• The burner must not be put into operation without proper safety and
protection devices.
• Permitted ambient temperature during operation -10 to +60 °C. Max.
80% relative humidity, no condensation.
• The surface temperature of the burner’s components may exceed
60 °C.
• Handle with caution – the burner has moving parts, and there is risk
of crushing injuries.
• Seal inspections must be performed during installation and servicing
to prevent leakage.
•  tting and installation work has been completed and approved.
• electrical installation has been correctly performed.
•  ue gas ducts and combustion air ducts are not blocked.
• all actuators and control and safety devices are in working order and
correctly set.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner’s safety system.
• When in operation, the burner’s noise level can exceed 85 dBA – use
hearing protection!
- Operation:
• Carry out all stipulated settings, service and inspection work within
the set time.
• If the oil burner control has a solid red light, contact your installer.

6Bentone
165 105 22-3
2. Technical data
The burner is intended for:
• Operation in installations according to EN 303 and EN 267.
When operating with a hot air boiler, the LMO24.255 or LMO44.255 control unit must be used.
Fuels:
• HVO/XTL according to EN 15940.
• Fuel oil according to DIN 51603-1.
• Fuel oil A Bio 10 according to DIN 51603-6.
2.1 Dimensions B 30 A
* Min. recommended distance to oor.
2.1.1 Dimensions ange
A Ø B Ø C D E F G H I * J
187/315 108 108 372 220 281 303 175 382 200
ø108
160-190
35
14
J
H
I
øB øC
E
G
F
A D

7Bentone

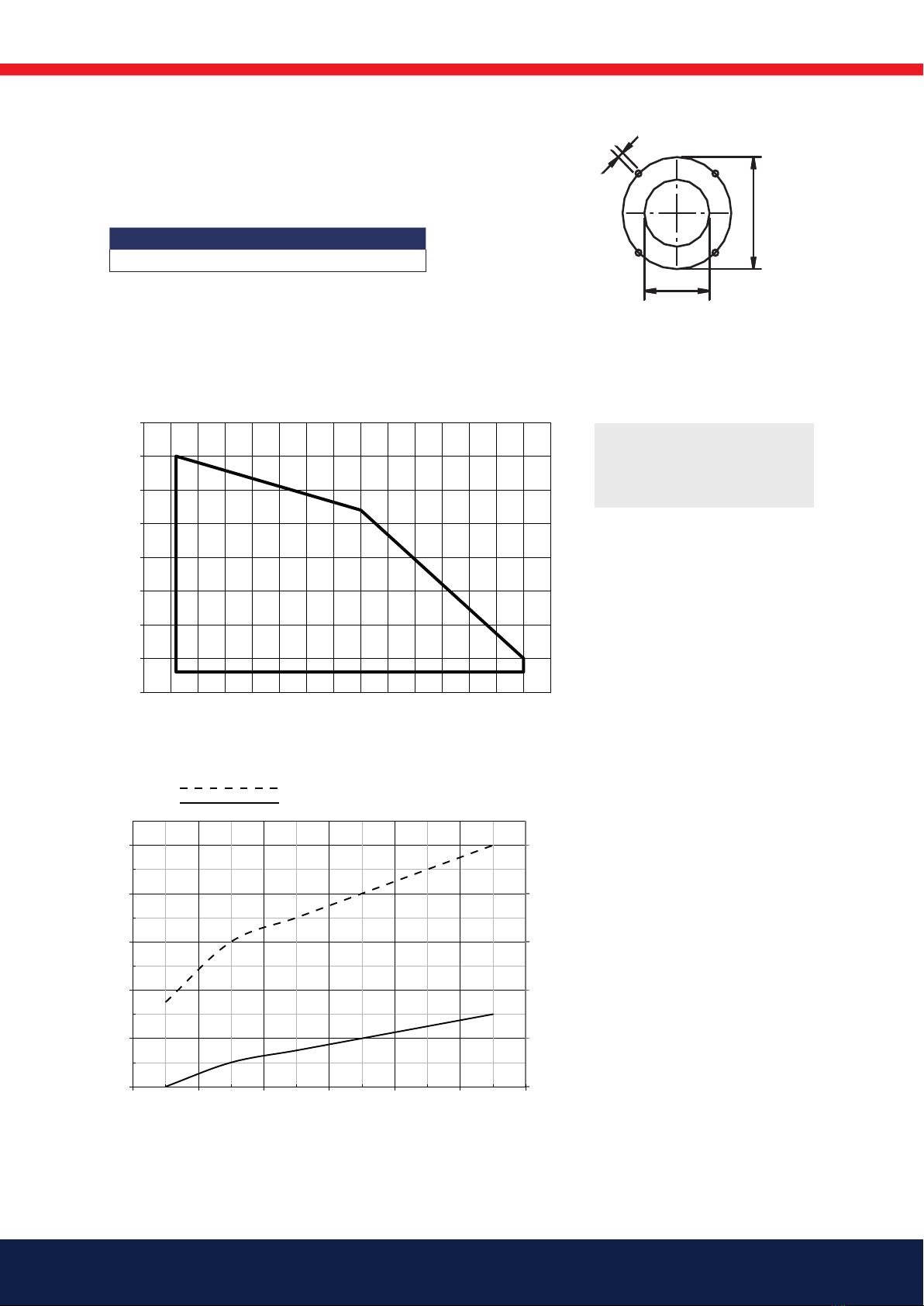

2.3 Working eld
2.4 Basic settings - Fuel oil
0
20
40
60
80
100
0
2
4
6
8
10
75 100 125 150 175 200
160303-219
kW

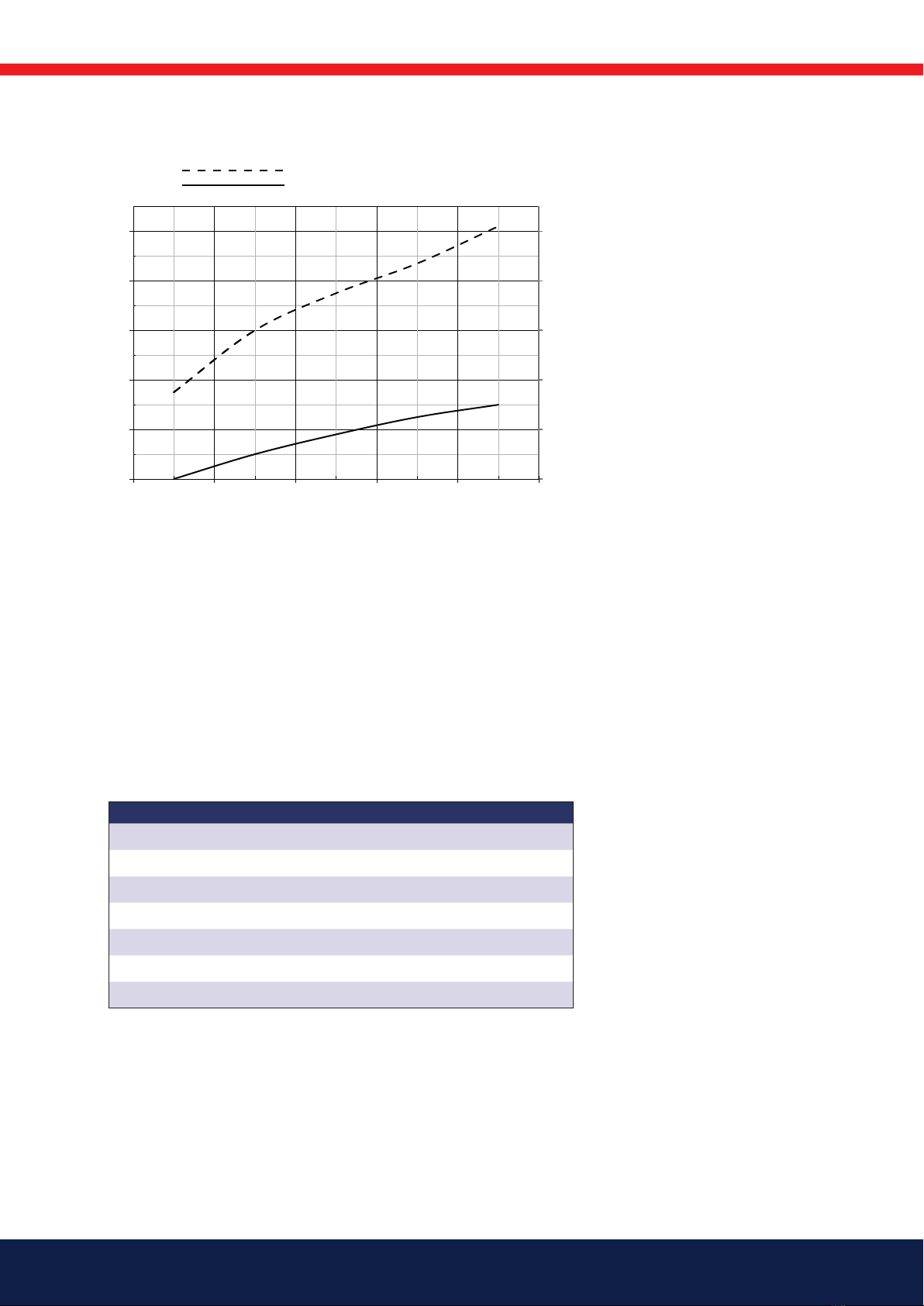

Air settings
Nozzle assembly
Scale1
Burner output
Air2<˚
1Scale nozzle assembly and air damper without damper motor.
2
Settings air damper with damper motor.
d1
d2
d3
d1 d2 d3
ø 110 10 ø 160-200
!Do not exceed working
eld.
2.2 Burner installation
2.2.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner ange.
-0,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
60 80 100 120 140 160 180 200
mbar
kW
6.0-17.0 kg/h
72-200 kW
160302-622

8Bentone
2.5 Basic settings - HVO/XTL
Measurements according to EN 15036-1:2006
Alt.1 The noise level of the burner can be reduced by equipping the burner
with silencer. Installation must be done so it does not prevent air supply
to the burner.
Alt.2 The burner’s noise level can be reduced by connecting the burner’s air
intake to the air duct that opens into an appropriate location. Installation
must be done so it does not prevent air supply to the burner.
B 30 A
Main supply 1) 230V, 1~, 2.6/3.1A, 50Hz, IP20
Max fuse rating 8A
Elmin preheater excluded 1.30A, 281W
Elmax preheater excluded 1.40A, 297W
PSB 0
NOX-class 2
Noise level 82dBA
1) Max operating current, see data plate.
0
20
40
60
80
100
0
2
4
6
8
10
72 104 136 167 200
160303-598
kW
Air settings
Nozzle assembly
Scale1
Burner output
Air2<˚
1Scale nozzle assembly and air damper without damper motor.
2
Settings air damper with damper motor.
2.6 Technical specication
Flame signal
When operating at high power or low air excess and HVO/XTL is used as fuel,
the ame signal may deteriorate (blue ame), the signal lamp in the reset
button ashes green.
By lowering the air velocity or changing the ame detector to QRC1 A1, the
ame signal can be improved.

9Bentone
2.9 Nozzle table Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3..
Gph 7 8 9 10 11 12 13 14 15
kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW kg/h kW
0,35 1,13 13 1,21 14 1,28 15 1,35 16 1,42 17 1,48 17 1,54 18 1,60 19 1,65 19
0,40 1,22 14 1,33 16 1,41 17 1,49 18 1,56 18 1,63 19 1,70 20 1,76 21 1,82 21
0,50 1,56 18 1,66 20 1,76 21 1,86 22 1,95 23 2,04 24 2,12 25 2,20 26 2,28 27
0,60 1,98 23 2,00 24 2,12 25 2,23 26 2,34 28 2,45 29 2,55 30 2,64 31 2,73 32
0,65 2,23 26 2,16 26 2,29 27 2,42 29 2,54 30 2,65 31 2,75 33 2,86 34 2,96 35
0,75 2,46 29 2,49 29 2,65 31 2,79 33 2,93 35 3,08 36 3,18 38 3,30 39 3,42 40
0,85 2,77 32 2,83 33 3,00 36 3,16 37 3,32 39 3,47 41 3,61 43 3,74 44 3,87 46
1,00 3,11 37 3,33 39 3,53 42 3,72 44 3,90 46 4,08 48 4,24 50 4,40 52 4,56 54
1,10 3,55 42 3,66 43 3,88 46 4,09 48 4,29 51 4,48 53 4,67 55 4,84 57 5,01 59
1,20 3,72 44 3,99 47 4,24 50 4,47 53 4,68 55 4,89 58 5,09 60 5,29 63 5,47 65
1,25 3,94 47 4,16 49 4,40 52 4,65 55 4,88 58 5,10 60 5,30 63 5,51 65 5,70 68
1,35 4,33 51 4,49 53 4,76 56 5,02 59 5,27 62 5,50 65 5,73 68 5,95 70 6,15 73
1,50 4,89 58 4,98 59 5,29 63 5,58 66 5,85 69 6,11 72 6,36 75 6,60 78 6,83 81
1,65 5,09 60 5,49 65 5,82 69 6,14 73 6,44 76 6,73 80 7,00 83 7,27 86 7,52 89
1,75 5,48 65 5,82 69 6,18 73 6,51 77 6,83 81 7,14 85 7,42 88 7,71 91 7,97 94
2,00 6,21 74 6,65 79 7,06 84 7,45 88 7,81 93 8,18 97 8,49 101 8,81 104 9,12 108
2,25 6,99 83 7,49 89 7,94 94 8,38 99 8,78 104 9,18 109 9,55 113 9,91 117 10,26 122
2,50 7,77 92 8,31 98 8,81 104 9,29 110 9,74 115 10,18 121 10,59 126 10,99 130 11,38 135
2,75 8,78 104 9,39 111 9,96 118 10,50 124 11,01 131 11,50 136 11,97 142 12,42 147 12,86 152
3,00 9,71 115 10,38 123 11,00 130 11,60 137 12,17 144 12,71 151 13,23 157 13,73 163 14,21 168
4,00 11,88 141 12,70 150 13,47 160 14,20 168 14,89 176 15,56 184 16,19 192 16,80 199 17, 3 9 206
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure: 10 bar (10-15 bar) depending on pump model
!*NB It is important that the spark
does not strike against the brake
plate or nozzle.
a b c d
2.5-3.5 7.0-9.0 1.0-2.0 5.0-6.0
a
b
c
d
2.7 Setting of ignition electrodes and brake
plate
2.8 Nozzle and pump pressure
Due to different furnace geometries and capacities, it is not possible to
recommend a nozzle model.

10 Bentone
2.10 Components
1. Brake plate
2. Nozzle
3. Ignition electrodes
4. Nozzle assembly
5. Ignition cable
6. Ignition transformer
7. Control box
8. Reset button
9. Cover, inspection glass
10. Fan wheel
11. Motor
12. Photo cell
13. Nozzle assembly adjustment
14. Flame tube
15. Air adjustment
16. Air damper
17. Solenoid valve
18. Air intake
19. Pump

11Bentone
165 205 56-2
3. Electric equipment
3.1 Safety system
The safety system (safety switch for hatches, doors, water level, pressure,
temperature and other safety devices) must be installed in the safety circuit
in accordance with current regulations for the system.
The cables of the safety system must be separated so that the outgoing
signal is not placed in the same cable as the incoming signal.

12 Bentone
3.2 Wiring diagram
Outer electrical connection
X1
X2
!Mains connection and fuse
in accordance with local
regulations.
*Bn Brown
Bu Blue
Gn/Ye Ground/Yellow
Bk Black
Gy Grey
E106234

13Bentone
Svart
-
+
QRB
12
11
Black Schwarz Noir
A1
DC μA
3.2.1 List of components
A1 Oil burner control
A2 Twin thermostat
F1 Fuse, max. 10A
H1 Alarm lamp
H2 Signal lamp (optional)
M1 Burner motor
P1 Time meter (optional)
R1 Flame detector
S3 Main switch
T1 Ignition transformer
Y1 Solenoid valve
X1 Plug-in contact, burner
X2 Plug-in contact, boiler
3.3 Function LMO14/24
1 Switch on operating switch and twin thermostat
The burner motor starts, an ignition spark is formed, the prepurge goes
on till the prepurge period expires and the solenoid valve opens.
2. Solenoid valve opens
Oil mist is formed and ignited. The photocell indicates a ame. The
ignition spark goes out after ame indication (See Technical data oil
burner control).
3.
a
b
The safety time expires
If no ame is established before this time limit the control cuts out.
If for some reasons the ame disappears after this time limit, the burner
will make an attempt to re-start.
3-4 Operating position
If the burner operation is interrupted by means of the main switch or the
thermostat, a new start takes place when the conditions in accordance
with point 1 are fullled.
The oil burner control cuts out
A red lamp in the control is lit. Press the reset button and the burner
re-starts.
3.3.1 Technical data
LMO14.113... LMO24.255...
15 s 25 s
16 s 26 s
3 s 5 s
< 10 s < 5 s
< 1 s < 1 s
< 1 s < 1 s
-5 - +60°C -20 - +60°C
45 µA dc 45 µA dc
5.5 µA dc 5.5 µA dc
160303-333
Preiginition time
Prepurge time
Postignition time
Safety lockout time
Reset time after lockout
Reaction time on  ame failure
Ambient temperature
Min detector current required (with  ame)
Max perm. detector current (without  ame)

14 Bentone
3.4 Colour codes LMO14/24
When the burner starts, three signal lights in the reset switch indicate the
normal sequence, as well as provide indication if something abnormal is
happening in accordance with the following table:
Preheater in operation Solid yellow
Ignition switched on Flashing yellow
Normal operation Solid green
Operation, poor ame signal Flashing green
Undervoltage Flashing yellow-red
Fault, alarm Solid red
False light Flashing red-green
Communication mode Fluttering red
3.5 Fault codes LMO14/24
When the red light for a blocked relay box comes on, you can get information
about what has caused the problem by pressing and holding the reset button
for 3 seconds.
The number of ashes below is repeated with a pause in between.
2 ashes No ame signal when safety time expires
4 ashes False light during start
7 ashes 3 x Losses of ame during operation
8 ashes Time-out for preheater *
10 ashes Incorrect wiring, internal fault or simultaneous occurrence of two
faults
* In order for this fault code to occur, the preheater shall not reach its
cut-off temperature within 10 mins. from switch on.
To return to normal operation: Press the reset button for 1 second.
If the reset button is instead kept pressed a second time for at least 3 seconds,
you can, via an interface, obtain the corresponding information on a computer
or ue gas analyser.
To return to normal operation: Press the reset button for 1 second.

15Bentone
165 205 19-2
4. Installation
4.1 General instructions
Oil burners must be installed in accordance with local regulations. The installer
must therefore be knowledgeable of the regulations pertaining to oil and
combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil lter installed before the burner’s oil pump.
If the burner is replacing an existing burner, ensure that the oil lter is
replaced or cleaned. Installation may only be performed by qualied
personnel.
Care should be taken by the installer to ensure that electrical cables and oil
lines are not pinched or otherwise damaged during installation or servicing.
4.2 Inspection and maintenance
The system must be maintained at the interval specied in the service
schedule. If the burner is in a dirty environment, service should be done at
more frequent intervals.
4.3 Start-up
In order to obtain the correct setting, a ue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build up,
poor eciency or condensation in the chimney. The system must be ne-tuned
at start-up. The temperature in the chimney at a depth of 0.5 m must be at
least 60 °C to prevent condensation.
4.4 Delivery inspection
Make sure everything is delivered and the goods have not been damaged
during transit. If something is wrong with a delivery, report it to the supplier.
Transport damage must be reported to the shipping company.
4.5 Preparing for installation
Check that the burner’s dimensions and capacity range are suitable for the
relevant boiler. The power data on the rating plate refers to the burner’s
minimum and maximum power.

16 Bentone
!Ifanyelectricalconnectionisusedotherthanthat
recommendedbyEnertech,theremaybeariskofdamageto
propertyandpersonalinjury.
4.6 Oil distribution
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
• Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
• Pipelines are to be laid with the fewest possible number of glands.
• The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or become excessively bent when the burner is
swung out or removed for servicing.
• The oil lter should be installed so that the lter cartridge can easily
be replaced or cleaned.
• Parts in contact with oil must be selected in materials that are capable
of withstanding the medium’s physical properties.
• When installing oil hoses, check that the inlet and return hoses are
tted to the appropriate connection on the oil pump. The hoses must
be located so that they do not bend or become subject to tensile load.
• Bleed the oil system. The oil pump/oil preheater may be damaged if
run dry. The vacuum in the suction line should not fall below 0.3 bar
during start-up.
4.7 Electrical connection
• Before work on the electrical connection, the current must be
disconnected so that the installation is isolated.
• Electrical connection must be done in accordance with the applicable
regulations.
• Burners must be connected to an all-pole switch.
• Connection must conform to the wiring diagram.
• Use appropriately sized fuses.
!Besuretollthe
burneroilsystem
before starting it for the
rsttime.
!Theoilltermustbe
installed before the
burner’s oil pump.

17Bentone
165 105 03-2
4.8 Handling and lifting instruction
The lifting aid are available as
spare parts.

18 Bentone
165 105 47-2
5. Mounting of burner on boiler
1. Remove fan housing from  xing  ange.
2. Remove the brake plate from the oil line.
3. Install the selected nozzles, (see Technical data).
4. Install the brake plate on the oil line.
5. Remove the  ame tube from the  ange.
6. Install the  ange with gasket on the boiler.
7. Install  ame tube, be sure to install the drainage hole
downwards (not available on all  ame tubes) so that any oil
spills can drain out.
8. Insulate between  ame tube and boiler door for reduced heat
radiation.
9. Install the fan housing on the  ange and lock with nuts.
10. Connect oil lines to the pump, (see chapter Service).
11. Connect the burner electrically, (see chapter Service).
5.1 Check oil line seals
When the burner has been installed and put into operation, the
tightness of the various coupling elements should be checked, in case
of leakage - retighten the coupling elements.

19Bentone
165 105 13-3
5.2 Example of Basic settings
Basic settings should only be seen as setting values to get burner to start
and establish ame. Once the burner has started and established ame, it is
necessary to adjust the settings so that they are adapted to the installation
and the fuel used.
B 30 A
Burner output: 154 kW
Estimated nozzle output: 154 / 11.86* =13.0 kg/h
(* Calorc value Fuel oil =11.86 kWh/kg)
This provides the following nozzle according to the nozzle table, (see Technical
data).
Nozzle: 3.50 Gph
Pump pressure: 10.0 bar
Setting values for 154 kW according to basic setting diagram, (see Technical
data).
Air setting: = 8.0
Insert setting: = 2.0

20 Bentone
165 105 24-2
5.3 Air setting
Adjust the air setting by starting the burner and loosening the screw (E) that
locks the air damper adjustment knob. Adjust the air damper position to the
desired amount of air and lock the damper position with screw (E). The damper
position can be read on the damper scale (F). Check air settings with  ue gas
analysis.
5.4 Brake plate adjustment
The position of the brake plate must be adjusted to achieve the most favorable
pressure drop across the brake plate. Loosen screw (C) and adjust the position
of the brake plate with screw (B) for good combustion.
C
B
F E
Excess air fl ue gases Max. % CO2
% O2% CO2Lambda 1.2
3–5 ≈12.5 15.4
Recommended excess air
