Bentone B 55-3R Technical specifications

Providing sustainable energy solutions worldwide
178 112 66-4 P93783 2023-02-07
Installation- and maintenance instruction
B 55-3R
BP230UVFR-S3
RSA 95
60Hz
Translation of the original instructions.

2Bentone
example Beispielexempel
352011030141
Designation
Type
Model
Serial no.
Motor supply
Main supply
MADE IN SWEDEN BY
LIGHT OIL 35-90kW 1,25-6,0 cSt 7-14bar
BF 1 KS 76-24
BF 1
BF 1 KS 76-24
1234567
1~230V 1,0A 50Hz IP 20
Man.Year 2019
Cap. Min-Max
3
?
1
-sv
1. Manualer på övriga språk
2. www.bentone.com\
nedladdning eller scanna
QR-koden.
3. Skriv in brännarens
artikelnummer som  nns på
din typskylt (se bild) och välj
ditt språk.
Detaljerad ecodesign
information kan laddas ner
på: www.bentone.com/
ecodesign.
-en
1. Manuals in other languages
2. www.bentone.com\download
or scan QR-code.
3. Enter the burner`s article
number on your data plate (see
picture) and select language.
Detailed ecodesign information
can be downloaded at:
www.bentone.com/ecodesign.
-da
1. Manualer på andre sprog
2. www.bentone.com\
download eller scan
QR-koden.
3. Indtast brænderens
artikelnummer, der  ndes
på typeskiltet (se billede), og
vælg dit sprog.
Detaljerede oplysninger om
ecodesign kan downloades
på: www.bentone.com/
ecodesign.
-fr
1. Manuels dans d’autres
langues
2. www.bentone.com\
download ou scannez le
code QR.
3. Saisir le numéro d’article
du brûleur sur votre plaque
signalétique (consultez
l’illustration) et sélectionnez
la langue.
Des informations détaillées
sur l’écodesign peuvent être
téléchargées à l’adresse:
www.bentone.com/
ecodesign.
-de
1. Gebrauchsanweisungen in
anderen Sprachen
2. www.bentone.com\download
oder scannen Sie den QR-Code.
3. Geben Sie die Artikelnummer
des Brenners auf Ihrem
Typenschild ein, (siehe Bild)
und wählen Sie die Sprache
aus.
Detaillierte Informationen zum
Ecodesign können unter
www.bentone.com/ecodesign
heruntergeladen werden.
2

3Bentone
Table of contents
1. General Information............................................................4
1.1 Delivery inspection........................................................................ 4
1.2 Safety ............................................................................................... 4
2. Technical data.......................................................................6
2.1 Dimensions B 55-3R ..................................................................... 6
2.2 Burner installation ........................................................................ 6
2.3 Workingeld.................................................................................. 7
2.4 Settingfornozzleassemblyandairdamper ......................... 7
2.6 Settingofignitionelectrodesandbrakeplate ....................... 8
2.7 Nozzleandpumppressure......................................................... 8
2.5 Technicalspecication ................................................................. 8
2.8 Nozzle table.................................................................................... 9
2.9 Components................................................................................. 11
3. Electric equipment.............................................................12
3.1 Safety system .............................................................................. 12
3.2 Components................................................................................. 12
3.3 Wiringdiagram......................................................................... 13
4. Control.................................................................................14
4.1 Technicaldata .............................................................................. 14
4.2 LEDindicatorlamps.................................................................... 14
4.3 Explanationofthedierentsequencemodes...................... 15
4.4 BurnerProLEDfault/lockcodetable....................................... 16
5. Installation..........................................................................20
5.1 General instructions................................................................... 20
5.2 Inspectionandmaintenance.................................................... 20
5.3 Start-up ......................................................................................... 20
5.4 Preparing for installation........................................................... 20
5.5 Oildistribution............................................................................. 20
5.6 Electrical connection .................................................................. 21
5.7 Handlingandliftinginstruction ............................................... 22
6. Mounting ............................................................................23
6.1 Check oil line seals...................................................................... 23
6.2 Example of Basic settings.......................................................... 24
6.3 Nozzleassemblyadjustment–adjustablebrakeplate....... 25
6.4 Setting Damper motor 3-stage................................................ 26
7. Pump RSA 95/125...............................................................27
7.1 Technicaldata .............................................................................. 27
7.2 Components................................................................................. 27
7.3 Mounting/dismountingby-passplug ..................................... 27
7.4 Purging.......................................................................................... 27
7.5 Replacingthelter...................................................................... 27
7.6 Function ........................................................................................ 28
7.7 Suction line tables....................................................................... 29
8. Service .................................................................................30
8.1 BurnerServiceSchedule,Oil .................................................... 30
8.2 Component replacement intervals.......................................... 30
8.3 Combustiondevice .................................................................... 31
8.4 Airdamper................................................................................... 32
8.5 Replacementofdampermotor,air ......................................... 33
8.6 Fan ................................................................................................. 34
8.7 Replace oil pump ........................................................................35
8.8 Tightnesscheckofsolenoidvalves ......................................... 36
8.9 Replacement of electrical components.................................. 37
8.10 Vibrations...................................................................................... 38
9. Fault Location.....................................................................39
9.1 Burner will not start.................................................................... 39
9.2 Burner will not start after normal use .................................... 39
9.3 Delayedignition .......................................................................... 40
9.4 Noise in pump ............................................................................. 40
9.5 Pump pressure ............................................................................ 41
 .....................................................42

4Bentone
165 105 01-2 2021-12-07
1. General Information
The burner may only be used for its intended purpose in accordance with the
product’s technical data.
We reserve the right to make design changes and cannot be held liable for any
misprints or typographical errors.
Modifying the design or using accessories or components that have not been
approved by Enertech in writing is strictly prohibited.
This Installation and Maintenance manual:
• is to be regarded as part of the burner and must always be kept near
the installation site.
• must be read prior to installation.
• is intended for use by authorised personnel.
1.1 Delivery inspection
• Make sure everything is delivered and the goods have not been
damaged during transit.
Transport damage must be reported to the shipping company.
• If something is wrong with a delivery, report it to the supplier.
1.2 Safety
- before installation:
• Installation and work on the burner and associated system
components may only be carried out by persons who have undergone
relevant training.
• The product is packaged to prevent damage from occurring when
handled – Handle the product with care! Lifting equipment must be
used to lift larger packages.
• The products must be transported/stored on a level surface in a dry
environment, max. 80% relative humidity, no condensation.
Temperature -20 to +60 °C.
- installation:
• The burner must be installed in accordance with local regulations for
 re safety, electrical safety, and fuel distribution.
• The premises must comply with local regulations pertaining to use of
the burner, and must have adequate air supply.
• The installation site must be free of chemicals.
• Fire extinguisher with Class BE recommended.
• Make sure when installing the burner that there is enough space to
service the burner.
• The electrical installation must be professionally carried out in
accordance with current mains electricity regulations and in a
professional manner.
• Make sure that the burner is suitable for the application (see Technical
Data).
• All components must be installed without being bent, twisted or
subjected to mechanical or thermal forces that affect components.

5Bentone
• Care must be taken by the installer to ensure that no electrical cables
or fuel lines are pinched or otherwise damaged during installation or
service.
• Flame tubes, fan wheels and air dampers, for example, may contain
sharp edges.
- before  rst start:
• The burner must not be put into operation without proper safety and
protection devices.
• Permitted ambient temperature during operation -10 to +60 °C. Max.
80% relative humidity, no condensation.
• The surface temperature of the burner’s components may exceed
60 °C.
• Handle with caution – the burner has moving parts, and there is risk
of crushing injuries.
• Seal inspections must be performed during installation and servicing
to prevent leakage.
•  tting and installation work has been completed and approved.
• electrical installation has been correctly performed.
•  ue gas ducts and combustion air ducts are not blocked.
• all actuators and control and safety devices are in working order and
correctly set.
• If the boiler is equipped with an access hatch, this must be equipped
with a hatch opening switch connected to the burner’s safety system.
• When in operation, the burner’s noise level can exceed 85 dBA – use
hearing protection!
- Operation:
• Carry out all stipulated settings, service and inspection work within
the set time.
• If the oil burner control has a solid red light, contact your installer.

6Bentone
165 405 74
2. Technical data
The burner is intended for:
• Operation in installations according to EN 303 and EN 267.
When operating with a hot air boiler, the LMO24.255 or LMO44.255 control unit must be used.
Fuels:
• Fuel oil according to DIN 51603-1.
• Fuel oil A Bio 10 according to DIN 51603-6.
2.1 Dimensions B 55-3R
* Min. recommended distance to oor.
d1
d2
d3
2.2 Burner installation
2.2.1 Hole patten
Make sure the hole pattern on the boiler is designed for burner ange.
A Ø B Ø C D E F G H *I
274/374/474 159 155 606 321 123 269 307 200
d1d2d3
ø (155) 165 14 ø (226) 254-295
D
øB
E
*I
A
øC
F
G H
160303-669

7Bentone

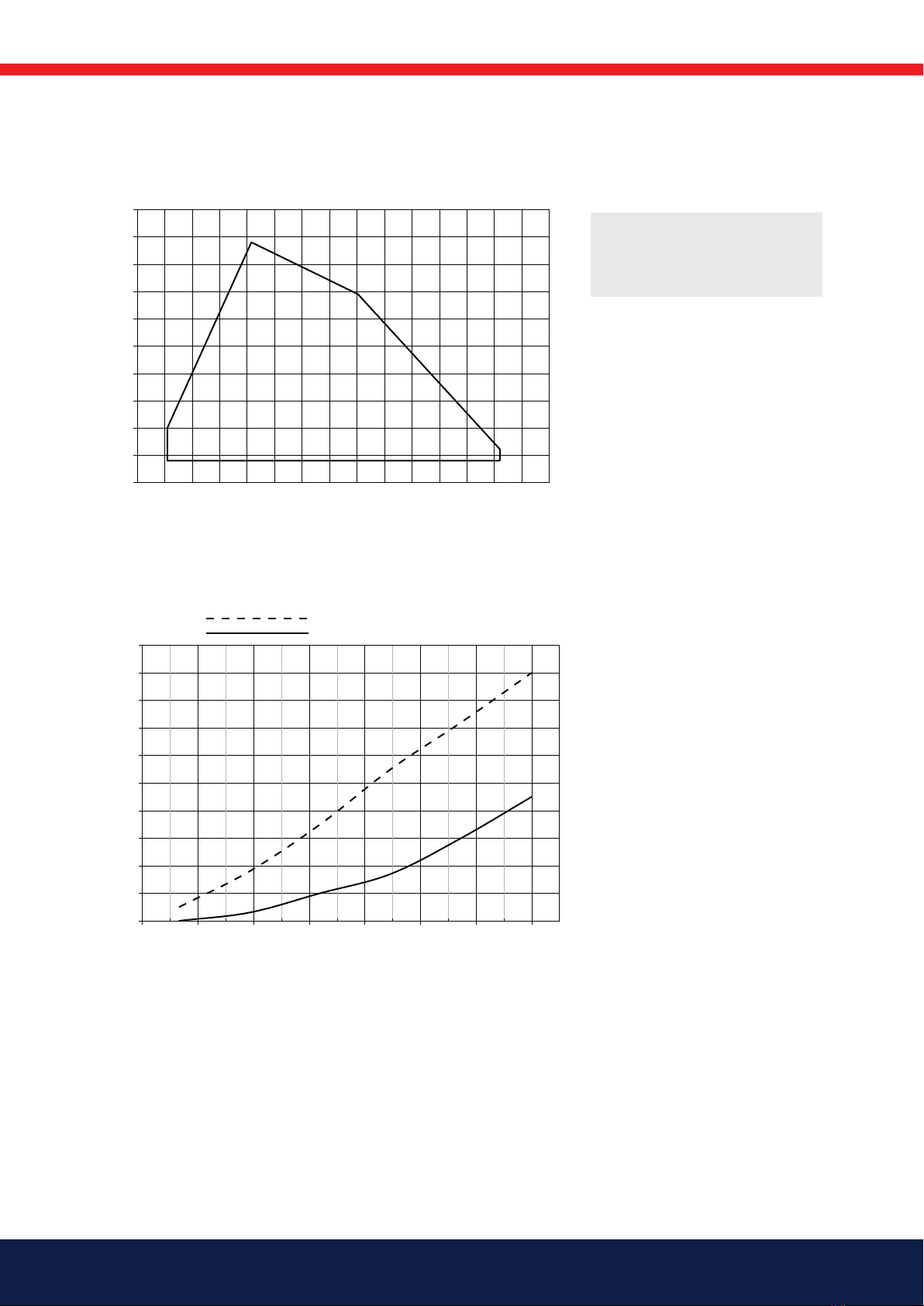

2.3 Working eld
2.4 Setting for nozzle assembly and air damper
!Do not exceed working

0
10
20
30
40
50
60
70
80
90
100
100 200 300 400 500 600 700 800
160302-035-2
kW
Air settings
Nozzle assembly
Scale
Burner output
-
1,0
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
100 200 300 400 500 600 700 800
mbar
kW
13.0-64.0 kg/h
155-760 kW
160302-689-2

8Bentone
2.6 Setting of ignition electrodes and brake
plate
Measurements according to EN 15036-1:2006
Alt.1 The noise level of the burner can be reduced by equipping the burner with
silencer. Installation must be done so it does not prevent air supply to the
burner.
Alt.2 The burner’s noise level can be reduced by connecting the burner’s air
intake to the air duct that opens into an appropriate location. Installation
must be done so it does not prevent air supply to the burner.
!*NB It is important that the spark
does not strike against the brake
plate or nozzle.
Nozzle: 45° Solid/semisolid
60° Solid/semisolid
80° Solid/semisolid
Pump pressure: 14 bar (14-21 bar) depending on pump model
2.7 Nozzle and pump pressure
Due to different furnace geometries and capacities, it is not possible to
recommend a nozzle model.
2.5 Technical specication
a
b
c
d
e
B 55-3R
Main supply, Operating 1) 230V, 1~, 0.5A, 50Hz, IP20
Main supply, Motor 230/400V, 3.1/1.8A
Max fuse rating 6.3A
NOX-class 3
Noise level 90dBA
1) Motor excluded.
a b c d e
2.5-3.0 0.0 6.5-7.0 2.0 6.0-7.0

9Bentone
2.8 Nozzle table
The table applies to oil with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3..
14 15 16 17
Gph kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h
1,00 4,40 52 45 4,56 54 46 4,71 56 48 4,85 57 49
1,10 4,84 57 49 5,01 59 51 5,18 61 53 5,34 63 54
1,20 5,29 63 54 5,47 65 56 5,65 67 58 5,82 69 59
1,25 5,51 65 56 5,70 68 58 5,89 70 60 6,07 72 62
1,35 5,95 70 61 6,15 73 63 6,36 75 65 6,55 78 67
1,50 6,60 78 67 6,83 81 70 7,06 84 72 7,27 86 74
1,65 7,27 86 74 7,52 89 77 7,77 92 79 8,01 95 82
1,75 7,71 91 79 7,97 95 81 8,24 98 84 8,49 101 87
2,00 8,81 104 90 9,12 108 93 9,42 112 96 9,71 115 99
2,25 9,91 118 101 10,26 122 105 10,60 126 108 10,92 130 111
2,50 11,01 131 112 11,39 135 116 11,77 140 120 12,13 144 124
2,75 12,11 144 123 12,53 149 128 12,95 154 132 13,35 158 136
3,00 13,21 157 135 13,67 162 139 14,13 168 144 14,56 173 148
3,50 15,42 183 157 15,95 189 163 16,49 196 168 16,99 201 173
4,00 17,62 209 180 18,23 216 186 18,84 223 192 19,42 230 198
4,50 19,82 235 202 20,51 243 209 21,20 251 216 21,84 259 223
5,00 22,03 261 225 22,79 270 232 23,55 279 240 24,27 288 247
5,50 24,23 287 247 25,07 297 256 25,91 307 264 26,70 317 272
6,00 26,43 313 270 27,49 326 280 28,27 335 288 29,13 345 297
6,50 28,63 340 292 29,63 351 302 30,62 363 312 31,55 374 322
7,00 30,84 366 314 31,91 378 325 32,98 391 336 33,98 403 374
7,50 33,04 392 337 34,19 405 349 35,33 419 360 36,41 432 371
8,00 35,25 418 359 36,47 433 372 37,69 447 384 38,80 460 396
8,50 37,45 444 382 38,74 459 395 40,04 475 408 41,26 489 421
9,00 39,65 470 404 41,02 486 418 42,40 503 432 43,69 518 446
9,50 41,85 496 427 43,30 514 442 44,75 531 456 46,11 547 470
10,00 44,06 523 449 45,58 541 465 47,11 559 480 47,11 559 480
11,00 48,46 575 494 50,14 595 511 51,82 615 528 53,40 633 545
12,00 52,87 627 539 54,70 648 558 56,53 670 576 58,25 691 594
14,00 62,68 732 629 63,81 757 651 65,95 778 669 67,96 806 693
16,00 70,49 836 719 72,93 865 744 75,38 894 769 77,67 921 792
18,00 79,30 940 809 82,05 973 837 84,80 1006 865 87,38 1036 891
20,00 88,11 1045 899 91,17 1081 930 94,22 1117 961 97,09 1151 990
22,00 96,92 1149 988 100 1189 1023 104 1229 1057 107 1267 1089
24,00 106 1254 1078 109 1297 1116 113 1341 1153 116 1382 1188
26,00 115 1359 1168 119 1406 1209 122 1453 1249 126 1497 1287
Pumptryck bar
Pump pressure bar

10 Bentone
18 19 20 21
Gph kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h
1,00 4,99 59 51 5,13 61 52 5,26 62 54 5,40 64 55
1,10 5,49 65 56 5,64 67 57 5,79 69 59 5,93 70 60
1,20 5,99 71 61 6,16 73 63 6,32 75 64 6,47 77 66
1,25 6,24 74 64 6,41 76 65 6,58 78, 67 6,74 80 69
1,35 6,74 80 69 6,93 82 71 7,11 84 72 7,28 86 74
1,50 7,48 89 76 7,69 91 78 7,89 93 80 8,08 96 82
1,65 8,24 98 84 8,47 100 86 8,69 103 89 8,90 105 91
1,75 8,78 104 90 8,98 106 92 9,21 109 94 9,44 112 96
2,00 9,99 118 102 10,26 122 105 10,53 125 107 10,79 128 110
2,25 11,24 133 115 11,55 137 118 11,85 140 121 12,14 144 124
2,50 12,48 148 127 12,83 152 131 13,16 156 134 13,49 160 138
2,75 13,73 163 140 14,11 167 144 14,48 171 148 14,84 176 151
3,00 14,98 178 153 15,39 182 157 15,79 187 161 16,18 192 165
3,50 17,48 207 178 17,96 213 183 18,43 218 188 18,89 224 193
4,00 19,98 237 204 20,53 243 209 21,06 250 215 21,59 256 220
4,50 22,47 266 229 23,09 274 235 23,69 281 242 24,28 288 248
5,00 24,97 296 255 25,65 304 262 26,33 312 268 26,98 320 275
5,50 27,47 326 280 28,22 335 288 28,96 343 295 29,68 352 303
6,00 29,97 355 306 30,79 365 314 31,59 374 322 32,38 384 330
6,50 32,46 385 331 33,35 395 340 34,22 406 349 35,07 416 358
7,00 34,96 415 356 35,92 426 366 36,86 437 376 37,77 448 385
7,50 37,46 444 382 38,49 456 392 39,49 468 403 40,47 480 413
8,00 39,96 474 407 41,05 487 419 42,12 499 429 43,17 512 440
8,50 42,45 503 433 43,62 517 445 44,75 531 456 45,87 544 468
9,00 44,95 533 458 46,18 548 471 47,39 562 483 48,57 576 495
9,50 47,45 563 484 48,75 578 497 50,02 593 510 51,26 608 523
10,00 49,94 592 509 51,32 609 523 52,66 624 537 53,96 640 550
11,00 54,94 652 560 56,45 669 576 57,92 687 591 59,36 704 605
12,00 59,93 711 611 61,58 730 628 63,19 749 644 64,76 768 660
14,00 69,92 829 713 71,84 852 733 73,72 874 752 75,55 896 770
16,00 79,91 948 815 82,11 974 837 84,25 999 859 86,34 1024 880
Pumptryck bar
Pump pressure bar
The table applies to oil with a viscosity of 4.4 mm2/s (cSt) at a density of 830 kg/m3.

11Bentone
2.9 Components
1. Brake plate
2. Nozzle
3. Ignition electrodes
4. Fixing ange
5. Ignition transformer
6. Flame detector
7. Control box
8. Contactor/Thermal
overload protection
9. Switch I-0
10. Indicator lamp, Stage 1
11. Cover, inspection glass
12. Switch I-II
13. Indicator lamp, Stage 2
14. Switch II-III
15. Indicator lamp, Stage 3
16. Fan wheel
17. Electrical connection
18. Motor
19. Solenoid valve block
20. Reset button
21. Damper motor
22. Nozzle assembly adjustment
23. Regulator, air damper
24. Flame tube
25. Air intake
26. Safety valve
27. Air damper
28. Pump
160303-671
1
21
160303-670
2 3 6 7 9
13
12
22 1920
23
8
10
11
54
16
17
15
14
18
24
25
262728

12 Bentone
165 305 02-2
3. Electric equipment
3.1 Safety system
The safety system (safety switch for hatches, doors, water level, pressure,
temperature and other safety devices) must be installed in the safety circuit in
accordance with current regulations for the system.
The cables of the safety system must be separated so that the outgoing signal
is not placed in the same cable as the incoming signal.
3.2 Components
A1 Burner control
F1 Fuse
F2 Fuse
F3 Fuse
H1 Indicator lamp, Step 1/
Operating lamp
H2 Indicator lamp, Step 2
H3 Alarm signal 230V
H5 Alarm signal 230V
K1 Contactor + Motor protection
M1 Motor
M2 Damper motor
P1 Timer/Operation
R1 Flame detector
S1 Operating switch
S2 Operating switch, Step 2
S3 Regulating/Operating
thermostat
S4 Temperature/Pressure limiter
S5 Safety switch for hinged door
S6 Regulating thermostat, Step 2
S7 Main switch 3-phase
S8 Air pressure switch
S9 Pressure switch, min.
S20 Main switch, Operation
T1 Ignition transformer
X1 Connection block
X2 Earth terminal
X3 Plug-in contact, burner
X4 Plug-in contact, boiler
X5 Plug-in contact, Step 2, burner
X6 Plug-in contact, Step 2, boiler
X7 Plug-in contact, 3 phase,
burner
X8 Plug-in contact, 3 phase,
boiler
X9 Plug-in contact, burner
X10 Plug-in contact, boiler
Y1 Solenoid valve 1
Y2 Solenoid valve 2
Y3 Solenoid valve 3
Y1S Safety solenoid valve

13Bentone
3.3 Wiring diagram
E106344
Bn Brown Bu Blue Gn Green Ye Yellow Gn/Ye Green/Yellow Bk Black Gy Grey Rd Red Wh White Og Orange Vt Violet

14 Bentone
FAN Lights up when voltage is supplied to the fan motor
(terminal 6)
OPEN DAMPER
6
Flashes when the damper motor runs to maximum
position. When the switch for the maximum damper
motor position closes, this LED will light continuously.
CLOSE DAMPER
5
Flashes when the damper motor runs to minimum
position. When the switch for the minimum damper
motor position closes, this LED will light continuously.
AUTO
4
Lights up when the Burner control is in normal
operating mode.
IGNITION
3
Indicates ignition
FLAME
2
Lights up when a  ame is detected by the  ame
detector.
ALARM/STATUS In lockout mode, the Alarm lamp lights up and the
other LEDs light up to indicate lockout. Refer to “Fault
codes”.
The LEDs can show the  ame strength in Control mode by pressing the reset
button for 3 seconds when the Flame LED  ashes during start-up. In Control
mode, the Status LED shines yellow, the Fan LED  ashes, and LEDs 2-6 show the
 ame signal strength. Each LED corresponds to 20% of the total  ame signal. 5
lit LEDs correspond to 100% and 2 LEDs correspond to 40%.
BP230UVFR-S2 BP230UVFR-S3
Pre-purge time (t1) 30.7 s 37.2 s
Pre-ignition time (t3) 6 s 2.5 s
Safety time (TSA) 3 s 5 s
Post-purge time (t6) 16.8 s 14.9 s
Reaction time for low interrupt 1 s 1 s
Ambient temperature BP -40 to +60°C -40 to +60°C
Ambient temperature UV5 -20 to +60°C -20 to +60°C
Max. current, terminals 6-7 2 A 2 A
Max. current, other terminals 1 A 1 A
Ionisation current 3-10 µA –
4. Control
4.1 Technical data
4.2 LED indicator lamps
BurnerPRO’s burner control has seven LEDs which indicate the operating
status of the control unit and the cause of the lockouts.
Each LED has an icon describing its function.
165 205 60-2

15Bentone
4.3 Explanation of the dierent sequence modes
1. Operation
This is the control unit voltage supply.
2. System test
In this status mode, the control unit undergoes
an internal test to verify correct functionality of
the hardware and software.
3. Preconditions for burner start-up
The control unit veries that the air pressure
switch is in the depressurised position and a test
of the fuel cut-off valve is carried out.
4. Heating requirement
The operating thermostat closes and voltage is
supplied to connection 5 so that the control unit
can start the burner.
5. Pre-purge begins
The control unit starts the fan. Connections 6 and
7.
6. Damper motor opens
Control unit connection 9 sends a command to
the damper motor to run at Max. mode. The
control unit detects that the damper motor’s end
position switch indicates successful transition
to the Max. load mode by supplying voltage to
the connection 8 input. The control unit also
performs a test to ensure that the air sensor
detects airow by monitoring connection 14.
7. Pre-purge
The combustion chamber is ventilated.
8. Damper motor closes
Following pre-purge, the control unit closes
connection 10. The control unit detects that
the damper motor is in the Low Load mode by
supplying voltage to connection 8 on the control
unit.
9. Ignition on
The control unit supplies voltage to the ignition
transformer by activating connection 16.
10. Fuel on
The control unit activates the fuel valve by
supplying voltage to connections 17 and 18 as
well as to direct ignition systems.
11. Flame indication
Ignition transformer turns off. The ame signal is
tested during this stage. If no ame is detected,
the burner enters Lockout mode.
12. Operating mode
Once a ame is stable, the control unit transitions
to Operating mode. There must be a ame signal.
Voltage is supplied to connection 20.
13. Shutdown
Shutdown occurs when the heating requirement
is met and power is cut off to the operating
thermostat connection 5 . The control unit closes
the fuel valves by cutting off power to outputs
18 and 20. The fan post-purges the combustion
chamber.
14. Lockout
The control unit enters lockout mode when an
internal or external fault is detected. The reset
button and the remote-reset connection can be
used to disable Lock mode. However, the control
unit will revert to lockout mode if the fault is not
rectied.
BURNER LOCKOUT
When lockout occurs, the LEDs indicate the cause. The control unit status is
saved in the memory, even in the event of a power outage. By pressing the
manual reset button on the control unit or remote reset.
!Note! At remote reset: maximum 5 reset attempts within a 15 min
period, after which qualied personnel must examine the burner
before further reset attempts are made.

16 Bentone
4.4 BurnerPro LED fault/lock code table
NO. FAULT LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 POSSIBLE SOLUTION
OPERATION LED  = ON Fan Open
damper
Closed
damper
Auto Ignition Flame Status
ICON
1DIAGNOSTIC ERROR, MAIN
MCU INLET
RED Initial diagnostic error. Ensure correct status of inputs and outputs
when the unit is turned on.
2LOCAL RESET RED User-initiated manual reset/lockout or defective reset switch.
3AIR SENSOR   RED Air sensor signal [connection 14] could not be detected by the end
of the safety time, or loss of the air sensor signal during burner operation
4DIAGNOSTIC ERROR RED “The system detected voltage at terminal 16, 17, 18, or 19 at the
incorrect time, or no voltage detected when necessary. Check cabling and makes sure the system is running on a single line phase (50/60Hz)”
5 IONISATION FLAME LOSS   RED Flame loss. Inspect the system, check the gas pressure,  ame
detector, cabling, etc.
6IONISATION CIRCUIT FAULT   RED Replace the control unit. Contact reseller/distributor.
7INTERNAL COMMUNICATION
ERROR
   RED Reset the system to continue normal operation. Contact reseller/
distributor if the fault persists.
8REMOTE RESET RED The user has pressed Remote Reset or the remote controller has
short-circuited.
9IONISATION FAULT   RED Replace the control unit. Contact reseller/distributor.
10 MAIN PROGRAM SEQUENCE
ERROR
  RED Replace the control unit. Contact reseller/distributor.
11 RAM TEST    RED Replace the control unit. Contact reseller/distributor.
12 PROGRAM SEQUENCE ERROR   RED Replace the control unit. Contact reseller/distributor.
13 READING ERROR INPUT    RED Check cabling and makes sure the system is running on a single
phase (50/60Hz)
14 TIMER2 ERROR    RED Replace the control unit. Contact reseller/distributor.
15 CPU TEST FAILED     RED Replace the control unit. Contact reseller/distributor.

17Bentone
NO. FAULT LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 POSSIBLE SOLUTION 16 FLAME LOSS   RED Visually inspect the ame detector and conrm that the pilot light
was lit during start-up. Check the fuel supply system.
17 CABLE FAULT   RED The system detected voltage at terminal 16, 17, 18, or 19 at the
incorrect time, or no voltage detected when necessary. Check cabling and makes sure the system is running on a single phase (50/60Hz)
18 SAFETY RELAY FAULT    RED Replace the control unit. Contact reseller/distributor
19 FUEL VALVE OPEN   RED Check fuel valve cabling. The valves may not be fully closed.
20 FLAME LOSS    RED Visually inspect the ame detector and conrm that the main ame
was lit during start-up. Check the fuel supply system.
21 WELDED SAFETY RELAY    RED Replace the control unit. Contact reseller/distributor.
22 SELF TEST     RED Replace the control unit. Contact reseller/distributor.
23 ROM ERROR   RED Replace the control unit. Contact reseller/distributor.
24 FLAME LOSS DURING
OPERATION
   RED Check the cabling. Check the ame detector. Check the fuel supply
system.
25 RAM ERROR    RED Replace the control unit. Contact reseller/distributor.
26 INTERNAL FAULT     RED Replace the control unit. Contact reseller/distributor.
27 NOT USED 28 NOT USED 29 AMBIENT TEMPERATURE     RED Ambient temperature below -40 °C or above 70°C
30 ROM ERROR      RED Replace the control unit. Contact reseller/distributor.
31 IONISATION SHORT-CIRCUIT RED Possible external short-circuit between terminals 23 and 24. Contact
reseller/distributor if the fault persists.
32 TIME LIMIT EXCEEDED FOR
CONTROL MODE
  RED 30-minute activation time passed.
33 STANDBY FALSE FLAME RED False ame detected in Standby mode.
34 NOT USED RED

18 Bentone
NO. FAULT LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 POSSIBLE SOLUTION 35 INTERNAL RESET   RED Internal software reset of control unit. Contact reseller/distributor if
the fault persists.
36 SOFTWARE RESET    RED Internal software reset of control unit. Contact reseller/distributor if
the fault persists.
37 WAITING TIME INPUTS    RED The system was unable to perform airow sensor test and/or valve
closure test. Check the cabling. Check the air sensor and/or fuel valve switch.
38 INTERNAL RESET     RED Internal software reset of control unit. Contact reseller/distributor if
the fault persists.
39 SOFTWARE RESET   RED Internal software reset of control unit. Contact reseller/distributor if
the fault persists.
40 HARDWARE RESET    RED Replace the control unit. Contact reseller/distributor if the fault
persists.
41 HARDWARE RESET    RED Replace the control unit. Contact reseller/distributor if the fault
persists.
42 CONTROL PROGRAM FROZEN     RED Replace the control unit. Contact the distributor/factory.
43 CONTROL PROGRAM FROZEN    RED Replace the control unit. Contact reseller/distributor.
44 TIMER2 ERROR     RED Replace the control unit. Contact reseller/distributor.
45 LOW VOLTAGE ERROR     RED Check mains power. Contact reseller/distributor if the fault persists. 46 LOW VOLTAGE ERROR      RED Check mains power. Contact reseller/distributor if the fault persists.
47 UV DETECTION FAULTY   RED Replace the control unit. Contact reseller/distributor.
48 INTERNAL FAULT    RED Replace the control unit. Contact reseller/distributor.
49 INTERNAL FAULT    RED Replace the control unit. Contact reseller/distributor.
50 IGNITION FEEDBACK     RED The system detected voltage at terminal 16 at the incorrect time, or
no voltage. Check cabling and ensure sucient earthing.
51 PILOT FEEDBACK    RED The system detected voltage at terminal 17 at the incorrect time, or
no voltage. Check cabling and ensure sucient earthing.

19Bentone
NO. FAULT LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 POSSIBLE SOLUTION 52 MAINP FEEDBACK     RED The system detected voltage at terminal 19 at the incorrect time, or
no voltage. Check cabling and ensure sucient earthing.
53 WAITING TIME FEEDBACK
LIMIT EXCEEDED
    RED Loss of feedback from the damper motor for more than 10 minutes.
Check the cabling. Check the damper motor.
54 MAIND FEEDBACK      RED The system detected voltage at terminal 18 at the incorrect time, or
no voltage. Check cabling and ensure sucient earthing.
55 DIAGNOSTICS INTERRUPTED    RED Replace the control unit. Contact reseller/distributor. 56 UV FALSE FLAME     RED False ame detected prior to ignition. Check the cabling. Check the
ame detector. Ensure sucient earthing.
57 IONISATION FALSE FLAME     RED False ame detected prior to ignition. Check the cabling. Check the
ame detector. Ensure sucient earthing.
58 OPEN FEEDBACK READING      RED The system detected voltage at terminal 8 at the incorrect time, or
no voltage. Check cabling and ensure sucient earthing.
59 ADJACENT POLE SHORT-
CIRCUIT
    RED Replace the control unit. Contact reseller/distributor.
60 LOCAL RESET       RED The local reset button has been pressed in for more than 10
seconds, or the reset button is stuck.
61 FUEL VALVE OPEN     RED Fuel valve open at incorrect time.
62 STRONG UV FLAME      RED Flame detector too close to the ame. Increase the distance
between the ame detector and the ame.
63 INTERNAL FAULT RED Replace the control unit. Contact reseller/distributor.

20 Bentone
165 205 19-3
5. Installation
5.1 General instructions
Oil burners must be installed in accordance with local regulations. The installer
must therefore be knowledgeable of the regulations pertaining to oil and
combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil lter installed before the burner’s oil pump.
If the burner is replacing an existing burner, ensure that the oil lter is
replaced or cleaned. Installation may only be performed by qualied
personnel.
Care should be taken by the installer to ensure that electrical cables and oil
lines are not pinched or otherwise damaged during installation or servicing.
5.2 Inspection and maintenance
The system must be maintained at the interval specied in the service
schedule. If the burner is in a dirty environment, service should be done at
more frequent intervals.
5.3 Start-up
In order to obtain the correct setting, a ue gas analysis and temperature
measurement must be carried out. Otherwise, there is a risk of soot build up,
poor eciency or condensation in the chimney. The system must be ne-tuned
at start-up. The temperature in the chimney at a depth of 0.5 m must be at
least 60 °C to prevent condensation.
5.4 Preparing for installation
Check that the burner’s dimensions and capacity range are suitable for the
relevant boiler. The power data on the rating plate refers to the burner’s
minimum and maximum power.
5.5 Oil distribution
In order to achieve good reliability, it is important that the oil distribution
system is designed correctly.
Take the following into account:
• Selection of pipe diameter, pipe length and height difference; see
Pump instruction.
• Pipelines are to be laid with the fewest possible number of glands.
• The pipes are to be laid so that the oil supply hoses are not subjected
to tensile stresses or become excessively bent when the burner is
swung out or removed for servicing.
• The oil lter should be installed so that the lter cartridge can easily
be replaced or cleaned.
• Parts in contact with oil must be selected in materials that are capable
of withstanding the medium’s physical properties.
• When installing oil hoses, check that the inlet and return hoses are
tted to the appropriate connection on the oil pump. The hoses must
be located so that they do not bend or become subject to tensile load.
• Bleed the oil system. The oil pump/oil preheater may be damaged if
run dry. The vacuum in the suction line should not fall below 0.3 bar
during start-up.
!

before starting it for the

!
installed before the
burner’s oil pump.
