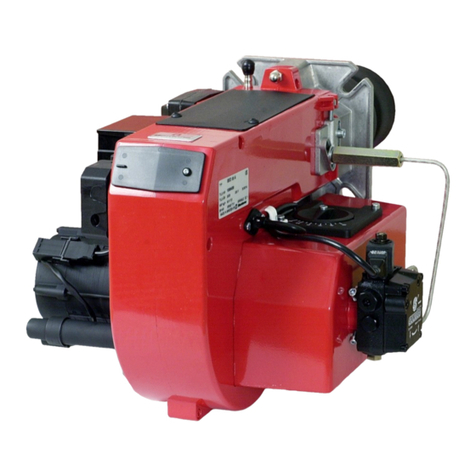

Bentone B30A RME User manual

Providing sustainable energy solutions worldwide
178 080 51 2015-03–11
Installation- and maintenance instruction
B30A RME, B40A RME

3
Bentone B30A RME, B40A RME
Table of contents
1. DESCRIPTION ______________________________________________________ 4
2. TECHNICAL DATA _________________________________________________ 5
2.1 Dimensions B30A ______________________________________________5
2.2 Dimensions B40A ______________________________________________5
2.3 Output range and nozzles recommended _____________6
2.4 Recommended nozzle________________________________________6
2.5 Electrode adjustment__________________________________________6
3. GENERAL INSTRUCTIONS __________________________________ 7
4. MAINTENANCE OF OIL BURNER B30______________ 10
5. MAINTENANCE OF OIL BURNER B40______________ 11
6. OIL CIRCUIT DIAGRAM______________________________________ 12
7. ELECTRIC EQUIPMENT _____________________________________ 13
7.1 OIL BURNER CONTROL: LOA21... / LOA24...____13
8. NOZZLE TABLE ___________________________________________________ 15
9. FAULT LOCATION _______________________________________________ 17
9.1 Burner will not start __________________________________________17
9.2 Burner will not start after normal use __________________ 17
9.3 Delayed ignition, burner starts; pulsation_____________ 17
10. DECLARATION OF CONFORMITY ____________________ 18

4
Bentone B30A RME, B40A RME
Components
1. Shrouded disc
2. Nozzle
3. Ignition electrodes
4. Nozzle assembly
5. Ignition cable
6. Ignition transformer
7. Photo cell
8. Control box
9. Reset button
10. Cover, inspection glass
11. Fan wheel
12. Motor
13. Nozzle assembly adjustment
14. Blast tube
15. Air adjustment
16. Air damper
17. Solenoid valve on connection hose
18. Air intake
19. Pump
20. Connection hose
1. DESCRIPTION
20
17

5
Bentone B30A RME, B40A RME
B
A C
2. TECHNICAL DATA
2.1 Dimensions B30A
Burner tube B30 Length of burner tube Measure B
L 150 115
L Standard 222 187
L 350 315
Burner tube B40
N Standard 202 172
N 302 272
2.2 Dimensions B40A
175
382 B372
ø108
ø108
220
281
303
195
400
ø126
ø114
B420
260
310
360
Flange measure A B C
B30 ø 108 160-190 35
B40 ø 114 200-230 37

6
Bentone B30A RME, B40A RME
Burner Oil capa-
city
Output Recommended
Nozzle
Recommended
Pump pressure
kg/h kW Mcal/h Angle Type Bar
B30 6,0-17,0 71-202 61-173 45°, 60° Solid, Semisolid 10-15
B40 9,0-29,5 107-350 92-301 45°, 60° Solid, Semisolid 10-15
The net calorific value of 11,86 kWh/kg for light oil has been used.
7,0-9,0
2,5-3,5 1,0-2,0
TECHNICAL DATA
2.3 Output range and nozzles recommended
B30
B40
2.4 Recommended nozzle
Because of different boiler types existing on the market,
with varying combustion chamber designs, it is not
possible to state a definite spray angle or spray pattern.
Note that the spray angle and the spray pattern change
with the pump pressure.
2.5 Electrode adjustment

7
Bentone B30A RME, B40A RME
3. GENERAL
INSTRUCTIONS
General rules
This is a burner designed for FAME (RME) fuel. The fuel must meet the
requirements of standard EN 14214 for FAME. The equipment on the burner
is, however, of such a quality that it is possible to use EO1 type oil without
modification, although with appropriate adjustments to the combustion
values after each change of fuel type.
The installation of an oil burner should be carried out in accordance with
local regulations. The installer of the burner must therefore be aware of all
regulations relating to oil and combustion.
Only oil suitable for the burner must be used and then in combination with a
suitable oil filter designed for FAME (RME) and installed before the burner’s
oil pump.
If the burner is replacing an existing burner, ensure that the oil filter is
changed to a filter designed for FAME (RME). Installation may only be
performed by qualified personnel.
Care should be taken by the installer to ensure that no electrical cables
or fuel/gas pipes are trapped or damaged during installation or service/
maintenance.
Burners which are fuelled by FAME (RME) are and must be equipped with
parts designed for this fuel. This applies in particular to oil-related parts such
as the pump, solenoid valve, oil filter and hoses. It is very important when
carrying out a service to replace old parts with new parts of the same quality.
Installation instructions
General installation instructions accompany the burner and should be left in
a prominent place adjacent to the burner.
Adjustment of burner
The burner is from the factory preset to an average value that must then be
adjusted to the boiler in question.
All burner adjustments must be made in accordance with boiler
manufacturers instructions.These must include the checking of flue gas
temperatures, average water temperature and CO2 or O2 concentration.
To adjust the combustion device, start by increasing the air volume and the
nozzle assembly somewhat. When the burner starts it is burning with excess
air and smoke number 0. Reduce the nozzle assembly adjustment until soot
occurs, and then increase the adjustment to make the soot disappear again.
Then the volume of air is reduced until soot occurs and increased again to
reach a combustion free of soot.
By this procedure an optimum adjustment is obtained. If larger nozzles are
used the preadjustment of both the air volume and the nozzle assembly
must be increased.

8
Bentone B30A RME, B40A RME
A whistling sound may be heard which can be eliminated or reduced as
follows: Increase the nozzle assembly adjustment somewhat. The CO2-
content will then be reduced and the air volume has then consequently to be
reduced.
Condensation in chimney
A modern burner works with less excess air and often also with smaller
nozzles than older models. This increases the efficiency but also the risk of
condensation in the chimney. The risk increases if the area of the chimney
flue is too large. The temperature of the flue gases should exceed 60°C
measured 0,5 metres from the chimney top.
• Measures to raise the temperature:
• Insulate the chimney in cold attics
• Install a tube in the chimney
• Install a draught regulator (dilutes the flue gases during operation and
dries them up during standstill)
• Increase the oil quantity
• Raise the flue gas temperature by removing turbulators, if any, in the
boiler.
Pump adjustment
See separate description.
Maintenance
The boiler/burner should be examined regularly for any signs of malfunction
or oil leakage. Any boiler/burner that uses FAME (RME) as fuel must be
serviced at least twice a year.
Oil supply
The oil line should be dimensioned in accordance with the pump
manufacturer´s instruction. A filter designed for FAME (RME) that prevents
any particles in the oil from reaching the burner is mounted in the burner’s
suction pipe. If the installation consists of several burners each one should
have its own suction line from the tank or a circulation system should be
used.
The temperature in the oil line should be kept as constant as possible. Avoid
exposing the line to excessive cold which may cause blockages.
The oil pipe and electric cable should be fitted so that the burner can be
placed on the floor for inspection of the combustion device.
Oil hoses must be of a quality designed for FAME (RME).

9
Bentone B30A RME, B40A RME
Adjustment of nozzle
assembly B30
Loosen the screw G and adjust
the nozzle assembly by turning the
screw F.
Max. capacity - Front position
Medium capacity - Middle position
Min. capacity - Rear position
Adjustment of nozzle
assembly B40
Loosen the locking screw B and
adjust the nozzle assembly to the
desired position. Lock the screw B
again.
Air adjustment 0-10
Loosen the stop screw B and turn
the knob along the scale to the
desired position and tighten the
screw. Check the air adjustment by
making a flue gas analysis.
B
B
Air adjustment 0-10
Loosen the stop screw B and turn
the knob along the scale to the
position wanted and tighten the
screw. Check the air adjustment by
making a flue gas analysis.

10
Bentone B30A RME, B40A RME
4. MAINTENANCE OF OIL BURNER B30
!Warning: Before doing any service switch off power at the main switch and cut
off the oil supply
A
Service of burner head
Open the cover plate and remove the
connection hose by undoing screw A.
1. Loosen or swing out the
burner from the boiler.
2. Turn the blast tube to the left
and withdraw it.

11
Bentone B30A RME, B40A RME
5. MAINTENANCE OF OIL BURNER B40
!Warning: Before doing any service switch off power at the main switch and cut
off the oil supply
1. Loosen or swing out the
burner from the boiler.
2. Loosen 2 fixing screws and
withdraw the blast tube.
Service of burner head
Open the cover plate and remove the
connection hose by undoing screw A.

12
Bentone B30A RME, B40A RME
6. OIL CIRCUIT DIAGRAM
1
2 3
1. Nozzle
2. Safety valve
3. Oil pump

13
Bentone B30A RME, B40A RME
List of components
A1 Oil burner control
A2 Twin thermostat
F1 Fuse, max. 10A
H1 Alarm lamp
H2 Signal lamp (optional)
M1 Burner motor
P1 Time meter (optional)
R1 Photoresistor
S3 Main switch
T1 Ignition transformer
Y1 Solenoid valve
X1 Plug-in contact, burner
X2 Plug-in contact, boiler
Mains connection and fuses in
accordance with local regulations.
7. ELECTRIC EQUIPMENT
7.1 OIL BURNER CONTROL: LOA21... / LOA24...
*
* If there is no plug-in contact (X2) on the boiler, connect to the contact enclosed.
In case the twin thermostat is in series on incoming phase L1, a loop between the
terminals T1 and T2 is necessary.
X1
X2
Outer electrical connection
*

14
Bentone B30A RME, B40A RME
ELECTRIC EQUIPMENT
Function
1Switch on operating switch and twin thermostat
The burner motor starts, an ignition spark is formed, the prepurge goes on till the
prepurge period expires and the solenoid valve opens (2).
2Solenoid valve opens
Oil mist is formed and ignited. The photocell indicates a flame.
(1) The ignition spark goes out 15 s. after flame indication.
3The safety time expires
a. If no flame is established before this time limit the control cuts out.
b. If for some reasons the flame disappears after this time limit, the burner will make
an attempt to re-start.
3-4 Operating position
If the burner operation is interrupted by means of the main switch or the thermostat,
a new start takes place when the conditions in accordance with point 1 are fulfilled.
The oil burner control cuts out
A red lamp in the control is lit. Press the reset button and the burner re-starts.
Technical data
Pre-ignition time: 13 s
Pre-purge time: 13 s
Post-ignition time: 15 s
Safety lock-out time: 10 s
Reset time after lockout: ≈ 50 s
Reaction time on flame failure: max. 1 s
Ambient temperature: från - 20 till + 60°C
Min. current with flame established: 65µ A
Max. photo current at start: 5µ A
Enclosure: IP 40
Control of photo current
Current through photo unit is measured with a d.c. ammeter (a moving coil
instrument connected in series with the photo unit).

15
Bentone B30A RME, B40A RME
8. NOZZLE TABLE
Gph 8 9 10 11
kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h
0,40 1,33 16 13 1,41 17 14 1,49 18 15 1,56 18 16
0,50 1,66 20 17 1,76 21 18 1,86 22 19 1,95 23 20
0,60 2,00 24 20 2,12 25 22 2,23 26 23 2,34 28 24
0,65 2,16 26 22 2,29 27 23 2,42 29 25 2,54 30 26
0,75 2,49 29 25 2,65 31 27 2,79 33 28 2,93 35 30
0,85 2,83 33 29 3,00 36 31 3,16 37 32 3,32 39 34
1,00 3,33 39 34 3,53 42 36 3,72 44 38 3,90 46 40
1,10 3,66 43 37 3,88 46 39 4,09 48 42 4,29 51 44
1,20 3,99 47 41 4,24 50 43 4,47 53 46 4,68 55 48
1,25 4,16 49 42 4,40 52 45 4,65 55 47 4,88 58 50
1,35 4,49 53 46 4,76 56 48 5,02 59 51 5,27 62 54
1,50 4,98 59 51 5,29 63 54 5,58 66 57 5,85 69 60
1,65 5,49 65 56 5,82 69 59 6,14 73 63 6,44 76 66
1,75 5,82 69 59 6,18 73 63 6,51 77 66 6,83 81 70
2,00 6,65 79 68 7,06 84 72 7,45 88 76 7,81 93 80
2,25 7,49 89 76 7,94 94 81 8,38 99 85 8,78 104 89
2,50 8,32 99 85 8,82 105 90 9,31 110 95 9,76 116 99
2,75 9,15 108 93 9,71 115 99 10,24 121 104 10,73 127 109
3,00 9,98 118 102 10,59 126 108 11,16 132 114 11,71 139 119
3,50 11,65 138 119 12,35 146 126 13,03 154 133 13,66 162 139
4,00 13,31 158 136 14,12 167 144 14,89 176 152 15,62 185 159
4,50 14,97 177 153 15,88 188 162 16,75 198 171 17,57 208 179
5,00 16,64 197 170 17,65 209 180 18,62 221 190 19,52 231 199
5,50 18,30 217 187 19,42 230 198 20,48 243 209 21,47 255 219
6,00 19,97 237 204 21,18 251 216 22,34 265 228 23,42 278 239
6,50 21,63 256 220 22,94 272 234 24,20 287 247 25,37 301 259
7,00 23,29 276 237 24,71 293 252 26,06 309 266 27,33 324 279
7,50 24,96 296 254 26,47 314 270 27,92 331 285 29,28 347 298
8,00 26,62 316 271 28,24 335 288 29,79 353 304 31,23 370 318
8,50 28,28 335 288 30,00 356 306 31,65 375 323 33,18 393 338
9,00 29,95 355 305 31,77 377 324 33,59 398 342 35,14 417 358
The table applies to oil EO1 with a viscosity of 4,4 mm2/s (cSt) with density 830 kg/m3.
Burner with preheater
Consider that on preheating the oil quantity is reduced by 5-20% depending on
- Rise in temperature at the nozzle
- Design of nozzle
- Capacity (high capacity - small difference)
- Expect the output from the burner to reduce by 10–20% when fuelled by FAME (RME) due to the lower energy
content of the oil.
Pump pressure bar

16
Bentone B30A RME, B40A RME
Gph 12 13 14 15
kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h
0,40 1,63 19 17 1,70 20 17 1,76 21 18 1,82 21 18
0,50 2,04 24 21 2,12 25 22 2,20 26 22 2,28 27 23
0,60 2,45 29 25 2,55 30 26 2,64 31 27 2,73 32 28
0,65 2,65 31 27 2,75 33 28 2,86 34 29 2,96 35 30
0,75 3,08 36 31 3,18 38 32 3,30 39 34 3,42 40 35
0,85 3,47 41 35 3,61 43 37 3,74 44 38 3,87 46 39
1,00 4,08 48 42 4,24 50 43 4,40 52 45 4,56 54 46
1,10 4,48 53 46 4,67 55 48 4,84 57 49 5,01 59 51
1,20 4,89 58 50 5,09 60 52 5,29 63 54 5,47 65 56
1,25 5,10 60 52 5,30 63 54 5,51 65 56 5,70 68 58
1,35 5,50 65 56 5,73 68 58 5,95 70 61 6,15 73 63
1,50 6,11 72 62 6,36 75 65 6,60 78 67 6,83 81 70
1,65 6,73 80 69 7,00 83 71 7,27 86 74 7,52 89 77
1,75 7,14 85 73 7,42 88 76 7,71 91 79 7,97 94 81
2,00 8,18 97 83 8,49 101 86 8,81 104 90 9,12 108 93
2,25 9,18 109 94 9,55 113 97 9,91 117 101 10,26 122 105
2,50 10,19 121 104 10,61 126 108 11,01 130 112 11,39 135 116
2,75 11,21 133 114 11,67 138 119 12,11 144 123 12,53 148 128
3,00 12,23 145 125 12,73 151 130 13,21 157 135 13,67 162 139
3,50 14,27 169 145 14,85 176 151 15,42 183 157 15,95 189 163
4,00 16,31 193 166 16,97 201 173 17,62 209 180 18,23 216 186
4,50 18,35 217 187 19,10 226 195 19,82 235 202 20,51 243 209
5,00 20,39 242 208 21,22 251 216 22,03 261 225 22,79 270 232
5,50 22,43 266 229 23,34 277 238 24,23 287 247 25,07 297 256
6,00 24,47 290 249 25,46 302 260 26,43 313 269 27,49 326 280
6,50 26,51 314 270 27,58 327 281 28,63 339 292 29,63 351 302
7,00 28,55 338 291 29,70 352 303 30,84 366 314 31,91 378 325
7,50 30,59 363 312 31,83 377 324 33,04 392 337 34,19 405 349
8,00 32,63 387 333 33,95 403 346 35,25 418 359 36,47 432 372
8,50 34,66 411 353 36,07 428 368 37,45 444 382 38,74 459 395
9,00 36,71 435 374 38,19 453 389 39,65 470 404 41,02 486 418
The table applies to oil EO1 with a viscosity of 4,4 mm2/s (cSt) with density 830 kg/m3.
Burner with preheater
Consider that on preheating the oil quantity is reduced by 5-20% depending on
- Rise in temperature at the nozzle
- Design of nozzle
- Capacity (high capacity - small difference)
- Expect the output from the burner to reduce by 10–20% when fuelled by FAME (RME) due to the lower energy
content of the oil.
Pump pressure bar
NOZZLE TABLE

17
Bentone B30A RME, B40A RME
9. FAULT LOCATION
9.1 Burner will not start
Symptom
Motor starts
Burner pre-ventilates
Flame formed
Burner trips
Motor starts
Burner pre-ventilates
No flame formed
Burner trips
Causes
Unstable flame
Excess air
Low oil pressure
Incorrect combustion apparatus settings
Flame monitor does not register light
Defective flame monitor
Defective oil burner control
No oil
False light
No spark
Remedies
Adjust the damper
Check the oil pressure
Check the nozzle in relation to the
combustion apparatus dimensions and the
ignition electrode position
Check the flame monitor is clean and can
register light
Check with using new photocell
Check using new oil burner control (Note:
replacement of photocell recommended if oil
burner control replaced)
Check the oil supply to the burner and that
there are no air bubbles in the pump
Check function of solenoid
Check flame monitor does not register
ambient light
Check high voltage wiring and ignition
electrodes
Burner does not start
Burner pre-ventilates
Burner stops
Fuse blown
Boiler thermostat has not reset
Overheating protection has deployed
Defective preheater
Defective oil burner control or
flame monitor
No oil supply
Too great a pressure drop at brake plate
Too strong draught prevents flame forming
No spark
Check and replace fuse as necessary.
Investigate cause of fault
Adjust thermostat
Reset the overheating protection.
Investigate the cause of its deploying.
Remedy fault
Check by replacing with new
Check that tank, oil lines, solenoid valves,
pump and nozzle are in good condition
Adjust the burner
Correct the boiler draught
Check the ignition transformer. Check the
ignition electrode settings and ceramics
Burner pulsates at start with
hot flue gases
Burner pulsates at start
Too strong a draught
Too great a pressure drop at brake plate
Nozzle partially blocked
Oil pressure too low
Flue blocked or damaged
Fan wheel slipping on shaft
Pump coupling loose or worn
Preheater clogged
Delayed ignition
Too strong a draught
Too great a pressure drop at brake plate
Correct the boiler draught
Adjust the burner
Replace nozzle
Check and adjust
Check and correct
Check and tighten
Replace
Check ignition electrode adjustment
(refer to technical data)
Check ignition electrodes
not damaged
Check high voltage wiring
Check position of nozzle
assembly adjustment
Correct the boiler draught
Adjust the burner
9.2 Burner will not start after normal use
9.3 Delayed ignition, burner starts; pulsation

Försäkran om överensstämmelse
Declaration of conformity
Konformitätserklärung
Déclaration de conformité
Brännare, Burner, Ölbrenner, Brûleur
Certifikat TÜV Süddeutschland
Certifikat nr. Typ, Type:
08128915006 BF 1
0111110535004 B 1
0207110535005 B 2
02119815001 ST 97, ST 108, ST 120,
ST 133, ST 146
02119815002 B 9, B 10, B 11
Certifikat nr. Typ, Type:
02119815003 B 20, B 30, B 40, B 45
02119815004 B 50, B 60, B 70, B 80
040588622001 B 55
040588622002 B 65
13129815007 B 45 MF, B 45-2 MF
Enertech AB försäkrar under eget ansvar att ovannämnda produkter är i överensstämmelse med följande standarder eller andra
regelgivande dokument och uppfyller tillämpliga delar i EU direktiv.
Enertech AB declares under sole responsibility that the above mentioned product is in conformity with the following standards or other
normative documents and follows the provisions of applicable parts in the following EU Directives.
Enertech AB erklärt in eigener Verantwortung, dass obenstehende Produkte mit folgenden Normen oder anderen normativen
Dokumenten und anwendbare Teile in EU-Direktiven in Übereinstimmung stehen
Enertech AB déclare sous sa seule responsabilité que les produits désignés ci-dessus sont conformes aux normes et aux documents
normatifs suivants et satisfont aux critères applicables des directives CE suivantes:
Dokument: EN 267
EN 60335
EU direktiv. EU Directives, EU-Direktiven, CE suivantes:
2004/108/EC Elektromagnetisk kompatibilitet, Electromagnetic compatibility EC-Richtlinie, Compatibilité électromagnétique
2006/95/EC Lågspänningsdirektivet, Low-voltage directive, Niederspannungs-Richtlinie, Directive sur les basses tensions
2006/42/EC Maskindirektivet, Machinery directive, Maschinen-Richtlinie, Directive sur les machines
92/42/EEC Verkningsgradsdirektivet, Efficiency directive, Wirkungsgrad-Richtlinie, Directive sur les exigences de rendement
Genom att brännaren uppfyller ovannämnda standarder och direktiv erhåller brännaren CE - märkningen.
In that the burner conforms to the above mentioned standards it is awarded the CE mark.
Indem der Brenner die obengenannten Normen und Richtlinien erfüllt, erhält der Brenner die CE-Kennzeichnung.
Du fait de leur conformité aux directives mentionnées ci-dessus, les brûleurs Bentone bénéficient du marquage CE.
Enertech AB, Bentone Division/
är kvalitetscertifierat enligt/
is quality certified according to/
ist nach dem Qualitätsmanagement /
est certifiée à la norme de qualité
SS-EN ISO 9001:2008
Ljungby, Sweden, 150227 (27/02/15)
ENERTECH AB Bentone Division
Box 309
SE-341 26 Ljungby Sweden
Håkan Lennartsson
171 901 06 15-01
10. DECLARATION OF CONFORMITY

OIL BURNERS MAINTENANCE
INSTRUCTIONS
General information
Keep the boiler room clean. Ensure that the boiler
room has permanent fresh air intake. Switch off before
dismantling the oil burner.
At hinged mounting, make sure that an automatic safety
switch is fitted, so that the burner cannot start when
theswing door is open.
Don´t use the oil fired boiler to burn paper or
rubbish,unless the boiler is especially fitted with a hinged
door tomake this possible.
Don´t fill tank while burner is working.
Starting precautions
Make sure that the oil tank is not empty
Make sure that the valves on oil and water supply pipes
areopen.
Make sure that the boiler flue damper is open.
Make sure that the boiler thermostat is set at the correct
temperature.
Switch on the current. Most relay systems have a
delayed action so that the burner will not start for
perhaps 20 seconds.
With heavy oil the delay will be longer as the burner
will notstart until the oil in the preheater reaches the
requiredtemperature.
If the burner will not start
Press the reset button on the relay. Check that the
thermostats are correctly adjusted.
Don´t forget the room thermostat, check that any
fusesare intact and main switch is on.
If the burner starts but does not ignite
Make an attempt to start the burner.
Never make close repeated start attempts.
Don´t restart the burner until the boiler is free from oil
gases.
If the burner still does not ignite send for the service
engineer.
When switching off during summer
Always use the main switch to cut out the burner even
when adjusting the burner or cutting off the heating for
ashort time. For longer periods of shut down, close all
valves and the oil supply stop-cock.
Clean the filter and nozzle by washing in petrol or
paraffin.
Make sure the filter medium is not damaged or defective.
Protect electrical gear from damp.
Warning
Never stand too near or put your face to the inspection
or fire door, when the burner is about to start.
Never use a naked flame to ignite oil if the electrical
ignition fails.
Always wait for about 10 minutes for the unburnt gases
to disperse before restarting the oil burner if it has failed
to ignite previously.
Installed by:
Tel:
170 025 01 2012-04-16

Enertech AB. P.O Box 309, SE-341 26 Ljungby.
www.bentone.se, www.bentone.com
