VFI84 Burner Operation Manual
No：
ATS–Operation Manual–VFI84
Subject:：
VFI84 Burner Operation Manual
Version ：
V1.0
Author ：
Wilson Sun
Review ：
David

Anderson Thermal Solutions – VFI84 Burner Operation Manual
CONTENT
1. Disclaimer Notice ........................................................................................................................ 1
2. Liability And Warranty................................................................................................................. 1
3. Safety Guide ................................................................................................................................ 1
4. Fuel Information.......................................................................................................................... 2
5. VFI84 Series Burner Description.................................................................................................. 2
5.1 VFI84 Series Burner Operation Process................................................................................3
5.2 VFI84 Series Burner component’s introduction ...................................................................3
5.3 Pilot burner ...........................................................................................................................4
5.4 Combustion Air .....................................................................................................................5
6. VFI84 Burner Operation Data...................................................................................................... 5
7. VFI84 Burner Selection................................................................................................................ 5
8. VFI84 Burner Installation............................................................................................................. 7
9. Burner Main Fire Commissioning................................................................................................ 7
10. Burner Maintenance ................................................................................................................... 8
10.1 Half a year checklist ............................................................................................................8
10.2 Yearly checklist....................................................................................................................8
11. Troubleshooting Procedures....................................................................................................... 9
12. Appendix ................................................................................................................................... 11
12.1 Training Record.................................................................................................................11
12.2 Half Year Audit Record......................................................................................................12
12.3 Yealy Audit Record............................................................................................................12

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
1
This manual has been written for those who are already familiar with all aspects of nozzle
mix burner and its add-on components. Main contents of the manual including safety
rules, burner installation, commissioning, operation parameters, maintenance and
troubleshooting, spare parts, etc.
1. Disclaimer Notice
Anderson Thermal Solutions (Suzhou) Co., Ltd. reserves the right to change the
construction and/or configuation of our product at any time without informing customers.
If the product or its individual modules are used for purposes other than the designated
purpose, their effectiveness and suitability must be confirmed.
Anderson warrants that the product itself will not infringe any patents. Every effort has
been made to make this manual as accurate and complete as possible. If you find errors or
omissions, please contact us so we can correct them.
2. Liability And Warranty
Due to negligence, breach of warranty or other reasons, Anderson's liability for its products
is limited to the provision of such replacement parts and will not be liable for any other
injury, loss or expense, whether direct or indirect, including but not limited to Loss of or
damage to the use of materials that sell, install, use, fail to use or repair or replace Anderson
related products.
The warranty is void if: any operation explicitly prohibited in this manual, any adjustment
or assembly process not recommended or authorized.
3. Safety Guide
Only those who were trained and qualified person can follow the manual to operate or
adjust the combustion system. The fire was prohibited within a radius of 5 meters of the
combustion system. Flame, non–covered light sources or heat sources shall not be brought
to the combustion area unless it is related to the process. Welding in combustion control
area shall be approved to ensure the safety in the area and also preventive measures
should be taken into consideration.
Before starting, the operator must confirm whether the burner and gas pipeline are in
normal working condition, and there is no flammable substance around the burner. The
burner must be operated with fuel and oxygen or air. The ignition and operation of the
burner must be performed at the specified position. The burner has been correctly and
safely installed before ignition. The ignition of the burner needs to be performed after the

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
2
combustion chamber is purged. If it is ignited at a low temperature, it needs to be replaced
with 5 times the volume of the combustion chamber to avoid explosion.
However, it is not necessary to purge when the temperature is higher than 750°C. Air pipe
or gas pipe connected with burner should be tight enough with no leakage, also the
periodically check air or fuel nozzles of the burners to prevent to be blocked by dust, slag
or other materials.
ATTENTION：DANGER OF BEEN BURNT
When burner in operation, combustion is severe, so the burner must be fixed inposition.
Hoses or cables in area of the combustion system must be suitable for high temperature,
to prevent high temperature failure or cause safety accidents. Burners should be
periodically inspected and cleaned. Copper wire brush may be used, if necessary, to clean
burner head. The burner system should be checked twice a year for safety operation.
Burner commissioning shall take care of ignition position, minimum and maximum output
position. Following interlocks will cause emergency stop, including gas low pressure, high
pressure or low combustion air pressure, as well as emergency stop is trigged, the main
power is out, UV signal failure or kiln safety conditions (such as high temperature limit, flue
system opening, etc.) will cause the burner lockout. Users need to know the maintenance
interval recommended by the manufacturer and the interval specified by national laws,
whichever is shorter.
4. Fuel Information
Following table shows combustion fuel characters of natural gas and oxygen, safety rules
must be obeyed when operation carried out.
Fuel
Natural gas
Low Calorific value
35,900 [kJ/m3]
Composition
>98% CH4
Reference conditions
1,013.25 mbar, 0°C
5. VFI84 Series Burner Description
VFI84 series of burners are the patented products of Anderson Thermal Solutions (Suzhou)
Co., Ltd. Designed for the incineration exhaust from dryers, ovens and other similar
equipment. The burners are nozzle mixture type.

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
3
5.1 VFI84 Series Burner Operation Process
VFI84 series of burners are mounted in the exhaust duct and required the exhaust
stream to supply all of the oxygen needed for complete combustion. Because of
character of the process, they are well suited to applications require clean high rate of
destruction of volatile organic compounds, smoke and odors. Do not use choke rings or
other turbulence-inducingdevices in downstream combustion chambers—they may
cause erratic burner performance.
VFI84 series of burners' operation process shown as Fig 1.

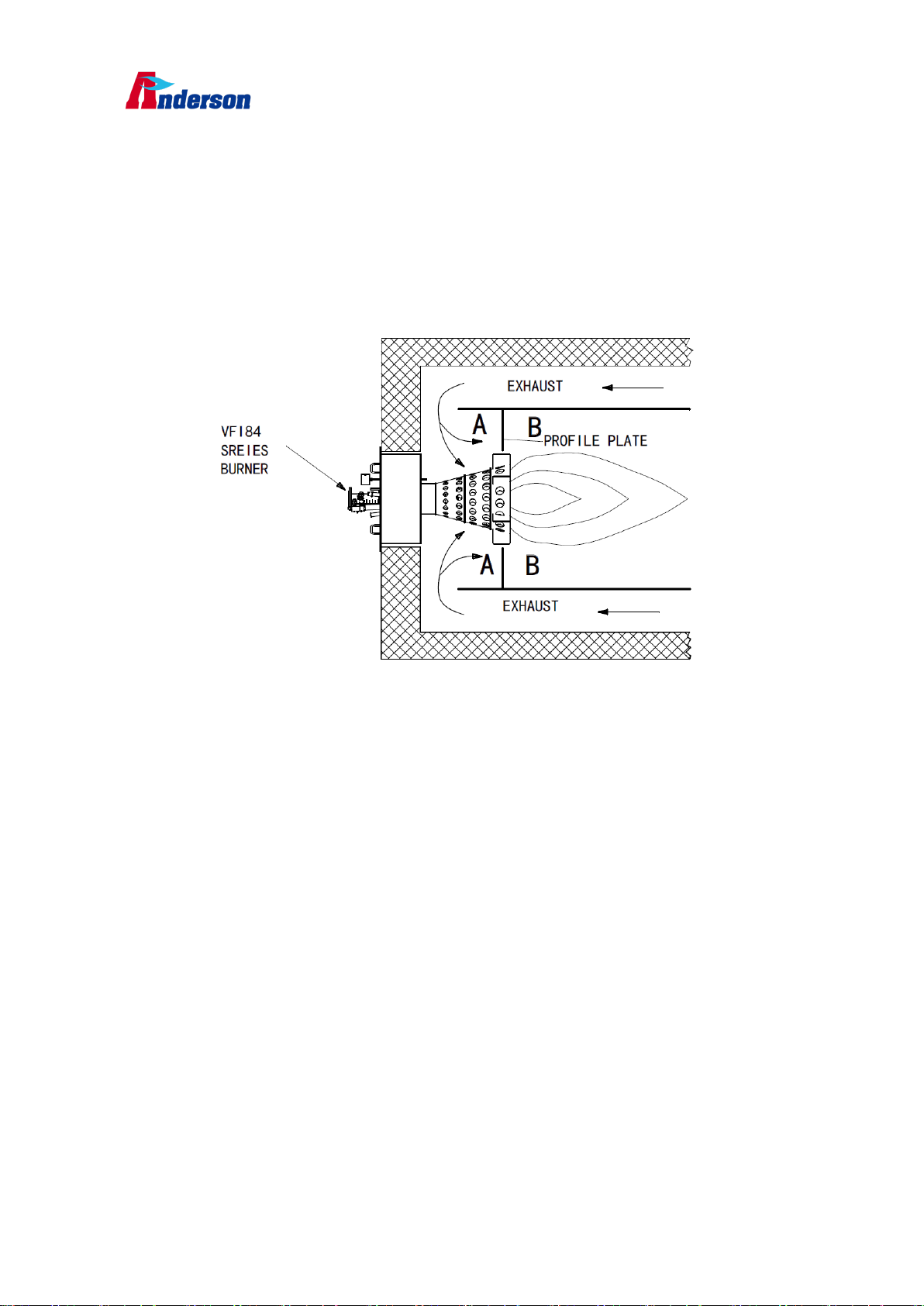

Fig 1 VFI84 Series of Burner Operation Process
5.2 VFI84 Series Burner component’s introduction
VFI84 series burner including burner body, gas or oil nozzle, pilot burner, spark rod and
peep sight, etc. It is to be noted that flame monitoring must be provided by an ultraviolet
scanner. Flame rod monitoring is not acceptable. VFI84 series burner schematic diagram
and related components are shown in Figure 2 below.

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
4
Number
Name
Number
Name
110/150
peep sight
140
air pressure switch
170/180
burner body
200
installation handle
310
pilot burner
370
UV installation point
390
chamber pressure test
410
gas inlet flange

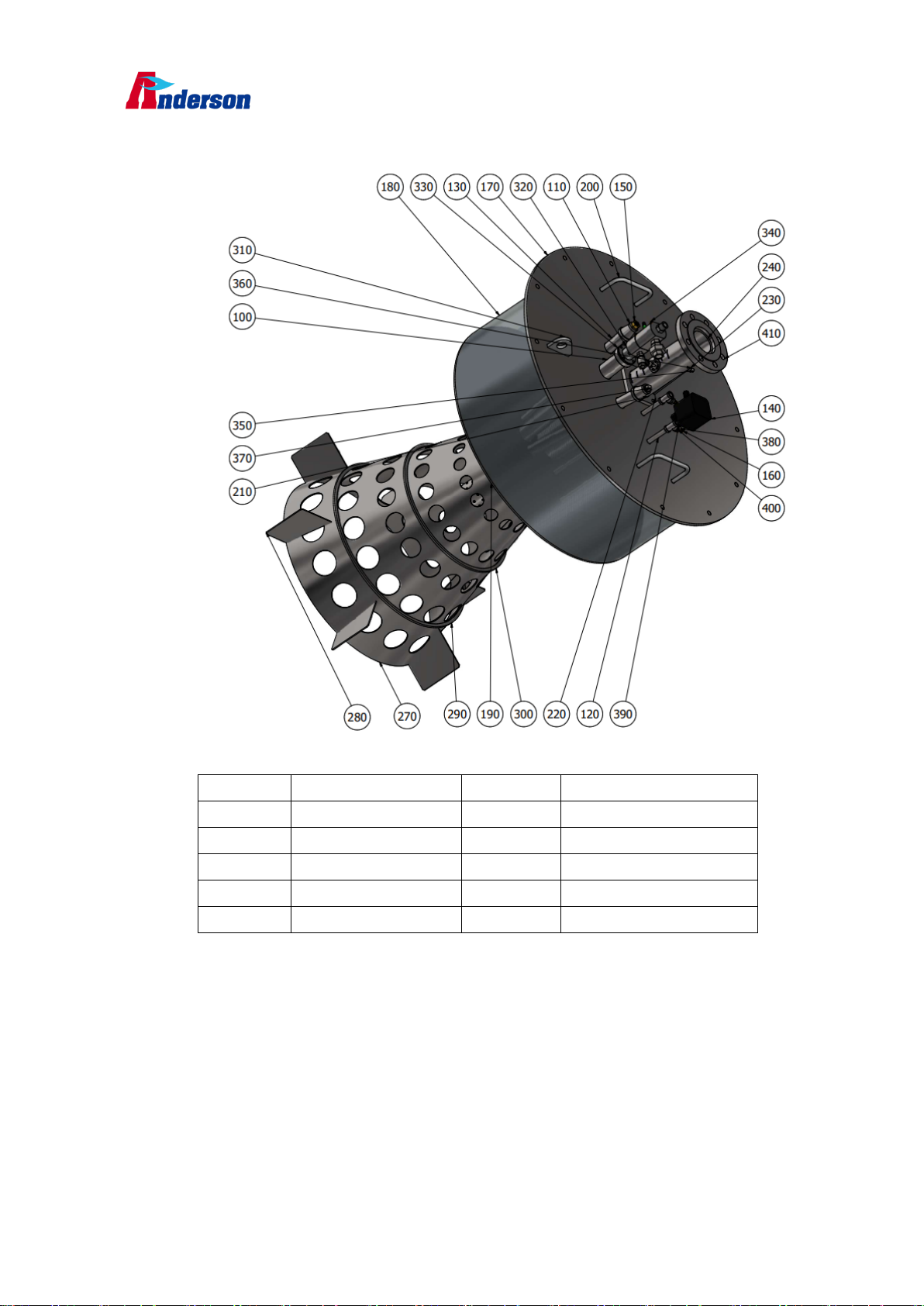

Fig2 VFI84 Series Burner diagram
5.3 Pilot burner
VFI84 Series Burner has a separated pilot burner of maximum capacity 50kw.User need
to supply fresh combustion air for pilot burner, typically a small air blower or
compressed air need to apply to pilot burner. According to pilot burner's manual, 5 mbar
combustion air and 3 mbar gas pressure is necessary for pilot burner operation
continually. These pressure requirements satisfy combustion chamber with neutral
pressure, if oven chamber pressure exists, chamber pressure needs to be added to the
pressure value mentioned above. It should be noted that the depth of pilot burner

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
5
extend to the main burner is adjustable according to site requirement. Pilot burner
diagram shown as Fig as blow.

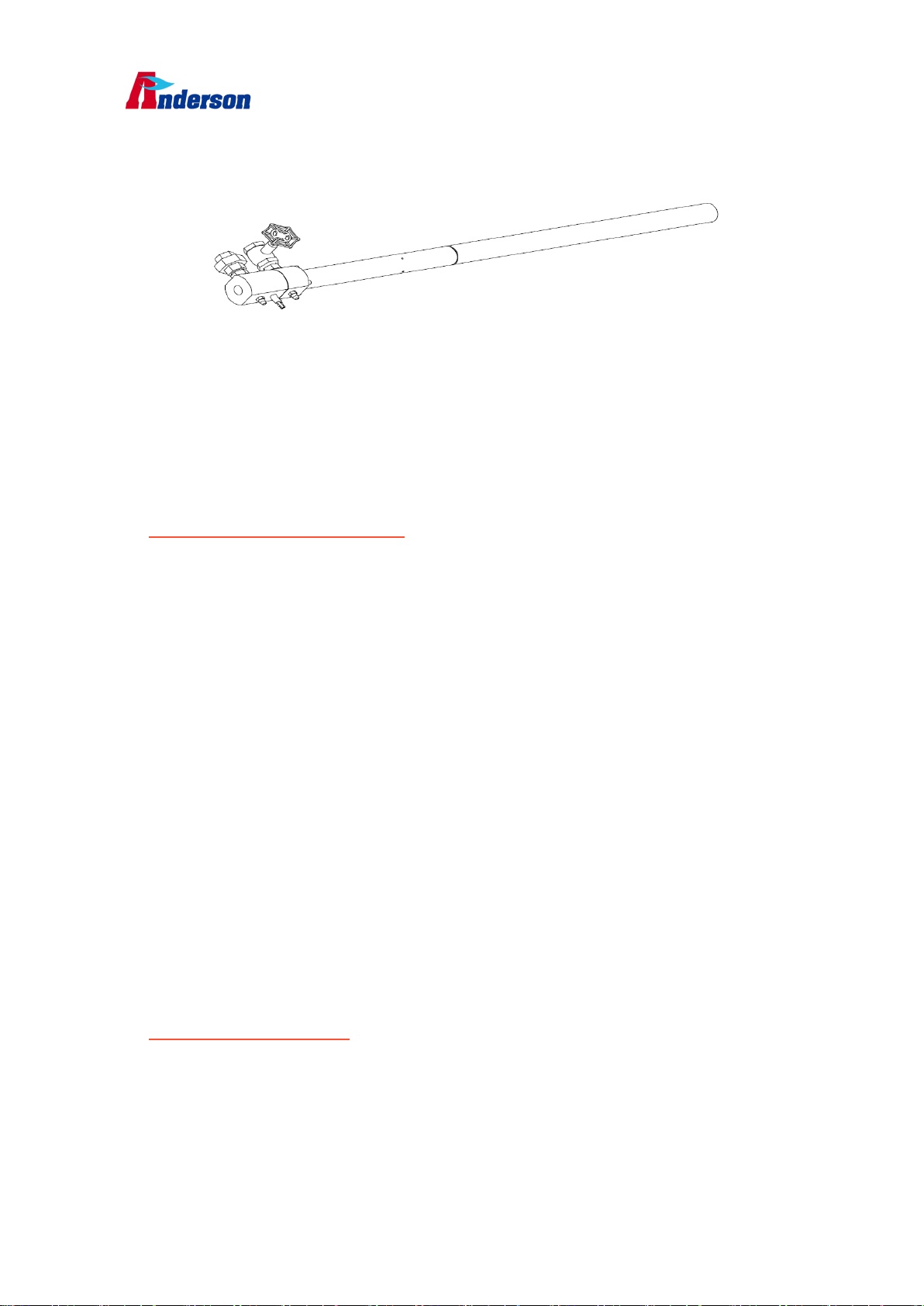

Fig 3 pilot burner
5.4 Combustion Air
Air passing through the burner for combustion must contain 13% or more oxygen.
Combustion air pressure difference between burner (shown as A and B in figure 1) should
be at the range of 2-8 mbar, optimum operation is obtained at 5-8 mbar. Profiling of the
process stream is required.
6. VFI84 Burner Operation Data
Follow parameters should be at specific range when VFI84 series burners are applicated
–Maximum exhaust temperature of upstream of burner: 600 °C
–Maximum exhaust temperature of downstream of burner: 900 °C
–Maximum hot exhaust pressure difference between burner: 8 mbar (A and B pressure
difference in figure 1)
–Minimum hot exhaust pressure difference between burner: 2 mbar (A and B pressure
difference in figure 1)
–Minimum exhaust oxygen content: 13%.
–When hot exhaust pressure drop of the burner is 5 mbar, the exhaust flue gas
turndown ratio can be about 2. The ratio increases when pressure drop gets higher.
–Maximum burner fuel turndown ratio will be 26 when the pressure drop between the
burner is 5 mbar
–Maximum ignition capacity:50 kw (with natural gas and fresh air)
–Maximum flame length:3 times length of the burner cone diameter.
–Flame supervision: UV scanner only
–NOXemission: typically, less than 3000 ppm.
–CO emission: less than 100 ppm if combustion chamber is 700 °C or hotter, and the
incoming fume stream contains at least 16% oxygen by volume
7. VFI84 Burner Selection
Figure 4 horizontal axis is inlet temperature of the process stream, use the actual inlet
temperature curve, read up to the curve representing the desired stream outlet
temperature and then left is the KW/hr. required per cubic meter of process stream.
Multiply this figure times the cubic meter of process stream flow at high fire. This is the

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
6
required KW input from the burner at high fire. In the example shown on the graph, the
inlet process stream temperature is 400 °C, and the desired outlet temperature is 800°C.
This requires 172*10-3KW/h, then multiply the total volume of the exhaust is the capacity
of the burner needed. Select in Table 1 below, you can get the total capacity input.
Fig 4 Burner Input Curve Diagram
VFI84 series burner provides 9 types of different capacity burners, table 1 below is the
VFI84 series Burner capacity.
BURENER TPYE
CAPACITY
（
KW
）
MINIMUM
MAXIMUM
VFI84G2000
75
2000
VFI84G2500
100
2500
VFI84G4000
150
4000
VFI84G5000
200
5000
Table 1 VFI84 Series Burner Capacity

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
7
8. VFI84 Burner Installation
When installing this series of burners, the burner is fixed to the mounting hole of the
furnace with bolts, it should be noted that a gasket is required between the burner and the
furnace wall. The gasket may be ceramic fiber or glass fiber. When the burner is installed,
the burner can be arbitrarily rotated according to the site condition. When installation is
completed, then related components are made electrically connected.
The gas gun could be pushed in or pull out when the flame signal is not good during switch
from pilot to main burner.
VFI84 series of burner installation dimensions as Figure 5 shown below
Fig 5 VFI84 Serises Burener Installtion Diagram
Different types of VFI84 burner dimensions shown as Table 2 below.
Burner Type
Dimension
（
mm
）
A
B
C
D
E
VFI84G2000
595
905
275
253
708
VFI84G2500
695
1055
275
303
808
VFI84G4000
795
1147
280
353
930
VFI84G5000
895
1395
280
353
1030
Table 2 VFI84G burner installation table
9. Burner Main Fire Commissioning
1. Once the pilot is established, the main gas flow can be adjusted. Drive the control motor
to low fire.
2. Adjust the gas control valve opening to obtain a stable low fire flame.
3. Drive the gas control valve to high fire. Adjust gas pressure difference of burner inlet and
chamber to the range 75-87 mbar.

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
8
4. Drive the control valve to low fire and check for a stable low fire flame.
5. Cycle the temperature control valve to high fire and verify that the pressure drop is
consistent with the previous setting. Re-adjust if necessary.
6. As the incinerator comes up to temperature, backpressures and combustion air
temperatures will change. Make final burner adjustments after the incinerator has
reached its normal operating temperature.
10. Burner Maintenance
Preventive maintenance is the key to a reliable, safe and efficient combustion system. The
core of any preventive maintenance system is a list of periodic check list. These are
guidelines only. The customer should make the final determination on maintenance
intervals and tasks to be performed while considering the working environment.
System regular safety audit must be taken out, including gas leakage check no longer than
every half a year. If necessary, the frequency of audit should be increased. Leak detection,
and control functions of the equipment must be included in the scope of the audit. Only
Anderson technicians or those who are trained and qualified by Anderson, as well as other
relevant professionals, can maintain the burners. All valves, especially ball valves, must be
slowly open or close when switching in order to prevent pressure shock in pipe.
10.1 Half a year checklist
–Inspect the flame sensing devices for good condition and cleanliness.
–Check for proper air and gas pressures.
–Test all the system alarms for proper response signals.
–Check and clean igniter electrodes.
–Check actuators and control valves for free, smooth action and adjustment.
–Check for the proper operation of ventilating equipment.
–Test the interlock sequence on all safety equipment. Manually force each interlock
to intentionally fail while at the same time noting if related equipment closes or
stops as specified by the manufacturer. Test the flame safeguard by manually
shutting off the gas to the burner.
–Test the manual gas shut off cocks for proper operation.
10.2 Yearly checklist
–Leak test the safety shut-off valves and pipe for tightness of closure to make sure
no leakage.
–Test the pressure switch settings by checking the switch movements against
pressure settings and comparing these with the actual impulse pressure.
–Visually check igniter cable and connectors.
–Be sure the burner bodies and air wings, the ignite and the flame sensors are not
damaged or distorted.

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
9
11. Troubleshooting Procedures
Problem Possible Cause Solution
Cannot initiate a start
sequence
Air pressure switch has not made contact
Check air pressure switch adjustment.
Check air filter.
Check blower rotation.
Check outlet pressure from blower.
High gas pressure switch has activated.
Low gas pressure switch has activated
Check incoming gas pressure, adjust if
necessary.
Check pressure switch setting and operation
Purge cycle not completed.
Check flame safeguard system or purge timer.
Malfunction of the flame safeguard system
(e.g., flame sensor failure or electrical noise
in the sensor line).
No power to the control unit.
Have a qualified electrician troubleshoot and
correct the problem.
Main power is off. Be sure the main power to the system is
switched to the “on” position.
Start-up sequence
runs but burner does
not light
There is no power to the ignition
transformer
Restore the power to the ignition transformer
No power to ignition transformer or wire
broken between transformer and sparker
Check electrical connection between
transformer and sparker.
The igniter needs cleaning Clean the igniter
The igniter is not correctly grounded to the
burner
Clean the threads on the igniter and the
burner. NOTE: Do not apply grease to the
threads on the igniter
Too much gas: Improper gas valve train
sequence
Verify solenoid valve is down-stream of
proportionator
Too much gas: Manual gas control valve
have been opened too far
Check pressures and settings against start-up
report and adjust as necessary
Too much gas: Gas pressure out of the
main gas pressure regulator is too high
Check start-up setting. If necessary, remove
regulator and investigate.

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
10
Not enough gas: The gas pressure out of the
main gas pressure regulator is too low
Check start-up setting. Check regulator and
adjust if necessary
Not enough gas: Start gas solenoid valve
does not open
Check solenoid valve coil for proper
orientation. Replace if necessary
Not enough gas: Gas valve not open, not
enough gas. Air in the gas line
Check wiring to the automatic gas shut-off
valve. Check output from the flame
safeguard. Open gas cock. Purge gas line.
The low fire flame is
weak or unstable
Low fire adjusted too slow
Not enough gas
Incorrect air flow setting
Increase low fire gas setting. Check start-up
settings and adjust to increase low gas flow.
Check start-up settings. Investigate any
change, i.e., blocked filter, loose connections
The burner goes off
when it cycles to high
fire
Insufficient air (flame too rich)
Check start-up settings. Check air filter, clean
or replace if required
The burner is erratic
and does not
respond to
adjustment
Flame signal weak
Internal damage to the burner. Some parts
inside the burner may be loose or dirty.
Check the condition of flame monitoring
device.
Contact Anderson
The burner is
unstable or produces
soot or smoke
The air/gas ratio is out of adjustment
Measure all gas pressures and air pressures.
Compared to the initial start-up settings, and
adjust them were necessary
Cannot achieve full
capacity
Air filter is blocked Gas pressure is too low
into the main gas pressure regulator
Increase furnace/chamber pressures Poor
piping practices
Clean or replace the air filter. Adjust gas
pressure. Re-check setup pressures Contact
Anderson

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
11
12. Appendix
12.1 Training Record
Each trained person must verify that he has read and understood the contents of the
operating manual and knows how to operate and maintain this series of burners
correctly.
Manual Number and
Revision
Date
Who (Name)
Signature

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
12
12.2 Half Year Audit Record
Routine audits must be made every 6 months. Please sign the following table.
Function Audit Date Inspector Problem description Next Audit Time
Flame sensor state
air and gas pressure
Alarm signals
igniter electrode
Control motors
Ventilate equipment
Interlock Function
Shut off cock function
Combustion air blower
12.3 Yealy Audit Record
Yearly audit list as follow but not only included
Function Audit Date Inspector Problem description Next Audit Time
Leak test
Pressure switch test
Cable and connectors
Burner bodies and air
wings

Anderson Thermal Solutions – VFI84 Burner Operation Manual
Anderson Thermal Soluions（Suzhou）Co., Ltd
13
Attention：Safety audit is prohibited when burner is running, otherwise, an
accident could be caused!
If you have any question. Please call us or send e–mail to get more information
Our telephone no. is [phone]
Our email address is mail to:[email protected]om
Meanwhile, you can also visit our website www.andtecs.com to get more product
information.
