1Features
The 600-DCM3.2 Battery Monitor offers the following features:
§1/10th of an Amp resolution in the range of +/- 0-50A
§The Matrix Monitors use a dot Matrix LCD allowing for Full screen information on Function selected.
§Voltage monitoring for up to 3 battery banks.
§12 custom selectable legends eg: Start Battery, House Battery etc.
§Hi/Low voltage alarm on all 3 banks.
§Amps charge and discharge on house bank only.
§Meter supplied with a 450-50mV shunt.
§Capacity remaining in amp hours and percentage.
§Software utilises Peukert’s exponent.
§Suitable for use on battery banks 60-3000 Amp hours.
§Low amp hour alarm.
§New additional function for 2004
§The bilge monitor function monitors bilge pump functions 24 hours, 7 days a week. Stores bilge pump
operations and accumulated time. Resetable when leaving the boat.
§Function only available when third voltmeter position is not used.
The 600-DCM3.2 is designed to be surface mounted or recessed into a 2.5mm panel

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 5
Date: 12/05/05
2Dimensions

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 6
Date: 12/05/05
3Installed with 3 voltage monitors

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 7
Date: 12/05/05
4Installed with bilge pump monitor

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 8
Date: 12/05/05

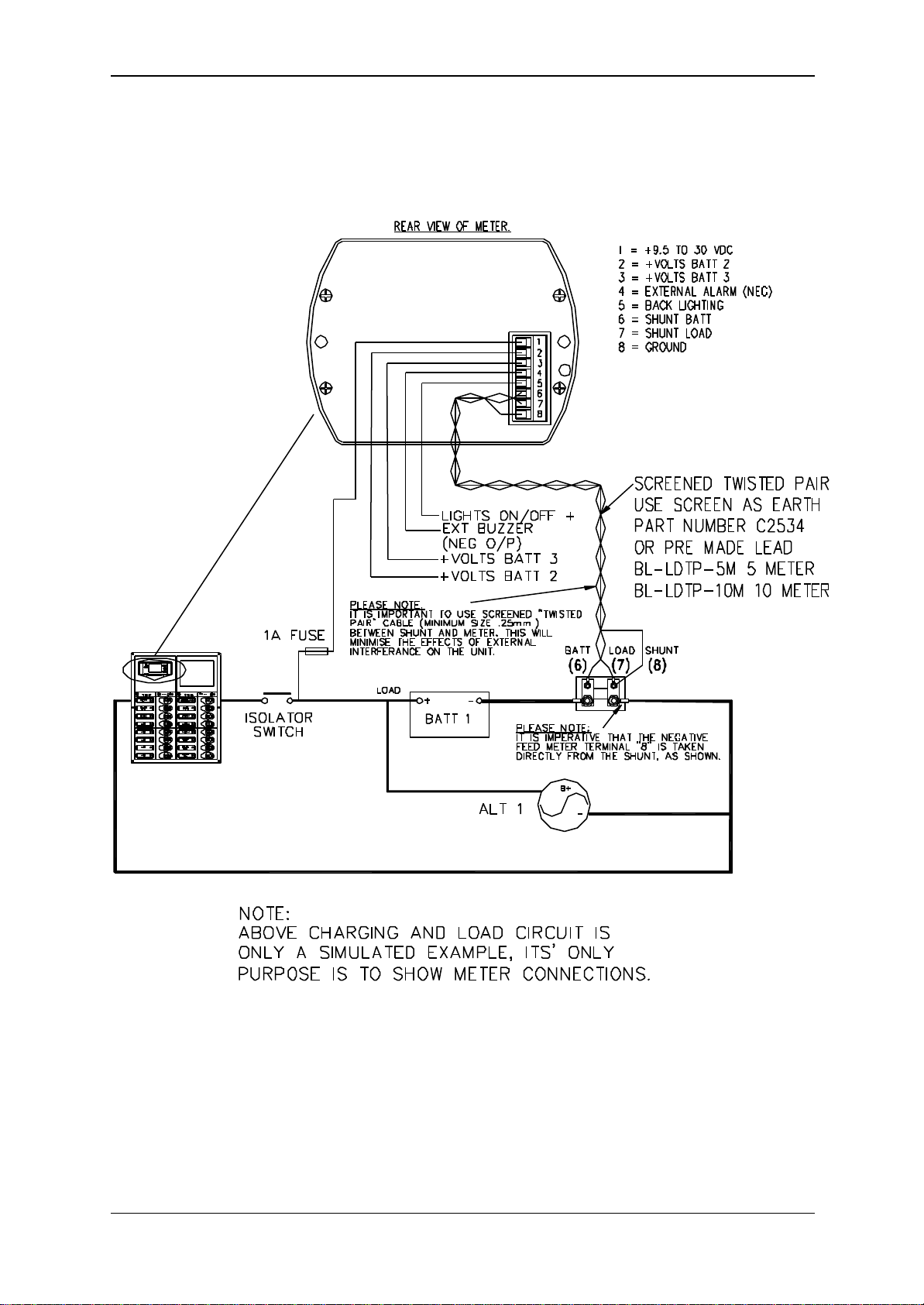

5Plug Information
1. POWER SUPPLY / BATTERY BANK 1
+10 to +35V DCsupply from battery bank 1 through a 1A fuse (for meter protection).
2. BATTERY BANK 2
+10 to +35 DC Volts from Battery bank 2 through a 1A fuse.
3. BATTERY BANK 3 OR POSITIVE FEED FROM BILGE PUMP
+10 to +35 DC Volts from Battery bank 3 through a 1A fuse.
OR
Positive feed from pump side of the bilge pump float switch.
4. EXTERNAL ALARM
Can be wired to an external alarm (negative signal).
5. BACK LIGHTING
Can be connected to a +10V to +35V DC supply to bring the back lighting on constantly.
6. SHUNT BATTERY
One core of Screened twisted pair to the battery side of the shunt.
7. SHUNT LOAD
The other core of Screened twisted pair to the load side of the shunt.
8. GROUND
Use the screen of the twisted pair to go back to the load side of the shunt.
NOTE: If inputs 2 and/or 3 are not being used then low volts alarm needs to be brought down to zero, or
inputs 2 and/or 3 can be looped into input 1.

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 9
Date: 12/05/05
6Operations
Apply Power
Power-up screen will show for 5 seconds
After 5 seconds
First screen shows the Supply Battery Volts.
Press button V
The second screen shows 2nd Battery volts.
Press button V again (3RD position as volt monitor)
The third screen shows the 3rd battery volts.
Press button V again (3RD position as bilge monitor)
The third screen shows the bilge monitoring
information.
§In bilge monitor function press and hold “C” to
reset the monitor back to zero.
To exit Bilge monitoring mode and resume battery
monitoring press “V” to return to supply battery volts.
Press button A
This screen shows either charging
OR discharging Amps.
Press button C
This screen shows Capacity Remaining in
Amp Hours. This will count down when
Discharging. And count up whenCharging.
Press button C again while viewing Capacity
This screen will display the remaining
Amp hours in percentage.
Alarm Enabled
When alarms are enabled in the monitor
setup the alarm symbol will display as shown.
To permanently mute an alarm
Press the A button for 2 seconds, the display
will show the mute symbol as shown, repeat to
reactivate the alarm.

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 10
Date: 12/05/05
7Factory settings
The 600-DCM3.2 is factory preset with the following settings:
§Battery Capacity 220AH
§Charge Efficiency 85%
§High Volts Alarm 15.00V
§Low Amp Hours 100AH
§Low Volts Alarm 11.00V
§Peukert’s Exponent 1.25
§Reset capacity 5 amps
Amp Hours display is battery capacity remaining
Peukert’s Discharge Rates Calculation
This is an exponent, which changes the discharge current to an effective discharge related to battery capacity.
Most marine batteries are Capacity rated at the 20-hour rate. Ie: A battery discharged for 20 hours to a terminal
voltage of 10.5v = Amp hours.
C = A x T20 C = 5 x 20 = 100 Amp Hours.
C = Battery capacity A = Amps discharge T20 = Time20 hours
Peukert’s Equation An x T = C
C = is battery capacity at 20hrs discharge
A = is discharge current in Amps
T = is discharge time in hours
n = is related to battery construction & is relatively constant for any given battery with in a similar discharge
time.
Exponent “n” can be calculated for any given battery bank by comparing two discharge cycles.
First fully charge battery bank from shore power/genset & discharge at 50% of expected average load (Note
time & amps) to 10.5volt terminal voltage (12v system). Recharge fully & discharge at 150% of expected
average load. Use the following equation.
n = Exponent
t1 = The hours of first discharge at amps A 1
t2 = The hours of 2nd discharge at amps A 2
Example: 8G4D 180A/Hr
Discharge 1 = 24 hours @ 7.8 Amps
Discharge 2 = 8 hours @ 20.7 Amps
Program this exponent in toPeukerts.
Log t2 - Log t1
Log A1 - Log A2 Log 8 - Log 24 Log 7.8 - Log 20.7 0.9 – 1.38 0.89 – 1.32 0.48 0.43 = 1.1
n =
Log t2 - Log t1
Log A1 - Log A2
n =

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 11
Date: 12/05/05
NB: 0.01 change toPeukerts can make a reasonable change to calculated discharge. Alter in small steps.
For example, 100 Amps for 1 hour = 100Amp hours. Using Peukert’s exponent of 1.25,An x T, 1001.25*1=316
Amp hours. A 25% exponent change makes 316% change.
Calculating exponent “n” from discharge cycles is the only way to achieve an accurate discharge exponent.
This meter comes with a factory set exponent of 1.25, which is a “rough average for deep cycle flooded lead
acid.
If you do not wish to calculate “n” use the tables below to select a typical “n” for your battery type.
Model Volts 20 Hr rating "n"
8GGC 6180 1.14
8GU1 12 43 1.20
8GU24 12 70 1.13
8GU27 12 86 1.12
8GU30H 12 95 1.12
84D 12 180 1.11
8G8D 12 225 1.10
Model Volts 20 Hr rating "n"
R220 6225 1.24
L16 6350 1.28
US105 12 85 1.23
US130 12 130 1.24
US240 12 216 1.17
VALVE REGULATED GELLED BATTERIES
ENDURANT (US BATTERIES) FLOODED BATTERIES
Type Absorb Amps Float Amps A/Hrs (NZ)
L16 14.47 11.00 13.50 3.00 350
R220 14.53 6.60 13.50 3.10 220
US105 14.60 3.00 13.60 1.60 90
148/17 14.58 3.30 13.60 1.60 90
US130 14.50 3.00 13.80 2.00 115
US240 14.40 7.40 13.80 4.40 210
Full charge analysis sheet
"A/Hrs NZ" -means estimated A/Hrs in NZ conditions

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 12
Date: 12/05/05
If after some time or use (6-12months) the accuracy seems to be degrading (possibly due to battery condition,
temperature, age – charging regime) it will be time to recalculate “n”.
Amp hour capacity reset
Amp Hour Capacity reading is reset to Max Battery Capacity when the following conditions occur.
The Battery Voltage is greater than 13.5V (factory default).
The Charge Current is less than 5A (factory default).
See note (a)
Conditions 1 & 2 must be met for 5 minutes.
(a). This should be changed to 4% of amp/hour rating of battery bank ie 220amp/hour bank = 220*4% = 8.8 use
9amps
Charge efficiency
Charging Efficiency is set at 85% (factory default) ie the battery will only accept 85% of the charge current.
This is a difficult parameter to set as after 75% recharge the efficiency will fall off to 0% at full charge. The
overall efficiency will change with temperature, battery condition, charging current/voltage and discharge level.
Trial and error with general usage is the only way to find this efficiency.
Actual capacity
Actual capacity is the present state of charge of Battery bank 1 when the monitor is installed/set up.
Voltage calibration
Factory set, this should not need to be changed.
Amps Calibration
Factory set, Amps Calibration if necessary should be performed under maximum possible load after zeroing
amps at no load.
Reset capacity
Reset capacity provides the option to reset the capacity to the programmed value (YES) or to leave it at the
current monitored level (NO)
Bilge monitor function
The bilge monitor function will be automatically set up when the “Bilge monitor” label is selected for Battery 3
label.
While in bilge monitoring mode, the “C” button to reset the bilge monitor.
To exit the bilge monitor and resume battery monitoring, press the “V” button to return to V1 “Source voltage”.

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 13
Date: 12/05/05

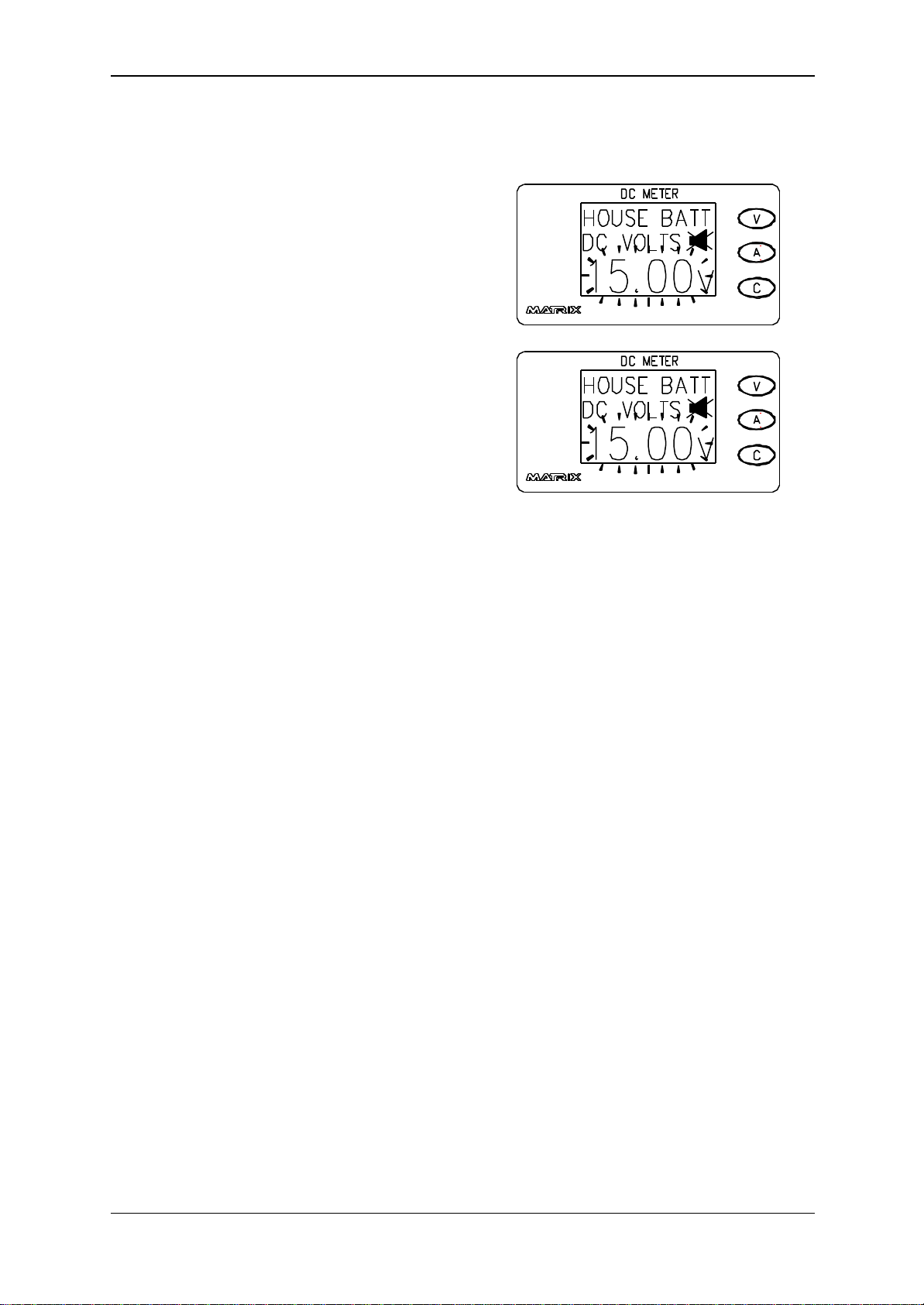

When an alarm condition occurs, the alarm will sound and
the corresponding display will flash.
To permanently mute any alarm, press the A button for 2
seconds. The display will show the alarm mute symbol. The
alarm mute mode will remain set even when the power is
removed.
8Alarms and Alarms mute

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 14
Date: 12/05/05
POWER UP
DISPLAY
PROGRAMMI
NG MODE
EXIT
ZERO METER
DEFAULT
RESET
EXIT
RESET
SETUP
SET ALARM
BATT 1
LABEL
BATT 2
LABEL
BATT 3
LABEL
HI VOLT 1
LO VOLT 1
HI VOLT 2
LOW VOLT 2
HI VOLT 3
LOW VOLT 3
LO AMP
HOUR
MAX CAP
ACTUAL CAP
RESET VOLT
RESET AMPS
CHARGE
EFFICIENCY
PEUKERTS
EXPONENT
V1 CAL
V2 CAL
V3 CAL
HI AMPS CAL
LO AMPS CAL
RESET
CAPACITY
END
9Programming Menu Flow Diagram

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 15
Date: 12/05/05
To enter programming mode
Hold buttons V & C down simultaneously for approx. 3
seconds the display will read
EXIT
RESET
SETUP
Press ‘V’ to exit programming mode.
Press ‘A’ to enter amps zero and reset mode.
Press ‘C’ to enter Setup mode.
Amps Zero (figure 2)
While in programming mode screen (figure 1):
Press ‘A’ to enter amps zero and reset mode
Press ‘V’ to exit.
To set amps zero point press button A.
“AMPS ZERO” will flash for approx 2-3 seconds, zero point
has now been set. The screen will return to the programming
mode screen (figure 1)
Factory Reset mode (figure 2)
While in programming mode screen (figure 1)
Press ‘A’ to enter “amps zero” and “reset” mode screen
(figure 2)
Press ‘V’ to exit.
To reset the unit back to factory settings press and hold
button C until “RESET” begins to flash, release button C,
The display will continue to flash for approx 2-3 seconds.
Unit is now reset to factory settings. The screen will return
to the programming mode screen (figure 1)
10 Setup and Programming
Figure 1
Figure 2

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 16
Date: 12/05/05
Use Up (V) / Down (A) buttons to change value then press C to proceed to the next set up
screen.

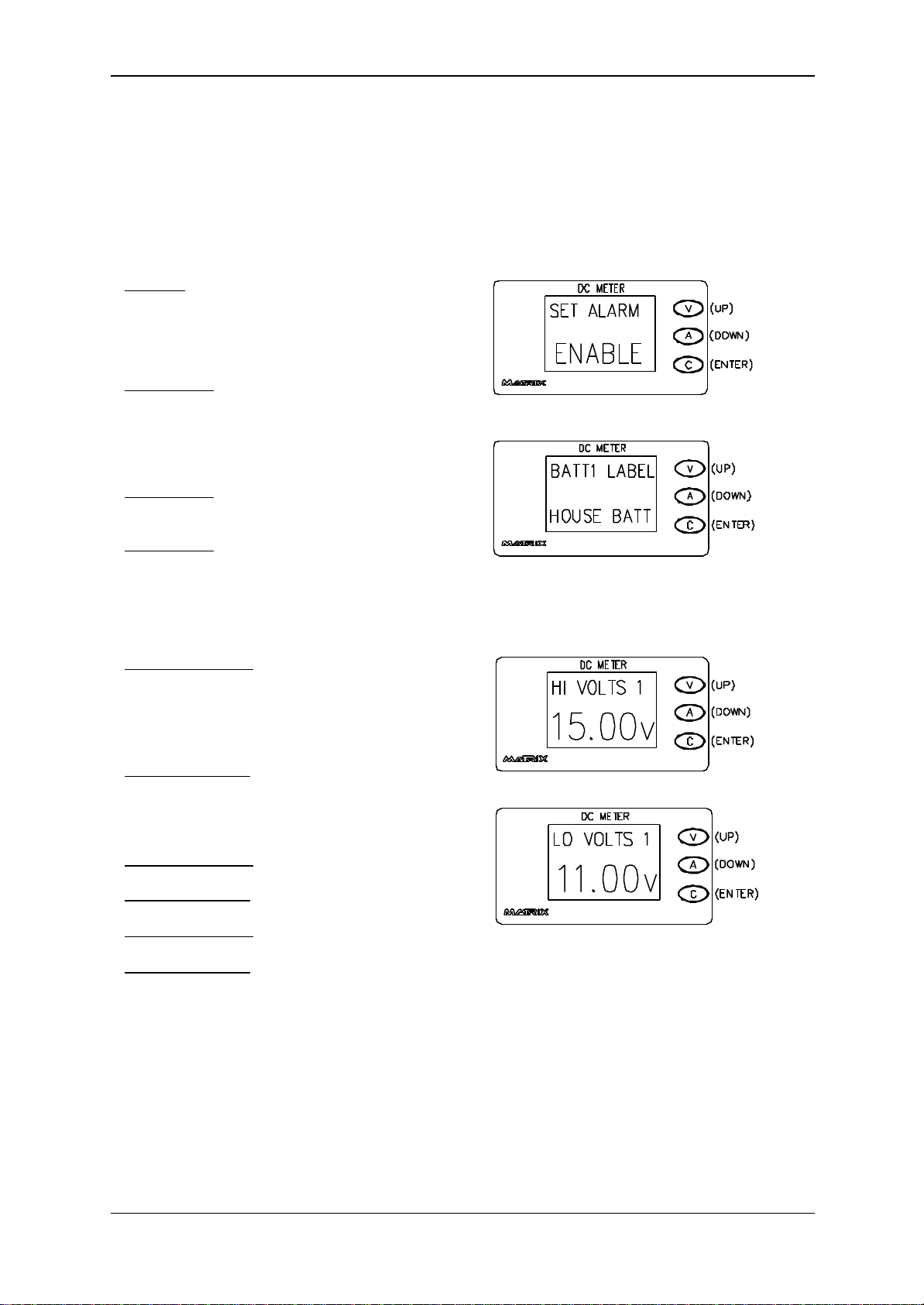

Set Alarm
Enable/Disable all alarms
Default: Enabled
Battery 1 label
Label battery bank 1 options are
House Batt, House 1, House 2,
Start Batt, Stbd Start, Port Start,
Aux Batt, Radio, Genset
Battery 2 label
As per Battery 1 label
Battery 3 label
As per Battery 1 label except includes
“Bilge monitor”
Refer to page 9
High voltage 1 alarm
Default: 15.0 Volts
Up/Dn to select value, 0.1V steps
Range: 10.0-32.0 Volts
Low voltage 1 alarm
Default: 11.0 Volts
Up/Dn to select value, 0.1V steps
Range: 0.0-32.0 Volts
High voltage 2 alarm
As per High voltage 1
Low voltage 2 alarm
As per Low voltage 1
High voltage 3 alarm
As per High voltage 1
Low voltage 3 alarm
As per Low voltage 1
11 Setup Mode

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 17
Date: 12/05/05

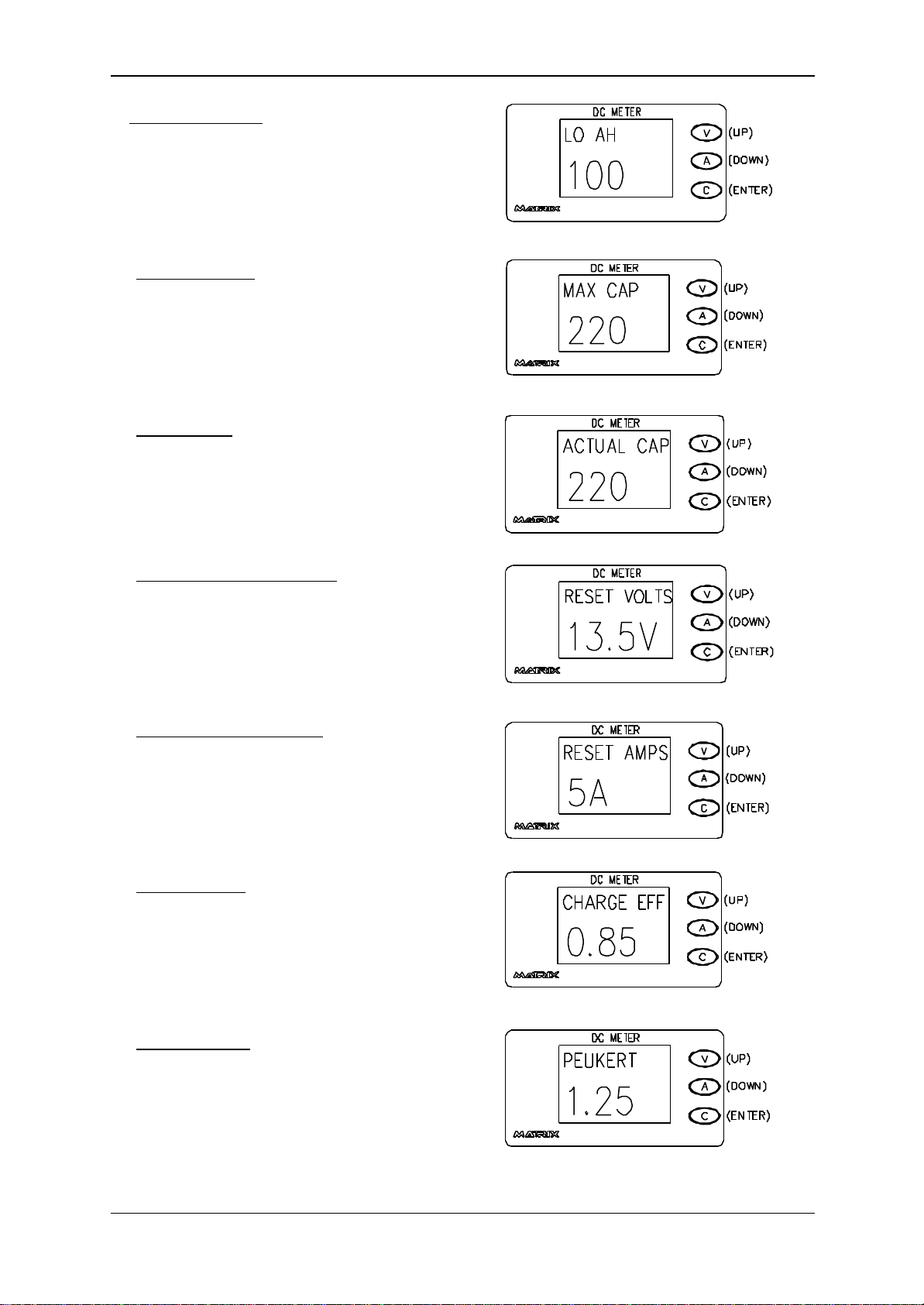

Low amp hours alarm
Default: 100 Amp Hours
Up/Dn to select value, 10AH steps
Range: 0-1000AH
Maximum capacity
Default: 220 Amp Hours
Up/Dn to select value, 10AH steps
Range: 60-3000AH
Actual capacity
Up/Dn to select value, 1AH steps
Range: 0-3000AH
Refer to page 9
Amp hour capacity reset voltage
Default: 13.5V
Up/Dn to select value, 0.1V steps
Range: 10.0-30.0V
Refer to page 9
Amp hour capacity reset amps
Default: 5A
Up/Dn to select value, 1A steps
Range: 0-50AH
Refer to page 9
Charge efficiency
Default: 85% flooded lead acid
Use 90% for Valve regulated gel
Up/Dn to select value, 0.01AH steps
Range: 0-1.0 (multiple by 100%)
Refer to page 9
Peukerts exponent
Default: 1.25
Up/Dn to select value, 0.01 steps
Range: 1.00-1.50
Refer to page 7

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 18
Date: 12/05/05
Voltage 1 calibration
Adjust this setting to actual battery
Voltage. To calibrate
Up/Dn to select value, 0.01V steps
Range: 0-32V
Refer to page 9
Voltage 2 calibration
As per Voltage calibration 1
Voltage 3 calibration
As per Voltage calibration 1
Low and High Amp calibration
Note: The load must be applied before entering this
screen.
Adjust this reading to correspond with the known load
that is applied to the system.
For Low Amp Cal, the known load must be in the range
+/- 0-50A. For High Amp Cal the known load must be
within the range +/- 50-450A.
Note: You only need to do one range of calibration.
Up/Dn to select value.
Range: +/-450A (Max)
Refer to page 9
Reset Capacity
NO
YES
Refer to page 12

Copyright © BEP Marine Limited, All rights reserved
Product version: DCM3.2 Page 19
Date: 12/05/05
12 Frequently Asked Questions
Q: When calibrating the amps load, the display cannot be changed.
A: You will need to do a factory Reset, Amps zero and then apply a load of more than 10A before you
enter the amps calibration screen in the set up menu.
Q: Screen displays: (DC Amps discharge over range)
A1: This could be normal because you have exceeded the meter rating of 225A
A2: You will need to do a factory reset then apply a load of more than 10A, before you enter the amps
calibration screen in the set up menu.
Q: With no load, there is still anamps reading.
A: The Zero has drifted, you will need to carry out a Zero reset, with no load on the system.
Q: The A/Hrs are not what I would expect.
A1: The batteries could be sulfated.
A2: Re-calculate Peukert's exponent as described on page 7 & 8.
Q: The current display is unstable.
A: Check that a screened twisted pair cable has been used from the shunt to the meter and that it is
installed correctly.
Q: Meter has no amps reading.
A: Check screen wiring on shunt cable; screen from load side (not battery side) of shunt to terminal 8 at
the meter.
Q: “Reset all” is on the display
A: If “reset all” comes up on the screen at any time, the meter has detected a fault. Disconnect power from
the unit and then reconnect. “If reset all” remains on the screen please contact your local BEP agent.
