Owner's Manual
AC/DC Clamp Meter
Model No.
82369
© Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
www.craftsman.com 070113
Safety
Operation
Maintenance
Español
CAUTION: Read, understand and
follow Safety Rules and Operating
Instructions in this manual before
using this product.

2
TABLE OF CONTENTS
Warranty Page 3
Safety Instructions 4
Safety Symbols 5
Control and Jacks 6
Symbols and Annunciators 6
Specifications 7
Operating Instructions 11
AC Current Measurements 11
DC Current Measurements 11
AC Voltage Measurements 12
DC Voltage Measurements 12
Resistance Measurements 13

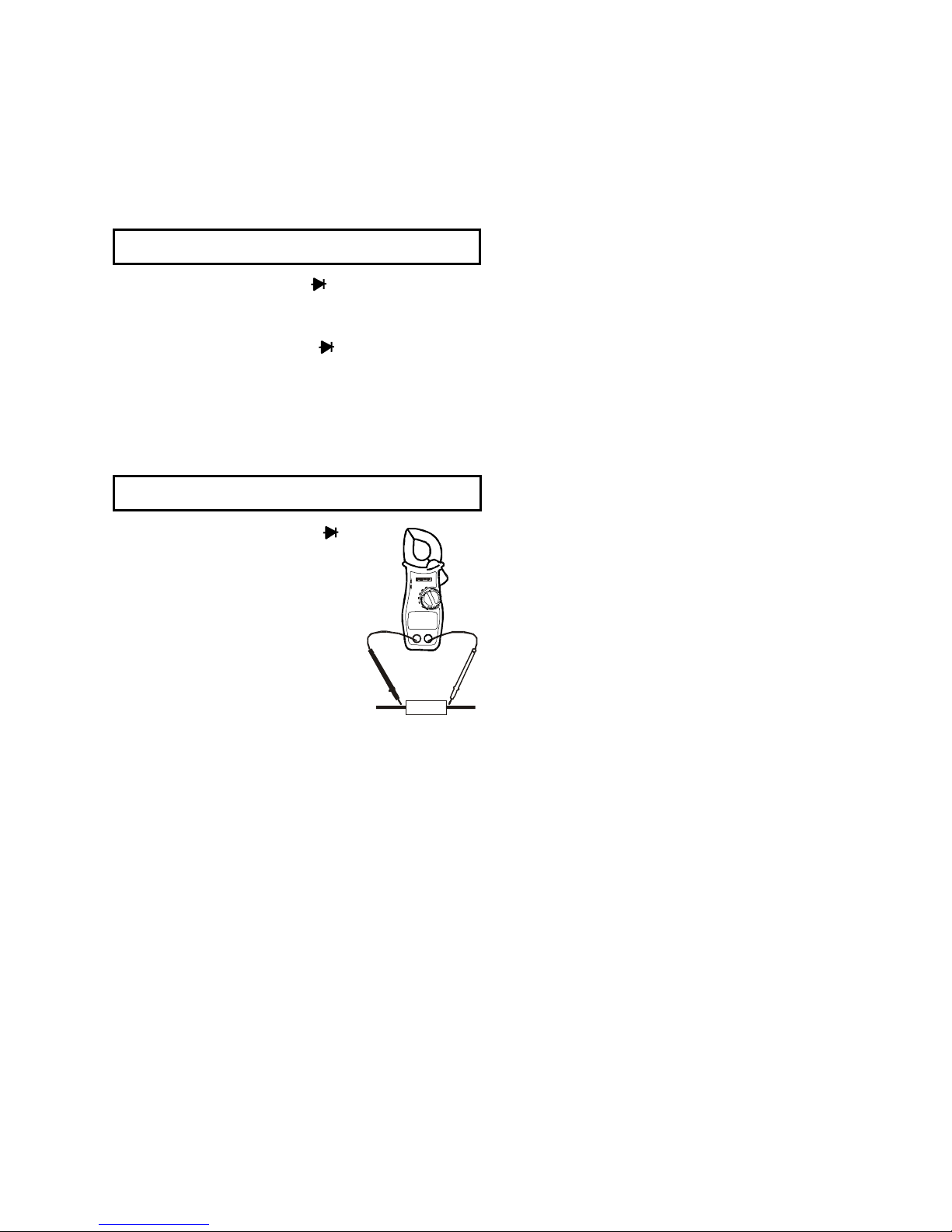

Continuity Measurements 13
Diode Testing 14
Capacitance Measurements 14
Frequency/Duty Cycle Measurements 15
Temperature Measurements 15
Auto Power Off 16
Auto/Manual Ranging 16
Data Hold 16
Backlight 16
ZERO function 16
Maintenance 17
Battery Replacement 17
Troubleshooting 18
Service and Parts 18

3
ONE YEAR FULL WARRANTY
ONE YEAR FULL WARRANTY ON CRAFTSMAN AC/DC CLAMP
METER
If this CRAFTSMAN Clamp Meter fails to give complete satisfaction within
one year from the date of purchase, RETURN IT TO THE NEAREST
SEARS STORE OR OTHER CRAFTSMAN OUTLET IN THE UNITED
STATES, and Sears will replace it, free of charge.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
For Customer Assistance Call 9am - 5pm (ET)
Monday through Friday 1-888-326-1006
WARNING: USE EXTREME CAUTION IN THE USE OF THIS
DEVICE. Improper use of this device can result in injury or
death. Follow all safeguards suggested in this manual in addition
to the normal safety precautions used in working with electrical
circuits. DO NOT service this device if you are not qualified to do
so.

4
SAFETY INSTRUCTIONS
This meter has been designed for safe use, but must be operated
with caution. The rules listed below must be carefully followed for
safe operation.
1. NEVER apply voltage or current to the meter that exceeds the
specified maximum:
Input Limits
Function
Maximum Input
V DC, V AC, Frequency, Duty Cycle
600V DC/AC
A AC, A DC
400A AC
Resistance
250V DC/AC
Capacitance
250V DC/AC
Temperature
60V DC/, 24V AC
Diode test
250V DC/AC
2. USE EXTREME CAUTION when working with high voltages
3. DO NOT measure voltage if the voltage on the "COM" input
jack exceeds 240V above earth ground
4. DO NOT measure current of circuits whose voltage is greater
than 240V above earth ground
5. NEVER connect the meter leads across a voltage source
while the function switch is in the resistance or diode mode.
Doing so can damage the meter
6. ALWAYS turn off the power and disconnect the test leads
before opening the doors to replace the fuse or batteries
7. NEVER operate the meter unless the back cover is in place
and fastened securely

5
SAFETY SYMBOLS
This symbol adjacent to another symbol,
terminal or operating device indicates that the
operator must refer to an explanation in the
Operating Instructions to avoid personal injury
or damage to the meter
This WARNING symbol indicates a potentially
hazardous situation, which if not avoided, could
result in death or serious injury
This CAUTION symbol indicates a potentially
hazardous situation, which if not avoided, may
result in damage to the meter
This symbol advises the user that the
terminal(s) so marked must not be connected to
a circuit point at which the voltage, with respect
to earth ground, exceeds (in this case) 600
VAC or VDC
This symbol adjacent to one or more terminals
identifies them as being associated with ranges
that may, in normal use, be subjected to
particularly hazardous voltages. For maximum
safety, the meter and its test leads should not
be handled when these terminals are energized
This symbol indicates that a device is protected
throughout by double insulation or reinforced
insulation
WARNING
CAUTION
MAX
600V

6

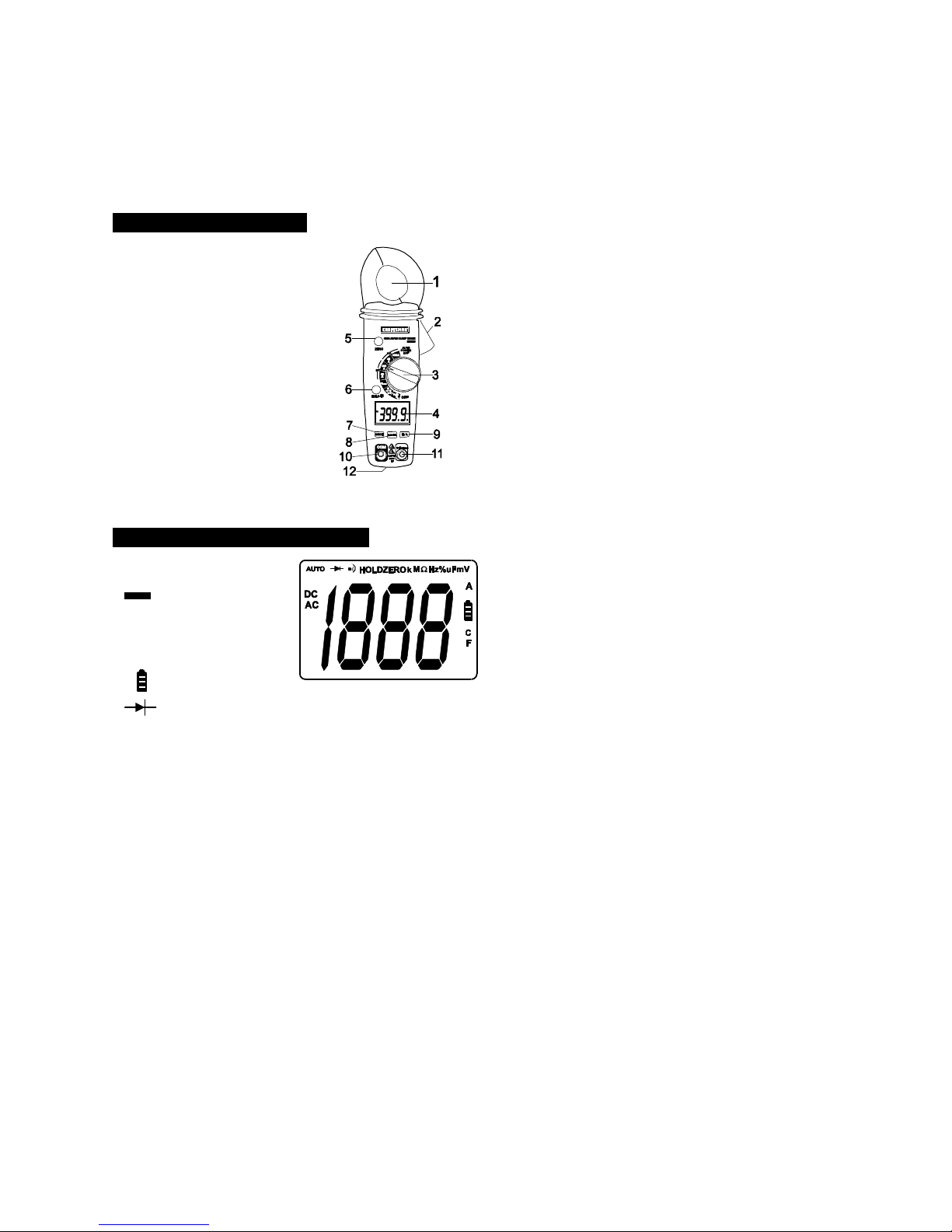

CONTROLS AND JACKS
1. Current clamp
2. Clamp Opening Trigger
3. Rotary Function Switch
4. LCD display
5. ZERO button
6. Data Hold and Backlight button
7. Mode select button
8. Range select button
9. Hz/% Duty Cycle button
10. COM input jack
11. V/Ω/Temp jack
12. Battery Cover (rear)
SYMBOLS AND ANNUNCIATORS
AC AC (alternating current)
DC DC (direct currrent)
Minus sign
AUTO AutoRange mode
ZERO ZERO mode
•))) Audible Continuity
HOLD Data Hold mode
Low Battery icon
Diode test mode M Mega
m milli ΩOhms
VVolts °F Degrees Fahrenheit
AAmps °C Degrees Centigrade

7
SPECIFICATIONS
Function
Range
Accuracy
DC
Current
40.00
ADC
0-20.00 ADC
± (2.5% reading + 6
digits)
20.00-40.00
ADC
± (3% reading + 6
digits)
400.0
ADC
0-300.0 ADC
± (2.5% reading + 6
digits)
300.0-400.0
ADC
± (3.5% reading + 6
digits)
AC Current
40.00
AAC
0-20.00 AAC
± (3% reading + 10
digits)
20.00-40.00
AAC
± (5% reading + 10
digits)
400.0
AAC
0-300.0 AAC
± (3% reading + 10
digits)
300.0-400.0
AAC
± (5% reading + 10
digits)
DC
Voltage
400.0mV
± (0.8% reading + 3
digits)
4.000V
± (1.5% reading + 3
digits)
40.00V
400.0V
600V
± (2.0% reading + 3
digits)
AC
Voltage
400.0mV
± (1% reading + 10
digits)
4.000V
± (2% reading + 5
digits)
40.00V
400.0V
600V
± (2% reading + 5
digits)

8
Resistance
400.0
± (1.0% reading + 4 digits)
4.000k
± (1.5% reading + 2 digits)
40.00k
400.0k
4.000k
± (2.5% reading + 3 digits)
40.00M
± (3.5% reading + 5 digits)
Capacitance
40.00nF
± (5% reading + 30 digits)
400.0nF
± (3.0% reading + 5 digits)
4.000µF
± (3.5% reading + 5 digits)
40.00µF
100.0µF
± (5% reading + 5 digits)
Frequency
5.000Hz
± (1.5% reading + 5 digits)
50.00Hz
± (1.2% reading + 2 digits)
Sensitivity: 5~5KHz:
10Vrms min.
5KHz~150KHz: 40Vrms
min.
500.0Hz
5.000KHz
50.00KHz
150.0KHz
Duty Cycle
0.5% to 99.0%
± (1.2% reading + 2 digits)
Pulse Width: 100µs-100ms, Frequency: 5Hz to
150KHz
Temperature
-50.0 to
400.0°C
-50.0 to -
20.0°C
± 7°C
-20.0 to
400.0°C
± (3% reading + 5 °C)
400 to
1000°C
400 to
1000°C
-58.0 to
400.0°F
-58.0 to
0°F
± 14°F
0 to
400.0°F
± (2.5% reading + 6 digits)
400 to
1832°F
400 to
1832°F
± (3% reading + 7°F)
NOTE: Accuracy specifications consist of two elements:
(% reading) This is the accuracy of the measurement circuit.
(+ digits) This is the accuracy of the analog to digital converter
NOTE: Accuracy is stated at 65oF to 83oF (18oC to 28oC) and less
than 70% RH

9
Clamp size Opening 0.9" (23mm) approx.
Diode Test Open circuit voltage <1.5V DC;
Test current 0.3mA (typical)
Continuity Check Audible signal <150;
Test current < 1mA
Temperature sensor Type K thermocouple
Input Impedance 7.8M(VDC and VAC)
Display 3-3/4 digits (4000 counts) LCD
AC V bandwidth 50Hz to 400Hz
AC A bandwidth 50/60Hz
AC response Averaging
Operating Temperature 41 to 104oF (5 to 40oC)
Storage Temperature -4 to 140oF (-20 to 60oC)
Operating Humidity Max 80% up to 87ºF (31ºC) decreasing
linearly to 50% at 113ºF (45ºC)
Storage Humidity <80%
Operating Altitude 6560 ft. (2000 meters) maximum
Over voltage Category III 600V
Battery (2) 1.5V AAA Batteries
Auto OFF After 30 minutes of continuous use
Dimensions/Weight 7.87x1.97x1.38" (200x50x35mm) 0.44
lbs. (200g)
Safety This meter is intended for indoor use
and protected, against the users, by
double insulation per EN61010-1 and
IEC61010-1 2nd Edition (2001) to CAT
III 600V; Pollution Degree 2. The meter
also meets UL 61010-1, Second Edition
(2004), CAN/CSA C22.2 No. 61010-1,
Second Edition (2004), and UL 61010B-
2-031, First Edition (2003)

10
UL LISTED
The UL mark does not indicate that this product has been
evaluated for the accuracy of its readings
PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY
OVERVOLTAGE CATEGORY I
Equipment of OVERVOLTAGE CATEGORY I is equipment for
connection to circuits in which measures are taken to limit the
transient overvoltages to an appropriate low level. Note –
Examples include protected electronic circuits.
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy-
consuming equipment to be supplied from the fixed installation.
Note –Examples include household, office, and laboratory
appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in
fixed installations.
Note –Examples include switches in the fixed installation and
some equipment for industrial use with permanent connection to
the fixed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the
origin of the installation.
Note –Examples include electricity meters and primary over-
current protection equipment
