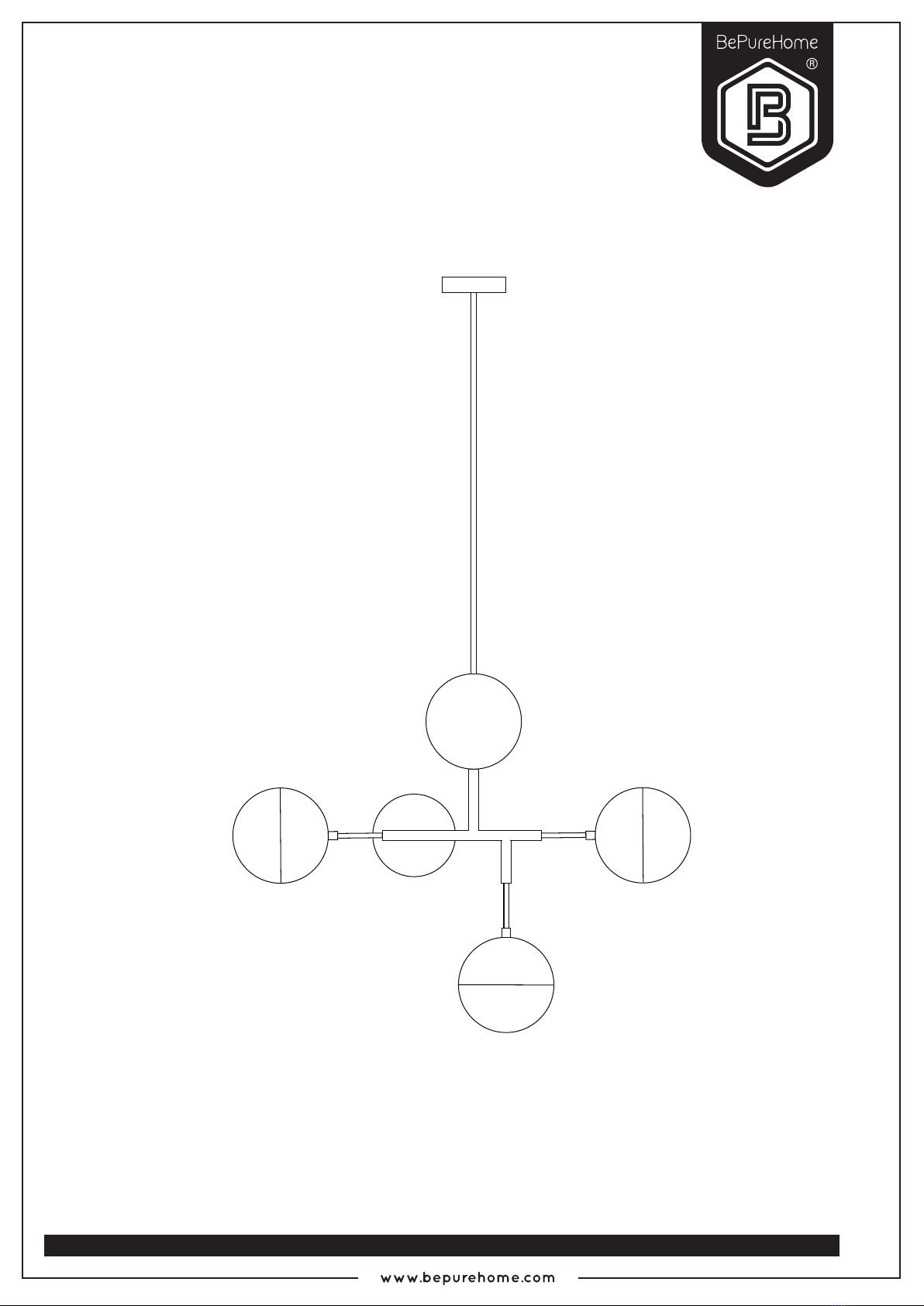

BePureHome GLOBULAR User manual

GLOBULAR
hanging lamp
De Eekhoorn Dutch Furniture | Jan Tinbergenweg 1 | 1689 ZV Hoorn | The Netherlands
Bewaar deze handleiding • Please save this manual • Bitte bewahren Sie diese Montageanleitung • Merci de garder la notice de montage
GLOBULAR
hanging lamp
De Eekhoorn Dutch Furniture | Jan Tinbergenweg 1 | 1689 ZV Hoorn | The Netherlands
Bewaar deze handleiding • Please save this manual • Bitte bewahren Sie diese Montageanleitung • Merci de garder la notice de montage

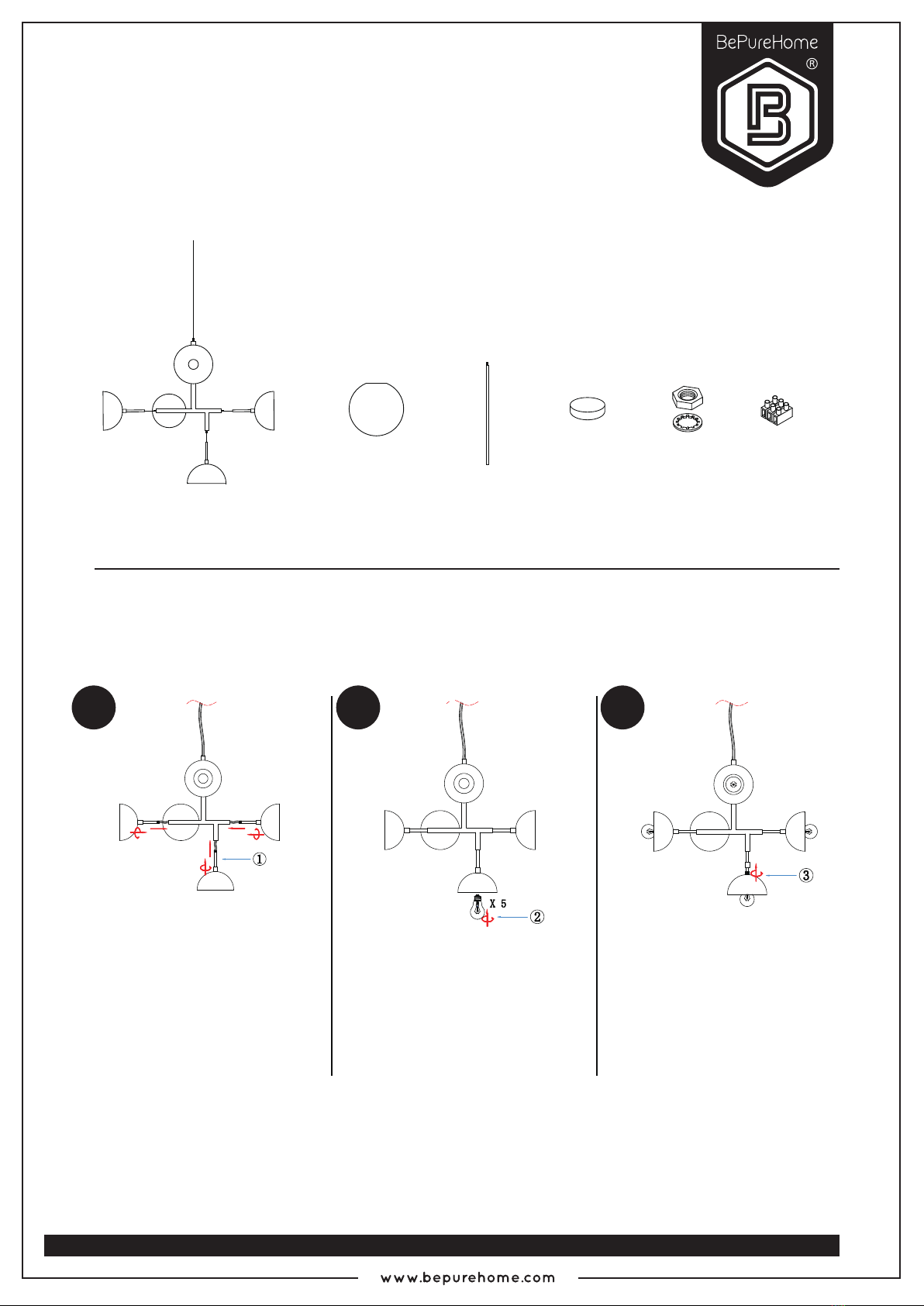

1.Take out the whole lamp from the
carton, then push one of the lamp
holder tube towards the direction
of the lamp body according to the
picture, plug the connecting wire
into the corresponding screw thread
tube at the same time. Finally, screw
the two tubes tightly into each other.
Tighten the 5 light tubes according
to this step.
2.Install the bulbs on all 5 lights 3.Unscrew the nut at the top of the
metal lampshade

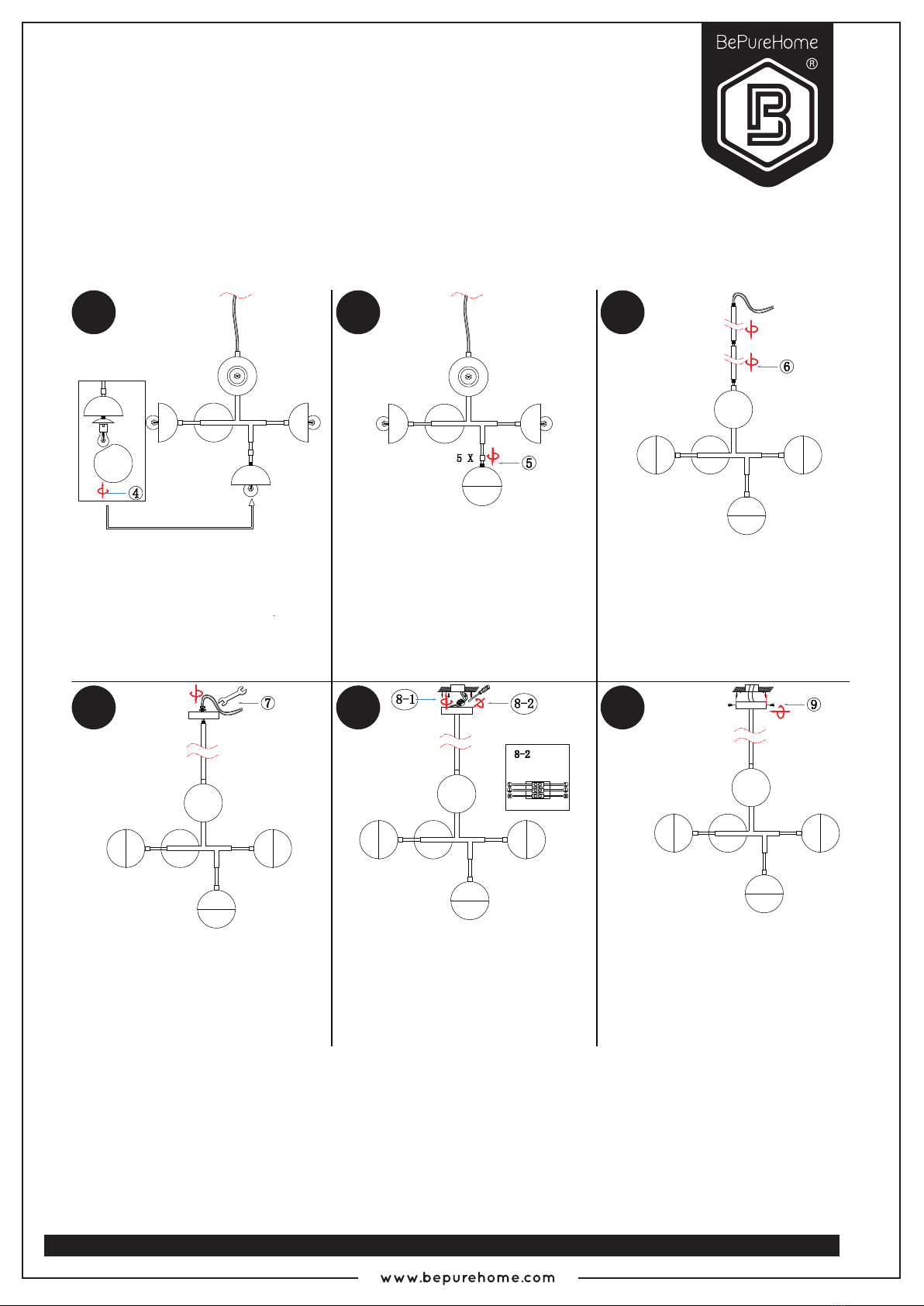

4.Lift up the metal lampshade, take a
glass lampshade and wrap it around
the white plastic sheets. Glass
lampshade needs inclined angle, put
into from the break of white plastic
sheets, it can install glass lampshade
completely on lampholder after
rotating one circle
5.Complete the installation of the glass
lampshade, put down the metal
lampshade and the glass ball
completely fit, and screw down the
nut to fix the whole lampshade.
Follow steps 2-5 to complete the
assembly of all 5 glass lampshades
6.Take 2pcs L:500mm X Dia.11.5mm
tubes and connect them to the lamp
body through the top wire.
Tighten and fix the lamp tube
8.Switch off the mains supply; Drill 2
holes on the ceiling where the fixture
is located; Put the expansion plug in
hole and the silver metal hanging
bracket on the ceiling; Connect the
wire to the white terminal, connect the
wire to the ceiling.
7.Take out the screw on the tube, insert
the ceiling canopy into the wire, and
then install the screw and gasket,
tighten and fix.
9. Fix the whole lamp and the ceiling
canopy on the hanging bracket, and
tighten the screws to complete the
installation.
1/4

GLOBULAR
hanging lamp
De Eekhoorn Dutch Furniture | Jan Tinbergenweg 1 | 1689 ZV Hoorn | The Netherlands
Bewaar deze handleiding • Please save this manual • Bitte bewahren Sie diese Montageanleitung • Merci de garder la notice de montage
ATTENTION: READ THE MANUAL CAREFULLY BEFORE INSTALLING THE LAMP
NL SPECIFICATIES
Spanning en frequentie: 230 V ~ 50 Hz
Vermogen: E 27, Max.40W
ATTENTIE
• Schakel de netstroom uit.
• Ondersteun de lamp tijdens montage.
• Draag handschoenen tijdens de installatie om krassen
op het lampoppervlak te voorkomen.
• Installatie niet op een vochtig of beschadigd plafond.
•
overeenkomen met het type hierboven vermeld.
• Schakel de stroom uit en laat de lamp afkoelen voordat
u de lamp vervangt.
• Bij beschadigingen aan de lamp of kabel, raadpleeg een ervaren
elektricien of de fabrikant.
EN SPECIFICATIONS
Voltage and frequency: 220-230 V ~ 50 Hz
Power consumption: E 27, Max.40W
ATTENTION
•
• Support the lamp during installation.
• Wear gloves during installation to avoid scratching the
lamp surface.
• Do not install on damp or damaged ceilings.
•
• match the type listed above.
•
replacing the lamp.
• If the lamp or cable is damaged, consult an experienced
electrician or the manufacturer.
DE SPEZIFIKATIONEN
Spannung und Frequenz: 230 V ~ 50 Hz
Leistung: E 27, Max.40W
ACHTUNG
• Schalten Sie die Netzspannung aus.
• Stützen Sie die Lampe bei der Installation ab.
• Tragen Sie bei der Installation Handschuhe, um Kratzer auf
• Nicht auf feuchten oder beschädigten Decken installieren.
•
• mit dem oben aufgeführten Typ übereinstimmen.
• Schalten Sie das Gerät aus und lassen Sie die Lampe abkühlen,
bevor Sie die Lampe austauschen.
• Wenn die Lampe oder das Kabel beschädigt ist, wenden Sie sich an
einen erfahrenen Elektriker oder an den Hersteller.
FR SPÉCIFICATIONS
Tension et fréquence : 230 V ~ 50 Hz
Puissance : E 27, Max.40W
ATTENTION
• Coupez l’alimentation électrique.
• Soutenez la lampe pendant l’installation.
• Portez des gants pendant l’installation pour éviter de rayer
la surface de la lampe.
• Ne pas installer sur des plafonds humides ou endommagés.
•
• correspondent au type énuméré ci-dessus.
• Mettez l’appareil hors tension et laissez la lampe refroidir
avant de la remplacer.
• Si la lampe ou le câble sont endommagés, consultez un
électricien expérimenté ou le fabricant.
