BERG RACER E GO KART BF Assembly instructions

3
IMPORTANT:
YOU MUST CHARGE THE BATTERY
FOR 10 HOURS BEFORE FIRST USE!
★ Charge the battery after each use.
★ Charge the battery at least once a month,
even if the car was not in use.
★ Do not charge for more than 12 hours.
★ Failure to charge the battery once a month
may result in a battery that will not accept a
charge.
Read this entire manual to ensure
proper assembly and safe operation
of the car.
WARNING:
CHOKING HAZARD: Small parts. Nor for children
under 3 years. Keep small children away when
assembling.
To reduce the risk of injury, adult supervision
is required.
The user must be 6+ years, max load is
50kg(110lbs)
★
★
★

4
★
SAFETY WARNING
The user must follow all safety rules and guidelines, or serious
injury or death may occur to the user.
★Always use common sense and safe practices when using the car.
★This product contains small parts that are for adult assembly
only. Keep small children away when assembling. Remove and
dispose of all protective material and plastic bags before
assembling.
★Riders must always wear a fitted helmet that complies with local
laws and regulations.
★Only sit on the seat in the car.
★Do not allow more than one rider.
★Do not overload the car.
★Do not pull the car with another vehicle or similar device.
★Keep body parts such as hands, legs, hair and clothing away
from moving parts. Moving parts can cause serious injury.
★Always wear shoes while in the car.
★Do not operate near streets or motor vehicles.
★Do not operate near drop-offs such as steps, steep inclines or
hills. Operate on relatively level ground.
★Do not operate near water, swimming pools or bodies of water.
★Do not operate in dangerous weather conditions such as rain or
snow.
★Do not operate near loose dirt, mud, sand or fine gravel.
★Do not operate near flammable vapors (gasoline, paint thinner,
acetone, etc.).
★Always operate the car in a safe, secure environment with adult
supervision.

5
WARNING: BATTERY SAFETY
★Battery posts, terminals and related accessories
contain lead and lead components.
★DO NOT open the battery.
★Contact exposure to battery leakage (lead acid) may
cause serious injury.
★Immediately contact your doctor if exposure occurs. If
the chemical is on the skin, flush immediately with
cool water for 15 minutes. If the chemical is
swallowed immediately give the person water or milk.
Do not give water or milk if the person is vomiting or
has decreased alertness. Do not induce vomiting.
★Tampering or modifying the electric circuit system may
cause shock, fire or explosion. It could permanently
damage the system. Keep the charger housing closed to
prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the car for the first time, the
battery must be charged for a full 10 hours (no more
than 12 hours).
WARNING: ADULT SUPERVISION REQUIRED
★Before using the car, the rider must understand the car
controls and safety issues.
★It is the responsibility of the adult to educate the child
and determine if the child is capable of understanding
the car controls.
★An adult must ALWAYS directly supervise the use of this
car.
★NEVER leave a child unsupervised in the car.

6

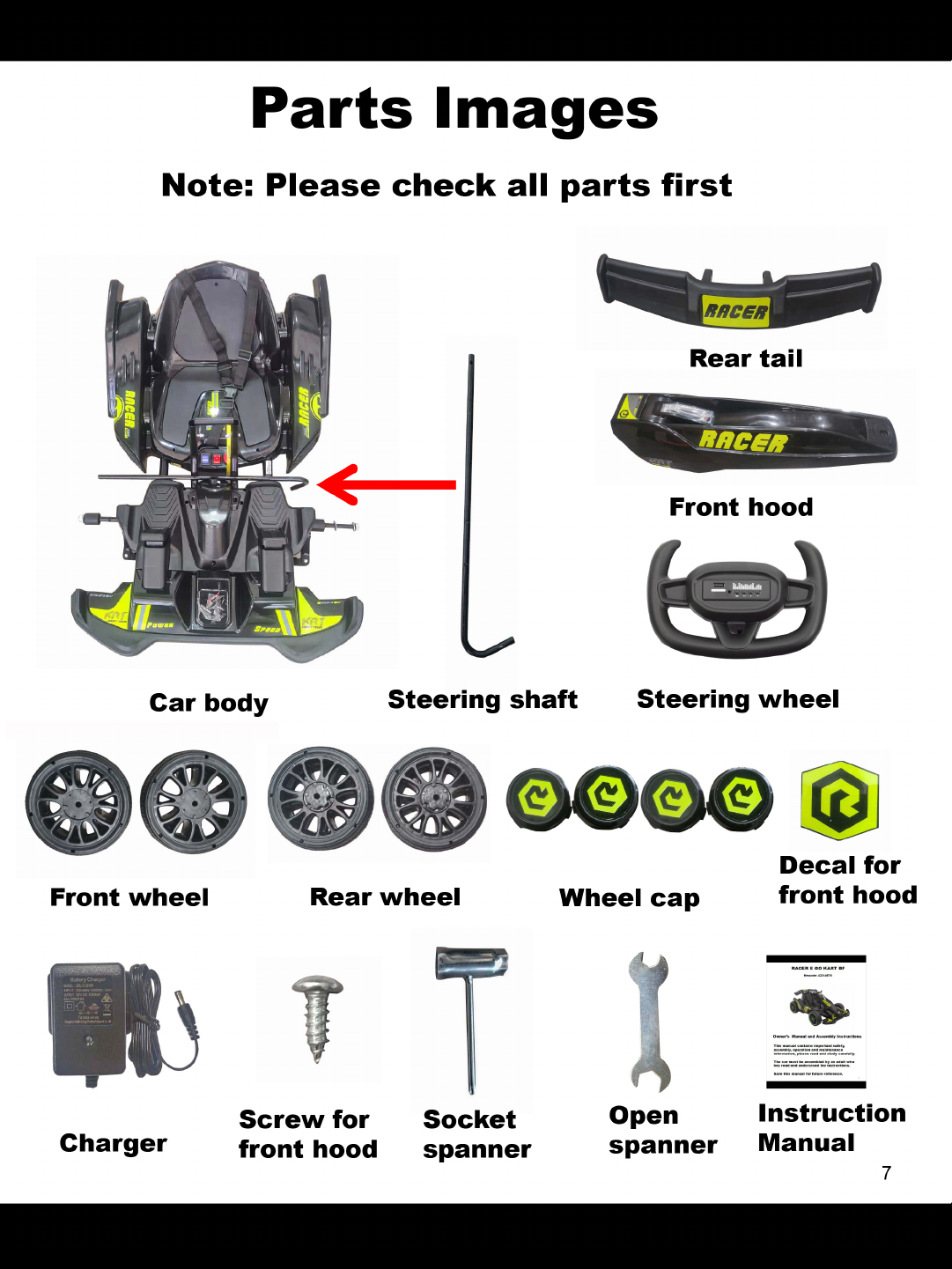

Parts List
#Description Quantity
1 Car body 1
2 Rear tail 1
3 Steering wheel 1
4 Rear wheel 2
5 Front wheel 2
6 Front hood 1
7 Steering shaft 1
8 Wheel cap 4
9 Decal of front hood 1
10 Screw for front hood 1
11 Socket spanner 1
12 Open spanner 1
13 Instruction Manual 1
Note: Please check parts list first

8
Prepare for Installing
Note: Remove the steering shaft before start installing.

9
Installing Front Wheels
1. Remove the washer and nut both ends of axle with
socket spanner (12) as Fig A.
2. Insert the front wheels (5) to both ends of axle.
3. Fix the washer and nut which disassembled at step 1.
4. Snap the wheel caps (8) of two sides
Note: Must align the three holes on wheel and cap.
WARNING: The nut must be tightened.
Fig A

10

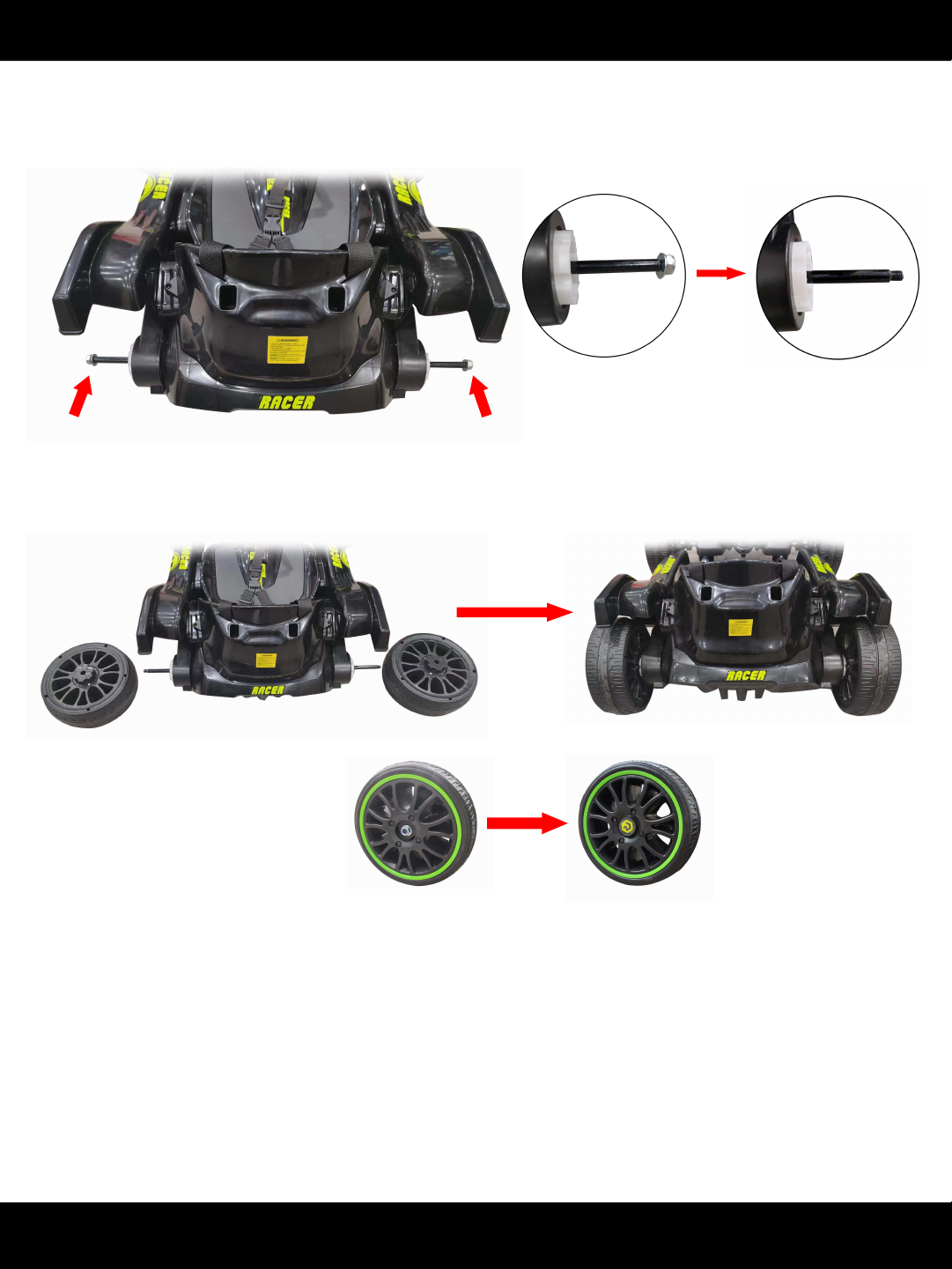

Installing Rear
Wheels
1. Remove the washer and nut both ends of axle with socket
spanner(11).
2. Insert the rear wheels (4) to both sides of axle.
3. Fix the washer and nut which disassembled at step 1.
4. Snap the wheel caps (8) of two sides.
Note: Must align the three holes on wheel and cap.
WARNING: The nut must be tightened.

11
Assemble Steering Shaft (1)
1. Remove the screws and nuts with socket spanner as Fig A.
2. Put the car sideways as Fig B.
3. Insert the steering shaft (7) as Fig C.
Fig B Fig C
1
2
12
WARNING: Be sure the end hook of shaft fits
inside the loop .
1
WARNING
Fig A
:
CHOKING HAZARD: Small
parts. Not for children under 3
years. Keep small children away
when assembling.

12
Assemble Steering Shaft (2)
WARNING: The screw and nut must be tightened
well
tighten them with socket spanner (11).
4. Rotate part B (the black plastic) to align the hole of shaft.
5. Fix the screw and nut (Part A) which were disassembled at step 1, and
Note: You only need to fix the screw and nut for this one part.
.
A
B

13
Attach Front Hood (1)
3
1. Remove the tape of part .
Place the front hood (6) into the end of steering shaft (7)
as Fig A.
Fig A
2.
the front hood (6) into the end of steering shaft (7)
3

14
Attach Front Hood (2)
1. Align the plugs as .
2. Connect the plugs as .
3. Insert the whole wire into the hole as , otherwise it will
effect the hood assembly .
12
3
1
2

15

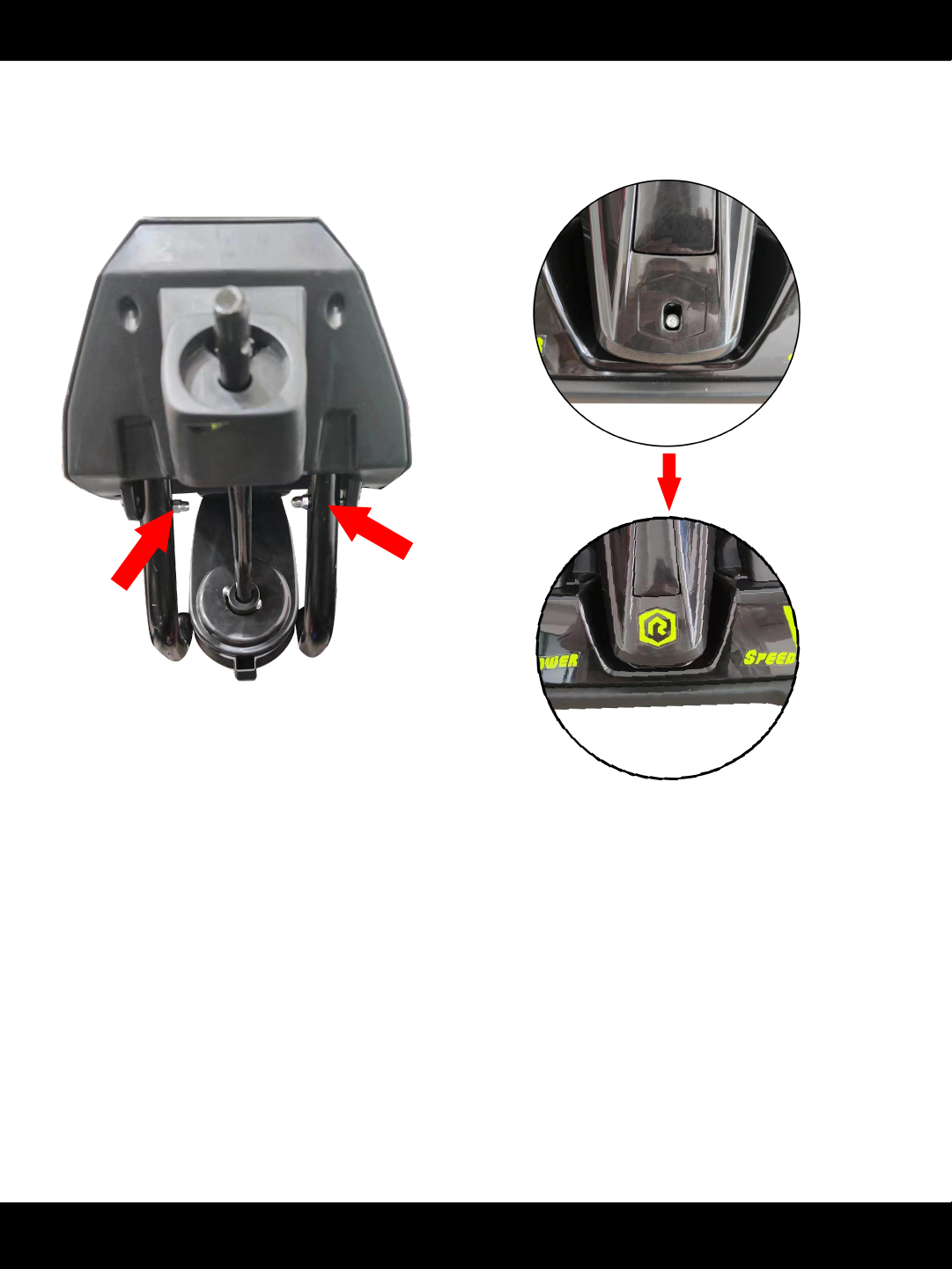

Attach Front Hood (3)
Fig A
2. Tighten the screw (10) in the end of front hood with socke

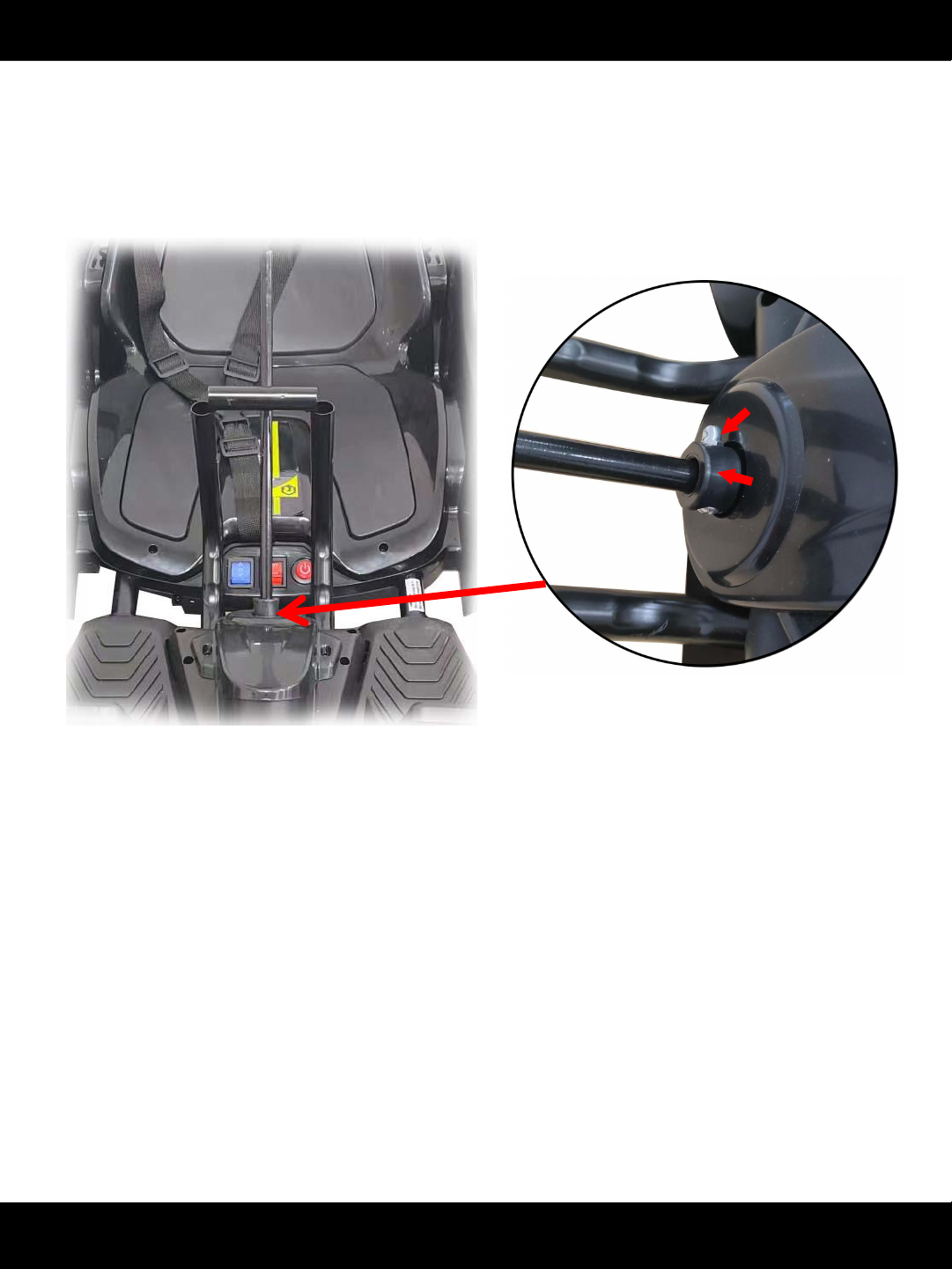

1. Fix the two sides of scew and nut which were disassembled
from page 11 with spanners (11) (12) as Fig A.
t
Fig B
Fig C
spanner as Fig B.
3. Stick the decal (9) of front hood as Fig C.
WARNING: Tighten the screws and nuts for Fig A.
WARNING: Do not tighten screws too tight for Fig B.

16
Installing Steering Wheel
Note: Remove the screw
and nut with socket
spanner first (11).
1. Align the plugs between front hood and steering wheel as Fig A.
2. Connect the plugs as Fig B.
3. Insert the wire to the hole of hood as Fig C.
4. Seat the steering wheel in the shaft, align the holes, tighten the
Fig
screw and nut which were disassembled from steering wheel
as Fig D.
AFig B Fig C Fig D

17

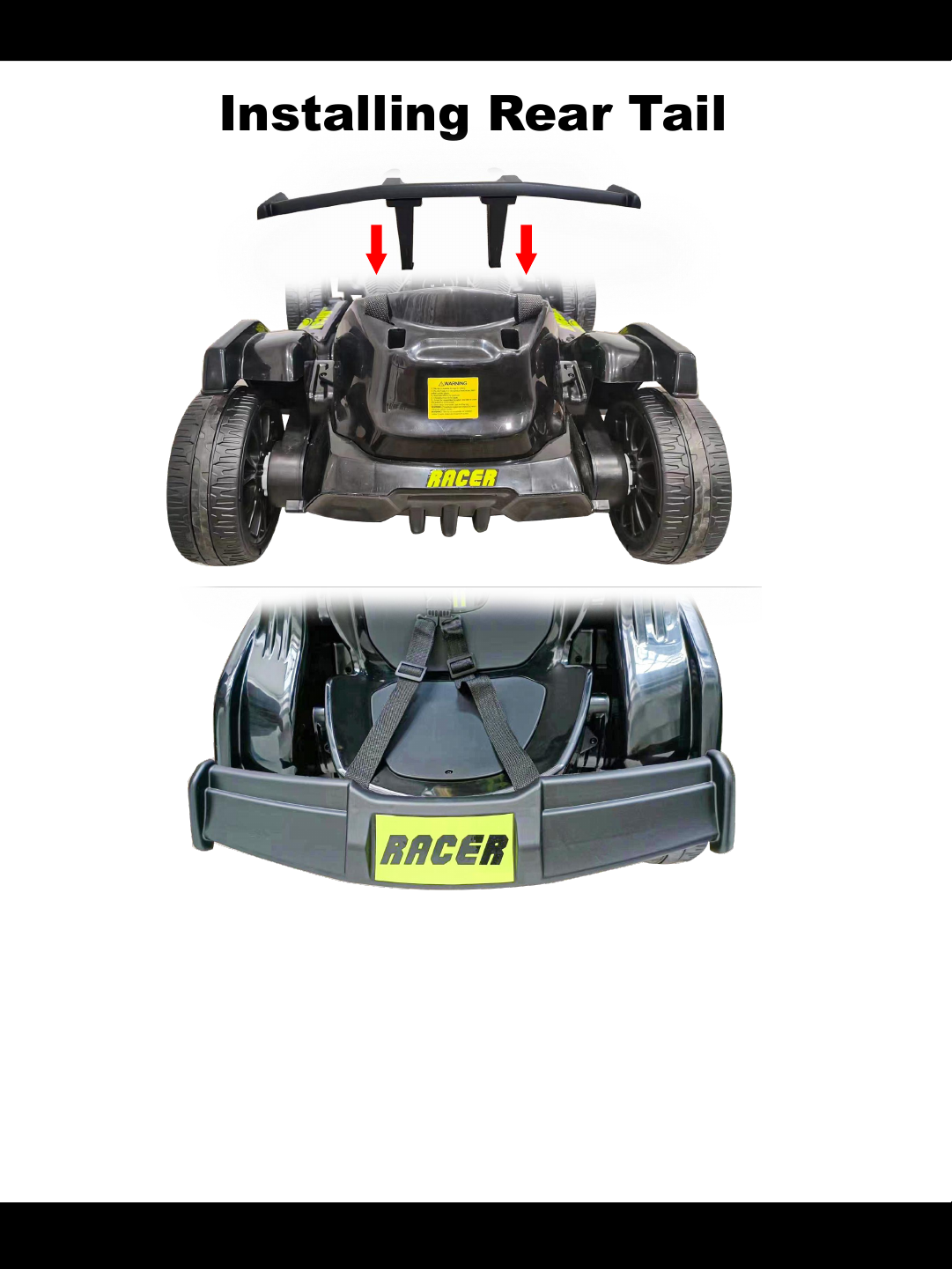

Installing Rear Tail
Correct assembl
1. Align the rear tail (2) with the back hole of body as shown.
2. Insert the rear tail correctly.
3. Make sure the rear tail can’t be pulled out from the holes.
Note: Well done, you have finished the installation.
e

18

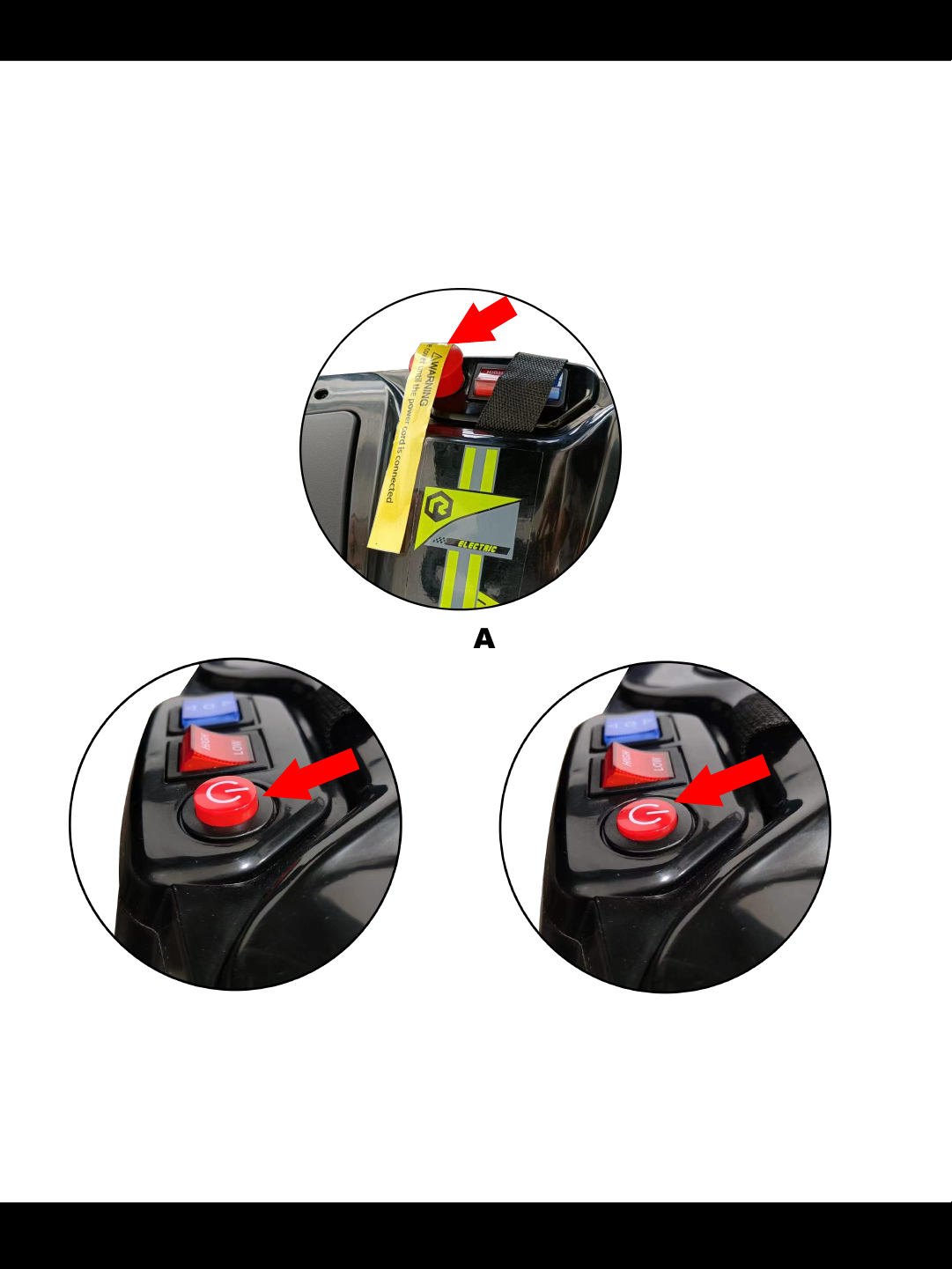

Connect The Battery (1)
Fig A
Fig B (✔)
1. Remove the label and power cover as Fig A.
2. Be sure the power switch is off state as Fig B.
3. If the power switch is turn on as Fig C, must turn it off as Fig B.
Fig C (✖)
THIS IS VERY IMPORTANT BEFORE CONNECTING THE
PLUG CORD, PLEASE CHECK AND CONFIRM STRICTLY
AS BELOW INDICATION.

19

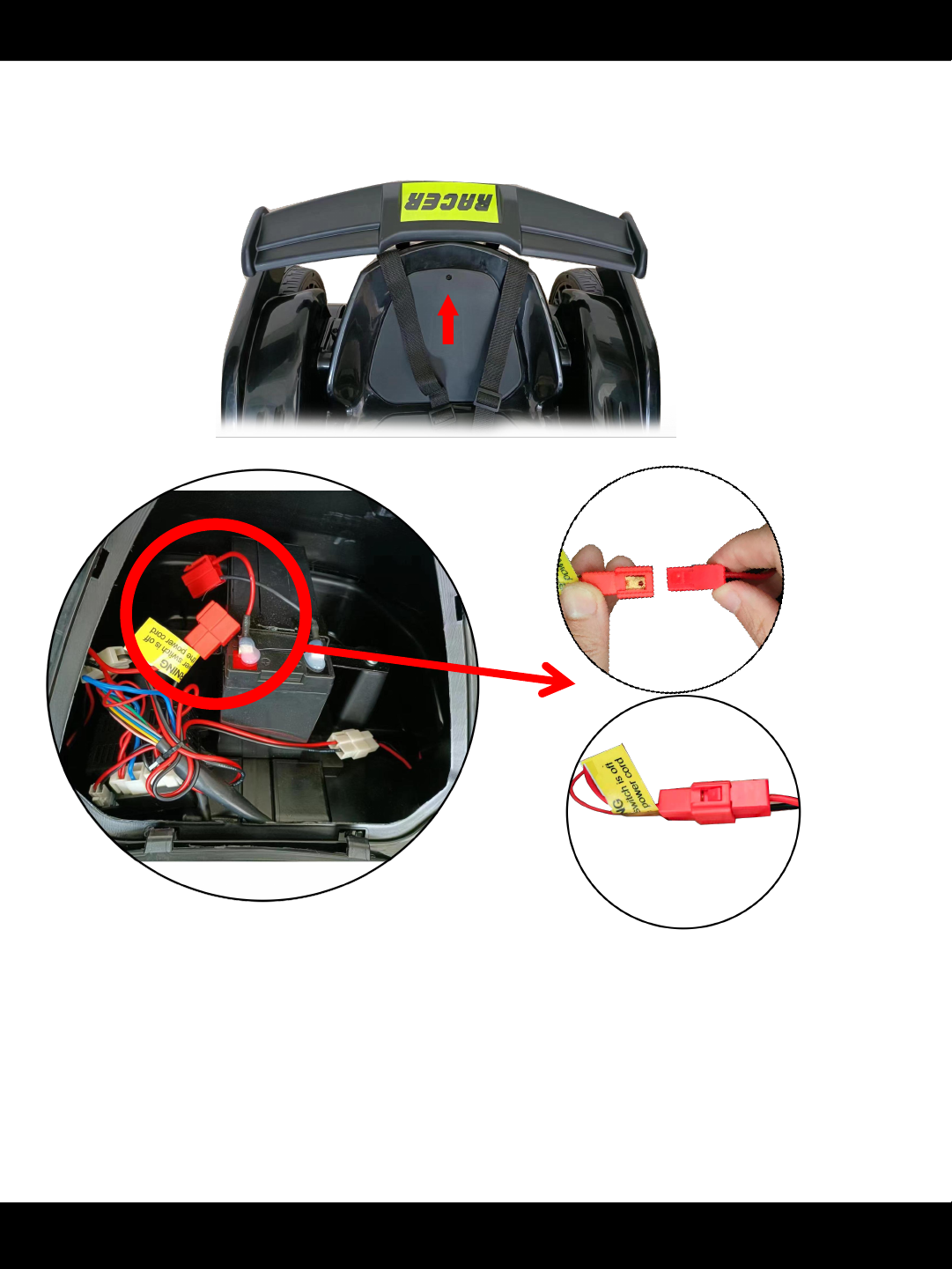

Connect The Battery (2)
1. Remove the screw of seat cover with socket spanner (11)
as Fig A.
2. Find the two red cords, connect them as shown.
3. Attach the seat cover back.
Fig A
WARNING: Only connect the red plastic plug.

20
Adjustable
holes
Adjusting The Length of Car
Adjustable
lable Adjustable
screw
Max
adjustable
line
1. Release the adjustable screw with socket spanner (11).
2. Slide the car body to adjust the appropriate length as needed.
3. The max adjustable length is 15cm, total adjustable holes is 5.
WARNING: Do not slide the body to exceed the maximum
adjustable line, otherwise the wire inside the body will
be damaged.
