BERG BENOMIC S 350 Release Note

Technical Handbook
BENOMIC S 350
Berg Hortimotive
Burg. Crezeelaan 42a
2678 KZ De Lier
The Netherlands
Tel: [phone]
Email: [e-mail]
Internet: www.berghortimotive.com

Translated user manual (EN-V2) BENOMIC S 350 2 / 49
Machine type plate
The BENOMIC S is fitted with a machine type plate which contains the following
information: address details for Berg Hortimotive, CE mark, serial and type reference,
serial number, year of construction.
If you would like to contact Berg Hortimotive, or one of their dealers with respect to this
BENOMIC S, please ensure that this information is always readily available.
Version 2, June 2020
The machine is manufactured by:
Berg Hortimotive
Burg. Crezeelaan 42a
2678 KZ De Lier
The Netherlands
Tel: [phone]
Email: [e-mail]
Internet: www.berghortimotive.com

Translated user manual (EN-V2) BENOMIC S 350 3 / 49
1. Declarations
1.1 Copyright
Berg Hortimotive
De Lier, 2020
No part of this publication may be reproduced and/or published by way of print,
photocopy, film or by any other means without the prior written consent of Berg
Hortimotive, registered at De Lier, the Netherlands.
Exceptions to this include parts of the documentation which are intended for reproduction,
such as abridged instructions and specifications on the machine itself.
1.2 Liability
Berg Hortimotive does not accept liability for dangerous situations, accidents and damage
that occur as a result of ignoring warnings or instructions, such as those shown on the
BENOMIC S, or contained in this documentation - for example:
- inexperienced or incorrect usage or maintenance
- being used for applications other than those for which it was designed, or in
circumstances other than those given in this documentation
- the use of components or spare parts which are not prescribed
- repairs carried without the consent of Berg Hortimotive and/or a certified dealer
- changes to the BENOMIC S include the following:
- alterations to the controls
- welding, mechanical works, etc
- extensions to the BENOMIC S or its controls
Berg Hortimotive does not accept liability when:
- customers do not meet their obligations with respect to Berg Hortimotive (financial or
otherwise)
- consequential damage is caused by defects on the BENOMIC S - e.g. interruption of
business, delays, etc.

Translated user manual (EN-V2) BENOMIC S 350 4 / 49
1.3 Guarantee
For a period of 6 months after delivery, Berg Hortimotive gives the client a warranty on
material and manufacturing defects that occur during normal use. This warranty does not
apply if the defects are caused by improper use or causes other than by material and
manufacture, if Berg Hortimotive - following consultation with the client - delivers used
material or used goods or if the cause of the defects cannot be demonstrated clearly.
The warranty provisions are set out in the METAALUNIE CONDITIONS as they read
according to the most recent relevant text. The terms and conditions of delivery are
available on request.
The warranty given by Berg Hortimotive for all goods and materials not manufactured by
Berg Hortimotive will never be more than that given by its supplier. The warranty is ex
works. Faulty machines and/or parts must be sent postage paid.
When it is not possible to send out machines or systems, any travel and subsistence
expenses will be payable by the client.
Sold and delivered goods with manufacturer's, importer's or wholesaler's warranties are
subject only to the warranty provisions set by the suppliers.
Hydraulic pumps are subject only to the manufacturer's warranty, provided the pump
comes with an undamaged safety seal from the supplier.
Berg Hortimotive accepts responsibility for the availability of replacement parts, provided
they are available from its suppliers at reasonable conditions.
2. Foreword
This handbook describes the BENOMIC S.
This handbook provides you with information including the safety aspects, a description of
the BENOMIC S together with the working principles, as well as the operating instructions
and maintenance of the machine.
Potentially dangerous situations are indicated together with recommendations for avoiding
them.
It is important that this handbook is carefully read in order to learn how the BENOMIC S
should be operated and maintained. By reading this handbook and then using the
BENOMIC S, you, or anyone else, will be assisted in using the BENOMIC S in the correct
manner thereby helping to avoid personal injury as well as damage to the machine.
Berg Hortimotive produces safe machines. The machines are designed to meet the latest
standards and are manufactured in accordance with the latest CE approval markings. The
user remains responsible for the proper operation and for carrying out maintenance on the
machine.

Translated user manual (EN-V2) BENOMIC S 350 5 / 49
Table of contents
1. DECLARATIONS....................................................................................................................... 3
1.1 COPYRIGHT.......................................................................................................................... 3
1.2 LIABILITY.............................................................................................................................. 3
1.3 GUARANTEE......................................................................................................................... 4
2. FOREWORD .............................................................................................................................. 4
3. INTRODUCTION........................................................................................................................ 7
3.1 GENERAL ............................................................................................................................. 7
3.2 SUPPLIERS INFORMATION...................................................................................................... 7
4. SAFETY ..................................................................................................................................... 8
4.1 EXPLANATION OF THE SAFETY TERMINOLOGY ......................................................................... 8
4.2 SAFETY INSTRUCTIONS ......................................................................................................... 8

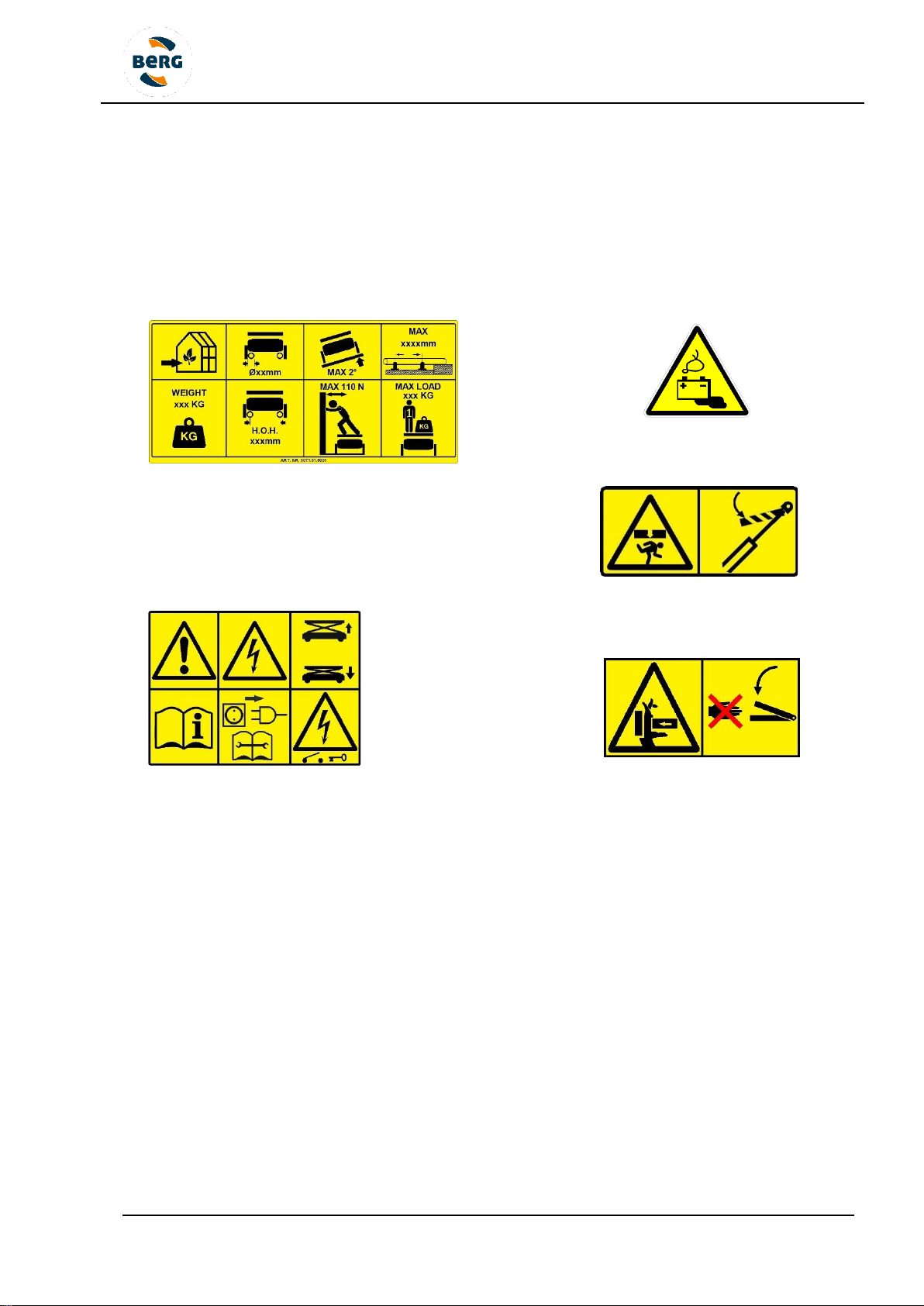

4.3 SAFETY PICTOGRAMS.......................................................................................................... 11
4.4 RESIDUAL RISKS ................................................................................................................. 11
5. INTENDED APPLICATION...................................................................................................... 12
5.1 AREA OF APPLICATION......................................................................................................... 12
5.1.1 Physical operating conditions................................................................................... 12
5.2 SAFETY SYSTEMS ............................................................................................................... 13
5.3 SIGNALLING SYSTEMS ......................................................................................................... 13
5.3.1 The multi-colour indicator (11).................................................................................. 13
5.3.2 The horn ................................................................................................................... 17
5.4 MAIN COMPONENTS OF THE BENOMIC S........................................................................... 18
6. TRANSPORTATION................................................................................................................ 20
6.1 EXTERNAL TRANSPORT ....................................................................................................... 20
6.2 INTERNAL TRANSPORT......................................................................................................... 20
7. COMMISSIONING.................................................................................................................... 21
7.1 INSPECTION BEFORE STARTING OPERATIONS........................................................................ 21
7.2 PIPE RAIL SYSTEM IN HORTICULTURE ................................................................................... 21
7.3 MINIMUM REQUIREMENTS FOR THE PIPE RAIL SYSTEM........................................................... 21
7.4 TILT INDICATION.................................................................................................................. 22
7.5 LOAD LIMITER MEASUREMENT SYSTEM................................................................................. 23
7.6 LOAD-HOLDING FUNCTION ................................................................................................... 23
7.7 SCISSORS-BLOCKING DEVICE .............................................................................................. 23
7.8 EMERGENCY LOWERING VALVE............................................................................................ 24
7.9 PIPE DETECTION SENSOR.................................................................................................... 24
7.10 SPEED LIMITER ON THE CONCRETE PATH.............................................................................. 24
7.11 PIPE -CONCRETE PATH TRANSITION..................................................................................... 24
8. USE .......................................................................................................................................... 25
8.1 CONTROLS......................................................................................................................... 26
8.1.1 Controls on the chassis............................................................................................ 26
8.1.2 Controls on the platform........................................................................................... 27
8.2 MOVING THE BENOMIC SON THE MAIN PATH ..................................................................... 30
8.3 MOVING THE BENOMIC SON THE HARVESTING PATH.......................................................... 30
8.3.1 Driving into the harvesting path................................................................................ 30
8.3.2 Driving out of the harvesting path............................................................................. 30
8.4 OUT OF USE ....................................................................................................................... 31
8.5 CLEANING .......................................................................................................................... 31
8.6 PROBLEMS,CAUSES &SOLUTIONS....................................................................................... 31
8.7 DISMANTLING ..................................................................................................................... 33
9. REPAIRS & MAINTENANCE .................................................................................................. 34

Translated user manual (EN-V2) BENOMIC S 350 6 / 49
9.1 SPECIALIST MAINTENANCE................................................................................................... 34
9.2 MAINTENANCE IN AND AROUND THE SCISSOR MECHANISM..................................................... 35
9.3 PIPE RAIL SYSTEM MAINTENANCE......................................................................................... 35
9.4 CHAIN TENSIONING ............................................................................................................. 36
9.5 CHECK PIPE RAIL WHEEL WEAR............................................................................................ 37
10. TECHNICAL SPECIFICATIONS ......................................................................................... 38
10.1 *EXPLANATION OF THE TECHNICAL SPECIFICATIONS............................................................. 39
11. EC DECLARATION OF CONFORMITY.............................................................................. 40
APPENDIX 1: MAINTENANCE LOGBOOK ............................................................................... 41
APPENDIX 2: TECHNICAL DRAWINGS.................................................................................... 42
APPENDIX 3: BATTERY SAFETY SHEET ................................................................................ 43
APPENDIX 4: CLEANING THE POWDER COATING................................................................ 48
APPENDIX 5: QUICK START GUIDE......................................................................................... 49

Translated user manual (EN-V2) BENOMIC S 350 7 / 49
3. Introduction
3.1 General
You have made a good choice by purchasing the Berg Hortimotive BENOMIC S. You are
the owner of an first class piece of equipment that has been manufactured with great care.
You will gain the most advantage from the equipment provided that you carefully follow
the instructions given in this handbook with regard to safety, operating and maintenance.
Please study this user's handbook carefully before starting to use the BENOMIC S.
Always follow the safety instructions and recommendations given in this handbook.
Berg Hortimotive does not accept liability for damage or indirect damage resulting from
not following the operating and safety instructions contained in this handbook.
Neither does Berg Hortimotive accept liability whenever you or a third party make
modifications to the pipe rail trolley or its accessories, without receiving prior written
permission from the manufacturer.
The BENOMIC S is supplied in accordance with the conditions of sale of the Dutch
METAALUNIE, as determined by the registrar of the law court of Rotterdam and in
accordance with the most recent text contained therein. A copy of the terms and
conditions of supply can be provided on request. You can also contact the Koninklijke
Metaalunie, PO Box 2600, 3430 GA Nieuwegein, the Netherlands.
3.2 Suppliers information
In the event of breakdowns or defects occurring on the BENOMIC S please contact your
Berg Hortimotive dealer.

Translated user manual (EN-V2) BENOMIC S 350 8 / 49
4. Safety
4.1 Explanation of the safety terminology
Safety terminology:
Danger : Indicates serious or even fatal injury may occur if the instructions
in the handbook are ignored.
Warning : Indicates injury if the instructions described in this handbook
are ignored.
Caution : Indicates damage may occur to the equipment if the instructions
described in this handbook are ignored.
Warning : Indicates possible problems if the instructions described in this
handbook are ignored.
4.2 Safety instructions
Read the following safety instructions carefully.
After reading the safety instructions they should be strictly observed at all times.
If the Pipe rail trolley safety instructions are not observed while it is being operated, it will
become substantially more dangerous and may lead to serious physical injury.
DANGER!
-Carefully read all of the user's handbook. Observe the operating and safety
instructions at all times.
-The BENOMIC S is suitable for running on a stable pipe rail system.
-The BENOMIC S should only be used on the correct type of pipe rail system. Check
that the centre-to-centre measurement of the rails and the pipe rail trolley
correspond - see the pictogram on the platform.
-Never exceed the maximum load of 250 kg.* (for restrictions, see 10.1!)
- 1 person including load (e.g. tools); see pictogram on the platform.
-Never exceed lateral (sideways) manual force of 110N (11 kg traction).
-Use the BENOMIC S only for harvesting and crop maintenance in a greenhouse.
-Using the BENOMIC S when it is tilting more than 2from the vertical (lengthwise
and/or crosswise) is strictly forbidden.
-All loads should be secured and placed at the centre of the work platform.
-Only one person is permitted to stand on the platform at any time.
-Persons are not permitted to ride with/on the chassis.
-It is prohibited to remove the safety rail.
-The use of the optional safety rail raiser is mandatory if the user is taller than 1.90
metres. Only use an original approved Berg Hortimotive safety rail raiser!

Translated user manual (EN-V2) BENOMIC S 350 9 / 49
-Increasing the lifting height in any way whatsoever is strictly forbidden.
-Always remain standing on the work platform
-Keep a safe distance from fixed and/or moving parts of the greenhouse structure,
live electric wiring, and cables and ropes.
-It is prohibited to pull steel cables or lay screens using the BENOMIC S.
-It is forbidden to use the BENOMIC S as a crane.
-It is forbidden for either people or animals to enter the path on which the BENOMIC
S is being operated. Never operate more than one pipe rail trolley on the same path!
-When using the BENOMIC S all the protective screens and covers and caps must be
fitted and secured.
-Additional options, accessories and spares must be ordered and supplied
exclusively by the manufacturer, Berg Hortimotive.
Warning!
- Operating the BENOMIC S may only take place when there are no other persons in
the vicinity (apart from the operator) of the machine.
-The BENOMIC S may only be operated by persons of 18 years or older who have
received thorough instruction about the BENOMIC S, who are fully familiar with this
instruction handbook and are completely aware of the dangers associated with
operating the machine.
-The BENOMIC S may only be operated once it has been correctly installed on the
pipe rail system.
-All personnel working in the area of the BENOMIC S should be made familiar with
relevant safety rules and precautions that apply to the pipe rail system.
- Instructions from the employer.
-Repairs to the BENOMIC S may only be carried out by personnel who have received
specific training from Berg Hortimotive.
-When carrying out maintenance on the scissor mechanism, the scissor blocks must
always be put in place before starting (see 9.2).
-Never carry out repairs to the BENOMIC S if it is already being operated by someone
else. Always switch it off via the main switch before carrying maintenance activities
and remove the charging plug from the trolley.
-Check the BENOMIC S daily for defects and carry out maintenance frequently - see
chapter 9: maintenance.
-Keep the operating controls and safety pictograms clean.
- operating controls and safety pictograms should always be clearly visible.
-Once you have finished working with the BENOMIC S always turn off the
main switch.
-Never leave the BENOMIC S unattended.
- Only when you have removed the key from the main switch.
-It is forbidden to carry out modifications or make alterations to the BENOMIC S
without prior written permission from Berg Hortimotive.

Translated user manual (EN-V2) BENOMIC S 350 10 / 49
-When leaving a path, you must first stop and check whether anybody is standing in
the direct vicinity before continuing on the main path.
-It is forbidden to transport loose cargo with the BENOMIC S.
-When stacking loads ensure that they do not protrude more than 40 cm above the
working platform. All loads should be properly secured.
-Before entering a path, ensure that there are no obstacles such as plant remains, etc
lying on it.
-Never clean the BENOMIC S with a water hose or steam cleaner.
-When moving the BENOMIC S when not on the rails, the scissor mechanism should
be fully collapsed.
-Never use the BENOMIC S on the public highway.
-It is forbidden to step off the equipment before it has reached the lowest position.
-Observe the safety instructions for batteries - see Appendix 3.
-Always watch out for feet and toes when operating the lift on the BENOMIC S! The
trolley is moved a few centimetres forward when put into position!
-It is mandatory to wear shoes with protective toe caps (S1).
-Remove the charging plug before using the BENOMIC S.
Please note!
- Always keep the workplace tidy.
- An untidy working area can lead to dangerous situations.
-Always concentrate on the task in hand.
- Always keep your wits about you when operating the Pipe rail trolley. Never operate the
BENOMIC S when you are unable to concentrate properly or when taking medicine whereby
it is not advisable to operate machines or drive in traffic.

Translated user manual (EN-V2) BENOMIC S 350 11 / 49
4.3 Safety pictograms
On the BENOMIC S a number of safety pictograms have been applied. These pictograms warn the
operator about possible dangers or dangerous situations. Always observe the warnings and
contact your suppliers whenever the actual danger illustrated by the pictogram is not clear.
Always make sure that the pictograms are visible and undamaged!
The BENOMIC S operator must have read and fully understood this handbook. When the operator
does not understand the warnings given in either this handbook or on the machine (e.g. they speak
another language), all the instructions, potential dangers, warnings and functions must be fully
explained to them by a responsible person so that they can fully understand them.
4.4 Residual risks
Despite the best possible design and the use of risk-reducing devices and the warnings about the
dangers given in the handbook and applied to the machine itself, it is still possible that dangerous
situations can arise. Beware of the following:
-Danger of hands, fingers, arms and head becoming trapped in the scissor mechanism!
-The danger of becoming trapped while standing under the trolley when depositing or picking
up items with lifting system!
-The trolley falling over because of an incorrect pipe rail system!
-The trolley falling over because the maximum weight or manual force has been exceeded!
-Users taller than 1.90 metres losing their balance if they do not use the obligatory optional
safety rail raiser!
Only to be used indoors (in greenhouse)
Mass of the machine (KG)
Suitable for the pipe diameter stated with minimum thickness
Suitable for the centre-to-centre pipe rail system measurement
Maximum tilted position 2°
Maximum sideways manual force in Newtons (kg x10)
Maximum support distance 1250 mm
Maximum total load in kg (maximum 1x person + secured load)
The values depend on the type of BENOMIC S!
Beware! Read the handbook before using!
Beware! Disconnect the power supply and consult the handbook when
carrying out maintenance
Upwards = scissor up, downwards = scissor down
Main power switch: key vertical = ON, key horizontal = OFF
Key can be removed by rotating further in the off position.
Beware: Dangerous chemical
battery - corrosive battery acid
and explosive gasses
Beware of the platform lowering!
Always use the scissor blocks
when working under or on the
scissor mechanism!
Beware: Danger of becoming
trapped!
Keep hands away from the scissor
parts!

Translated user manual (EN-V2) BENOMIC S 350 12 / 49
5. Intended application
5.1 Area of application
The BENOMIC S has been designed for use in the greenhouse horticulture sector.
The machine may only be operated by one person with a minimum age of 18 years who
has received thorough instruction in the operation of the BENOMIC S and who is already
familiar with the safety instructions and this handbook, both of which they have fully
understood.
The BENOMIC S is a pipe rail trolley, which runs on a pipe rail system that meets the
minimum requirements of paragraph 7.3 and is intended as an aid in harvesting, caring for
and/or maintaining the crops in a greenhouse. Use of the BENOMIC S for any other
purposes is strictly forbidden. The maximum loading may consist of one person plus a
secured load which together should not exceed 250 kg in weight*. The trolley may only be
operated once it has been correctly installed on the pipe rail system. Pay extra attention
when the scissor mechanism is descending ensuring that no people or objects can
become trapped under or between the scissor mechanism. The platform may not be
entered while the machine is on the concrete path. Always walk alongside the machine,
therefore not on the chassis when transporting it over the main path.
* Stability tests have shown that with unfavourable combinations of tube type and the
support distance of the pipe rail system, constraints must be applied for the maximum
permissible load. See 10.1 Explanation of the technical specifications.
5.1.1 Physical operating conditions
Ambient temperature;
Transport & Storage : 5 to +40 degrees Celsius
Working : 5 to +40 degrees Celsius
Rel. Humidity (RH) : 0% to 90%, not condensing
Lighting : Normal ambient lighting.
The machine is not designed to be used outdoors.
The machine is not suitable for operating in explosive atmospheres.

Translated user manual (EN-V2) BENOMIC S 350 13 / 49
5.2 Safety systems
The BENOMIC S series is equipped with the following safety systems, which will be
described in chapter 7 (Commissioning) and chapter 8.1 (Operation).
-Running and lifting restriction when tilted (see 7.4)
-Load limiter measurement system (see 7.5)
-Load-holding function (see 7.6)
-Scissors-blocking device (see 7.7)
-Emergency lowering control (see 7.8)
-Pipe detection sensor (see 7.9)
-Speed limiter on the concrete path (see 7.10)
-Pipe –concrete path transition (see 7.11)
-Emergency stop (see 8.1.2)
-Lowering the platform (see 8.1.2)
-Two-handed control (see 8.1.2)
-Inadvertent foot pedal operation (8.1.1)
Manipulation of safety systems is strictly prohibited!
5.3 Signalling systems
In order to alert the user to a changing status of the BENOMIC S during use, a multi-
colour indicator (11) and horn is used.
5.3.1 The multi-colour indicator (11)
The multi-colour indicator (11) is located on the platform control, for this refer to chapter
8.1.2.
The visual signalling is divided into five indication levels:
1. Safe & alert status colour green or orange
2. Acute danger colour red
3. Indirect danger colour red-orange
4. Function monitoring (sensors) colour red-blue
5. Support feet position notification (if any) or disinfection colour blue

Translated user manual (EN-V2) BENOMIC S 350 14 / 49
Safe & alert status
The indicator displays a status or flash pattern in the colour green, orange or blue
Flash
pattern
Green:
Safety status:
Limitation:
Solution:
Off
Benomic S is off
Is off
On
Benomic S is on
None
2x
Start-up / standby,
flash indicates the
number of scissors
Is on standby
Press horn / reset button (10)
3x
Start-up / standby,
flash indicates the
number of scissors
Is on standby
Press horn / reset button (10)
4x
Start-up / standby,
flash indicates the
number of scissors
Is on standby
Press horn / reset button (10)
Flash
pattern
Orange:
Safety status:
Limitation:
Solution:
Flashing
slowly
Tilt (>1.5°)
Speed (higher than
250cm)
Lay pipes level
Flashing
slowly +
bleeping
Tilt (>1.8°)
Speed (higher than
250cm)
Lay pipes level
Flash
pattern
Blue:
Action or Safety
status:
Limitation:
Solution:
On
Disinfection *
advance notice
None
Disinfect hands
Flashing
slowly
Disinfection * time
elapsed
Running stops
Disinfect hands
* A disinfectant fluid container for the hands can be supplied as an option for the
BENOMIC S, ask your dealer for the possibilities.

Translated user manual (EN-V2) BENOMIC S 350 15 / 49
Acute danger
The indicator displays a red blinking pattern:
Flash
pattern
Red:
Safety status:
Limitation:
Solution:
On, short
Starting up
Wait 1 sec.
Turns itself off
On
&
Bleeping
Tilt (>2°) with high
platform
Platform raised
Running stops
Lower platform
Lay pipes level
1x
&
Bleeping
Emergency stop
used
Operation stopped
Unlock if danger averted
2x
&
Bleeping
Batteries empty
Platform raised
Lift wheels
Speed reduction
Fully charge batteries
3x
Tilt (>2°) with low
platform
Platform raised
Lay pipes level
4x
Load limiter
Platform raised
Run with platform
high
Reduce load
Lower platform height
5x
Pipe sensor
malfunction
Platform raised
Lift wheels
Run with platform
high
Speed reduction
Consult your dealer
Indirect danger
The indicator displays a red-orange blinking pattern:
This blinking pattern consists of two colours.
Flash
pattern
Red
Orange:
Safety status:
Limitation:
Solution:
1x
Speed too high
Running stops
Switch Benomic S off and on,
Consult your dealer
2x
Tilt sensor signal is
absent with low
platform
Run with platform
raised
Lower platform completely,
Consult your dealer
3x
Height sensor
signal absent
Platform raised
Platform down
only slowly
Lower platform completely,
Consult your dealer
4x
Load limiter in
combination with
platform height
Running stopped
Reduce load <150 kg,
Lower platform <2.5 m
5x
Load sensor signal
absent
Platform raised
Run with platform
high
Consult your dealer
6x
Speed limiter
(running pulses
absent)
Running stops
Speed reduction
Speed reduction active on
restarting
Consult your dealer

Translated user manual (EN-V2) BENOMIC S 350 16 / 49
Function monitoring (sensors)
The indicator displays a red-blue blinking pattern:
This blinking pattern consists of two colours.
Flash
pattern
Red
Blue:
Safety status:
Limitation:
Solution:
1x
Both sensors of
wheel lift system
active
Platform raised
Running stops
Consult your dealer
2x
Wheel lift system
time too long
Platform raised
Running stops
Operate wheel lift system again,
Consult your dealer
3x
Wheel lift system
sensors status
spontaneously
changed
Platform raised
Running stops
Operate wheel lift system again,
Consult your dealer
4x
Lift time too long /
platform lowers
Platform stops
Operate again

Translated user manual (EN-V2) BENOMIC S 350 17 / 49
5.3.2 The horn
The acoustic warning gives the user feedback on the action that is being performed, or a
changing safety status.
Horn
signal:
Action or
Safety status:
Limitation:
Status or Solution:
1x
bleep
Turning on with the
main switch (1)
None
The Benomic S is on standby
1x
bleep
Press horn / reset
button (10)
None
The Benomic S is on and ready
for use
bleep
tone
Press horn / reset
button (10)
None
Horn is active while being
pressed
1x
bleep
per 4 sec
Emergency stop
used
Operation stopped
Unlock if danger averted
2x
bleep
per 4 sec
Batteries empty
Platform raised,
Lift wheels,
Speed
Fully charge batteries
5x
short
bleep
Incorrect operation,
function not
possible
The required action
will not be executed
Execute an operation that is
possible (safe).
(E.g. platform down)
1x
bleep
per 0.5
sec
At the start,
platform down
slowly in the bottom
metre
Platform down only
slowly
Plateau is lower than 1 metre,
Beware of entrapment
Fast
bleeping
Tilt (>2°) with high
platform
Platform raised
Running stops
Lower platform,
Lay pipes level
Slow
bleeping
Tilt (>1.8°) with high
platform
Speed (higher than
250cm)
Lay pipes level

Translated user manual (EN-V2) BENOMIC S 350 18 / 49
5.4 Main components of the BENOMIC S
Figure 5.1; Names of the components on the upper part of the BENOMIC S
Rail safety railing
Control panel
Foot pedal (5)
Platform
Scissor construction
Gate
Cylinder
Chassis
controls
Gate
Safety rail
raisers

Translated user manual (EN-V2) BENOMIC S 350 19 / 49
Battery cover
Emergency lowering valve
Hydraulic manifold
Figure 5.3; Names of the components on the inside of the BENOMIC S
Hydraulic tank
Lifting wheels
Drive roller
non-driven wheel
Figure 5.2; Names of the components on the lower part of the BENOMIC S
Scissor blocks

Translated user manual (EN-V2) BENOMIC S 350 20 / 49
6. Transportation
6.1 External transport
When the BENOMIC S has to be transported, please do as follows:
1. Close the scissor mechanism fully.
2. Retract the lift wheels so that the trolley stands on the flanged rollers.
3. Set the speed regulator to speed 0.
4. Switch off the BENOMIC S via the main switch (rotate the top of the red key to the
horizontal position).
5. Secure the BENOMIC S properly so that it cannot move about, roll forward or tilt
over.
6. Ensure that the BENOMIC S remains dry and frost-free during transportation.
7. When arriving at its destination, the BENOMIC S should be set up in accordance
with the points described at chapter 7.1.
6.2 Internal transport
It is also possible to transport the BENOMIC S internally (in the greenhouse). It is
preferred that the trolley is moved on the flange rollers and lift wheels (see 8.2), but it can
also be moved by forklift truck for example. Moving with a forklift truck is done as follows:
1. Close the scissor mechanism fully.
2. Retract the lift wheels so that the trolley stands on the flanged rollers.
3. Switch off the BENOMIC S via the main switch (rotate the red key to a horizontal
position).
4. Put the forklift truck forks as far apart as possible then push them under the trolley
as far as possible.
5. Check the other side to see whether the forks stick out and are positioned at the
centre of the BENOMIC S
6. Secure the BENOMIC S to the elongation of the forks on the forklift truck so that
the trolley cannot move or slide off.
7. Lift the BENOMIC S carefully from the ground and no higher than is necessary.
Please note!
- Secure the BENOMIC S to the rack of the forklift truck with a strap!
- Never lift higher than necessary!
- Ensure that the forklift truck can lift at least 600 kg weight!
- Remove anything lying loosely on the platform before lifting!
- Drive slowly and carefully!
