BERG METOSWR Release Note

Technical Handbook
METOSWR
Berg Hortimotive
Burg. Crezeelaan 42a
2678 KZ De Lier
The Netherlands
Tel: [phone]
E- mail: [e-mail]
Internet: www.berghortimotive.com

Translated user manual (EN-V1) METOSWR 2 / 27
Machine type plate
The METOSWR is fitted with a machine type plate which contains the following
information: address details for Berg Hortimotive, CE mark, serial and type reference,
serial number, year of construction.
If you would like to contact Berg Hortimotive, or one of their dealers with respect to this
METOSWR, please ensure that this information is always readily available.
Version 1, November 2020
The machine is manufactured by:
Berg Hortimotive
Burg. Crezeelaan 42a
2678 KZ De Lier
The Netherlands
Tel: [phone]
E- mail: [e-mail]
Internet: www.berghortimotive.com

Translated user manual (EN-V1) METOSWR 3 / 27
1. Declarations
1.1 Copyright
Berg Hortimotive
De Lier, 2020
No part of this publication may be reproduced and/or published by way of print,
photocopy, film or by any other means without the prior written consent of Berg
Hortimotive, registered at De Lier, the Netherlands.
Exceptions to this include parts of the documentation which are intended for reproduction,
such as abridged instructions and specifications on the machine itself.
1.2 Liability
Berg Hortimotive does not accept liability for dangerous situations, accidents and damage
that occur as a result of ignoring warnings or instructions, such as those shown on the
METOSWR, or contained in this documentation - for example:
- inexperienced or incorrect usage or maintenance
- being used for applications other than those for which it was designed, or in
circumstances other than those given in this documentation
- the use of components or spare parts which are not prescribed
- repairs carried without the consent of Berg Hortimotive and/or a certified dealer
- changes to the METOSWR include the following:
- alterations to the controls
- welding, mechanical works, etc
- extensions to the METOSWR or its controls
Berg Hortimotive does not accept liability when:
- customers do not meet their obligations with respect to Berg Hortimotive (financial or
otherwise)
- consequential damage is caused by defects on the METOSWR - e.g. interruption of
business, delays, etc.

Translated user manual (EN-V1) METOSWR 4 / 27
1.3 Guarantee
For a period of 6 months after delivery, Berg Hortimotive gives the client a warranty on
material and manufacturing defects that occur during normal use. This warranty does not
apply if the defects are caused by improper use or causes other than by material and
manufacture, if Berg Hortimotive - following consultation with the client - delivers used
material or used goods or if the cause of the defects cannot be demonstrated clearly.
The warranty provisions are set out in the METAALUNIE CONDITIONS as they read
according to the most recent relevant text. The terms and conditions of delivery are
available on request.
The warranty given by Berg Hortimotive for all goods and materials not manufactured by
Berg Hortimotive will never be more than that given by its supplier. The warranty is ex
works. Faulty machines and/or parts must be sent postage paid.
When it is not possible to send out machines or systems, any travel and subsistence
expenses will be payable by the client.
Sold and delivered goods with manufacturer's, importer's or wholesaler's warranties are
subject only to the warranty provisions set by the suppliers.
Hydraulic pumps are subject only to the manufacturer's warranty, provided the pump
comes with an undamaged safety seal from the supplier.
Berg Hortimotive accepts responsibility for the availability of replacement parts, provided
they are available from its suppliers at reasonable conditions.
1.4 Spraying Installation Approval
It is mandatory to register your machine with a certified inspection authority for spraying
equipment. The hose reel (METOSWR) meets all the requirements of this inspection on
leaving the factory, but must be periodically inspected in accordance with national
regulations.
For more information about the inspection, please contact your dealer or the national
inspection authority. The above resolutions and other relevant documents can also be
downloaded on the site of the following inspection authorities.

Translated user manual (EN-V1) METOSWR 5 / 27
2. Foreword
This handbook describes the METOSWR.
This handbook provides you with information including the safety aspects, a description of
the METOSWR together with the working principles, as well as the operating instructions
and maintenance of the machine.
Potentially dangerous situations are indicated together with recommendations for avoiding
them.
It is important that this handbook is carefully read in order to learn how the METOSWR
should be operated and maintained. By reading this handbook and then using the
METOSWR, you, or anyone else, will be assisted in using the METOSWR in the correct
manner thereby helping to avoid personal injury as well as damage to the machine.
Berg Hortimotive produces safe machines. The machines are designed to meet the latest
standards and are manufactured in accordance with the latest CE approval markings. The
user remains responsible for the proper operation and for carrying out maintenance on the
machine.
The Netherlands:
Stichting Kwaliteitseisen
Landbouwtechniek (SKL)
Agro Business Park 24
6709 PW Wageningen
Postbus 407
Tel: [phone]
Fax: [phone]
www.sklkeuring.nl
[e-mail]
Belgium:
Secretariaat Keuring Spuitmachines Vlaanderen
Technologie & Voeding, Agrotechniek. Instituut
voor Landbouwkundig en Visserijonderzoek
(ILVO, T&V-Agrotechniek)
Burgemeester van Gansberghelaan 115
9820 Merelbeke
Tel: [phone]
Fax: [phone]
www.ilvo.vlaanderen.be
keurings[email protected]eren.be
England:
Agricultural Engineers Association
Samuelson House - Forder Way
Hampton
Peterborough
PE7 8JB
Tel: [phone]
Fax:[phone]
www.aea.uk.com
[e-mail]
Poland:
Plant Health and Seed Inspection Service
Ul. Wspólna 30
00-930 Warsaw
Tel: [phone]
Fax: [phone]
www.piorin.go.pl
[e-mail]
or: Research Institute of Pomology and
Floriculture in Skjerniewice (www.insad.pl)
France:
Cemagref Antony
Parc de Tourvoie,
BP 44F
92163 Antony Cedex
T: [phone]
F: [phone]
www.cemagref.fr
[e-mail]
Germany:
Julius Kühn-Institut, Bundesforschungs-institut
für Kulturpflanzen
Messeweg 11-12
38104 Braunschweig
T: [phone]
F: [phone]
www.jki.bund.de
[email protected].de

Translated user manual (EN-V1) METOSWR 6 / 27
Table of contents
1. DECLARATIONS...................................................................................................................3
1.1 COPYRIGHT......................................................................................................................3
1.2 LIABILITY..........................................................................................................................3
1.3 GUARANTEE.....................................................................................................................4
1.4 SPRAYING INSTALLATION APPROVAL ...................................................................................4
2. FOREWORD..........................................................................................................................5
3. INTRODUCTION....................................................................................................................7
3.1 GENERAL.........................................................................................................................7
3.2 SUPPLIERS INFORMATION...................................................................................................7
4. SAFETY.................................................................................................................................8
4.1 EXPLANATION OF THE SAFETY TERMINOLOGY.......................................................................8
4.2 SAFETY INSTRUCTIONS......................................................................................................8
4.3 SAFETY PICTOGRAMS ......................................................................................................11
4.4 RESIDUAL RISKS .............................................................................................................11
5. INTENDED APPLICATION..................................................................................................12
5.1 AREA OF APPLICATION.....................................................................................................12
5.1.1 Physical operating conditions................................................................................12
5.2 DESCRIPTION METOSWR..............................................................................................13
6. TRANSPORTATION............................................................................................................14
6.1 EXTERNAL TRANSPORT (MODEL ON WHEELS) .....................................................................14
6.2 INTERNAL TRANSPORT (MODEL ON WHEELS).......................................................................14
7. COMMISSIONING ...............................................................................................................15
7.1 INSPECTION BEFORE STARTING OPERATIONS......................................................................15
8. USE.....................................................................................................................................15
8.1 CONTROLS.....................................................................................................................15
8.1.1 Preparing for use ..................................................................................................16
8.2 OUT OF USE ...................................................................................................................17
8.3 CLEANING ......................................................................................................................17
8.4 PROBLEMS,CAUSES &SOLUTIONS....................................................................................18
8.5 DISMANTLING .................................................................................................................19
9. REPAIRS & MAINTENANCE...............................................................................................20
9.1 SPECIALIST MAINTENANCE ...............................................................................................20
9.2 MAINTENANCE AND INSPECTION FOR THE END USER............................................................20
9.3 GREASE HOSE GUIDE CHAIN AND BEARINGS .......................................................................21
9.4 HANDLEBAR PULL HANDLE AND LOCKING CLIP.....................................................................21
10. TECHNICAL SPECIFICATIONS ......................................................................................22
10.1 EXPLANATION OF THE TECHNICAL SPECIFICATIONS .............................................................23
11. EC DECLARATION OF CONFORMITY ...........................................................................24
APPENDIX 1: MAINTENANCE LOGBOOK.............................................................................25
APPENDIX 2: TECHNICAL DRAWINGS.................................................................................26
APPENDIX 3: CLEANING THE POWDER COATING..............................................................27

Translated user manual (EN-V1) METOSWR 7 / 27
3. Introduction
3.1 General
You have made a good choice by purchasing the Berg Hortimotive METOSWR. You are
the owner of an first class piece of equipment that has been manufactured with great care.
You will gain the most advantage from the equipment provided that you carefully follow
the instructions given in this handbook with regard to safety, operating and maintenance.
Please study this user's handbook carefully before starting to use the METOSWR. Always
follow the safety instructions and recommendations given in this handbook.
Berg Hortimotive does not accept liability for damage or indirect damage resulting from
not following the operating and safety instructions contained in this handbook.
Neither does Berg Hortimotive accept liability whenever you or a third party make
modifications to the pipe rail trolley or its accessories, without receiving prior written
permission from the manufacturer.
The METOSWR is supplied in accordance with the conditions of sale of the Dutch
METAALUNIE, as determined by the registrar of the law court of Rotterdam and in
accordance with the most recent text contained therein. A copy of the terms and
conditions of supply can be provided on request. You can also contact the Koninklijke
Metaalunie, PO Box 2600, 3430 GA Nieuwegein, the Netherlands.
3.2 Suppliers information
In the event of breakdowns or defects occurring on the METOSWR please contact your
Berg Hortimotive dealer.

Translated user manual (EN-V1) METOSWR 8 / 27
4. Safety
4.1 Explanation of the safety terminology
Safety terminology:
Danger : Indicates serious or even fatal injury may occur if the instructions
in the handbook are ignored.
Warning : Indicates injury if the instructions described in this handbook
are ignored.
Caution : Indicates damage may occur to the equipment if the instructions
described in this handbook are ignored.
Warning : Indicates possible problems if the instructions described in this
handbook are ignored.
4.2 Safety instructions
Read the following safety instructions carefully.
After reading the safety instructions they should be strictly observed at all times.
If the Pipe rail trolley safety instructions are not observed while it is being operated, it will
become substantially more dangerous and may lead to serious physical injury.
DANGER!
- Carefully read all of the user's handbook. Observe the operating and safety
instructions at all times.
- Never exceed the maximum permitted system pressure.
- Never exceed the maximum permitted hose length.
- Use the METOSWR only for watering or spraying crops in a greenhouse.
- The METOSWR is only suitable for driving on a flat paved floor (concrete) that is
rough enough to drive and stop safely, and to withstand the winding/unwinding
forces.
- It is forbidden to use the METOSWR in spaces having insufficient lighting!
- Persons are not permitted to ride with/on the chassis.
- It is forbidden to remove the hose guide.
- Do not spray liquid on moving parts of the greenhouse structure and live electric
wiring.
- It is forbidden to pull (steel) wire and to install protective canvas with the METOSWR.
- It is forbidden for persons or pets to enter a path where a METOSWR is being
operated.
- While using the METOSWR, all shields and protective caps must be fitted and closed.
- Avoid the use of other transmitters, at the same frequency as the remote control, in
the immediate vicinity, which could cause the hose reel to be inadvertently started or
stopped.

Translated user manual (EN-V1) METOSWR 9 / 27
-When starting the hose reel remotely, one must be absolutely sure that no one in the
immediate vicinity of the METOSWR reel is surprised by the turning of the drum.
-In the case of a rotating drum, prevent any part of the body from being drawn into the
space between the drum and the frame.
- Avoid damage and faulty repair of the power cable, have worn or damaged power
cables replaced by an approved specialist.
- If a cable extension reel is used, it must be fully unwound before use and have a
sufficient cross-section in relation to the length and the power consumption. The
minimum cross-section of the cores should be ≥ 2.5 mm².
- The METOSWR should be operated with protective clothing and protective equipment,
which should be made compulsory in accordance with the requirements of the
additive used.
- After using the METOSWR, the supply lines (liquid) and METOSWR pipes should be
emptied of liquids. This is because of the possible occurrence of legionella bacteria in
stagnant water.
- The operator of the METOSWR must be certified for the use of toxic substances for
crop protection if they are sprayed with the METOSWR.
- The METOSWR may only be operated by specially trained personnel who are familiar
with the nature of the activities.
- Use only legally permitted spray additives.
- Additional options, accessories and spares must be ordered and supplied exclusively
by the manufacturer, Berg Hortimotive.
Warning!
- Operating the METOSWR may only take place when there are no other persons in the
vicinity (apart from the operator) of the machine.
- The METOSWR may only be operated by persons of 18 years or older who have
received thorough instruction about the METOSWR, who are fully familiar with this
instruction handbook and are completely aware of the dangers associated with
operating the machine.
- The METOSWR may only be used if it is properly connected to the (high pressure)
pump.
- All personnel working in the area of the METOSWR should be made familiar with
relevant safety rules and precautions that apply to the pipe rail system.
- Instructions from the employer.
- Repairs to the METOSWR may only be carried out by personnel who have received
specific training from Berg Hortimotive.
- Never carry out work on the METOSWR while it is being operated by someone else.
Always switch it off using the main switch and remove the plug from the socket
before carrying out maintenance.
- Check the METOSWR daily for defects and carry out maintenance frequently - see
chapter 9: maintenance.

Translated user manual (EN-V1) METOSWR 10 / 27
-Keep the operating controls and safety pictograms clean.
- operating controls and safety pictograms should always be clearly visible.
-After use, the METOSWR should always be switched off with the main switch and the
plug should be removed from the socket.
-Never leave the METOSWR unattended.
- It is forbidden to carry out modifications or make alterations to the METOSWR without
prior written permission from Berg Hortimotive.
- Before entering a path, remove obstacles and plant remains to minimise the risk of
slipping and tripping.
- Never clean the METOSWR with a water hose, high-pressure water gun or steam
cleaner.
- When moving the METOSWR, the hose must be fully wound up on the reel drum.
- Never use the METOSWR on the public highway.
- It is mandatory to wear shoes with protective toe caps (S1).
Please note!
- Always keep the workplace tidy.
- An untidy working area can lead to dangerous situations.
- Be focused.
Always maintain the appropriate level of concentration when operating the hose reel. Do not
operate the METOSWR when unable to concentrate properly, or when using medication that
can impair your reaction times when operating machinery or participating in traffic.

Translated user manual (EN-V1) METOSWR 11 / 27
4.3 Safety pictograms
On the METOSWR a number of safety pictograms have been applied. These pictograms
warn the operator about possible dangers or dangerous situations. Always observe the
warnings and contact your suppliers whenever the actual danger illustrated by the
pictogram is not clear.
Always make sure that the pictograms are visible and undamaged!
The METOSWR operator must have read and fully understood this handbook. When the
operator does not understand the warnings given in either this handbook or on the
machine (e.g. they speak another language), all the instructions, potential dangers,
warnings and functions must be fully explained to them by a responsible person so that
they can fully understand them.
Beware! Attention required
Use only inside (in the greenhouse)
Mass of the machine in kg
Maximum tyre pressure (option)
Dangerous voltage, system voltage 230VAC, never use without rim earth! *
Read the handbook before use!
Main (power) switch: vertical = ON, horizontal = OFF
With maintenance, make it dead and consult the handbook
Beware; danger of entrapment!
Keep your hands away from the scissor parts!
* See chapter 10. Technical Specifications
4.4 Residual risks
Despite the best possible design and the use of risk-reducing devices and the warnings
about the dangers given in the handbook and applied to the machine itself, it is still
possible that dangerous situations can arise. Beware of the following:
- Pinch hazard for hands, fingers, arms and head between the rotating parts!
- Pinch hazard for hands, fingers, arms and head between the rotating parts of the
hose guide!
- Toppling over and/or rolling off the concrete path!
- The hose reel can topple over on exceeding the maximum hose length!
- Increased risk of toppling over when winding up the hose ‘over the top’! (for model
with pneumatic tyres)
- Toppling over of the hose reel with insufficient tyre pressure! (optional)

Translated user manual (EN-V1) METOSWR 12 / 27
5. Intended application
5.1 Area of application
The METOSWR has been designed for use in the greenhouse horticulture sector.
The machine may only be operated by one person with a minimum age of 18 years who
has received thorough instruction in the operation of the METOSWR and who is already
familiar with the safety instructions and this handbook, both of which they have fully
understood.
The function of the hose reel is to rewind the manually unwound hose with a pre-set
speed during spraying.
The automatic speed control ensures that the winding up speed of the hose remains more
or less constant.
Winding up the hose can be started and stopped by means of a remote control
(transmitter).
The hose reel is fed by a separate pump unit with a fluid to be sprayed.
The METOSWR hose reel is available in two versions:
Type METOSWR structure that is suitable for mounting on a pump-tank trolley
Type METOSWR on pneumatic tyre wheels
Use of the METOSWR for any other purposes is strictly forbidden.
5.1.1 Physical operating conditions
Ambient temperature;
Transport & Storage : 5 to +40 degrees Celsius
Working : 5 to +40 degrees Celsius
Rel. Humidity (RH) : 0% to 90%, not condensing
Lighting : Normal ambient lighting.
The machine is not designed to be used outdoors.
The machine is not suitable for operating in explosive atmospheres.

Translated user manual (EN-V1) METOSWR 13 / 27
5.2 Description METOSWR
Figure 5.1; Names of the parts of the METOSWR
Main switch
Wheels (option)
Machine socket
Cord bracket
Antenna
Control panel
Start / stop button
Green indicator
Steering wheel
(option)
Handlebar pull
handle (option)
Speed control knob
Emergency stop
Hose guide
Hose drum
Swivel coupling
Remote control
Transmitter
&
Pouch
Locking clip (option)

Translated user manual (EN-V1) METOSWR 14 / 27
6. Transportation
6.1 External transport (model on wheels)
If the METOSWR needs to be transported, please follow the procedure below:
1.Wind up the hose completely.
2.Switch off the METOSWR by means of the main switch.
3.Remove the plug from the socket and wind up the cord.
4.Also disconnect the supply hose or wind it up.
5.Lock the handlebar pull handle with the locking clip.
6.Properly secure the METOSWR to prevent it from sliding, rolling or toppling over.
7.Ensure that the METOSWR remains dry and frost-free during transportation.
8.After having arrived at its destination, the METOSWR must be started up in
accordance with the points described at chapter 7.1.
6.2 Internal transport (model on wheels)
The METOSWR can also be transported indoors (in the greenhouse). Always pull the
METOSWR by hand and proceed as follows:
1.Wind up the hose completely.
2.Switch off the METOSWR by means of the main switch.
3.Remove the plug from the socket and wind up the cord.
4.Also disconnect the supply hose or wind it up.
5.Unlock the handlebar pull handle with the locking clip.
6.Pull the METOSWR while holding the handlebar pull handle.
7.On arrival at the destination, the handlebar pull handle must be locked in the vertical
position with the locking clip, the METOSWR is then braked.
Attention!
- Always remove the plug from the socket before moving!
- Wind the cord!
- Take care with ramps and trenches
- Drive slowly and carefully!
- Put the METOSWR on the brake, use the locking clip!

Translated user manual (EN-V1) METOSWR 15 / 27
7. Commissioning
The METOSWR is specially developed for winding and unwinding hoses with a remote
control. The METOSWR may be mounted on a spray trolley with tank and pump, or be
provided with three pneumatic tyres. The METOSWR was checked for proper functioning
and safety before leaving the Berg Hortimotive factory. The items described in section 7.1
must be inspected prior to taking the METOSWR into service.
7.1 Inspection before starting operations
The following points should be checked before starting up the METOSWR
- There are no loose electrical connections (all the functions and buttons work
properly).
- Remote control operation.
- Damaged cables and/or hoses (leakage).
- Tyre pressure (optional).
- Locking clip operation (optional).
- Hose guide operation.
- General mechanical damage.
- No damage to or impaired visibility of the control components, pictograms and
symbols.
8. Use
Make sure that you are familiar with the METOSWR and the controls. Make sure that the
person operating the METOSWR has received instructions regarding the hose reel and
has read and understood this handbook.
- The METOSWR may only be operated if one is sure that no one is in the immediate
vicinity of the hose reel.
- Before use, remove crop remains and other waste or obstacles from the work area.
- Keep the METOSWR clean; before cleaning, switch off the hose reel using the main
switch and remove the plug from the socket.
- After using the METOSWR, switch off the hose reel using the main switch, remove the
plug from the socket and wind up the cord.
- Maintain the METOSWR regularly and place it in a dry, frost-free place if it is not used
for a longer period.
8.1 Controls

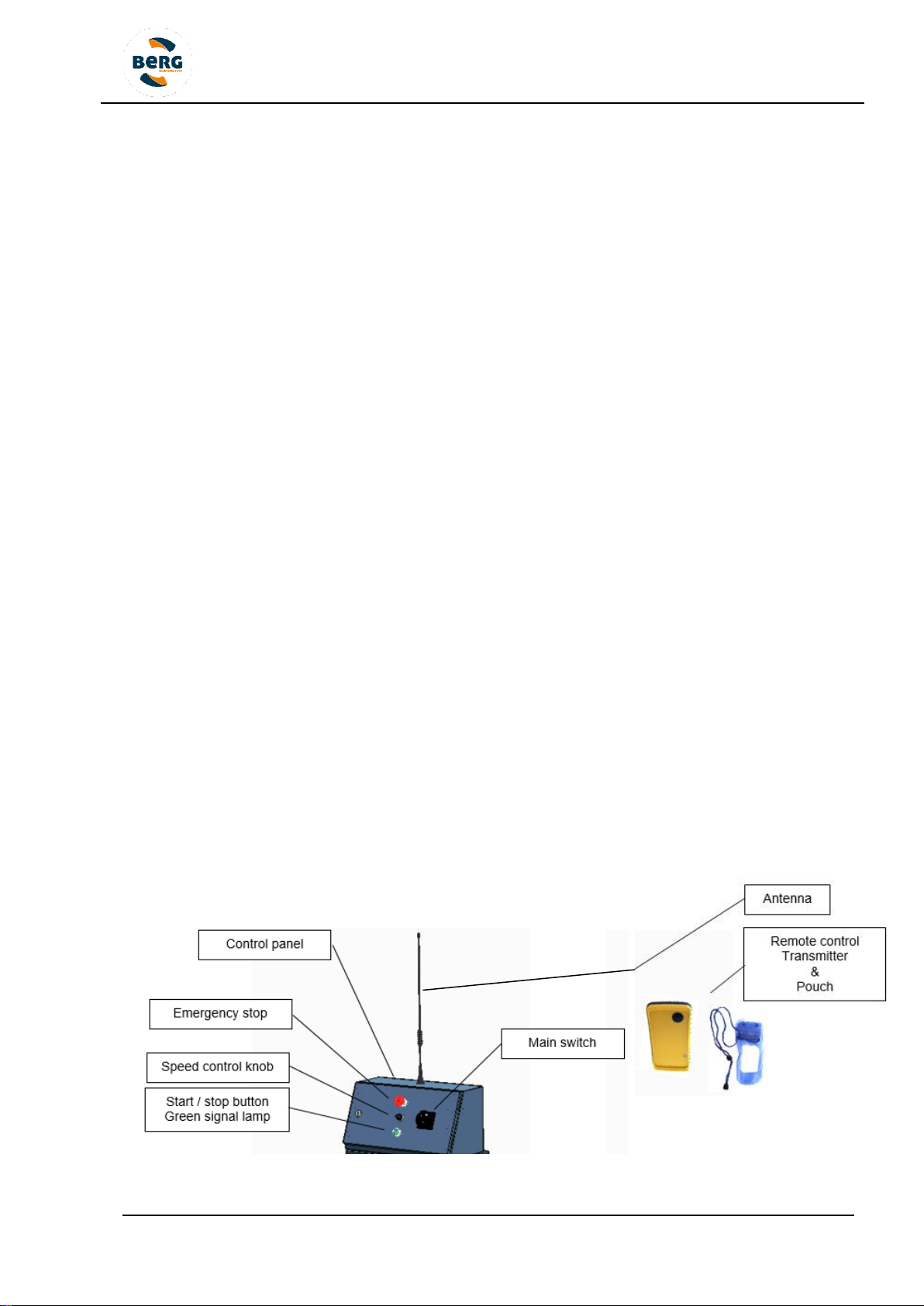

Figure 8.1; Operation of the METOSWR

Translated user manual (EN-V1) METOSWR 16 / 27
MAIN SWITCH
The METOSWR can be switched on and off with the main switch. Here, the vertical
position is ON and horizontal OFF. When the METOSWR is turned on, the green indicator
will light up.
EMERGENCY STOP
Only use in case of emergency! The main switch must be used for switching off.
- Press = stop
- Turn-pull out = release
With an active emergency stop, the green indicator will blink!
Starting up after engaging the emergency stop
Never release an emergency stop (reset) if you do not know who engaged
the emergency stop and why.
Release the emergency stop only when the dangerous situation has been resolved!
SPEED BUTTON
0 = minimum speed 10 = maximum speed
See for specifications chapter 10.
START/STOP BUTTON
You can use the start/stop button to start and stop winding up the hose.
REMOTE CONTROL
You can use the remote control to start and stop winding up the hose.
8.1.1 Preparing for use
Before the METOSWR can be used, the following steps must be completed, repeat these
operations every time when the hose reel has been OFF and has been moved with the
plug disconnected from the socket.
The METOSWR has an automatic roll-up cut-off that is ‘defined’ as soon as the
hose reel is switched on with the main switch.
oBefore switching on the reel, unwind the hose from the drum a little, this
becomes the automatic switch-off length!
oMake sure that the emergency stop is unlocked.
oSet the main switch to ON.
oThe automatic roll-up cut-off is now defined.
While winding up, the reel will reduce the winding speed approximately four metres before
the automatic cut-off point.

Translated user manual (EN-V1) METOSWR 17 / 27
Upon reaching the automatic roll-up cut-off point, the drum will stop winding up.
Test the correct operation of the METOSWR
oUnwind the hose approximately five metres.
oPress the start/stop button, the reel starts winding up to the automatic cut-off
point.
oUnwind the hose again for five metres.
oNow test the remote control for proper operation, briefly press the transmitter
button, the reel starts winding up to the automatic cut-off point.
oSet the desired winding speed with the speed control button.
The METOSWR is now ready for use!
Drive the hose reel in front of the path to be sprayed, and make sure it is stable and fixed.
Pull the hose and walk to the desired location, the reel drum will be unwound.
Start winding by briefly pressing the button on the remote control.
When the button on the remote control is pressed for longer than 2 seconds, the hose on
the drum will wind up with a fixed (reduced) speed, until the button is released. The above
also applies to the start/stop button on the control panel.
Attention! The hose reel will override the automatic cut-off point with this function.
To start and stop winding, repeatedly press the remote control button once until the
automatic cut-off point is reached.
After using the METOSWR, switch off the hose reel using the main switch, remove the
plug from the socket and wind up the cord.
8.2 Out of use
If the METOSWR is out of use, make sure it is switched off at the main switch, remove the
plug from the socket and wind up the cord.
Provide a level surface and protect the METOSWR from direct sunlight. If after a longer
period the METOSWR is put back into operation, it must first be inspected as described in
section 7.1 (Inspection before starting operations).
8.3 Cleaning
Regularly remove any remains of plants, leaves, etc, and brush off any sand and dust.
Clean the Pipe rail trolley with a dry/damp cloth and soft brush. It is also possible to clean
the METOSWR using compressed air, provided that it is dry. Never pour water over the
METOSWR or clean it using a steam or high-pressure water cleaner which can lead to
serious damage being caused to the electrical circuits in the equipment.
Every week remove all sand and dirt from the chassis for the scissor sliding blocks.
See also Appendix 4: Cleaning the powder coating

Translated user manual (EN-V1) METOSWR 18 / 27
8.4 Problems, causes & solutions
Problem A : The METOSWR does not wind up.
Cause : Main switch is turned off
Solution : Turn on the main switch (vertical)
Emergency stop locked
Release emergency stop (turn / pull out)
No supply voltage
Check the connection cable and power socket
Try another wall socket
Speed potentiometer at 0
Set a speed
Motor controller fault (green light blinking)
Turn the main switch off and on again
Hose blocked or too heavy (long)
Winding speed is too low, set the speed control button faster
Other causes
Consult your dealer
Problem B: Speed can be poorly adjusted.
Cause B : Speed control button is defective.
Solution : Consult your dealer
Winding up is too heavy
Winding speed is too low, set the speed control button faster
Consult your dealer
Motor controller is defective
Consult your dealer
Problem C: The automatic cut-off does not work.
Cause C : The automatic cut-off point is not defined properly
Solution : See 8.1.1 Preparing for use
Problem D: Feed through coupler leaks.
Cause D : Worn by prolonged use
Solution : Renew the feed through coupler
Worn by other causes
Forgotten to flush the system
Use of aggressive chemicals
Renew the feed through coupler
Consult your dealer

Translated user manual (EN-V1) METOSWR 19 / 27
Problem E : The METOSWR has toppled over, type with pneumatic tyre
wheels.
Cause E : - Carelessness when moving
- Slippery concrete path
- Unstable surface
- Too heavy (long) hose used
- Winding up ‘over the top’ in combination with too long a
hose
- Handlebar pull handle locking clip not used
Solution : 1. Switch off the METOSWR with the main switch
2. Remove the plug from the socket
3. Clean the concrete path, restore grip
4. Use the METOSWR only on a stable surface
5. Use a shorter hose
6. Wind up from the bottom
7. Always use the handlebar pull handle locking clip
8. Locate the cause and solve (remove)
9. Check according to chapter 7
8.5 Dismantling
When your METOSWR is defective to such an extent that it must be dismantled,
you must take it to your supplier or another company that specialises in
dismantling vehicles. Never take your METOSWR to a scrap metal merchant or
dump. The METOSWR must be dismantled and chemical parts disposed of
(liquids and oil).
Dispose of oil as chemical waste.

Translated user manual (EN-V1) METOSWR 20 / 27
9. Repairs & maintenance
The METOSWR is a very high quality product. In order to guarantee that the high quality
remains, it is vital that the maintenance schedule given below is strictly adhered to.
Repairs and maintenance activities should be recorded in the maintenance logbook - see
Appendix 1. The employer is also responsible for periodically checking tools and
equipment according to the current Working Equipment Guidelines that cover this.
Before performing maintenance, switch off the METOSWR at the main switch and remove
the plug from the socket:
Maintenance - Checks
Tools
Dail
y
Week
ly
Monthl
y
Yearl
y
Damage to control components
Visually
X
Damage to/visibility of pictograms and
stickers
Visually
X
Clean the hose reel after each use
Brush / Damp cloth
X
Flush the hose reel after each use
Clean water
X
Check for leakage and damaged cables and
hoses before each use
Visually
X
Check for ingrained dirt or string wrapped
around wheels
Visually
X
General mechanical damage
Visually
X
Check tyre pressure (option)
Visually / inflate
X
Grease hose guide chain and bearings (see
9.4)
Chain lubricant, ball-bearing
grease
X
Grease the hinged parts of the handlebar
pull handle and locking clip (see 9.5)
Spray grease
X
Check the condition, profile and drying out of
the tyres
Visually
X
Check construction welds for (hairline)
cracks and rust
Visually
X
If the above checks indicate that there is a fault with the METOSWR, immediate contact
should be made with the METOSWR dealer. Continuing to use the machine after
identifying defects could lead to dangerous situations and is therefore forbidden!
9.1 Specialist maintenance
Maintenance and repairs to the items listed below may only be carried out by qualified
specialists appointed by Berg Hortimotive:
- Work on electrical components/wiring (excl. exchanging separate power cable and
connectors)
- All work on the drive motor with reduction gearbox.
- All work on the hose guide system except for: Cleaning, lubricating and tensioning the
chain.
9.2 Maintenance and inspection for the end user
All the activities from the above table that have not been excluded in section 9.1
‘Specialist maintenance’ should be carried out periodically. Some operations are
described in more detail below.
Inspect the
carbon brushes
of the motor
