Catanzaro, also known as the “City of the two Seas”,
is an Italian city known for its illustrious silk and
velvet production. In ancient times, it is believed
that Catanzaro was a Greek settlement and has had
influences from the Byzantine Empire.
About Catanzaro:
PLEASE READ FIRST BEFORE RETURNING
Please call us for assistance at 1+ [phone]
or email us at [email protected]
Our Customer Care Department is available:
Monday - Friday 8:30am to 4:00pm PST, 11:30am to 7:00pm EST
If you have any questions regarding assembly, parts or operation,
please visit our website at www.berninifountains.com.
At berninifountains.com you will find instructional videos
on how to assemble and operate your fountain and you can view
our newest products.
This product comes with a one year limited warranty against
materials and workmanship, see page 21.
Please review the list of accessories included with your
Bernini™ Fountain on the next page. Please note, images of
parts are not to scale with one another.

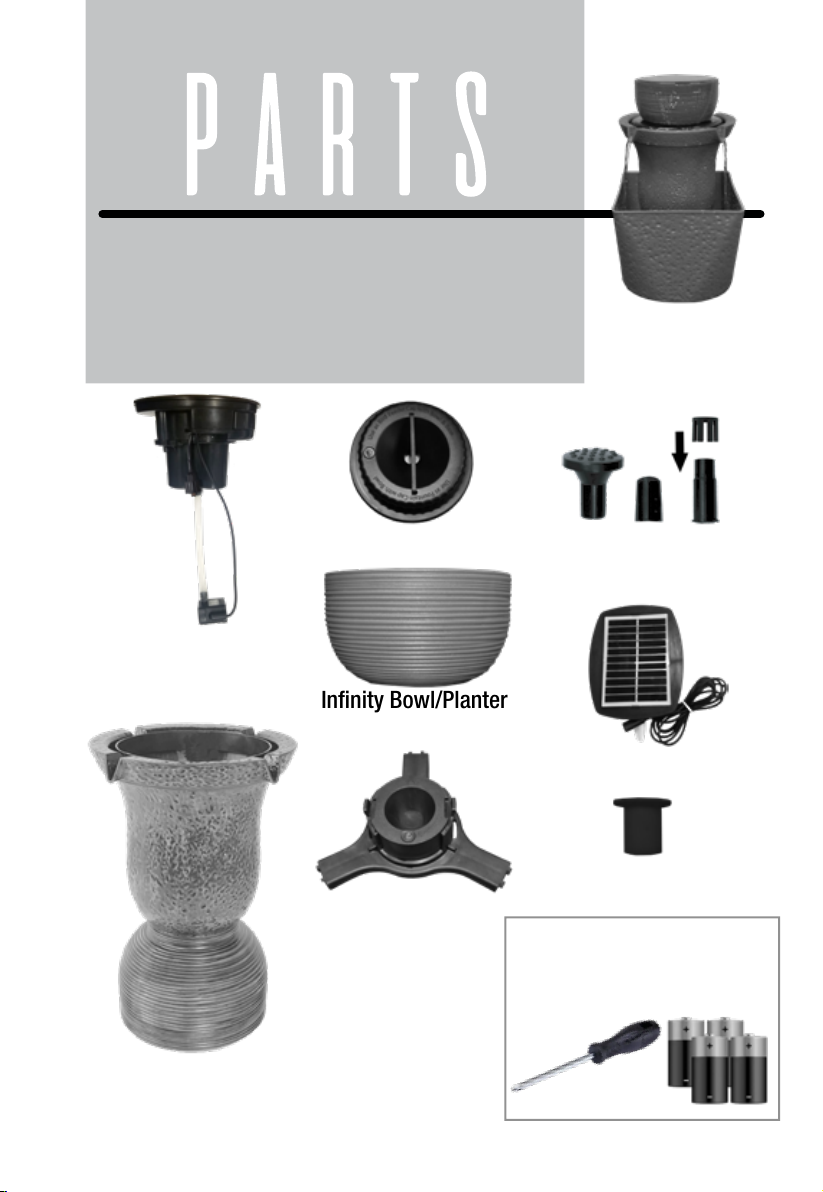

FOR YOUR
BERNINI™FOUNTAIN
Fountain Base
Battery Compartment,
Water Tube &
Water Pump
Solar Panel
3 Prong Foot
Solar Panel Power
Port Protective Cap
Infinity Bowl/Planter
/Bird Feeder
Cap
Items/Tools Required:
(Not Included)
. Philips Screwdriver
. 4 D Cell Batteries
Pirouette
Umbrella

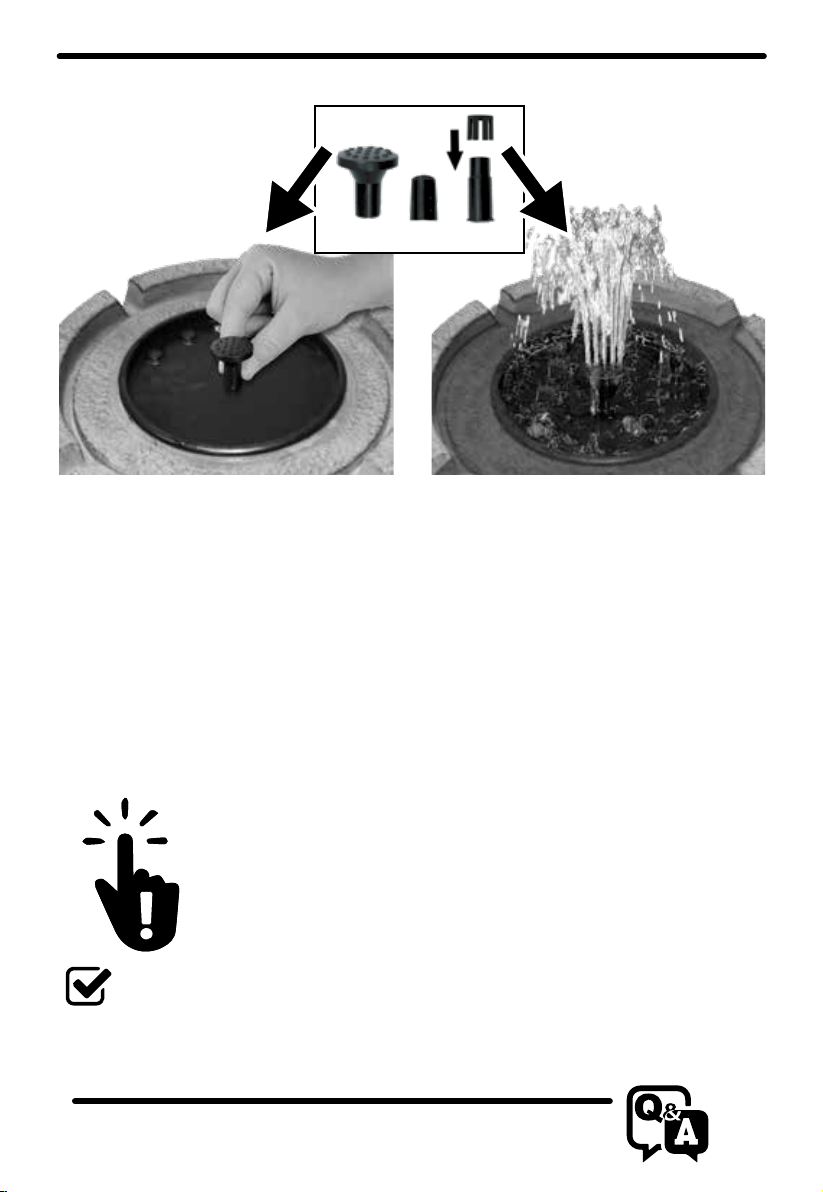

Dancing Water
Attachments
Shower

CONTENTS
PAGE:
1. STEP 1: BATTERY INSTALLATION
2. Inserting Batteries Into The Battery Compartment
3-4. Installing Batteries
5. Assembling Battery Compartment Housing & Battery Cover
6-7. Assembling the Water Pump, Water Tube & Solar Pump Cord
to Battery Compartment
7-8. Changing The Batteries
9. STEP 2: SOLAR PANEL INSTALLATION
10. How The Solar Panel System Operates
10-11. Solar Panel Assembly & Installation
12. STEP 3: SETTING UP YOUR FOUNTAIN
13. Fill Your Fountain
13-14. Operating Your Fountain
15. Dancing Water Attachments
16. STEP 4: 3-IN-1 INFINITY BOWL/BIRD FEEDER/
PLANTER BOWL
17. Infinity Bowl
17. How The Self-Watering System Works
18. Planter
19. Bird Feeder
20. TROUBLESHOOTING AND MAINTENANCE
20. Water Pump Connection
21. Priming the Water Pump
21. Cleaning Your Fountain
21-22. Cleaning Your Water Pump’s Parts
22-23. Cleaning Your Water Pump Impeller
23. Cold Storage
24. Troubleshooting Guide
25. Limited Warranty Information

|1
Fountain
Assembled Battery Compartment Water Tube & Water Pump
BATTERY
INSTALLATION

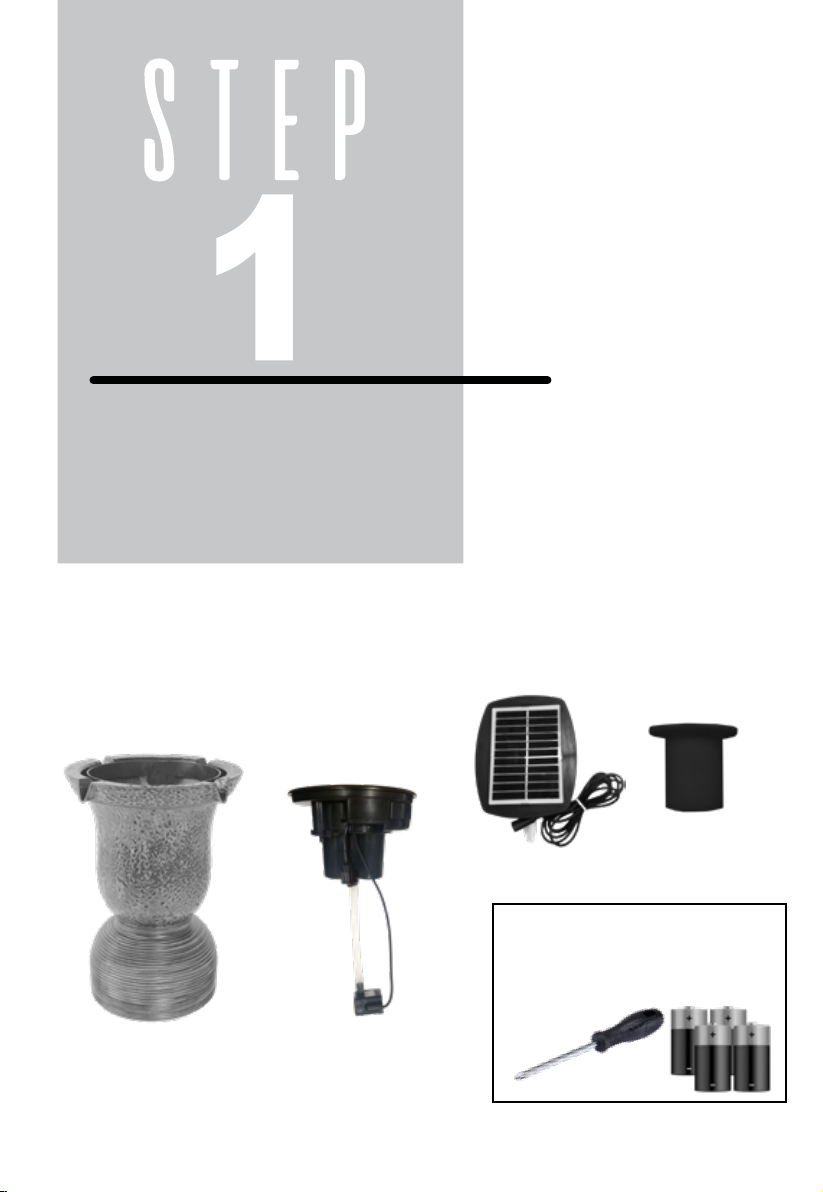

You will need:
Items/Tools Required:
(Not Included)
. Philips Screwdriver
. 4 D Cell Batteries
Solar Panel
Solar Panel
Power Port
Protective Cap

2| Remember if you need help contact Customer Care: 1+ [phone]
INSERTING BATTERIES INTO THE BATTERY COMPARTMENT
Figure 1d
Battery Compartment
Retaining Screws X2
Figure 1b
Figure 1a
Figure 1c

|3
Remember if you need help contact Customer Care: 1+ [phone]
INSTALLING BATTERIES

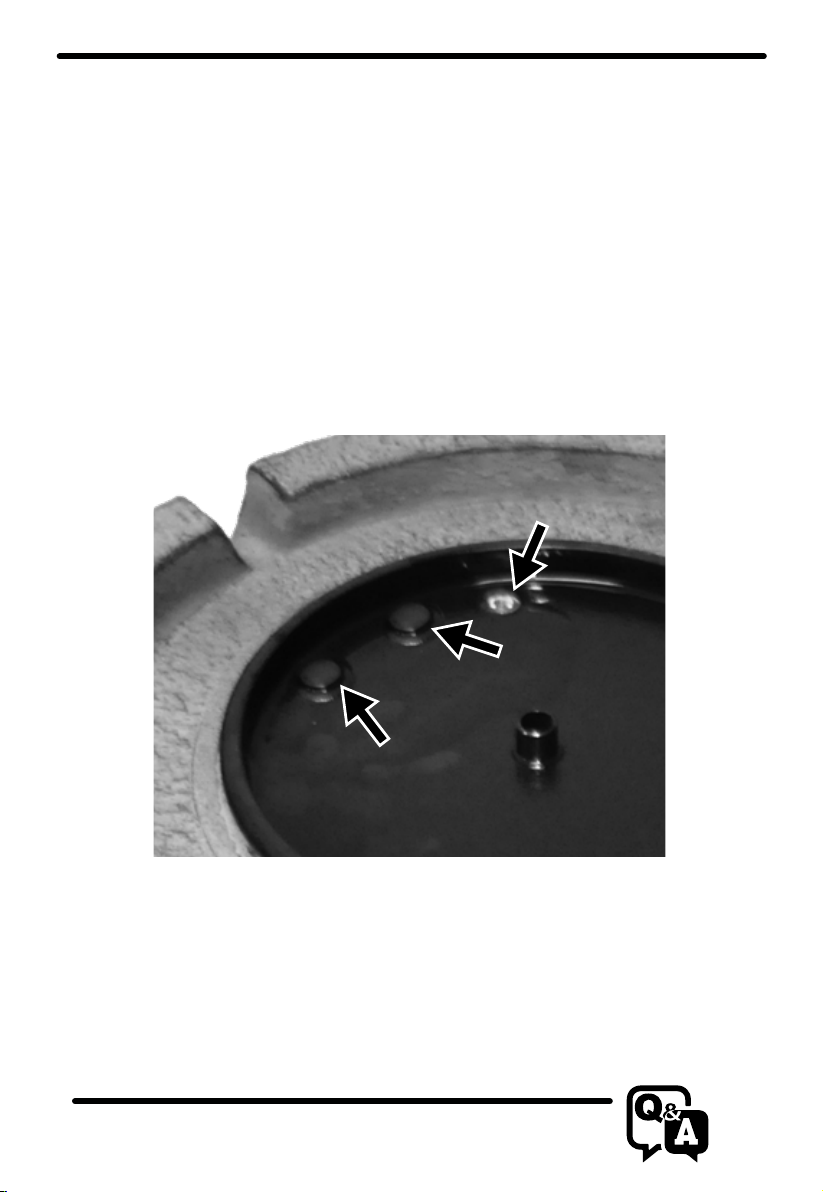

NOTE: The Battery Housing utilizes screws that are captive in the Battery Housing.
When they are loosened they will stay within the Battery Housing and will not come
loose (Arrow A & B Figure 2c).
1. (If Battery Compartment & Water Pump are installed into the Topper) Lift out of
the Topper (Figure 1a). Disconnect the Water Tube from the Battery Compartment (A
Figure 1b&c).
2. Unscrew (counter clockwise) the Battery Compartment Screws and open cover
(Figure 1d). Note: Cover fits tightly and may take some effort to separate. If screws
continue to turn compartment is completely unscrewed.
3. Fountain requires 4 D batteries (Not Included). Insert x2 D Batteries with the (+)
side facing up in Battery Compartment and x2 D Batteries with the (-) facing up in
Battery Compartment (Figure 2a).
NOTE: Flat or negative side of battery will rest on springs.
4. Reinstall the Fountain Top by aligning the locating dowel in the Battery
Compartment and Fountain Top (Figure 1e white arrow). Set the Battery Cover down
onto the Battery Compartment ensuring the dowel sets into the alignment hole.
6. Apply pressure and tighten the Battery
Cover Screws by turning clockwise.
NOTE: Pressure must be applied to the
Battery Compartment while tightening
the screws to assure the compartment
is properly sealed. If needed, while holding
battery compartment, place it upside down
on an even surface to tighten screws
(Figure 2a, 2b & 2c).
Figure 1e

4| Remember if you need help contact Customer Care: 1+ [phone]
B
A
INSTALLING BATTERIES (CONTINUED)
Figure 2a
Figure 2c
Locating Dowel
Battery Cover
O-Rings
Figure 2b

|5
Remember if you need help contact Customer Care: 1+ [phone]
1. Place Battery Cover on Battery Compartment Housing. Turn over assembled
Battery unit and place on a flat, level surface. Using a Phillips screwdriver (not
included) alternate tightening both screws down firmly.
2. After both screws have been tightened, you may notice a small gap between the
Battery Cover and the Battery Compartment Housing.
3. Press down firmly on the bottom of the Battery Compartment Housing to help
tighten the gap.
4. Re-tighten the screws (left screw first, right screw second) to close the gap
between the Battery Cover and the Battery Compartment Housing.
ASSEMBLING BATTERY COMPARTMENT HOUSING & COVER

6| Remember if you need help contact Customer Care: 1+ [phone]
A
B
Figure 3a Figure 3b
Figure 3dFigure 3c
ASSEMBLING THE WATER PUMP, WATER TUBE & SOLAR PUMP CORD
TO BATTERY COMPARTMENT
3. Remove the Solar Panel Power Port Protective Cap. (Figure 3c).
4. Screw together the Solar Panel Power Cord to the Solar Panel Power Port (Figure
3d).
NOTE: Ensure connection is tight to prevent water from entering Solar Panel
Power Port.
NOTE: Keep the Solar Panel Power Port Protective Cap in a safe location in case
you want to run the fountain without the Solar Panel connected in the future.

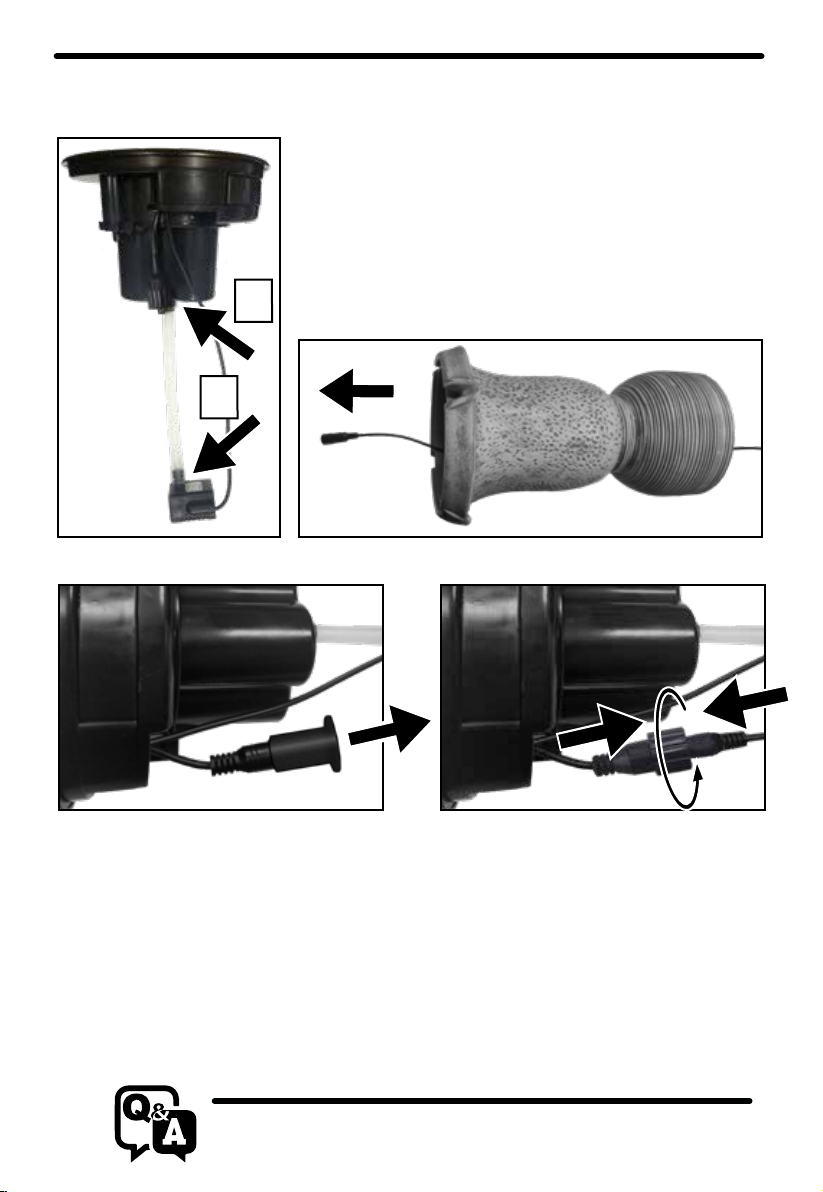

1. Connect one side of the Water Tube to the Water
Pump and the other end of the tube to the bottom side
of the Battery Compartment (A & B of Figure 3a).
2. Insert Solar Panel Power Cord through the fountain
from bottom to top (Figure 3b).

|7
Remember if you need help contact Customer Care: 1+ [phone]
CHANGING THE BATTERIES
1. Remove any Dancing Water Attach-
ment.
2. Lift Battery Compartment and Water
Pump out of the Fountain (Figure 4a).
NOTE: When changing batteries,
ensure Battery Compartment and
Water Pump are completely dry be-
fore opening Battery Compartment to
prevent water from getting inside.
5. Lower the Battery Compartment and
Water Pump into the Topper. Battery
Compartment and Water Pump should be
flush with Topper (Figure 3e).
6. To ensure Solar Panel Power Cord does
not get pinched or damaged, guide Solar
panel Power Cord through slot built into the
Fountain Base (Figure 3f).
7. Set into the Bowl of your choice (not
Included) (Figure 3G).
ASSEMBLING THE WATER PUMP, WATER TUBE & SOLAR PUMP CORD
TO BATTERY COMPARTMENT (CONTINUED)
Figure 3e
Figure 3g
Figure 3f

8| Remember if you need help contact Customer Care: 1+ [phone]
Figure 4b
A
B
CHANGING THE BATTERIES (CONTINUED)
Figure 4c
Figure 4d
Figure 4a
At this point, your fountain should
look like the image on the right.
GO TO THE NEXT PAGE TO
CONTINUE WITH SETUP
OF YOUR FOUNTAIN.

|9
SOLAR PANEL
INSTALLATION
You will need:
Solar Panel
Assembly
Solar Panel Power
Port Protective
Cap

10| Remember if you need help contact Customer Care: 1+ [phone]
HOW THE SOLAR PANEL SYSTEM OPERATES
SOLAR PANEL ASSEMBLY & INSTALLATION
The Bernini Fountains®Solar Panel System is designed to prolong the run time of
your fountain and extend the time between replacing your batteries. The Bernini
Fountains®Solar Panel System combines standard D Cell batteries and a computer
controlled, high-capacity solar assist system. For best results, start with new
batteries.
The Bernini Fountains®Solar Panel System will extend the batteries life and time
between changes. The batteries will still need to be changed, however the time
between changes can now be prolonged. Please note, the time between changes
will vary based on the amount of sun exposure and how often you use your
fountain. When the batteries charge runs low, simply follow the “Changing The
Batteries Section” instructions to continue enjoying your Bernini Fountains®.
Figure 2
Figure 1
As stated in the previous section, place fountain in a suitable bowl to ensure Solar
Panel Power Cord does not get pinched or damaged. Ensure Solar Panel Power
Cord sits in the notch built into the bottom of the Fountain Base. (Figure 1).
Extend the Solar Panel Power Cord out as needed, a maximum of 6 ft. Push the
stake assembly on the Solar Panel into soft dirt until the stake assembly can se-
curely stand upright (Figure 2).
6 ft6 ft
MAXMAX
DISTANCEDISTANCE

|11
Remember if you need help contact Customer Care: 1+ [phone]
SOLAR PANEL ASSEMBLY & INSTALLATION (CONTINUED)
At this point, your fountain should
look like the image on the left.
GO TO THE NEXT PAGE TO
CONTINUE WITH SETUP
OF YOUR FOUNTAIN.
NOTE: If desired you can run your fountain without the Solar Panel Installed.
1. Lift the battery housing out of the Fountain.
2. Simply unscrew the Solar Power Panel Power Cord from the Power Port.
3. Reinstall the Solar Panel Power Port Protective Cap, ensure it is installed tight on the
Solar Panel Power Port to prevent any water from entering the Solar Panel Power Port.
4. Fill Bowl with water. Depending on bowl size or depth, ensure water does touch bottom
of battery housing.

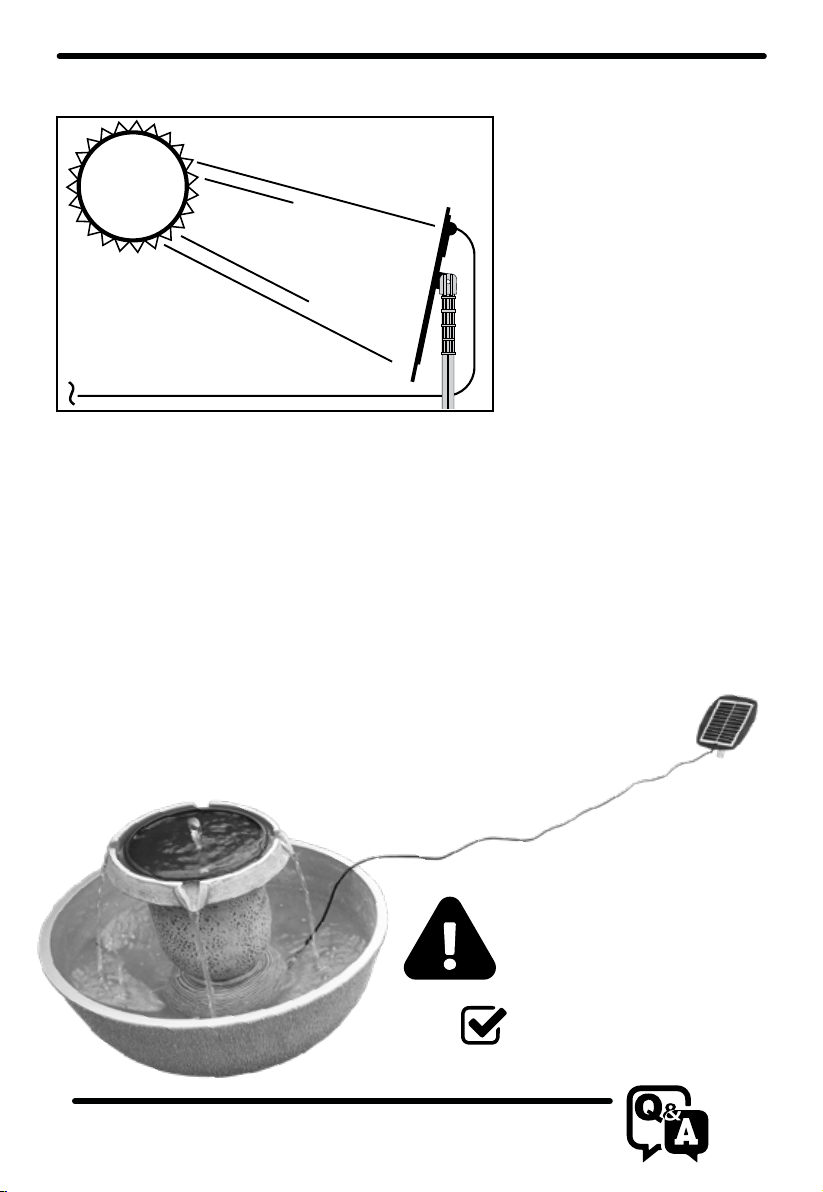

Always angle the solar panel
towards the sun to maximize
exposure to sunlight required
to power the fountain.
To ensure optimal power and
sunlight hitting your fountain’s
solar panel, you may need to
rotate or turn the solar panel
towards the sun as necessary.
Figure 3

12|
Fountain
Assembled
WATER TO
FILL YOUR
FOUNTAIN
Dancing Water
Attachments
SETTING UP
YOUR FOUNTAIN
You will need:
Shower Pirouette Umbrella

|13
Remember if you need help contact Customer Care: 1+ [phone]
FILL YOUR FOUNTAIN
.
Fill Bowl with water. Depending on bowl size or depth, ensure water does not touch
bottom of battery housing.
.
To dislodge any air bubbles from the pump, grab both sides of the large bowl
and quickly shake your fountain for ten seconds.
.
Press the button once to turn your fountain on. Water should be flowing from
the top of your fountain.
.
If water is not flowing, press the button once more to turn your fountain off and
repeat the step above.
OPERATING YOUR FOUNTAIN
Turn Fountain on and off:
.
The A Button is the manual on and off button.
.
With the Fountain off, press the A button: The fountain will run for a
maximum of 6 hours or until the A button is pressed again which will shut
the fountain off.
Figure 5
A
B
LIGHTLIGHT

14| Remember if you need help contact Customer Care: 1+ [phone]
OPERATING YOUR FOUNTAIN (CONTINUED)
Programing The Fountain:
.
Press the A Button 2 times: Clears out all programing.
Press the B Button 1 time: Will program the fountain to run for 1 hour
each day at the same time. The light (Figure 5), will flash once to confirm
your selection.
.
Press the B Button 2 times: Will program the fountain to run for 2 hours
each day at the same time. The light (Figure 5), will flash twice to confirm
your selection.
.
Press the B Button 3 times: Will program the fountain to run for 3 hours
each day at the same time. The light (Figure 5), will flash 3 times to confirm
your selection.
.
Press the B Button 4 times: Will program the fountain to run for 4 hours
each day at the same time. The light (Figure 5), will flash 4 times to confirm
your selection.
.
Pressing the B Button more than 4 times: Pressing the B Button a fifth
time will shut off the fountain. If this is done by mistake and you want to ensure
that a timer is set, press the A button twice to reset the system (which will turn
the fountain on and off), then press the B button as indicated above to set the
timer for the desired interval time.
Reset/Change the timer:
.
Press the A button twice to clear out any timers programmed into the B
Button. If you want to reset the timer, set the B Button Programing as in
the “Programing The Fountain” Section above (Figure 5).

|15
Remember if you need help contact Customer Care: 1+ [phone]
DANCING WATER ATTACHMENTS: (OPTIONAL)
You can put any of the Dancing Water Attachments on the Fountain whether the
Fountain is running or is not running.
.
Select one of the Dancing Water Attachments and place on the outlet in the
middle of the Battery Compartment (Figure 6a, 6b & 6c).
NOTE: Please be aware that there is over-spray that occurs while using the
Dancing Water Attachments.
DANCING WATER ATTACHMENTS
Figure 6b Figure 6c
Figure 6a
THE FOLLOWING SECTION COVERS THE 3-IN-1 INFINITY
BOWL/BIRD FEEDER/PLANTER BOWL.
You can now try your fountain to see if everything is working correctly! Turn
your fountain on and you should see water flowing from the outlet on the top
of the Topper. If water is not flowing, please refer to the “Priming The
Water Pump” in the “Troubleshooting & Maintenance” Section.
Shower Pirouette Umbrella
