Bertazzoni WC605BLP2T User manual

49bertazzoni.com
60cm (24”) Wine Column Panel Ready
Dimensions
WC605BLP2T (left hinge)
WC605BRP2T (right hinge)
BUILT-IN WINE COLUMNS
SIDE VIEW
FRONT VIEW TOP VIEW
24"
609
83 1/2"
2120
+
1"(25)
22 1/4"
565
71 1/8"
1808
19 7/8"
505
24 1/4"
615
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
46 3/4"
1187
**
4 1/4"
108
*
100°
SIDE VIEW
FRONT VIEW TOP VIEW
24"
609
83 1/2"
2120
+
1"(25)
22 1/4"
565
71 1/8"
1808
19 7/8"
505
24 1/4"
615
80 3/4"
2050
+
1"(25)
5"
127
2 3/4"
70
100°
4 1/4"
108 *
46 3/4"
1187 **
Dimensions in parentheses are millimeters unless otherwise
specified.
For custom panel dimensions and window cutout see page 69.
* Maximum Overall Handle Dimension
** Width of 19mm (3/4”) Door Panel
For detailed handle dimensions see page 71

50 bertazzoni.com
INSTALLATION
All Bertazzoni columns can be installed in a standard 635mm
(25”) depth cutout.
Finish the edges of the opening because they may be visible
when the door is open.
For a built-in installation, to cover gaps between the appliance
and the adjacent cabinets, special side profiles are factory-
installed and covering frames are provided with the product.
For panel ready columns, do not exceed the maximum
weight of 34 kg (75 pounds) for door panel. Panel can have
thickness ranging between 19mm (¾”) and 28mm (1 1/8”).
For instructions of product combinations please see the
Multiple Installation Section (page ).
CABINET REQUIREMENT
Installation of the appliance must be performed in accordance
with the provisions of applicable legislation.
Be sure that support of this appliance is perpendicular to the
front facing of the wall or cabinet before you perform the
installation.
The floor must be flat and must be capable of supporting the
weight of the appliance when in use.

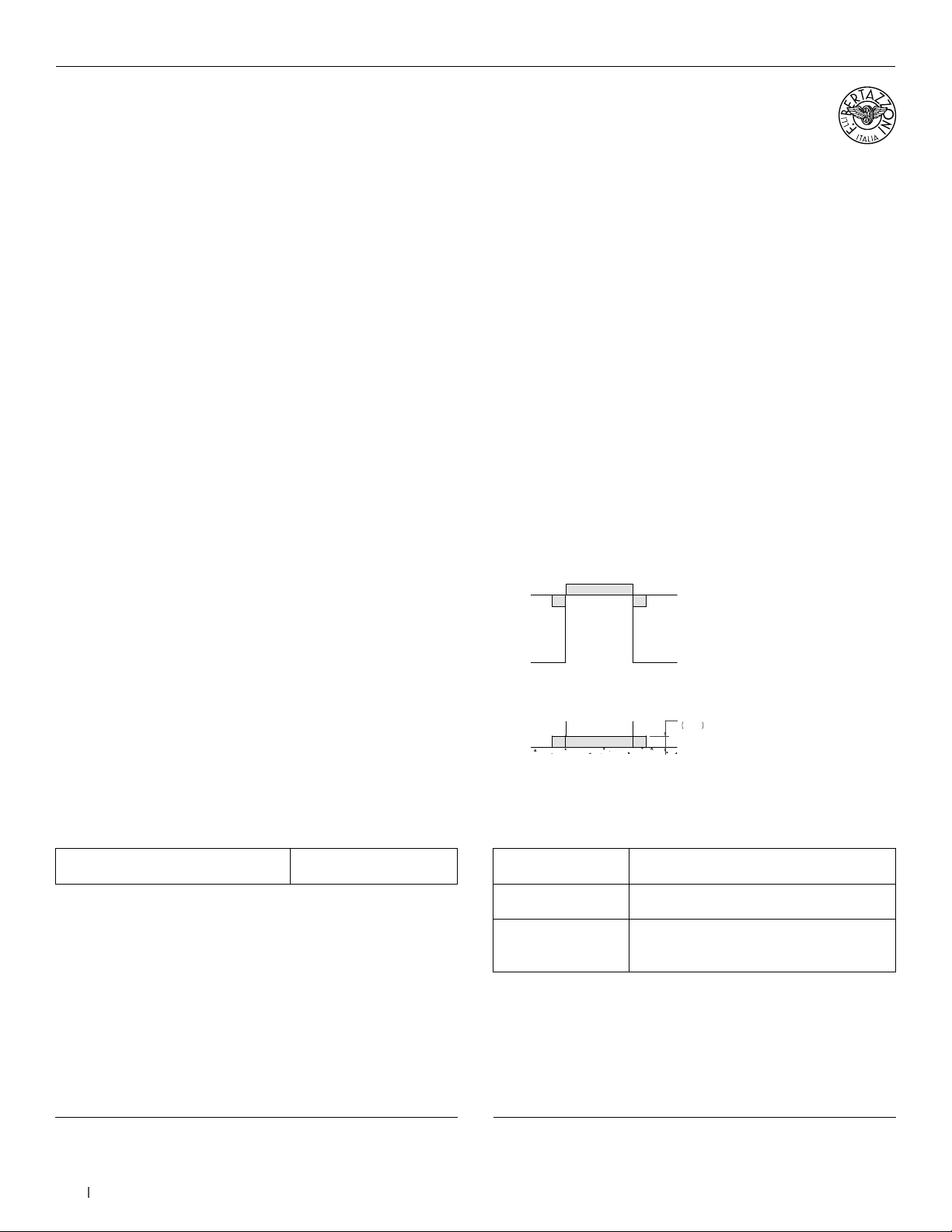

ELECTRICAL REQUIREMENT
The installation must comply with all applicable electrical codes.
A properly - grounded horizontally - mounted electrical
receptacle should be installed.
Place the electrical supply flush with the back wall and within
the shaded area shown in the illustrations.
Placement within the opening may require additional cabinet
depth.
TOP VIEW
FRONT VIEW
E E
E
EE E
5"
127
MAX
A separate circuit breaker servicing only this appliance is
recommended.
BUILT-IN WINE COLUMNS
60cm (24”) Wine Column Panel Ready
Installation requirements
Required floor support 450 kg (992 lb)
For detailed installation specifications consult the multiple installation
requirements page or each single product installation manual.
Dimensions in parentheses are millimeters unless otherwise
specified.
Electrical supply 220-240 V 50/60 Hz 130 W 0,7 Amp
Service 10 Amp dedicated circuit
Power Connection 2-pole 220V SCHUKO plug with
2m power cord

51bertazzoni.com
BUILT-IN WINE COLUMNS
60cm (24”) Wine Column Panel Ready
Flush installation
SIDE VIEW FRONT VIEW
TOP VIEW
24"
610
83 7/8"
2130
Min.
25"
635
aa
b
b
(a) Area to be left clear for the anti-tipping
brackets – 82x127mm (3”1/2x5”)
(b) Panel dimensions available on Built-in Food Preservation
Design Guide or Installation Manual
Dimensions in parentheses are millimeters unless otherwise
specified.
b: depth includes kitchen cabinet front panel.
