Best-rite Visionary 83843 User manual

1234567890123456789012345678901212345678901234567890123456789012123456789012

Visionary Boards

2’ X 3’, 3’ X 4’, 4’ X 4’, 4’ X 6’ and 4’ X 8’

Assembly Instructions

Part Drawing Description Qty

Missing Parts or UPS Damaged Parts

For Your Convenience you can

EMAILusat

[email protected]

24HOURS 7 DAYSAWEEK

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product until

repairs are made by your dealer using factory authorized parts.

Important Information

Hardware List

P-1 Glass Board 1 EA

EVisionary Board

P-2 Glass Tray 1 EA

A Outer Cap Chart

B Wall Mount Chart

C PlasticAnchor Chart

D CS Screw Chart

E Glass Tray Mount See

Chart

Part Drawing Description Qty

Hardware Chart by Model # & Board Size

2’X3’ GBoard - 4 pcs. (A), (B)

6pcs. (C),(D),(F)

2 pcs. (E)

3’X4’ GBoard - 4 pcs. (A), (B)

6 pcs. (C), (D), (F)

2 pcs. (E)

4’X4’ PJWBoard - 4 pcs. (A), (B)

6 pcs. (C), (D), (F)

2 pcs. (E)

4’X6’ GBoard - 6 pcs. (A), (B)

8 pcs. (C), (D), (F)

2 pcs. (E)

4’X8’ GBoard - 8 pcs. (A), (B)

10 pcs. (C), (D), (F)

2 pcs. (E)

4’X4’ PJGBoard- 4 pcs. (A),(B)

6 pcs. (C), (D), (F)

2 pcs. (E)

4’X6’ PJWBoard- 6 pcs. (A), (B)

8 pcs. (C), (D), (F)

2 pcs. (E)

4’X6’ PJGBoard-6 pcs. (A),(B)

8 pcs. (C), (D), (F)

2 pcs. (E)

See

Should you require assistance during assembly,

please call our

Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

83847

83845

83843

83844

83846

83849

83850

83848

F DrywallAnchor See

Chart

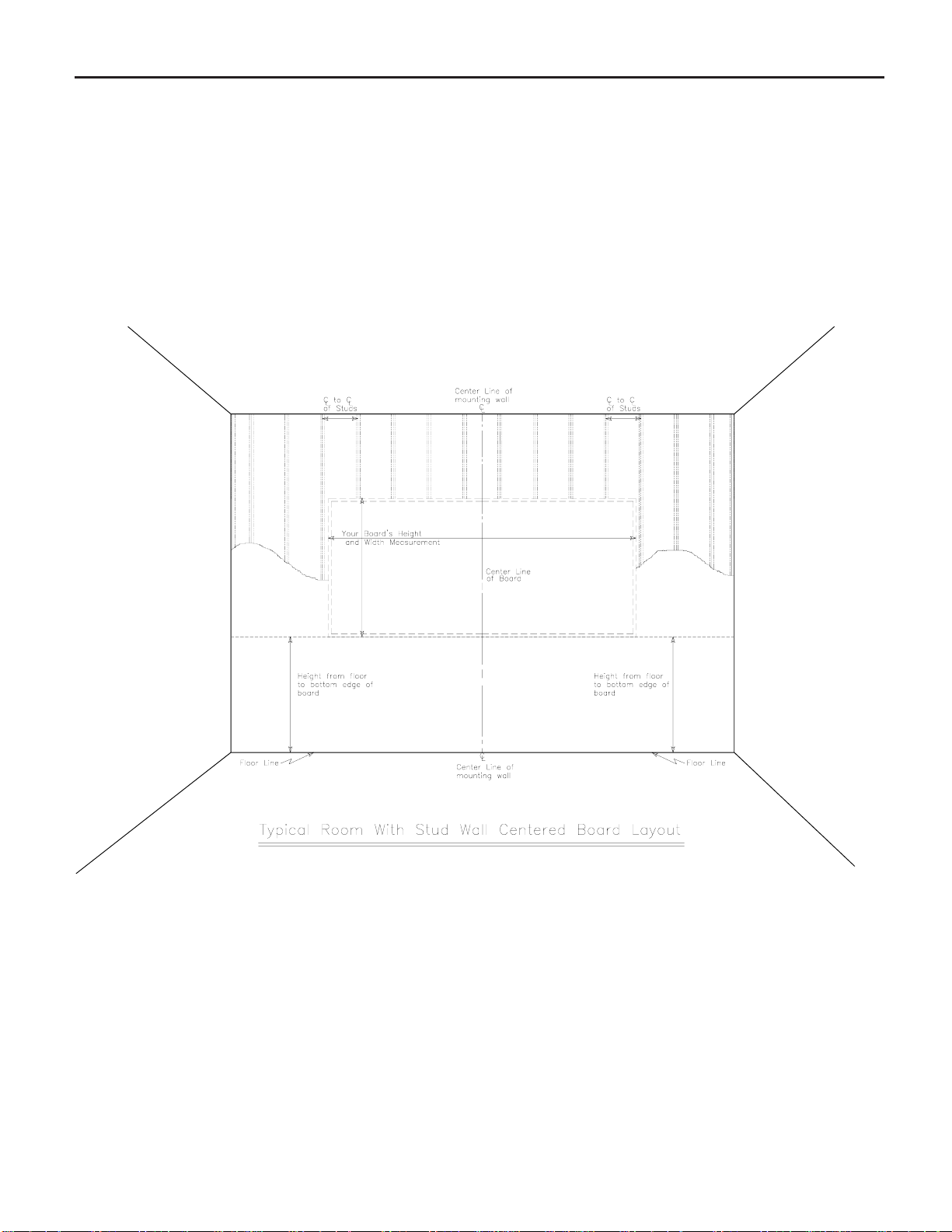

Measurethelength and widthofyournew board. Determine thewallcenter line and height

offthe floor thatyou want yournew board tobe located. Hold yourboard up inposition and

drawa line 3/8” above the top edge of yourboard and3/8” below the bottom edge of your

board. Ifyourwallhasstuds,determine the centerlineof thestuds. It is recommendedthat

you tie into as many studs as possible when mounting your board. .

aring to InstallPreparing to Install Your New Visionary Board

NOTE: The proper installation of your board will require at least two people.

Tools required: Tape measure, chalkline, electric drill / screwdriver, drill and

screwdriver bits, stud finder and level. .

To Assemble and Attach to Wall:

IdentifyandSeparate all thePartsand Hardware.

Afteryouhave followed theguidelinesfrom the previouspage,install the correctnumber of Board

Mounts(B)forthe size boardyouaremounting to thewall. InstalltheBoard Mounts asshownin

Illustration#1andIllustration#1a.

1.)

Illustration # 3

Illustration # 1

2.)

3.) For all walls except sheet rock: .

Predrilla 5/16” diameter holeon theline thatwas drawn 3/8”below and 3/8” above the

top andbottom edges of your new board. Push in a PlasticAnchor(C) intothe predrilled

hole. Place the bottomhole inthe WallMount (B) ontop ofthe PlasticAnchor(C) and

attachusing one CS Screw(D). Repeat thisStep foreach WallMount that is required

for your size board. . .

5/16” Predrilled

Holein Wall

DrawnLine

4.) YourattachedWallMounts(B)shouldbe

turnedasshownin Illustration #2.

Illustration # 2

TopWall

Mounts

BottomWall

Mounts .

5.) Place theGlass Board(P1) between andresting onthe step ledgeon each Wall Mount (B).

Secure the Glass Board (P1) in place by screwing in a Top Cap (A) into each treaded hole in

the Wall Mounts (B) as shown in Illustration #3 .

83843-83850_10-04--11

3a.) For sheet rock walls: .

Screwin a DrywallAnchor(F)on the linethat was drawn3/8” belowand 3/8” abovethe

top and bottom edges ofyour new board. Place thebottom holein the Wall Mount(B)

ontop ofthe Drywall Anchor (F) and attachusingone CSScrew (D). Repeat this Step

for each Wall Mount that is required for your size board. . .

Illustration # 1a

DrawnLine

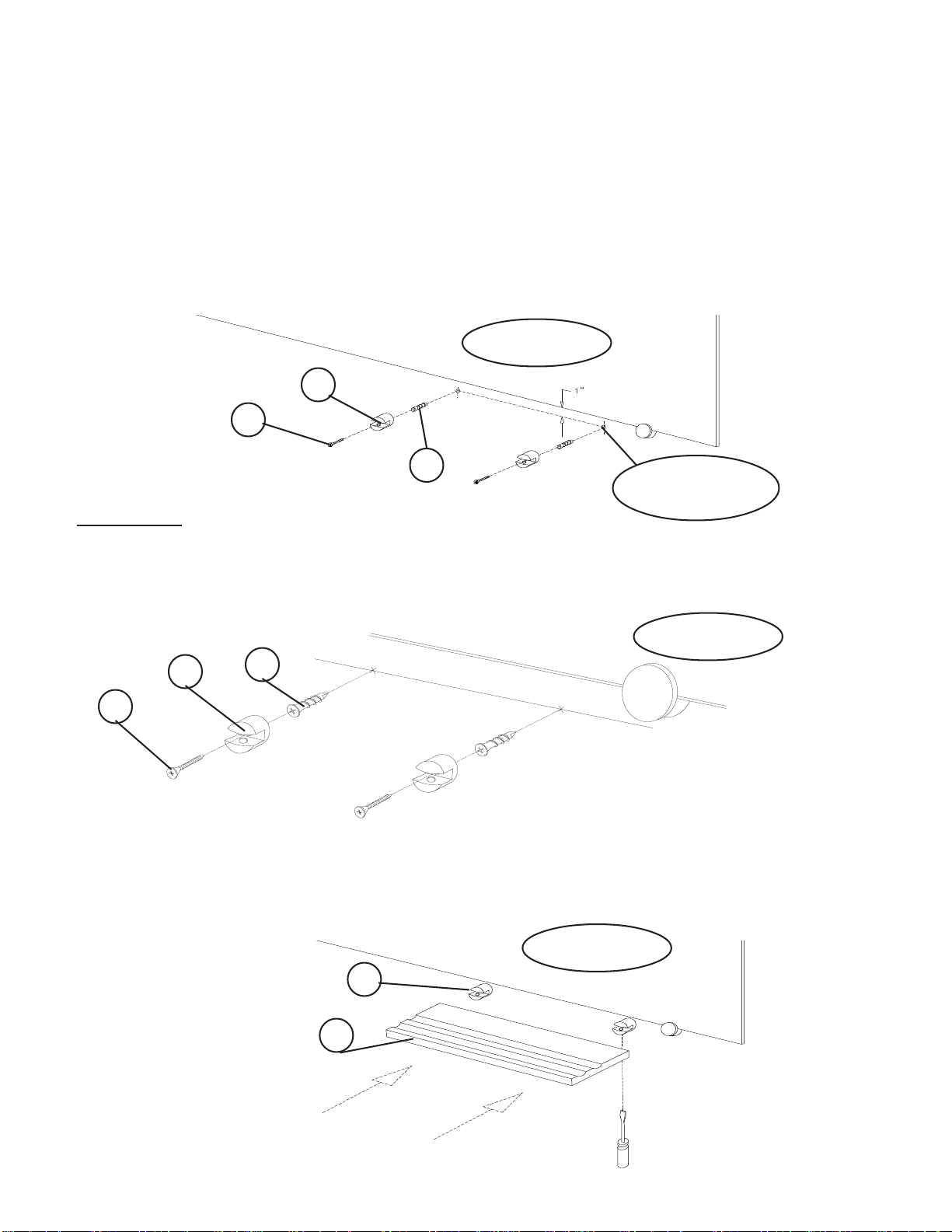

Follow These Instructions to Install the Glass Tray

1.) Aftertheboardhas beeninstalled, pickthe location thatyou would likeyour tray tobe installed.

Marka line atleast 1”down from the bottom ofthe board. Makesure your location willnot

interferewith the bottom Mountsthatare holding theboard.

2.) Placethe GlassTray (P-2)on theline and markthe right and leftedgesof thetray on theline.

Measurein 1” from the edge marks of thetray andmake you marks.

P-2

5/16”Predrill

HoleinWall(2)

Glass Board

3.) Predrill two 5/16” diameter holes at your marked points below the Glass Board on the wall. .

Pushin a PlasticAnchor(C)in eachhole.Attach aGlassTray Mount(E) overthe Plastic

Anchor (C) using one CS Screw(D) for each mount. .

4.) Slidein the GlassTray(P-2) intothe slots of theGlassTray Mounts(E) andsecure in placeby

tighteningtheplastic set screwsinthe bottom flangeofeach mount. asshownin illustration #2.

Glass Board

83843-83850_10-4-11

3a.) Screwin a DrywallAnchor(F) ateach of yourmarked pointsbelowthe Glass Boardon thewall.

Attacha GlassTrayMount (E)over the DrywalAnchor(F)using one CSScrew(D) for each mount.

For Drywall:

Glass Board
