Best WPD39M SERIES User manual

WPD39M SERIES
HB0113
INSTALLATION INSTRUCTIONS
INTENDED FOR DOMESTIC COOKING ONLY
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 9 AND 10.
READ AND SAVE THESE INSTRUCTIONS
SV20611 rev. 04
! !
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800 558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866 737-7770
To register your product online or for additional information visit www.BestRangeHoods.com

2
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guidelines and safety standards such as
those published by the National Fire Protection Association
(NFPA) and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE) and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any additional solid-state speed
control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded and protected by a GFCI.
10. Suitable for use in damp locations only when installed in a
GFCI PROTECTED branch-circuit.
11. This unit is not designed to be used with a charcoal grill.
12.When applicable local regulations comprise more
restrictive installation and/or certification requirements,
the aforementioned requirements prevail on those of this
document and the installer agrees to conform to these at his
own expense.
TO REDUCETHE RISK OF A RANGETOP GREASE FIRE:
a) Never leave surface units unattended at high settings.Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee,
Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Your hood motor has a thermal overload which will
automatically shut off the motor if it becomes overheated. The
motor will restart when it cools down. If the motor continues to
shut off and restart, have the hood serviced.
4. For best capture of cooking impurities, the bottom of the hood
must be located at a distance of 36" above cooking surface.
5. Two installers are recommended because of the large size and
weight of this unit.
6. To reduce the risk of fire and to properly exhaust air, be sure to
duct air outside — Do not exhaust air into spaces within walls
or ceiling or into attics, crawl space or garage.
7. This product is equipped with a thermostat which may start
blower automatically.To reduce the risk of injury and to prevent
power from being switched on accidentally, switch power off at
service panel and lock or tag service panel.
8. To reduce the risk of fire and electrical shock, the BestWPD39M
Series hood must be installed with Best interior blower model
P12; Best exterior blower models EB12 or EB15; Best in-line
blower model ILB11. Other blowers cannot be substituted.
(Blowers sold separately.)
9. Please read specification label on product for further
information and requirements.
WARNING
!
CAUTION
TO REDUCE THE RISK OF INJURYTO PERSONS INTHE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE
THE FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or
metal tray, then turn off the burner.BE CAREFULTO PREVENT
BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels —
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how to
operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
WARNING
!

3
TABLE OF CONTENTS
WPD39M SERIES RANGE HOOD SYSTEM..................................................................................................................................4
1. S ELECT BLOWER OPTION, INSTALL DUCTWORK AND ELECTRICAL WIRING............................................................................................5
2. PREPARE INSTALLATION...........................................................................................................................................................6
3. INSTALL BACKSPLASH (OPTIONAL)..............................................................................................................................................6
4. INSTALL WOOD MOUNTING STRIP ...............................................................................................................................................6
5. INSTALL WALL EXTENSION (OPTIONAL) ........................................................................................................................................7
6. REMOVE BAFFLE FILTERS, GREASE TRAY AND PANEL ASSEMBLY .......................................................................................................7
7. I NSTALL HOOD.......................................................................................................................................................................7
8. INSTALL ROUGH-IN PLATE.........................................................................................................................................................8
9. CONNECT WIRING ..................................................................................................................................................................8
10. INSTALL BLOWER....................................................................................................................................................................8
11. INSTALL DECORATIVE FLUE COVER (OPTIONAL).............................................................................................................................9
12. REINSTALL PANEL ASSEMBLY, GREASE TRAY AND BAFFLE FILTERS.....................................................................................................9
13. LIGHT BULBS REPLACEMENT.....................................................................................................................................................9
14. CARE.............................................................................................................................................................................9-10
15. OPERATION ........................................................................................................................................................................ 10
16. WIRING DIAGRAMS............................................................................................................................................................... 11
17. SERVICE PART S ...................................................................................................................................................................12
WARRANTY
ONE-YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free
from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be
defective under normal use and service.
This warranty does not extend to fluorescent lamp starters, tubes, HALOGEN AND INCANDESCENT BULBS, fuses, filters, ducts, roof
caps, wall caps and other accessories for ducting.This warranty does not cover (a) normal maintenance and service or (b) any products
or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty
installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or provinces
do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE’S OPTION, SHALL BE THE PURCHASER’S
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTIONWITH PRODUCT USE OR PERFORMANCE.
Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to another.
This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of
requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC, Canada, J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

4
HL0188
- WPD39M SERIES RANGE HOOD SYSTEM -
MODEL 441
(10" ROUND WALL CAP)
MODEL ILB11 (1100 CFM)
IN-LINE BLOWER (INCLUDES
TWO 8" X12" TO 10" ROUND
TRANSITIONS)
MODEL EB12 (1200 CFM)
OR EB15 (1500 CFM)
EXTERIOR BLOWER
MODEL 437
(HIGH CAPACITY ROOF CAP)
IN-LINE AND EXTERIOR BLOWER ROUGH-IN KIT
(INCLUDED WITH EB12, EB15 AND ILB11
BLOWERS.)
OPTIONAL
WALL EXTENSION
AWWPD SERIES
MODEL P12 BLOWER/ROUGH-IN KIT
(1200 CFM INTERIOR BLOWER
AND ROUGH-IN PLATE)
MODEL 418
(10" ROUND ADJUSTABLE ELBOW)
MODEL 441
(10" ROUND WALL CAP)
MODEL 437
(HIGH CAPACITY ROOF CAP)
MODEL 410
(10" ROUND DUCT
— 2 FT. SECTIONS)
OPTIONAL DECORATIVE
FLUE AEWPD SERIES
WPD39M SERIES
RANGE HOOD
WPD39M SERIES
RANGE HOOD
OPTIONAL DECORATIVE
FLUE AEWPD SERIES
OPTIONAL BACKSPLASH ABWPD SERIES
36", 42" OR 48" WIDTH (STAINLESS STEEL WALL
COVERING WITH WARMING SHELVES)
MODEL 410
(10" ROUND DUCT
— 2 FT. SECTIONS)
MODEL 418
(10" ROUND
ADJUSTABLE ELBOW)

5
Either an interior or exterior blower or in-line blower may be used with this range hood. It must be installed with blower models P12, ILB11,
EB12 or EB15 only. Other blowers cannot be substituted. (Blowers sold separately).
Plan where and how the ductwork will be installed.
A straight, short duct run will allow the hood to perform most efficiently.
Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Connect metal ductwork to cap and work
back towards the hood location. Use 2" metal foil duct tape to seal the joints.
Run 3-wire power supply cable to installation location.
For best capture of cooking impurities, the bottom of the hood must be located at a distance of 36" above cooking surface.
MODEL P12 DUAL INTERIOR BLOWER
TYPICAL DUCTWORK

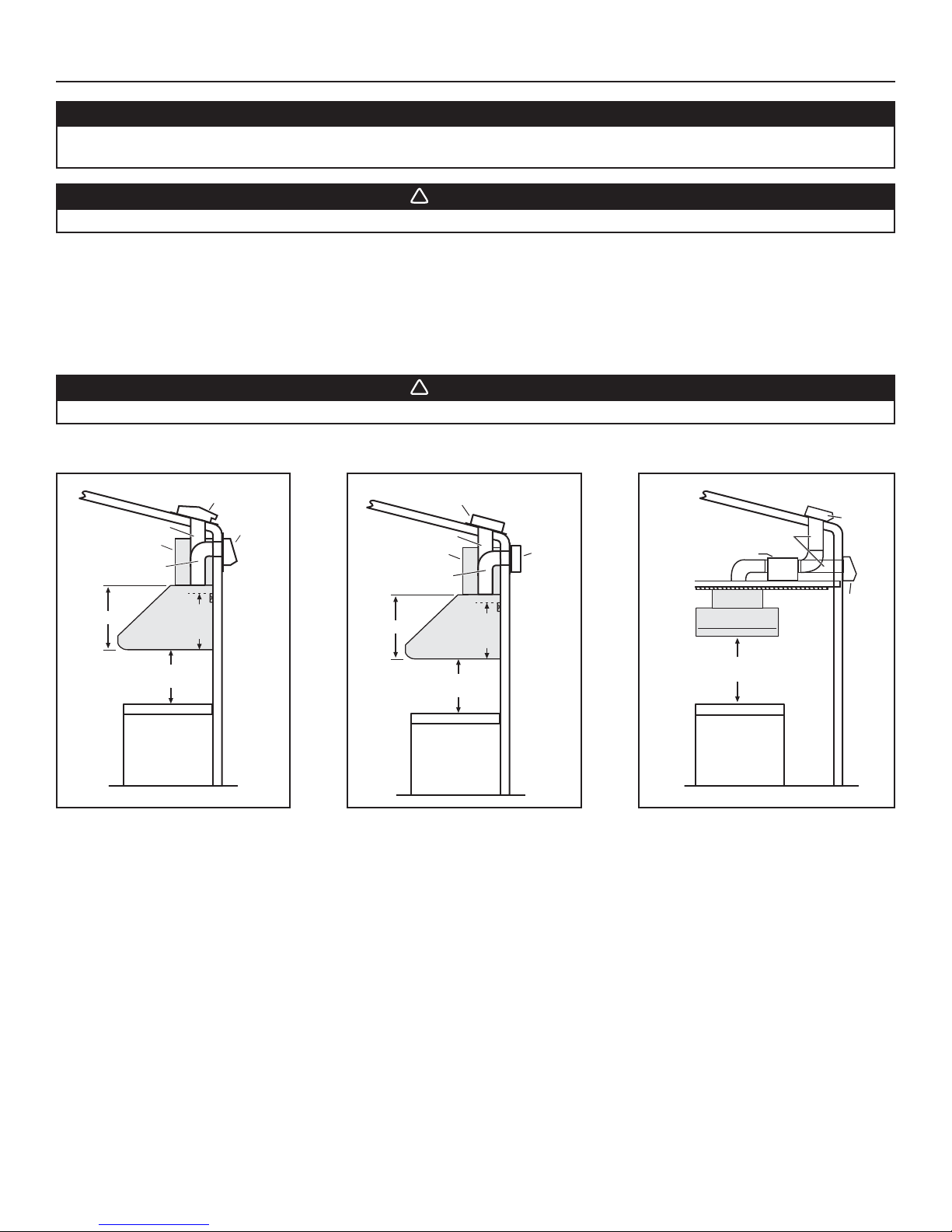

1. SELECT BLOWER OPTION, INSTALL DUCTWORK AND ELECTRICAL WIRING
18"
WALL CAP
36" MINIMUM ABOVE
COOKING SURFACE
16" TO
TOP OF WOOD
MOUNTING STRIP
OPTIONAL DECORATIVE
FLUE OR SOFFIT
HH0185A
ROOF CAP
10" ROUND DUCT
10" ROUND ELBOW
MODEL EB12 OR EB15 EXTERIOR
BLOWER TYPICAL DUCTWORK
EXTERIOR
BLOWER
EXTERIOR
BLOWER
18"
36" MINIMUM ABOVE
COOKING SURFACE
16" TO
TOP OF WOOD
MOUNTING STRIP
OPTIONAL DECORATIVE
FLUE OR SOFFIT
HH0183A
10" ROUND DUCT
10" ROUND ELBOW
MODEL ILB11 IN-LINE BLOWER
TYPICAL DUCTWORK
IN-LINE BLOWER
10" ROUND DUCT
HH0184A
36" MINIMUM ABOVE
COOKING SURFACE
ROOF CAP
WALL
CAP
CAUTION
This range hood is intended for outdoor covered patio or lanai area. As with all electric appliances, this unit must
be protected from the effects of weather.
WARNING
!
This range hood is not designed for use with a charcoal grill.
WARNING
!
The power cable must be a GFCI protected branch circuit.

6

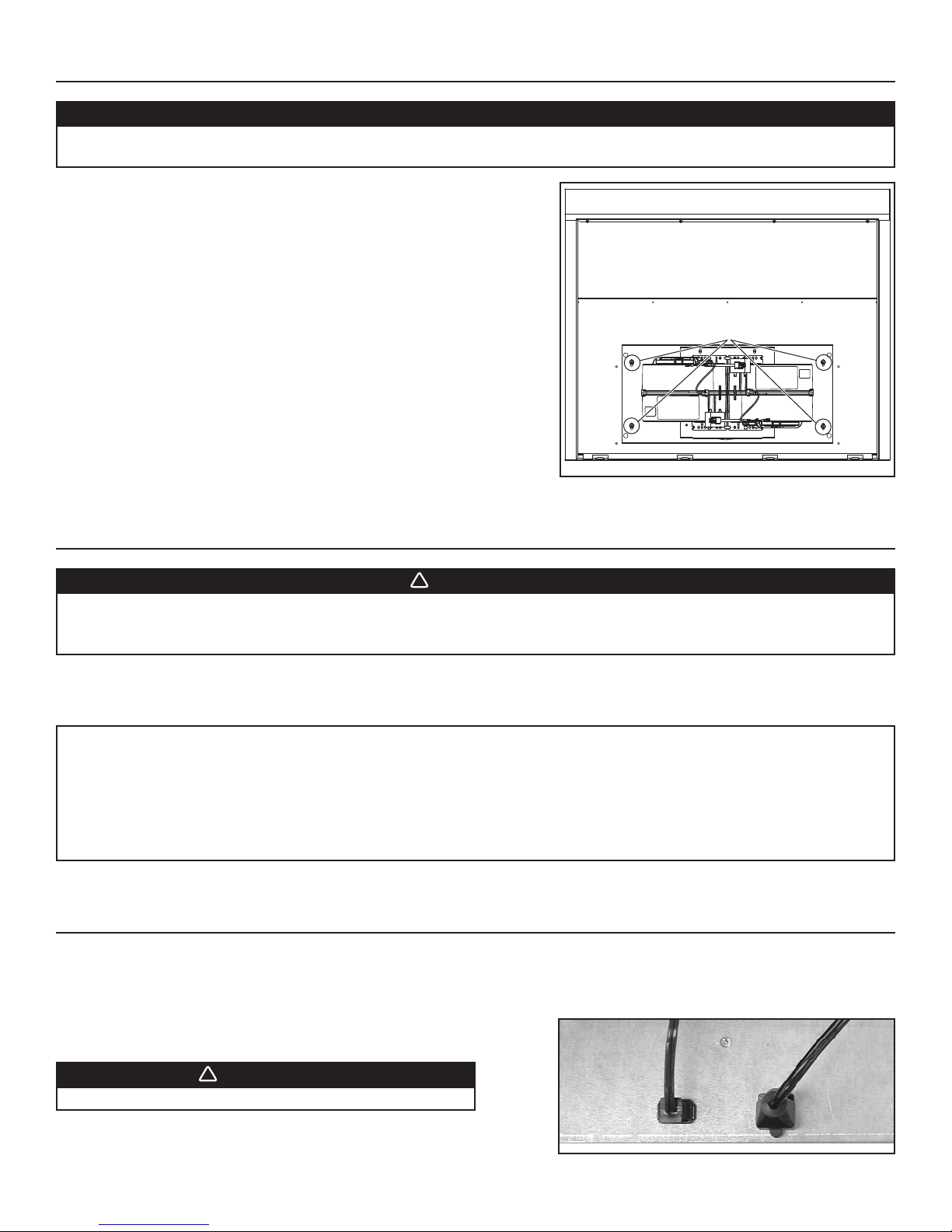

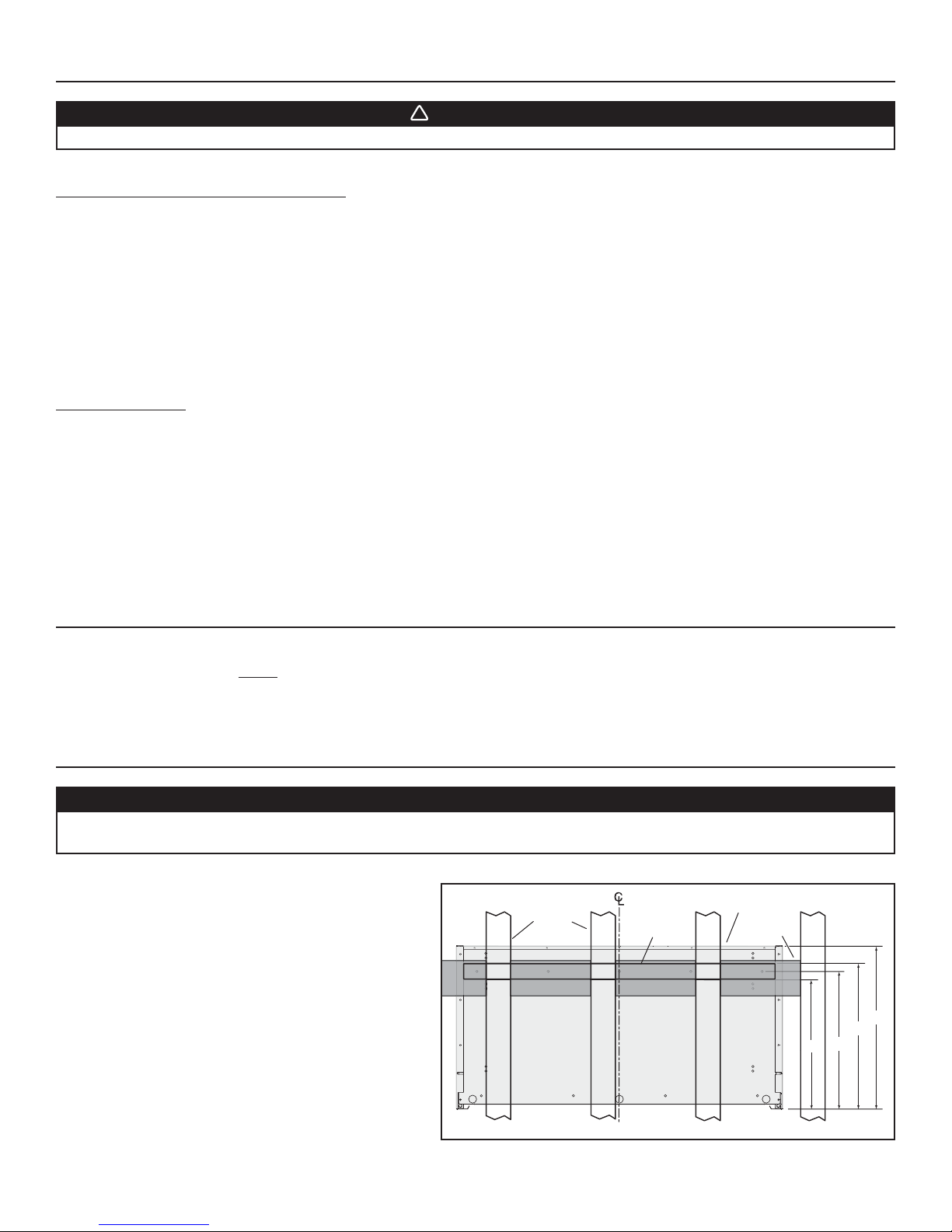

3. INSTALL BACKSPLASH (OPTIONAL)
ABWPD Series (for 36", 42" and 48" widths range hoods only)
Backsplash must be installed before the hood shell and wall extension (if needed) because the hood shell (and wall extension) covers the
backsplash top mounting screws (see instructions packed with backsplash).
WARNING
!
When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.
NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:
- Range hood
- Wood strip (attached to back of hood)
- Installation manual
- Accessories:
• 4 Baffle filters with handles
• Grease tray with handle
• Shielded halogen bulbs (120 V, 50 W max., MR16 with GU10 base) (2 for 36" and 42" width hoods, 3 for 48" and 60" width hoods)
• Bag of parts: 3 waterproof wire connectors, 2 no. 8 x 5/8" screws, 6 no. 10 x 2" hex head screws, 4 no. 10 x 2" flat head screws,
2 wall anchors, 6 washers 3/16" ID x 3/4" OD, 4 stainless steel 10-32 locknuts
Included in parts bag, but not to be used (please discard):
2 wire clamps LP16-AP, 2 no. 8 x 3/8" zinc-plated screws, 8 no. 8 x 3/8" stainless steel screws
Parts sold separately:
- Interior blower assembly model P12
- In-line blower assembly model ILB11
- Exterior blower assembly model EB12 or EB15
- ABWPD Series Backsplash, 36", 42" or 48" width (optional)
- AEWPD Series Decorative flue, to be installed over the hood (optional)
- AWWPD Series Wall extension, 36", 42", 48" or 60" width (optional)
- Transitions, duct, elbows, dampers, wall and roof caps
Refer to page 4 for a complete list of venting options and model numbers.
NOTE: During installation, protect countertop and/or cooktop.
2. PREPARE INSTALLATION
4. INSTALL WOOD MOUNTING STRIP
1. Proper structural support is required to accommodate the weight of the hood. Construct the wall framing using minimum 2" x 4" lumbers.
2. Mark the center location of the hood.
3. Measure and mark a level line on wall above cooktop
location for the wood mounting strip. Install 2" x 4" blockings
between wall studs where mounting strip will be installed.
Refer to illustration at right.
4. Remove wood mounting strip from back of hood.
5. Position the wood mounting strip on the wall and secure to
the wall studs and blockings using 4 no. 10 x 2" flat head
screws (included in parts bag).
CAUTION
Due to the weight of this hood, ensure that the wood strip is attached to all of the available wall studs and blocking;
not into the wall alone.
HD0482A
Existing
Wall Studs 2" x 4"
Blocking
Back of Hood
Wood Mounting
Strip
14¼" 151⁄8"
16"
18"

7
7. INSTALL HOOD
WARNING
!
Hold the hood until it is completely secured to the wood mounting strip.
Rest the back cavity of the hood on the wood mounting strip.
Secure the hood to the wood mounting strip using 5 no. 10 x 2" hex head
screws at locations shown at right. Drill two 3/16" diameter holes into the wall
for wall anchors through the existing holes in the lower back of the hood at
locations shown at right. Then, install both wall anchors with both no. 8 x 5/8"
screws and washers provided.
HD0479
W
ALL
ANCHORS
LOCATION
M
OUNTING
SCREWS
LOCATION
5. INSTALL WALL EXTENSION (OPTIONAL)
AWWPD Series
Wall extension must be installed before the hood (see instructions packed with wall extension).

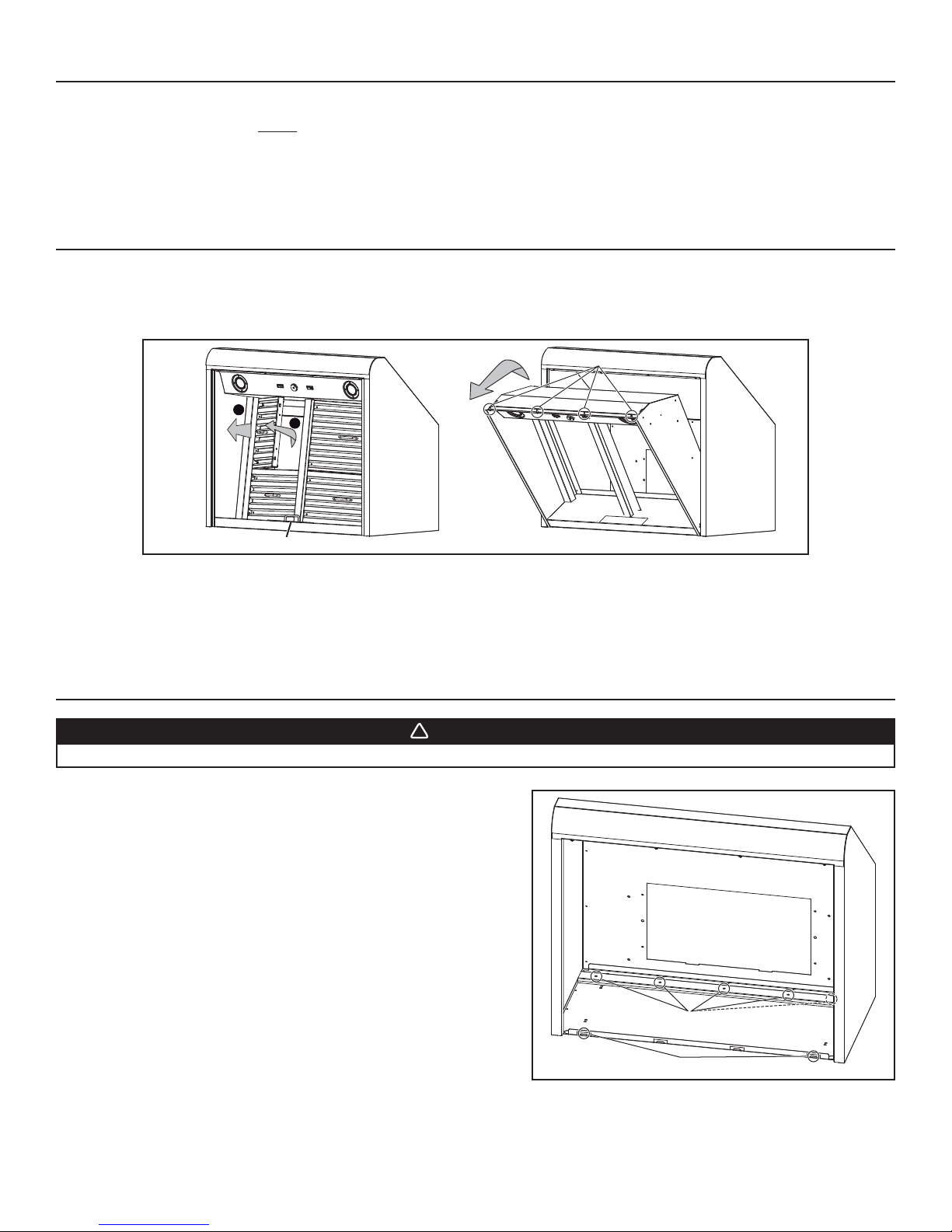

6. REMOVE BAFFLE FILTERS, GREASE TRAY AND PANEL ASSEMBLY
Remove tape on filters. Remove filters from hood (as illustrated below) and set aside.
Remove tape on grease tray. Lift and pull grease tray to remove and set aside.
Remove panel assembly retaining screws (4, 5 or 6 depending on hood width) and set aside. Tilt panel assembly forward.
HD0461
1
2
GREASE TRAY
RETAINING SCREW LOCATIONS

8
8. INSTALL ROUGH-IN PLATE
Refer to the instructions included with the selected blower/rough-in kit (sold
separately) for details on installing the rough-in plate. Install the rough-in plate so
that the wiring box is located on the right side as you are facing the hood.
Attach 10" round duct to rough-in plate.
CAUTION
Install rough-in plate using 4 x 10-32 locknuts and washers included in hood parts bag. Discard nuts provided with
rough-in plate.
HD0480
LOCKNUTS

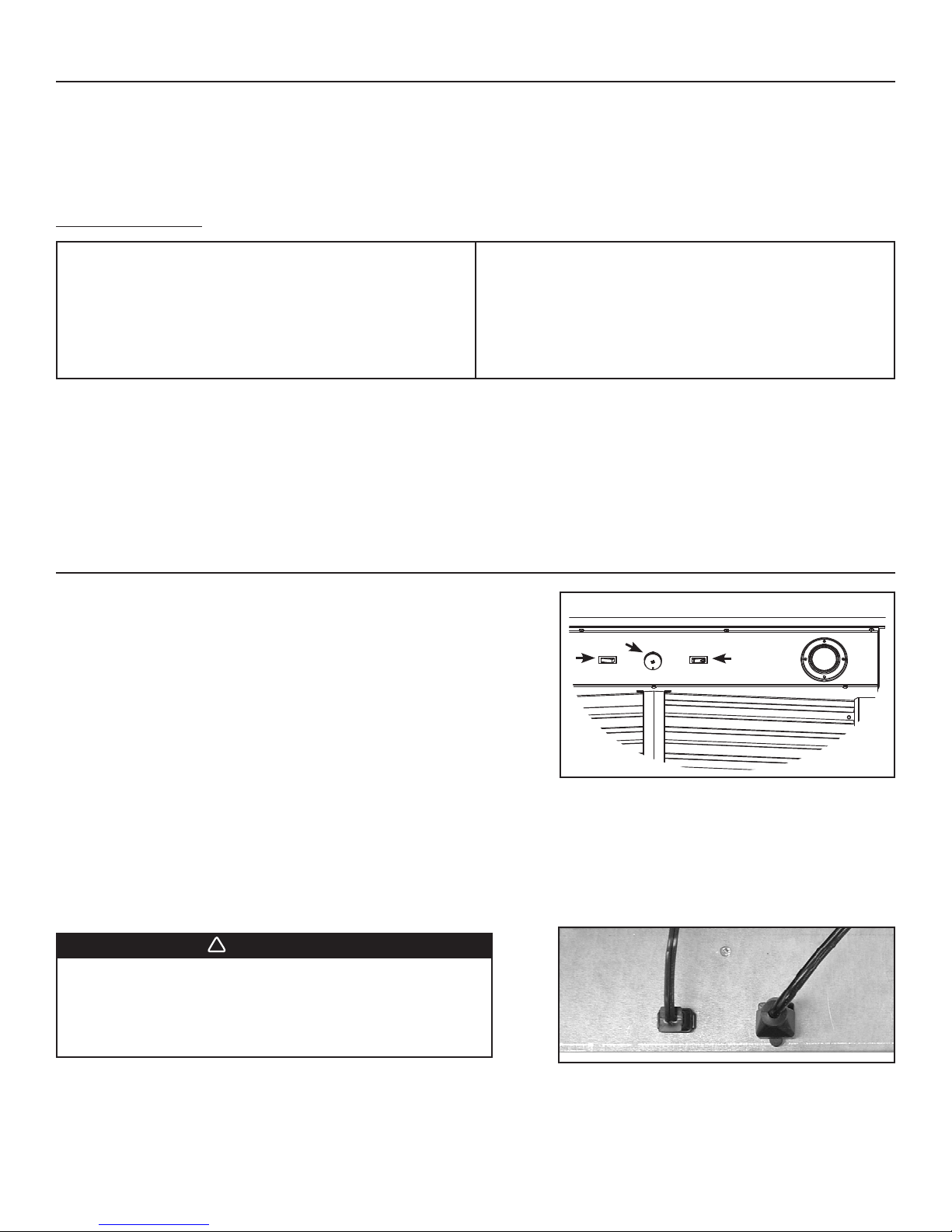

9. CONNECT WIRING
Remove wiring cover from rough-in plate and set aside.
Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.
Reinstall wiring cover.
WARNING
!
Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable
codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting
means to prevent power to be switched on accidentally.
WATERPROOF WIRE CONNECTORS INSTRUCTIONS:
1. Strip wires 3/8".
2. Align frayed strands or conductors.
3. Do not pre-twist. Place stripped wires together with ends even, but lead smaller stranded wires slightly ahead of larger solid or
stranded wire.
4. Twist connector onto wires pushing firmly until hand-tight. DO NOT over torque.
5. When inserting wires into connectors, some sealant may leak out.Wipe off excess sealant in and around conductors.DO NOT REUSE.
10. INSTALL BLOWER
Refer to instructions included with blower.
Once the blower is installed, plug the blower cord (A) into the female receptacle and the power supply cord (B) onto the male connector
inside the hood.
HE0078
AB
WARNING
!
Do not plug the two cords into each other.

9
11. INSTALL DECORATIVE FLUE COVER (OPTIONAL)
AEWPD Series
Refer to the instructions included with the optional decorative flue.
12. REINSTALL PANEL ASSEMBLY, GREASE TRAY AND BAFFLE FILTERS
CAUTION
Remove protective plastic film covering filters before installing them.
1. Push panel assembly back inside hood and secure to the hood using previously removed screws (see step 5).
2. Reinstall grease tray.
3. Insert one side of the filter into the side channel of the hood. Raise the other side toward the center of the hood and insert in the grease
drip rail.

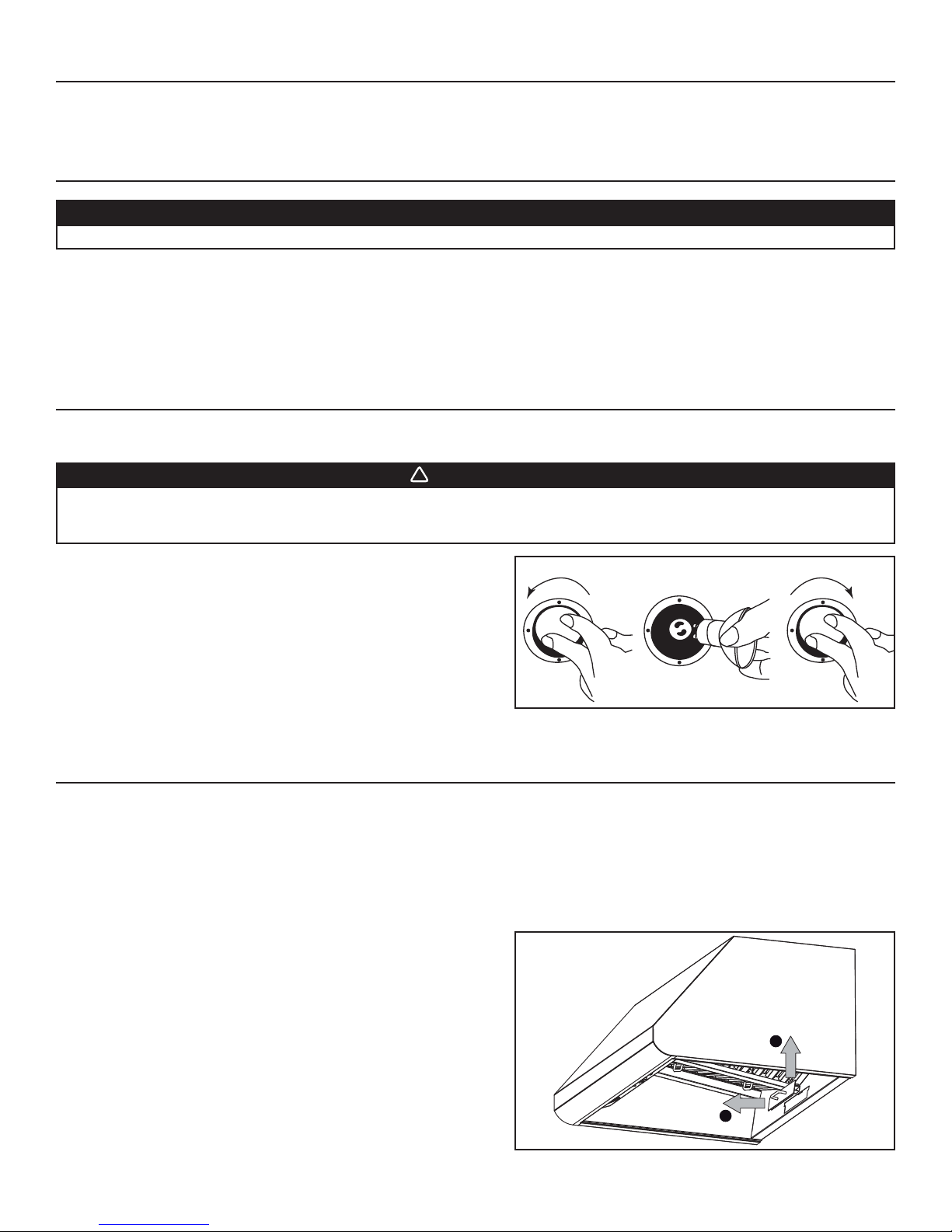

13. LIGHT BULBS REPLACEMENT
This hood requires 120 V, 50 W, MR16 with GU10 base, shielded halogen bulbs (included). (2 for 36" and 42" width hood, 3 for 48" and
60" width hoods.)
1. To remove bulbs, gently push upwards and turn counterclockwise to
disengage bulb leads from their grooves.
NOTE: To ease removal of the bulbs, use a rubber dishwashing glove or
use suction cup tool available from Best. Contact Best Customer
Service at 1-800-558-1711 to order suction cup tool, part
no. 99526707.
2. Install the new bulbs by placing the bulb leads into their grooves in the
socket.
3. Gently push upwards and turn clockwise until secure.
WARNING
!
Do not touch lamps during or soon after operation. Burns may occur. In order to prevent the risk of personal injury,
only install shielded halogen lamps. Also, never install a cool beam, a dichroic lamp, a lamp not suitable for use in
recessed luminaires or identified for use in enclosed fixtures.
12 3
HO0199
14. CARE
Baffle Filters
The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater
grease like frying foods or wok cooking.
Remove baffle filters by pushing them towards the side of the hood and rotating filters downward. Baffle filters are dishwasher safe. Allow
filters to dry completely before reinstalling them in the hood.
Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent
or as a result of local water conditions—but this will not affect filter performance. This discoloration is not covered by the warranty.
Grease Tray
The grease tray should be emptied and cleaned frequently. Remove from
hood (as illustrated at right) and use a warm detergent solution. Wash
more often if your cooking style generates greater grease like frying foods
or wok cooking. Allow grease tray to dry completely before reinstalling it
in the hood.
1
2
HD0481

10
Avoid when choosing a detergent:
- Any cleaners that contain bleach will attack stainless steel.
- Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
- Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be
used close to a range.
14. CARE (CONT'D)
Hood cleaning
Stainless steel cleaning:
Do:
• Regularly wash with clean cloth or rag soaked with warm water
and mild soap or liquid dish detergent.
• Always clean in the direction of original polish lines.
• Always rinse well with clear water (2 or 3 times) after cleaning.
Wipe dry completely.
• You may also use a specialized household stainless steel
cleaner.
Don’t:
• Use any steel or stainless steel wool or any other scrapers to
remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the
hood. During construction/renovation, cover the hood to make
sure no dust sticks to stainless steel surface.
Grease Drip Rail
The grease drip rail should be cleaned frequently. Wash with clean cloth soaked in warm detergent solution. Wash more often if your
cooking style generates greater grease like frying foods or wok cooking.
Blower Cleaning
Access the blower and use vacuum to clean. Do not immerse in water.
15. OPERATION
BLOWER
The blower is operated using two controls.
Use the on/off rocker switch (1) to start and stop the blower. When turned ON, the
switch turns red and the blower operates at the speed set by the speed control
knob (2).
Turn the speed control knob clockwise to increase blower speed – counterclockwise
to decrease speed.
COOKTOP LIGHTING (HALOGEN)
Use the on/off rocker switch (3) to turn the halogen lights ON or OFF. HC0060
1
23
1) ON/OFF blower switch
2) Blower speed control knob
3) Halogen light switch
HEAT SENTRY™
This hood is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will turn on the blower to high speed if it senses
excessive heat above the cooking surface.
1) If blower is OFF - it turns blower ON to high speed.
2) If blower is already ON it sets blower on high speed.
When the temperature level drops to normal, the blower will return to its original setting.
HE0078
A
WARNING
!
The HEAT SENTRY can start the blower during a range
top fire or other excessive heat situations even if the
hood is turned off. In this case, it is impossible to turn the
blower OFF using control panel switch. To stop the blower,
disconnect blower cord plug (A).

11

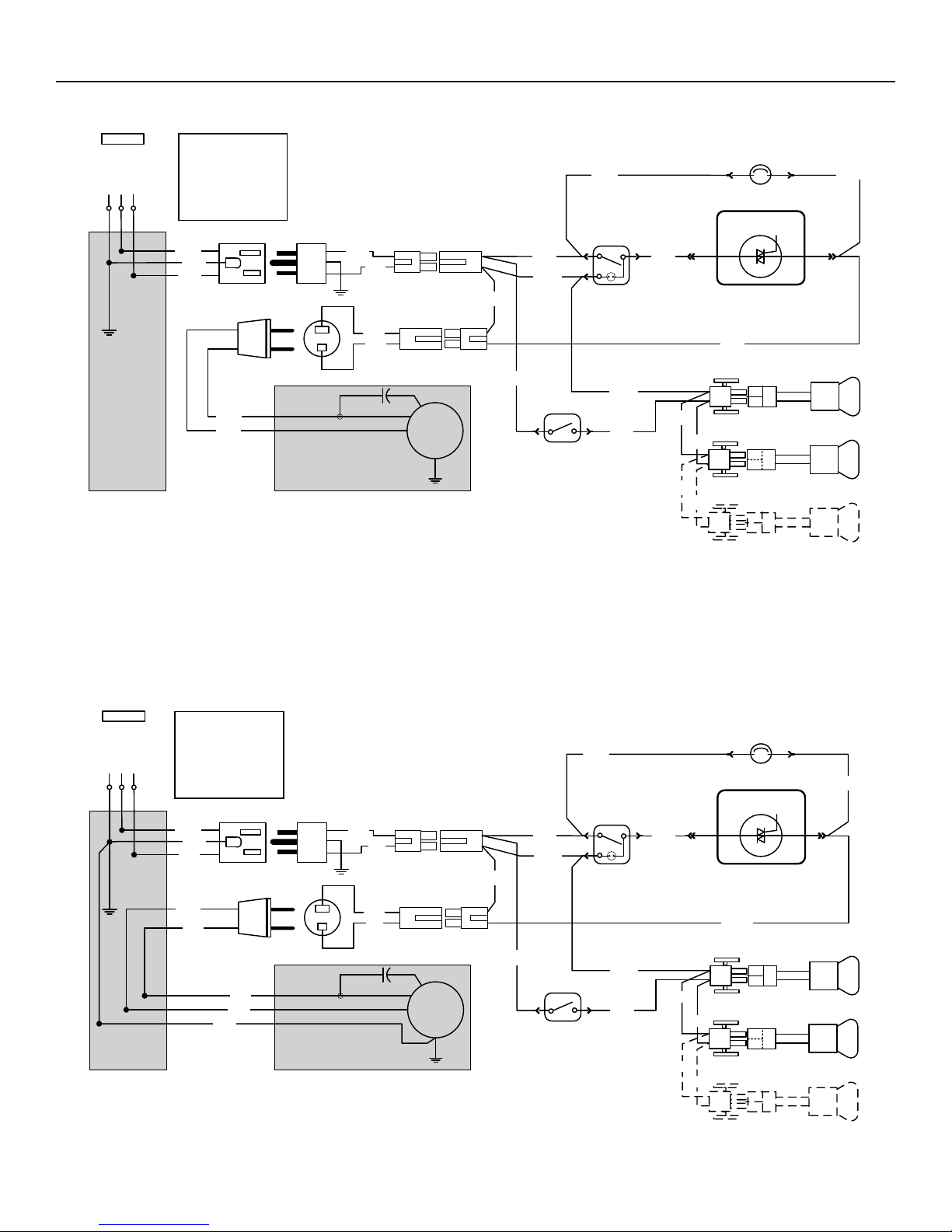

16. WIRING DIAGRAMS
Internal blower assembly
LINE
NEUTRAL
GROUND
120 VAC
WHT
GRN
BLK
ROUGH-IN
PLATE
WHT
WHT
WHT
WHT
BLK
BLK
BLK
RED
BLK
YEL
LAMPLAMP
HEAT SENTRY
THERMOSTAT
SPEED CONTROL
LAMP
SWITCH
FAN SWITCH
COLOR CODE
BLK BLACK
GRN GREEN
RED RED
WHT WHITE
YEL YELLOW
INTERNAL
BLOWER ASSEMBLY
M
WHT
YEL
WHT
BLK
BLK
RED
LAMP
WHT
WHT
YEL
YEL
HE0139A
Remote blower assembly
LINE
NEUTRAL
GROUND
120 VAC
WHT
WHT
WHT
BLK BLK
YEL
BLK
RED
YEL
LAMPLAMPLAMP
HEAT SENTRY
THERMOSTAT
SPEED CONTROL
LAMP
SWITCH
FAN SWITCH
COLOR CODE
BLK BLACK
GRN GREEN
RED RED
WHT WHITE
YEL YELLOW
ROUGH-IN
PLATE
REMOTE
BLOWER ASSEMBLY
HE0140A
M
WHT
BLK
BLK
WHT
GRN
WHT
GRN
BLK
WHT
WHT
BLK
BLK
WHT
WHT
YEL
YEL
RED

12
17. SERVICE PARTS
HL0190
1
234
5
6
7
8
9
10
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone genuine replacement parts only. Broan-
NuTone genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable
certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and
drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone recommends to contact a
certified service depot for all replacement parts and repairs.
KEY NO.PART NO.DESCRIPTION QTY. (RANGE HOOD WIDTH)
36" 42" 48" 60"
1 SV60887 LIGHT SOCKET HOLDER ASSEMBLY 2233
2 SV05921 SHIELDED HALOGEN BULB (120 V, 50 W, GU10 BASE) 2233
3 SV03435 HEAT SENTRY™ THERMOSTAT 1111
4 SV08549 FAN KNOB 1111
5 SV03501 SPEED CONTROL 1111
6 SV13924 MALE CONNECTOR 1111
7 SV13923 FEMALE CONNECTOR 1111
8 SV60879 GREASE TRAY 1111
9SV60675 BAFFLE FILTER 11.84" X15.125" (HANDLE INCLUDED) 2222
SV60716 BAFFLE FILTER 8.84" X15.125" (HANDLE INCLUDED) 2222
10 SV08337 FILTER SPRING 4444
* SV02563 LIGHT ROCKER SWITCH 1111
* SV03503 BLOWER ROCKER SWITCH 1111
* SV05869 BEST LOGO 1111
* SV20611 INSTALLATION GUIDE 1111
* SV04216
PARTS BAG: 3 WATERPROOF WIRE CONNECTORS, 2 NO. 8 X5/8" SCREWS,
6 NO. 10 X2" HEX HEAD SCREWS, 4 NO. 10 X2" FLAT HEAD SCREWS, 2 WALL ANCHORS,
6 WASHERS 3/16" ID X3/4" OD, 4 STAINLESS STEEL 10-32 LOCKNUTS, 2 WIRE CLAMPS LP16-AP,
2 NO. 8 X3/8" ZINC-PLATED SCREWS, 8 NO. 8 X3/8" STAINLESS STEEL SCREWS
1111
* NOT SHOWN.
