Best K42 User manual

In USA - BEST Hartford, Wisconsin
In CANADA - BEST Drummondville, QC, Canada
Model K42
ENGLISH.........................................3
FRANÇAIS.....................................11
ESPAÑOL.....................................19
REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register
For additional Information visit www.BestRangeHoods.com


- 3 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accor-
dance with all applicable codes and standards, including fire-rated construction codes
and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equip-
ment manufacturer’s guidelines and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will
result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate
it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
INTENDED FOR DOMESTIC COOKING ONLY
!

- 4 -
!
CAUTION
1. For indoor use only.
2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
3. Take care when using cleaning agents or detergents.
4. Avoid using food products that produce flames under the Range Hood.
5. For general ventilating use only.Do not use to exhaust hazardous or explosive materi-
als and vapors.
6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
7. Your hood motor has a thermal overload which will automatically shut off the motor if it
becomes overheated.The motor will restart when it cools down. If the motor continues
to shut off and restart, have the hood serviced.
8. For best capture of cooking impurities, the bottom of the hood should be a minimum of
24" and a maximum of 30" above the cooking surface. See page 8 for mounting restric-
tions.
9. Two installers are recommended because of the large size and weight of this hood.
10. This product is equipped with a thermostat which may start blower automatically.To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
11. Use with approved cord-connection kit only.
12. Please read specification label on product for further information and requirements.

- 5 -
PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Flue Mounting Bracket
1 - Parts Bag (B080810578) containing:
2 - Mounting Brackets
10 - Mounting Screws (4,8 x 38mm Pan Head)
4 - Mounting Screws (3,9 x 9,5mm Pan Head)
4 - Mounting Screws (3,9 x 9,5mm Pan Head - Black)
10 - Drywall Anchors
1 - Installation Instructions
MOUNTING
BRACKETS
FLUE MOUNTING
BRACKET
10 MOUNTING SCREWS
(4,8 x 38mm Pan Head)
10 DRYWALL
ANCHORS
DECORATIVE
FLUE
4 MOUNTING
SCREWS (3,9x9,5mm
Pan Head)
4 MOUNTING
SCREWS (3,9x9,5mm
Pan Head - Black)

- 6 -
DEPTH ADJUSTMENT
SCREWS
FRAMING BEHIND DRYWALL
WALL FRAMING
MOUNTING
SCREWS
(4.8X38MM)
RECTANGULAR CUTOUTS
MOUNTING
BRACKETS
HEIGHT
ADJUSTMENT
SCREWS
MOUNTING
SCREWS
(4.8X38MM)
38
3
/
16
î to 44
3
/
16
î above cooktop
38
3
/
16
"= bottom of hood 24" above cooktop
44
3
/
16
"= bottom of hood 30" above cooktop
24” TO 30” ABOVE
COOKING SURFACE
ROOF CAP
WALL
CAP
8” ROUND
ELBOW

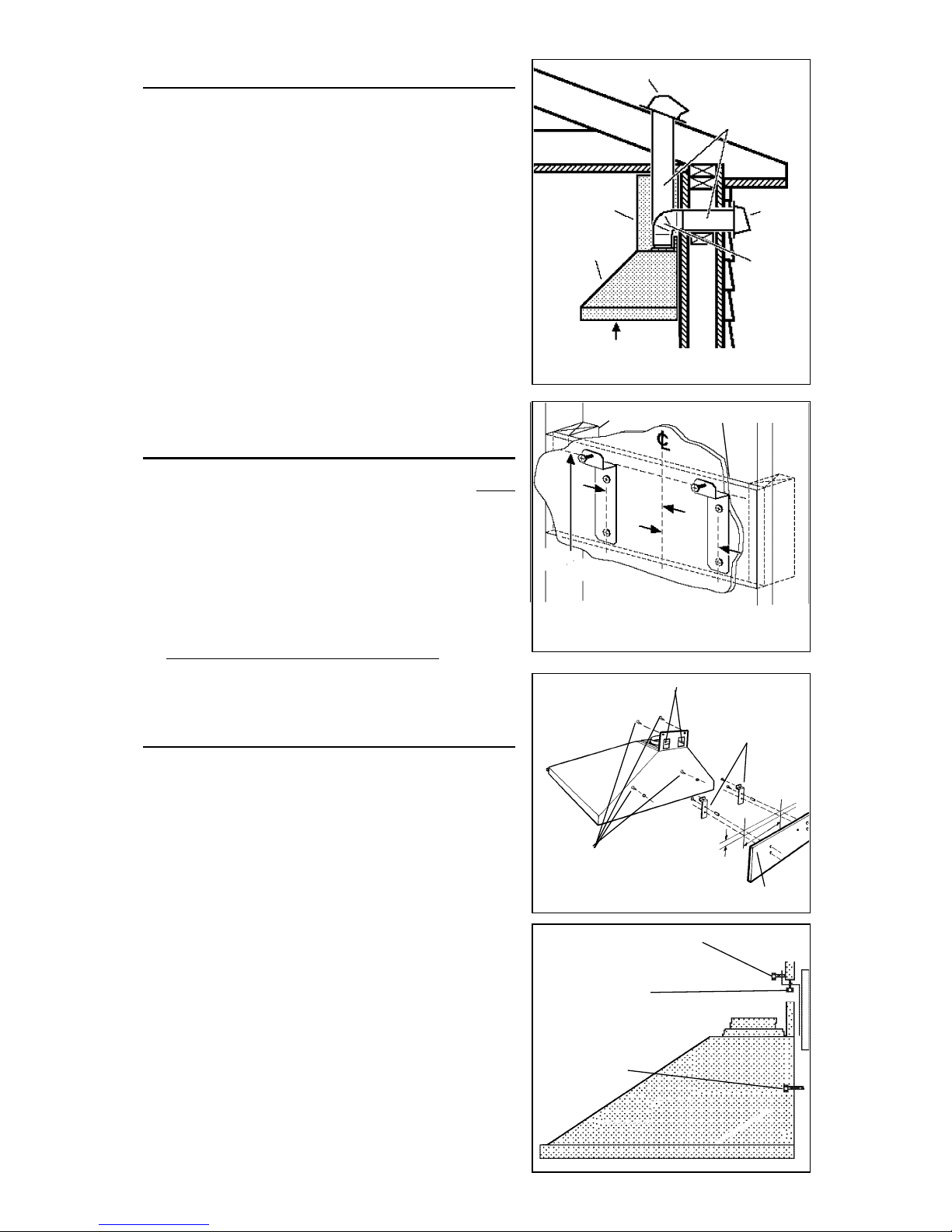

INSTALL THE HOOD
3. Hang the hood from the brackets through
the rectangular cut-outs on the back of the
hood. Cut-outs are larger than the brackets
to allow for horizontal adjustment.
The bottom of the hood should be 24" to 30"
above the cooking surface.
4. Height adjustment screws provide vertical
adjustment.
5. Depth adjustment screws provide
horizontal adjustment.
6. Secure the hood with (4) mounting screws
(4.8X38mm). Use drywall anchors,
provided, if wall studs or framing are not
available.
INSTALL MOUNTING
BRACKETS
1. Construct wood wall framing that is flush
with interior surface of wall studs.
Make sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the
mounting brackets to be secured to the
framing within the dimensions shown.
2. After wall surface is finished, secure
mounting brackets to framing using
dimensions shown.
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only
metal ductwork.
1. Decide where the ductwork will run between
the hood and the outside.
2. A straight, short duct run will allow the hood
to perform most efficiently.
3. Long duct runs, elbows, and transitions will
reduce the performance of the hood. Use as
few of them as possible.
4. Install a roof or wall cap. Connect 8" round
metal ductwork to cap and work back towards
hood location. Use duct tape to seal the joints
between ductwork sections.
3-3/4î
3-3/4î
HOOD
DECORATIVE
FLUE
8” ROUND
DUCT

- 7 -
8" ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
CONNECT DUCTWORK
1. Use screws (4.8x38mm) and wall anchors
to secure flue mounting bracket to the
ceiling or wall as shown.
2. Use 8" round metal duct to connect the duct
collar on the hood to the ductwork above.
3. Use duct tape to make all joints secure and
air tight.
4. Connect the upper flue to the bracket with
screws provided (3.9x9.5mm).
5. Slide the lower flue downward, until it fits
properly around hood.
6. Secure decorative flue to hood with screws
provided (3.9x9.5mm).
FLUE
MOUNTING
BRACKET FASTEN
FLUE
MOUNTING
BRACKET
TO CEILING OR
WALL WITH
SCREWS
(4.8x38mm)
FASTEN
FLUE TO
HOOD & FLUE
MOUNTING
BRACKET WITH
SCREWS
(3.9x9.5mm)
WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical codes.
1. Remove the wiring box cover. Remove a
knockout from the wiring box.
2. Secure the conduit to the wiring box
through a conduit connector.
3. Make electrical connections. Connect white
to white, black to black and green to green.
4. Replace wiring box cover and screws. Make
sure that wires are not pinched between
cover and box.
WIRING BOX
COVER
DUCT
COLLAR

- 8 -

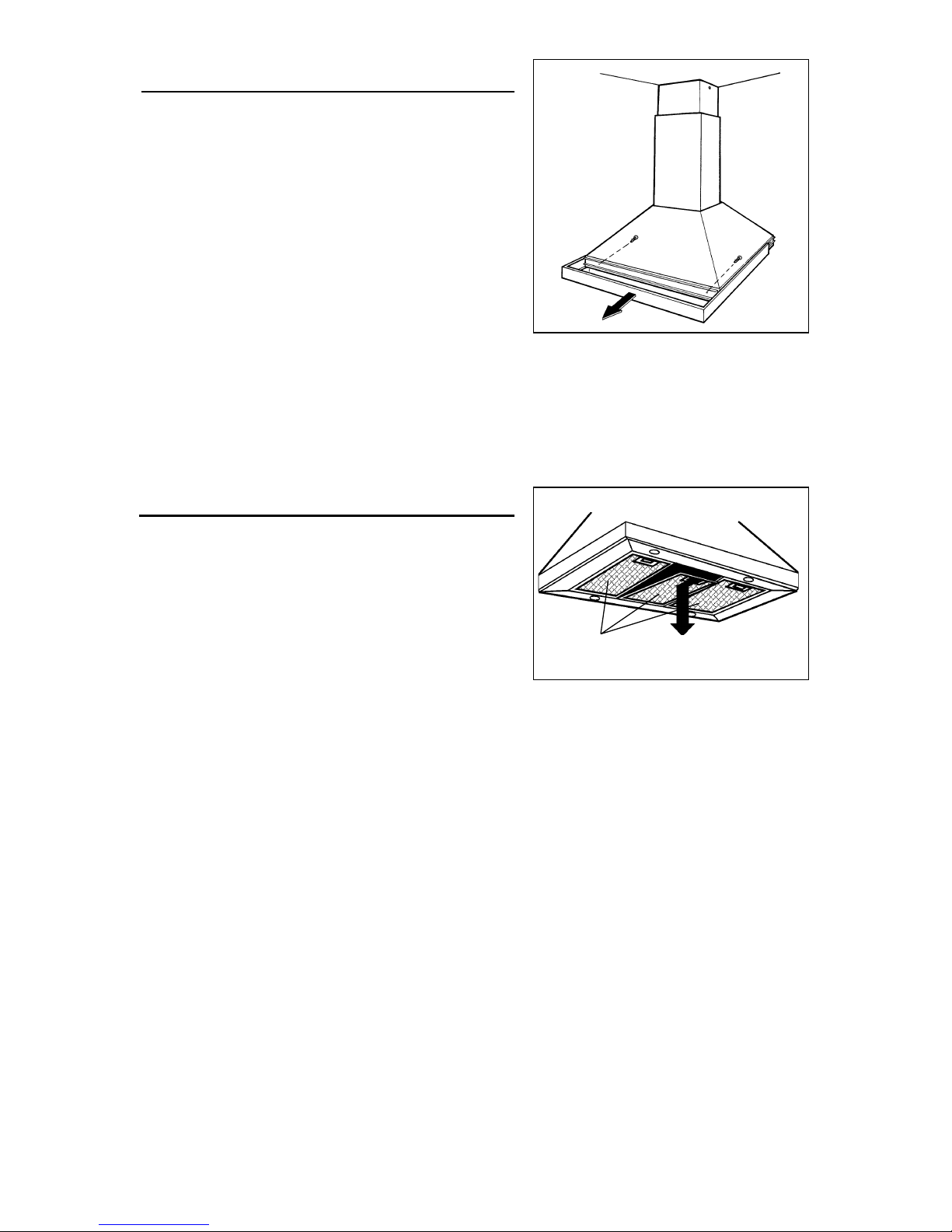

BOTTOM TRIM REPLACEMENT
1. Remove the two (2) screws from the inside
of the hood.
2. Remove trim by pulling it frontwards.
3. Slide new trim inward onto hood.
4. Replace the two screws removed in step 1
above.
MAINTENANCE
Grease Filters
The grease filters should be cleaned
frequently. Use a warm detergent solution.
Grease filters are dishwasher safe.
Remove filters by pushing filters towards the
back of hood and rotating filters downward.
Hood Cleaning
Stainless steel is one of the easiest materials to keep clean. Occasional care will
help preserve its fine appearance.
Cleaning tips:
OHot water with soap or detergent is all that is usually needed.
OFollow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth
to avoid water marks.
OFor discolorations or deposits that persist, use a non-scratching household
cleanser or stainless steel polishing powder with a little water and a soft cloth.
OFor stubborn cases, use a plastic scouring pad or soft bristle brush together
with cleaser and water. Rub lightly in direction of polishing lines or "grain" of the
stainless finish. Avoid using too much pressure which may mar the surface.
ODO NOT allow deposits to remain for long periods of time.
ODO NOT use ordinary steel wool or steel brushes. Small bits of steel may
adhere to the surface causing rust.
ODO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with stainless steel for extended periods. Many of these
compounds contain chemicals which may be harmful. Rinse with water after
exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
GREASE FILTERS

- 9 -

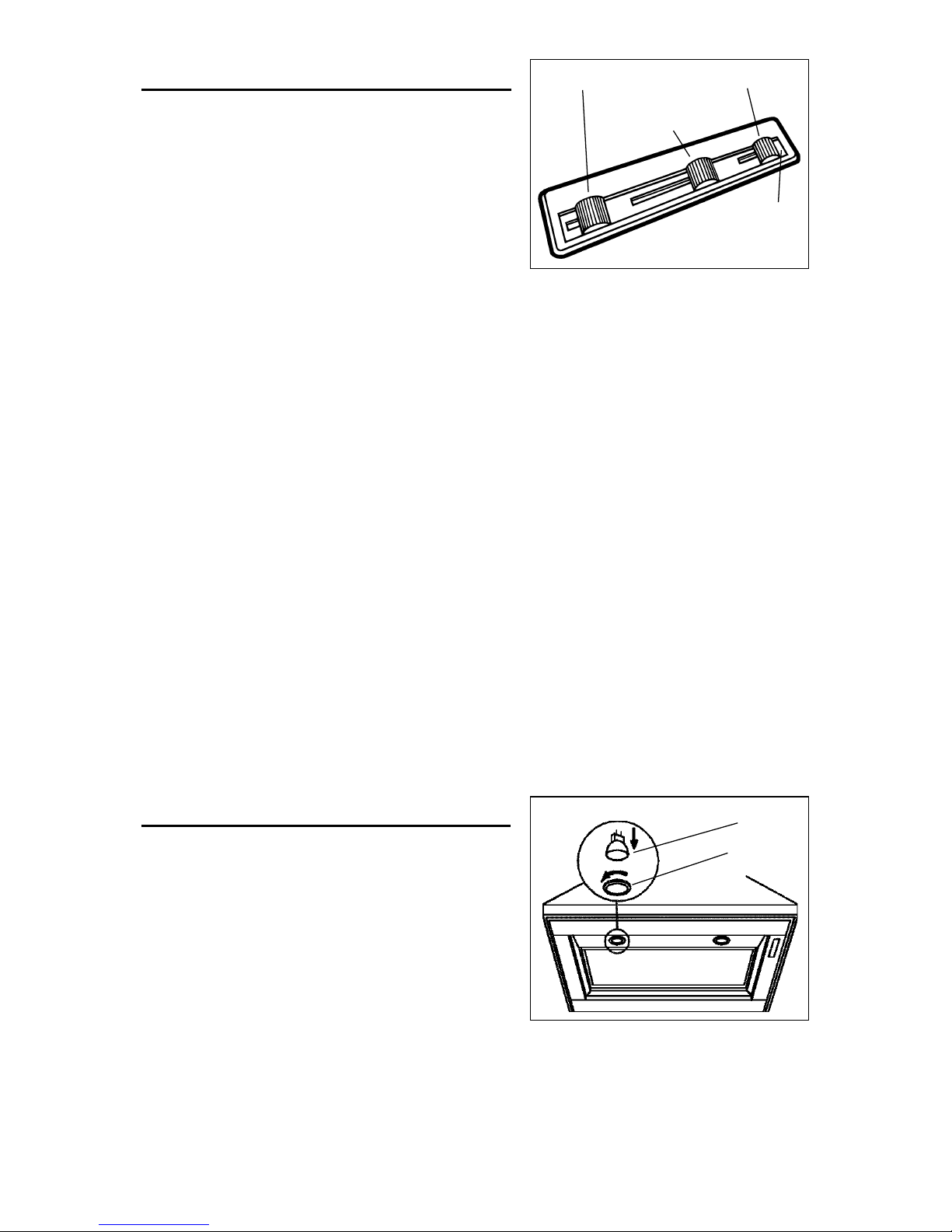

OPERATION
Controls
The hood is operated using the slide controls
under the front edge of the hood.
The light switch turns the halogen lights on
and off.
The blower on / off switch turns the blower on
to the running speed set by the blower speed
control. The blower must be turned on and off
using this switch.
The blower speed control changes the
running speed of the blower (1-2-3).
The pilot lamp lights up whenever the blower is on.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
LIGHT
SWITCH
PILOT
LAMP
BLOWER
SPEED
CONTROL
BLOWER
ON / OFF
SWITCH
BULB
HALOGEN BULBS
This range hood requires two halogen bulbs
(max 20W, 12V, TYPE MR16 bulb shielded,
GU 5.3 Base).
ALWAYS SWITCH OFF THE ELECTRICITY
SUPPLY BEFORE CARRYING OUT ANY
OPERATIONS ON THE APPLIANCE.
To change bulbs:
1. Slacken the ring nut in an anticlockwise
direction.
2. Remove the bulb by pulling sideward (Do
not rotate). CAUTION: BULB MAY BE HOT!
3. Replace with a bulb of the same type.
If lights fail to operate, disconnect power at the service entrance. Check fuse and
replace if necessary.
RING NUT

- 10 -
FUSE REPLACEMENT
SWITCH OFF THE ELECTRICITY SUPPLY.
Remove the grease filters.
Remove trim by pulling it forward.
Remove the electrical box support screws.
Open the fuse box.
Replace with the same type of fuse (5x20mm,
4A, 125V). ELECTRICAL
BOX
SUPPORT
FUSE
FUSE BOX
TRIM ELECTRICAL BOX
SUPPORT SCREWS
WARRANTY
ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS
Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free
from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found
to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT
BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does
not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence,
accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recom-
mended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not
allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S
SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below,
(b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of
requesting warranty service, you must present evidence of the original purchase date.
In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com

- 11 -
LISEZ ET CONSERVEZ CES INSTRUCTIONS
AVERTISSEMENTS
POUR REDUIRE LES RISQUES D’INCENDIE, DE DECHARGES ELECTRIQUES OU
DE DOMMA-GES AUX PERSONNES, OBSERVEZ LES INSTRUCTIONS SUIVANTES:
1. N’utilisezcetappareilquecomme cela estindiqué parleconstructeur. Sivousavez des
problèmes,contactezlefabriquantàl’adresseouau numérodetéléphoneindiquésdans
lagarantie.
2. Avantdepourvoir àl’entretien ouaunettoyage devotre appareil,éteignez-leautableau
descommandesoubloquezletableaudescommandesafind’éviterdelemettreenmarche
accidentellement.Si vousnepouvezpasbloquerlesystème permettantd’éteindre votre
appareil,appliquezunavertissementextérieur d’unefaçonsure,commepar exempleun
panneau,surle tableau descommandes.
3. L’assemblageetla connexionélectrique doivent êtrefaits pardespersonnes qualifiées
enrespectant lesnormeset règlementsen vigueur,ycompris lesnormes etrèglements
concernantles possibilitésd’incendie.
4. Ilestindispensablequ’ilyaitsuffisammentd’airpourquelacombustionetl’évacuationdes
gaz à travers le tuyau du brûleur du combustible ait lieu sans retour de flamme. Suivez
lesindicationsdonnéesparlefabricantdubrûleurainsiquelesnormesdesécuritécomme
cellesquisont publiéesparl’AssociationNationalepourlaProtection contrelesIncendies
NationalFireProtectionAssociation(NFPA)etlaAmericanSocietyforHeating,Refrigeration
andAirConditioning Engineers(ASHRAE),etlesautoritéslocalesenmatièredenormes.
5. Quandvouscoupez oupercezdes trousdansle muroule plafond,n’abîmezpas lesfils
électriquesouautres.
6. Leventilateurcanalisé doit toujoursévacuerl’air vers l’extérieur.
7. N’utilisez pas cet appareil avec un appareil contrôlant la vitesse à état solide.
8. Afindediminuer toutrisqued’incendie n’utilisezquedes conduits enmétal.
9. Votre appareil doit être relié à la terre.
ATTENTION - POUR REDUIRE LES RISQUES D’INCENDIE DES MATIERES GRASSES
QUI SONT EN TRAIN DE CUIRE:
A. Ne laissez jamais ni vos éléments chauffants, ni vos casseroles ou poêles sur le feu
sans les contrôler si vous réglez l’apport de chaleur sur une position élevée. Si vos
casseroles ou poêles débordent cela provoque de la vapeur et des éclaboussures de
graisse qui peuvent prendre feu. Chauffez les huiles lentement à feu bas ou moyen.
B. Faites toujours fonctionner votre hotte quand vous cuisez à des températures élevées
ou quand vous cuisinez des plats flambés. (par ex. crêpes Suzette, Cerises “Jubilé”,
Steack au poivre flambé).
C. Nettoyez régulièrement les ailes de vos ventilateurs. Ne permettez pas que la graisse
s’accumule sur le ventilateur ou sur le filtre.
D. Utilisez des casseroles de taille appropriée. Utilisez toujours des ustensiles de cuisson
dont la taille est appropriée à la surface de votre élément de cuisson.
AVERTISSEMENTS
POURREDUIRELESRISQUESDEDOMMAGESAUXPERSONNESAUCASOÙVOTRE
CUISINIEREPRENDRAITFEU,OBSERVEZLES INSTRUCTIONSSUIVANTES:*
1. ETEINDRE LES FLAMMES à l’aide d’un couvercle le plus hermétique possible, une
plaque à gâteaux, ou un plateau en métal, puis éteindre le brûleur. ATTENTION à NE
PAS VOUS BRÛLER. Si les flammes ne s’éteignent pas immédiatement, SORTEZ ET
APPELEZ LES POMPIERS.
2. NE PRENEZ JAMAIS EN MAIN UNE POÊLE OU UNE CASSEROLE QUI A PRIS FEU
- Vous pourriez vous brûler.
3. N’UTILISEZ PAS D’EAU, ni torchons ou serviettes mouillés - vous provoqueriez une
violente explosion de vapeur.
SEULEMENT POUR UTILISATION DOMESTIQUE
!
!

- 12 -
4. Utilisez un extincteur SEULEMENT si:
A. Vous savez que vous avez un extincteur Classe ABC, et vous en connaissez déjà le
mode d’emploi.
B. Ce n’est pas un très gros incendie et qu’il se limite à l’endroi où il a explosé.
C. Vous êtes en train d’avertir les pompiers.
D. Vous avez la possibilité d’essayer d’éteindre l’incendie en ayant le dos tourné vers
une issue.
* D’après les “Suggestions concernant la Sécurité contre les incendies des cuisines”
publiées par NFPA.
ATTENTION
1. Pour usage intérieur seulement.
2. Pour réduire tout risque d’incendie et pour évacuer correctement l’air, assurez-vous de
prévoir un conduit de ventilation extérieur.Ne videz pas l’air dans les espaces limités par
des murs ou des plafonds, les combles, les passages étroits ou les garages.
3. Faites très attention quand vous utilisez des produits de nettoyage ou des détergents.
4. Évitez d’utiliser des aliments pouvant s’enflammer sous la Range Hood.
5. N’utilisez cet appareil que pour une ventilation générale. Ne l’utilisez pas pour évacuer des
matières ou des vapeurs dangereuses ou qui peuvent exploser.
6. Pour éviter de causer des dommages au moteur et de rendre les rotors bruyants et/ou
non équilibrés, évitez que les sprays pour murs secs, la poussière de construction
entrent en contact avec la partie électrique.
7. Le moteur de votre hotte a un thermostat qui éteindra automatiquement le moteur s’il est
surchauffé. Le moteur se remettra en marche lorsqu’il se sera refroidi. Si le moteur
continue à s’éteindre et à se remettre en marche, faites vérifier votre hotte.
8. Pour mieux capturer les impuretés de cuisine, le bas de votre hotte devrait être à une
distance minimum de 24” et à une distance maximum de 30” au-dessus du plan de
cuisson.
9. Vu que cette hotte est grande et lourde, il est recommandé de confier l’installation de cette
hotte à deux personnes.
10. Ce produit est doté d’un thermostat qui active automatiquement le moteur.Pour réduire le
risque de dommages et éviter l’activation accidentelle, positionner l’interrupteur du panneau
de service sur la position OFF et bloquer le panneau de service ou mettre un avertissement
externe, par exemple une plaquette.
11. Utiliser uniquement avec un kit de connexion pour alimentation homologué.
12. Nous vous recommandons de lire l’étiquette indiquant les caractéristiques de votre hotte
pour de plus amples informations et exigences.
!

- 13 -
PREPAREZ LA HOTTE
Enlever la hotte dans l’emballage et controller le
contenu.
Vous devez recevoir :
1 - Hotte
1 - Conduit décoratif
1 - Étrier de support
1 - Sachet (B080810578) avec:
2 - Étriers d’assemblage
10 - Vis d’assemblage (4,8 x 38mm Tête ronde)
4 - Vis d’assemblage (3,9 x 9,5mm Tête ronde)
4 - Vis d’assemblage (3,9 x 9,5mm Tête ronde - Noire)
10 - Chevilles
1 - Instructions pour l’installation
ETRIERS
D’ASSEMBLAGE
ETRIER DE
SUPPORT
10 CHEVILLES
CONDUIT
DECORATIVE
10 VIS
D’ASSEMBLAGE(4,8x38mm
Tête ronde)
4 VIS D’ASSEMBLAGE
(3,9x9,5mm Tête
ronde)
4 VIS D’ASSEMBLAGE
(3,9x9,5mm Tête
ronde - Noire)

- 14 -
de 38
3
/
16
î Ú 44
3
/
16
î au-dessus
du plan de cuisson
CONDUIT
DÉCORATIF
DE 24” À 30” AU-DESSUS
DU PLAN DE CUISSON
CADRE POUR LE MUR
TROUS RECTANGULAIRES
ETRIERS
PLANCHE DE BOIS
POUR L'ADAPTATION
VIS D’ASSEMBLAGE
(4.8x38mm)
VIS DE REGLAGE EN
PROFONDEUR
VIS D’ASSEMBLAGE
(4.8x38mm)
VIS DE
REGLAGE EN
HAUTEUR
3-3/4î
3-3/4î
38
3
/
16
"= si la distance entre la hotte et le plan de cuisson cíest de 24î
44
3
/
16
"= si la distance entre la hotte et le plan de cuisson cíest de 30î
COUVERCLE DU TOIT
COUVERCLE
DU
MUR
COUDE
ROND
DE 8”
HOTTE
TUYAU ROND
DE 8”
INSTALLATION DU SYSTEME
D’EVACUATION
REMARQUE: Pour réduire les risques
d’incendie, n’utilisez que des tuyaux en métal.
1. Décidez où le tuyau doit être installé, entre
votre hotte et l’extérieur.
2. Un tuyau droit et court permettra à votre hotte
de fonctionner d’une façon plus efficace. Un
tuyau long avec des coudes et des transitions
réduira le bon fonctionnement de votre hotte.
En utiliser le moins possible.
3. Installez un couvercle sur le toit ou au mur.
Reliez un tuyau en métal rond de 8” au
couvercle et faites-le aller jusqu’à
l’emplacement de votre hotte. Rendez les
jonctions du tuyau hermétiques au moyen d’un
ruban pour tuyaux.
INSTALLATION DES ETRIERS
D’ASSEMBLAGE
1. Construisez un cadre en bois pour le mur dont
les vis-pivot ne dépassent pas. Assurez-vous:
a) que le cadre est centré au-dessus de
l’emplacement de l’installation.
b) la hauteur du cadre permettra que les
étriers d’assemblage soient fixés au cadre
en respectant les dimensions indiquées.
2. Après avoir terminé la surface du mur, fixez les
étriers d’assemblage au cadre en respectant
les dimensions qui sont indiquées.
INSTALLATION DE VOTRE HOTTE
3. Accrochez votre hotte aux étriers par les trous
rectangulaires qui se trouvent derrière votre
hotte. Les trous sont plus grands que les étriers
afin de vous permettre d’ajuster le tout
horizontalement.
Le fond de votre hotte devrait être à entre 24”
et 30” au-dessus de la surface de cuisson.
4. Les vis de réglage en hauteur permettent de
régler verticalement.
5. Les vis de réglage en profondeur permettent
de régler horizontalement.
6. Fixez votre hotte avec des (4) vis
d’assemblage (4.8x38mm). Utilisez des
chevilles pour mur à sec, qui vous sont
fournies, si vous ne trouvez pas les vis-pivot
ou le cadre.

- 15 -
INSTALLATION ELECTRIQUE
Remarque: Ce modèle de hotte doit être relié
à la terre correctement. Cet article devrait
être installé par un électricien qualifié selon
les lois nationales et locales en matière
d’électricité.
1. Enlevez le couvercle de la boîte de
connexion électrique. Ouvrez un trou de la
boîte de connexion électrique.
2. Fixer le “conduit” au boîtier de connexion
à l’aide d’un connecteur approprié pour
ce “conduit”.
3. Faites le raccordement électrique. Reliez le
blanc au blanc, le noir au noir et le vert au
vert.
4. Remettez le couvercle de la boîte de
connexion et les vis. Assurez-vous que les
fils se sont pas coincés entre le couvercle et
la boîte.
COLLIER DU
TUYAU
COUVERCLE DE LA
BOÎTE DE
CONNEXION
CONNEXION DU SYSTEME
D’EVACUATION
1. Attachez l’étrier du haut au plafond ou au
mur au moyen des vis (4.8x38mm) et des
chevilles comme cela est indiqué.
2. Reliez le collier du tuyau qui se trouve sur
votre hotte au système de conduction qui se
trouve au-dessus au moyen d’un tuyau rond
en métal de 8”.
3. Utilisez un ruban pour tuyauterie afin de
rendre toutes les jonctions sures et
étanches.
4. Reliez le tube supérieur à l’étrier au moyen
des vis qui vous sont fournies (3.9x9.5mm).
5. Faites glisser le tube inférieur vers le bas,
jusqu’à ce qu’il adhère correctement autour
de la hotte.
6. Fixez le conduit décoratif à votre hotte au
moyen des vis qui vous sont fournies
(3.9x9.5mm).
ETRIER DU
HAUT
ATTACHEZ
L’ETRIER DU
HAUT AU
PLAFOND OU
AU MUR AU
MOYEN DES
VIS (4.8x38mm)
CONDUIT
DÉCORATIF
RUBAN POUR
TUYAUTERIE
TUYAU ROND EN
METAL DE 8”
ATTACHEZ LE
CONDUIT
DECORATIF À
VOTRE HOTTE
ET A L’ÉTRIER
DU HAUT AU
MOYEN DES VIS
(3.9x9.5mm)

- 16 -
REMPLACEMENT DU REBORD
DU BAS
1. Enlevez les deux (2) vis de l’interiéur de
votre hotte.
2. Enlevez le rebord en le tirant vers l’avant.
3. Faites glisser un nouveau rebord sur votre
hotte.
4. Remettez les deux vis que vous aviez
enlevées au paragraphe 1.
ENTRETIEN
Filtres anti-graisse
Les filtres anti-graisse doivent être nettoyés
fréquemment. Utilisez une solution contenant
un détergent tiède. Les filtres anti-graisse
peuvent être lavés au lave-vaisselle. Enlevez
les filtres en les poussant vers l’arrière de votre
hotte et en les faisant tourner vers le bas.
Nettoyage de votre hotte
L’acier inoxydable est une des matières les plus faciles à nettoyer. Un entretien de
temps en temps permettra de le conserver en parfait état. Conseils pour le nettoyage:
OEau chaude et savon ou détergent est tout ce qui est normalement nécessaire.
OAprès chaque nettoyage, rincez bien à l’eau claire. Essuyez avec un chiffon
propre et doux afin d’éviter les taches d’eau.
OSi des décolorations ou des dépôts persistent, utilisez un nettoyant domestique
non abrasif ou de la poudre pour l’acier inoxydable et un peu d’eau et un chiffon
doux.
ODans les cas difficiles, utilisez une éponge en plastique ou une brosse douce
avec du nettoyant et de l’eau. Frottez légèrement en suivant la direction du
polissage ou du “grain” de l’acier inoxydable. Evitez de frotter trop fort afin de ne
pas abîmer la surface.
ONE LAISSEZ PAS les taches trop longtemps.
ON’UTILISEZ PAS de laines d’acier ordinaires ou des brosses en acier. Des débris
d’acier pourraient adhérer à la surface et causer de la rouille.
ONE PERMETTEZ PAS que des solutions salées, des désinfectants, des
blanchissants ou des produits nettoyants restent en contact avec l’acier pendant
longtemps. Beaucoup de ces produits contiennent des produits chimiques qui
pourraient causer des dommages. Rincez à l’eau immédiatement s’ils entrent en
contact et essuyez avec un chiffon humide.
Les surfaces peintes doivent être nettoyées avec de l’eau tiède additionnée d’un
détergent doux seulement.
FILTRES ANTI-GRAISSE

- 17 -
FONCTIONNEMENT
Commandes
Votre hotte fonctionne grâce à des interrupteurs
que vous faites glisser sur le devant de votre
hotte.
L’interrupteur de la lumière allume et éteint
les lampes halogènes.
L’interrupteur ON/OFF du ventilateur fait
fonctionner le ventilateur à la vitesse établie
par le bouton réglant la vitesse. Le ventilateur
est mis en marche et arrêté au moyen de cet interrupteur.
Le bouton réglant la vitesse change la vitesse de fonctionnement du ventilateur (1-
2-3).
Le voyant lumineux s’allume quand le ventilateur fonctionne.
HEAT SENTRYMC
Votre hotte est munie d’un thermostat HEAT SENTRYMC. Ce thermostat est un
dispositif qui actionnera ou augmentera la vitesse du ventilateur s’il détecte une
chaleur excessive au-dessus de la surface de cuisson.
1) Si le ventilateur n’est pas en marche - il actionnera le ventilateur en haute
vitesse.
2) Si le ventilateur fonctionne en basse vitesse - le ventilateur tournera en haute
vitesse.
Lorsque la température revient à la normale, le ventilateur retourne à sa vitesse
d’origine.
AVERTISSEMENT
Le thermostat HEAT SENTRYMC peu actionner la hotte même si la hotte est
arrêtée. Si tel est le cas, il est impossible de l’arrêter avec l’interrupteur. Si
vous devez arrêter le ventilateur, faites-le à partir du panneau électrique
principal.
INTERRUPTEUR DE LA
LUMIÈRE
INTERRUPTEUR ON/
OFF DU VENTILATEUR
BOUTON RÉGLANT
LA VITESSE DU
VENTILATEUR
VOYANT
LUMINEUX
AMPOULES HALOGENES
Ce modèle de hotte veut deux (2) ampoules
halogènes (max 20W, 12V, TYPE MR16
ampoules avec écran, GU 5.3 Base).
AVANT DE PROCÉDER À QUELCONQUE
OPÉRATION, DÉBRANCHEZ L’APPAREIL.
Pour changer les ampoules:
1. Dévissez la bague dans le sens contraire
aux aiguilles d’une montre.
2. Enlevez l’ampoule en tirant sur le côté (Ne
la faites pas tourner).
ATTENTION: L’AMPOULE PEUT ETRE CHAUDE!
3. Remplacer par une ampoule ayant les mêmes caractéristiques.
Si les ampoules ne fonctionnent pas, débranchez l’appareil.
Verifiez le fusible et remplacez-le si nécessaire.
AMPOULE
BAGUE

- 18 -
GARANTIE LIMITÉE DE UN AN DE BEST
Broan-NuTone LLC (Broan-NuTone) garantit à l'acheteur original que les produits BEST vendus en vertu de la présente sont
libres de tout vice de matériau ou de fabrication pour une période de un an à compter de la date d'achat originale. CETTE
GARANTIE NE COMPORTE AUCUNE AUTRE GARANTIE, EXPRESSE OU TACITE, Y COMPRIS, MAIS SANS S'Y
LIMITER, LES GARANTIES TACITES DE VALEUR MARCHANDE OU D'ADAPTATION À UN USAGE PARTICULIER.
Durant cette période de un an, Broan-NuTone réparera ou remplacera gratuitement, à sa discrétion, tout produit ou toute pièce
jugés défectueux dans des conditions normales d'utilisation.
CETTE GARANTIE NE S'APPLIQUE PAS AUX TUBES FLUORESCENTS ET AUX STARTERS, NI AUX AMPOULES
HALOGÈNES OU INCANDESCENTES, FUSIBLE, FILTRES, CONDUITES, CHAPEAUX DE TOIT, CHAPEAUX DE MUR
ET AUTRES ACCESSOIRES POUR CANALISATIONS.Cette garantie ne couvre pas (a) les frais d'entretien ou de service
normaux ni (b) tout produit ou toute pièce soumis à une utilisation inadéquate, une négligence, un accident, un entretien ou une
réparation inadéquats (autres que ceux effectués par Broan-NuTone), une mauvaise installation ou une installation contraire
aux instructions recommandées.
La durée de toute garantie tacite est limitée à la période de un an stipulée pour la garantie expresse. Certains États ou provinces
ne permettent pas de limites quant à la durée d’une garantie implicite. La restriction susmentionnée peut donc ne pas s'appliquer
dans votre cas.
BROAN-NUTONE’S L'OBLIGATION POUR BROAN-NUTONE DE RÉPARER OU DE REMPLACER LE PRODUIT, À SA
DISCRÉTION, CONSTITUE LE SEUL RECOURS DE L'ACHETEUR EN VERTU DE CETTE GARANTIE. BROAN-
NUTONE NE PEUT PAS ÊTRE TENUE RESPONSABLE DE TOUT DOMMAGE INDIRECT, CONSÉCUTIF OU ACCES-
SOIRE DÉCOULANT DE L'UTILISATION OU DU RENDEMENT DU PRODUIT. Certains États ou provinces interdisent
l'exclusion ou la restriction des dommages indirects ou consécutifs. La restriction susmentionnée peut donc ne pas s'appliquer
dans votre cas.
La présente garantie vous confère des droits spécifiques reconnus par la loi. D'autres droits pourraient également vous être
accordés selon la législation locale en vigueur. La présente garantie remplace toutes les autres garanties précédentes.
Pour le service sous garantie, vous devez (a) aviser Broan-NuTone à l'une des adresses ou numéros de téléphone mentionnés
ci-dessous, (b) indiquer le numéro de modèle et d'identification de la pièce et (c) décrire la défectuosité du produit ou de la pièce.
Lors d’une réclamation, vous devez présenter une preuve de la date d'achat originale.
In USA - Best®, 926 W. State Street, Hartford,WI 53027 (800-558-1711)
In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770)
www.BestRangeHoods.com
GARANTIE
REMPLACEMENT FUSIBLE
DÉBRANCHEZ L’APPAREIL.
Enlevez les filtres anti-graisse.
Enlevez le rebord en le tirant vers l’avant.
Enlevez les vis du support boîte installation
electrique.
Ouvrir la boîte fusible.
Remplacez par un fusible du même type
(5x20mm, 4A, 125V). SUPPORT
BOITE
INSTALLATION
FUSIBLE
REBORD
VIS DU SUPPORT
BOÎTE INSTALLATION
ELECTRIQUE
BOITE FUSIBLE

- 19 -
LEA Y CONSERVE ESTAS INSTRUCCIONES
ADVERTENCIA
PARA EVITAR EL RIESGO DE INCENDIO, CORTOCIRCUITO O DAÑO PARA LAS
PERSONAS, OBSERVE ATENTAMENTE LAS SIGUIENTES NORMAS:
1. Use esta unidad solamente de la manera indicada por el fabricante; si tiene dudas,
póngase en contacto con éste a la dirección o teléfono indicados en la garantía.
2. Antes de hacer una revisión o de limpiar la unidad, desconéctela de la red para evitar
que se encienda de manera accidental. En el caso de que éste no pueda ser desacti-
vado, se indicará en la placa de caracteristicas.
3. El montaje y la instalación eléctrica debe hacerlos un técnico especializado siguiendo
las normas estándar e incluyendo aquellas de construcción anti incendio.
4. Necesita aire suficiente para una apropiada combustión y escape de gases a través del
tubo del depósito de quema de combustible. Para evitar que el humo aspirado vuelva a
la cocina, siga las directivas del fabricante y las normas estándar de siguridad así como
las normas publicadas por la Asociación de prevención de incendios (NFPA) y la Socie-
dad americana de especialistas en cale-facción, refrigeración y aire acondicionado y
además las normas de las autoridades locales.
5. Hacer un corte o un taladro en la pared o en el techo no debe dañar la instalación
eléctrica u otras instalaciones ocultas en la pared.
6. Los conductos ventiladores deben siempre desalojar al exterior.
7. No use esta unidad con dispositivo de control de la velocidad a estado sólido.
8. Para evitar el riesgo de incendio, use solamente conductos de metal.
9. Esta unidad tiene que ser conectada a tierra.
PARA EVITAR EL RIESGO DE FUEGO POR ALTO NIVEL DE GRASA:
A. Nunca abandone los quemadores con el fuego alto. La cocción causa humo y restos
de grasa que pueden arder. Caliente el aceite a fuego medio o bajo.
B. Encienda siempre la campana cuando cocine a fuego alto o cuando cocine alimentos
fácilmente inflamables. (por ejemplo Crepes Suzette, Cerezas Jubilee, Ternera
flambeada con granos de pimienta).
C. Limpie con frecuencia los ventiladores. No se debe acumular grasa en el ventilador o
en el filtro.
D. Usa el tamañp de cazuela apropiado. Use siempre utensilios de cocina de tamaño y
material adecuados.
ADVERTENCIA
PARA EVITAR EL RIESGO DE DAÑOS A PERSONAS EN CASO DE FUEGO POR ALTO
NÍVEL DE GRASA, TENGA EN CUENTA LO SIGUIENTE:*
1. SOFOQUE LA LLAMA con una tapadera apropiada, una bandeja metálica ó un utensilio
de cocína que pueda cubrirla, despues, apague el quemador. ACTÚE CON
PRECAUCÍON PARA EVITAR QUEMADURAS. Si la llama no se extingue inmedia-
tamente, SALGA Y LLAME A LOS BOMBEROS.
2. NUNCA COJA UNA SARTEN EN LLAMAS, porque corre el riesgo de quemarse.
3. NO USE AGUA ni paños o toallas húmidas porque puede provocarse una violenta
humareda.
4. Use un extintor SOLAMENTE si:
A. Posee un extintor de clase ABC y sabe perfectamente cómo usarlo.
B. El fuego es pequeño y está controlado en el mismo sitio en que empezó.
C. Ha llamado con anterioridad a los bomberos.
D. Puede combatir el fuego retrocedíendo hacia la salida.
* Basado en “Seguridad antifuego en la cocína” publicado por NFPA.
INDICADO PARA EL USO EN COCINAS DOMESTICAS
!
!

- 20 -
!
ADVERTENCIA
1. Para uso en interiores.
2. Para reducir el riesgo de incendios y para evacuar correctamente los humos, asegurarse
de haber realizado una conducción del aire hasta el exterior. No expulsar los humos en
espacios cerrados por paredes o techos, áticos, espacios angostos o garajes.
3. Prestar la máxima atención al utilizar productos de limpieza o detergentes.
4. Evitar el uso de productos alimentarios que puedan inflamarse bajo la campana.
5. Sólo para ventilación total. No use gases de escape peligrosos o materiales y vapores
explosivos.
6. Para evitar daños en el funcionamiento del motor e impulsores ruidosos y/o desequi-
librados, mantenga alejados de la unidad de encendido pulverizadores en seco o polvo.
7. El motor tiene un nivel de sobrecarga térmica que apaga automáticamente el motor
cuando se ha recalentado excesivamente. El motor se pone de nuevo en fincionamento
cuando la temperatura baja. Si el motor comienza a encenderse y a apagarse, deberá
hacer una revisión de éste.
8. Para limpiar mejor las impurezas al cocinar, la parte inferior de la campana debe estar
a una temperatura mínima de 24 grados y máxima de 30 grados por debajo de la
temperature de la zona de cocción.
9. Debido a su gran tamaño y peso, se recomienda su montaje por parte de dos técnicos
esperializados.
10. Este producto está dotado de un termostato que pone en marcha automáticamente
el motor. Para reducir el riesgo de daños y evitar que se encienda accidentalmente,
colocar el interruptor del panel de servicio en la posición OFF y bloquear el panel de
servizio o colocar una advertencia externa como por ejemplo un letrero o una chapita.
11. Use solamente con juego de conexión para alimentación aprobado.
12. Se recomienda leer la placa de caracteristicas del producto para ulterior información.
Other manuals for K42
1
This manual suits for next models
1
Table of contents
Languages:
Other Best Ventilation Hood manuals

Best
Best CP57E series User manual

Best
Best IP29 SERIES User manual

Best
Best KASC505L User manual

Best
Best CP55IQ series User manual

Best
Best WPD29M Series User manual

Best
Best WTD9M Series User manual

Best
Best IS241/BER02IS User manual

Best
Best CP57IQT series User manual

Best
Best CC34IQ63SB User manual

Best
Best P195ES70SB User manual
