Beverage-Air DD Series User manual

INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
DD Direct Draw Dispenser Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: [phone] | Fax: [phone] | Web: beverage-air.com
809-180a 06/04/2020 SEE BACK COVER FOR
WARRANTY REGISTRATION

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air2
WELCOME
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Airow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product information Clearance and Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unpacking and Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Keg installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using The Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sequence of Operations Refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Condenser Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Methods For Cleaning Stainless Steel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
For The Service Tech - R290 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
For The Service Tech - Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Limited Warranty (continued) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located with
this manual. Please complete the card and submit it to
Beverage-Air within TEN days of installation. Failure
to properly register equipment may limit or void the
warranty.
• Beverage-Air reserves the right to change
specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Beverage-Air cabinet. This
series has passed our strict quality control inspection and
meets the high standards set by Beverage-Air! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit. If you
have any questions, Please call our Technical Service
Department at [phone]. 8:00 AM to 5:00 PM EST.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Beverage-Air recommended technician certied
to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of
non OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air4
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 60º F 100º F
Air Flow, 24 inch Models (DD24).
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 5

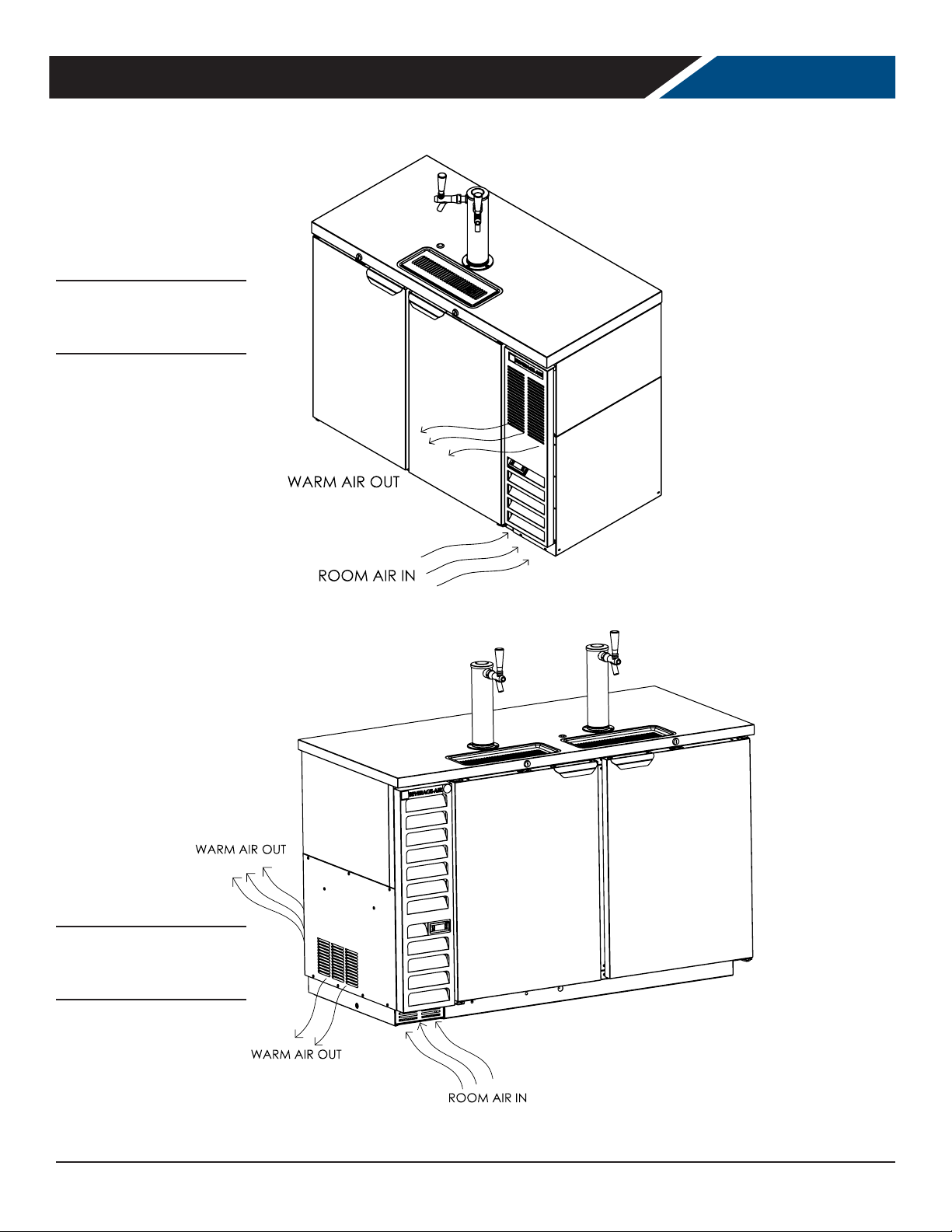

AIRFLOW
DD36, DD48, DD50
DD 58, DD68, DD72, DD78, DD94
Note: Compressor and
Airow can be on left or
right end of cabinet.
Note: Compressor and
Airow can be on left or
right end of cabinet.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air6
PRODUCT INFORMATION CLEARANCE AND PLACEMENT
Model Cabinet Dimensions
w x d x h (Inches)
Door
Count
Glass or
Solid Door
Full Load
Amps
Power Cord
Plug (NEMA)
Refrigerant Type /
Charge (g) / (oz)
DD24HC-1 24 x 30 1/8 x 53 1 Solid 2 5-15P R-290 / 55 / 1.94
DD36HC-1* 36 x 24 1/4 x 51 1/4 1 Solid 2.5 5-15P R-290 / 90 / 3.3
DD48HC-1 48 x 24 1/4 x 51 1/4 2 Solid 2.5 5-15P R-290 / 90 / 3.3
DD50HC-1 50 1/2 x 29 x 52 1/2 2 Solid 2.5 5-15P R-290 / 95 / 3.36
DD58HC-1 59 x 29 x 52 1/2 2 Solid 2.5 5-15P R-290 / 95 / 3.36
DD68HC-1 69 x 29 x 52 1/2 2 Solid 5.5 5-15P R-290 / 115 / 4.1
DD72HC-1 72 x 24 3/8 x 51 1/4 3 Solid 3.1 5-15P R-290 / 80 / 2.5
DD78HC-1 79 x 29 x 52 1/2 3 Solid 5.5 5-15P R-290 / 115 / 4.1
DD94HC-1 95 x 29 x 52 1/2 3 Solid 5.5 5-15P R-290 / 115 / 4.1
Height includes casters and tap when supplied
• All models will maintain product temperature between 35.5 and 40.5 degrees F. at the factory setting of 38.0F.
• All models are 115 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
DD24

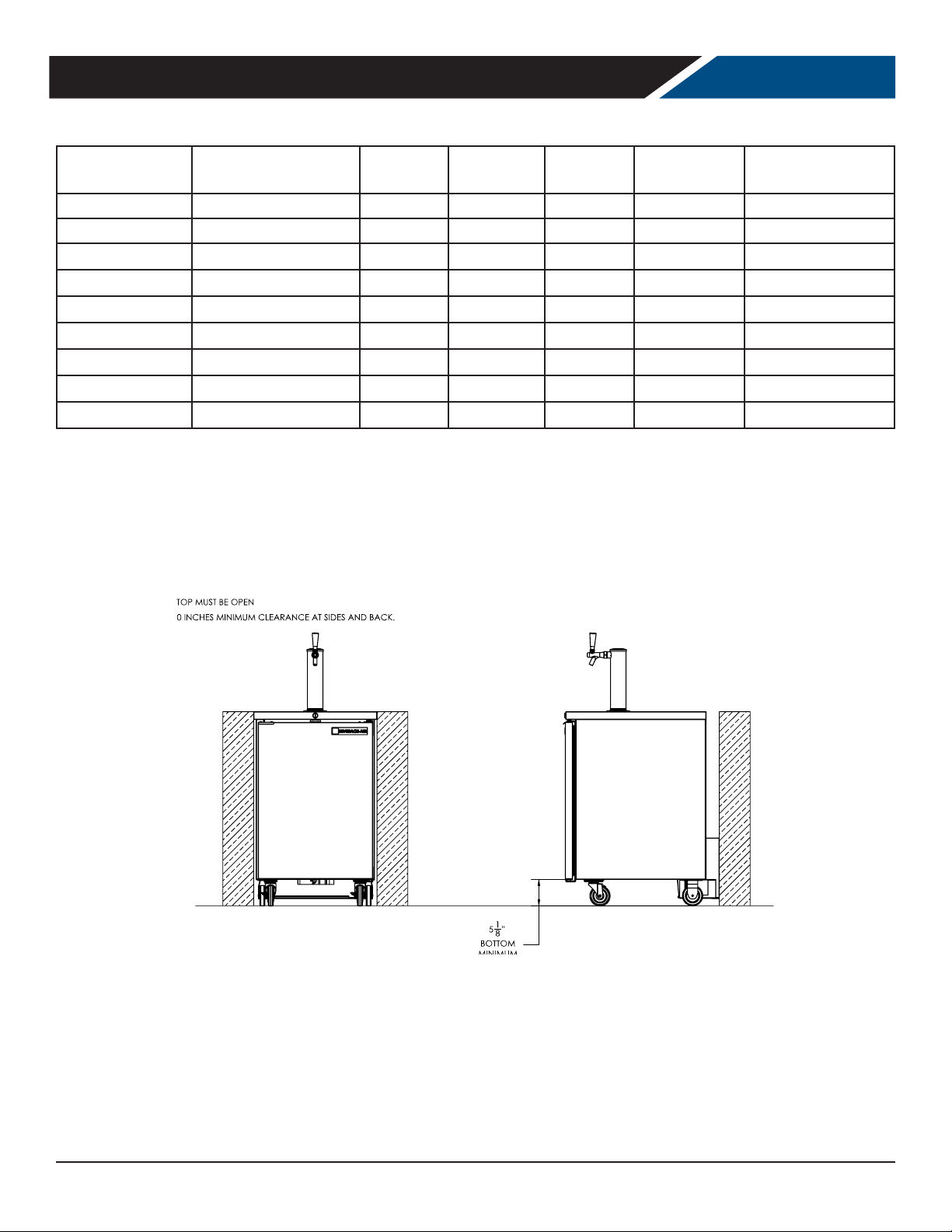

CLEARANCE
Placement
Consider the following when selecting a location for your Refrigerator:
Floor Drain: A oor drain is needed for draft arm area draining.
Floor Load: The oor on which the Refrigerator is located must be even and level, free from vibrations, and strong enough
to support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 7
CLEARANCE
DD36, DD48, DD50
DD 58, DD68, DD72, DD78, DD94

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air8
UNPACKING AND SET UP
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level,
at head screw driver, and box cutter.
1. Remove the cardboard top capping, all clear tape,
and all staples including those at the bottom of the
cardboard carton and skid.
2. Start from the top of the carton. Using the box cutter,
carefully make one continuous cut to the bottom of
the skid. Remove cardboard carton and discard.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or legs
can be attached.
Do NOT tip unit on its front or sides. If tipped onto the
back, unit must not be started for 3 hours.
Installation of Draft Arms – BM Models
Place rubber washer over draft arm mounting holes in
cabinet top and put beer line connector down through the
hole. Secure each draft arm with the four bolts provided.
Place air hose clip over beer line and insert one inch
plastic hose in draft arm being careful not to disturb
insulation. Remove top cover of draft arm and attach
air hose clip to the ¼” stainless steel elbow at faucet
connection. Replace top cover. This clip assures that the
air hose remains in place to keep the beer faucet cold.
CO2 Line Routing
For permanent installations a “knockout’ plug has been
provided through which the CO2 line can be extended

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 9
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
1. Remove the shipping bolts using the ¾” box wrench while
cabinet is held in one direction. Repeat the process while
the cabinet is held in the opposite direction.
2. None of the threads on the leg or caster stem should
be visible once screwed in.
3. Tilt the cabinet in one direction approximately 8” and
block it securely with pieces of 2x4 lumber or other
suitable material.
4. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible. Some models may already have levelers
installed. If so, then the levelers will need to rst be
removed and discarded.
5. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between
the mounting plate and the wheel of the caster until
snug.
6. Repeat this procedure with unit secured in the
opposite direction so as to access the remaining legs/
casters/levelers.
7. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
8. If levelers are employed, then repeat step 3 above and
thread the leveler in place. Then repeat step 6.
Leveling:
Cabinets must be leveled when installed. Failure to level
cabinet may result in door not sealing, closing correctly, or
condensed water draining not draining properly.
Leveling can be achieved by placing large washers in
between the caster's ½’ stud and the holes located on the
bottom of the case.
Do NOT loosen casters to level
the cabinet. Casters MUST be
tightly secured to cabinet for full
strength.
Install or attach any accessories that will be used
Remove any plastic covering the stainless steel.
CAUTION

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air10
KEG INSTALLATION

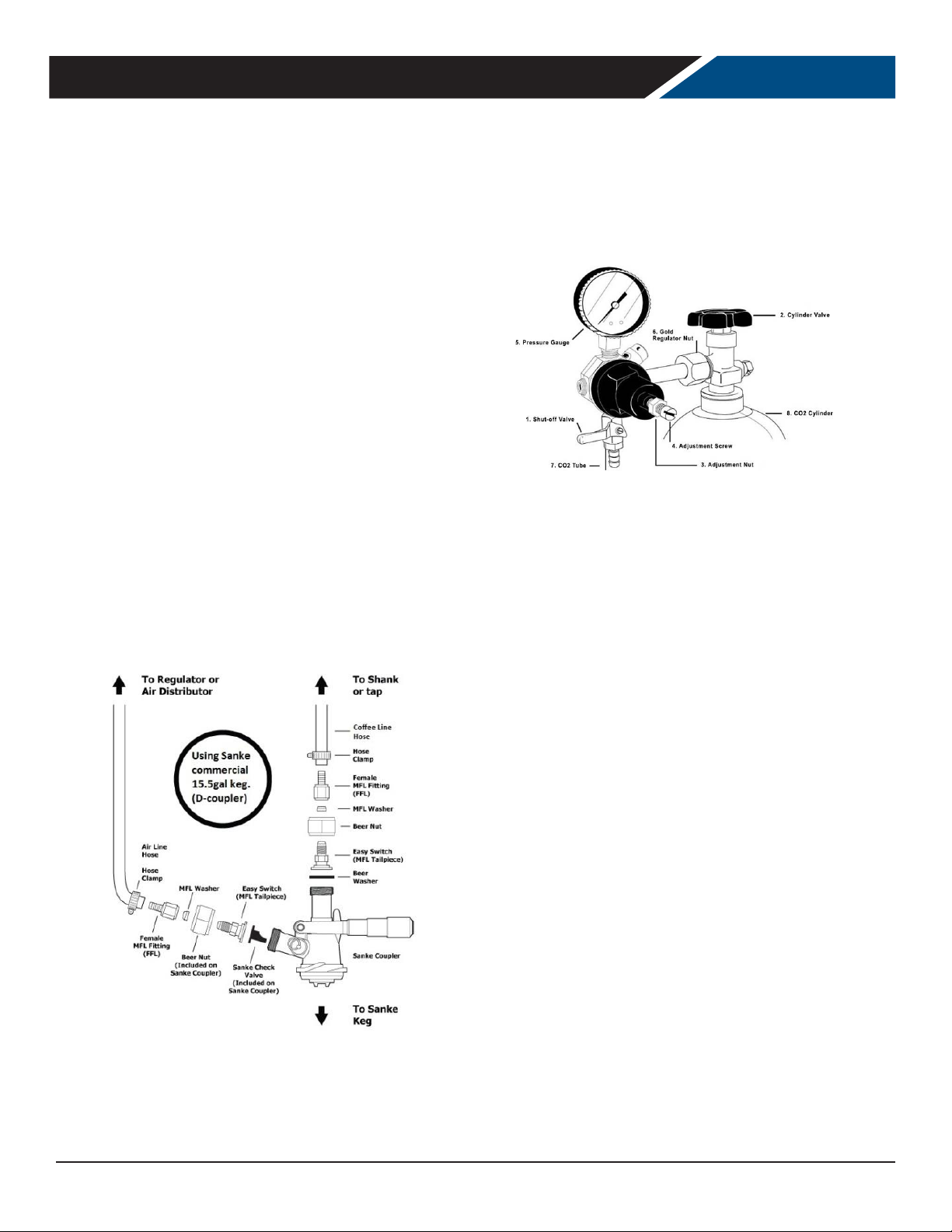

Safety First! If in doubt about how to handle the CO2 system contact your dealer/distributor
How to Install a CO2 Regulator and Replace an Empty CO2
Cylinder
1. Shut o gas pressure to dispenser by closing the Cylinder
Valve and the Shut o Valve.
2. Loosen the Adjustment Nut (counter-clockwise) and then
unscrew the Adjustment Screw (counter-clockwise) as far
out as it will go to put the regulator in the ‘O’ position.
3. Remove the regulator from the cylinder by loosening the
Gold Regulator Nut.
4. Remove the dust cap from the new cylinder and attach
the regulator to the new cylinder with the Gold Regulator
Nut. Make sure all sealing washers are in place before
connecting.
5. Open the Cylinder Valve all of the way. This is important because the cylinder valve seals in two places.
6. Screw the Adjustment Screw counterclockwise until the required pressure is reached on the Pressure Gauge.
7. Open the Shut O Valve
1. Connect the line from the pressure source to the
Female MFL Fitting using a hose clamp.
2. Align the Sanke Coupler with the lugs in the beer keg
and insert.
3. Turn the Sanke Coupler ¼ turn clockwise until tight in
the keg.
4. Rotate the Handle down 90° to assure the gas ports
in the keg are fully opened.
5. Open the pressure source
How to tap a keg with a Sanke device.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 11
This is a cord-connected unit, and must be connected to its own dedicatedpower supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe
cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This unit must be grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out, and cool
air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
ELECTRICAL

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air12
USING THE UNIT
38.0
oF
Select
Defrost Increase
Decrease
In most cases the only thing displayed will be the cabinet temperature. When something other than normal operation has
occurred, a message will be shown.
Message Displayed Why What to do
dEF Unit is defrosting Nothing. Normal operation.
Hi Cabinet temperature too warm Conrm doors or drawers are closed.
dOr Door is open Close door, if message does not
change, call for service.
LEA Compressor run time too long Check doors closed. If yes, call for
service.
E01, E02, E03, E04 Sensor unplugged or has failed Call for service.
Operation is simple, just keep it connected to the correct
power supply and the refrigerator will maintain the
internal temperature it has been set to. Keep the door
closed as much as possible to avoid unnecessary run time.
NOTE: Once the unit has been started and reaches proper
storage temperatures, it may be loaded with product.
For proper energy eciency and airow we recommend
a minimum 1” clearance between product and side
walls, 4” clearance between product and ceiling, and 1”
clearance from the bottom of the unit. No provision is
made in the cabinets to quickly pull a keg of beer down to
temperature. Best results are obtained when a pre-chilled
keg is used. Otherwise it can take several hours to reduce
the keg to the desired temperature.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
The temperature was set at the factory at 38ºF, but
you can adjust it to your own selected temperature. 30
seconds after adjustment, the display automatically
reverts to showing the current temperature.
The Refrigerator will automatically defrost as needed,
there is no set time for defrost. Push and immediately
release the "melting" or defrost button for a manual
defrost.
Note: Holding the defrost button in too long will shut the
controller o.
The internal fan will be on when the compressor is on and
when the doors are closed.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
If equipped with glass doors, holding the SC button in will
turn the cabinet light on or o.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 13
SEQUENCE OF OPERATIONS REFRIGERATOR
The refrigerator operates based on the air temperature measured by the probe located at the return air.
ON OFF
COMPONENT OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION
COMPRESSOR
Compressor turns
on when the air
temperature at the
probe is above the
sum of the set point
+2
The Compressor
Contact is energized
Compressor turns
o when the air
temperature at probe is
equal to or less than the
set point -2
The Compressor
Contact is de-
energized
(ERC 112 – Terminal #1) (ERC 112 – Terminal
#1)
CONDENSER FAN
The Condenser Fan
turns on when
the Compressor is
running
The Condenser Fan
is wired directly to
the Compressor, not
through the controller
The Condenser Fan
turns o when the
Compressor is not
running
The Condenser Fan
is wired directly to
the Compressor, not
through the controller
EVAPORATOR
FAN
The Evaporator Fan
runs continuously in
refrigerators. When
the unit is plugged
in, the Evaporator
Fan will run.
The Evaporator Fan is
connected directly to
incoming power, not
through the controller.
The Evaporator Fan runs
continuously. When the
unit is plugged in, The
Evaporator Fan will run.
The Evaporator Fan is
connected directly to
incoming power, not
through the controller.
LIGHT
The light will turn on
when the is
pressed (or when the
door is opened with
solid doors)
The Light Contact is
energized
The light will turn o
when the is
pressed (or when the
door is closed with solid
doors)
The Light Contact is
de-energized
(ERC 112 – Terminal
#4)
(ERC 112 – Terminal
#4)
Condition
Compressor Condenser Fan Evaporator Fan Lights
Cabinet Temp > Set point + 2 ON ON ON ON or OFF
Cabinet Temperature <= Set point - 2 OFF OFF ON ON or OFF
Defrost OFF OFF ON ON or OFF

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air14
Electronic Controller
Control Panel Display
Defrost LED Alarm LED
On xed: Defrost active On xed: ALARM Present
O: Defrost is o Flashing: ALARM Silenced
O: No Alarm
Fan LED Compressor LED
On xed: Fan active On xed: Compressor active
O: Fan O Flashing: Delay, protection or activation blocked
O: No Alarm
Keyboard Functions
UP
Quick press and release
• Increases Set Point
Long press and release
• Increases display brightness
DOWN
Quick press and release
• Decreases Set Point
Long press and release
• Decreases display brightness
DEFROST (ESC)
Quick press and release
• Activates manual defrost
Long press and release
• Controller enter stand-by mode
SET (ENTER)
Quick press and release
• Toggles lights on/o
Long press and release
• Toggles display °F/°C
NOTE: When switched on, the instrument panel performs a lamp test for a few seconds.
UP
DOWN
DEFROST (ESC)
SELECT (OK)
Note: When the controller is in a Standby Mode, a blue dot
will be displayed as shown here. To switch out of Standby
Mode, push and release the Defrost button.
.

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 15
Control Panel Connections
Changing the Set point

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air16

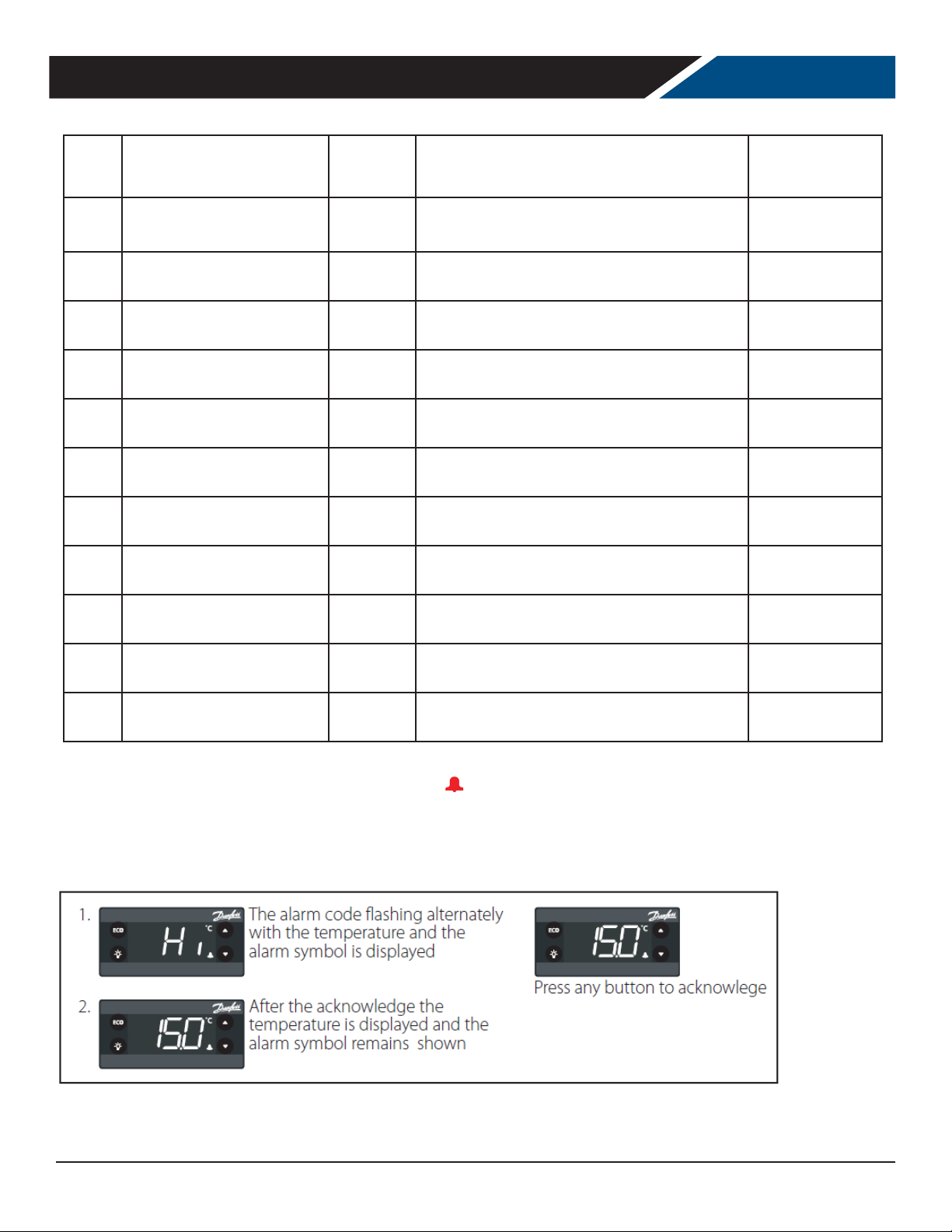

Alarm
Code
Trigger Automatic
Clearance
Outputs Comments
"Hi" Air temperature is higher than
"ALA->Hat• for "ALA->Htd" User congured Bl ink "Hi" with the highest temperature; If congured: cut in alarm relay, beep the buzzer High temperature alarm
"Lo" Air temperature is lower than
"LAt" for "Ltd'' User congured Blink "Lo" with the lowest temperatu re. If congured: cut in alarm relay, beep the buzzer Low temperature alarm
"Con" Condenser temperature is too
high or too low User congured Blink "Con". If congured: cut in alarm relay, beep the buzzer Condenser alarm
"dor" Door open for more than Always Blink "dor". If congured: cut in alarm relay, beep the
buzzer Door open alarm
"uHi" Line voltage is higher than "Cop-
>uHi" Always Blink "uHi". If congu red: cut in alarm relay, beep the buzzer High voltage alarm
"uLi" Line voltage is higher than "Cop-
>uLi" Always Blink "ulo". If congured: cut in alarm relay, beep the buzzer. Low voltage alarm
"LEA" Compressor cont inuous running
for more than "ALA->LEA" Always Blink "LEA". If congured: cut in alarm relay, beep the buzzer Leakage alarm
"E01" "S1" error Always Blink "SOl ". lf congured: cut in alarm relay, beep the
buzzer "S1" sensor failure (short or open)
"E02" "S1" error Always Blink "SO2". lf congured: cut in alarm relay, beep the
buzzer "S2" sensor failure (short or open)
"E03" "S1" error Always Blink "S03 ". lf congured: cut in alarm relay, beep
the buzzer "S3" sensor failure (short or open)
"E04" "S1" error Always Blink "SO4 ". lf congured: cut in alarm relay, beep
the buzzer "S4" sensor failure (short or open)
Electronic Controller Alarms
The alarm condition is always signaled by the alarm icon . To turn o the relative icon will continue ashing.
NOTE: If alarm exclusion times are in progress (ALA folder of the parameter table), the alarm is not signaled.
How to Acknowledge Alarms

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 17
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Quarterly cleaning
Gaskets
Daily inspection, check
that hinges are tight to
the cabinet.
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items and shelves. Store
the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100oF to 110oF) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a safe
temperature.
Condensate Drainage and Cleaning
The condensate from the evaporator and spillage from the draft arm areas are connected together to a single hose which
exits the unit in the bottom front. This combined drain must be connected to a oor drain system for proper disposal of
condensate and spillage.
Faucet Cleaning
The faucet should be cleaned weekly. Disassemble with the provided spanner wrench clean with hot water and detergent.
It is recommended to follow the dispenser system cleaning guidelines found in the Draught Quality Manual which can be
found at, https://www.brewersassociation.org/educational-publications/draught-beer-quality-manual/

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air18
CAUTION Rotating fan blade can cause
personal injury.
Unplug unit from power supply
before beginning to clean
condenser
The condenser coil is located right behind the front grille on models with end mounted condensing units, and behind the
rear grille on the DD24HC model. It should be inspected once a month and cleaned as required.
1. Remove power from the unit.
2. Vacuum clean all surfaces of the condenser.
3. Some coils will have an extreme layer of dirt, dust and grease covering the exterior. This should be removed with a
wire brush, industrial vacuum or low pressure clean water before attempting to was with coil cleaner.
4. Make sure no ns are bent or damaged in the process. If there are bent ns, carefully straighten them so that air
can ow through the coils. Failure to keep the condenser coil clean will lead to poor performance, excessive power
consumption and compressor failure and may result in loss of property. Failure to keep the condenser coil clean may
void the limited warranty.
Chemical Cleaning
1. Remove power from the unit.
2. A chemical condenser cleaning can be extremely messy so it is good practice to take the unit to a low trac area or
outside to do the cleaning whenever possible.
3. Remove cover grille.
4. Slide out condensing assembly if necessary.
5. Using the directions on the coil cleaning container, mix the cleaner and water into your sprayer.
6. Starting at the top with the tip about 6 inches away, begin spraying down the coil.
7. Spray side to side then go down to the next section of the coil. Repeat this until the coil is saturated.
8. Allow cleaner to soak into the dirty coil for a few minutes and then begin to rinse the coil.
9. Clean with a SMALL amount of water pressure. Too much pressure could cause the protective ns to fold over further
blocking air ow through the coil.
10. Repeat this process as needed.
11. Let the unit dry o for a few minutes and replace the grille cover.
CONDENSER CLEANING

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20 Beverage-Air 19
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, Baked-On
Splatter, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc. Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Burnt-On Foods and
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING STAINLESS STEEL

User Manual for DD Refrigerators Beverage-Air
Rev. 06/20Beverage-Air20
HELP
Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent
Unit not plugged in.
Fuse or circuit breaker tripped.
Power cord plug loose in outlet.
Connect to proper voltage circuit Replace
fuse or reset breaker.
Check outlet for loose connection, replace
as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high
Dirty condenser
Evaporator iced over Unit in high
temperature environment
Clean condenser Defrost evaporator
Reduce temperature of room
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp control stuck in open position Replace temp control.
No cooling - compressor hums but does not
start
Low voltage to unit.
Compressor starting system failure
Check voltage, correct as needed. Check
start relay and start capacitor. See next
step.
No cooling - compressor starts but shuts
o
Compressor start relay failure Compressor
start capacitor failure Replace relay. Replace capacitor.
No cooling - compressor cycles on and o Overheating weak overload
Clean condenser, check fan motor and
blade. Check refrigerant charge. Replace
overload.
Unit cools, but is slow to pull cabinet
temperature down Evaporator fan not turning
Check fan(s), on multiple fan units one fan
may be turning slowly and will need to be
replaced.
Unit cools but turns on and o frequently No product in cabinet. Temperature control
defective Refrigeration issue
Fill cabinet Replace control
Have system checked
Makes excessive noise
Tubing rattle Loose parts
Bent or broken fan blade Noisy fan motor
Check tubing for routing Check for loose
components Replace fan blade
Replace fan motor
