Hydraulic Systems
User Manual
For Bezares Hot Shift PTO’S
3131, 3151 and 3252 Series
3252
3151
series
3131
series
3252
series

2
Contents
SAFETY INFORMATION .........................................................................................................................................................................3
FOREWORD..................................................................................................................................................................................................4
APPLICATION QUESTIONS ...................................................................................................................................................................5
1- P.T.O 3131 / 3151 FOR WORLD TRANSMISSION SERIES ................................................................................................6
BREAK UP VIEW 3131.............................................................................................................................................................................6
BREAK UP VIEW 3151.............................................................................................................................................................................7
MOUNTING PTO TO TRANSMISSION.............................................................................................................................................8
MOUNTING INSTRUCTIONS SHIFTING KIT...............................................................................................................................10
SHIFTER COMPONENT INTALLATION SKETCH ......................................................................................................................11
PRESSURE PORT AND OPENING IDENTIFICATION...............................................................................................................12
3- P.T.O 3252 FOR WORLD TRANSMISSION SERIES............................................................................................................13
BREAK UP VIEW......................................................................................................................................................................................13
SHIFTER COMPONENT INTALLATION SKETCH ......................................................................................................................14
P.T.O. SHIFTING PROCEDURE & PRECAUTIONS....................................................................................................................15
RETURN AND WARRANTY TERMS...............................................................................................................................................16

3
Safety Information
CAUTION:
TO PREVENT POSSIBLE INJURY OR DEATH: DO NOT go underneath the vehicle with the
engine running.
DO NOT attempt to work on an installed Power Take-Off with the engine running.
DO NOT operate the controls of the Power Take-Off or other driven equipment from
underneath the vehicle with the engine running.
DO NOT operate the controls of the Power Take-Off or other driven equipment in any
position that could result in getting caught in the moving machinery.
CAUTION:
Make sure to block any moving or raised device that may injure a person working on or
under the truck. A lever or its linkage may be accidentally moved causing movement of
the device which could cause injury to a person near the device.
IMPORTANT:
Because most of our Bezares Power Take–Offs and P.T.O. drive lines are sold through
distributors, the product applications and the resulting degree of exposure to danger of
the operators are beyond the knowledge and controls of BZ U.S.A.
Therefore, the proper installation of the P.T.O. and its associated equipment, and the
decisions of whether to install guards and/or warning signs shall be the responsibility of
the designers or installers.

4
Foreword
Since it is our major objective to show you how to get additional and more profitable miles
from truck, tractor and trailer components, we want to provide you with information on
the installation of 3131, 3151 and 3252 Series.
We all realize that an inadequate transmission will overwork any Power Take–Off in a very
short period of time. In addition, a mismatched transmission/P.T.O. combination can result
in unsatisfactory performance of the equipment right from the start.
P.T.O. 3131 SERIES
(Heavy Duty)
P.T.O. 3151 SERIES
(Heavy Duty - Constant Mesh)
P.T.O. 3252 SERIES
(Heavy Duty - Low Profile)
Before you order new trucks be sure that you’re getting the right transmission/P.T.O.
combination. It is of vital importance for efficient performance to have adequate power.
To help you select the proper type, size and design of P.T.O. it is advisable to discuss your
specific requirements with a Bezares P.T.O. specialist. They know their products and Power
Take–Offs. They can inform you about everything you need to know about power, at the
right time, before you specify components.

5
Aplication Questions
Here are some of the questions that are relevant to the Proper Selections of a Transmission
mounted Power Take–Offs.
1. What is the make and model of your transmission?
2. Which P.T.O. opening will be used?
3. What accessory is to be driven?
4. How much horsepower is required to drive the accessory?
5. What is the required rotation of the P.T.O.?
6. What is the required P.T.O. output shaft speed as a percent of engine speed?
Once all of the answer to these questions have been determined, a transmission mounted
P.T.O. can be selected to meet the horsepower, speed and rotation that you require.
Having made the selection of a P.T.O., you are ready to start the installation.

6
P.T.O. 3131 For World Transmission

7
P.T.O. 3151 For World Transmission

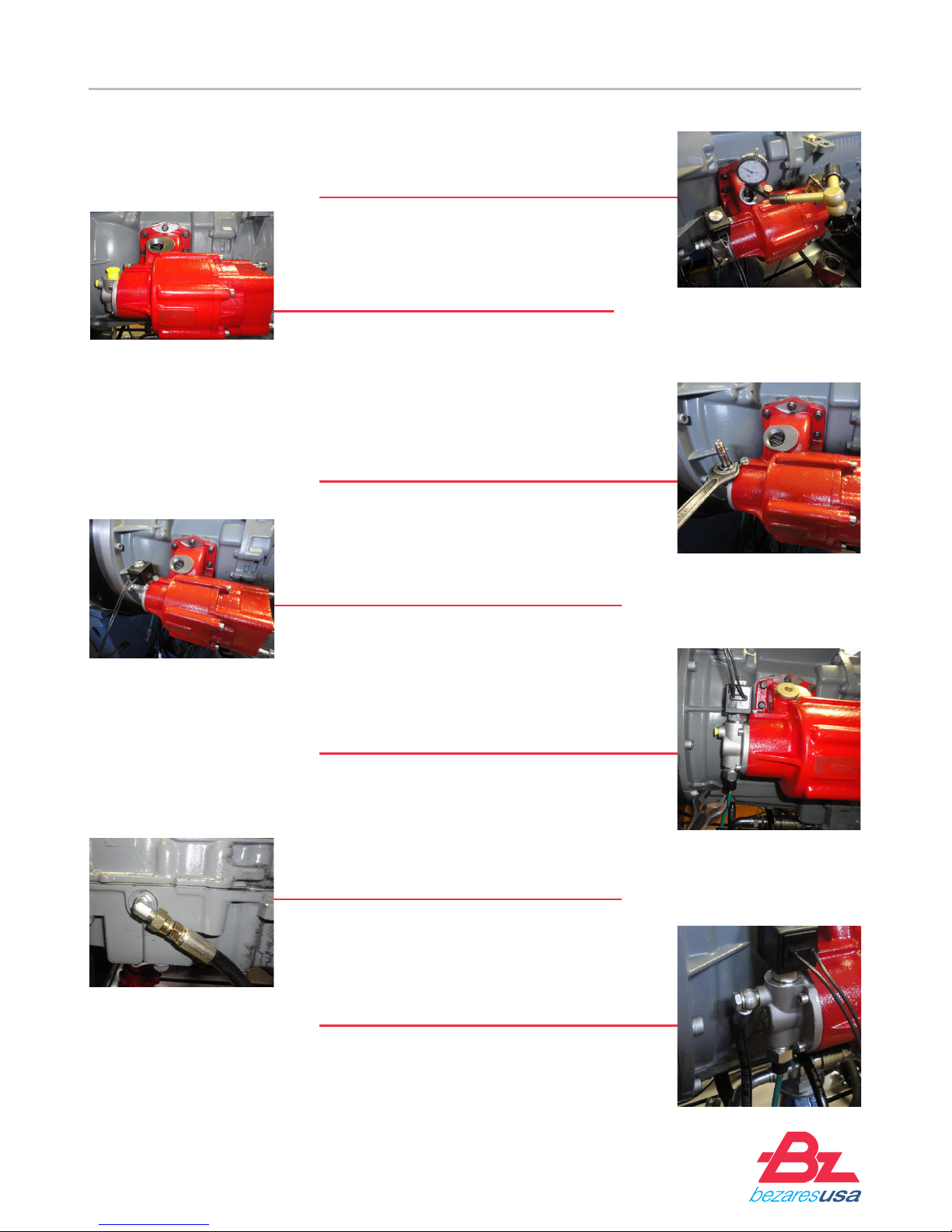

Mounting P.T.O. To Transmission
Remove the pto’s opening cover
Clean the opening surface of paste
or gaskets residues. Be careful to
avoid damages or scratches in the
opening’s surface
Place the steel gasket using grease,
if necessary, to keep it in position
The ribbed surface should face
towards the installer
Unscrew the backlash check plug
The transmission’s drive gear
and opening will be visible
Fit the guides with a screwdriver.
Use loctite to avoid unscrewing them
Fit at least with 4 bolts in each corner
before checking the backlash

Mounting P.T.O. To Transmission
Check the suitable backlash. It should
be between 0.006” and 0.015”
Install the cartridge and tightening
to 25 - 30 Lb.ft (35 - 40 Nm).
Alternativelly, for easy installation,
it can be installed on the pto before
it being placed on the transmission
Install the pressure switch.
Alternativelly, for easy installation,
it can be installed on the pto before
it being placed on the transmission
Install the other end of the the
pressure line in the pto.
Tight to 12 - 14 Lb. Ft. (18 - 20 Nm)
Screw the remaining bolts at 44 -
50 lb.ft (60-68Nm)
Place the coil. Ensure the O-rings
are in place to avoid water leaks
inside the coil
Install the fitting to transmission
according to the suitable port
specified in page 12, tight to
8 - 10 Lb. Ft. (11 - 14 Nm)

10

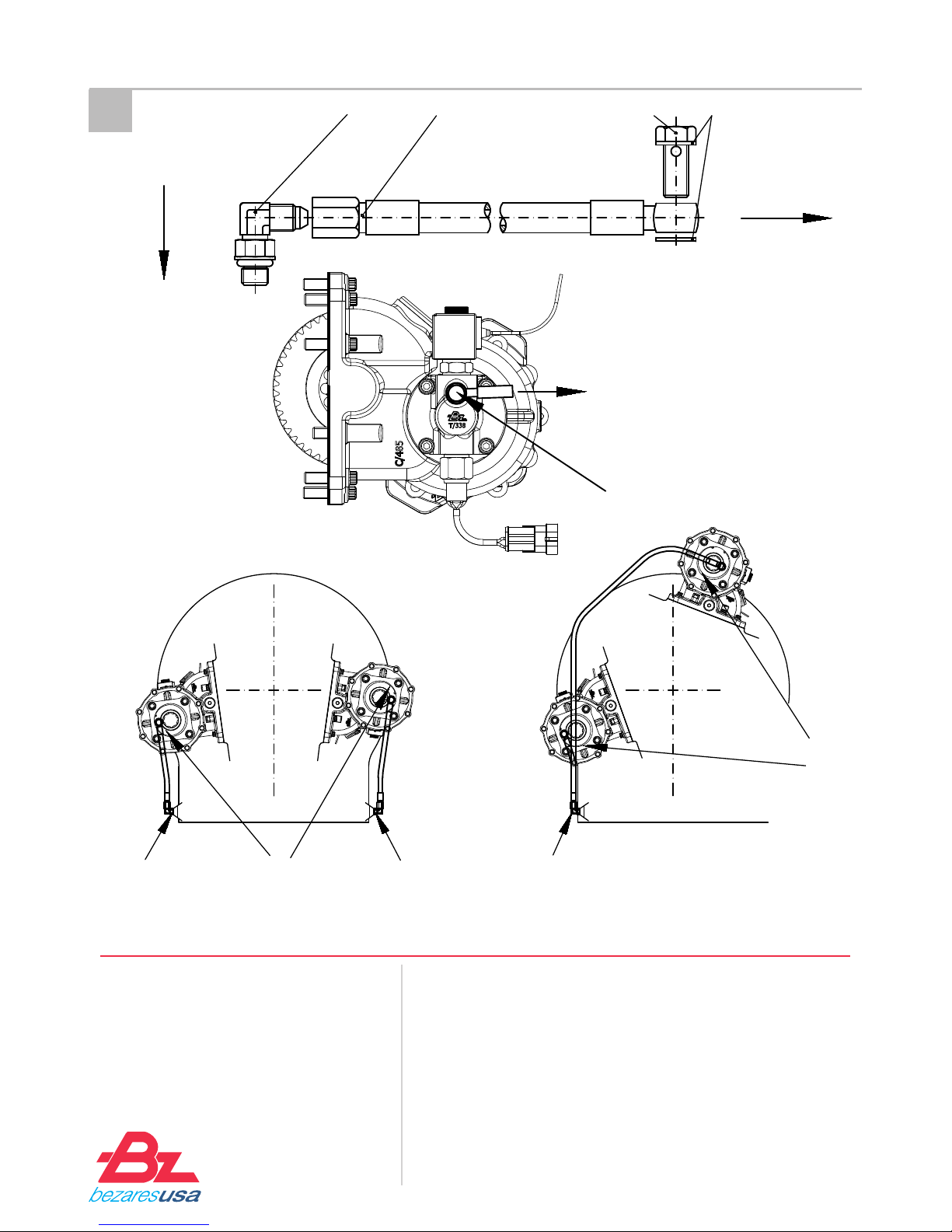

Mounting Instructions Shifting Kit
GEARBOX,
To main
pressure
port
(point A)
PTO,
point B
12 3 4
To main
pressure port
(point A)
B
B
B
A A A
SERIES MD
Rear view
SERIES HD
Rear view
1.- Remove the gearbox plug in postion (A) and fit the
fitting available in the kit (1).
2.- Remove the protection plastic plug placed on the
PTO (B).
3.- Fit the shifting pipe (900899.2) on the (A) and
(B) position by means of the hose (2) and fitting
(3) and checking for proper oil level and signs of
oil leakage, the best check is conducted with the
transmission at operating temperature.
CONTENT DESCRIPTION
1 - Fitting
2 - Hose
3 - Fitting
4 - Washer

11
Shifter Component 3131 Series Installation Sketch
Fuse holder
8/10 Amp
Electrical ground
of cap or frame.
Run wires through
grommet in rewall.
Drill 1 1/4"
Valve connection
Positive terminal of
ignition or battery
White Red Blue
Black

12

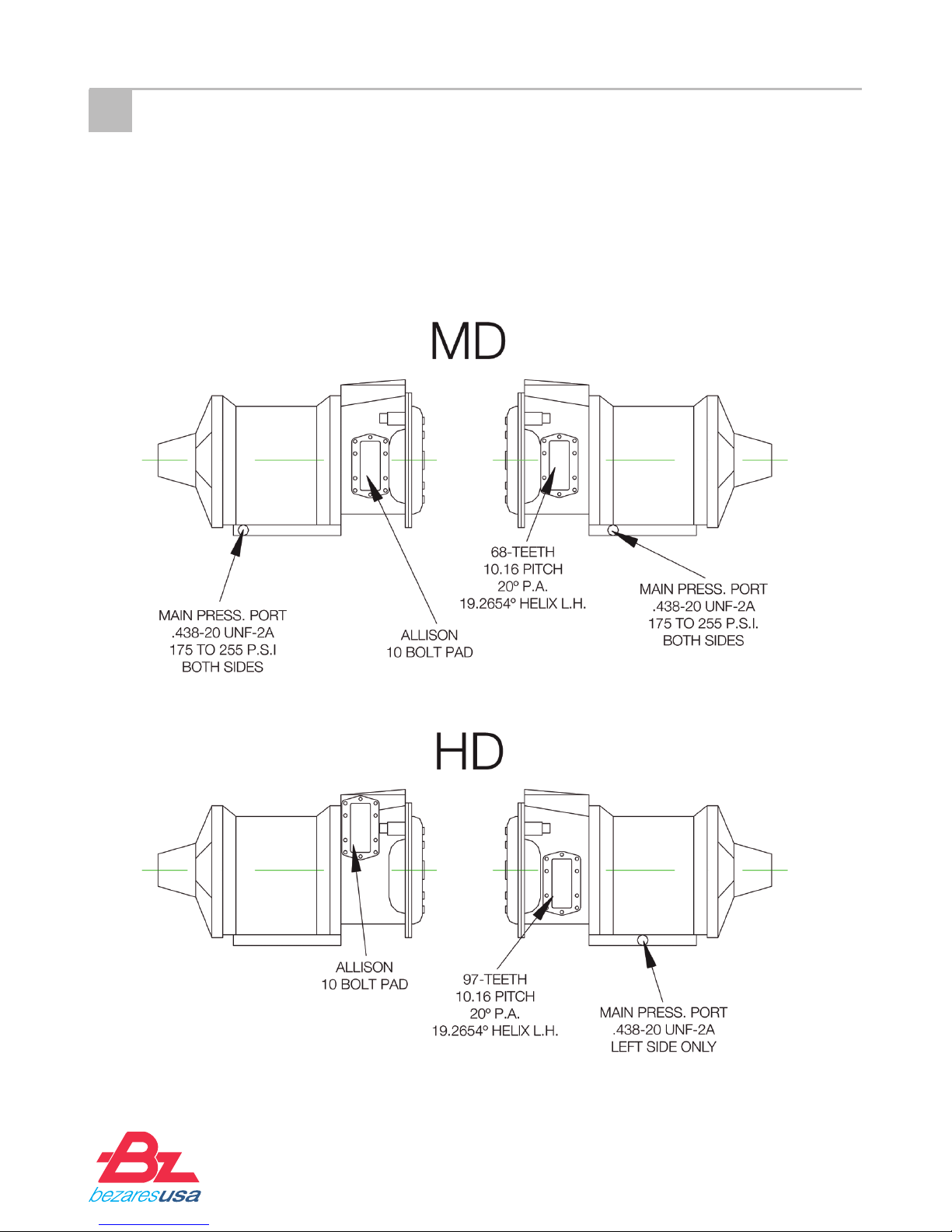

Pressure Port and Aperture Identification
THESE DRAWINGS REPRESENT LEFT AND
RIGHT VIEWS OF THE MD AND HD
PRESSURE PORT ON THE TRANSMISION.

13
P.T.O. 3252 For World Transmission

14
Shifter Component 3252 Series Installation Sketch
Fuse holder
8/10 Amp
Electrical ground
of cap or frame.
Run wires through
grommet in rewall.
Drill 1 1/4"
Valve connection
Positive terminal of
ignition or battery
White Red Blue
Black

15
P.T.O. Shifting Procedure & Precautions
CAUTION: This vehicle is equipped with a Power Take-Off. Shut engine off before working
on the Power Take-Off or getting below the vehicle.
Consult the operating instructions before using the P.T.O. (see sun visor)
POWER TAKE-OFF OPERATION- VEHICLE STATIONARY
Automatic Transmission with Power Shift P.T.O.’s
Engage the P.T.O. with the engine at idle speed.
NOTE: Power Shift P.T.O.´s: The engine must be at idle or below 1000 RPM when the P.T.O.
is engaged. See the transmission manufacturer’s instructions for special procedures.
IMPORTANT:
Failure to follow the proper shifting or operating sequences will result in premature P.T.O.
failure with possible damage to other equipment.
Warning: Cold Weather Operation of Power Shift P.T.O.´s
During extreme cold weather operation [32°F (0°C) and lower], a disengaged Power
Shift Power Take-Off can momentarily transmit high torque that will cause unexpected
output shaft rotation. This is caused by the high viscosity of the transmission oil when it is
extrememly cold. As slippage occurs between the Power Take-Off clutch plates, the oil will
rapidly heat up and the viscous drag quickly decreases.
The Power Take-Off output shaft rotation could cause unexpected movement of the
driven equipment, resulting in serious personal injury, death, or equipment damage.
To avoid personal injury or equipment damage:
- Driven equipment must have separate controls.
- Driven equipment must be left in the disengaged position when nor in operation.
- Driven equipment must nor be operated until the vehicle is allowed to warm up.

994500/09/03/18
27634 Commerce Oaks Drive
Oak Ridge North, Texas 77385
[phone]
[email protected]
Return and warranty terms
The items described in this document and other documents or descriptions provided by Bezares USA, Ltd. are hereby offered for sale
by Bezares USA, Ltd. These terms and its acceptance by any customer shall be governed by all of the following Terms and Conditions.
Customer’s order for any such items, when communicated to Bezares USA, Ltd. verbally or in writing, shall constitute acceptance of
these terms.
1. Terms and Conditions: Customer’s acceptance of any offer to
sale is limited to these terms and conditions. Customer accepts
warranty terms policy once product(s) is/are purchased. All
goods not returned under these conditions will automatically
be rejected. Bezares USA, Ltd. accepts no warranty for any
non-direct purchase or particular purpose, or the results to be
obtained for their use by its distributors, purchasers, or others.
2. Delivery: Any product to be returned or claimed to be
defective must be held for shipping instructions to Bezares
USA, Ltd. Returned merchandise must be resalable as new to
be considered for full credit (for any returns excluding claims
to be defective). All OE (original equipment) parts must be
returned, and any missing parts will be deducted from possible
credit accordingly. Bezares USA, Ltd. holds responsibility for
any product shipped from any Bezares USA, Ltd. subsidiary
until the shipment is received and signed for by the customer
(this condition does not apply if shipped according to
customer’s preferred carrier). Bezares USA, Ltd. does not hold
any responsibility for returned product(s) until a Bezares USA,
Ltd. employee receives and signs for shipment (Bezares USA,
Ltd. holds no responsibility for any shipping inconveniences
such as lost or damage in transit).
3. Warranty: Bezares USA, Ltd. warranties its manufactured
product to be free of defects in materials and workmanship
for a period of eighteen months on PTOs, and fifteen months
on hydraulic pumps and any other hydraulic equipment
from its date of invoice. If requested by Bezares USA, Ltd.,
products or parts for which a warranty claim is made are to
be returned via transportation prepaid to Bezares USA, Ltd.
Any installation or use not in accordance with catalogue or
package instructions, other improper use, operation beyond
capacity, substitution of parts not approved by Bezares USA,
Ltd., use with equipment other than the equipment on which
the product is first installed, any alteration, disassembly, or
repair made to the product other than by Bezares USA, Ltd.
shall void this warranty. No Bezares USA, Ltd. representative is
authorized to change this warranty in any way.
• Stock Returns: A 1:1 offsetting order will be required if the
return value exceeds 2.5% of customer last year’s purchase.
Annual stock adjustments are limited to 5% of previous
year’s purchases. A 15% restocking fee will apply for all
returns within the first year of original purchase, a 30%
restocking fee will apply for all returns within the second
year from original purchase, and a 50% restocking fee will
apply for all returns after third year of purchase. No returns
will be accepted after three years from original purchase.
Returning merchandise must be listed in Bezares USA, Ltd.’s
current price sheet, and must be returned within one year
of becoming obsolete.
• Technical Warranties: Bezares USA, Ltd. will not be
responsible in case of wrong assembly of their units by
another party, in the case of damage generated by external
causes, in the case of overload, inadequate lubrication,
or other problems related with a wrong assembly on
a transmission from preowned trucks. Customer or its
respective salesmen must complete a Customer RMA Form
and submit it to Bezares USA, Ltd‘s Warranty Department in
order to be considered for warranty investigation.
4. Limitation of Remedy: Bezares USA, Ltd. agrees to repair,
credit (all merchandise credits will be on account, and must be
used within a 12 month period from date of issue, otherwise
credit will be forfeited – no cash refunds are permitted), or
replace the product which has been proven to be defective in
material or workmanship within the time period listed above.
Bezares USA, Ltd. must be informed prior to any product
repair that will be made at any location other than Bezares
USA, Ltd. Bezares USA, Ltd. will only authorize a company to
proceed with the repair after receiving and approving a repair
quotation, or will inform the insurance company to cover the
responsibility, otherwise, Bezares USA, Ltd. will decline any
responsibility for any cost involved in such repair. Bezares
USA, Ltd.‘s obligation under this warranty shall not include
any transportation charges or costs of installation or any
liability for direct, indirect, special, incidental, or consequential
damages or delay.
5. Special Orders: Orders for all non-stock items in Bezares USA,
Ltd. that must be shipped direct from factory, regardless of
value of order, will be under prepaid and add terms. This
includes all Air/Ocean freight charges and customs and duty.
Special order returns/cancellations are subject to a 75% restock
fee. Freight charges on Special Orders are Nonrefundable.
6. Force Majeure: Bezares USA, Ltd. shall not be liable for
failure to perform, nor be deemed to be in default under this
agreement for any delay or failure in performance resulting
from causes beyond its reasonable control including but not
limited to failure of performance by the other party, acts of
state or governmental authorities, acts of terrorism, natural
catastrophe, storm, flood, earthquake, riot, insurrection, civil
disturbance, sabotage, embargo, blockade, acts of war, or
power failure. In the event of such delay, the date of delivery
or time of completion will be extended by a period of time
reasonably necessary to overcome the effect of any such delay.
7. Governing Law: It is the intention of the Parties to this
Agreement that this Agreement and the performance
under this Agreement, and all suits and special proceedings
under this Agreement, be construed in accordance with and
governed, to the exclusion of the law of any other forum, by
the laws of the United states of America without regard to
the jurisdiction in which any action or special proceeding may
be instituted.
8. Indemnification: The customer agrees to indemnify and
hold harmless Bezares USA, Ltd, and its respective affiliates,
officers, agents, employees, and permitted successors and
assigns against any and all claims, losses, damages, liabilities,
penalties, punitive damages, expenses, reasonable legal fees
and costs of any kind or amount whatsoever, which result
from or arise out of any act or omission of Bezares USA,
Ltd, its respective affiliates, officers, agents, employees, and
permitted successors and assigns that occurs in connection
with this Agreement. This indemnification will survive the
termination of this Agreement: In witness whereof the parties
have executed this agreement on the date set forth first
above with full knowledge of its content and significance and
intending to the legally bound by the terms hereof.
