BFC Lira Owner's manual

• INSTRUCTIONS FOR PROGRAMMING LIRA CONTROL UNIT
WITH DISPLAY
USER

PROGRAMMING COFFEE QUANTITIES AND CLOCK

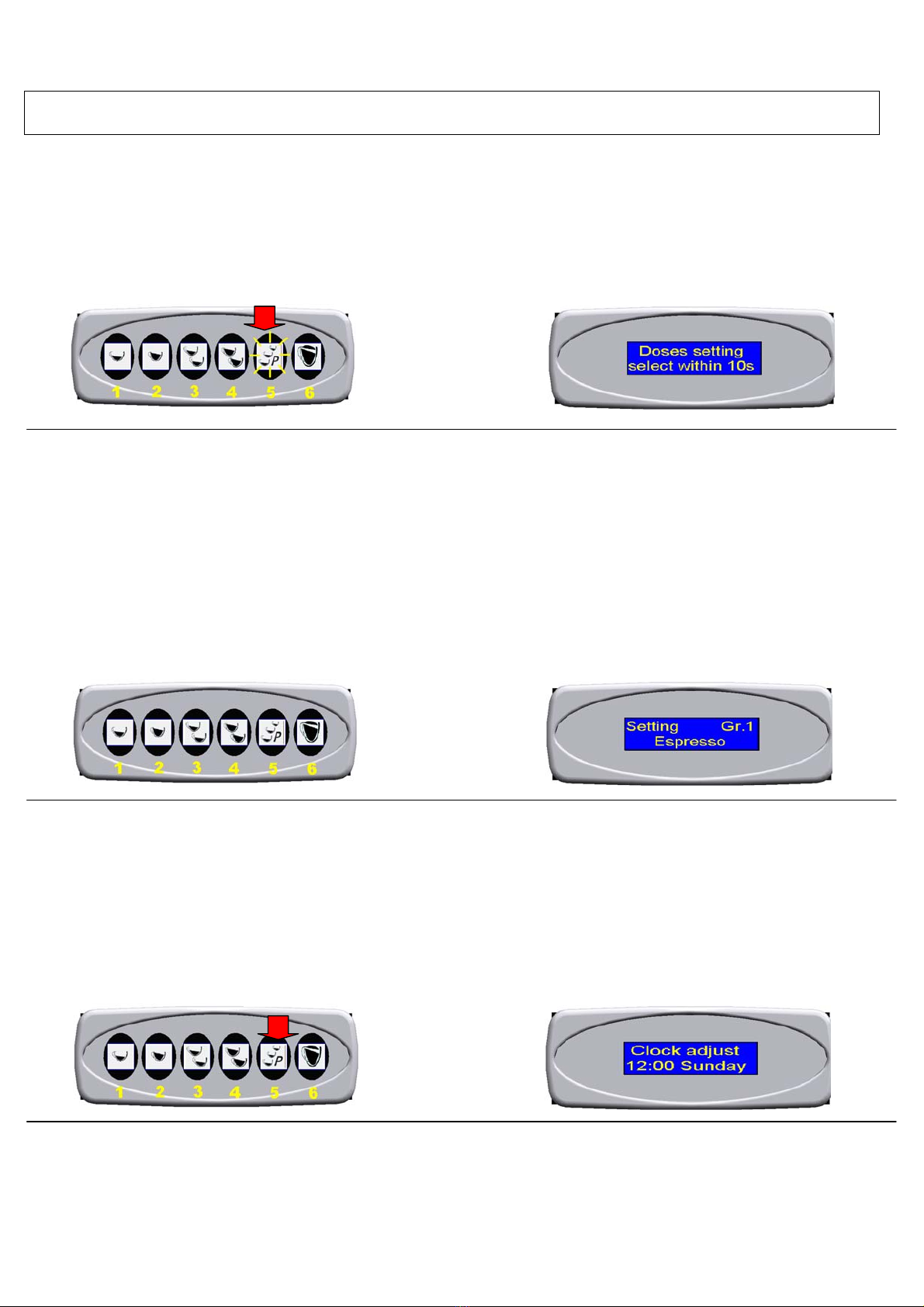

1. TO PROGRAM THE QUANTITY OF COFFEE PRESS BUTTON 5 “P” FOR
LONGER THAN 5 SECONDS. BUTTON 5 STARTS FLASHING. AT THE SAME
TIME BUTTONS 1 – 2 – 3 – 4 – 6 GO OFF. THE DISPLAY SHOWS:
2. START PROGRAMMING COFFEE QUANTITY STARTING FROM BUTTON 1 .
PRESS THE BUTTON TO START DISPENSING COFFEE. PRESS THE BUTTON
AGAIN TO STOP DISPENSING WHEN THE DESIRED QUANTITY HAS BEEN
DISPENSED.
NB: WILE COFFEE IS BEING DISPENSED THE SELECTED BUTTON REMAINS ON.
REPEAT THE SAME PROCEDURE WITH BUTTONS 2 - 3 - 4 - 5
3. TO SET THE CLOCK PRESS BUTTON 5 “P” FOR LONGER THAN 10 SECONDS
UNTIL THE DISPLAY SHOWS THE MESSAGE BELOW. PRESS BUTTONS 1 AND
2 TO SET THE TIME. PRESS BUTTON 3 TO SET THE MINUTES, DAY OF THE
WEEK AND SELF- START, IF AVAILABLE (SELF-START IS AN OPTIONAL
FEATURE).
Pag.1
5sec.
10 sec.

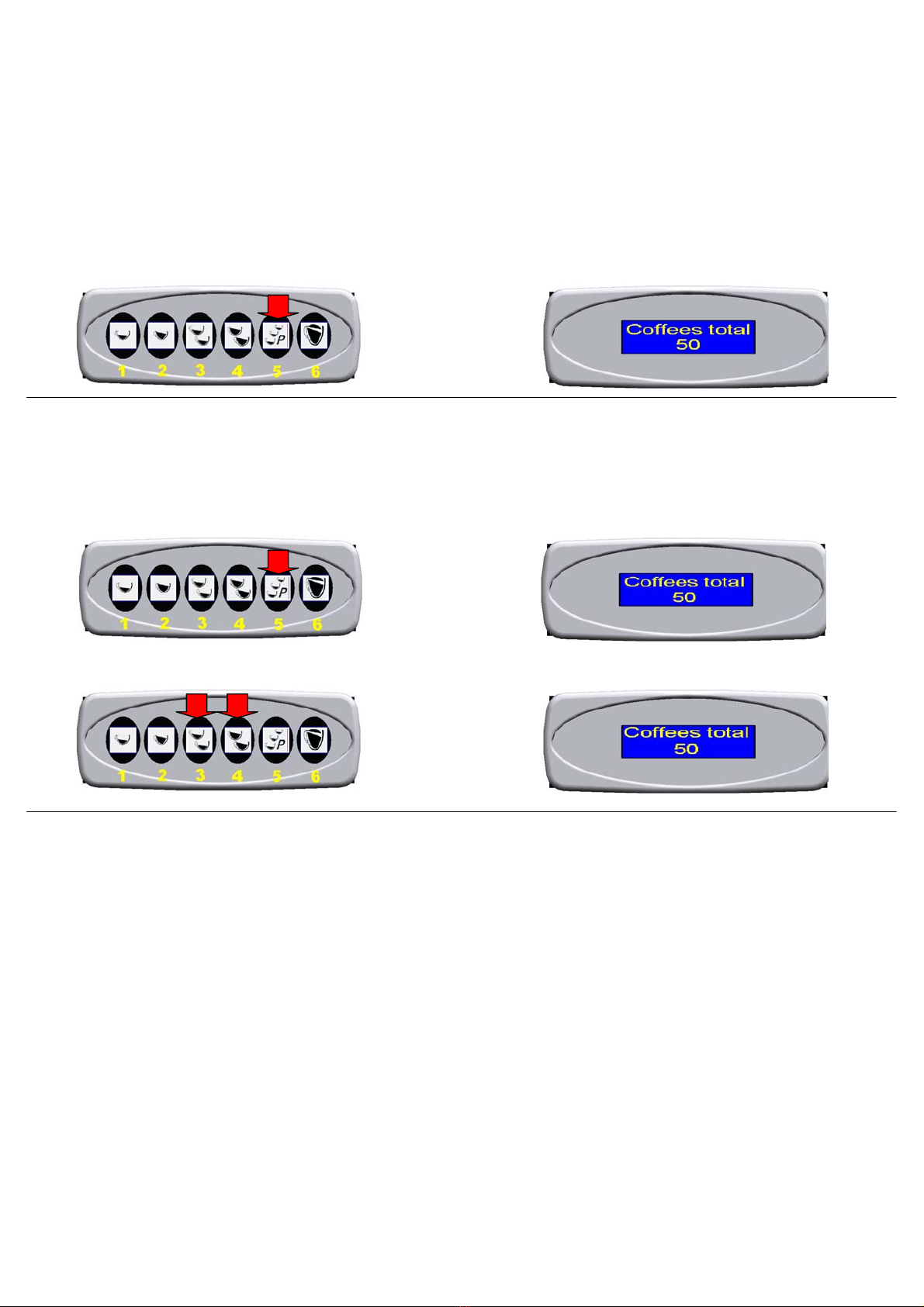

4. TO SEE THE TOTAL NUMBER OF COFFEE QUANTITIES DISPENSED PRESS
BUTTON 5 “P” FOR LONGER THAN 10 SECONDS, THEN PRESS THE SAME
BUTTON REPEATEDLY UNTIL THE DISPLAY SHOWS THE MESSAGE BELOW.
PRESS THE BUTTON AGAIN TO SEE HOW MANY COFFEE QUANTITIES HAVE
BEEN DISPENSED BY EACH GROUP.
5. TO RESET THE PARTIAL COFFEE COUNTER PRESS BUTTON 5 “P“ UNTIL THE
MESSAGE BELOW IS DISPLAYED. KEEP BUTTON 3 AND 4 PRESSED AT THE
SAME TIME FOR 5 SECONDS.
Pag.2
10 sec.

KEYBOARD BRIGHTNESS ADJUSTMENT
TO SET THE FOLLOWING FUNCTION PRESS THE BUTTONS BELOW AFTER
TURNING ON THE MACHINE:
• BUTTON 1+ 5 = MAXIMUM BRIGHTNESS
• BUTTON 2+ 5 = MEDIUM BRIGHTNESS
• BUTTON 3+ 5 = MINIMUM BRIGHTNESS
• BUTTON 4+ 5 = BRIGHTNESS OFF
INSTRUCTIONS FOR WASHING THE GROUP
WHILE THE MACHINE IS ON KEEP BUTTON 5 ”P” PRESSED, THEN PRESS BUTTON
1. DURING THE ENTIRE WASHING CYCLE THE LEDS OF BUTTONS 5 “P” AND 1
FLASH, AND THE DISPLAY SHOWS THE “CLEANING GR” MESSAGE.
Pag.3

• INSTRUCTIONS FOR PROGRAMMING LIRA CONTROL UNIT
WITH DISPLAY
TECHNICIAN

DISPLAY CONTRAST
AND BRIGHTNESS ADJUSTMENT
AFTER YOU HAVE REPLACED THE CONTROL UNIT ADJUST DISPLAY
CONTRAST AS FOLLOWS:

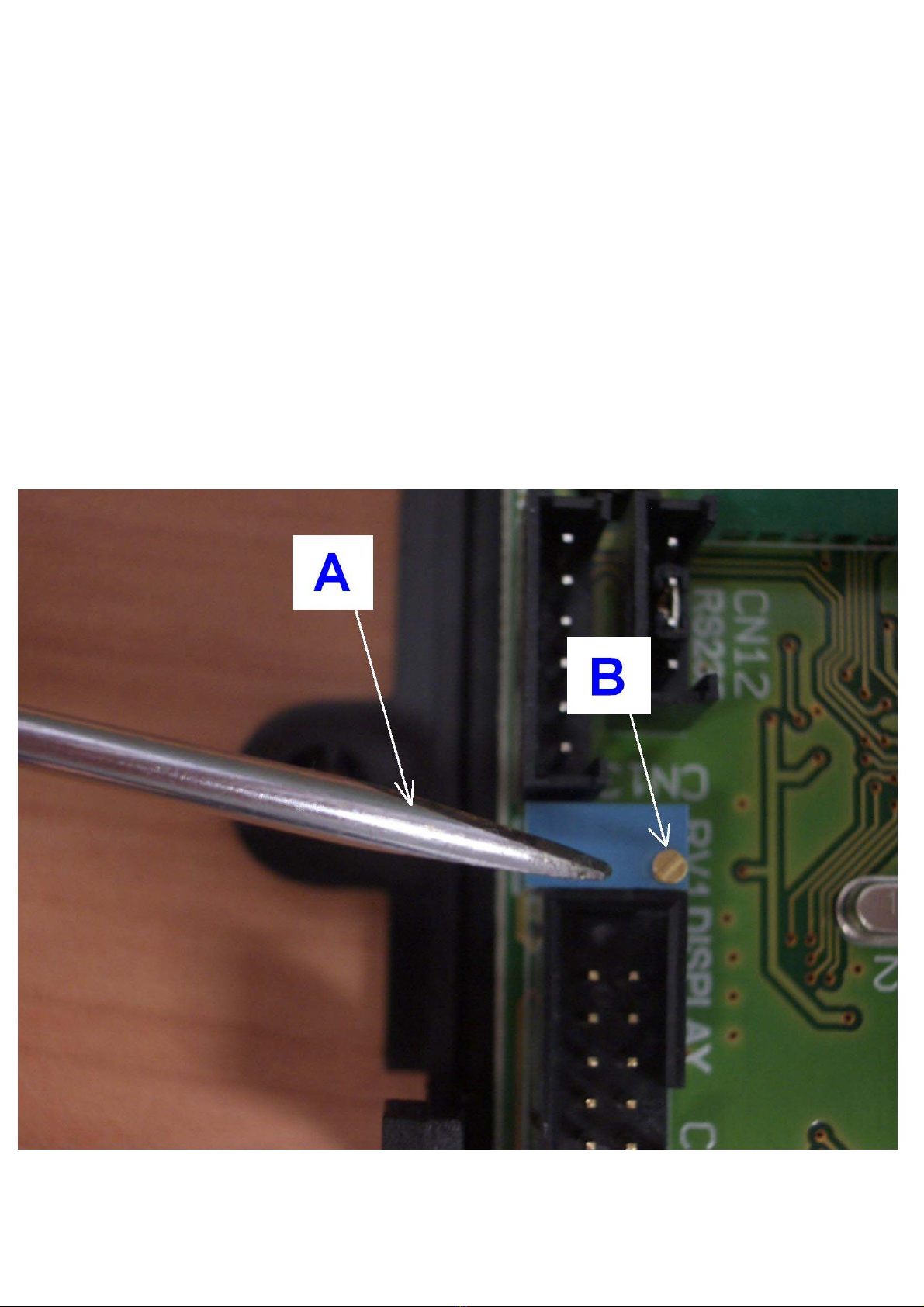

1. REMOVE THE COVER OF THE CONTROL UNIT.
2. USING A SLOTTED SCREWDRIVER (A) ROTATE THE SCREW (B)
AS SHOWN TO ADJUST DISPLAY CONTRAST.

TECHNICIAN LEVEL PROGRAMMING
1. TO SET THE MACHINE IN “OFF FUNCTION” KEEP BUTTON 5 “P” PRESSED
WHILE PRESSING BUTTON 3. THE DISPLAY SHOWS THE MESSAGE BELOW.
2. WHEN IN “OFF” FUNCTION PRESS BUTTON “P” FOR 10 SECONDS UNTIL THE
DISPLAY SHOWS “ Language“. PRESS BUTTONS 1 ( NEXT ) AND 2 ( PREV.)
TO SELECT THE DESIRED LANGUAGE.
3. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Name “ . PRESS BUTTONS 1 ( NEXT ) AND 2 ( BACK ) TO
SELECT THE LETTERS. PRESS BUTTON 3 TO CONFIRM.
4. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Service Phone “ . PRESS BUTTONS 1 ( NEXT ) AND 2 (
BACK ) TO SELECT THE DIGITS . PRESS BUTTON 3 TO CONFIRM .
Pag.1
10 sec.

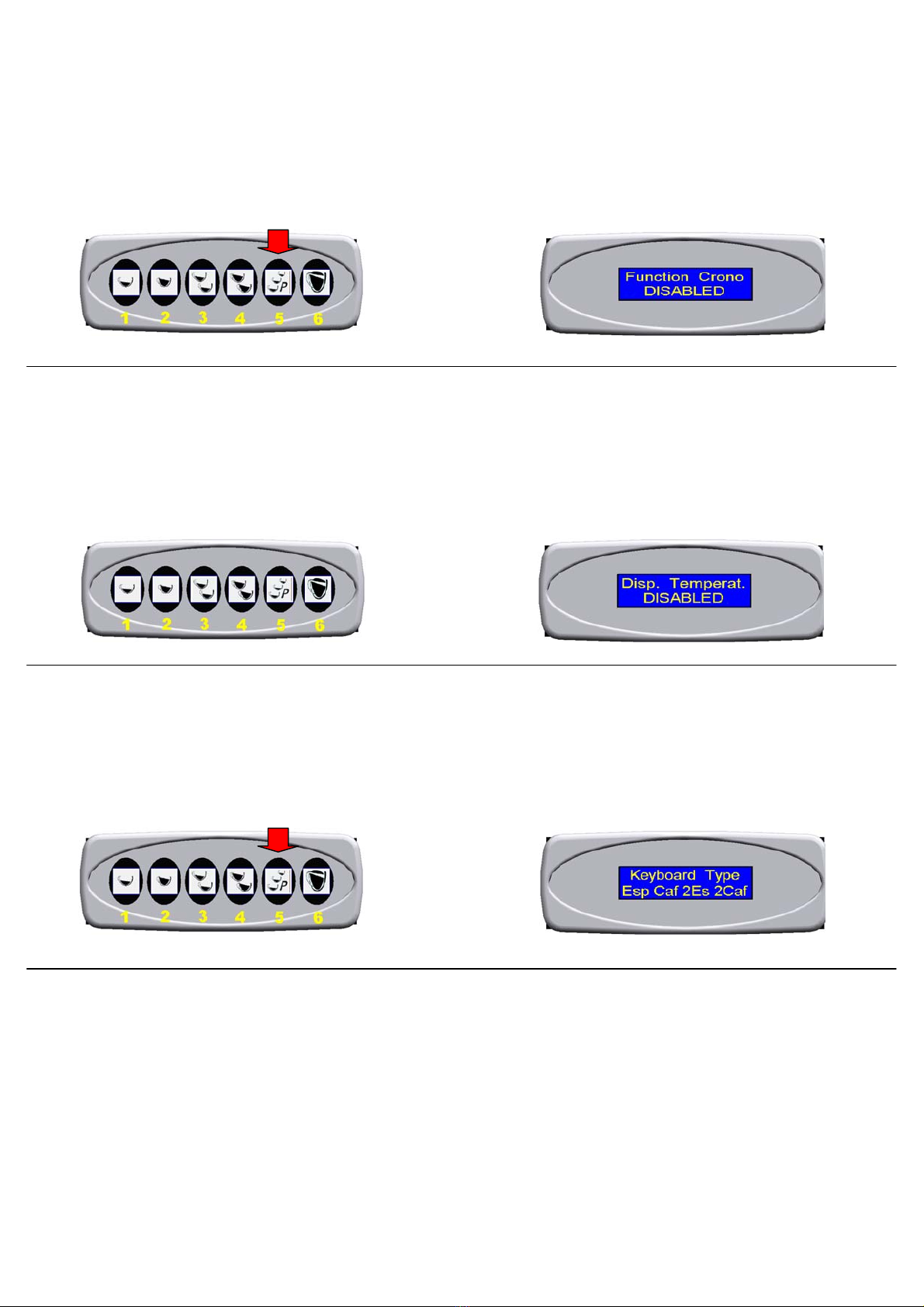

5. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Function Crono “ ( COFFEE DISPENSING DURATION IN
SECONDS) . PRESS BUTTON 1 ( ENABLED ) TO ENABLE OR BUTTON 2 (
DISABLED ) TO DISABLE. PRESS BUTTON 5 “P“ TO CONFIRM.
6. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Disp. Temperat. “
NB: THIS FUNCTION IS NOT ENABLED BECAUSE THERE IS NO TEMPERATURE
GAUGE INSIDE THE TANK. PRESS BUTTON 1 ( ENABLED ) TO ENABLE OR
BUTTON 2 ( DISABLED ) TO DISABLE. PRESS BUTTON 5 “P“ TO CONFIRM.
7. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Keyboard Type “ . PRESS BUTTONS 1 AND 2 TO SWITCH
FROM “ Esp Caf 2Es 2Caf “ TO “ Esp 2Es Caf 2Caf “. PRESS BUTTON 5 “P“ TO
CONFIRM.
Pag.2

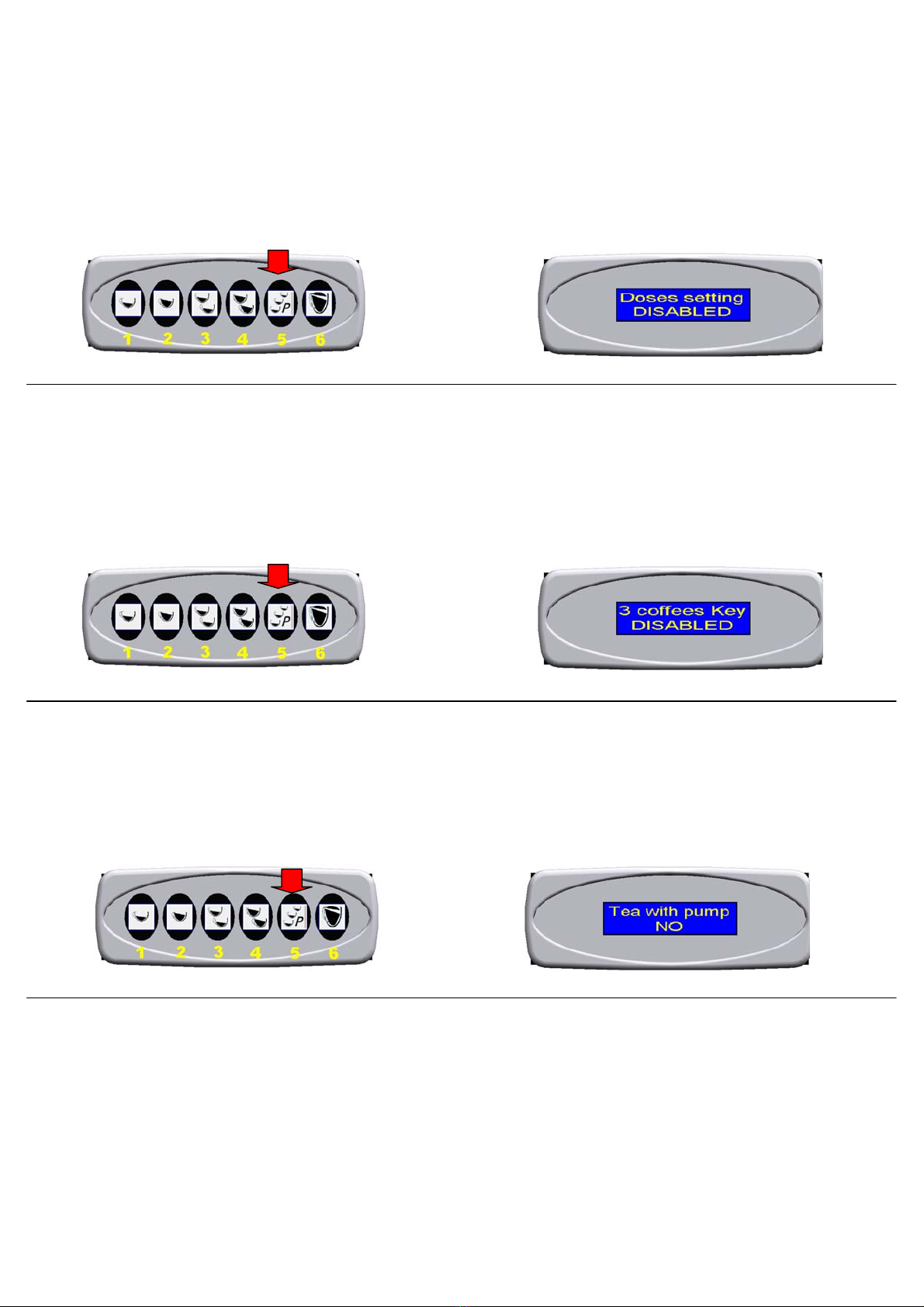

8. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Doses setting “ . PRESS BUTTON 1 ( ENABLED ) TO
ENABLE OR BUTTON 2 ( DISABLED ) TO DISABLE. PRESS BUTTON 5 “P“ TO
CONFIRM.
9. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ 3 Coffees Key “ . PRESS BUTTON 1 ( ENABLED ) TO
ENABLE OR BUTTON 2 ( DISABLED ) TO DISABLE. PRESS BUTTON 5 “P“ TO
CONFIRM.
10. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Tea with pump “ . THIS FUNCTION STARTS THE PUMP
WHEN THE TEA BUTTON IS PRESSED. PRESS BUTTON 1 ( YES ) TO ENABLE
OR BUTTON 2 ( NO) TO DISABLE. PRESS BUTTON 5 “P“ TO CONFIRM.
Pag.3

11. THE DISPLAY SHOWS “ Steam boiler Gr “ . THIS IS AN OPTIONAL FUNCTION.
THIS FUNCTION ENABLES THE DESIRED CONTROL PANEL, WHICH
CONTROLS THE STEAM UNIT. PRESS BUTTON 1 ( NEXT 0-1-2-3 ) OR BUTTON
2 ( BACK 3-2-1-0 ) . PRESS BUTTON 5 “P“ TO CONFIRM.
12. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Pre-brewing “ . PRESS BUTTON 1 ( ENABLED ) TO
ENABLE OR BUTTON 2 ( DISABLED ) TO DISABLE. IF THE PRE-BREW
FUNCTION IS ENABLED YOU NEED TO SET ITS DURATION FOR EACH
COFFEE QUANTITY. PRESS BUTTON 1 (TO INCREASE DURATION) OR
BUTTON 2 ( TO DECREASE DURATION) . PRESS BUTTON 5 “P“ TO CONFIRM.
13. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Probe sensitivity “. THIS FUNCTION ADJUSTS THE
SENSITIVITY OF THE LEVEL GAUGE. 3 DIFFERENT SETTINGS ARE
AVAILABLE: LOW SENSITIVITY (SOFTENED WATER) - MEDIUM SENSITIVITY (
STANDARD WATER) – HIGH SENSITIVITY (MOUNTAIN WATER). PRESS
BUTTON 1 ( TO SWITCH FROM LOW TO MEDIUM TO HIGH SENSITIVITY) OR
BUTTON 2 (TO SWITCH FROM HIGH TO MEDIUM TO LOW SENSITIVITY) .
PRESS BUTTON 5 “P“ TO CONFIRM.
Pag.4

14. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Service Cycles “. THIS FUNCTION SHOWS HOW MUCH
COFFEE CAN BE DISPENSED BEFORE THE “MAINTENANCE” MESSAGE
APPEARS WITHOUT STOPPING THE MACHINE. PRESS BUTTON 1 ( NEXT )
OR BUTTON 2 ( BACK ) TO SELECT THE DIGITS. PRESS BUTTON 3 TO
CONFIRM .
15. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Filling Up T-out “. THIS FUNCTION INDICATES THE
MAXIMUM TIME ALLOWED FOR FILLING THE WATER TANK UP TO THE
DESIRED LEVEL. PRESS BUTTON 1 ( NEXT ) OR BUTTON 2 ( BACK ) TO
SELECT THE DIGITS. PRESS BUTTON 3 TO CONFIRM .
16. PRESS BUTTON 5 “P” AGAIN TO MOVE ON TO THE NEXT SETUP. THE
DISPLAY SHOWS “ Water Filter “. IF AN INLET VOLUMETRIC COUNTER IS
FITTED, THIS FUNCTION TELLS AFTER HOW MANY LITRES OF WATER THE
FILTER (IF FITTED) HAS TO BE REPLACED. PRESS BUTTON 1 ( NEXT ) OR
BUTTON 2 ( BACK ) TO SELECT THE DIGITS. PRESS BUTTON 3 TO CONFIRM.
Pag.5
