BigDog PR-S1PI User manual

1
PR-S1PI
SMART
OUTLET
1

INTELLIGENT
POWER
PR-S1PI
Big Dog Power provides controlled AC
power to your equipment. 1 controlled
outlet provides up to 15 amp current.
Wi-Fi connection allows for flexibility
with placement and network
connectivity. The built in Self-Healing
functions of the PR-S1PI will keep your
network connected equipment going by
automatically rebooting and maintaining
the equipment.
Specifications:
OPERATING TEMPERATURE: 32˚F - 77˚F (0˚C - 25˚C)
SURGE PROTECTION: N/A
INTERNAL ANTENNA: Yes
OUTLETS (TOTAL): 1 outlet
SWITCHED OUTLETS: 1
CORD LENGTH: N/A
SAFETY CERTIFICATIONS:
UL 498A+UL 244A+UL498A
FCC Part15B+ICES-003
WARRANTY: 3 Year Limited
SMART
OUTLET
MetraAV
BigDogPower.com
APP: MAVbase.com
386-255-0234
1
POWER METERING MAVBASE APP
MANAGEMENT
SELF HEALING
AUTO REBOOT
WIRELESS
CONNECTIVITY
SET MULTIPLE
SCHEDULES
OFFSET OUTLET FOR
LARGE POWER SUPPLY
FULL CONTROL
OF OUTLET
360° ROTATING BODY
FOR EXTRA SPACE
2
Features
• Single controlled outlets
• Wall Tap / Plug design
• 360° continuous rotation
• Self-Healing functions for network
connected equipment
• Web and Mobile app for remote
 managementandnotication
• IP automation integration
• 120V/15A Rating
Introduction
Thank you for purchasing the PR-S1PI.Your
new Power Distribution Unit (PDU) by Big
Dog Power provides controlled AC power to
your equipment. 1 controlled outlet provides
up to 15 amp current. Wi-Fi connection
allowsforexibilitywithplacementand
network connectivity. The built in Self-
Healing functions of the PR-S1PI will keep
your network connected equipment going
by automatically rebooting and maintaining
the equipment. The PR-S1PI is designed to
be used in an ITE Computer room or within
an equipment rack.

3
FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING
FROM ANY PRODUCT FAILURE, ANY
BREACH OF WARRANTY OR CONDITION,
OR UNDER ANY OTHER LEGAL THEORY,
INCLUDING BUT NOT LIMITED TO LOSS OF
USE; LOSS OF REVENUE; LOSS OF ACTUAL
OR ANTICIPATED PROFITS (INCLUDING
LOSS OF PROFITS ON CONTRACTS);
LOSS OF THE USE OF MONEY; LOSS OF
ANTICIPATED SAVINGS; LOSS OF BUSINESS;
LOSS OF OPPORTUNITY; LOSS OF
GOODWILL; LOSS OF REPUTATION;
LOSS OF, DAMAGE TO, COMPROMISE OR
CORRUPTION OF DATA; OR ANY INDIRECT
OR CONSEQUENTIAL LOSS OR DAMAGE
Valid in the United States and Canada
THIS WARRANTY DEFINES ETHEREAL
HOME THEATRE. LLC’S LIABILITY FOR ANY
AND ALL DAMAGES RESULTING FROM
THE OPERATION OR FAILURE OF THE
PRODUCT. THE WARRANTY PROVIDED
IS IN LIEU OF ANY AND ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. TO
THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, METRA DISCLAIMS ANY
AND ALL OTHER WARRANTIES WHETHER
EXPRESS OR IMPLIED. TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW,
ETHEREAL HOME THEATRE. LLC HEREBY
DISCLAIMS ANY AND ALL LIABILITY
Big Dog Power™
by Metra Home Theatre, LLC Limited Product Warranty
and Connected Equipment Limited Warranty

4
HOWSOEVER CAUSED INCLUDING THE
REPLACEMENT OF EQUIPMENT AND
PROPERTY, ANY COSTS OF RECOVERING,
PROGRAMMING, OR REPRODUCING ANY
PROGRAM OR DATA STORED IN OR USED
WITH THE PRODUCT. FURTHER, TO THE
MAXIMUM EXTENT ALLOWED BY
APPLICABLE LAW, Ethereal Home Theatre,
LLC HEREBY EXPLICITLY DISCLAIMS ANY
WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
THESE LIMITATIONS SHALL NOT APPLY
TO ANY DEATH OR PERSONAL INJURY
CLAIMS, OR ANY LIABILITY FOR
INTENTIONAL ACTS OR ACTS OF GROSS
NEGLIGENCE
Limited Product Warranty:
Ethereal Home Theatre, LLC warrants this
product to be free of material defects for
a period of: (1) 5 years for the PR-R13PI,
PR-V7PI and PR-W3PI products, (2) 3 years
for the PR-S1PI product, (3) PR-RMS1 and
PR-RMS2, replaceable surge modules carry a
90 Day warranty from manufacturing defects
and (4) 3 years for any other product subject
to this Warranty (referred to as the applicable
“warranty period”). If the product fails during
the warranty period, Ethereal Home Theatre,
LLC will, at its option: (1) Repair the product
in a reasonable time period, (2) Replace the
product with the same model (or a successor
model with the same or substantially similar
features), or (3) Refund the purchase price.
This Warranty applies only to an original
purchaser of the product who provides proof
of purchase at the time a claim is made.

5
Conditions and Limitations:
Proof of purchase is required.
Damage caused by accidents, abuse, misuse
ormodicationofthesurgesuppressorwill
render this warranty null and void.
Transient Voltage Surge Suppression devices
usingMOV(MetalOxideVaristor)technology
aredesignedtosacricethemselvesto
protect the connected equipment. The proper
functioning of this surge suppressor during a
catastrophic surge event like lightning may
result in the depletion of the unit’s protection
capabilities. This is not a defect in design,
material, or workmanship.
Excluded Items:
This warranty does not apply to: (1)
consumable items, such as a replaceable surge
protection module, (2) cosmetic damage such
as scratches, dents, broken plastic parts, and
discoloration (unless same is the result of a
defect in materials or
workmanship), (3) damage resulting from the
failure of another product, (4) damage caused
by misuse or abuse, or (5) damage caused by
unauthorized service of the product.

6 6
Connected Equipment Limited Warranty:
This is a limited warranty, subject to the conditions,
limitationsandexclusionsidentiedherein.
Ethereal Home Theatre, LLC warrants to the original
purchaser of this surge suppressor that it will at its
option, pay the fair market value of, repair, or replace,
any home entertainment equipment which is damaged
by a transient surge while properly connected through
the Ethereal Home Theatre, LLC surge suppressor to
a properly wired and grounded AC power line. The
Ethereal Home Theatre, LLC surge suppressor must
have been designed for the particular application.
For additional warranty information including
Connected Equipment coverage and process visit us at
metraav.com
PR-S1PI

7

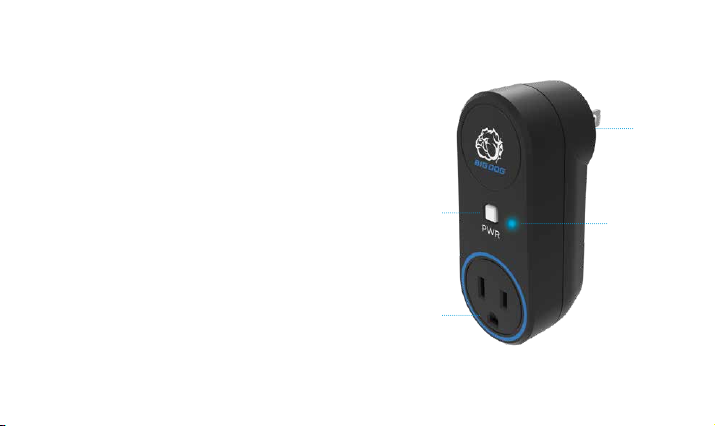

Anatomy
A. Power Button
See LED Indicators for LED status
B. Controlled 15-amp outlet
C. 360° Continuous rotation plug
D. Outlet Status LEDs
See LED functions for more information
A
B
D
C

8
LED Indicators
Power
Button
ON: Wi-Fi connected and communicating
OFF: PDU unplugged
FAST BLINKING: AP Setup Mode
SLOW BLINKING: Wi-Fi Pairing Mode
Outlet
Status
ON: Outlet is On
OFF: Outlet is Off
Installation
Wall Tap / Plug
1. Plug the PDU into an open outlet
2. Rotate PDU to desired position
3. Plug in device that is to be powered

9
Connections and Use
Physical Connections
1. Plug in device that is to be powered to PDU outlet.
Wi-Fi Setup
If using the Wi-Fi connection, follow these
instructions
1. Wait approximately 15-30 seconds, the power button will
begin to flash
2. Scan for Wi-Fi on your Wi-Fi enabled device with a
web browser
3. Connect to the Wi-Fi SSID of the PDU
The SSID of the PDU will be “Metra-xxxxxxxxxxxx” where
the “x” are the MAC address or device ID of the PDU. Verify
the code of the SSID matches the MAC address of the PDU
with the sticker that is attached to the bottom of the PDU
4. In a web browser go to “192.168.4.1”
5. Go to “Network”
6. Click “SCAN NETWORKS”
The network mode can also be changed before scanning.
For ease of setup we’ll use the default DHCP settings.
7. Select the desired network SSID
NOTE: the PDU requires a 2.4Ghz Wi-Fi connection.
8. If required enter the password for the Wi-Fi connection
9. Click “Save”
The PDU will now connect and reboot. After it has rebooted
it will attempt to connect to the Wi-Fi signal.
10. Once the PDU has been connected to the network and
has access to the web, proceed to the next steps

Cloud setup
1. Log in to your MAVbase.com account
2. Click the Add New button
3. Click “ADD PDU”
4. Add the PR-S1PI to your account using the MAC
address of the PDU
Important Safety Instructions
Read and observe the following safety points
at all times.
Notice
For indoor use only. Internal components are
not sealed from the environment. The device
canonlybeusedinaxedlocationsuchas
a telecommunication center, or a dedicated
computer room. When you install the device,
ensure that the protective earthing connection
ofthesocket-outletisveriedbyaskilled
person. Suitable for installation in Information
Technology Rooms to power ITE equipment
such as Monitors, Computers, Etc.
Only use brackets/attachments/accessories
speciedbythemanufacturer.
Do not place the device in an unstable position
where it might fall and cause injuries. This
equipment is not suitable for use in locations

11
where children are likely to be present.
Do not cover this device with a cloth. Do
not install it on a carpet or rug.
Caution
Potential injury
Donotusethisproductwithextension
cords, multi-outlet power strips, multi-
outletextenders,orUPSdevices(other
than a Big Dog Power UPS). The power
capacity of these accessories can be
overloaded by this product and may result
inariskofre,orpropertydamage.
Exposure to Heat
DonotexposethePDUtodirectsunlight
or place it near wall heaters, space
heaters, or in an enclosed space prone to
temperature increase.
Donotusethedeviceinaconned,poorly-
ventilated location; this can overheat the
unit,possiblyevencausingare.Ifusedina
small space other than an EIA-standard rack,
ensure that there is adequate space around
the device.
Proper Cleaning
In general, the only cleaning necessary for is
a light dusting. Unplug the PDU from the wall
outlet before cleaning it. Do not use liquid or
aerosol cleaners.
Warning
Power sources, grounding, and
polarization
This plug is designed to be inserted into a
NEMA 5-15 (three-prong grounded) outlet
only. Do not force the plug into an outlet that
is not designed to accept it. Never dismantle

12
the plug or to alter the power cord, and do
not attempt to defeat the grounding feature
by using a 3-to-2 prong adapter. If you have
questions about grounding, consult your local
powercompanyoraqualiedelectrician.
This PDU requires a properly grounded outlet
for safety. If you’re not sure if your home’s
electrical wiring is properly grounded, have it
checkedbyaqualiedelectrician.
If a rooftop device such as a satellite dish
connects to the PDU, ensure that the device’s
wires are also properly grounded.
Liquid: avoiding electrical shocks
Do not operate the PDU if liquid of any kind is
spilled onto or inside the unit. Do not operate
it near rain or water, even water that is
contained(forexample,bathtuborsink).
Power cord safety
Do not place the power cord near areas
withheavyfoottrafc(forexample,
hallways). Do not create a trip hazard
with the power cord. If the power cord’s
protectivejacketripsorfrays,exposing
the internal wiring or shielding, disconnect
it from the power source and replace the
power cord immediately. See the warranty
section of the owner’s manual for details.
No User-Serviceable Parts Inside
If the PDU is not operating properly, do not
remove any part of the unit (cover, etc.)
for repair. Unplug the unit and consult the
warranty section of the owner’s manual.

13
FCC Warning
WARNING!!Changesormodicationstothis
unitnotexpresslyapprovedbytheparty
responsible for compliance could void the
user’s authority to operate the equipment.
This equipment has been tested and found
to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the
user is encouraged to try to correct the
interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet
on a circuit different from that to which the
receiver is connected.
• Consultthedealeroranexperienced
radio/TV technician for help.
Notice: (1) An unshielded-type power cord is
required in order to meet FCC emission limits
and also to prevent interference to the nearby
radio and television reception. It is essential
that only the supplied power cord by used.
(2) Use only shielded cables to connect I/O
devices to this equipment.

14
Note: THE MANUFACTURER IS NOT
RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO
THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
The Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulation
Cet appareil numerique de la class B
respectetouteslesexigenciesduReglement
sur le materiel brouilleur du Canada.
FCC Part15C+RSS247
To assure continued FCC compliance:
1. Anychangesormodicationsnotexpressly
approved by the grantee of this device
could void the user’s authority to operate
the equipment.
2. This equipment complies with FCC
radiationexposurelimitssetforthforan
uncontrolled environment.
This equipment should be installed and
operated with minimum distance 20cm
between the radiator & your body.

15
IC
This device complies with Industry Canada
license-exemptRSSstandard(s).Operation
is subject to the following two conditions:
(1) this device may not cause interference,
and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
This equipment complies with IC radiation
exposurelimitssetforthforanuncontrolled
environment. This equipment should be
installed and operated with minimum distance
20cm between the radiator and your body.
IC French:
Cet appareil radio est conforme au CNR-
247d’Industrie Canada. L’utilisation de ce
dispositifestautoriséeseulementauxdeux
conditions suivantes : (1) il ne doit pas
produire de brouillage, et (2) l’utilisateur
du dispositif doit être prêt à accepter tout
brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le
fonctionnement du dispositif.
Cetéquipementestconformeauxlimites
d’expositionauxrayonnementsICétablies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la
source de rayonnement et votre corps.

16
© Copyright 2022 Ethereal Home Theater,
LLC.
An online purchase registration is available
at www.metraav.com. Registering your surge
protector at the time of purchase can make
the process a lot easier if you ever need to
leaclaim.
Please contact the Ethereal Home Theatre,
LLC Customer Service Department at
386-257-1186 if you have any questions
regarding the product warranty or the
connected equipment warranty.
Ethereal Home Theatre, LLC
460 Walker Street
Holly Hill, FL 32117
Phone:[phone]
E-Mail: [e-mail]
Specifications:
OPERATING TEMPERATURE:
32° F - 77° F (0° C - 25° C)
SURGE PROTECTION:
N/A
INTERNAL ANTENNA:
Yes
OUTLETS (TOTAL):
1 outlet
SWITCHED OUTLETS:
1
CORD LENGTH:
N/A
SAFETY CERTIFICATIONS:
-UL 498A+UL 244A+UL498A
-FCC Part15B+ICES-003
WARRANTY:
3 Year Limited
Metra Electronics Corp.
BigDogPower.com
APP: MAVbase.com
386-255-0234
