bikemate SC-T103 User manual

3-BIKE
TRUNK RACK
®
AFTER SALES SUPPORT
[email protected]m
800-671-6035
MODEL: SC-T103
Monday-Friday from 8am to 5pm EST
USER MANUAL
After Sales Support
By purchasing this Bikemate
product you can be assured, that
as well as your 2 year warranty,
you also have the support of our
dedicated service line.

Getting Started
Congratulations!
You have made an excellent choice with the purchase of this quality Bikemateš product.
By doing so, you now have the peace of mind which comes from purchasing a product
that has been manufactured to the highest standards of performance and safety.
In order for you to be completely satisfied with your purchase, this Bikemateš product
is backed by a comprehensive manufacturer's 2 year warranty and after sales service
through our dedicated customer support line.
We hope you will enjoy using this purchase for many years to come.
If you require technical support or in the unlikely event that your purchase is faulty,
please telephone our support line for immediate assistance. Faulty product claims can
be made within the 2 year warranty period provided that you have dated proof of purchase
(KEEP YOUR RECEIPT). Be aware that the warranty will become null and void if the
product is found to have been deliberately damaged, misused or disassembled.
AFTER SALES SUPPORT
800-671-6035 MODEL: SC-T103
2

WARNING
• Do not exceed the load capacity for the 3-bike trunk rack
• Maximum weight per bike is 35 lbs with a maximum load of 3 bikes
• Some vehicles cannot safely accept any rear trunk carrier. This trunk carrier has
been design to protect the paint of the vehicle if mounted properly.
• Check tightness of all hooks, locking spring hubs and straps frequently.
• Bicycle tires cannot hang near the exhaust pipe. Exhaust pipe could melt and damage the tires.
• Check rubber security strap for wear and replace immediately if worn.
• This trunk bike trunk carriers is not intended for off-road use.
• This trunk bike carriers is not for tandems or recumbent bikes.
• Do not install on a trailer or other towed vehicle.
• Failure to use red security straps is extremely dangerous and may result in loss of bicycles.
• Max capacity: 105 lbs
• Incorrect installation can result in an automobile accident and present potential
life threatening hazards to other automobiles on the road.
AFTER SALES SUPPORT
800-671-6035 MODEL: SC-T103
Warning 3

4A
5
3
2A
2B
2A
2B
5
4A
4D
1
4C
81
10
5
6
7
9

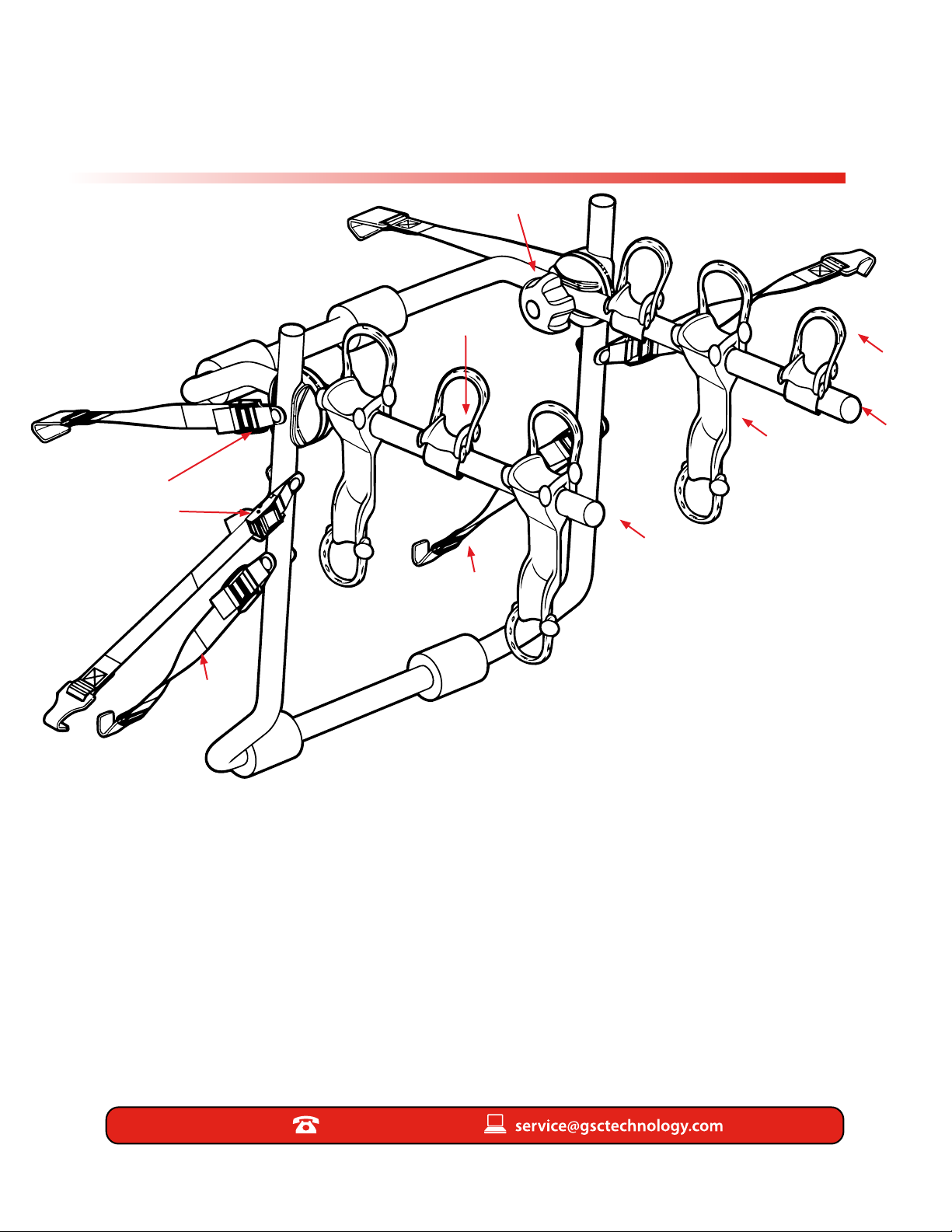

Parts Overview 4
Item Description Qty
1 Bike support arm assembly 1
2A Scratch resistant foam bumpers 2
2B Scratch resistant foam bumpers 2
3 Lower trunk support 1
4A Tie down strap with rubber coverd hook & camlock buckle 2
4B Tie down strap with rubber coverd hook & camlock buckle 2
4C Tie down strap with rubber coverd hook & camlock buckle 2
5 Rubber coverd hooks 6
6 Upper trunk frame 1
7A Adjustable locking hub 1
7B Adjustable locking hub 1
8 Anti sway bike frame support saddle 3
9 Horizontal bike frame support saddle 3
10 Adjustable rubber straps for No.8 & No.9 3
11 Red safety strap 9
AFTER SALES SUPPORT
800-671-6035 MODEL: SC-T103

AFTER SALES SUPPORT
800-671-6035 MODEL: SC-T103

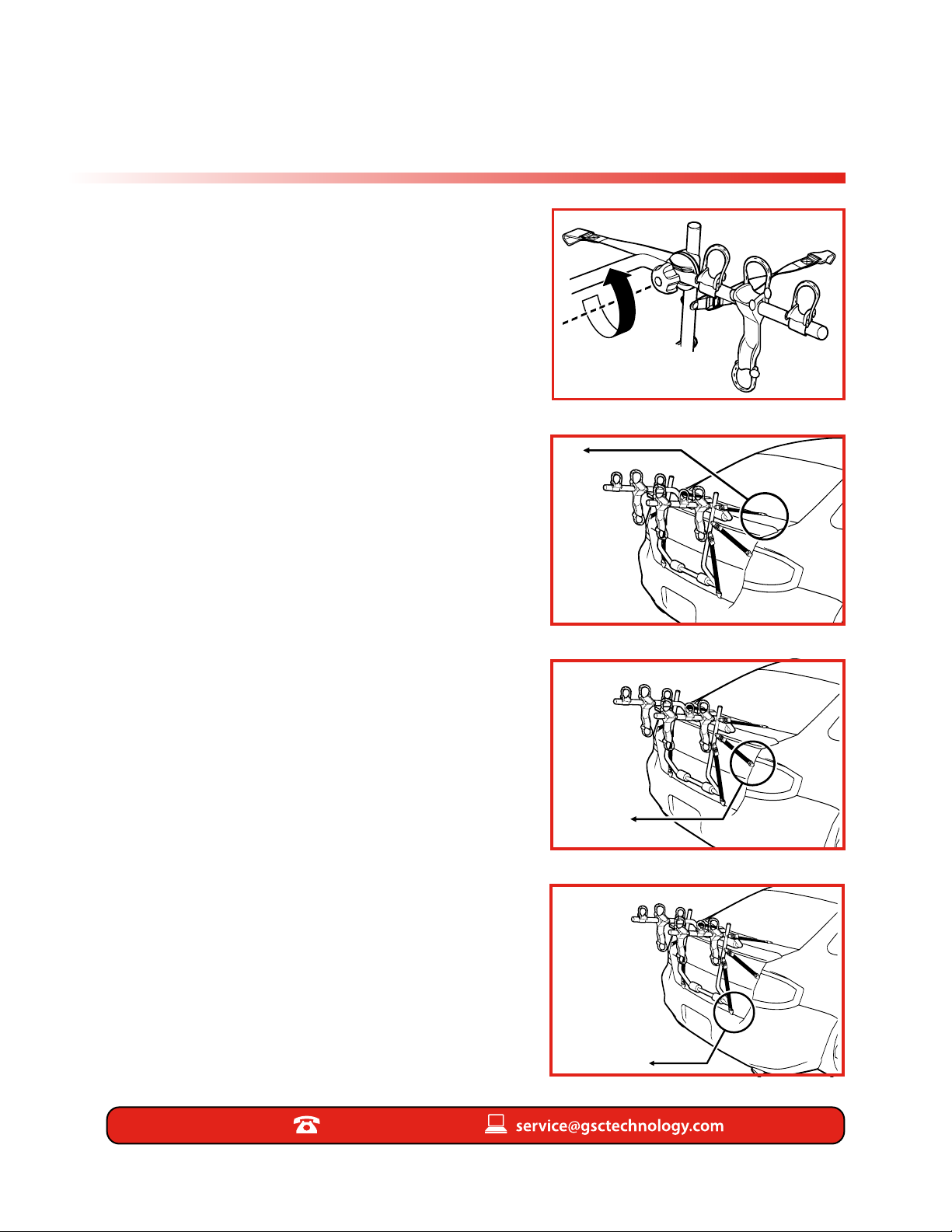

Using the bike rack 5
Loosen the two adjustable locking hubs by turning the knobs
on each hub 2 or 3 turns only so that the spring loaded hubs
release the interlocking teeth.
LOCKING HUBS ADJUSTMENT
Adjust the bike support arms until they tilt slightly upward.
Thighten the adjustable locking hubs by turning the knobs
until the teeth on the hubs interlock.
Now hold the trunk mount carrier in place in the center or
your car trunk and attach the 2 upper straps with rubber
hooks on to the leading edge of the trunk (See detail in
figure 2).
BIKE SUPPORT ARM POSITIONING
SECURE LATERAL STRAPS
Now attach the 2 lateral straps with rubber hooks to the
side lips of the trunk as show in figure 3.
The hooks will seek there final position as the straps are
tightened.
SECURE LATERAL STRAPS
Item Description Qty
1 Bike support arm assembly 1
2A Scratch resistant foam bumpers 2
2B Scratch resistant foam bumpers 2
3 Lower trunk support 1
4A Tie down strap with rubber coverd hook & camlock buckle 2
4B Tie down strap with rubber coverd hook & camlock buckle 2
4C Tie down strap with rubber coverd hook & camlock buckle 2
5 Rubber coverd hooks 6
6 Upper trunk frame 1
7A Adjustable locking hub 1
7B Adjustable locking hub 1
8 Anti sway bike frame support saddle 3
9 Horizontal bike frame support saddle 3
10 Adjustable rubber straps for No.8 & No.9 3
11 Red safety strap 9
Now attach the 2 lower straps with rubber hooks to the
lower lip of the trunk (as shown in figure 4).
Tighten all straps making sure that the bike carrier remains
centralized on the trunk lid.
SECURE LOWER STRAPS
1
2
3
4

AFTER SALES SUPPORT
800-671-6035 MODEL: SC-T103

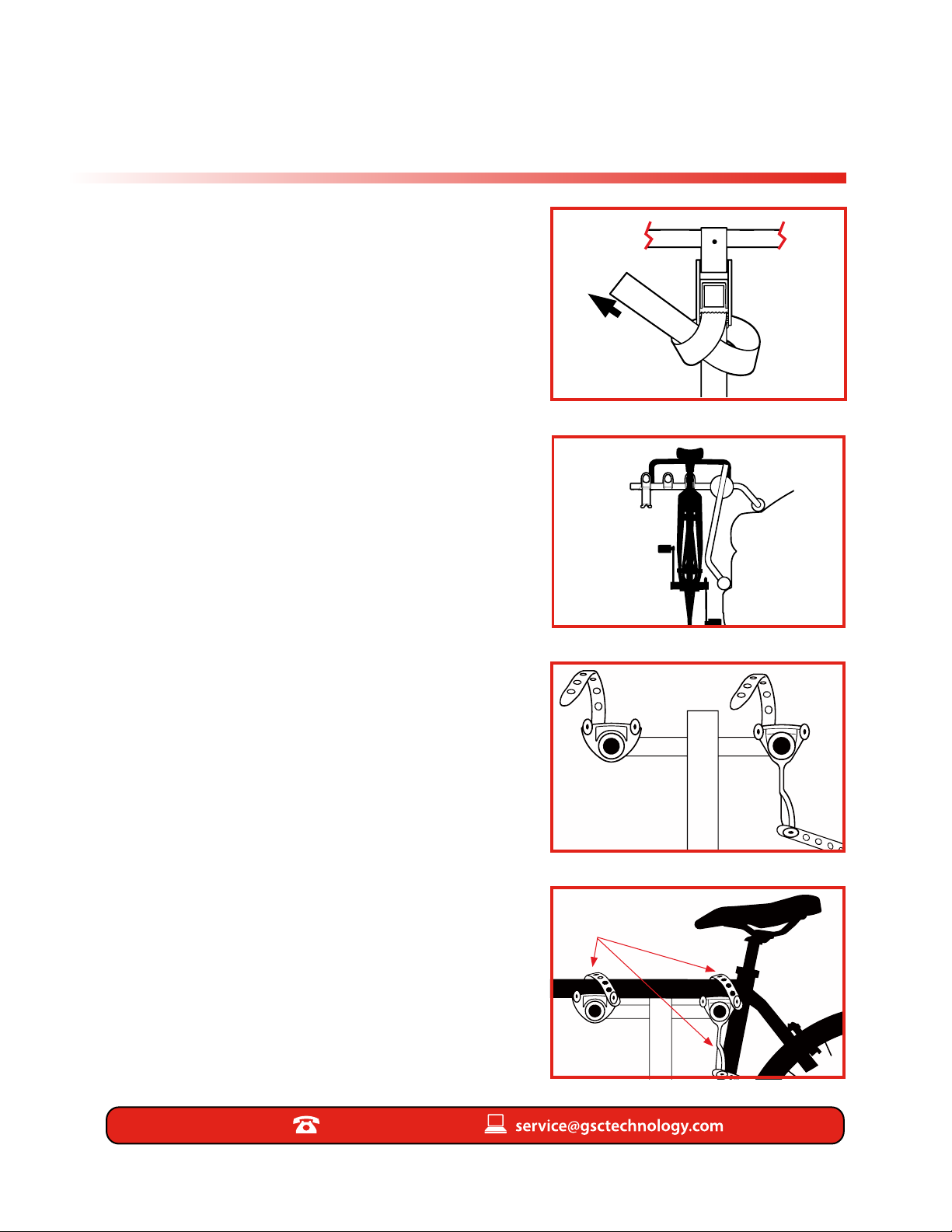

Using the bike rack continued
Load the heaviest bike first onto bike arm so that the
heaviest bike is closest to the vehicle (as shown in figure 6).
BICYCLE TRANSPORTATION
Anti sway cradles (Part #8) can be rotated on the bike arm
to accommodate different bike frames.
Alternate direction of bikes when loading
Parts #9 Horizontal bike frame support saddle
Parts #8 Anti sway bike frame support saddle
DIFFERENT BIKE FRAMES
IMPORTANT !
Ensure rubber straps (part #19) are tightened securely
around bike frame.
Adjustable rubber straps for No.8 & No.9
TIGHTEN RUBBER STRAPS (PART 10)
Tighten all the straps securely. For added security tie a knot
in the free end of each strap refer to figure 5.
TIE A KNOT FOR ADDED SECURITY
5
6
7
8

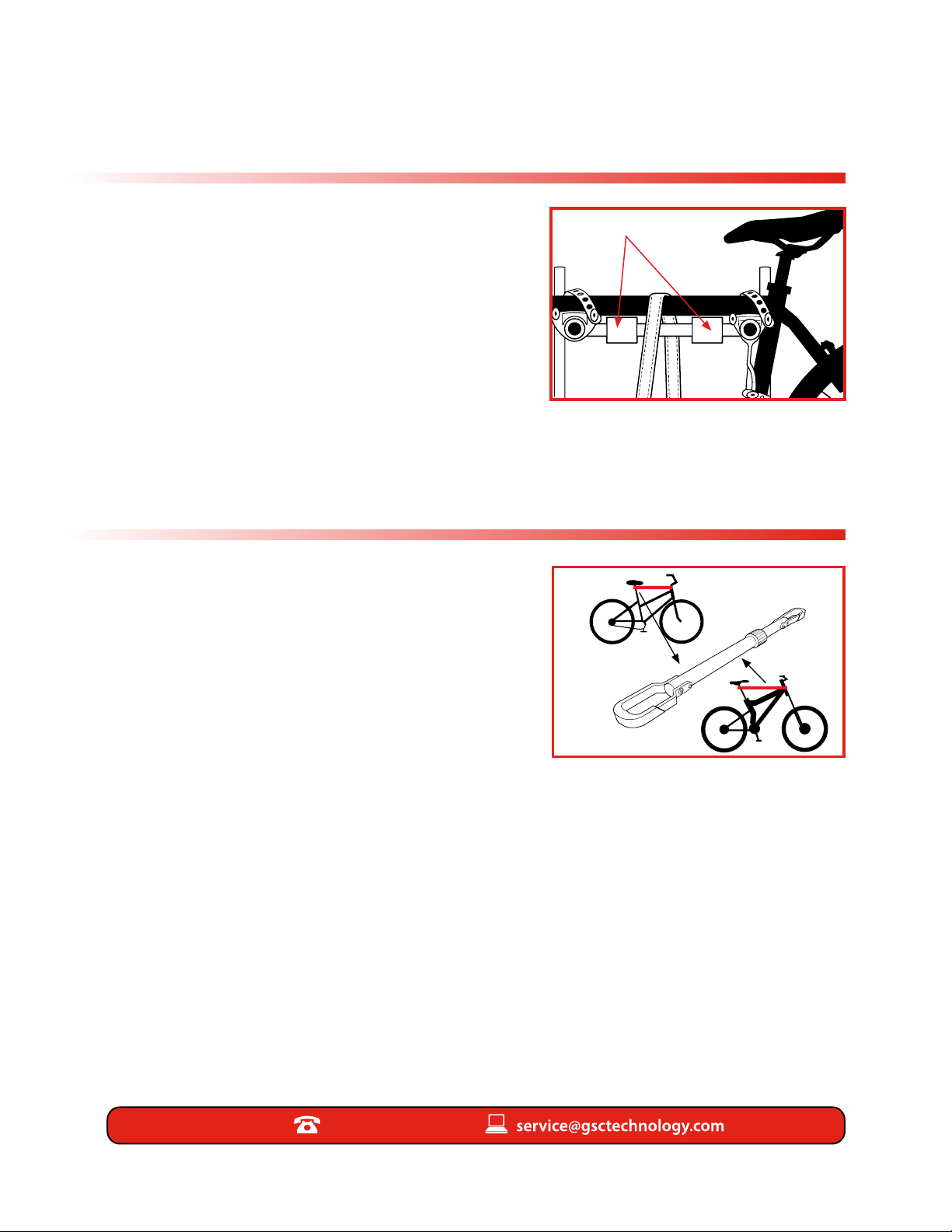

Loop the red security strap around all bikes that are
mounted on the bike carrier and around the upper trunk
frame of the bike support arm in the space between the
scratch resistant foam bumpers.
Tighten the red security strap so that all bikes are held
close to the rear of the vehicle. This will prevent the bikes
from rocking backwards and forwards during acceleration
or deceleration of the vehicle.
RED SECURITY STRAP
Foam bumper
Optional
Angular type bike frames require the optional Bike Frame
Adapter accessory. (SC-BA01) To mount bike to carrier as
shown on the previous figure.
OPTIONAL ACCESSORY (NOT INCLUDED)
Using the bike rack continued
AFTER SALES SUPPORT
800-671-6035 MODEL: SC-T103

3-BIKE TRUNK RACK
Your details:
Date of purchase*
* We recommend you keep the receipt with this warranty card
Name
Address
E mail
GSC Technologies Corporation
160 Vanier Street
St-Jean, Quebec
J3B 3R4
Canada
[email protected]
Description of malfunction:
Location of purchase
Return your completed warranty card to:
®
AFTER SALES SUPPORT
[email protected]
800-671-6035
MODEL: SC-T103
Monday-Friday from 8am to 5pm EST
