Bikespeed RealSpeed Parts list manual

date: 26.07.2021 current version of this manual at bikespeed.de page 1
…for further information visit…
bikespeed- R eal S peed
Instructions for the installation and description
of the functions for Yamaha PW Powerdrive-
Unit mid-motor design

page 2
Note about this printed manual
Congratulations on the purchase of your bikespeed RS. You are holding
the original manual for the bikespeed RS and bikespeed RSc for Bosch
mid mounted motors in your hands.
Printed manuals may not be up to date for technical, logistical, and
economic reasons. This applies, for example, to the listed compatible
motors, displays and model years. You can find a current version of the
manual for download on our homepage (https://www.bikespeed.de) If
you are unsure, please feel free to contact us.
Product description
The bikespeed RS is a simple and compact kit to bypass the speed limit of
25 km/h of Yamaha PW Powerdrive Unit pedelec drives. The installation
is completely invisible.
The bikespeed RS is also available in a customizable version, called
bikespeed RSc (custom). You can find more information about this on
page 11 of this manual. For the sake of simplicity and a better overview,
the bikespeed RSc is the same as the bikespeed RS except for the
personalization and therefore only the term bikespeed RS is used in these
instructions.
In contrast to other commercial tuning kits for pedelecs the bikespeed RS
displays the "real" speed on the tachometer instead of the half value. The
data of the cycled distance, average/maximum speed, calculated range, ...
are usable without any limitations. The levels of support as well as any
special profile will be certainly maintained. Light activation is also

page 3
unnecessary, and you can use the tuning if you have an additional lighting
system powered by the battery.
The tuning makes the final speed void, that means the terminal velocity is
only limited by the power of the drive and the muscular strength
invested.
We designed the installation as simple as we could. All the necessary
connections are pluggable and consequently they can be removed
without any traces.
Deactivation of the speed limit at 25 km/h is possible with the help of a
key sequence on the actuator (see page 9, paragraph “description of
functions”).
The tuning will adapt to your pedelec when it is activated. During this
process the drive, the display and the size of the tires will be recognized
automatically. The tuning is thus universally applicable, and you do not
have to adjust anything.

page 4
Compatibility list
Please note that the following list may not be up to date. At the time of
printing this manual, the bikespeed RS is compatible with the following
motors and displays. If updates are made to your pedelec, it is also
possible that compatibility may no longer be given. You can find an up to
date list on our homepage (https://www.bikespeed.de).
This bikespeed RS is compatible with the following mid range motors and
displays:
Yamaha PW Powerdrive Unit motors from year 2014 up to
2018
Yamaha LED Display from year 2014 up to 2018
Yamaha LCD Display from year 2014 up to 2018

page 5
Safety instructions, product liability and
e clusion of liability
By using the bikespeed RS on your pedelec, a relevant safety feature (the
speed dependent limitation of the motor power) is overridden. You must
assume that your pedelec is not suitable for this and e.g., frame, brakes,
chassis, tires, etc. are not designed for the higher speed. The conversion
must be carried out by a specialist (e.g., the manufacturer of the pedelec
or an authorized specialist workshop) who will also check other
components on your pedelec accordingly and convert them if necessary.
Tuning an ordinary pedelec with a maximum speed of 25 km/h is not
recommended for the ordinary user, as S pedelecs are intended for
reaching higher speeds with the corresponding legal requirements, in
particular the approval of the Federal Motor Transport Authority of your
country (in Germany KBA/Kraftfahrtbundesamt).
We have not been able to conclusively clarify whether operation with the
bikespeed RS installed but deactivated is permitted on public roads.
Therefore, we expressly point out that the mere presence of the tuning
can constitute an offence in the sense of the Road traffic regulations or
riding without insurance, §6 Compulsory Insurance Act!

page 6
A modified bicycle may only be used by an authorized, trained and
instructed person. We assume the following level of training:
Function
User
Operator
Only persons trained and instructed about
the special dangers
Maintenance personnel
/ technicians
Only the manufacturer of the pedelec or an
authorized specialist workshop by persons
with the appropriate expertise
Trainees or apprentices
the use is prohibited
General public
the use is prohibited
Trained users should be made aware of the increased risk when using the
modified pedelec:
Increased risk of impact: Due to the increased speed, obstacles are
reached more quickly, and reaction time may not be sufficient to brake or
swerve in time.
Increased braking distance: The increased speed also increases the
braking distance. Furthermore, it must be checked before use whether
the installed brake system is designed for the increased speed.
Increased risk of discomfort / neurological disorders: Due to the
increased speed, vibrations can increase, which can lead to discomfort.
Furthermore, due to the increased speed, more concentration is required
from the user. This can lead to increased stress during use. Therefore,
only persons who do not have any physical, mental, or neurological
disorders may be users.
Possible loss of control: The increased speed can make it easier to lose
control of the pedelec. The user must therefore be of age and equipped

page 7
with suitable protective clothing (helmet, protectors, etc.) to be
adequately protected from injury in the event of a fall.
Modified bicycles may only be used on fenced private property.
Furthermore, it must be ensured before use that there is sufficient space
to obstacles on the route. (e.g., stones, trees, water areas, etc.).
No other persons are allowed on the fenced off area during use and
precautions must be taken to ensure that no other person can enter the
area during use.
The converted pedelec must be equipped with a warning notice that is
clearly visible before the pedelec is used. The warning notice must
prohibit the use by untrained persons and outside the fenced private
area.
Operation on public roads is expressly prohibited by the Road traffic
regulations!
The bikespeed RS is installed and operated at your own responsibility;
any liability for damage or consequential damage, as well as legal
consequences for bikespeed or the manufacturer of the pedelec are
excluded in any case.
Before using the system, please enquire about the legal consequences
that may arise for you because of the installation.
We expressly point out that the use of bikespeed RS will result in the loss
of the manufacturer's warranty. Furthermore, the manufacturer and
bikespeed have no product liability for your pedelec.

page 8
Bikespeed or the manufacturer of your pedelec cannot guarantee that
brakes, frame, chassis, tires, etc. are designed for the use of the tuning
part.
Before use, the more highly stressed components of the pedelec (e.g.,
frame, brakes, tires, bearings, and suspension, etc.) must be tuned by the
manufacturer or tested and approved by a suitable testing Centre (e.g.,
TÜV or Dekra). If the speed is doubled, it must be considered that the
acting forces are quadrupled. In accordance with EN 15194, it must
therefore be checked that the modified pedelec still meets the
requirements. It is to be assumed that the higher stress is permanently
given.
If a component of the pedelec cannot withstand the higher stress, it must
be upgraded by the manufacturer of the pedelec or by an authorized
specialist workshop, or the bikespeed RS must not be installed.

page 9
Description of functions
The bikespeed RS removes the limit at 25 km/h of your pedelec. All other
features and functions of your bike remain as usual. This also includes the
protective measures installed by the manufacturer (e.g., short circuit,
overcurrent, power, torque, temperature, etc.), except for the safety
device for limiting the maximum speed.
After activating your pedelec the display will show an animation of the
battery’s capacity. If the capacity runs from empty to full your pedelec
will support you with motor power even if you exceed 25 km/h. If the
capacity runs from full to empty the support will end at 25 km/h.
To switch on or off the support above 25 km/h please change the level of
support down, up, down, and up again. If the procedure was successful,
you will see the animation of the battery’s capacity once more just like
when you activate your pedelec and this way you are informed about the
current setting.
Here is an example beginning on the “Std” level:
Pushbutton down (new level: “Eco”)
Pushbutton up (new level: “Std”)
Pushbutton down (new level: “Eco”)
Pushbutton up (new level: “Std”)
Please enter the combination quickly without a pause of 3 seconds
between two keys. Repeat the procedure, if necessary, in order to obtain
the desired setting.

page 10
If you have a bikespeed RSc you use the combination you chose
beforehand. (see page 11, paragraph „Description of the custom variant“)
Hint for the odometer
Please note that after the deinstallation of the bikespeed RS your
odometer may show a lower value under certain circumstances like you
are traveled with your bike. This behavior is caused by the design and not
a fault.
Please note this primarily when selling your bike.

page 11
Description of the custom-variant (bikespeed-
RSc)
After many requests of our customers, we offer a new feature of the
bikespeed RS additionally. The individual customer configuration gives
you the opportunity with you selectable personal setting to protect your
tuning for discovering.
With your individual key combination, you can decide if the tuning should
be displayed its status with an animation above the battery indicator or
not. The tuning can be switched on/off at any time, and you can control
the behavior (tuning on/off) after on switching your bike.
The configuration options can be found in the shop on our website. There
all possibilities are described with many tips and videos.
If you are interested to upgrade your standard bikespeed RS on a custom
version, you can feel free to contact us.

page 12
Help in case of problems
If your bikespeed RS does not work correctly at any given time, please
check the following steps in order to help yourself.
Should you still have problems please write an email before sending back
the bikespeed RS.
Cause
Solution
bicycle
does not
start
or deactivates itself
immediately
Please check whether the display and
battery are properly engaged in the bracket.
Please check the 4 pole connector from the
tuning to the motor and to the display.
no animation visible
when starting the bicycle
Please check if the service
mode is
activated as by entering the combination.
Check the 3 pole connector from the tuning
to the motor
no support or rather
only briefly when
starting
no speed indication (0
km/h)
Please check the 3
pole connector from the
tuning to the motor and to the speed sensor
Check the magnet on the sensor and align it
anew
Test the magnet by holding another magnet
in front of the sensor for a second and take it
away again several times.
support only until up to
25 km/h are reached
Check if the tuning is
activated.
bikespeed
RS (c)
cannot switched on or
off
Keep in mind you have to switch the stages
to enter the combination. Please start in a
sufficient high or low stage.
Continue next page.

page 13
Help in case of problems (continue)
In our experience, the cause for problems most often are connectors
which are not correctly plugged in. Therefore, please always check if they
are set correctly and plugged in the correct socket. Please insert the
connectors as far as you cannot see the seals anymore. If that is not
possible, please apply some Vaseline onto the seals for greasing. The
plugs are coded and only fit in one direction. Please do not use force!

page 14
Notes on installation, removal, storage,
maintenance, and use
Installation, repair, commissioning, and decommissioning may only be
carried out by the manufacturer of the pedelec or an authorized specialist
workshop.
During installation, ensure that the ergonomic principle and functionality
of the pedelec are not changed or impaired.
The protection class of the bikespeed RS is IP64. The bikespeed RS does
not require a separate power source. It is supplied with energy from the
battery of the pedelec in which the tuning is installed. This battery is
charged via the power supply unit provided by the manufacturer of the
pedelec.
No maintenance or service is required on the bikespeed RS. After
decommissioning, no special precautions need to be taken to put the
product back into operation.
If the product is stored in a dismantled state, this must be done in a dry
place between 0 and 40 degrees Celsius and 30 to 70 % relative humidity.
Use in the installed state may only be carried out by specially trained and
adult users without physical and physical limitations.
The use is not limited in time but may only take place as long as the
physical and mental condition of the user allows to operate the pedelec
under full concentration.

page 15
E ample installation on a Haibike AllMtn RX
Since we cannot provide detailed installation instructions for every bike
available on the market with this motor and display, we have decided to
use this installation example. This example will give you an overview of
the work to be done and you can transfer it to your bike. If you still have
questions, please feel free to contact us at any time.
For the installation of the bikespeed RS two of the three screws holding
the motor must be removed; the motor can easily be folded down, and all
of the connectors become accessible.
Required tools: Allen key (size 6)
possibly further Allen key sizes for protective
covers
The installation may only be carried out by an e pert!
All statements without guarantee!

page 16
1.
Please remove the battery before working on your bicycle!

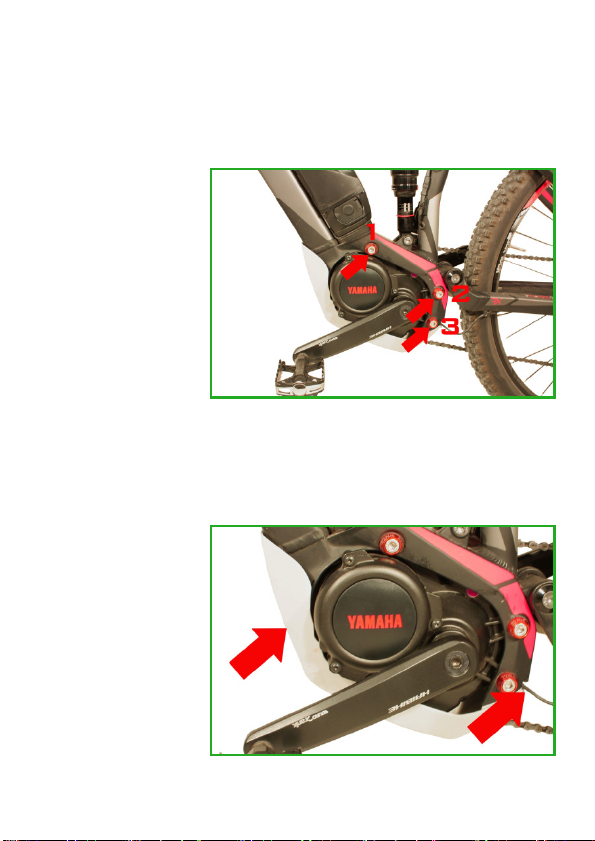

Remove the two front fastening screws (1+2) of the motor and
slightly loosen the third one (3). This screw serves as a „hinge“
for folding down the motor.
2.
It is possible that your
motor
is attached to more screws of
further covers. These must be removed as well. (See example,
one screw on the left and right of each arrow):

page 17
3.
When the
motor

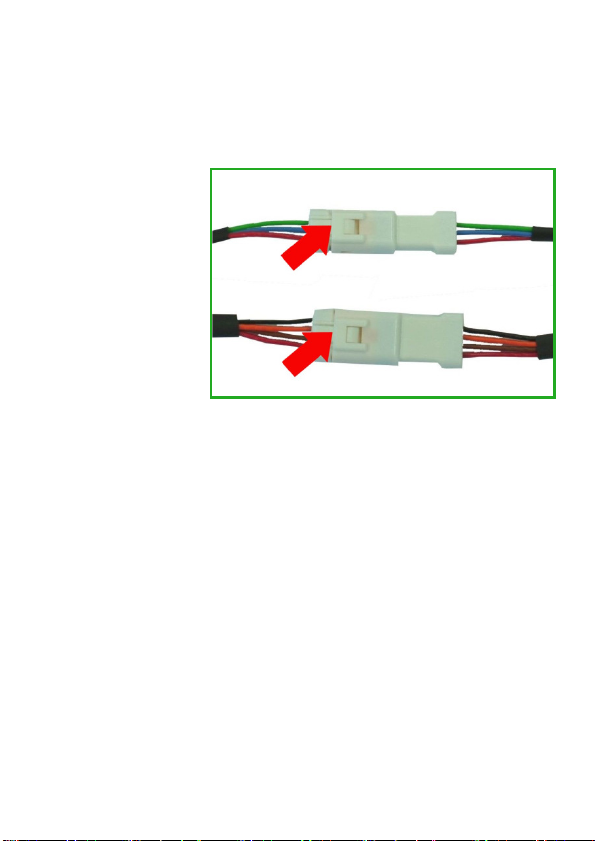

is folded down, expose the two connectors to
the display (4 pole, white) and the speed sensor (3 pole, white)
and unplug them. Therefore, please press the retaining tabs at
the arrow marked sites.
4.
Connect the bikespeed
RS by plugging in between the two
separated (step 3) connectors. Please make sure that all 4
connections are locked correctly.
Store your bikespeed RS with the connectors into the frame tube
upwards to the display. Make sure the cables and connectors
stored properly so that they cannot be squeezed while lifting the
motor.
Lift the motor again and screw it in reverse order.
Look to it while tightening the motor screws to the specified
torque of the manufacturer. (Usually 22 Nm)

page 18
Hint for water protection
The opening in the housing is by design, so that any water can quickly
drain and dry. Of course, the electronic is protected with a splash proof
sealing.
For the success of drying the opening should be placed downwards. If this
is not possible, we recommend additional water protection. (e.g., finger
of a one way glove)

page 19
Hint for disposal
Electric and electronic devices that have become waste are called old
devices. Owners of such old devices must bring these to recycling
facilities, where these are handled and recorded separately from urban
solid waste. Old devices must not end up in the household refuse. In fact,
they must be collected in special collecting and recycling systems.
Owners of old devices from private households can dispose these at the
public waste disposal authorities or bring them to producer or seller
related disposal locations. You can find these disposal locations online:
https://www.ear system.de/ear verzeichnis/sammel und
ruecknahmestellen.jsf
The labelled symbol showing the „crossed out
waste container“ on electric and electronic
equipment indicates that the concerning
equipment has to be disposed separately from
urban solid waste.
As a producer in terms of the German ElektroG we are registered with the
German registration authority Stiftung Elektro Altgeräte Register (Benno
Strauß Str. 1, 90763 Fürth), having been granted the following WEEE
registration number: DE 87104747
As well at the Elektro Recycling Austria (ERA) GmbH with contract
number: 40624

page 20
