Delta HL6700R User manual

Assembly instructions HL6700R
Smartphone
Holder X
360° Rotation
Mount the clamp securely to
handlebars, using shims as needed.
1
Rotate in desired position.
2
IMPORTANT SAFETY NOTE
Do not attach clamp to any tapered
section of your handlebar.
Tool Required
Phillips Head Screwdriver
WARNING
Using phone device while riding can cause accidents resulting in serious injury.
Important: Nuts and bolts can loosen over time, resulting in serious danger should the item fall o while in motion.
Check frequently to ensure all bolts are properly tightened. Ensure the device ts snugly in the holder before riding.
Not for o-road use.

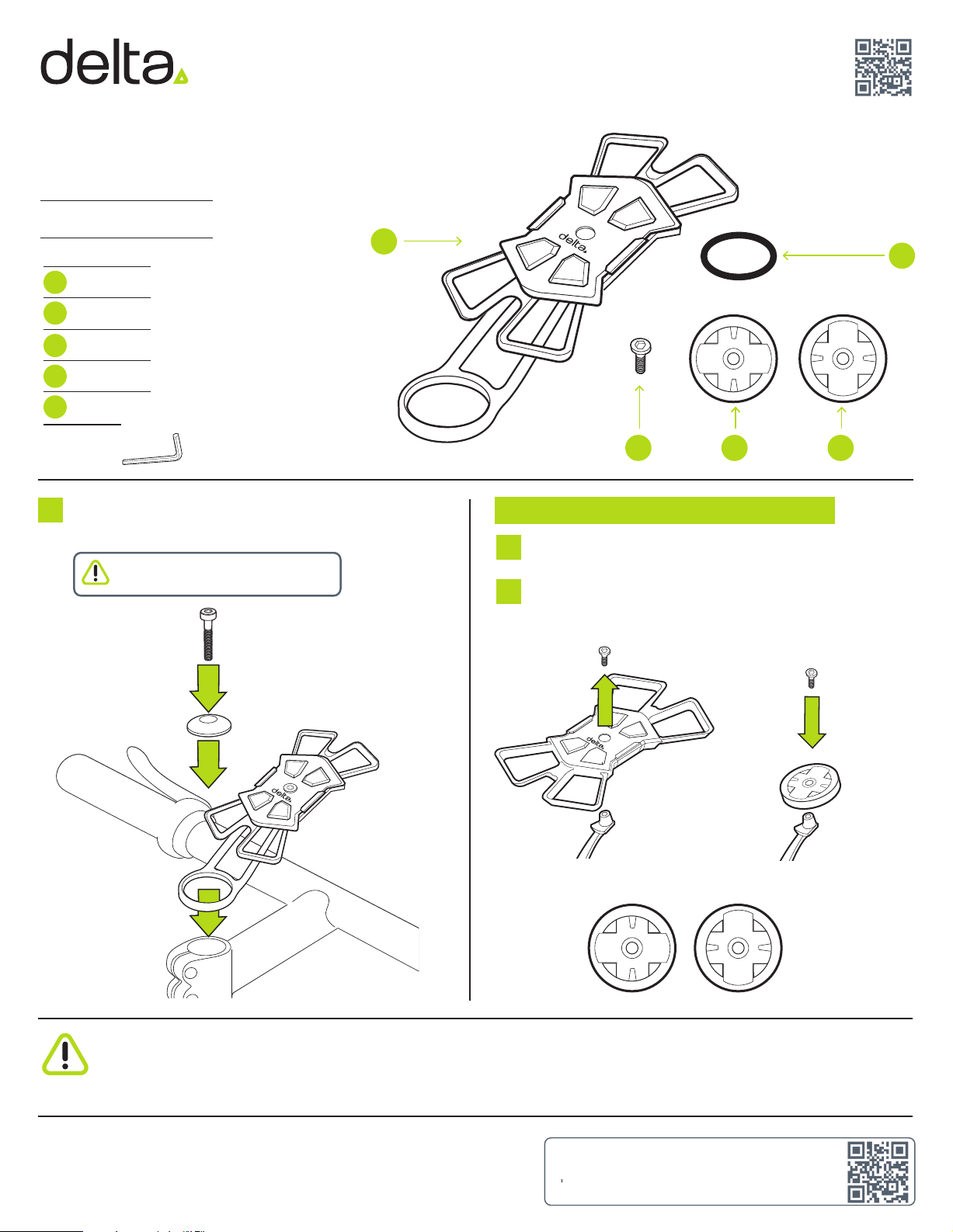

Assembly instructions HL6800
Smartphone Holder
X Pro
x1 — Smartphone Holder
x2 — Spacer Rings (optional)
Parts
A
B
x1 — Mount Screw
x1 — Garmin®Mount
x1 — Wahoo®Mount
C
D
E
Tool Required
Allen Key
A
E
B
1
Assembly video
Visit designbydelta.com/downloads
WARNING
Using phone device while riding can cause accidents resulting in serious injury.
Important: Nuts and bolts can loosen over time, resulting in serious danger should the item fall o while in motion.
Check frequently to ensure all bolts are properly tightened. Ensure the device ts snugly in the holder before riding.
Not for o-road use.
Service: Please do not return to store;
for immediate response email
[e-mail]
Delta Cycle Corporation
36 York Avenue, Randolph, MA 02368 USA
800-474-6615 / www.designbydelta.com
DC
Remove stem cap and insert phone holder,
Using spacer rings as needed.
Reinstall stem cap and tighten stem bolt securely.
1
IMPORTANT NOTE
Never loosen the stem clamp bolts.
GARMIN®OR WAHOO®MOUNTING OPTIONS
Use Allen key (2.5mm) to remove mount screw.
(FIGURE 1)
2
Choose Garmin
®
or Wahoo
®
mount, position on to
arm. Tighten mount screw with Allen key (2.5mm).
(FIGURE 2)
FIGURE 1 FIGURE 2
GARMIN®WAHOO®

Assembly video
Visit designbydelta.com/downloads
WARNING
Using phone device while riding can cause accidents resulting in serious injury.
Important: Nuts and bolts can loosen over time, resulting in serious danger should the item fall o while in motion.
Check frequently to ensure all bolts are properly tightened. Ensure the device ts snugly in the holder before riding.
Not for o-road use.

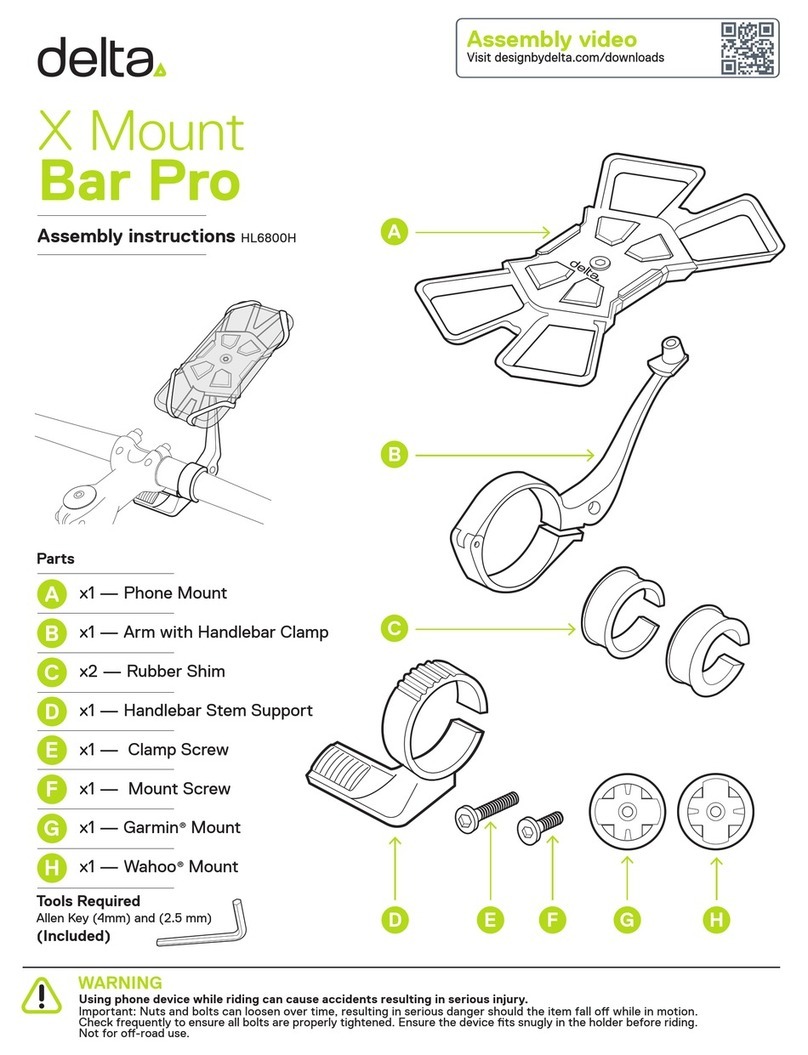

Assembly instructions HL6800H
X Mount
Bar Pro
x1 — Phone Mount
x1 — Arm with Handlebar Clamp
x2 — Rubber Shim
x1 — Handlebar Stem Support
x1 — Clamp Screw
x1 — Mount Screw
x1 — Garmin®Mount
x1 — Wahoo®Mount
Parts
A
B
C
D
E
F
G
H
Tools Required
Allen Key (3mm) and (2.5 mm)
(Included)
A
B
C
D E G HF

1
Determine which handlebar shim is best
suited for your needs, insert into handlebar
stem support (FIGURE 1).
Once attached clip on to handlebar.
1
Use Allen key (2.5mm) to remove mount screw.
2
Slide hinge mount arm over stem support
(FIGURE 1). Clamp to close, once in position,
tighten clamp screw with Allen key (3mm).
Service: Please do not return to store;
for immediate response email
[e-mail]
GARMIN®OR WAHOO®MOUNTING OPTIONS
FIGURE 1
FIGURE 1
IMPORTANT NOTE
Be sure stem support is positioned
underneath stem.
IMPORTANT NOTE
Do not attach clamp to any tapered
section of your handlebar.
2
Choose Garmin
®
or Wahoo
®
mount, position on to
arm. Tighten mount screw with Allen key (2.5mm).
GARMIN®
WAHOO®
Delta Cycle Corporation
36 York Avenue, Randolph, MA 02368 USA
800-474-6615 / www.designbydelta.com
