INSTRUCTION MANUAL
Biketec GmbH
Luzernstrasse 84
CH-4950Huttwil
T [phone]
[e-mail]
fit-ebike.com
NETWORKED
CUSTOMISED
INTELLIGENT
500085 | 500092 | 501262 | 500429
FIT DISPLAY COMPACT +
FIT REMOTE BASIC / ESHIFT

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
TABLE OF CONTENTS
1 PREFACE 4
2 ABOUT THESE OPERATING INSTRUCTIONS 5
2.1 MANUFACTURER................................................. 5
2.2 LANGUAGE..................................................... 5
2.3 DECLARATIONOFCONFORMITY ........................................ 5
2.4 ONINFORMATION ................................................ 5
2.5 WARNINGS IN THESE OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 SAFETY INSTRUCTIONS 6
3.1 GENERALINFORMATION............................................. 6
3.2 OPERATINGELEMENTANDDISPLAY...................................... 6
4 PRODUCT AND TECHNICAL SPECIFICATIONS 7
4.1 FITDISPLAYCOMPACT.............................................. 7
4.1.1 DISPLAYANDSETTINGS......................................... 7
4.2 OPERATINGELEMENT .............................................. 8
4.2.1 FITREMOTEBASIC............................................ 8
4.2.2 FITREMOTEESHIFT........................................... 9
4.3 PROPERUSE ................................................... 10
4.4 IMPROPERUSE.................................................. 10
4.5 TECHNICALDATA................................................. 10
4.5.1 FITDISPLAYCOMPACT ......................................... 10
4.5.2 FITREMOTEBASIC............................................ 10
4.5.3 FITREMOTEESHIFT........................................... 10
5 TRANSPORTATION AND STORAGE 11
5.1 TRANSPORTATION ................................................ 11
5.1.1 TRANSPORTINGE-BIKES........................................ 11
5.2 STORAGE...................................................... 11
5.3 BREAKINOPERATION .............................................. 11
5.3.1 CARRYING OUT A BREAK IN OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6 FITTING 12
6.1 FITTINGTHEFITDISPLAYCOMPACT ...................................... 12
7 OPERATION 14
7.1 INITIALOPERATION................................................ 14
7.1.1 ELECTRICDRIVESYSTEM........................................ 14
7.1.2 PAIRING / COUPLING THE FIT KEY CARD WITH THE FIT E-BIKE CONTROL APP . . . . . . . . . 14
7.2 SUPPORTMODIES ................................................ 15
7.2.1 PUSHASSIST............................................... 16
7.2.2 BOOSTFUNCTION............................................ 16
7.3 LIGHTING ..................................................... 16
7.4 ESHIFT....................................................... 17
7.5 NOTICE/ERRORICON .............................................. 18
7.6 MAIN/SUB-SCREENS .............................................. 18
7.6.1 NAVIGATION ............................................... 21
7.7 CHARGEINDICATOR ............................................... 26
8 SETTINGS MENU 28
8.1 FITDISPLAYCOMPACT.............................................. 28
8.2 MENUSTRUCTURE................................................ 29
8.3 SETTINGOPTIONS ................................................ 30
8.4 ESHIFTSETTINGS................................................. 33
8.4.1 ENVIOLO AHI PRO 40T FIT AND AHI PRO 44T FIT ELECTRONIC GEARS . . . . . . . . . . . . . . 33
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 2

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
9 ERROR MESSAGES 35
9.1 GENERALINFORMATION............................................. 35
9.2 STATUS LED ON OPERATING ELEMENT AND DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9.3 INFORMATION/ERRORDISPLAY........................................ 35
9.3.1 ERRORTABLE .............................................. 37
10 CLEANING AND SERVICING 51
10.1BASICCLEANING ................................................. 51
10.1.1 CLEANING THE DISPLAY AND OPERATING ELEMENT . . . . . . . . . . . . . . . . . . . . . . . . 51
11 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 52
11.1 TROUBLESHOOTING AND FAULT CLEARANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11.1.2 ERRORS IN THE ASSISTANCE SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11.2REPAIR....................................................... 53
11.2.1ORIGINALPART ............................................. 53
11.2.2REPLACINGTHELIGHTS ........................................ 53
11.2.3ADJUSTINGTHEHEADLIGHT ...................................... 53
12 RECYCLING AND DISPOSAL 54
12.1DISPOSAL ..................................................... 54
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 3

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
1 PREFACE
Dear FIT customer,
The FIT system offers many useful functions and options and we are pleased that you have decided to choose our
system.
Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick
start.
We hope you enjoy discovering the FIT’s functions and have a fun ride every time you use it.
Thank you for placing your trust in FIT.
Your FIT Team
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 4

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
2 ABOUT THESE OPERATING INSTRUCTIONS
2.1 MANUFACTURER
Biketec GmbH
Luzernstrasse 84
CH-4950 Huttwil
fit-ebike.com/en-en/
2.2 LANGUAGE
The original operating instructions are written in German. A translation is invalid without the original operating in-
structions.
2.3 DECLARATION OF CONFORMITY
Biketec GmbH hereby declares that the products described in these operating instructions comply with EU directives.
The complete EU Declaration of Conformity is available online at: fit-ebike.com/en-en/service/declaration/
2.4 ON INFORMATION
Different markings are used in the operating instructions to make them easier to read.
2.5 WARNINGS IN THESE OPERATING INSTRUCTIONS
Warnings indicate hazardous situations and actions. You will find the following warnings in the operating instructions:
DANGER
May lead to serious or even fatal injuries if ignored. Medium-risk hazard.
CAUTION
May lead to minor or moderate injuries if ignored. Low-risk hazard.
NOTICE
May lead to material damage if ignored.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 5

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
3 SAFETY INSTRUCTIONS
3.1 GENERAL INFORMATION
Please read all safety instructions carefully. Failure to comply with the warnings or take residual risks into account
may result in electric shock, fire and / or serious injury.
Keep the operating instructions in a safe place and have them readily available to consult. Pass these instructions
on if you provide your e-bike for someone else’s use.
The generic names used in these operating instructions, such as motor, battery and operating element, all refer to
original FIT e-bike components.
3.2 OPERATING ELEMENT AND DISPLAY
Do not let the messages on the display screen distract you. If you do not focus solely on traffic on the road, you risk
being involved in an accident.
Do not open up the operating element or the display. They both can be permanently damaged if they are opened
and the warranty will become void.
Do not use the display as a handle. If you use the display to lift your e-bike, you can damage the display irreparably.
Do not place the e-bike upside down on its handlebars and saddle if the display or its mount project above the
handlebars. The display or the mount can become irreparably damaged. Also remove the display before placing the
e-bike on a work stand to ensure that the display does not fall off or get damaged.
Caution! If you use the operating element with Bluetooth, it may cause interference with other devices and equip-
ment, aircraft, and medical devices, such as pacemakers and hearing aids. Likewise, it cannot be completely ruled
out that you will cause harm to people and animals in the immediate vicinity. Avoid operating close to your body
for extended periods of time. You must observe local restrictions on using Bluetooth when in aircraft or hospitals, for
example, or in close proximity to medical devices, filling stations, chemical plants, blasting zones and areas at risk of
explosion.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 6

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
4 PRODUCT AND TECHNICAL SPECIFICATIONS
4.1 FIT DISPLAY COMPACT
The FIT Display Compact combines the same functions in a compact 2” display as in its larger counterpart, offering
optimum visibility in a small design.
4.1.1 DISPLAY AND SETTINGS
The following display elements remain the same on all screens and show the key settings and information about the
vehicle and the current trip.
1. Clock
2. Notice / danger alert messages
3. Battery charge level
4. Current level of assistance
5. eShift gear indicator
6. Light (main beam / dimmed headlight / off)
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 7

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
4.2 OPERATING ELEMENT
4.2.1 FIT REMOTE BASIC
The ergonomic operating element FIT Remote Basic allows you to control the FIT Display easily and safely, even
while riding. The button backlit by LEDs and the vibration feedback ensure optimum usability, even in the dark or
while wearing gloves.
Operating
element Description
On-off button
Rocker switch (right, left and press)
Plus / minus button
Push assist / boost button
Light button
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 8

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
4.2.2 FIT REMOTE ESHIFT
The ergonomic FIT Remote eShift control unit allows the FIT display to be controlled easily and safely, even while
riding. The LED-backlit buttons and vibration feedback guarantee ease of operation even when wearing gloves or in
the dark.
Control unit Description
On-off button
Rocker switch (right, left and press)
Plus / minus button
Push assist / boost button
Light button
Up / Down gear shift button
Decrease / increase cadence (in automatic mode)
Automatic gear shift button
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 9

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
4.3 PROPER USE
The operating element and the display are designed to control a FIT e-bike system and display trip data.
4.4 IMPROPER USE
Improper use refers to use which is not described under proper use or goes beyond proper use.
4.5 TECHNICAL DATA
4.5.1 FIT DISPLAY COMPACT
Display FIT Display Compact
Product code 500085
Operating temperature °C -5 to +40
Storage temperature °C -10 to +50
Protection class IPX7
Weight about kg 0.1
4.5.2 FIT REMOTE BASIC
Operating element FIT Remote Basic
Product code 500092 (without spacer)
501262 (with spacer)
Operating temperature °C -10 to +40
Storage temperature °C -20 to +50
Protection class IPX7
Weight about kg 0.06
4.5.3 FIT REMOTE ESHIFT
Control unit FIT Remote eShift
Product code 500429
Operating temp. °C -10 bis +40
Storage temp. °C -20 bis +50
Protection class IPX7
Weight, approx. kg 0,06
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 10

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
5 TRANSPORTATION AND STORAGE
5.1 TRANSPORTATION
CAUTION
Remove battery before transportation.
There is a risk of injury if the drive system is switched on unintentionally.
5.1.1 TRANSPORTING E-BIKES
Protect the electrical components and connections on the e-bike from the elements with suitable protective covers.
5.2 STORAGE
CAUTION
Store e-bike, display, battery and charger in a clean, dry place where they are protected from sun-
light. Do not store outdoors to ensure a long service life.
The optimum storage temperature for your e-bike is between 10° C and 20 °C.
Temperatures under -10 °C or over +40 °C must generally be avoided.
Store e-bike, display, battery and charger separately.
5.3 BREAK IN OPERATION
If you remove the e-bike from service for longer than four weeks, you need to prepare it for a break in operation.
5.3.1 CARRYING OUT A BREAK IN OPERATION
Store the e-bike, battery and charger in a dry, clean environment. We recommend storing them in uninhabited rooms
with smoke alarms. Dry locations with an ambient temperature between 10 and 20 °C are ideal.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 11

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
6 FITTING

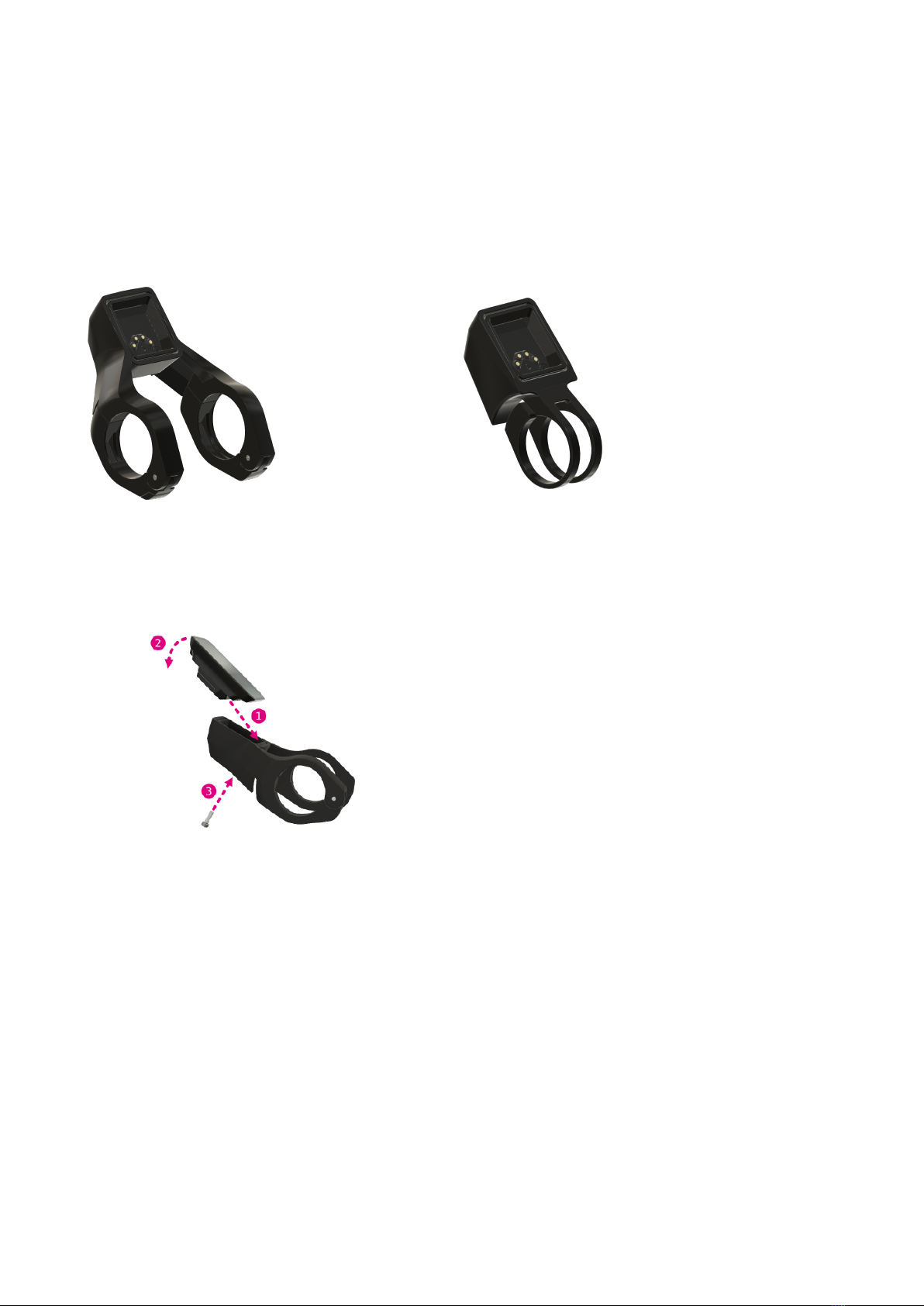

6.1 FITTING THE FIT DISPLAY COMPACT
As the mount docks available to hold the display are identical, the FIT Universal Mount is used as an example to show
how the display is fitted into place. The display is fitted in the same way on the FIT Display Center Mount.
FIT Display Universal Mount FIT Display Center Mount
Inserting FIT Display Compact
1. Place the lower section of the display into the mount.
2. Gently press the display downwards until you feel it latch into place.
3. Optional: Secure display with anti-theft securing screw.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 12

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT

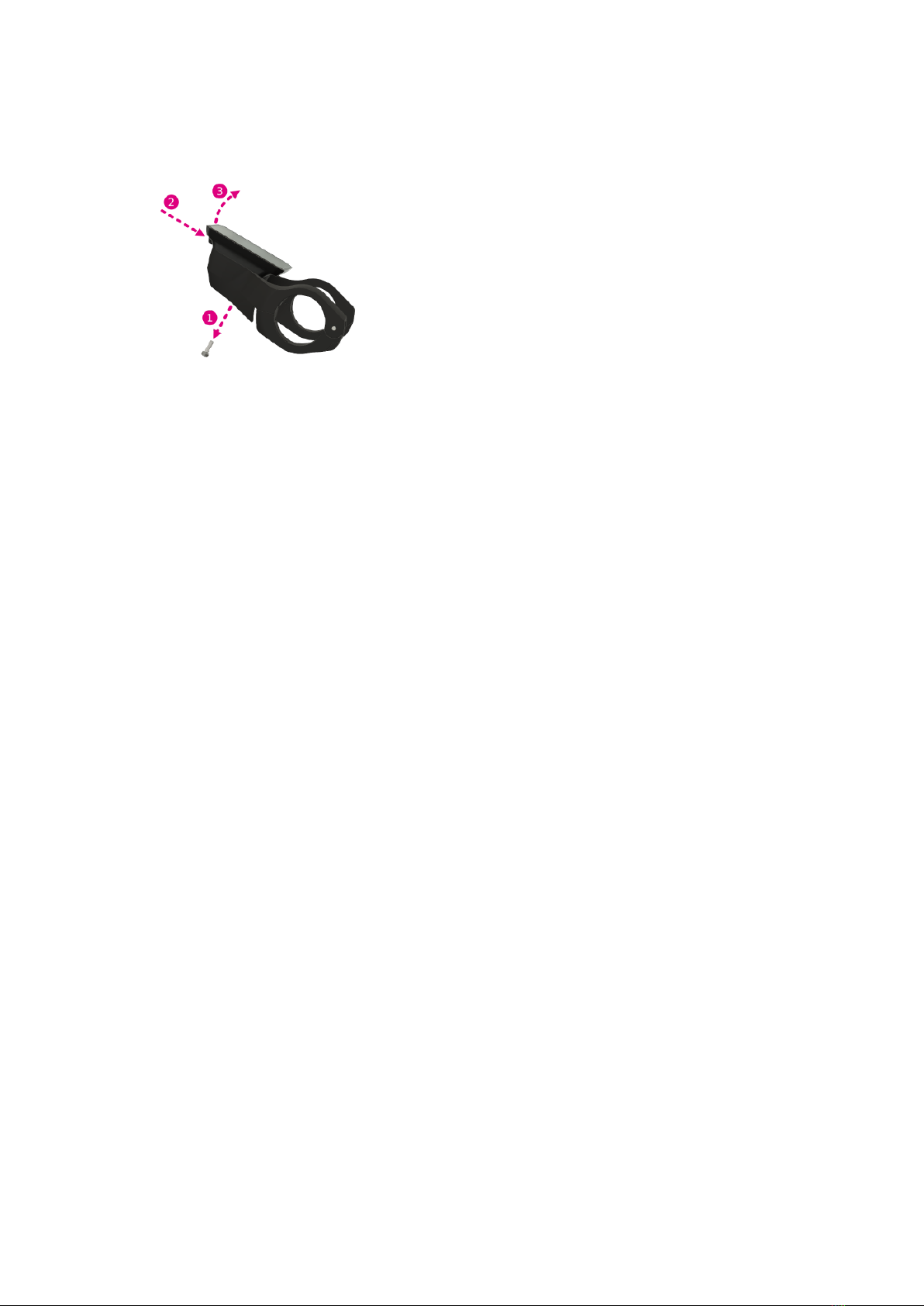

Removing FIT Display Compact
1. Remove the anti-theft securing screw if you have one fitted.
2. Press the unlocking mechanism.
3. Remove display, pulling it upwards.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 13

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
7 OPERATION
7.1 INITIAL OPERATION
7.1.1 ELECTRIC DRIVE SYSTEM
SWITCHING ON THE ELECTRIC DRIVE SYSTEM The system can only be switched on if a sufficiently charged battery
and the display are inserted.
Press the on-off button for at least one second to switch on the system. The «Drive» menu is shown on the display
screen.
SWITCHING OFF THE ELECTRIC DRIVE SYSTEM The drive system switches off automatically to save energy if no
rider activity is detected for a longer period of time. (The rider can adjust the time interval until switch-off in the
settings menu -> MyBike -> Auto Power Off.) The display is operated using the rocker switch on the operating element
so that your hands can remain on the handlebars while you are riding.
Press the on-off button for at least a second to switch off the electric system by hand.
OPERATION You can use the rocker switch to access the different main screens (right / left) and their respective sub-
screens (press). The settings menu can only be accessed when the e-bike is stationary. You can use the plus / minus
button to select the level of assistance. You can use plus / minus to scroll up and down a list you have accessed, such
as the Settings menu. If the light button and the rocker switch (press) have a new function (OK, Back), this is shown
on the display.
7.1.2 PAIRING / COUPLING THE FIT KEY CARD WITH THE FIT E-BIKE CONTROL APP
The FIT Key Card is your ticket to the digital FIT world for every e-bike with FIT 2.0 integration. The individual ID is
based on the SmartX technology from ABUS and ensures a secure connection to the e-bike with a unique key.
NOTICE
Keep the card in a safe place as it serves as the e-bike’s ID.
Can be reordered subject to payment in the e-shop if lost.
Select the menu E-bikes in the navigation bar
Press the +icon to add your e-bike in the FIT E-Bike Control app
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 14

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
Follow the instructions in the FIT E-Bike Control app
7.2 SUPPORT MODES
You can set the assistance levels using the + and – buttons on the control unit.
Symbol Description
Maximum motor assistance for active riding up to high pedaling frequencies.
The motor assistance adapts to the driver’s own performance (more rider’s performance = more
motor assistance). This mode covers the entire range from ECO to HIGH.
Medium motor assistance for sporty riding in city traffic.
Minimal motor assistance with optimum efficiency for maximum range.
No motor assistance. The e-bike rides like a normal bicycle. All on-board computer functions are
available.
Weak recuperation. Motor brakes the e-bike slightly. The brake energy is used to recharge the
battery. Use this assistance level to slow down the speed without applying the brakes when riding
downhill. All on-board computer functions can be called up (availability depends on the built-in
motor).
Stronger recuperation. The motor brakes the e-bike harder. The brake energy is used to recharge
the battery. Use this assistance level to slow down the speed without applying the brakes when
riding downhill. All on-board computer functions can be called up (availability depends on the
built-in motor).
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 15

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
7.2.1 PUSH ASSIST
Assistance mode icon:
Push assist makes it easier to push an e-bike. Do not use the push assist system to ride your e-bike. If you activate
the push assist system, you can push your e-bike more comfortably out of an underground garage or up a steep
section.
Push the push assist / boost button briefly to activate push assist mode. If you press again, the push assist system
is then activated.
If you release the push assist / boost button for longer than five seconds, you abandon push assist mode.
The choice of gear can influence the power delivery and speed of the push assist system. Always use first gear when
using push assist to protect the drive.
CAUTION
If you use the push assist system, the wheels must be in contact with the ground as otherwise there
is a risk of injury.
7.2.2 BOOST FUNCTION
Assistance mode icon:
You can use the boost function to increase motor assistance to HIGH irrespective of the selected level of assistance
(STD, ECO, AUTO). This function can be switched on at a speed of 7 km/h and above and if the pedal has been rotated
at least a quarter turn. If the push assist mode is active, the boost function cannot be used.
Press the push assist / boost button to activate the boost function. The boost function is activated as long as the key
is held down.
7.3 LIGHTING
You can use the light button to switch between the following lighting modes (availability depends on the model):
Symbol Description
Dimmed head-
light
Main beam
Light off
Different lighting systems are fitted depending on the bike type and field of use. If the system features a daytime
running light function, the bike switches between the dimmed and daytime running lights automatically.
The dimmed headlight is permanently activated on S pedelecs because of EU directives. Pressing the light button will
activate or deactivate the main beam as well.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 16

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
7.4 ESHIFT
You can select the gear shift manually with the Up / Down button. Use the automatic gear button to switch to auto-
matic mode. (Availability depends on model):
Symbol Description
Current selected gear
Automatic gear shift
Gear recommendation – change up a
gear
Gear recommendation – change down a
gear
In automatic mode, the Up / Down button is used to reduce / increase the cadence (avail-
ability depends on the model)
If the cadence is changed, the cadence display appears briefly.
Different eShift models are installed depending on the area of use and bicycle type. The available settings depend on
the model.
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 17

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
7.5 NOTICE / ERROR ICON
Symbol Meaning Action / limitation
Risk of ice
(temperature ≤4 °C) Ride carefully
Warning / error
e.g. display configuration error
Action: Re-start the system. Contact your FIT specialist dealer if the
problem persists.
Service is due You need to take your e-bike to your FIT specialist dealer for
maintenance as soon as possible.
Motor overheating Reduced power for riding assistance. (This is not an error; it is
designed to protect the motor)
Battery protection
mode (battery charge
level and / or
temperature too low)
Reduced power for riding assistance. (This is not an error; it is
designed to protect the battery)
Low tire pressure Perform a check on the tire pressure and adjust if necessary. (This
function is only available with optional tyire pressure sensors.)
7.6 MAIN / SUB-SCREENS
MAIN DRIVE SCREEN
1. Current motor assistance
2. Current speed
3. Range (in current assistance setting / level of assistance)
DRIVE SUB-SCREEN
1. Battery charge level (if there is more than one battery, they are all displayed and are
numbered consecutively)
2. Odometer (total number of kilometres that the e-bike has covered. This value cannot
be reset)
3. Linked devices (heart rate sensor, smartphone, including smartphone battery charge
level)
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 18

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
DRIVE SUB-SCREEN 2 (only available with installed FIT tire pressure sensors)
1. Current rear tire pressure
2. Current front tire pressure
TRIP MAIN SCREEN
1. Distance ridden during the current trip
2. Duration of the current trip
TRIP SUB-SCREEN
1. Difference in altitude ridden during the current trip
2. Average battery consumption during the current trip
TRIP SUB-SCREEN 2
1. Maximum speed for the current trip
2. Average speed of the current trip
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 19

INSTRUCTION MANUAL FIT DISPLAY COMPACT + FIT REMOTE BASIC / ESHIFT
FITNESS MAIN SCREEN
1. Current pulse (only displayed if a heart rate sensor is connected. This option depends
on the model. The system only supports heart rate bracelets featuring Bluetooth 4
and higher or Bluetooth Low Energy.)
2. Current pedal speed
FITNESS SUB-SCREEN
1. The rider’s current pedalling power
2. Calorie consumption during the current trip
AREA MAIN SCREEN
1. Current altitude (measured based on the air pressure)
2. Current ascent or descent as a percentage
AREA SUB-SCREEN
1. Current temperature
FIT_Manual_Display_Compact_Remote_Basic_EShift_V2_en | Version 02 | 02.05.2023 20
