Kathmandu Cycle Computer User manual

Wired Cycle Computer
Instruction Manual

Contents:
1. Supply
2. Assembly / Instructions
3. Keys & Functions
4. Modes
5. LCD Display
6. Basic Operations
7. Wheel Size
8. General Settings
9. Reset
10. Battery Replacement
11. Care & Maintenance

SUPPLY
Page 2
MAGNET
A. Main Unit
B. Bracket
C. Bracket Sleeve
D. Wheel Magnet
E. Cable Ties
F. Wired Speed
Transmitter

ASSEMBLY / INSTALLATION: Transmitter
Page 3
1. Using the cable ties, loosely
mount the speed transmitter to
the fork blade. Ensure that this is
on the same side of the bike as
the handlebar bracket.
2. Screw the magnet loosely onto the
wheel spoke, ensure it is on the
same side as the transmitter.

ASSEMBLY / INSTALLATION: Wheel Magnet / Angle
Page 4
3. Adjust the position of the magnet and
sensor, the magnet must pass through
the sensor zone, the maximum clearance
distance between them is 5mm. If the
magnet and sensor are not close enough
the computer will not pick up a reading.
4. Once the wheel magnet and transmitter
are aligned properly, securely tighten both
in place and trim off the excess cable ties.
5. Lead the wire to the handlebars along the
outer cable of the brakes.
6. CAUTION: Adjust the wire length so that
it does not pull when the handlebars are
moved.
SENSOR
MAGNET
FORK

ASSEMBLY / INSTALLATION: Main Unit
Page 5
.
1. Place unit on bracket.
2. Slide down until the “click”
sound appears.

KEYS & FUNCTIONS
Page 6

Page 7

Page 8
LCD DISPLAY
Mode Indicator
Marks which mode you are currently on.
Pace Arrow
The arrows indicate if your current speed
is above, below or neutral to your
average speed.
Speed Window
Displays current speed and is always
visible in any mode.
Km/h & Mph
Displays speed and distance in Miles or
Kilometers.
Clock Mode
Displays current time.
Low Battery
Indicates the batteries are low.

LCD DISPLAY
Page 9
Data Window
Displays a wide range of
functions and data that are
measured by the speed and
distance of the bike.
Auto / Manual
Visible when the Auto-mode is on.
Sub-Modes
Visible when user is viewing
sub-measurements
Wheel Measurement
Visible when setting tire size.
Bike 1 / Bike 2
Indicates which bike mode you are
on and can be selected in settings.

Page 10
BASIC OPERATIONS: Getting Started
Getting Started
When the computer is turned on whenever the battery is re-installed,
the following start up settings will automatically begin.
Wheel Size km/h or mph Clock
See pages 18-19 (GENERAL SETTINGS) for setting sequences. Follow the icons on top.

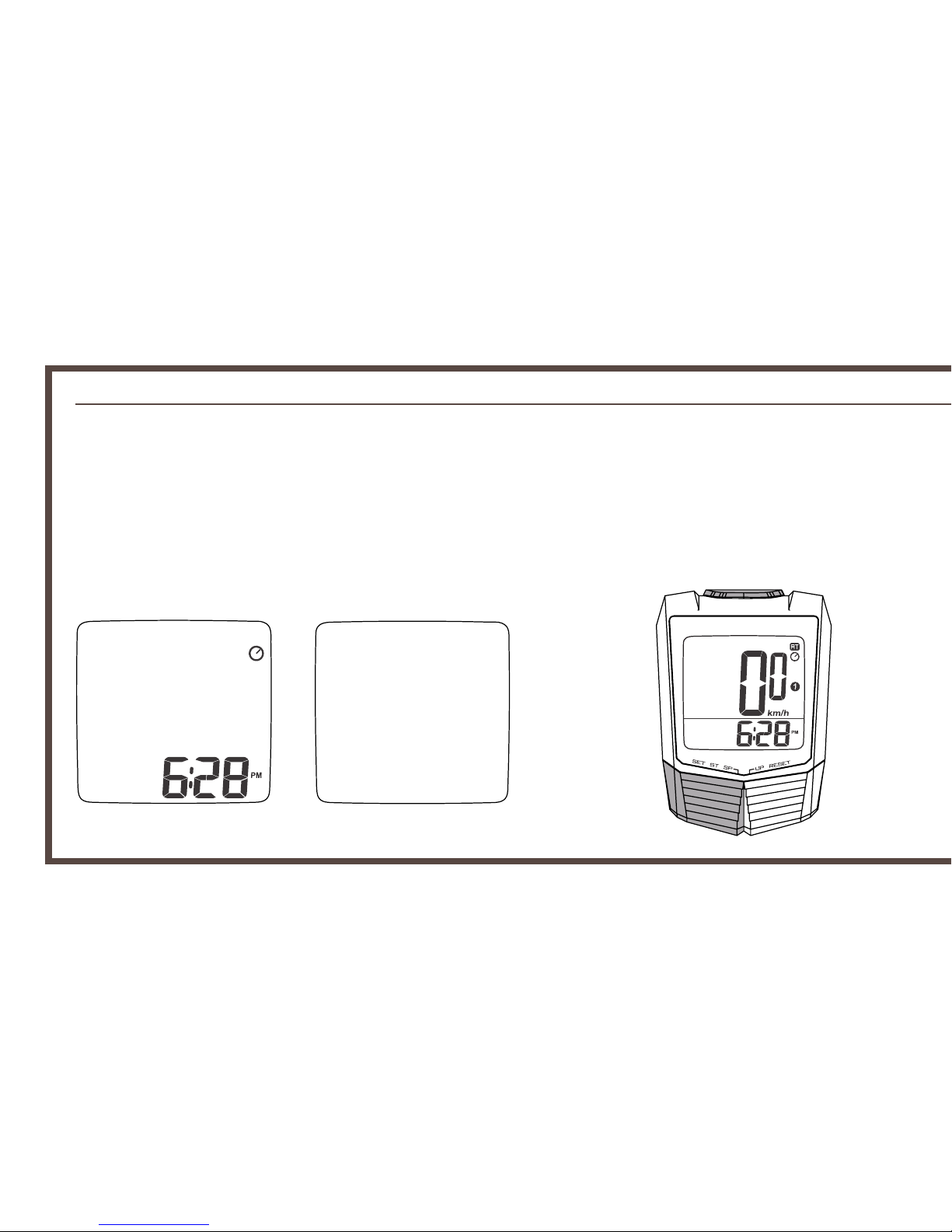

Once the setting is done the standby screen will be visible. From here you can start your
steps on pages 18-19.
* Setting will be skipped to the default time display when in-active for 30 seconds.

LCD Display
Page 11
Start/Stopping Measurements
WhenAuto-mode is on, the computer detects the wheel spinning and starts
measurement automatically in sync with the bicycle. Start/Stopping measurement with
the SET/START/STOP key will be disabled.
WhenAuto-mode is off, the computer starts/stops the measurement manually with
the SET/START/STOP key.
SET/START/STOP
* For turning on/off Auto-mode, refer to page 18 (GENERAL SETTINGS).

Page 12
BASIC OPERATIONS: Power-Saving
Power-Saving Mode Sleep Mode
Set/Start/Stop
Mode
Power-Saving
When the computer is inactive for 10 minutes, it will enter the power-saving mode,
where only the clock will be visible.
When the computer is inactive for 2 weeks or more it will enter sleep mode, where
all visible information will be disabled. Press the MODE or SET/START/STOP key to
bring back the screen back.

WHEEL SIZE: Measuring the Circumference
Page 13
Measure
Ground
Front Axle
(radius) mm x 6.28=WS
Roll forward once
Wheel Circumference

press adjust
press mode
press adjust
enter
toggle 1 or 2
confirm
press adjust
press mode
press adjust
enter
toggle 12/24
enter time
press mode
press mode
press reset
next variable
next variable
+ digit
press adjust
confirm
Clock Bike 1 or 2
Hold adjust
enter setting
any mode
Adjust
Mode
Reset
PAGE 17
Page 14
GENERAL SETTING

GENERAL SETTING
Page 15
confirm
press adjust
press mode
press reset
enter
toggle on/off
press adjust
press mode
press reset
enter
next variable
+ digit
press adjust
confirm
press adjust
press mode
press reset
enter
next variable
+ digit
press adjust
enter
press adjust
press mode
press adjust
enter
toggle unit
confirm
ODO
Km/h or mph Wheel Size AT ON / OFF ODO

Page 16
RESET
INDIVIDUAL RESET:
Hold the RESET
key for 2 seconds
will reset the data for
a specific mode.
* CO2 and ODO will
not reset.
Hold the RESET
key for 2 seconds
Reset individual
data

BATTERY REPLACEMENT
Page 17
Warning: Keep batteries away from children. If swallowed,
contact a doctor immediately.
Warning: Batteries contain chemical substances. They should
be disposed of properly according to local regulations.
Battery Type: CR2032 Lithium
Battery Life: The battery is estimated to last 1 year
depending on frequency and use of certain features.
Replacing the Battery:
1. Use a coin to unscrew the battery hatch by turning
counter-clockwise.
2. Remove old battery.
3. Insert a CR2032 3V Lithium battery with the writing
facing you.
4. Replace the battery hatch.
* Please make sure the O-ring (rubber ring surrounding battery) has not been removed from its place.

CARE & MAINTENANCE
- Never attempt to disassemble the cycle computer.
- Protect your cycle computer from extreme heat, shocks and long time
exposure to direct sunlight.
- Wipe with a lightly moistened cloth. Apply mild soap to the area if
there are stubborn stains or marks. Do not expose your cycle computer
to strong chemicals such as gasoline, clean solvents, acetone, and
alcohol, insect repellents, as they may damage the unit’s seal, case and
finish.
- Store your cycle computer in a dry place when not in use.
- Avoid allowing the cycle computer to come into direct contact with
hair liquids, colognes, sun block, creams and other toiletries which
can cause deterioration of the plastic parts. Whenever the cycle
computer comes into contact with these or other toiletries, wipe it off
immediately with dry, soft cloth.
PAC02381
Made in China
