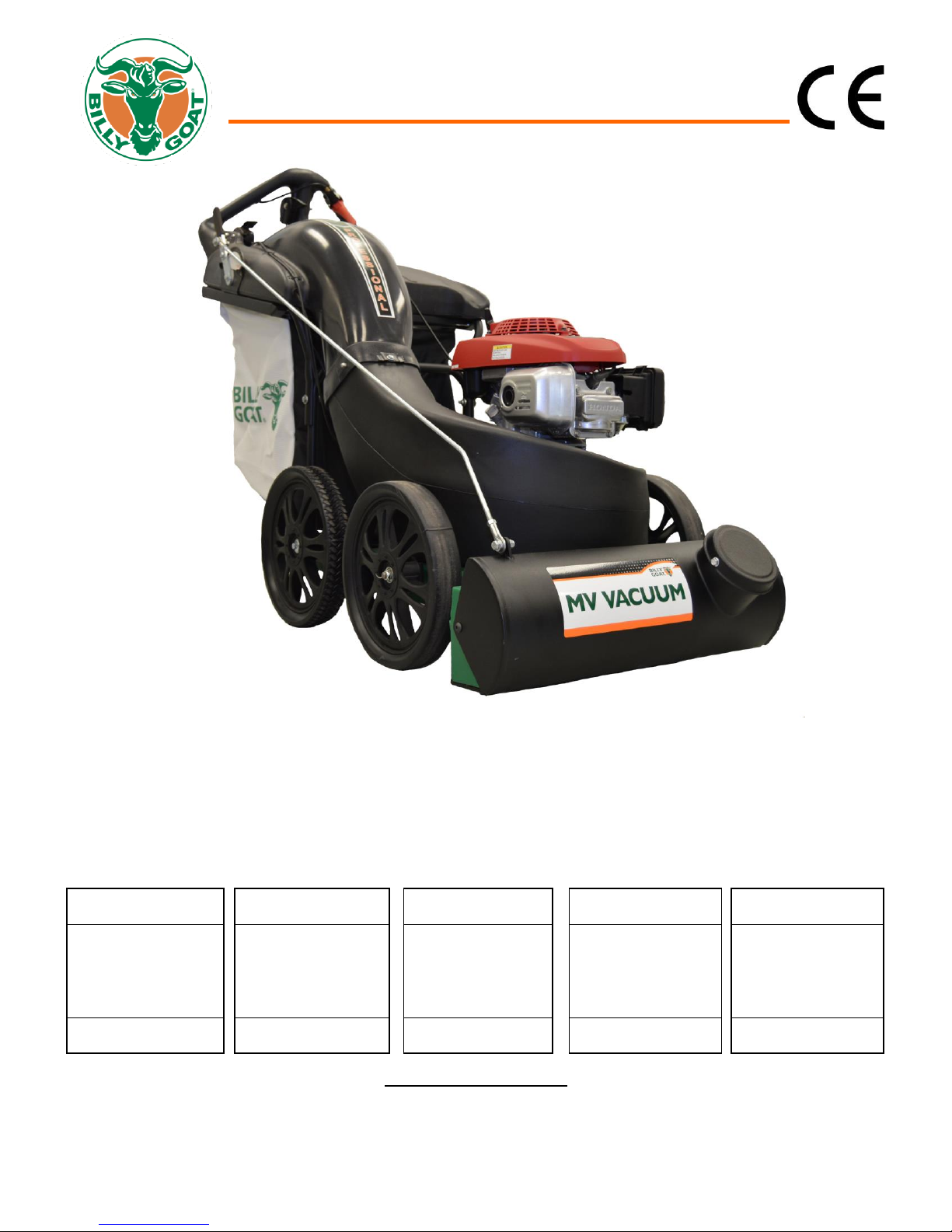

Billy Goat MV650H PUSH User manual

MV PUSH Owner’s Manual
Part No 840244 1Form No F102615A
Push Multi-Vac Owner’s Manual
MV650H
Beginning Serial #: 102615001
Accessories
Original Instructions
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CASTER KIT
Use on hard surface
for maneuverability.
P/N 840129
HOSE KIT
For vacuuming hard
to reach areas.
P/N 840116
BAG LINER KIT
To collect leaves,
thatch, and grass.
P/N 840134
FELT BAG KIT
Use on all dusty
conditions.
P/N 840129
LINER KIT
Interior housing liner
to decrease housing
wear.
P/N 840201

MV PUSH Owner’s Manual
Part No 840244 2 Form No F102615A
CONTENTS
SPECIFICATIONS AND SOUND/VIBRATION 3
INSTRUCTION LABELS 4
ASSEMBLY INSTRUCTIONS 5-8
OPERATION 9-11
MAINTENANCE AND TROUBLESHOOTING 11-13
ILLUSTRATED PARTS LIST 14-20
DECLARATION OF CONFORMITY 21-23
Go to http://www.billygoat.com for French-Canadian translations of the product manuals.
Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits

MV PUSH Owner’s Manual
Part No 840244 3 Form No F102615A
SPECIFICATIONS
MV650
Engine Type
Honda GSV190AA1A
Horsepower
6.5 (4.85 kW)
Fuel Capacity
1.6 qt (1.5 L)
Oil Capacity
0.69 qt (0.65L)
Engine Weight
28 lbs (12.7 kg)
Unit Weight
157 lbs (71.2 kg)
Shipping Weight
180 lbs (81.7 kg)
Overall Dimensions
28” Wide x 62.5” Long x 45.5” High
Maximum Operating Slope
20°
In accordance with 2000/14/EEC
standards
103 dB(a) at 3320 rpm
Sound at Operators Ear
83 dB(a) at 3320 rpm
SOUND DATA
SOUND LEVEL 83 Dba at Operator Position
103 dB
Sound tests were conducted in accordance with 2000/14/EC, as well as ISO 11094, and were performed on 5-17-2005
under the conditions listed below.
Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit
for the sound power level for your model.
General Conditions: Sunny
Temperature: 66.2oF (19oC)
Wind Speed: 8.5 mph (13.7kph)
Wind Direction: South Southwest
Humidity: 59%
Barometric Pressure: 29.9” Hg (101.35kPa)
VIBRATION DATA
VIBRATION LEVEL 1.43g(14.00m/s2)
Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using calibrated
vibration test equipment. Tests were performed on 5-24-2006 under the conditions listed below.
General Conditions: Sunny
Temperature: 73.7oF (23.2oC)
Wind Speed: 8.05 mph (3.6m/s)
Wind Direction: South
Humidity: 83.5%
Barometric Pressure: 29.91” Hg (101.31 kPa)

MV PUSH Owner’s Manual
Part No 840244 4 Form No F102615A
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT®MV Vacuum. If any labels are damaged or missing, replace
them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in
the Illustrated Parts List. The correct position for each label may be determined by referring to the Figure and Item numbers
shown.
LABEL FUEL WARNING LABEL EAR EYE BREATHE READ LABEL HEIGHT ADJUST
ITEM 55 P/N 400268 ITEM 162 P/N 100346 ITEM 34 P/N 840054
LABEL DANGER LABEL DANGER LABEL DOOR OPENING
ITEM 11 P/N 400424 ITEM 174 P/N 810736 ITEM 175 P/N 840080
ENGINE LABELS CONTROLS
ITEM 57 P/N 840045

MV PUSH Owner’s Manual
Part No 840244 5 Form No F102615A
ASSEMBLY INSTRUCTIONS
Your BILLY GOAT®MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle
Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the
Housing Assembly.
DISCONNECT spark plug wire before assembling unit.
1st
PARTS BAG & LITERATURE ASSY
Boxing Parts Checklist
Honda 6.5 Engine
Parts bag P/N-840190
Ty-wraps (2 ea)
Warranty card P/N- 400972, Owner’s Manual P/N-840244, General Safety and Warnings
Manual P/N-100294, Declaration of Conformity P/N-840204

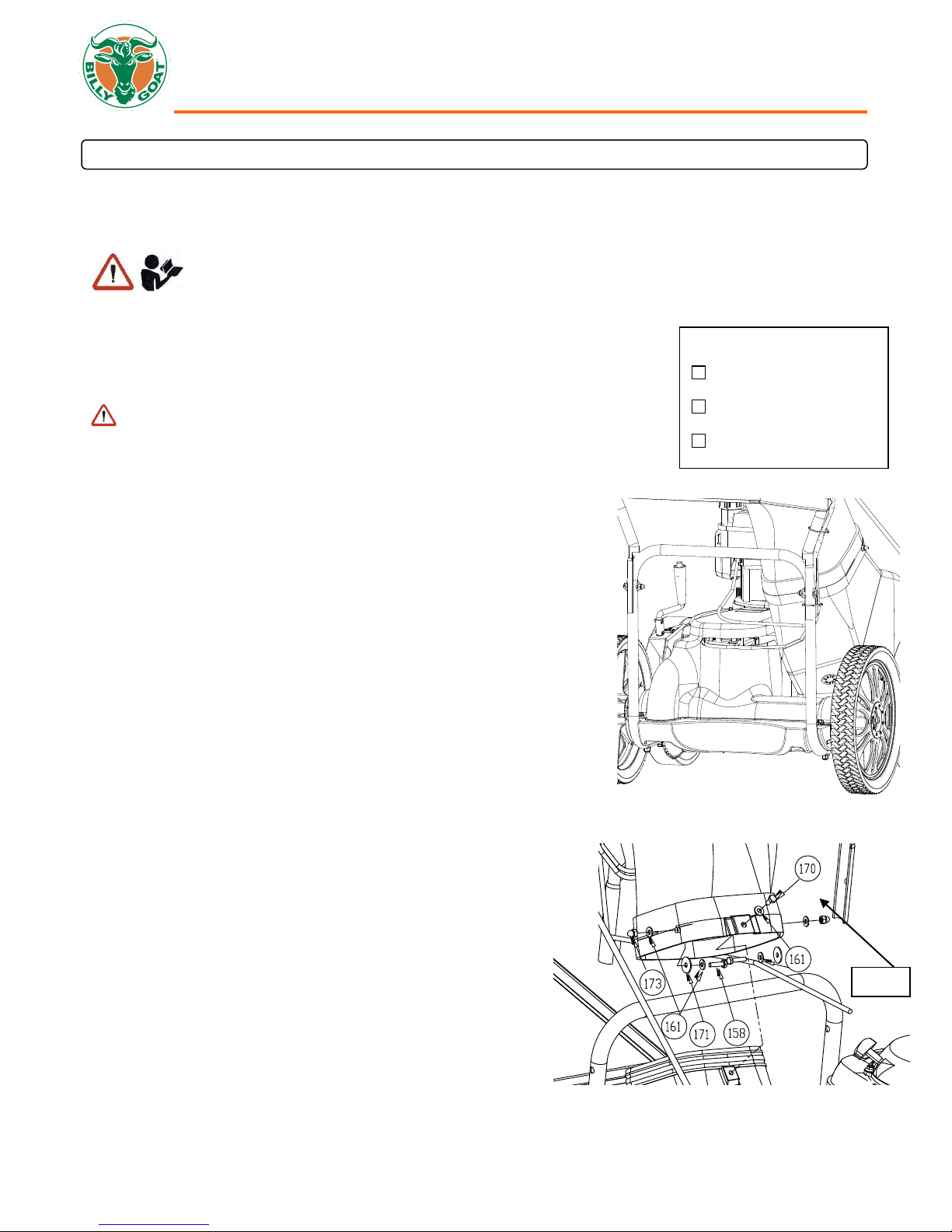

ASSEMBLY
1. Attach hood assembly to the housing then hold in place during step 2.
NOTE: Be sure all cables are routed on the underside of the hood and
housing. (See Fig. 1)
2. Install (item 170) center bolt first when aligned with a nut on the housing.
(See Fig. 2)
3. Attach rest of hood assembly to the housing using corresponding
hardware. NOTE: You will have to insert the bolt/washer from the inside
by reaching through the hood. (See Fig. 2)
4. Attach upper handle brace to lower handle using corresponding
hardware. Then repeat this step on the other side. (See Fig. 3 next page)
5. Attach rod end (item 164) to the nozzle door rod then secure in place by
tightening jam nut. (See Fig. 4 next page)
6. Attach nozzle door rod to the nozzle door using corresponding hardware.
NOTE: It is easier to do this with nozzle door closed.
7. Attach rod end to rod (See Fig. 5 next page).
8. Attach nozzle door rod to the lever with nozzle door closed and lever in
hose kit position. NOTE: Check to see that the nozzle door opens and
closes all the way (see page 15). Tighten or loosen the rod end (item
164) for any adjustments. (See Fig. 4 and 5)
9. Install cable ty wraps. (See Fig. 6 next page)
10. Reconnect spark plug wire.
11. Attach the bag. (See Fig. 7 next page)
Fig. 1
Fig. 2
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box. The Hood/Upper Handle Assembly is attached to the
unit by cables.

MV PUSH Owner’s Manual
Part No 840244 6 Form No F102615A
HERE
HERE
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

MV PUSH Owner’s Manual
Part No 840244 7 Form No F102615A

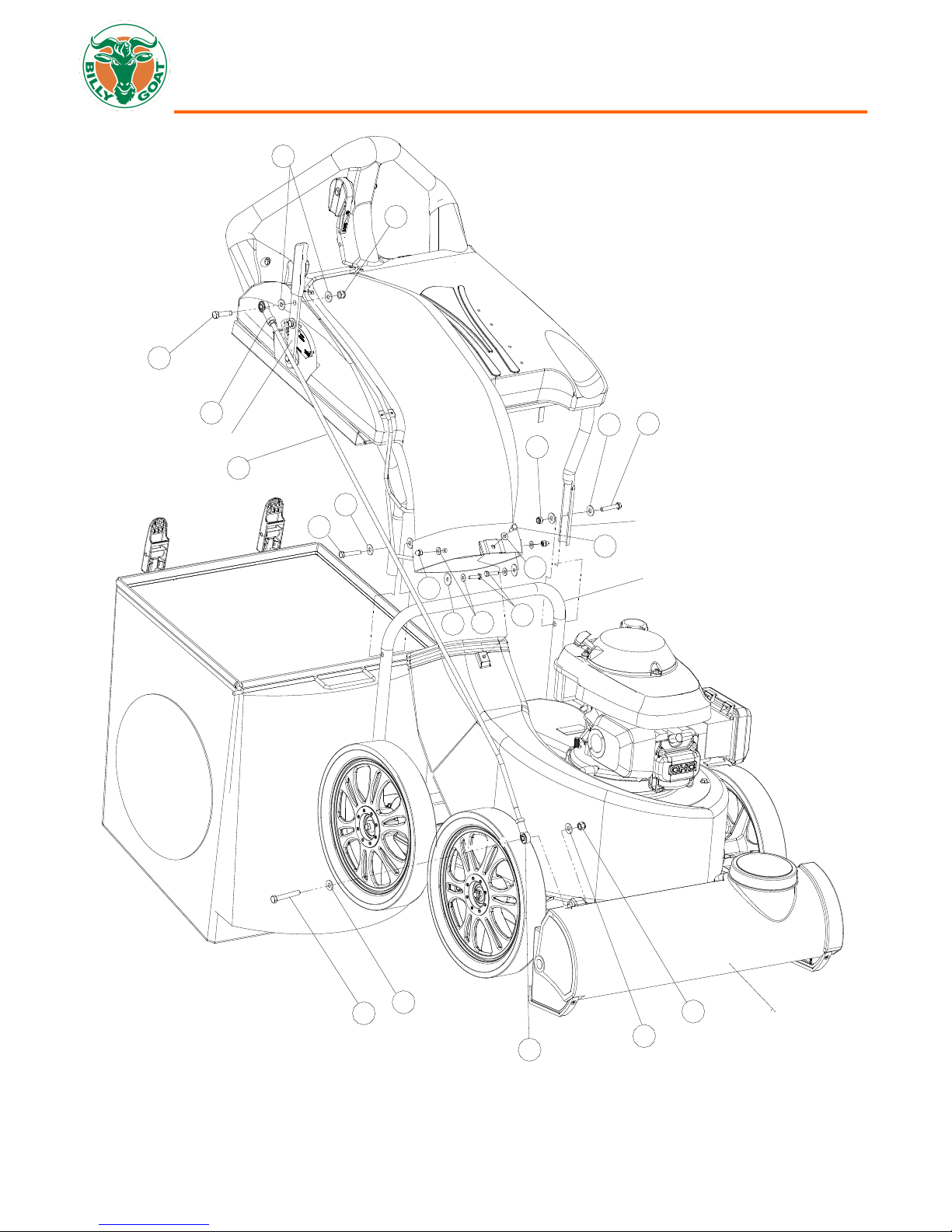

MV Vacuum Assembly Drawing
166
152 159
170
153
161
158
161
166
160
164
160
160
173
152
164
139
159
165
171
167
LOWER HANDLE
UPPER HANDLE BRACE
NOZZLE DOOR LEVER
NOZZLE DOOR

MV PUSH Owner’s Manual
Part No 840244 8 Form No F102615A
PARTS BAG PARTS LIST
ITEM NO. PART NO. DESCRIPTON QTY
139 840061 ROD LIFT NOZZLE DOOR 1
150 900407 TY- WRAP 2
152 8171003 WASHER 5/16" FLAT ZP 4
153 8160002 NUT LOCK 5/16"-18 2
158 8041006 SCREWCAP 1/4"-20 X1" ZP 2
159 8041031 SCREWCAP 5/16" X1 3/4" ZP 2
160 8171004 WASHER 3/8 FLAT 4
161 8172007 WASHER 1/4" SAE ZP 5
164 400886 ROD END BALL JOINT 3/8" NF 2
165 8041052 SCREWCAP 3/8"-16 X1 1/2" ZP 1
166 8160003 NUT LOCK 3/8"-16 2
167 8041056 SCREWCAP 3/8"-16 X2 1/2" ZP 1
170 8041004 SCREWCAP 1/4"-20 X3/4" HCS ZP 1
171 8172019 WASHER FENDER 1/4" ZP 2
173 840071 NUT ACORN 1/4"-20 2

MV PUSH Owner’s Manual
Part No 840244 9 Form No F102615A
OPERATION
OPERATOR CONTROLS
The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to
allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine. Operator’s controls are
shown below.
Operator Control Locations
1 Nozzle Door Adjuster 4 Throttle Control
2 Bag Latch
3 Pull Starter
STARTING
CHECK engine oil level before operating machine.
SHUT DOWN
1. Pull the throttle control all the way back to the STOP position.
2
3
4
1
Secure unit at the handle
with left hand during start.
Pull rope starter with right
hand.
DO NOT START the equipment without the debris bag in place.
1. Place equipment on a level, firm surface that is free of rocks or other
debris.
2. Place throttle in CHOKE position.
3. Secure the unit with left hand at the handle then pull starter rope
with right hand to start engine. NOTE: Pull starter cord slowly until
resistance is felt. Then pull cord rapidly to avoid kickback.
4. Move throttle control back to RUN position and allow engine to reach
correct operating speed.
Fig. 8
Fig. 9

MV PUSH Owner’s Manual
Part No 840244 10 Form No F102615A
VACUUM NOZZLE HEIGHT ADJUST
VACUUM NOZZLE DOOR ADJUSTMENT
The vacuum nozzle door adjusts for the maximum performance under various applications.
With the handle fully back the nozzle is fully opened. This is ideal for turf application. (See Fig. 11)
For hard surface applications, set the handle midway. (See Fig. 12)
Close nozzle for use with the Optional Hose Kit (P/N 840116). This adjustment is ideal to use with the Hose Kit.
(See Fig. 13)
VACUUMING OPERATION
This machine is designed for vacuuming leaves, grass clippings, and other types of organic litter.
Debris mixed with cans, bottles, and small amounts of sand can be vacuumed; however, it is not this machine's primary
purpose. Vacuuming cans, bottles, and sand will affect the longevity of your machine. In dusty conditions it maybe
necessary to purchase Felt Bag Kit (P/N 840022).
Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for
damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects. Note: See parts
list for proper impeller bolt torque specifications. (See Trouble Shooting section on page 22).
CLEARING ACLOGGED NOZZLE
DISCONNECT spark plug wire before servicing unit.
1. Shut engine off and wait for impeller to stop completely.
2. Disconnect spark plug wire.
3. Wearing durable gloves, remove clog. Caution: clog may contain sharp materials.
4. Reconnect spark plug wire.
For maximum pickup: Adjust nozzle height as close to debris as possible, but
without blocking airflow into the nozzle. NOTE: Never bury nozzle into debris.
The vacuum nozzle is raised and lowered by turning the crank handle
clockwise and counter-clockwise. (See Fig. 10)
Fig. 10
Fig. 11
Fig. 12
Fig. 13

MV PUSH Owner’s Manual
Part No 840244 11 Form No F102615A
DEBRIS BAG
Debris bags are normal replaceable wear items.
Bag liners are available for use in various conditions where debris will be vacuumed. (See Bag Liner Accessories on page
1).
DO NOT place bag on or near hot surface, such as engine.
Be sure engine has come to a complete stop before removing or emptying bag!
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:
Maintenance Operation
Every Use
Daily or Every
5 Hours
Every 25 Hours
Inspect for worn or damaged parts

Check for excessive vibration

Inspect for loose parts

Clean debris bag

Lubricate throttle control cable and linkage.
NOTE: Use white lithium grease or equivalent

COMMON REPLACEMENT PARTS
Bag; P/N 840189 Original Equipment Replacement Bag.
Skid; P/N 840041 Nozzle Wear Guard Skid.
*****TIPS*****
.
Frequently empty debris to prevent bag overloading with more weight than you can lift.
Many vacuums are used where dust is mixed with trash. Your unit can intermittently vacuum in dusty areas. However, following
these rules will help maintain your machine's ability to vacuum in dusty conditions:
•Run machine at idle to quarter throttle.
•Machine or pressure-wash debris bag if normal cleaning does not fully clean bag. Bag should be thoroughly dry before use.
Having one or more spare bags (P/N 840189) is a good way to reduce down time while dirty bags are being cleaned.
Felt Bag (P/N 840194) accessory is great when used in dusty conditions.

MV PUSH Owner’s Manual
Part No 840244 12 Form No F102615A
IMPELLER REMOVAL
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1. Wait for engine to cool and disconnect spark plug.
2. Drain fuel and oil from the engine.
3. Remove engine, impeller and mounting plate by removing bolts around outside of housing.
4. Leaving engine fastened to plate, remove impeller bolt and lock washer and slide impeller off crankshaft. (A puller
may be required). CAUTION: Do not drop impeller.
5. If impeller does not slide off crankshaft, place two crowbars between impeller and housing on opposite sides. Pry
impeller away from engine until it loosens. Using a penetrating oil can help loosen a stuck impeller.
6. If the impeller cannot be loosened, obtain a 3/8-24 x 2 3/4” longer bolt of the same diameter and thread type as the
impeller bolt. Invert engine and impeller and support engine above ground to prevent recoil damage. Thread longer
bolt by hand into the crankshaft until bolt bottoms. Using a suitable gear or wheel puller against the bolt head and the
impeller back-plate (near the blades), remove impeller from shaft.
7. To reinstall impeller, use a new impeller bolt and lock washer.
8. Tighten impeller bolt. Torque impeller bolt to 33-38 Ft. Lbs. (45-51 N.m).
9. Reinstall engine, impeller, and mounting plate onto housing in reverse order of removal.
10. Before connecting spark plug wire, slowly pull engine starting rope to insure that impeller rotates freely.
11. Reconnect spark plug wire.

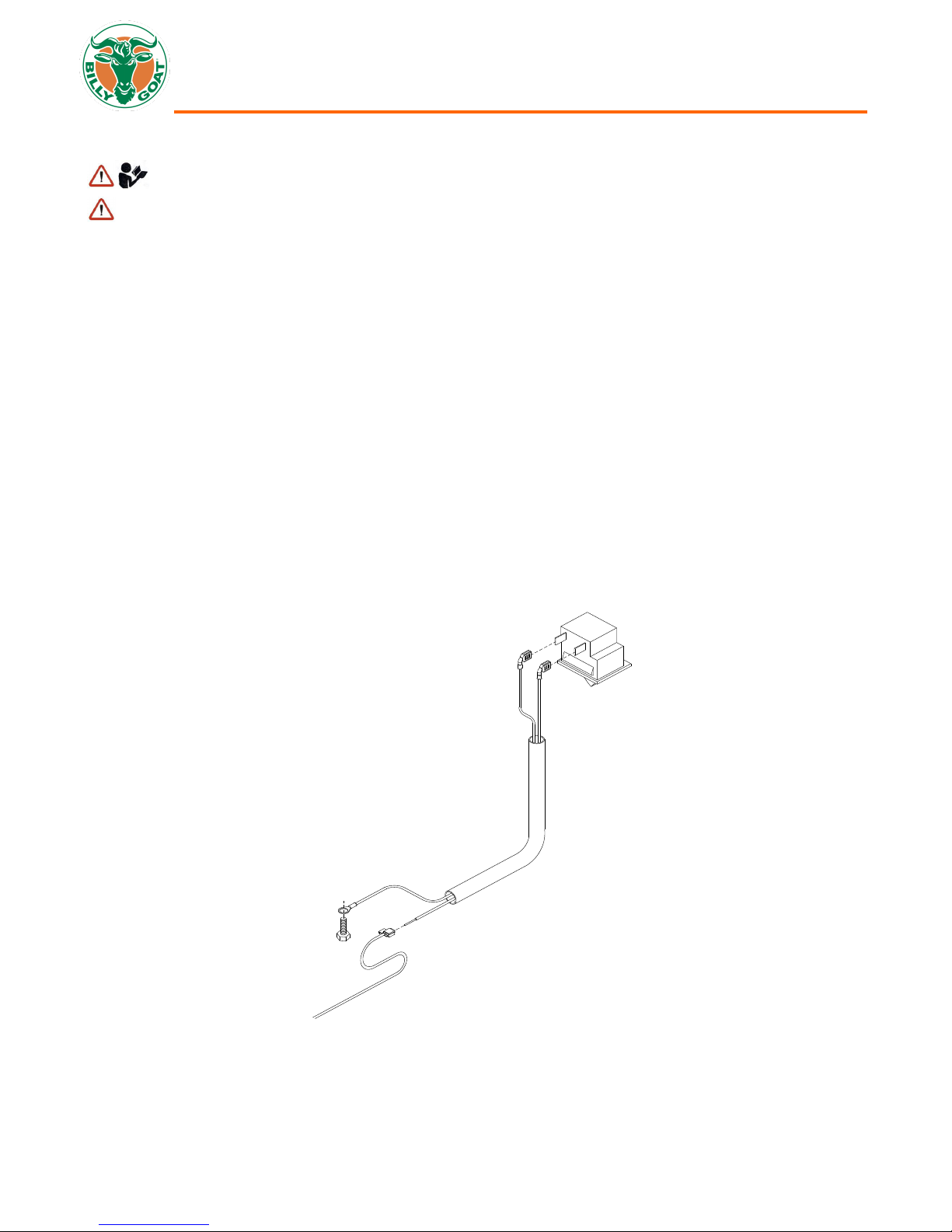

WIRING DIAGRAM
Bag Switch Circuit Schematic Diagram
FROM ENGINE
KILL SWITCH
BAG
SWITCH
WHITE
BLACK
WHITE
BLACK
GROUND

MV PUSH Owner’s Manual
Part No 840244 13 Form No F102615A
TROUBLESHOOTING
Problem Possible Cause Solution
Will not vacuum or has poor
vacuum performance.
Dirtyor full debris bag or filter.
Clean debris bag and filter. Shake bag clean
or wash.
Nozzle height settoo high or too low. Adjust nozzle height (see page 10).
Hose kit cap missing. Check for hose kit cap.
Clogged nozzle or exhaust. Unclog nozzle or exhaust (see page 10)
Excessive quantityof debris. Allow air to feed with debris.
Abnormal vibration. Loose or out of balance impeller. Check impeller and replace if required.
Loose engine. Check engine.
Engine will not start. Throttle in off position. Check throttle control (see page 9).
Engine not in full choke position. Check throttle, choke position (see page 9).
Out of gasoline or bad, old gasoline. Check gasoline.
Spark Plug wire disconnected. Connect spark plug wire.
Gas valve off. Turn on gas valve.
Dirtyair cleaner.
Clean or replace air cleaner.Contacta
qualified service person.
SafetyInterlock disengaged on bag
plate.
Latch the bag properlyor check the bag rod
to see if it's bent.
Engine is locked, will not pull
over. Impeller plugged or clogged. Remove debris (see page 10).
Engine problem.
Contact an engine servicing dealer for
engine problems.

MV PUSH Owner’s Manual
Part No 840244 14 Form No F102615A
MV PUSH NOZZLE PARTS DRAWING
Nozzle Assembly

MV PUSH Owner’s Manual
Part No 840244 15 Form No F102615A
MV PUSH NOZZLE PARTS LIST
ITEM NO.
PART
NUMBER
DESCRIPTION
MV650H
QTY.
1350127 YOKE 1/2 - 20 1
2350128 PIN YOKE 1/2" 1
3840243 SCREWCAP BUTTON HEAD 3/8"-16 X1 1/4" PL 2
48172009 WASHER 3/8" SAE ZP 2
58161042 NUT LOCK 3/8-16 LT WT THIN ZP 2
68041038 SCREWCAP 5/16 -18 x 3 1/2 1
78160002 NYLON INSERT LOCKNUT 5/16-18 UNC 3
88172020 WASHER FLAT FENDER 5/16 1
98161044 NYLON INSERT LOCKNUT 1/2-13 UNC THIN 2
10 8171002 WASHER 1/4" FC ZP 3
11 400424 LABEL WARNING OPEI 1
12 8024050 BOLTCARRIAGE 5\16-18X3 1\2 2
13 520156 ROLL PIN 1/4 X1 LONG 2
14 8172011 WASHER 1/2" SAE ZP 2
15 840118 NOZZLE MV VAC ASSEMBLY 1
16 840019 CAP 5 IN HOSE VAC 1
17 840024 HANDLE LOWER MV VAC 1
18 840101 WHEEL 14" ASSEMBLY WITH BEARING AND TIRE 2
19 840104 AXLE FRONT WA MV VAC 1
20 840155 HGT ADJ WA W/LABEL MV VAC 1
21 8041004 SCREWCAP 1/4 - 20 x 0.75 HWH 1
22 840034 LINK HGT ADJ MV VAC 1
23 840041 BRACKET NOZZLE WEAR GUARD MV VAC 2
24 840029 ROD CONNECT HGT ADJ 1
25 840073 BUSHING 0.5" ID 0.625 OD XX0.250 1
26 840119 ROD HANDLE CRANK ASSEMBLY 1
27 840057 HANDLE CRANK 0.5 ID X3.72 LONG 1
28 840078 BUSHING 3/8" ID 1/2" OD X3/8" LONG 2
29 840158 WASHER LOCK 1/4" TWISTED TOOTH 1
30 840207 NUT PAL 0.5" ID X0.75 OD 2
31 840135 NOZZLE COVER MV VAC 1
32 840259 LABEL MV BADGING 1
33 840035 SCREW PLASTIC 8
34 840054 LABEL HGT ADJ MV VAC 1
35 840082 SCREW PLASTITE 1/4"-10 X3/4 HWH ZP 2
36 840088 BRACKET NOZZLE COVER REINFORMENT MV 1
37 8024021 BOLT CARRIAGE 1/4-20X0.75 3
38 900455 NUT FLANGE 1/4-20 3
208 840017 MV WHEEL BEARING 2

MV PUSH Owner’s Manual
Part No 840244 16 Form No F102615A

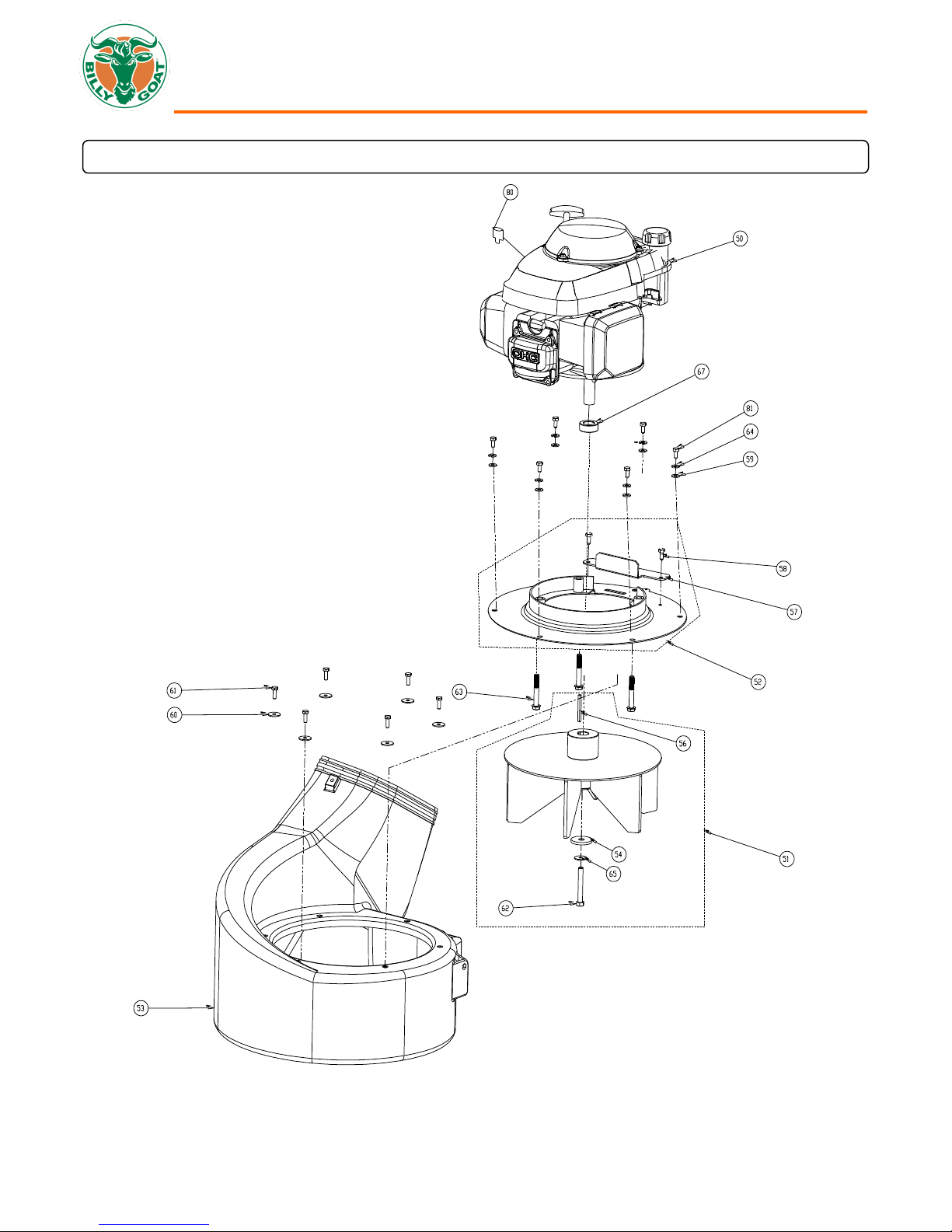

MV PUSH ENGINE PARTS DRAWING
Engine Assembly

MV PUSH Owner’s Manual
Part No 840244 17 Form No F102615A
MV PUSH ENGINE PARTS LIST
ITEM
NO.
PART
NUMBER
DESCRIPTION
MV650H
QTY.
50 840069 ENGINE HONDA 6.5 VERTICAL GSV190 1
51 840137 IMPELLER ASSEMBLY PUSH MV VAC 1
52 840111 TOP PLATE ASSEMBLY PUSH MV VAC 1
53 840205 HOUSING PLASTIC VAC 1
54 440153 WASHER 1.5 OD X.453 ID X.25 THK 1
56 9201087 SQ KEY 2.125 X.187 1
57 840220 BRACKET COVER TOP PLATE VAC 1
58 890359 SCREW 1/4"-20 X5/8" HWH 2
59 8172007 WASHER 1/4" SAE ZP 6
60 8172019 WASHER FENDER 1/4 ZP 6
61 8041004 SCREWCAP 1/4 - 20 x 0.75 HWH 6
62 790167 SCREWCAP 3/8-24X2 3/4" W/PATCH LOCK 1
63 900564 SCREWCAP 3/8"-16X2 1/2" TAPTITE 3
64 8177010 WASHER SPLIT LOCK 1/4" 6
65 8177012 WASHER LOCK 3/8" ST MED 1
67 840083 SPACER 1.50OD X.875ID X.5 THK 1
80 840215 TERMINAL 18-14 BLUE T-TAP 1
81 840213 SCREWCAP 1/4-20X5/8 GR. 5 6

MV PUSH Owner’s Manual
Part No 840244 18 Form No F102615A

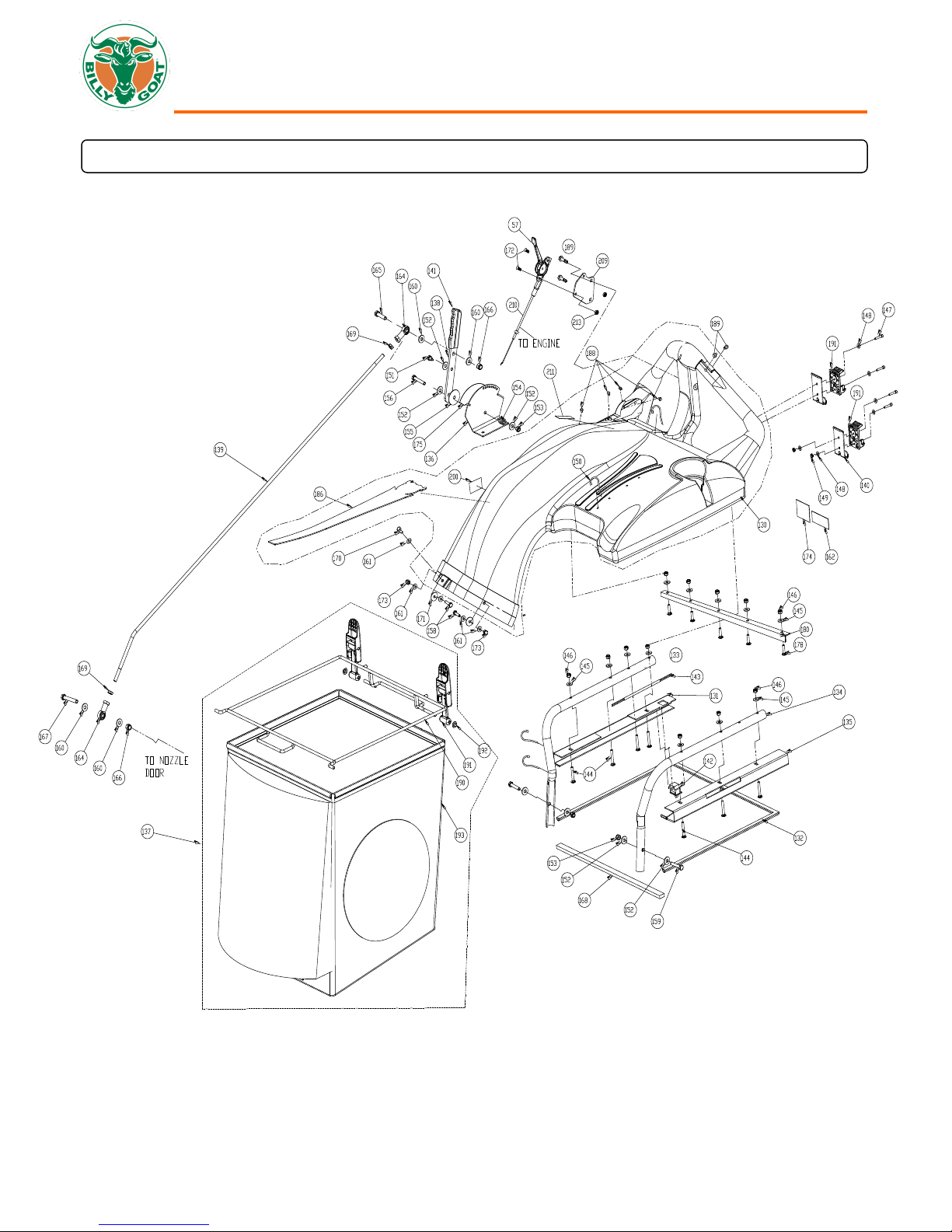

MV PUSH HOOD PARTS DRAWING
Hood Assembly

MV PUSH Owner’s Manual
Part No 840244 19 Form No F102615A
MV PUSH HOOD PARTS LIST
ITEM
NO.
PART
NUMBER
DESCRIPTION
MV650H
QTY.
57 440013 CONTROL THROTTLE 1
130 840141 HOOD ASSY W/ LABEL MV VAC 1
131 840153 BRACKET BAG CHANNEL RH W/SEAL MV VAC 1
132 840196 SEAL BAG MV VAC 1
133 840037 TUBE HANDLE BRACE RH MV VAC 1
134 840038 TUBE HANDLE BRACE LH MV VAC 1
135 840154 BRACKET BAG CHANNEL RH W/SEAL MV VAC 1
136 840152 BRACKET NOZZLE DOOR ADJ W/LABEL MV VAC 1
137 840195 BAG ASSEMBLY MV VAC 1
138 840138 BAR LIFT NOZZLE DOOR W/ GRIP MV VAC 1
139 840061 ROD LIFT NOZZLE DOOR SP VAC 1
140 840062 PLATE BAG LATCH MV VAC 2
141 840191 GRIP LEVER LIFT 1
142 840058 SWITCH INTERLOCK VAC 1
143 840276 HARNESS WIRE ASSY MV VAC 1
144 8024025 BOLT CARRIAGE 1/4-20 X 1.75 7
145 8171002 WASHER 1/4" FC ZP 12
146 8160001 NYLON INSERT LOCKNUT 1/4-20 UNC 12
147 520018 SCREW HEXHEAD #10-24 X1" 4
148 8172005 WASHER #10 SAE ZP 8
149 8164005 NYLON INSERT LOCKNUT 10-24 UNC 4
150 900407 TY WRAP 1
151 610347 PIN SCREW 1/4-28 1
152 8171003 WASHER 5/16 FLATWASHER Z/P 7
153 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC 3
154 610429 SPRING LEVER GZ 1
155 610348 FIBRE WASHER 1
156 8041032 SCREWCAP 5/16"-18 X2 ZP 1
158 8041006 SCREWCAP 1/4-20X1" ZP 2
159 8041031 SCREWCAP 5/16-18 X1.75 ZP 2
160 8171004 WASHER 3/8" FC 4
161 8172007 WASHER 1/4" SAE ZP 6
162 100346 LABEL SAFETY PROTECT READ MANUAL 1
164 400886 ROD END BALL JOINT 3/8 NF 2
165 8041052 SCREW CAP 3/8-16X1 1/2 ZP 1
166 8160003 NYLON INSERT LOCKNUT 3/8-16 UNC 2
167 8041056 SCREWCAP 3/8"-16X2 1/2" ZP 1
168 840197 SEAL BAG FRONTHOOD 20.5 LONG 1
169 8149003 NUT REG 3/8-24 NF 2
170 8041004 SCREWCAP 1/4"-20X3/4" HCS ZP 1
171 8172019 WASHER FENDER 1/4 ZP 7
172 830514 SCREW MACH FLAT HD PHIL #10-24 2
173 840071 NUT ACORN 1/4-20 2
174 810736 LABEL DANGER FLYING DEBRIS 1
175 840080 LABEL NOZZLE DOOR MV VAC 1
178 8024021 BOLT CARRIAGE 1/4-20 X 3/4" 5
180 840214 BRACKET HOOD FRONT STRAIGHTENER 1
188 840113 PLUG SNAP RIVET 0.166 DIA 8
189 840114 PLUG SNAP RIVET 0.232 DIA 2
190 840040 ROD BAG WA MV VAC 1
191 840139 LATCH RUBBER ASSEMBLY MV VAC 2
192 360203 PAL NUT 0.312 2
193 840189 BAG DEBRIS MV VAC 1
209 840267 PLATE MV THROTTLE CONTROL 1
210 840268 CABLE THROTTLE CONTROL 52" 1
211 501314 LABEL THROTTLE 1
212 840082 SCREW PLASTITE 1/4"-10 X3/4" HWH ZP 1
213 8164005 NUT LOCK LT #10-24 HEX 2

MV PUSH Owner’s Manual
Part No 840244 20 Form No F102615A

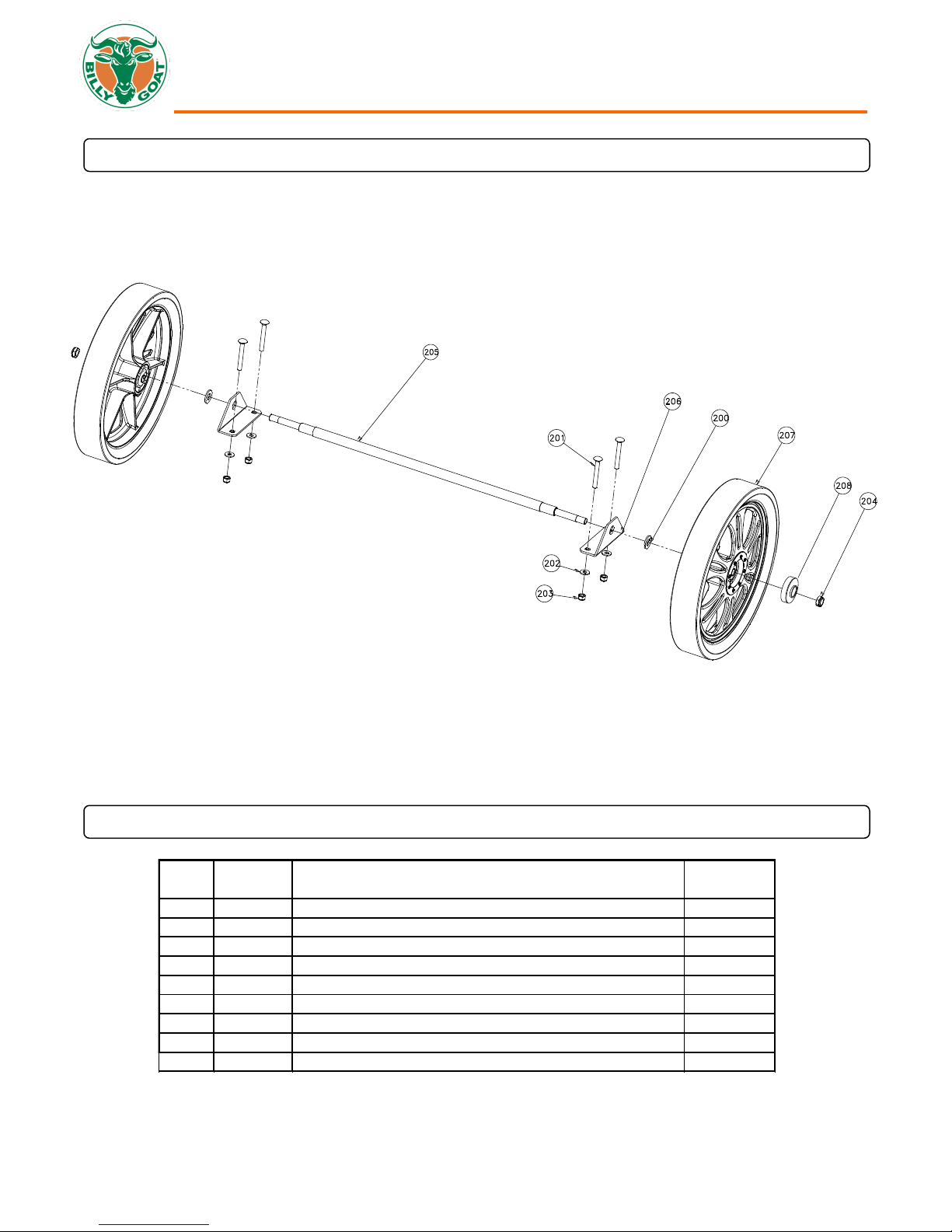

MV PUSH REAR AXLE PARTS DRAWING
Rear Axle Assembly
MV PUSH REAR AXLE PARTS LIST
ITEM
NO.
PART
NUMBER
DESCRIPTION
MV650H
QTY.
200 8172011 WASHER FLAT 1/2" SAE 2
201 8024046 BOLT CARRIAGE 5/16-18X2 1/2 4
202 8171002 WASHER 1/4" FC ZP 4
203 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC 4
204 8161044 NYLON INSERT LOCKNUT 1/2-13 UNC THIN 2
205 840091 SHAFT REAR AXLE PUSH VAC 1
206 840090 BRACKET REAR AXLE MOUNT PUSH MV VAC 2
207 840101 WHEEL 14" ASSEMBLY WITH BEARING AND TIRE 2
208 840017 MV WHEEL BEARING 2
