Billy Goat MV VACUUM PUSH EU MV601EU User manual

MV PUSH EU Owner’s Manual
Part No 840506 1840506_A_HI
Push Multi-Vac Owner’s Manual
MV601EU
Accessories
Original Instructions
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
CASTER KIT
Use on hard surface
for maneuverability.
P/N 840129
HOSE KIT
For vacuuming hard
to reach areas.
P/N 840116
BAG LINER KIT
To collect leaves,
thatch, and grass.
P/N 840134
FELT BAG KIT
Use on all dusty
conditions.
P/N 840194
LINER KIT
Interior housing liner
to decrease housing
wear.
P/N 840201
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 2840506_A_HI
CONTENTS
SPECIFICATIONS 3
INSTRUCTION LABELS 4
ASSEMBLY INSTRUCTIONS 5-8
OPERATION 9-11
MAINTENANCE AND TROUBLESHOOTING 11-13
ILLUSTRATED PARTS LIST 14-20
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 3840506_A_HI
SPECIFICATIONS
MV601EU
Engine Type Briggs and Stratton 850E Series
Horsepower 5.5 (4.10 kW)
Fuel Capacity 1.06 qt. (1.00 L)
Oil Capacity 0.625 qt. (0.59 L)
Engine Weight 10 kg (22 lb)
Unit Weight 157 lbs (71.2 kg)
Shipping Weight 180 lbs (81.7 kg)
Overall Dimensions 28” Wide x 62.5” Long x 45.5” High
Maximum Operating Slope 20°
SAFETY
WARNING
This product can expose you to chemicals including gasoline engine exhaust, which is known to the
State of California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 4840506_A_HI

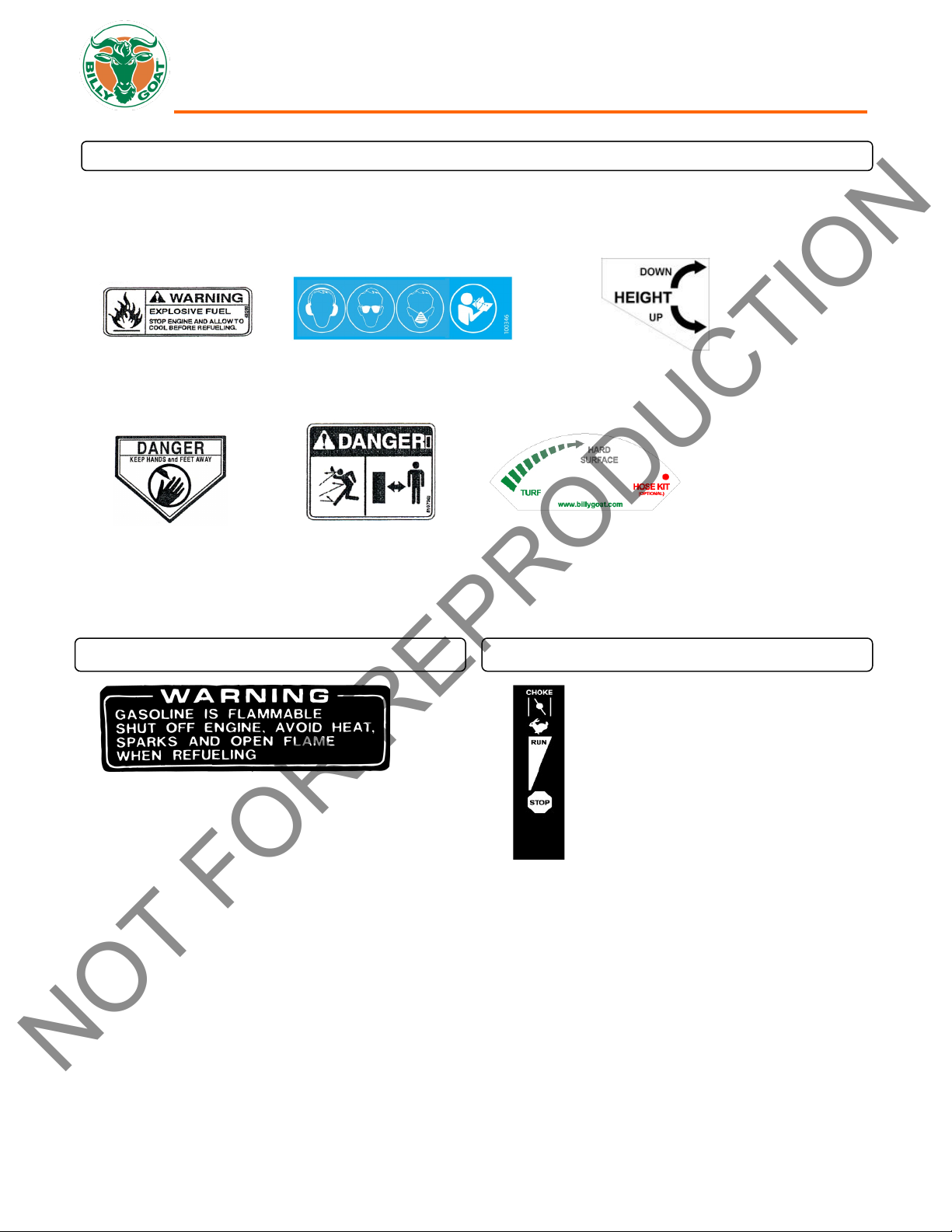

INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT®MV Vacuum. If any labels are damaged or missing, replace
them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in
the Illustrated Parts List. The correct position for each label may be determined by referring to the Figure and Item numbers
shown.
LABEL FUEL WARNING LABEL EAR EYE BREATHE READ LABEL HEIGHT ADJUST
ITEM 55 P/N 400268 ITEM 162 P/N 100346 ITEM 34 P/N 840054
LABEL DANGER LABEL DANGER LABEL DOOR OPENING
ITEM 11 P/N 400424 ITEM 174 P/N 810736 ITEM 175 P/N 840080
ENGINE LABELS CONTROLS
ITEM 57 P/N 840045
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 5840506_A_HI

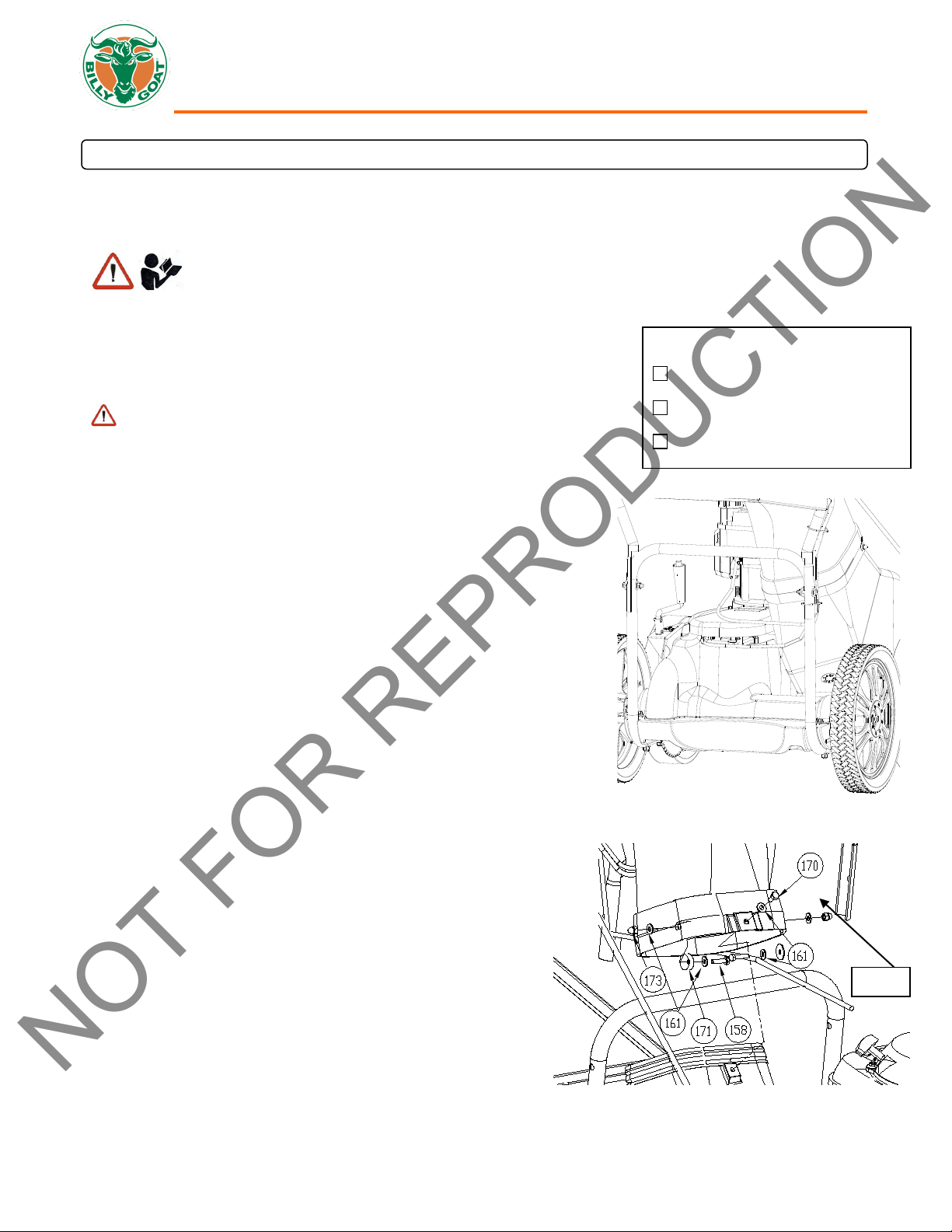

ASSEMBLY INSTRUCTIONS
Your BILLY GOAT®MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle
Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the
Housing Assembly.
DISCONNECT spark plug wire before assembling unit.
1st
Boxing Parts Checklist
Briggs and Stratton Engine Manual
Parts bag P/N-840290
Ty-wraps (2 ea)
PARTS BAG & LITERATURE ASSY
Warranty card P/N- 400972, Owner’s Manual P/N-840506 General Safety and Warnings
Manual P/N-100294, Declaration of Conformity P/N-100506
ASSEMBLY
1. Attach hood assembly to the housing then hold in place during step 2.
NOTE: Be sure all cables are routed on the underside of the hood and
housing. (See Fig. 1)
2. Install (item 170) center bolt first when aligned with a nut on the housing.
(See Fig. 2)
3. Attach rest of hood assembly to the housing using corresponding
hardware. NOTE: You will have to insert the bolt/washer from the inside
by reaching through the hood. (See Fig. 2)
4. Attach upper handle brace to lower handle using corresponding
hardware. Then repeat this step on the other side. (See Fig. 3 next page)
5. Attach rod end (item 164) to the nozzle door rod then secure in place by
tightening jam nut. (See Fig. 4 next page)
6. Attach nozzle door rod to the nozzle door using corresponding hardware.
NOTE: It is easier to do this with nozzle door closed.
7. Attach rod end to rod (See Fig. 5 next page).
8. Attach nozzle door rod to the lever with nozzle door closed and lever in
hose kit position. NOTE: Check to see that the nozzle door opens and
closes all the way (see page 15). Tighten or loosen the rod end (item
164) for any adjustments. (See Fig. 4 and 5)
9. Install cable ty wraps. (See Fig. 6 next page)
10. Reconnect spark plug wire.
11. Attach the bag. (See Fig. 7 next page)
Fig. 1
Fig. 2
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box. The Hood/Upper Handle Assembly is attached to the
unit by cables.
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 6840506_A_HI

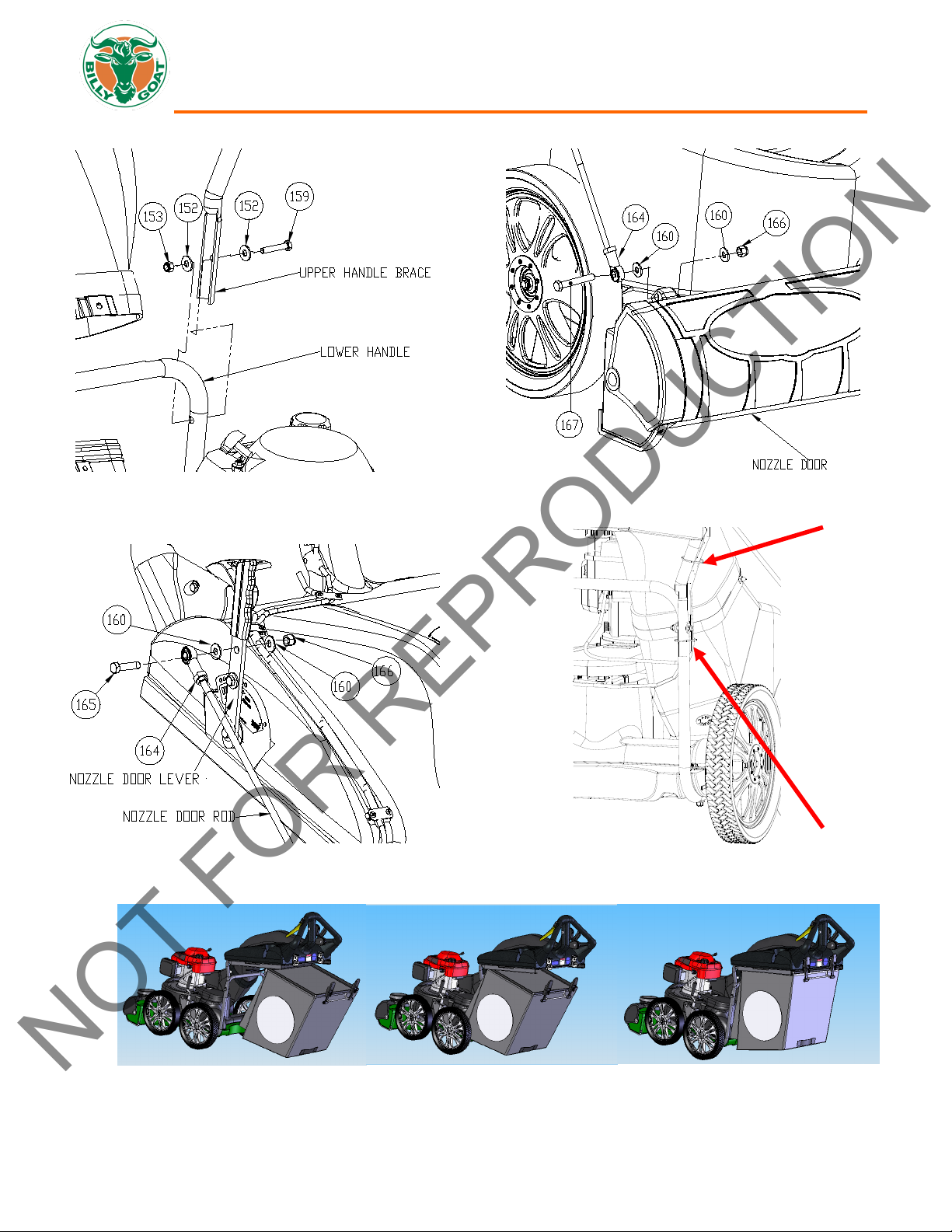

HERE
HERE
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 7840506_A_HI

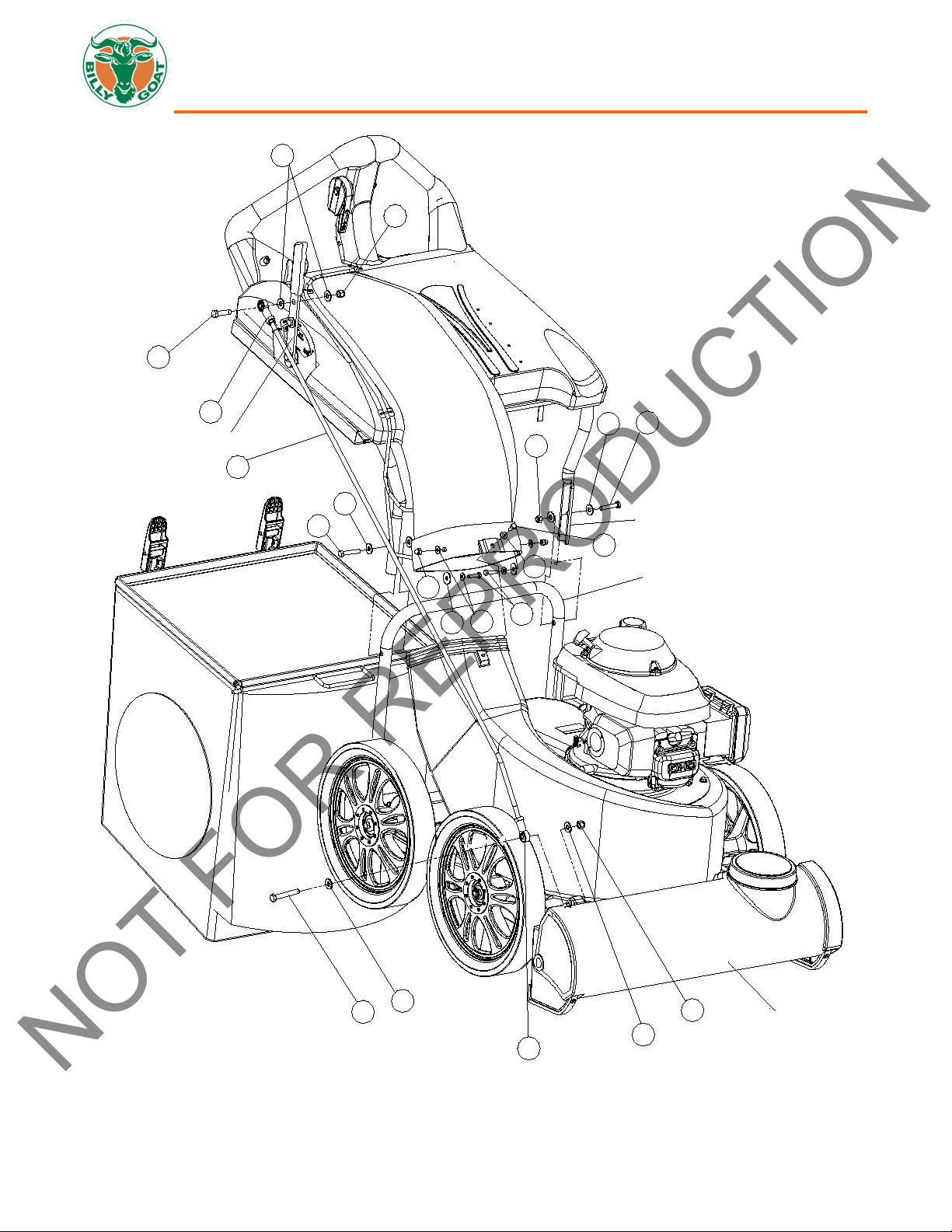

MV Vacuum Assembly Drawing
166
152 159
170
153
161
158
161
166
160
164
160
160
173
152
164
139
159
165
171
167
LOWER HANDLE
UPPER HANDLE BRACE
NOZZLE DOOR LEVER
NOZZLE DOOR
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 8840506_A_HI
PARTS BAG PARTS LIST
ITEM NO. PART NO. DESCRIPTON QTY
139 840061 ROD LIFT NOZZLE DOOR 1
150 900407 TY- WR AP 2
152 8171003 WASHER 5/16" FLAT ZP 4
153 8160002 NUT LOCK 5/16"-18 2
158 8041006 SCREWCAP 1/4"-20 X 1" ZP 2
159 8041031 SCREWCAP 5/16" X 1 3/4" ZP 2
160 8171004 WASHER 3/8 FLAT 4
161 8172007 WASHER 1/4" SAE ZP 5
164 400886 ROD END BALL JOINT 3/8" NF 2
165 8041052 SCREWCAP 3/8"-16 X 1 1/2" ZP 1
166 8160003 NUT LOCK 3/8"-16 2
167 8041056 SCREWCAP 3/8"-16 X 2 1/2" ZP 1
170 8041004 SCREWCAP 1/4"-20 X 3/4" HCS ZP 1
171 8172019 WASHER FENDER 1/4" ZP 2
173 840071 NUT ACORN 1/4"-20 2
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 9840506_A_HI

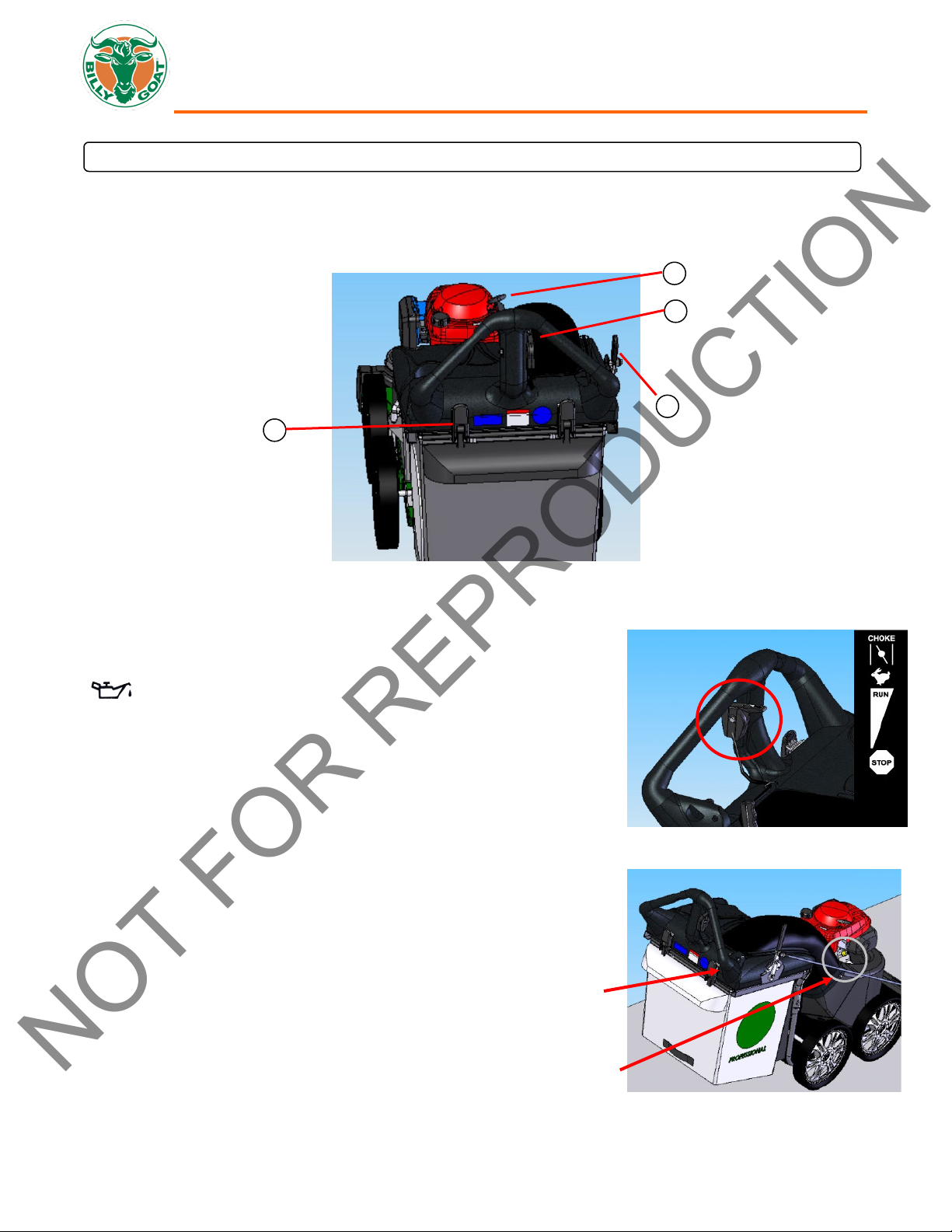

OPERATION
OPERATOR CONTROLS
The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to
allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine. Operator’s controls are
shown below.
Operator Control Locations
1 Nozzle Door Adjuster 4 Throttle Control
2 Bag Latch
3 Pull Starter
STARTING
CHECK engine oil level before operating machine.
SHUT DOWN
1. Pull the throttle control all the way back to the STOP position.
2
3
4
1
Secure unit at the handle
with left hand during start.
Pull rope starter with right
hand.
DO NOT START the equipment without the debris bag in place.
1. Place equipment on a level, firm surface that is free of rocks or other
debris.
2. Place throttle in CHOKE position.
3. Secure the unit with left hand at the handle then pull starter rope
with right hand to start engine. NOTE: Pull starter cord slowly until
resistance is felt. Then pull cord rapidly to avoid kickback.
4. Move throttle control back to RUN position and allow engine to reach
correct operating speed.
Fig. 8
Fig. 9
NOT FOR REPRODUCTION

MV PUSH EU Owner’s Manual
Part No 840506 10 840506_A_HI
VACUUM NOZZLE HEIGHT ADJUST
VACUUM NOZZLE DOOR ADJUSTMENT
The vacuum nozzle door adjusts for the maximum performance under various applications.
•With the handle fully back the nozzle is fully opened. This is ideal for turf application. (See Fig. 11)
•For hard surface applications, set the handle midway. (See Fig. 12)
•Close nozzle for use with the Optional Hose Kit (P/N 840116). This adjustment is ideal to use with the Hose Kit.
(See Fig. 13)
VACUUMING OPERATION
This machine is designed for vacuuming leaves, grass clippings, and other types of organic litter.
Debris mixed with cans, bottles, and small amounts of sand can be vacuumed; however, it is not this machine's primary
purpose. Vacuuming cans, bottles, and sand will affect the longevity of your machine. In dusty conditions it maybe
necessary to purchase Felt Bag Kit (P/N 840022).
Do not operate if excessive vibration occurs. If excessive vibration occurs, shut engine off immediately and check for
damaged or worn impeller, loose impeller bolt, loose impeller key, loose engine or lodged foreign objects. Note: See parts
list for proper impeller bolt torque specifications. (See Trouble Shooting section on page 22).
CLEARING ACLOGGED NOZZLE
DISCONNECT spark plug wire before servicing unit.
1. Shut engine off and wait for impeller to stop completely.
2. Disconnect spark plug wire.
3. Wearing durable gloves, remove clog. Caution: clog may contain sharp materials.
4. Reconnect spark plug wire.
For maximum pickup: Adjust nozzle height as close to debris as possible, but
without blocking airflow into the nozzle. NOTE: Never bury nozzle into debris.
The vacuum nozzle is raised and lowered by turning the crank handle
clockwise and counter-clockwise. (See Fig. 10)
Fig. 10
Fig. 11
Fig. 12
Fig. 13
NOT FOR REPRODUCTION
