FORCETM 6O2V & 602X BLOWER Owner’s Manual
Part No 441502 1441502_A_HI
FORCE BLOWER Owner's Manual
F602V, F602X
ACCESSORIES
Original Instructions
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
FRONT AIR DIRECTOR
Simple to attach, allowing air
to be directed forward.
PN# 441130
HOSE KIT
Easily attached hose and
nozzle for hard to reach
places.
PN# 441166
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
2
CONTENTS
SPECIFICATIONS, SAFETY, & INSTRUCTION LABELS 3
PACKING CHECKLIST 4
ASSEMBLY 5-6
OPERATION AND MAINTENANCE 6-7
TROUBLESHOOTING 8
ILLUSTRATED PARTS LIST 9-10
Go to http://www.billygoat.com for French-Canadian translations of the product manuals.
Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits.
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
3
SPECIFICATIONS
F602V F602X
Engine HP 5.0 HP (kW) 4.74 HP (3.53kW)
Engine Model 10V3320003F1 130G320231F1
Engine Type B & S VANGUARD ENGINE B&S XR
Engine Fuel Capacity 3.3 qt. (3.1 L) 3.2 qt. (3.0 L)
Engine Oil Capacity 0.63 qt.(0.60 L) 0.63 qt. (0.60 L)
Total Unit Weight 89 lb (40.3 kg) 83 lb (38kg)
Overall Length 43.5" (1.1m) 43.5" (1.1m)
Overall Width 22” (0.56m) 22” (0.56m)
Overall Height 45" (1.14m) 45" (1.14m)
Max Operating Slope 20o20o
SAFETY
WARNING
This product can expose you to chemicals including gasoline engine exhaust, which is known to the State of California to cause
cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT®FORCETM Blower. If any labels are damaged or missing, replace
them before operating this equipment. For your convenience in ordering replacement labels, part numbers are included in the
Illustrated Parts List. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
LABEL SPARK ARRESTOR
P/N 100252
LABEL EXPLOSIVE FUEL
ITEM # 34 P/N 400268
LABEL READ OWNERS MANUAL
ITEM # 35 P/N 890301
LABEL SAFETY PROTECT
ITEM # 36 P/N 100346
LABEL FLYING DEBRIS
ITEM # 37 P/N 810736
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
4
PACKING CHECKLIST
These items should be included in your carton. If any of these parts are missing, contact your dealer.
Your BILLY GOAT®FORCE Blower was shipped in one carton, completely assembled except for the front wheel, upper handle
assembly, and the Aim-N-ShootTM cable.
READ all safety instructions before assembling unit.
TAKE CAUTION when removing the unit from the box as the Handle Assembly is attached to the unit by
cables.
PUT OIL IN ENGINE BEFORE STARTING
Boxing Parts Checklist
Handle Upper Assembly
Item 24 P/N-441408
Parts Bag & Literature Assy
P/N-441406
Vanguard 5.5
B&S XR950
PARTS BAG & LITERATURE ASSY
Warranty card P/N- 400972, Owner’s Manual P/N-441502, General Safety and Warnings Manual P/N-100294, Declaration of
Conformity P/N-441249
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
5
ASSEMBLY

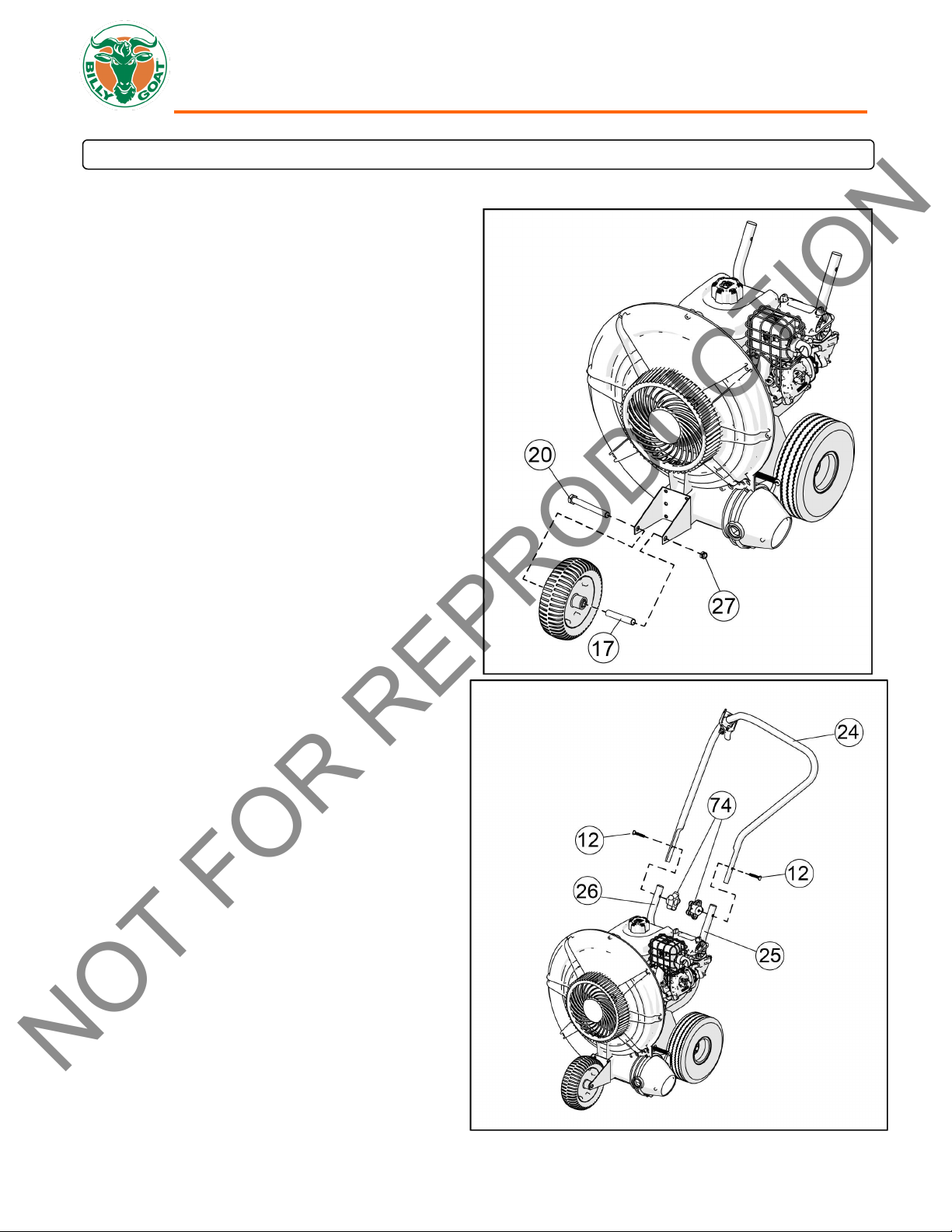

1. First, attach the front wheel. The hardware
to secure the wheel (spacer, bolt, and nut)
are included with your unit. Gently lower
your Billy Goat ForceTM Blower onto its
back to access the front wheel bracket.
Insert the spacer into the front wheel. Then,
place the wheel into the front wheel
bracket. Line up the wheel axle holes with
the holes inthe bracket. Insert the bolt into
the bracket and front wheel, and then
secure the wheel with the nut provided.
Use 9/16” wrenches to tighten the
hardware and further secure the front
wheel assembly. See Figure 1. With the
front wheel attached, gently lift your Billy
Goat ForceTM Blower into operating
position. Chock the front wheel to keep the
unit from moving while you assemble the
handles.
2. Second, assemble the handles. Locate the
upper handle assembly hardware, two bolts
and two knobs. Line up the upper handle to
the lower handles. Secure the upper
handle to the lower handle with the bolt
and knob. Tighten by hand. Note that the
knob should be installed inside the handle
assembly. See Figure 2. Secure the
opposite side of the handle assembly with
the remaining bolt and knob.
3. Finally, connect the Aim-N-ShootTM cable.
One end of the Aim-N-ShootTM cable is
connected to the airdirector cone, but you
will need to connect the ball end of the
cable to the Aim-N-ShootTM control lever on
the upper handle. First, locate the rolled up
cable beneath the unit. Then unroll the
cable, thread the cable to the outside of the
machine and up to the handle. Push down
on the air director cone to release extra
length on the ball end of the cable. See
Figure 3. With the extra length released,
attach the Aim-N-ShootTM cable to its
holder on the Aim-N-ShootTM control lever.
See Figure 4. Finally, secure your Aim-N-
ShootTM cable to the unit with the zip ties
provided.
NOTE: All items referenced in ( ) can be found in the Illustrated Parts Drawing and Parts List found at the back of the
manual.
Fig. 1
Fig. 2
NOT FOR REPRODUCTION

OPERATION
BLOWING OPERATION
Your Billy Goat ForceTM blower isequipped with an air director cone and the patented Aim-N-ShootTM control lever to allow the
operator to direct the air stream up or down as required to assist in moving debris. This feature is extremely useful when debris
haspiled up to the point that it cannot be blown any farther. The air stream can be directed upward to blow the top of the debris
pile over and allow the operator to continue moving more debris farther.
ADJUSTING AIR DIRECTOR
To adjust airdirection, squeeze Aim-N-Shoot control lever.When you want to blow debris at the same angle for an extended
period, choose a suitable position and use the finger controlled push button lock to lock the cone in position. For operationsthat
do not require the use of the Aim-N-Shoot feature, themanual adjustment knob, pictured below, can be used to permanently lock
the cone into position. NOTE:be sure to release the knob when returning to using the Aim-N-Shoot (See Fig. 5).
DO NOT position director cone to where it will blow debris towards people, vehicles or other objects in vicinity. Flying debris
may damage, harm, or cause injury to people or objects in air flow range.
FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
6
Manual
adjustment
knob
Fig. 5
Fig. 3
Fig. 4
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
7
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:
Maintenance Operation Every Use Daily or Every 5 Hours Every 100-150 Hours
Inspect for worn or damaged parts 
Check for excessive vibration 
Inspect impeller for cracks or damage 
Inspect for loose parts 
IMPELLER REMOVAL
1. Wait for engine to cool and disconnect spark plug.
2. Remove housing front cover by removing the ten screws from around outside of front cover and the exhaust knob (item
#22) and nut (item #14).
3. Remove impeller bolt (item #29), lock washer (item #7) and washer (item #28).
4. DO NOT pry on impeller. Pull on center hub area only of impeller. If impeller slides off freely, proceed to (step 6).
5. If the impeller does not loosen, use a pry bar against the back of the hub and the plate and apply pressure to separate
the impeller from the shaft. DO NOT use the pry bar to apply pressure to any plastic part such as the impeller or the
main housing. Using a penetrating oil can help loosen a stuck impeller.
6. Reinstall new impeller in reverse order of removal.
7. Tighten impeller bolt. Torque impeller bolt (see Parts List on page 10 for proper impeller bolt torque specifications).
TIRE AIR PRESSURE
Check at regular intervals and maintain.
Rear Tires - 20 Psi (137 kPa).
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
8
TROUBLESHOOTING
*Using compressed air, or a backpack blower, you can
loosen or free debris easily from the impeller and housing,
which can cause wear and tear on the machine. You can
manually remove debris by taking off the front housing.
NOTE: Always disconnect the spark plug when servicing.
(See Fig. 4 and 5)
Fig. 6
Fig. 7
Problem Possible Cause Solution
Abnormal vibration Loose or out of balance impeller. Check impeller and replace if required.
Debris in impeller.
Clear debris with compressed air or a
backpack blower (See Fig . 6 and 7 below).*
Loose engine. Check engine.
Engine will not start Engine not in full choke position. Check choke position.
Out of gasoline or bad, old gasoline. Check gasoline.
Spark plug wire disconnected. Connect spark plug wire.
Gas valve off. Turn on gas valve.
Dirty air cleaner.
Clean or replace air cleaner. Contact a
qualified service person.
Engine is locked, will not pull
over
Engine problem.
Contact an engine servicing dealer for
engine problems.
Aim-N-Shoot
TM
lever sticking Debris stuck around cone. Clean debis.
Cone adjustment knob too tight.
Apply silicone based lubricant to
Adaptor mount nut (item #43) too
pivot points.
tight. Loosen manual adjustment knob.
Loosen nut.
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
9
F601V and F601X PARTS DRAWING
NOT FOR REPRODUCTION

FORCETM 602V/X BLOWER Owner’s Manual
Part No 441502 441502_A_HI
10
F601V and F601X PARTS LIST
F602V F602X
ITE M NO. DESCRIPTION PART NUMBER QTY. PART NUMBER QTY .
1ENGINE, 160CC, VANGUARD 382351 1 - -
ENGINE B&S XR - - 441210 1
2BASE ENGINE WA 441151-S 1441151-S 1
3SCREW PLASTITE #8-16 X 3/4" HWH 441155 10 441155 10
4PLATE REINFORCE HOUSING 441102 2441102 1
5HOUSING FRONT MOLDED 441101-1-S 1441101-1-S 1
6HOUSING BACK MOLDED 441101-2 1441101-2 1
7WASHER LOCK 5/16 ST MED 8177011 58177011 5
8SCREW CAP 5/16-24 X 1" GR. 5 ZP 400164 4400164 4
9ROD HAND STOP 441154 1441154 1
10 WASHER 5/16 FLATWASHER Z/P 8171003 12 8171003 12
11 NYLON INSERT LOCKNUT 5/16-18 8160002 48160002 4
12 BOLT CARRIAGE 5/16-18 X 2" CONE HEAD ZP 80003918 280003918 2
13 SCREW PLASTITE 1/4-10 X 3/4 HWH 840082 4840082 4
14 NUT LOCK 5/16-18 LT WT TH ZP 8161041 18161041 1
15 RING RETAINING 3/4 850230 2850230 2
16 WHEEL 8" X 0.5 441123 1441123 1
17 SPACER FRONT AXLE 441162 1441162 1
18 WHEEL ASSY 10" 400295 2400295 2
19 FRONT WHEEL BRACKET 441122 1441122 1
20 SCREWCAP 3/8-16 X 3 3/4 HCS ZP 8041061 18041061 1
21 WASHER W/BOLT WA 441156 1441156 1
22 KNOB 5/16-18 X 5/8 FLUTED 400339 1400339 1
23 WASHER EXTENSION 810652 1810652 1
24 HANDLE UPPER 441157-S 1441157-S 1
25 HANDLE LOWER LH 441158 1441158 1
26 HANDLE LOWER RH 441159 1441159 1
27 NUT LOCK 3/8-16 LT WT THIN ZP 8161042 18161042 1
28 WASHER 1.125 OD X 0.344 ID X 10 GA. 441150 1441150 1
29
SCREWCAP 5/16-24 X 1 1/2 GR 8 24-28 Ft. lbs. (33-38 N.m.
830135 1830135 1
30 DIRECTOR CONE 3.5" 441120-01 1441120-01 1
31 SCREWCAP 5/16-18 X 2 1/2 8041034 48041034 4
32 IMPELLER ASSEMBLY 16" 441202-S 1441202-S 1
33 LABEL SPARK ARRESTOR 100252 1100252 1
34 LABEL WARNING FUEL EN/SP 100261 1100261 1
35 PLATE ENGINE XR 950 - - 441255 1
36 LABEL SAFETY PROTECT READ MANUAL 100346 1100346 1
37 LABEL DANGER FLYING DEBRIS 810736 1810736 1
38 GRIP 1" ID x 13" 400570 2400570 2
39 LABEL LOGO SMALL FRAME 441234 1441234 1
40 KEY 3/16" SQ x 1 3/4 9201084 19201084 1
41 SPACER ENGINE BRIGGS XR - - 441254 1
43 NUT LOCK 1/4"-20 HEX ZP 8160001 48160001 4
44 HANDLE DIVERTER FORCE 440119 1440119 1
45 PIN LATCH DIVERTER 440118 1440118 1
46 SPRING COMPRESSION 0.281 X 0.88 440129 1440129 1
47 RING RETAINING .122 DIA 440125 1440125 1
48 SADDLE LOWER DIVERTER 440115 1440115 1
49 PLATE LOCK DIVERTER 440116 1440116 1
50 SCREW PLASTITE #6-19 X 5/8" 440132 1440132 1
51 SADDLE UPPER DIVERTER 440114 1440114 1
52 SCREW PLASTITE #10-14 X 1" 440126 2440126 2
53 PIN PIVOT DIVERTER CONTROL 440123 1440123 1
54 RING RETAINING 5/16 430327 1430327 1
55 CABLE ASSY 441163 1441163 1
56 DIVERTER PIVOT ADAPTOR 440121 1440121 1
57 SPRING EXTENSION 0.468 X 5.25 440130 1440130 1
58 PIN CLEVIS 1/4 X 3/4 440124 1440124 1
59 .051 X 3/4" HITCH PIN CLIP 440193 1440193 1
60 ADAPTOR MOUNT WA 440122 1440122 1
61 TY-WRAP 900407 3900407 3
62 LABEL VIBRATION WARNING 440191 1440191 1
63 FORCE WHEEL BEARING .751 ID 440055 2440055 2
64 ELASTIC LOOP BLACK 5.5" 100267 1100267 1
65 SCREWCAP 1/4-20 X 1 1/4" HCS ZP 8041007 28041007 2
66 FENDER WASHER 5/16 8172020 48172020 4
67 WASHER 1/4" SAE 8172007 48172007 4
68 SCREWCAP 1/4"-20 1 1/2" HCS ZP 8041008 28041008 2
69 SCREWCAP #10-24 X 1 1/4" HWH ZP 8059140 18059140 1
70 WASHER #10 SAE 8172005 28172005 2
71 NUT LOCK LT #10 - 24 HEX 8164005 18164005 1
72 NUT LOCK 1/4"-20 2 WAY 8142004 18142004 1
73 LABEL AIM AND SHOOT 440332 1440332 1
74 KNOB, 5-LOBE 5/16"-18 FEMALE 441258 2441258 1
75 DIVERTER ASSY 440312 1440312 1
NOT FOR REPRODUCTION
