BILLY GOAT ®BC2600EU Hydro Series Brush
Cutter
Owner’s Manual

Part No 501606 2 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
CONTENTS
Specifications and Sound/Vibration .................................................................................................................. 3
Instruction Labels .............................................................................................................................................. 4
Assembly Instructions ....................................................................................................................................... 5-6
Operation ........................................................................................................................................................... 7-9
Maintenance ......................................................................................................................................................10-15
Troubleshooting ................................................................................................................................................. 16
Illustrated Parts List ...........................................................................................................................................17-24

Part No 501606 3 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
BC2600EU SERIES SPECIFICATIONS
BC2600ICHEU
BC2600HHEU
Engine Type
Briggs and
Stratton
Honda GX390
Model Number
219972 0151 F!
GX390UT2 DABG
Displacement
344 cc
390 cc
Fuel Capacity
3.0 qt (2.80 L)
3.0 qt (2.80 L)
Oil Capacity
1.5 qt (1.4L)
1.5 qt (1.4L)
Unit Weight
325 lb (147.4 kg)
325 lb (147.4 kg)
Overall Length
80 in (2.03 m)
Overall Width
31 in (0.78 m)
Overall Height
48 in (1.21 m)
Maximum Operating
Slope
15o
20o
SOUND DATA
SOUND LEVEL 91.6 Dba at Operator’s position
Sound tests were conducted in accordance with 2000/14/EEC and were performed on 11/30/11 under the conditions listed below.
Sound power level listed is the highest value for any model covered in this manual. Please refer to serial plate on the unit
for the sound power level for your model.
General Conditions: Sunny
Temperature: 47oF (8.3oC)
Wind Speed: 9 mph (14.5 kph)
Wind Direction: South
Humidity: 25%
Barometric Pressure: 30.07” Hg (101.83 kPa)
VIBRATION DATA
VIBRATION LEVEL .3g (3.13 m/s2)
Vibration levels at the operator’s handles were measured in the vertical, lateral and longitudinal directions using calibrated vibration test
equipment. Tests were performed on 11/30/11 under the conditions listed below.
General Conditions: Sunny
Temperature: 47oF (8.3oC)
Wind Speed: 9 mph (14.5 kph)
Wind Direction: South
Humidity: 25%
Barometric Pressure: 30.07” Hg (101.83 kPa)
112 dB

Part No 501606 4 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual

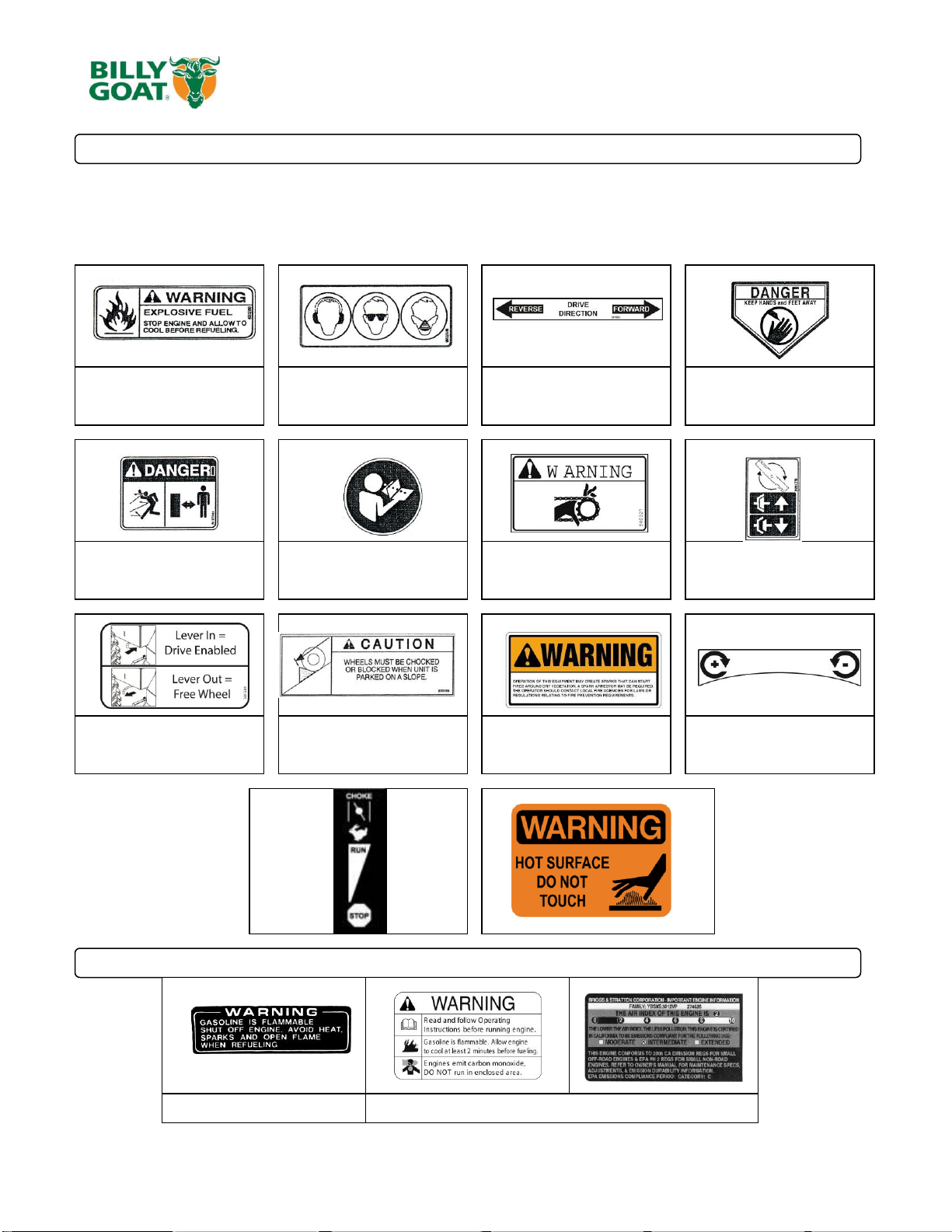

INSTRUCTION LABELS
The labels shown below were installed on your BILLY GOAT ®Euro Hydro Brush Cutter. If any labels are
damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List
and part numbers are provided for convenience in ordering replacement labels. The correct position for each
label may be determined by referring to the Figure and Item numbers shown.
PN 100261
(Item 61)
PN 890254
(Item 134)
PN 810736
(Item 136)
PN 890301
(Item 133)
PN 900327
(Item 20)
PN 500177
(Item 135)
PN 501502
(Item 85)
PN 400424
(Item 5)
PN 501504
(Item 139)
PN 500168
(Item 140)
PN 100256
(Item 62)
Honda
Briggs and Stratton
ENGINE LABELS
PN 501512
(Item 165)

Part No 501606 5 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual

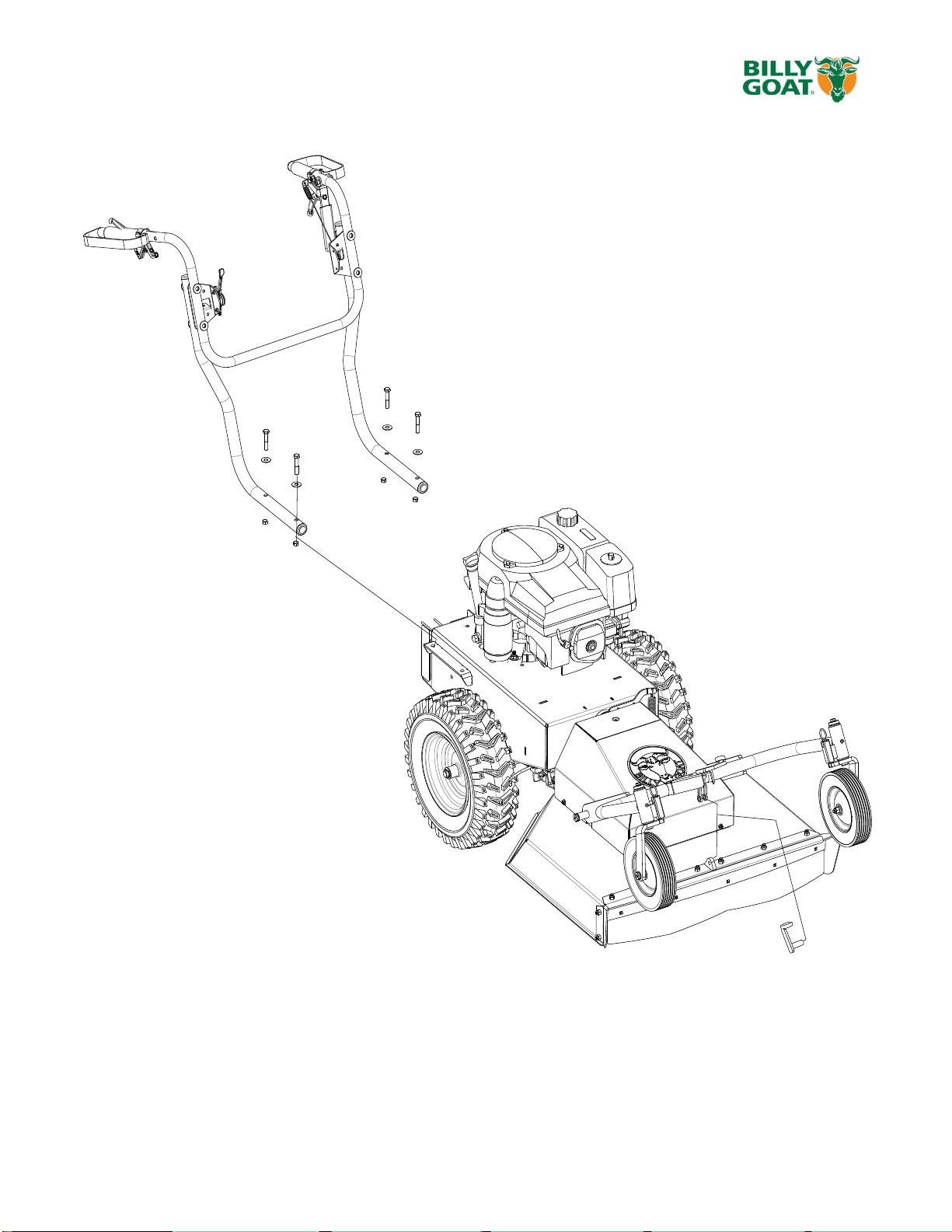

Brush Cutter Assembly Drawing

Part No 501606 6 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
ASSEMBLY INSTRUCTIONS
Your BILLY GOAT ®BC Self-Propelled Hydro Brush Cutter was shipped in one carton, completely assembled except for the
upper handle assembly and the front caster bracket mount. Mounting hardware for the handle and caster bracket mount can
be found in the parts bag. The throttle cable hardware is located on the bracket on the right side of the handle
READ all safety instructions before assembling unit.
A CB18, C50, SC50 or MCB50 series dry or wet battery with a 17.2 Ah rating is required when
replacing the battery.
Numbers in parenthesis ( ) refer to item numbers in the parts list.
1. Remove unit from carton. Make sure the following items that have been packed with unit:
Upper Handle Assembly, P/N 501010, Electric model P/N 501009
Owner’s Manual, P/N 501505
General Safety and Warnings Manual 100296
Honda or Briggs and Stratton Engine Manual
Warranty Card, P/N 400972
Ty-Wraps (4 ea)
Screwcap 3/8” – 16 X 2” P/N 8041054 (qty 4)
Washer 3/8” flat P/N 8171004 (qty 4)
Nut Lock 3/8”-16 P/N 8160003 (qty 4)
Nut lock #10-24 hex P/N 8164005 (qty 2)
Screw machine flat HD Phil P/N 830514 (qty 2)
Spring pin clevis P/N 501318 (qty 1)
DISCONNECT spark plug wire before assembling unit.
2. Remove mounting hardware from the hardware bag.
3. Attach the handle to the engine base with the items 72, 73, and 48.
4. Tighten mounting hardware on handle braces (5 and 6).
5. Attach the throttle (82) to the right hand bracket (70) using the hardware items 83 and 84. Tighten securely and make
sure the cable isn’t binding.
6 Attach the Blade drive cable to the lever and seat the plastic insert into the bracket on the left side of the handle
7. Secure the drive and blade cables with the ty-wraps provided
8. Attach the caster bracket frame to the deck with the clip (item 164), make sure the clip section snaps completely around
the neck of the yoke.
9. Reconnect spark plug wire.

Part No 501606 7 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual

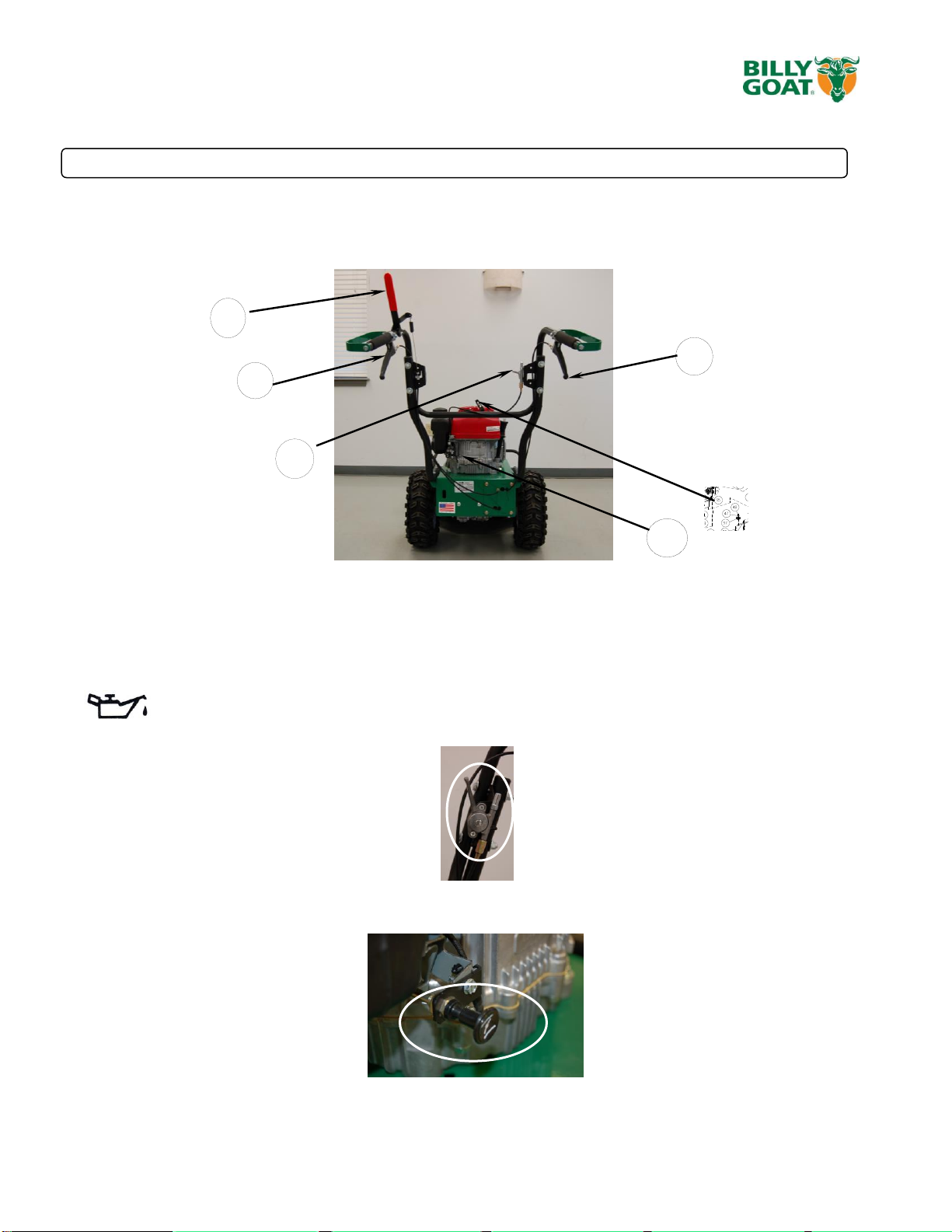

OPERATION
OPERATOR CONTROLS
The operator’s station is at the rear of the machine between the handlebars. The operator should STAND in a position to
allow both handlebars to be grasped firmly and which allows sufficient leverage to steer the machine. Operator’s controls are
shown below.
Operator Control Locations
1 Blade Clutch Lever
2 Forward Lever 5 Pull Starter
3 Reverse Lever 6 Choke
4 Throttle
STARTING
CHECK engine oil level before operating machine.
1. Place equipment on a level, firm surface that is free of rocks or other debris.
2. Place throttle in Fast position.
Throttle
3. Pull choke out (Honda engine only).
Choke
1
2
3
6
4

Part No 501606 8 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
DO NOT START equipment with drive or blade clutch engaged.
4. Units equipped with manual starters: Pull starter rope to start engine.
PULL STARTER CORD slowly until resistance is felt. Then pull cord rapidly to avoid kickback.
5. Push choke in (Honda engine only).
6. Pull throttle control back to and allow engine to reach correct operating speed.
CUTTING
The best performance is achieved when cutting in dry conditions. The quality of the cut is directly related to ground speed
during cutting. Under most conditions cutting should be done at a slower ground speed. Fast speeds should be reserved for
conditions where weeds and brush are thinned out or not very tall. If the quality of the cut is not satisfactory, attempt at
slower speeds.
1. Press blade clutch handle down to engage blade. Allow blade to spin up to normal operating speed.
Blade Clutch Lever

Part No 501606 9 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual

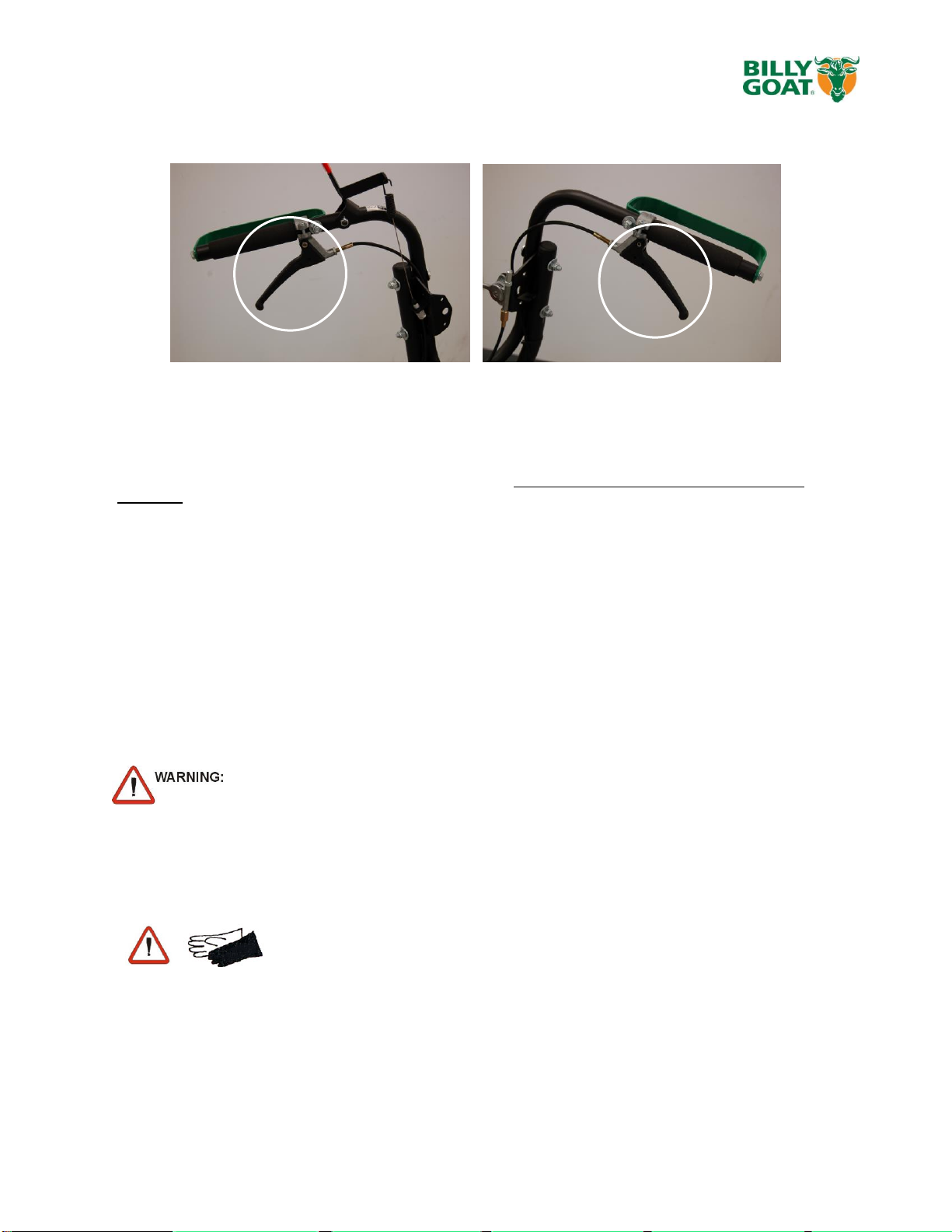

2. Pull Forward or Reverse Drive lever up to engage transaxle in desired direction.
Reverse Drive Lever (left hand) Forward Drive Lever (right hand)
DECK HEIGHT ADJUSTMENT
1. To raise and lower the cutting height on the deck, pull the knob upwards and rotate the handle Clockwise to raise the
cutting height and counter-clockwise to lower the cutting height. DO NOT ADJUST HEIGHT WITH THE BLADE
RUNNING
SHUT DOWN
1. Release drive lever to disengage transaxle.
2. Release blade clutch handle to disengage blade.
3. Move the throttle to the slowest possible position on the throttle control.
CLEARING A CLOGGED CUTTING DECK
1. Shut engine off and wait for blade to stop completely.
2. Disconnect spark plug wire.
3. Remove clog from cutting deck.
WEAR durable gloves. Clog may contain sharp materials.
4. Reconnect spark plug wire.
DISCONNECT spark plug wire before servicing unit.

Part No 501606 10 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
MAINTENANCE
PERIODIC MAINTENANCE
Periodic maintenance should be performed at the following intervals:
Maintenance Operation
Every Use
Daily or Every 5
Hours
Every 25 Hours
Every 50
Hours
Every 100-150
Hours
Inspect for worn or damaged parts.

Check for excessive vibration

Inspect for loose parts.

Sharpen blade.

Inspect belts for wear.

Lubricate throttle control cable and linkage.

Check blade clutch cable tension.

Inspect battery for corrosion, damage or leaks
(electric start units only).

Apply anti-seize compound to rear axles.

Check battery strap for excessive wear or rips

Replace blade drive and transaxle drive belts.

COMMON REPLACEMENT PARTS
- Blade. P/N 501224. Original equipment replacement blade.
- Transaxle Drive Belt. P/N 501268. Original equipment replacement drive belt.
- Blade Drive Belt. P/N 501220. Original equipment replacement drive belt.
- Throttle Control Assembly. Throttle control including cable.
CLEANING
Your BILLY GOAT ®Brush Cutter should be cleaned periodically to ensure optimum performance and service life. Clogs and
debris should be removed from the blade area and debris should be removed from the engine cooling fins. A garden hose or
pressure washer may be used for cleaning.
DO NOT SPRAY WATER DIRECTLY ON THE BLADE CLUTCH WHEN USING A POWER
WASHER. SEE FIGURE BELOW.

Part No 501606 11 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual

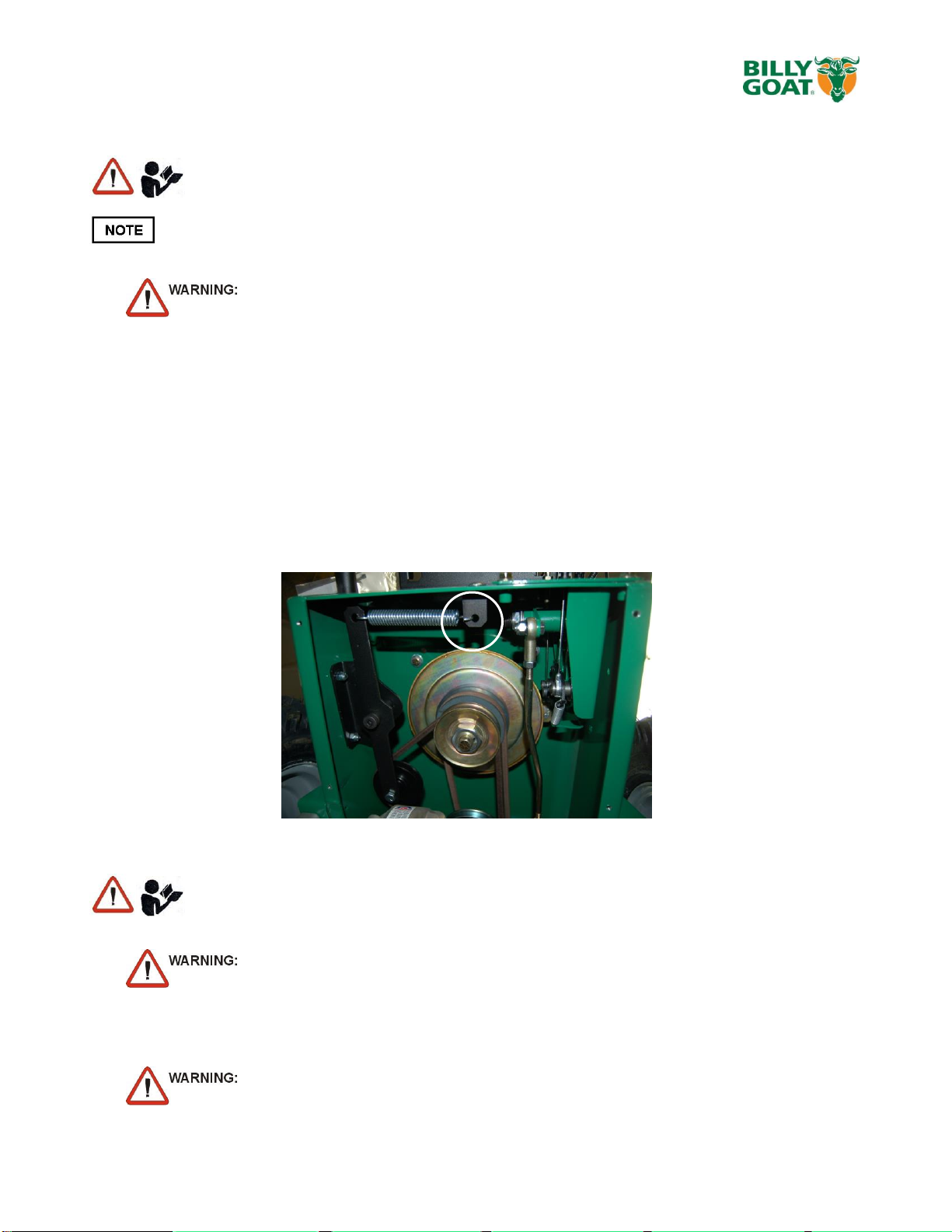

BLADE REMOVAL AND SHARPENING
READ all safety instructions before servicing unit.
Numbers in parenthesis (N) refers to the item number in Illustrated Parts List.
DISCONNECT spark plug wire before servicing unit.
1. Disconnect spark plug wire.
2. Lift and support front of unit to allow access to underside.
UNIT IS HEAVY. Make sure support is adequate to support weight of machine.
3. Block blade to prevent it from rotating during removal.
4. Remove blade nut (23), and friction washer (39).
5. Remove blade (40) and install replacement blade.
When replacing the blade use BILLY GOAT Industries PN 501224 only.
6. Attach new blade with new blade lock nut (23), and new friction washer (39) removed earlier included with your new
blade.
Inspect fasteners for wear and replace if necessary.
7. Torque blade lock nut to 30-40 ft-lbs.
8. Reconnect spark plug wire.
When sharpening blade make sure to sharpen all cutting edges. If the lock nut is removed and
replaced more than once, it should be replaced with a new lock nut (P/N 8160009).

Part No 501606 12 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual

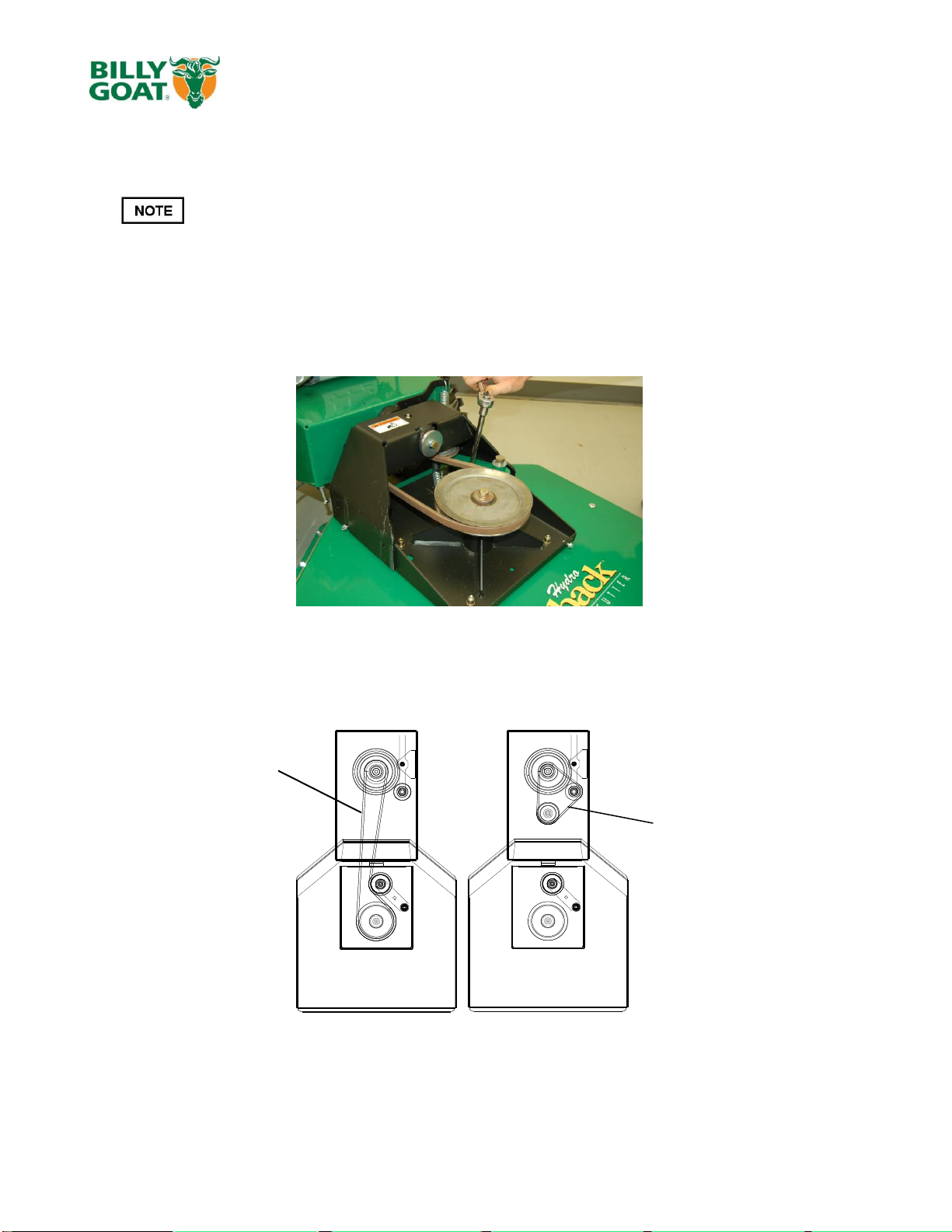

BLADE DRIVE BELT TENSION
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
The Blade Drive belt is under constant tension by the idler arm on the deck
1. Disconnect spark plug wire.
2. Loosen four screws (27) holding belt deck cover (29) and remove the cover.
3. Examine condition of belt and amount of tension on belt.
4. If the idler is not providing enough tension inspect the spring (item 50) attaching it to the spindle base. If not enough
tension is being put on the arm, replace the spring.
7. Replace engine base door (29) and secure with screws removed earlier.
8. Reconnect spark plug wire.
9. Check belt tension by operating unit under conditions that caused belt slippage. If belt continues to slip it may require
replacement before operation may continue.
BLADE CLUTCH ADJUSTMENT
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1. Disconnect spark plug wire.
2. As the clutch/brake wears or begins slipping or squealing, adjustment may be required to maintain proper cable tension
and clutch engagement. A properly adjusted blade clutch should require 10 lbs. of force to depress the end of the clutch
lever. The blade clutch cable spring should stretch 1/4” to 3/8” (6.4-9.5 mm).
3. Adjust cable tension by tightening or loosening cable adjustment nut on rear of engine base (see below). Be sure to
leave enough slack in cable to allow blade brake to engage.

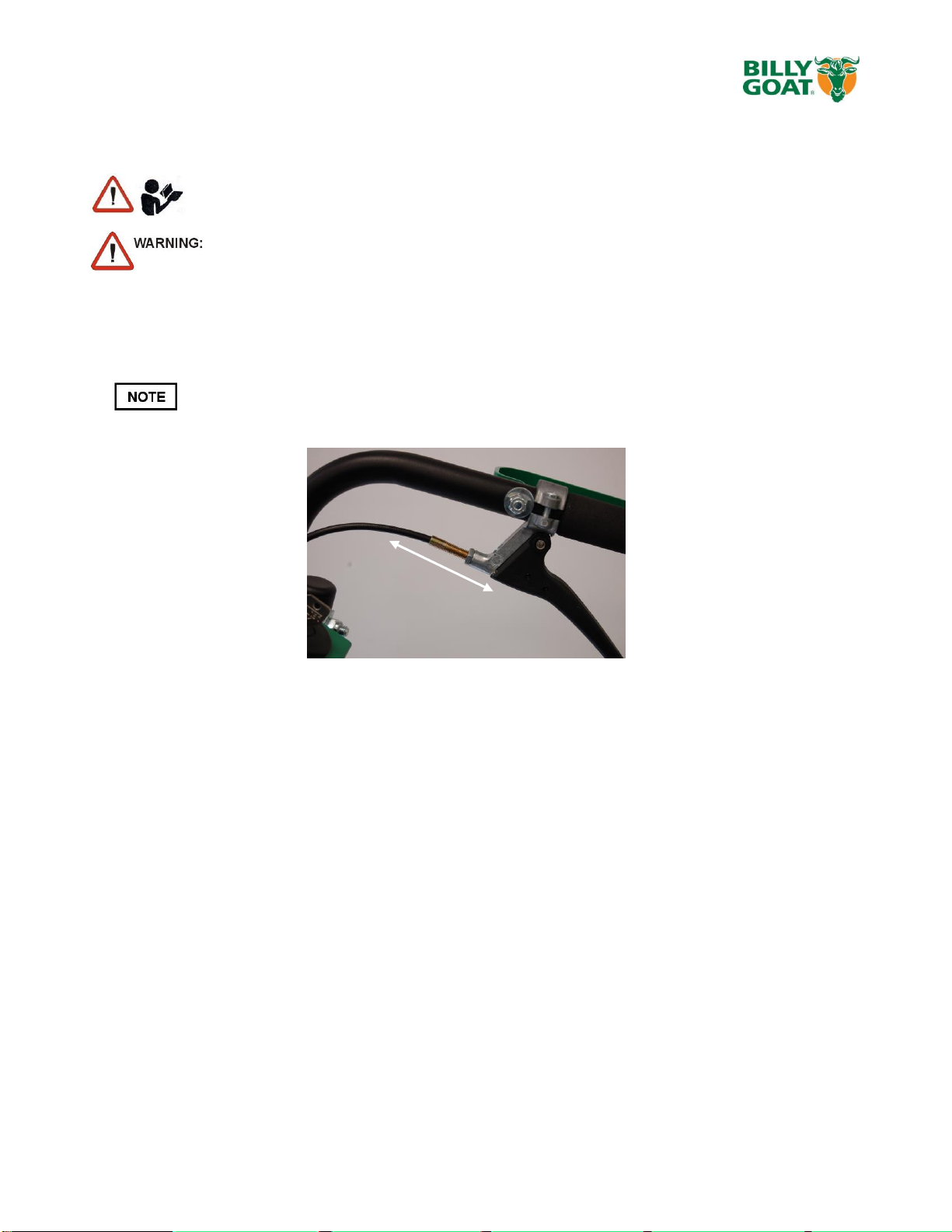

Blade Cable Adjustment
If clutch continues to slip or squeal, do not operate equipment until adequate adjustment or repair
has been performed. Improper adjustment can cause clutch to overheat and slip, greatly reducing
performance and clutch life.
4. Reconnect spark plug wire.

Part No 501606 13 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
TRANSAXLE DRIVE BELT REMOVAL AND REPLACEMENT
READ all safety instructions before servicing unit.
Numbers in parenthesis (N) refers to the item number in Illustrated Parts List.
DISCONNECT spark plug wire before servicing unit.
1. Disconnect spark plug wire.
2. Lift and support the rear of the unit to allow access to the underside
3. Unattach the spring (item 50) from the bracket (item 98) that is keeping tension on the drive belt.
4. Walk the belt (item 121) off of the clutch (item 54) by slowly pulling the engine over. WARNING: use caution not
to pinch fingers between the belt and clutch.
5. Slip the belt off of the transaxle pulley.
6. Replace the belt in reverse order. NOTE: make sure the belt is seated properly in the clutch and transaxle and
make sure that it does not bend over the fan blades on the transaxle.
BLADE DRIVE BELT REMOVAL AND REPLACEMENT
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1. Disconnect spark plug wire.
2. Lift and support rear of unit to allow access to underside.
UNIT IS HEAVY. Make sure support is adequate to support weight of machine.

Part No 501606 14 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
3. Loosen the four screws (27) holding deck belt cover (29) and remove cover.
4. Follow the steps 3 and 4 in the Transaxle drive belt removal section to remove the Transaxle drive belt.
It may be necessary to pry idler pulley (35) away from its original position to release belt, using a ratchet
with an extension in the square hole on the idler arm should allow the proper leverage to pull it off the
belt.
5. Relieve the tension on the blade belt by pulling the deck idler arm off of the belt. Then walk the belt off of the deck
pulley.
6. Feed the belt back to the engine base then slip the belt off of the clutch.
7. Install the new belt in reverse order making sure the belt is seated properly in the clutch.
Removing tension on the blade belt
8. Reconnect spark plug wire.
LOOKING THROUGH TOP
Belt Routing Diagram
(Top View of Machine)
Blade Drive Belt (with
Transaxle Belt not Shown)
Transaxle Drive Belt
(Seated below drive belt
on clutch)

Part No 501606 15 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
TRANSAXLE DRIVE ADJUSTMENT
READ all safety instructions before servicing unit.
DISCONNECT spark plug wire before servicing unit.
1. Disconnect spark plug wire.
2. Adjustments to cable tension are made at the barrel entering the Drive Control Levers.
3. Adjust cable tension by tightening or loosening cable adjustment barrel on rear of engine base (see below).
Moving the cable adjustment barrel OUT increases tension. Moving the barrel IN decreases tension.
Increasing the tension too much will cause the drive to stay engaged whereas not enough will cause it not
to engage when the lever is pulled.
Transaxle Cable Adjustment
4. Reconnect spark plug wire.
DECREASE
INCREASE

Part No 501606 16 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
TROUBLESHOOTING
Problem
Possible Cause
Corrective Action
Engine will not start.
Throttle is set to Slow/Stop position.
Move throttle to fast position.
Out of gasoline.
Fill gas tank.
Old or contaminated gasoline.
Drain gas tank and fill with fresh gasoline.
Spark plug wire disconnected.
Connect spark plug wire.
Dirty air cleaner.
Clean or replace air cleaner.
Starter does not turn.
(Electric start only)
Battery low or dead.
Charge or replace battery.
Battery cable disconnected or corroded.
Clean and secure battery terminals.
Defective starter switch or wiring harness.
Replace starter switch or wiring harness.
Defective starter.
Replace starter.
Blade drive cable tension incorrect.
Adjust blade drive cable tension.
Will not cut or cutting performance is poor.
Dull blade.
Sharpen or replace blade.
Clogged deck.
Unclog deck.
Excessive debris built up on or blocking
blade.
Clear debris from blade area.
Engine RPM set too low.
Check engine RPM.
Abnormal vibrations.
Blade loose or out of balance.
Check blade for tightness. Rebalance if
necessary.
Engine loose.
Check engine mounting bolts.
Blade drive belt worn.
Replace blade drive belt.
Belt slips or smokes.
Belt tension too low.
Adjust belt tension.
Belt worn or stretched.
Replace belt.
Pulleys worn or damaged.
Replace pulleys.
Clutch slips or squeals.
Clutch cable tension too low.
Replace spring on idler arm.
Clutch worn or damaged.
Replace worn or defective clutch assembly
parts.
Blade brake will not engage.
Inadequate slack in clutch cable.
Adjust clutch cable.
Clutch worn or damaged.
Replace clutch/brake assembly.
Transaxle will not engage.
Clutch lever not engaging clutch.
Adjust clutch cable.
Clutch cable defective.
Replace cable.
Belt worn or broken.
Replace belt.
Transaxle will not disengage.
Clutch cable out of adjustment.
Adjust clutch cable.
Engine will not turn over.
Defective blade clutch.
Replace clutch.
Engine problem.
Contact an authorized servicing dealer for
your engine.

Part No 501606 17 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
ILLUSTRATED PARTS LIST
Deck Assembly

Part No 501606 18 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
ITEM
NO
DESCRIPTION
BC2600HHEU
BC2600ICHEU
Part No
QTY
Part No
QTY
1
SCREWCAP 3/8-24 X 1” HCS GR. 8
900154
1
900154
1
2
BLADE KIT BC26
501601
1
501601
1
3
WASHER DECK RETAINNG
501214
1
501214
1
4
LABEL BADGING BC26 HYDRO
501500
1
501500
1
5
LABEL DANGER
400424
4
400424
4
7
BOLT CARRIAGE 5/16”-18 X 3/4” ZP
8024039
6
8024039
6
8
NUT LOCK 5/16-18 ZP
8160002
15
8160002
15
9
WASHER 1.125” OD X 0.344” ID X .25” THK
441150
2
441150
2
12
BUSHING FLANGED 1.250” X 0.380” ID
501316
1
510316
1
13
CARRIAGE BOLT 5/16”-18 X 1”
8024040
5
8024040
5
14
PLATE FRONT DEFLECTOR
501319
1
501319
1
15
RUBBER DEFLECTOR FRONT
501320
1
501320
1
16
HEIGHT ADJUST HANDLE ASSY
501124
1
501124
1
17
DECK INTAKE WA EURO BC26
501123
1
501123
1
18
CASTER FRAME WA
501125
1
501125
1
19
DECK BC26EU WA W/LABELS
501121-S
1
501121-S
1
20
LABEL DANGER GUARD
900327
1
900327
1
21
SCREW SER HEX WASHER FLNG
791080
6
791080
6
22
SCREWCAP 3/8”-16 X 1 1/4” HCS ZP
8041051
1
8041051
1
23
NUT LOCK NYLON INSERT 5/8”-18 GR 2
8160009
1
8160009
1
24
PULLEY 7” OD X 1.000 BORE
501308
1
501308
1
26
BELT 6972 POWERATED
501220
1
501220
1
27
SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F
890359
4
890359
4
28
LABEL PRODUCT DECAL LG CIRCLE
430303
1
430303
1
29
COVER BELT DECK WA BC26 W/LABEL
501602
1
501602
1
30
PIN COTTER 1/8” X 1”
8197031
1
8197031
1
31
WASHER .765 ID X 1.25 OD X .06 THK
850238
1
850238
1
32
WASHER LOCK 3/8 S/T MED
8177012
1
8177012
1
33
WASHER 1.5 OD X .453 ID X .25 THK
440153
1
440153
1
34
TUBE PIVOT IDLER VQ
830526
1
830526
1
35
PULLEY IDLER 4.00 OD X 3/8” BORE
500113
1
500113
1
36
BUSHING PIVOT FRAME AE
360183
1
360183
1
37
ARM IDLER DECK WA BC
501103
1
501103
1
38
ZERK FITTING GREASE
610363
3
610363
3
39
WASHER FRICTION BLADE
501305
1
501305
1
40
BLADE 26” FLAT BC26
501224
1
501224
1
41
SPACER SPINDLE BEARING BC26
501245
1
501245
1
43
BEARING 1.00” SEALED PRESS IN
501302
2
501302
2
44
BUSHING 1.500 ID X 1.5 LONG FLANGED
501217
2
501217
2
45
BRACKET DECK MOUNT WA BC26 W/LABEL
501604
1
501604
1
46
SHAFT BLADE ADAPTER ASSY
501027
1
501027
1
47
WASHER 3/8” SAE
8172009
1
8172009
1
48
NUT LOCK 3/8-16 HEX
8160003
4
8160003
4
49
ARM RTN WA BC26
501116
2
501116
2
50
SPRING LIFT ASSIST TENSION
351254
2
351254
2
51
SCREWCAP 3/8”-16 X 3 3/4” HCS ZP
8041061
1
8041061
1
52
BUSHING PIVOT LIFT
360138
1
360138
1
53
NUT LOCK 3/8”-16 LT WT TH ZP
8161042
1
8161042
1
78
SCREWCAP 5/16”-18 X 1” GR 5 HCS ZP
8041028
2
8041028
2
79
WASHER LOCK 5/16” S/T MED
8177011
2
8177011
2
94
BOLT SHOULDER 1/2” X 2”
520031
2
520031
2
136
LABEL WARNING FLYING DEBRIS
810736
1
810736
1
157
KEY 1/4 SQ. X 0.75”
9201109
1
9201109
1
158
SPRING IDLER BC
501261
1
501261
1
162
CASTER RIGHT SIDE WA
501126
2
501126
2
163
TIRE WHEEL ASSY
501333
2
501333
2
164
SPRING PIN CLEVIS
501318
1
501318
1
165
LABEL HEIGHT ADJUST EURO BC26
501512
1
501505
1
166
CASTER LEFT SIDE WA
501127
1
501127
1
167
YOKE FEMALE STEEL 3/8”-24 RH X 2.50
501317
1
501317
1
168
STOP COLLAR 3/8” ID
831216
1
831216
1

Part No 501606 19 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
Engine Assembly

Part No 501606 20 F041513B
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual
ITEM
NO
DESCRIPTION
BC2600HHEU
BC2600ICHEU
Part No
QTY
Part No
QTY
1
SCREWCAP 3/8-24 X 1” HCS GR. 8
900154
1
900154
1
3
WASHER DECK RETAINING
501214
1
501214
1
8
NUT LOCK 5/16”-18 ZP
8160002
2
8160002
2
11
ENGINE BASE WA W/LABELS
501603
1
501603
1
27
SCREW SELT TAP 1/4-20 X 5/8” HWH
TYPE F
890359
4
890359
4
32
WASHER LOCK 3/8” S/T MED
8177012
1
8177012
1
54
CLUTCH
501223
1
501223
1
55
WASHER LOCK S/T MED
8177013
1
8177013
1
56
SCREWCAP 7/16”-20 X 3 1/2” GR 8
W/PATCH
440150
1
440150
1
58
ENGINE HONDA ELEC START
-
-
-
-
ENGINE BRIGGS
-
-
520046
1
ENGINE HONDA
500334
1
-
-
59
SCREWCAP 5/16”-18 X 1 3/4 HCS ZP
8041031
2
8041031
2
60
WASHER 5/16” FLAT
8171003
4
8171003
4
61
LABEL WARNING FUEL
100261
1
100261
1
62
LABEL SPARK ARRESTOR
100256
1
100256
1
63
PLATE CHOKE BC26
500325
1
-
-
64
SCREWCAP 5/16-24 X 1” GR 8 ZP
W/PATCH
400164
2
400164
2
65
SCREWCAP 5/16”-18 X 2” HCS ZP
8041032
2
8041032
2
66
NUT FLANGE 5/16”-18 ZP
350346
4
350346
4
67
SCREW SER HEX WSHR FLNG 5/16-18 X
3/4”
351264
4
351264
4
68
GUARD REAR HYDRO BC26
501295
1
501295
1
80
CABLE CLUTCH
501279
1
501279
1
132
LABEL MADE IN USA
520116
1
520116
1
133
LABEL READ MANUAL
890301
1
890301
1
134
LABEL EAR EYE PROTECTION
890254
1
890254
1
159
PIN CLEVIS 0.25 X 0.050
440124
1
440124
1
160
PIN HITCH CLIP 0.051 X 3/4
440193
1
440193
1
