BILT HARD TL-G-PC10 User manual

Save This Manual for Future Reference
Original Instruction
Plate Compactors
Operator’s Manual
SKU : TL-G-PC10
Both model number and serial number may be found on the main
label. You should record both of them in a safe place for future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE
OPERATING MACHINE
Customer Support:[phone], [email protected]

PLATE COMPACTORS
2
GB TABLE OF CONTENTS
Specifications
INTRODUCTION
Introduction 2
Specifications 2
Symbols 3
Safety 3
General Safety Rules 3
Specific Safety Rules 5
Contents Supplied 6

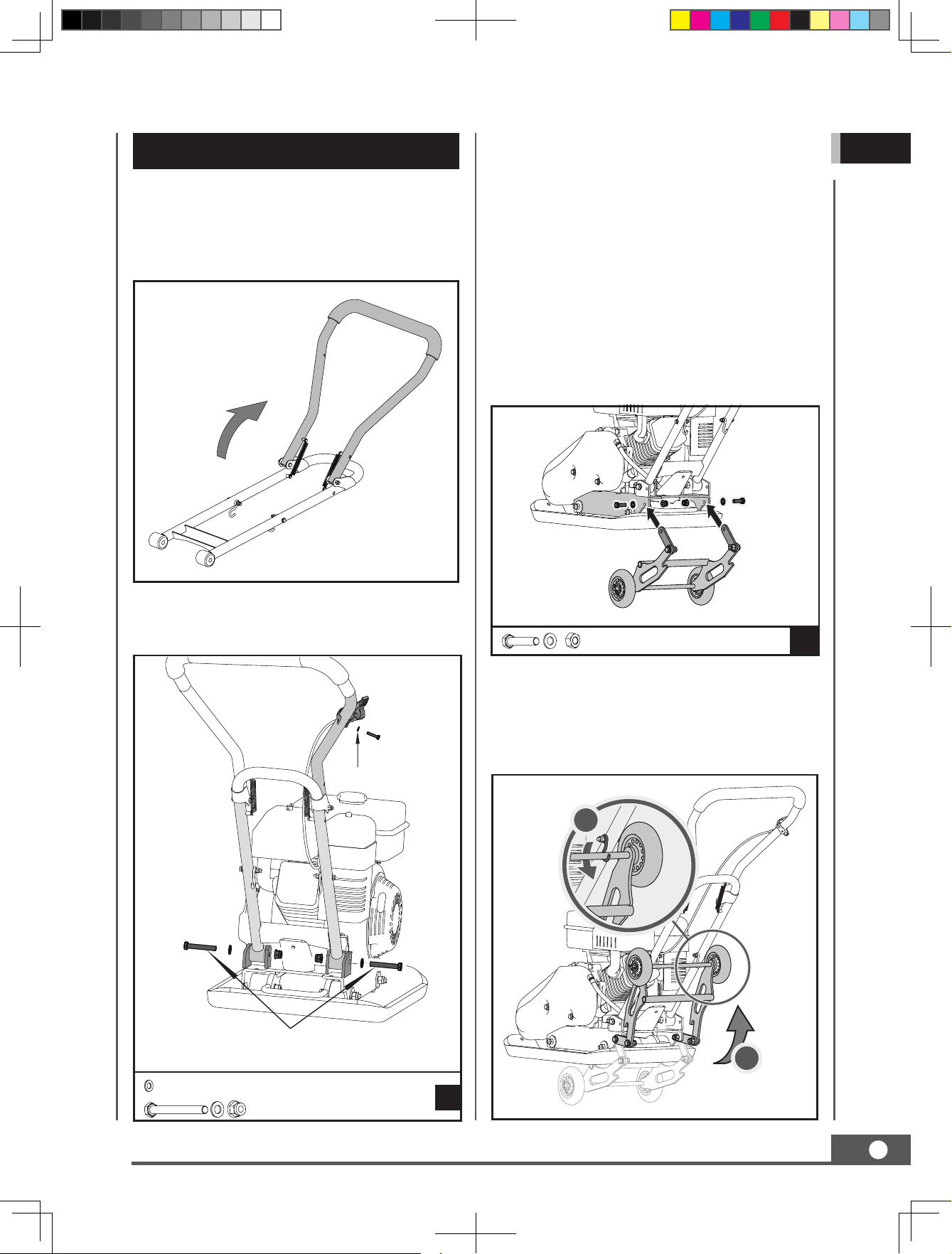

Assembly 7

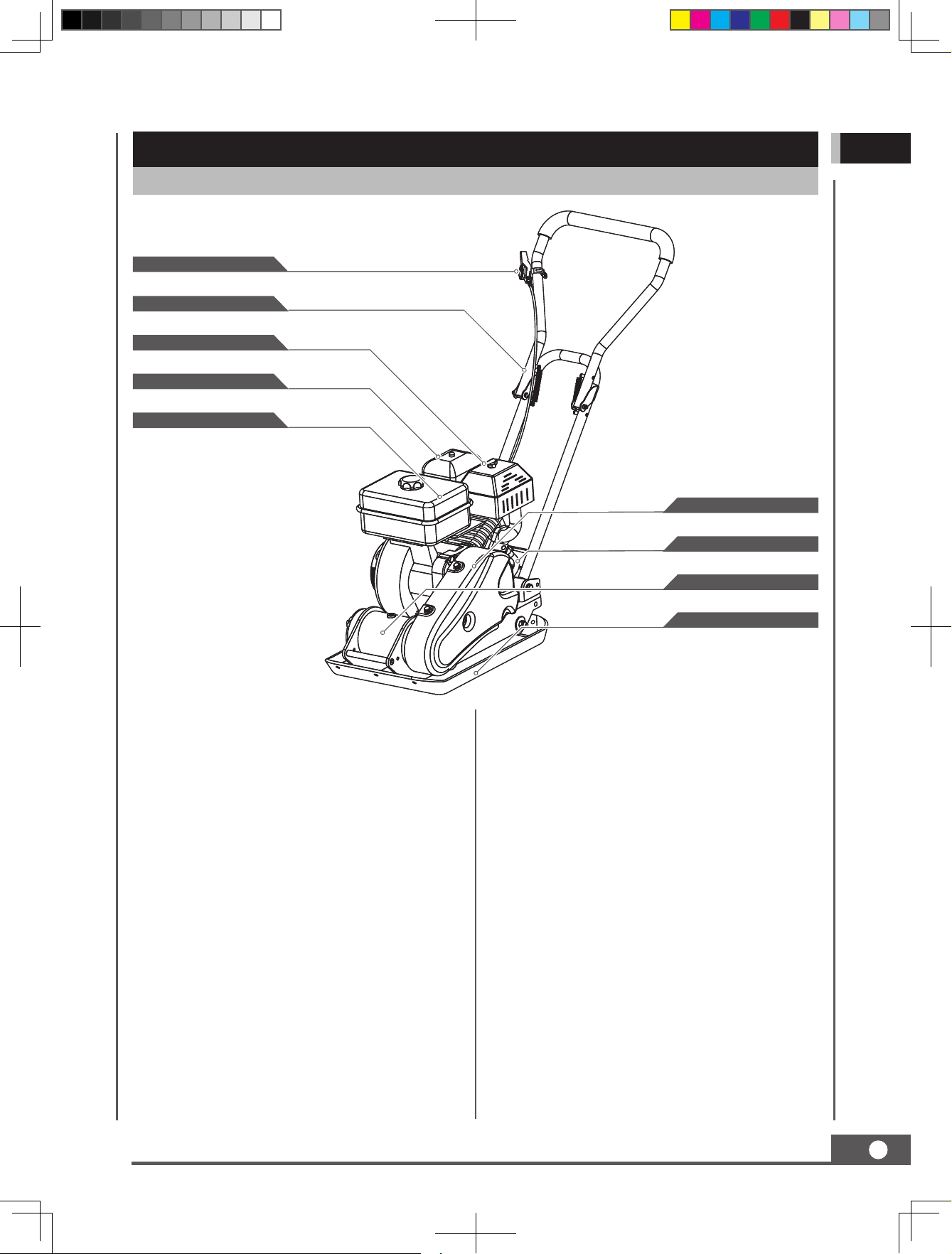

Know your Compactor 9
Features & Controls 9
Compactor Operation 10

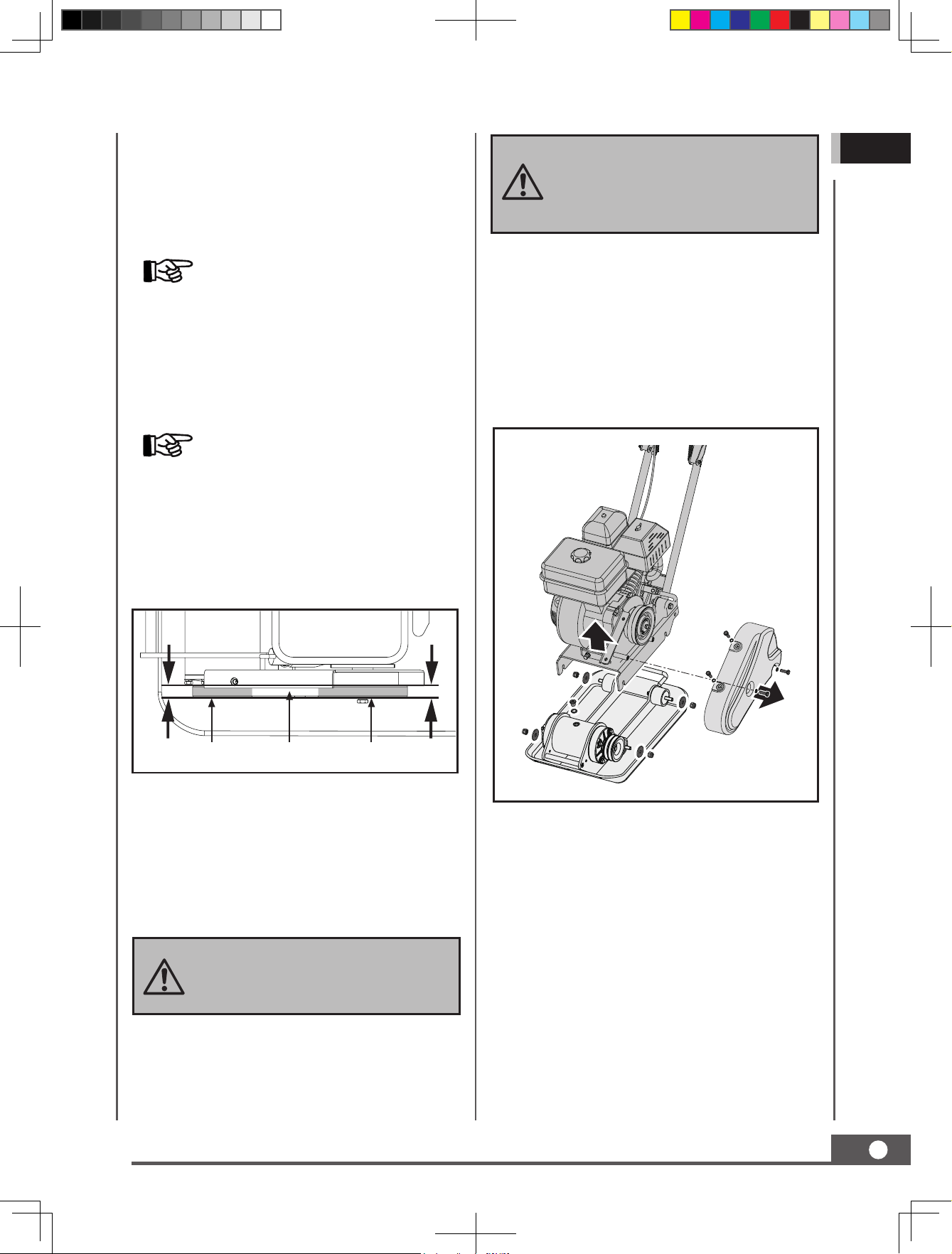

Maintenance 11
Storage 14
Lifting/Transporting 15
Trouble Shooting 16
Parts Schedule 17
Parts List 18
Your new Vibratory Plate Compactor will
more than satisfy your expectations. It has
been manufactured under stringent quality
standards to meet superior performance
criteria. You will find it easy and safe to
operate, and with proper care, it will give you
many years of dependable service.
Carefully read through this entire
operator’s manual before using your
new Log Splitter. Take special care
to heed the cautions and warnings.
These compactors are not intended
to be used on cohesive soils such
clay or hard surfaces like concrete.
The commitment to quality has been designed
into details: reinforced self-cleaning base
plate, engine oil drain hose, closed V-belt
guard, self-adjusting centrifugal clutch and
folding handle. A range of useful accessories
enables use in all kinds of applications.
The Plate Compactor applies energy to the
loose soil or other materials to increase its
density and load bearing capacity, mainly used
for small repair and maintenance work. The
loose soil or particles are moved or rearranged
in a particular manner close to each other to
avoid any trapped air or voids. It increases
the load bearing capacity, decreases water
seepage, prevents soil settlement, reduces
swelling, contraction of the soil and prevents
frost damage. It is ideal for compaction
of granular soils, sands, gravel, crushed
aggregate and mixed soils.
The Engine Manufacturer is responsible for
all engine-related issues with regards to
performance, power rating, specifications,
warranty and service. Please refer to the
Engine Manufacturer’s owner/operator’s
manual, packed separately with your unit, for
more information.
SKU TL-G-PC10
Plate Size 530 X 370 mm
Centrifugal Force 11000 N
Exciter Speed 5500 vpm
Compaction Speed 25 cm
Travel Speed 25 m/min
Engine 196cc
Operation Weight 55.5 kg

PLATE COMPACTORS 3
GB

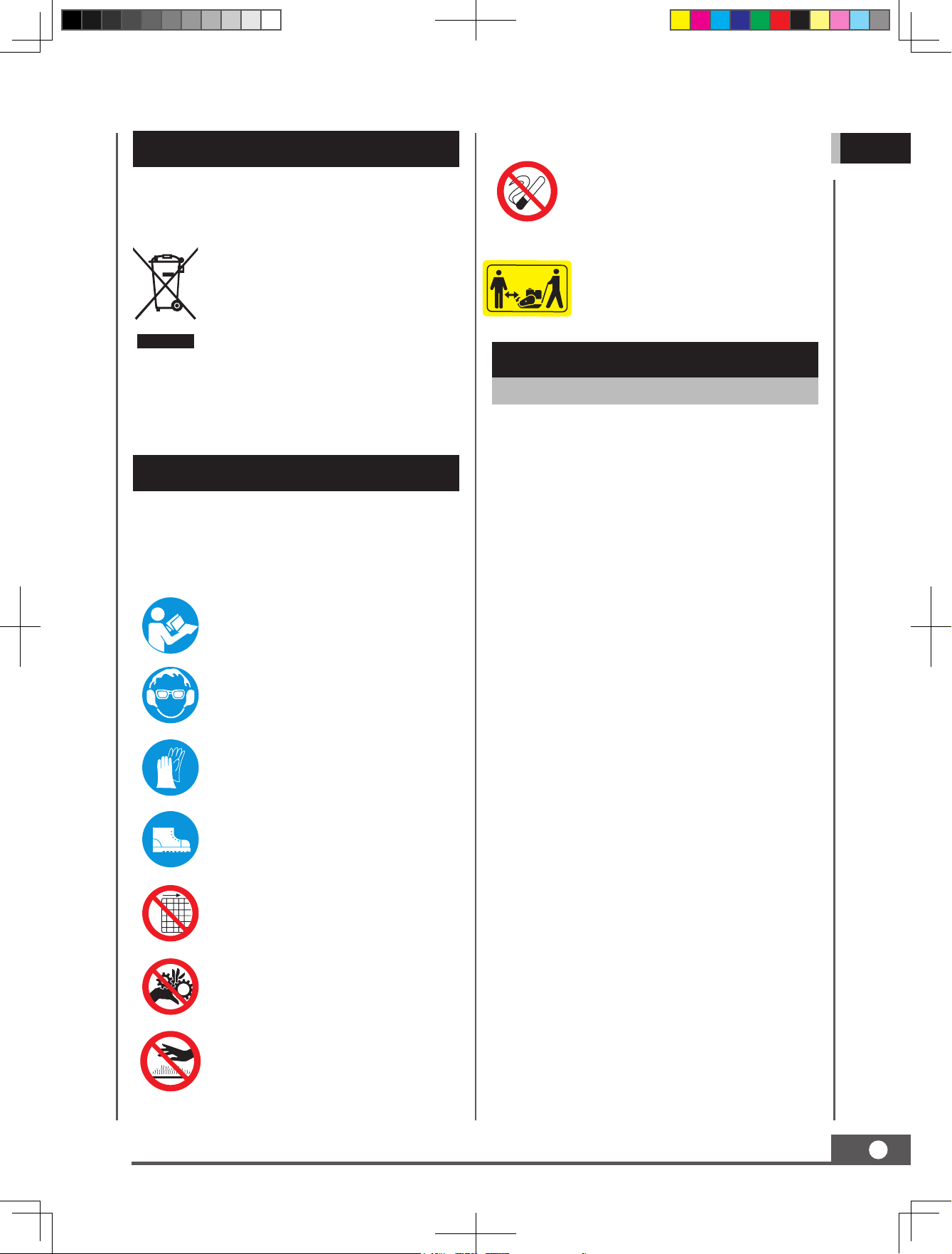

SYMBOLS
The rating plate on your machine may
show symbols. These represent important
information about the product or instructions
on its use.
SAFETY
General Safety Rules
Understand your Machine
Read and understand the operator’s manual
and labels affixed to the machine. Learn its
application and limitations as well as the
specific potential hazards peculiar to it.
Be thoroughly familiar with the controls and
their proper operation. Know how to stop the
machine and disengage the controls quickly.
Make sure to read and understand all the
instructions and safety precautions as outlined
in the Engine Manual, packed separately
with your unit. Do not attempt to operate
the machine until you fully understand how
to properly operate and maintain the Engine
and how to avoid accidental injuries and/or
property damage.
Work area
Never start or run the engine inside a closed
area. The exhaust fumes are dangerous,
containing carbon monoxide, an odorless and
deadly gas. Operate this unit only in a well
ventilated outdoor area.
Never operate the machine without good
visibility or light.
Personal safety
Do not operate the machine while under the
influence of drugs, alcohol, or any medication
that could affect your ability to use it properly.
Dress properly. Wear heavy long pants, boots
and gloves. Do not wear loose clothing, short
pants, jewelry of any kind. Secure long hair
so it is above shoulder level. Keep your hair,
clothing and gloves away from moving parts.
Loose clothes, jewelry or long hair can be
caught in moving parts.
Read these instructions for use
carefully.
Wear eye protection.
Wear hearing protection.
Wear protective gloves.
Wear safety footwear.
It is forbidden to remove or
tamper with the protection
devices and safety devices.
Keep away from rotating parts.
Do not touch parts which are hot
from operation. Serious burns
may result.
Do not smoke or have open flames.
Use extreme caution when
storing, handling and using fuels,
as they are highly volatile and
explosive in vapor state.
Keep children and bystanders off
and away.
RECYCLING AND DISPOSAL
This marking indicates that this
product should not be disposed with
other household wastes. To prevent
possible harm to the environment
or human health from uncontrolled
waste disposal, recycle it responsibly
to promote the sustainable reuse of
material resources. To return your
used device, please use the return
and collection systems or check with
your local authority or local stores
for advice of environmental safe
recycling.

PLATE COMPACTORS
4
GB Check your machine before starting it. Keep
guards in place and in working order. Make
sure all nuts, bolts, etc. are securely tightened.
Never operate the machine when it is in need
of repair or is in poor mechanical condition.
Replace damaged, missing or failed parts
before using it. Check for fuel leaks. Keep the
machine in safe working condition.
Do not use the machine if the engine’s switch
does not turn it on or off. Any gasoline
powered machine that can not be controlled
with the engine switch is dangerous and must
be replaced.
Form a habit of checking to see that keys
and adjusting wrenches are removed from
machine area before starting it. A wrench or
a key that is left attached to a rotating part of
the machine may result in personal injury.
Stay alert, watch what you are doing and use
common sense when operating the machine.
Do not overreach. Do not operate the machine
while barefoot or when wearing sandals or
similar lightweight footwear. Wear protective
footwear that will protect your feet and
improve your footing on slippery surfaces.
Keep proper footing and balance at all times.
This enables better control of the machine in
unexpected situations.
Avoid accidental starting. Be sure the engine’s
switch is off before transporting the machine
or performing any maintenance or service
on the unit. Transporting or performing
maintenance or service on a machine with its
switch on invites accidents.
Fuel safety
Fuel is highly flammable, and its vapors can
explode if ignited. Take precautions when using
to reduce the chance of serious personal injury.
When refilling or draining the fuel tank, use
an approved fuel storage container while in
a clean, well-ventilated outdoor area. Do not
smoke, or allow sparks, open flames or other
sources of ignition near the area while adding
fuel or operating the unit. Never fill fuel tank
indoors.
Keep grounded conductive objects, such as
tools, away from exposed, live electrical parts
and connections to avoid sparking or arcing.
These events could ignite fumes or vapors.
Always stop the engine and allow it to cool
before filling the fuel tank. Never remove
the cap of the fuel tank or add fuel while the
engine is running or when the engine is hot.
Do not operate the machine with known leaks
in the fuel system.
Loose the fuel tank cap slowly to relieve any
pressure in the tank.
Never overfill fuel tank (there should be no
fuel above the upper limit mark).
Replace all fuel tank and container caps
securely and wipe up spilled fuel. Never
operate the unit without the fuel cap securely
in place.
Replace all fuel tank and container caps
securely and wipe up spilled fuel. Never
operate the unit without the fuel cap securely
in place.
Avoid creating a source of ignition for spilled
fuel. If fuel is spilled, do not attempt to start
the engine but move the machine away
from the area of spillage and avoid creating
any source of ignition until fuel vapors have
dissipated.
Store fuel in containers specifically designed
and approved for this purpose.
Store fuel in a cool, well-ventilated area,
safely away from sparks, open flames or other
sources of ignition.
Never store fuel or machine with fuel in the
tank inside a building where fumes may reach
an spark, open flame, or any other source
of ignition, such as a water heater, furnace,
clothes dryer and the like. Allow the engine to
cool before storing in any enclosure.
Machine use and care
Never pick up or carry a machine while the
engine is running.
Do not force the machine. Use the correct
machine for your application. The correct
machine will do the job better and safer at the
rate for which it was designed.
Do not change the engine governor settings
or over-speed the engine. The governor
controls the maximum safe operating speed
of the engine.
Do not run the engine at a high speed when
you are not pounding.

PLATE COMPACTORS 5
GB
Do not put hands or feet near rotating parts.
Avoid contact with hot fuel, oil, exhaust fumes
and hot surfaces. Do not touch the engine or
muffler. These parts get extremely hot from
operation. They remain hot for a short time
after you turn off the unit. Allow the engine
to cool before doing maintenance or making
adjustments.
If the machine should start to make an unusual
noise or vibration, immediately shut off the
engine, disconnect the spark plug wire, and
check for the cause. Unusual noise or vibration
is generally warning of trouble.
Use only attachments and accessories
approved by the manufacturer. Failure to do
so can result in personal injury.
Maintain the machine. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
machine’s operation. If damaged, have the
machine repaired before use. Many accidents
are caused by poorly maintained equipment.
Keep the engine and muffler free of grass,
leaves, excessive grease or carbon build up to
reduce the chance of a fire hazard.
Never douse or squirt the unit with water or
any other liquid. Keep handles dry, clean and
free from debris. Clean after each use.
Observe proper disposal laws and regulations
for gas, oil, etc. to protect the environment.
Store idle machine out of the reach of children
and do not allow persons unfamiliar with
the machine or these instructions to operate
it. Machine is dangerous in the hands of
untrained users.
Service
Before cleaning, repair, inspecting, or
adjusting, shut off the engine and make
certain all moving parts have stopped. Always
make sure the engine’s switch is in its “OFF”
position. Disconnect the spark plug wire, and
keep the wire away from the plug to prevent
accidental starting.
Have your machine serviced by a qualified
repair personnel using only identical
replacement parts. This will ensure that the
safety of the machine maintained.
To avoid injury, keep hands, fingers and feet
away from the base plate. Grip the handle of
the plate compactor firmly with both hands.
If both hands are holding the handle and your
feet are clear of the compactor base, your
hands, fingers and feet can not be injured by
the compactor base.
Always operate the machine from behind,
never pass or stand in front of the machine
when the engine is running.
Never place tools or any other item under the
plate compactor.
If the unit strikes a foreign object, stop the
engine, disconnect the spark plug, thoroughly
inspect the machine for any damage, and
repair the damage before restarting and
operating the machine.
Do not overload the machine capacity by
compacting too deep in a single pass or at too
fast a rate.
Never operate the unit at high transport
speeds on hard or slippery surfaces.
Exercise extreme caution when operating on
or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic. Do not carry
passengers.
Never leave the operating position and leave
the plate compactor unattended when the
engine is running.
Always stop the engine when compacting is
delayed or when walking from one location to
another.
Stay away from the edged of ditches and
avoid actions that may cause the plate
compactor to topple over.
Always ascend slopes carefully, in a direct path
and in reverse to present the plate compactor
from toppling over onto the operator.
Always park the unit on a firm and level
surface and shut the tool off.
To reduce exposure to vibration, limit the
hours of operation and take periodic breaks
to minimize repetition and rest your hand.
Reduce the speed and force in which you do
the repetitive movement. Try to fill each day
with jobs where operating hand-held power
equipment is not required.
Specific Safety Rules

PLATE COMPACTORS
6
GB
The plate compactor comes partially assembled
and is shipped in carefully packed carton. After
all the parts have been removed from the carton,
you should have:
1. Plate Compactor Chassis with Engine and
Transmission
2. Handle
3. Foldings Wheels Kit
4. Operator’s Manual & Engine Manual
5. Hardware Bag, Including
CONTENTS SUPPLIED
1
2
3
54
M5 ×1 A
M10 ×70 ×2
M10 ×30 ×2 B

PLATE COMPACTORS 7
GB
Following the assembly directions below, you
will assemble the plate compactor in a few
minutes.
Upper Handle
Unfold the Handle as shown.
ASSEMBLY
M5 ×1 A
M10 ×70 ×2
Handle
M10 ×70 (×2)
M5 (×1)
1. Mount the Handle as shown. Make the Handle
Ends slot into the channels provided by the
Engine Deck. Place flat washers 10, followed
by hex bolts M10x70 at the outer side, and
tighten with lock nuts M10 at the inner side.
2. Unscrew bolt 5x35 from throttle control.
Secure the Throttle Control onto the Upper
Handle with a flat washer 5 and the bolt
5X35 that just were unscrewed.
Fasten the Throttle Control cable with cable
fasteners.
Line up the holes in the Link Plates and Engine
Deck. Slide bolts M10x30 through the holes
from one side, then lock nuts M10 from the
other side. Tighten down.
Folding Wheels Kit
2
1
M10 ×30 ×2 B

PLATE COMPACTORS
8
GB
Add oil according to Engine Manual packed
separately with your tiller.
Engine Oil
OIL HAS BEEN DRAINED FOR
SHIPPING.
Failure to fill engine sump with oil
before starting engine will result in
permanent damage and void engine
warranty.
Before compacting, fold up the Wheel Kit as
shown.

PLATE COMPACTORS 9
GB
Fuel Valve Control
The fuel valve opens and closes the passage
between the fuel tank and the carburetor. The
fuel valve lever must be in the ON position
for the engine to run. When the engine is not
in use, leave the fuel valve lever in the OFF
position to prevent carburetor flooding and to
reduce the possibility of fuel leakage.
Throttle Control
The throttle lever controls engine speed.
Moving the throttle lever makes the engine
run faster or slower.
KNOW YOUR MACHINE
Features and Controls
Throttle Control
Operation Handle
Muffler
Air Cleaner
Fuel Tank
Exciter
Oil Drain Hose
Belt Guard
Base Plate
Engine Switch
The engine switch enables and disables the
ignition system. The engine switch must be in
the ON position for the engine to run. Turning
the engine switch to the OFF position stops
the engine.
Choke Lever
The choke lever opens and closes the choke
valve in the carburetor. The closed position
enriches the fuel mixture for starting a cold
engine. The open position provides the correct
fuel mixture for operation after starting, and

PLATE COMPACTORS
10
GB
Running the engine with dirty oil can cause
premature engine wear and failure. Changing
oil regularly is extremely important. The
flexible oil drain hose is equipped to drain oil
into appropriate receptacle.
Exciter
An eccentric weight mounted on the exciter
shaft contained within exciter housing is
driven at high speed by a clutch and belt
drive system. This high speed shaft revolution
causes the rapid lifting and downward
ramming motion of the machine as well as
imparting a forward motion.
Adding fuel
Fill the fuel tank as instructed in the separate
Engine Manual packed with the Plate
Compactor.
More detailed description of the engine
operation and all related precautions and
procedures can be found in the Engine Manual
packed separately with the unit.
Starting Engine
1. Move the fuel valve lever to the ON position.
2. To start a cold engine, move the choke to
the CLOSE position.
To restart a warm engine, leave the choke
lever in the OPEN position.
3. Move the throttle lever away from the SLOW
position, about 1/3 of the way toward the
FAST position.
4. Turn the engine switch to the ON position.
5. Operate the starter.
Oil Drain Hose
Compactor Operation
1. After engine warms up, pull throttle lever
to accelerate engine speed. Plate will begin
vibrating and move forward.
2. The plate compactor is designed to run at an
engine speed (engine take off shaft) of 3600
rpm (Normally considered full throttle).
Running the engine at lower rpm’s will result
in a decrease of compaction force and
lower travel speed. It will create excessive
“out-of-synch” vibrations resulting in poor
compaction, maneuverability, excessive
wear to the machine, and discomfort to the
operator.
Operating
Do not operate plate on concrete or
on extremely hard, dry, compacted
surfaces. The plate will jump rather
than vibrate and could damage both
plate and engine.
1
2
for restarting a warm engine. Some engine
applications use a remotely-mounted choke
control rather than the engine-mounted choke
lever.
Recoil Starter Grip
Pulling the starter grip operates the recoil
starter to crank the engine.

PLATE COMPACTORS 11
GB
3. In operation, guide the machine, but let the
compactor do the work. Bearing down on
the handle is unnecessary and causes shock
absorber wear.
4. On level surfaces the compactor moves
forward rapidly. On uneven surfaces or
inclines, light forward pressure on handle
may be required to assist the compactor in
moving forward.
5. The number of passes required to reach a
desired compaction level will depend on the
type and moisture content of soil. Maximum
soil compaction has been reached when
excessive kickback is noticed.
When using a compactor on asphalt,
Water Sprinkler Kit is required to
help prevent the bottom plate from
adhering to the hot asphalt surface.
When using plate on paving stones,
attach a pad to the bottom of
the plate to prevent chipping or
grinding surface of the stones. A
special urethane pad designed
for this purpose is available as an
optional accessory.
While a certain amount of moisture
in the soil is necessary, excessive
moisture may cause soil particles
to stick together and prevent good
compaction. If soil is extremely wet,
allow it to dry somewhat before
compacting.
If soil is so dry as to create dust
clouds while operating plate,
some moisture should be added
to the ground material to improve
compacting. This will also reduce
service to the air filter.
Stopping Engine
To stop the engine in an emergency, simply
turn the engine switch to the OFF position.
Under normal conditions, use the following
procedure.
1. Move the throttle lever to the SLOW position.
2. Let engine idle for one or two minutes.
3. Turn the engine switch to the OFF position.
4. Turn the fuel valve lever to the OFF position.
Idle Speed
Set throttle control lever to its “low” position
to reduce stress on the engine when
compacting is not being performed. Lowering
the engine speed to idle the engine will
help extend the life of the engine, as well as
conserve fuel and reduce the noise level of the
machine.
Do not move choke control to
CLOSE to stop engine. Backfire or
engine damage may occur.
MAINTENANCE
Maintaining your compactor will insure long life
to the machine and its components.
Preventive Maintenance
1. Turn off engine. Engine must be cool.
2. Keep the engine’s throttle lever in its SLOW
position, and remove spark plug wire from
spark plug and secure.
3. Inspect the general condition of the plate
compactor. Check for loose screws,
misalignment or binding of moving parts,
cracked or broken parts, and any other
condition that may affect its safe operation.
4. Remove all debris from the plate compactor
with a soft brush, vacuum, or compressed
air. Then use a premium quality lightweight
machine oil to lubricate all moving parts.

PLATE COMPACTORS
12
GB
On new machines or after installing
a new belt, check belt tension after
first 20 hours of operation. Check
and adjust belt every 50 hours
thereafter.
Checking V-Belt(s)
To ensure optimum power transmission from
the engine to the eccentric shaft, the V-belt(s)
must be in good condition and operate under
proper tension.
1. Turn off engine. Engine must be cool.
2. Remove the belt guard to access the
V-belt(s).
3. Check the condition of the V-belt(s). If any
V-belt is cracked, frayed, or glazed, it should
be replaced as soon as convenient.
4. Check the V-belt tension by squeezing them
in the center. The normal deflection on each
side should be 9mm (3/8”) to 13mm (1/2”)
with moderate pressure from your thumb or
finger.
When adjusting the belt(s), make
sure that the clutch pulley is in
alignment with exciter pulley.
Tensioning V-Belt(s)
Proper belt tension is critical to good
performance.
Proper adjustment will assure long belt life.
Too much or too little belt tension will cause
premature belt failure.
2. Loosen the jam nuts B, leaving enough space
between the nut and bracket.
3. Push engine toward the back of the plate by
turning the adjustment bolts A to remove
any slack in V-belt(s).
V-belt Clutch pulleyExciter pulley
LOOSEN TIGHTEN
BA
Adjustment
Bolts
Jam
Nuts
Never use a “pressure washer” to
clean your plate compactor. Water
can penetrate tight areas of the
unit and cause damage to spindles,
pulleys, bearings, or the engine.
The use of pressure washers will
result in shortened life and reduce
serviceability.
1. Loosen 4 engine mount bolts (do not
remove) only enough to move the engine
forward.
5. Clean the bottom of the compactor base
as soon as it begins to pick up soil being
compacted. The unit can not do a good
job if the bottom surface is not smooth and
clean.
6. Replace spark plug wire.

PLATE COMPACTORS 13
GB
5. When the V-belt tension is correct, tighten
the jam nuts B against the bracket.
6. Tighten the engine mount bolts.
7. Replace the belt guard.
V-belt Clutch pulleyExciter pulley
If the adjustment bolts have no
more adjustment left, the belt(s)
may have to be replaced.
When adjusting the belt(s), make
sure that the clutch pulley is in
alignment with exciter pulley.
When removing or installing the
drive belt(s), be careful not to get
your fingers caught between the
belt and pulley.
6. When the V-belt tension is correct, tighten
the jam nuts B and the engine mount bolts.
7. Replace the belt guard.
3. Slide the engine toward the front of plate
and slip the old V-belt(s) off of the wheel
pulley and install the new V-belt(s) in their
place.
4. Position the V-belt(s) over the engine pulley.
5. Move the engine back.
Replacing V-Belt(s)
1. Loose 4 engine mount bolts (do not remove)
only enough to move the engine forward.
2. Loosen the jam nuts B and bolts A shown in
above figure.
Both V-belts should be replaced
at the same time because they will
wear evenly through normal use.
Work on one belt at a time.
Exciter Lubrication
The exciter housing is pre-serviced using
Automatic Transmission Fluid Dextron III,
Mercon, EXXON (ESSO) NUTO H-32 or its
equivalent. Change fluid after 200 hours of
operation.
1. Let exciter cool before changing exciter oil.
2. Remove the belt guard and V-belt(s).
3. Remove the bolts that hold the deck to the
housing.
4. Lift entire deck with engine from housing.

PLATE COMPACTORS
14
GB
Do not overfill - overfilling can
result in excessive temperatures in
the exciter.
5. Remove pipe plug from top of exciter
housing. Tilt housing upside down so oil
drains from exciter. Examine oil for metal
chips as a precaution to future problems.
6. Return plate housing to the upright position.
7. Fill the exciter housing with exciter oil.
8. Apply pipe sealant to pipe plug and reinstall
into top of exciter housing.
9. Reinstall deck, V-belt(s) and belt guard.
Engine maintenance
Refer to the Engine Manual included in your
plate compactor for the information on engine
maintenance. Your engine manual provides
detailed information for performing the tasks.
EXCITER
EXCITER
SHAFT
TL-G-PC10
80 ml
STORAGE
If the plate compactor will not be used for a
period longer than 30 days, following the steps
below to prepare your unit for storage.
1. Drain the fuel tank completely. Stored fuel
containing ethanol or MTBE can start to go
stale in 30 days. Stale fuel has high gum
content and can clog the carburetor and
restrict fuel flow.
2. Start the engine and allow it to run until
it stops. This ensures no fuel is left in the
carburetor. Run the engine until it stops.
This helps prevent deposits from forming
inside the carburetor and possible engine
damage.
5. Use clean cloths to clean off the outside of
the compactor and to keep the air vents
free of obstructions.
Remove the spark plug and drain all
of the oil from the cylinder before
attempting to start the unit after
storage.
3. While the engine is still warm, drain the oil
from the engine. Refill with fresh oil of the
grade recommended in the Engine Manual.
4. Allow the engine to cool. Remove the spark
plug and put 60 ml of SAE-30 of high quality
motor oil into the cylinder. Pull the starter
rope slowly to distribute the oil. Replace the
spark plug.

PLATE COMPACTORS 15
GB
LIFTING / TRANSPORTING
See technical data for the weight of the
machine.
To avoid burns or fire hazards, let engine cool
before lifting / transporting machine or storing
indoors.
6. Pull up the spring bolt and fold up the wheels
bracket.
7. Carefully fold the upper handle down. Do
not allow control cables to become pinched
or bent.
8. Store your plate compactor in upright
position in a clean, dry building that has
good ventilation.
Do not use strong detergents or
petroleum based cleaners when
cleaning plastic parts. Chemicals
can damage plastics.
TRANSPORTING
See technical data for the weight of the
machine.
To avoid burns or fire hazards, let engine
cool before transporting machine or storing
indoors.
The unit must be transported in the upright
position to prevent fuel from spilling. Do not
lay machine on its side or top.
Secure or tie down unit using the lifting handle
to prevent machine from sliding or tipping
over.
Machine may fall and cause damage
or injury if lifted incorrectly. Lift
using handles at base of plate.

PLATE COMPACTORS
16
GB TROUBLE SHOOTING
Problem Cause Remedy
Engine fails to start.
1. Spark plug wire
disconnected.
2. Out of fuel or stale fuel.
3. Throttle control lever not in
correct starting position.
4. Choke not in ON Position.
5. Blocked fuel line.
6. Fouled spark plug.
7. Engine flooding.
1. Attach spark plug wire securely to
spark plug.
2. Fill with clean, fresh gasoline.
3. Move throttle control lever to start
position.
4. Throttle must be positioned at
choke for a cold start.
5. Clean the fuel line.
6. Clean, adjust gap, or replace.
7. Wait a few minutes to restart, but
do not prime.
Engine runs
erratically.
1. Spark plug wire loose.
2. Unit running on CHOKE.
3. Blocked fuel line or stale fuel.
4. Vent plugged.
5. Water or dirt in fuel system.
6. Dirty air cleaner.
1. Connect and tighten spark plug wire.
2. Move choke lever to OFF.
3. Clean fuel line. Fill tank with clean,
fresh gasoline.
4. Clear vent.
5. Drain fuel tank. Refill with fresh fuel.
6. Clean or replace air cleaner.
Engine overheats.
1. Engine oil level low.
2. Dirty air cleaner.
3. Air flow restricted.
1. Fill crankcase with proper oil.
2. Clean air cleaner.
3. Remove blower housing and clean.
Engine will not stop
when throttle control
is positioned at stop,
or engine speed does
not increase properly
when throttle control
is adjusted.
Debris interfering with throttle
linkage. Clean dirt and debris.
Compactor is difficult
to control when
pounding (machine
jumps or lurches
forward)
Too high engine speed on hard
ground. Set the throttle lever at lower speed.

PLATE COMPACTORS 17
GB
TL-G-PC10
PARTS SCHEDULE

PLATE COMPACTORS
18
GB
No. Description Q'ty
1 Grip 1
2 Upper Handle 1
3 Throttle Control 1
4 Screw M5x35 1
5 Flat Washer 5 1
6 Spring 2
7 Lock Nut M6 4
8 Bolt M6x40 2
9 Bolt M6x50 2
10 Flat Washer 6 4
11 Wheel Kit Pothook 2
12 Bolt M10x70 2
13 Flat Washer 10 6
14 Rubber Sleeve 2
15 Lower Handle Weldment 1
16 Nut M10 3
17 Bolt M10x30 4
18 Link Plate 2
19 Nut M10 12
20 Wheel Bracket 1
21 Pin 2.5x25 2
22 Flat Washer 12 4
23 Wheel 2
24 Oil Drain Pipe 1
25 Washer 10 1
26 Engine 1
27 Belt Guard Bracket 1
28 Bolt M8x20 2
29 Centrifugal Clutch 1
30 Key 5x5x35 1
31 Small Pulley Plate 2
32 Lock Washer 8 8
33 Bolt M8x25 w/glue 1
34 V-Belt 2
35 Belt Guard 1
No. Description Q'ty
36 Bolt M8x20 w/glue 3
37 Nut M8 4
38 Flat Washer 8 5
39 Bolt M8x16 1
40 Limited Block 1
41 Handle Shock Absorber 1
42 Engine Base 1
43 Washer 38x11x3 4
44 Bolt M8x45 2
45 Nut M8 2
46 Bolt M8x40 4
47 Shock Absorber 4
48 Plug 1
49 Washer 14 1
50 Base Plate 1
51 Bolt M6x20 12
52 Bearing Cover - Right 1
53 Housing Washer 2
54 Ball Bearing 2
55 Exciter Shaft 1
56 Bearing Cover - Left 1
57 Washer FB30x42x6F 1
58 Pulley 1
59 Key B6x18 1
60 Bolt M8x14 1
61 Spring 2
62 Clutch Lining 4
63 Clutch Pulley Hub 1
64 Clutch Pulley 1
65 Ball Bearing 1
66 Snap Ring 1
67 Circlip 1
Parts List

PLATE COMPACTORS 19
GB
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Our company makes every effort to assure that its products meet high quality and durability standards,
Limited 30 Day Warranty
period of 30 days from the date of purchase.

PLATE COMPACTORS
20
GB
