Binder APT.line FED User manual

Issue 01/2007 Art. No. 7001-0070
Operating Manual
APT.line™ FED
Multifunctional heating/drying ovens
with forced convection
with R3.1 Controller
BINDER GmbH
Address Post office box 102
D-78502 Tuttlingen
Tel. [phone]
Fax [phone]
Internet http://www.binder-world.com
E-mail [email protected]
Service Hotline [phone]
Service Fax [phone]
Service E-Mail [email protected]
Service Hotline USA [phone]
Service Hotline Asia Pacific [phone]

FED 01/2007 page 2/45
EG - KONFORMITÄTSERKLÄRUNG
EC - DECLARATION OF CONFORMITY
CE - DECLARATION DE CONFORMITE
Anbieter / Supplier / Fournisseur: BINDER GmbH
Anschrift / Address / Adresse: Im Mittleren Ösch 5, D-78532 Tuttlingen
Produkt / Product / Produit: Multifunktionale Wärme-/Trockenschränke mit forcierter Umluft
Multifunctional heating/drying ovens with forced convection
Étuves/armoires séchantes multifonctions à circulation d’air forcée
Typenbezeichnung / Type / Type: FED 53, FED 115, FED 240, FED 400, FED 720
Die oben beschriebenen Produkte sind konform mit folgenden harmonisierten Normen:
The products described above are in conformity with the following harmonized standards:
Les produits décrits ci-dessus sont conformes aux normes harmonisées suivantes:
Sicherheit / safety / sécurité:
IEC/CEI 61010-1:2001 Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel-
und Laborgeräte – Teil 1: Allgemeine Anforderungen
Safety requirements for electrical equipment for measurement,
control, and laboratory use – Part 1: General requirements
Règles de sécurité pour appareils électriques de mesurage, de
régulation et de laboratoire – Partie 1 : Prescriptions générales
IEC/CEI 61010-2-010:2003 Sicherheitsbestimmungen für elektrische Meß-, Steuer-, Regel-
und Laborgeräte – Teil 2-010: Besondere Anforderungen an
Laborgeräte für das Erhitzen von Stoffen
Safety requirements for electrical equipment for measurement,
control, and laboratory use – Part 2-010: Particular requirements
for laboratory equipment for the heating of materials
Règles de sécurité pour appareils électriques de mesurage, de
régulation et de laboratoire. Partie 2-010 : Prescriptions
particulières pour appareils de laboratoire utilisés pour
l’échauffement des matières
EMV / EMC / CEM:
IEC/CEI 61326:1997 + A1:1998 +
A2:2000
Elektrische Betriebsmittel für Leittechnik und Laboreinsatz – EMV-
Anforderungen
Electrical equipment for measurement, control and laboratory use
– EMC requirements
Matériels électriques de mesure, de commande et de laboratoire
– Prescriptions relatives à la CEM
1 / 2

FED 01/2007 page 3/45
Die oben beschriebenen Produkte sind konform mit folgenden EG-Richtlinien:
The products described above are in conformity with the following EC guidelines:
Les produits décrits ci-dessus sont conformes aux directives CE suivantes:
Niederspannungsrichtlinie
73/23/EWG, Änderung 93/68/EWG
Low voltage directive
73/23/EEC, amended 93/68/EEC
Directive basse tension
73/23/CEE, modifiée 93/68/CEE
Richtlinie 73/23/EWG des Rates vom 19. Februar 1973 zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten betreffend
elektrische Betriebsmittel zur Verwendung innerhalb bestimmter
Spannungsgrenzen
Council Directive of 19 February 1973 on the harmonization of the
laws of Member States relating to electrical equipment designed
for use within certain voltage limits (73/23/EEC)
Directive 73/23/CEE du Conseil, du 19 février 1973, concernant le
rapprochement des législations des États membres relatives au
matériel électrique destiné à être employé dans certaines limites
de tension
EMV-Richtlinie
89/336/EWG, Änderung 93/68/EWG
EMC Directive
89/336/EEC, amended 93/68/EEC
Directive CEM
89/336/CEE, modifiée 93/68/CEE
Richtlinie 89/336/EWG des Rates vom 3. Mai 1989 zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über die
elektromagnetische Verträglichkeit
Council Directive 89/336/EEC of 3 May 1989 on the
approximation of the laws of the Member States relating to
electromagnetic compatibility
Directive 89/336/CEE du Conseil du 3 mai 1989 concernant le
rapprochement des législations des États membres relatives à la
compatibilité électromagnétique
Die oben beschriebenen Produkte tragen entsprechend die Kennzeichnung CE.
The products described above, corresponding to this, bear the CE-mark
Les produits décrits ci-dessus, en correspondance, portent l’indication CE.
D-78532 Tuttlingen, 10.01.2006
BINDER GmbH
P. M. Binder Dr.-Ing. V. Kek
Geschäftsführender Gesellschafter Leiter F & E
Managing Director Head of R & D
Directeur général Chef de service R&D
2 / 2

FED 01/2007 page 4/45
Content
1. SAFETY..................................................................................................................6
1.1 Legal considerations ...........................................................................................................................6
1.2 Structure of the safety instructions......................................................................................................6
1.3 Localization / position of safety labels at the unit................................................................................8
1.4 Type plate ...........................................................................................................................................9
1.5 General safety instructions on installing and operating the multifunctional heating/drying
oven FED ..........................................................................................................................................10
1.6 Intended use .....................................................................................................................................11
2. UNIT DESCRIPTION............................................................................................12
2.1 Equipment overview FED .................................................................................................................12
3. SCOPE OF DELIVERY, TRANSPORTATION, STORAGE, AND
INSTALLATION....................................................................................................13
3.1 Unpacking, and checking equipment and scope of delivery.............................................................13
3.2 Advice for safe lifting and transportation...........................................................................................13
3.3 Storage..............................................................................................................................................14
3.4 Location of installation and ambient conditions ................................................................................14
4. INSTALLATION....................................................................................................15
4.1 Electrical connection .........................................................................................................................15
4.2 Connection to a suction plant (optional) ...........................................................................................16
5. START UP............................................................................................................16
5.1 Switching on the unit.........................................................................................................................16
5.2 Heating operation display .................................................................................................................17
5.3 Air change .........................................................................................................................................17
6. CONTROLLER SETTING.....................................................................................17
6.1 Display / entry of temperature and ventilation set-points (without ramp function)............................17
6.2 Display / entry of temperature and ventilation set-points (with selected temperature ramp) ...........18
6.3 Time functions: Continuous operation and Timer operation.............................................................19
6.3.1 Switching between Continuous operation and Timer operation .............................................20
6.3.2 Continuous operation ..............................................................................................................20
6.3.3 Setting the timer values...........................................................................................................21
6.4 User level settings.............................................................................................................................22
6.4.1 Temperature unit change between degrees Celsius °C and degrees Fahrenheit °F .............23
6.4.2 Enter a temperature ramp .......................................................................................................23
6.4.3 Chamber addressing...............................................................................................................24
6.4.4 Selecting the timer function.....................................................................................................25
6.4.5 Setting the interface mode and, if appropriate, the printer interval .........................................26
6.5 Temperature programming example ................................................................................................27
6.6 General notes....................................................................................................................................27
7. SAFETY DEVICES...............................................................................................28
7.1 Temperature safety device class 2 (DIN 12880) ..............................................................................28
7.2 Temperature safety device class 3.1 (DIN 12880) (option)..............................................................29
7.3 Disconnectable acoustic over-temperature alarm (option)...............................................................30
8. OPTIONS..............................................................................................................31
8.1 Communication software APT-COM™ 3 DataControlSystem (option) ............................................31
8.2 Analog output for temperature (option).............................................................................................31
8.3 Protocol printer (option) ....................................................................................................................32

FED 01/2007 page 5/45
9. MAINTENANCE, CLEANING, AND SERVICE ....................................................33
9.1 Maintenance intervals, service..........................................................................................................33
9.2 Cleaning and decontamination .........................................................................................................33
9.3 Sending back the unit to the BINDER GmbH ...................................................................................34
10. DISPOSAL............................................................................................................35
10.1 Disposal of the transport packing .....................................................................................................35
10.2 Decommissioning..............................................................................................................................35
10.3 Disposal of the unit in the Federal Republic of Germany .................................................................35
10.4 Disposal of the unit in the member states of the EC except for the Federal Republic of Germany .36
10.5 Disposal of the unit in non-member states of the EC .......................................................................38
11. TECHNICAL DESCRIPTION................................................................................38
11.1 Factory calibration and adjustment...................................................................................................38
11.2 Definition of usable space.................................................................................................................38
11.3 Over current protection .....................................................................................................................39
11.4 Technical data series FED................................................................................................................39
11.5 Equipment and Options ....................................................................................................................40
11.6 Spare parts........................................................................................................................................42
12. CONTAMINATION CLEARANCE CERTIFICATE ...............................................43

FED 01/2007 page 6/45
Dear customer,
For the proper operation of the multifunctional heating/drying ovens with forced convection FED, it is
necessary to read this operating manual completely and carefully and to observe the given instructions.
1. Safety
This operating manual is part of the scope of delivery. Always keep it at hand.
To avoid injuries and damage observe the safety instructions of the operating manual.
WARNING
Failure to observe the safety instructions.
Serious injuries and unit damage.
Observe the safety instructions in this operating manual
Carefully read the complete operating instructions of the multifunctional heating/drying
ovens FED
1.1 Legal considerations
This operating manual contains information necessary for the intended use, correct installation, start-up
and operation, and for the maintenance of the unit.
Understanding and observing the instructions in this operating manual are prerequisites for hazard-free
use and safety during operation and maintenance.
This operating manual cannot cover all conceivable applications. If you would like additional information,
or if special problems arise that you feel are not sufficiently addressed in this manual, please ask your
dealer or contact us directly.
Furthermore, we note that the contents of this operating manual are not part of an earlier or existing
agreement, promise, or legal relationship, nor do they modify such a relationship. All obligations on the
part of BINDER derive from the respective purchase contract, which also contains the entire and
exclusively valid statement of warranty administration. The statements in this manual neither augment nor
restrict the contractual warranty provisions.
1.2 Structure of the safety instructions
In this operating manual, the following harmonized denominations and symbols indicate dangerous
situations following the harmonization of ISO 3864-2 and ANSI Z535.4.
Signal word panel
Depending on seriousness and probability of the consequences, dangers are identified with a signal
word, the corresponding safety color, and if appropriate, the safety alert symbol.
DANGER
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious
(irreversible) injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
(irreversible) injury

FED 01/2007 page 7/45
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor
(reversible) injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in damage of the product
and/or its functions or of a property in its ambiance.
Safety alert symbol
Use of the safety alert symbol indicates risk of injury.
Observe all measures that are marked with the safety alert symbol in order to avoid death or
injury.
Pictograms
Warning signs
Electrical hazard Hot surface
Explosive substances
Tipover hazard
Pollution Hazard
Harmful substances
Biohazard
Mandatory action signs
Mandatory regulation Read operating
instructions
Pull the power plug
Lift with several persons
Lift with mechanical
assistance
Environment protection
Prohibition signs
Do NOT touch Do NOT spray with
water

FED 01/2007 page 8/45
Information to be observed in order to ensure optimum function of the product.
Word message panel structure
Type / cause of hazard.
Possible consequences.
∅Instruction how to avoid the hazard: prohibition
Instruction how to avoid the hazard: mandatory action
Observe the other notes and information not specially emphasized in the same way, in order to avoid
disturbances which could result in direct or indirect injuries or property damage.
1.3 Localization / position of safety labels at the unit
Following labels are located on the unit:
Pictograms (Warning signs) Service label
Hot surface
Figure 1: Position of labels at the unit
Keep safety labels complete and legible.
Replace safety labels that are no more legible. Contact the BINDER service.

FED 01/2007 page 9/45
1.4 Type plate
Figure 2: Position of type plate
Figure 3: Type plate (example: FED 115 regular unit)
Indications of the type plate Information
Nominal temperature 300°C
572°F
Nominal temperature
Enclosure protection IP 20 IP type of protection 20 acc. to EN 60529
Temp. safety device DIN 12880 Temperature safety device acc. to standard DIN 12880
Class 2.0 Temperature safety device, class 2
Art. No. 9010-0212 Art. No. 9010-0212
Project No. --- (Special application acc. to project no.)
1,60 kW Nominal power 1.60 kW
230 V 1 N ~ Nominal voltage 230 V ±10%, single-phase unit
7,0 A Nominal current 7.0 A
50/60 Hz Mains frequency 50/60 Hz
FED 115 Model FED 115
Serial No. 00-00000 Serial No. 00-00000
Nominal temperature 300°C 1,60 kW
572°F 230 V 1 N ~
Enclosure protection
Temp. safety device
IP 20
DIN 12880
7,0 A
50/60 Hz
Class 2.0
Art. No. 9010-0212 US PATS 4585923 / 5222612 / 5309981
Project No. 5405194 / 5601143 / 5773287 / 6079403
D 78532 Tuttlingen / Germany
Tel. + 49 (0) 7462/ 2005-0
Internet: www.binder-world.com
FED 115 Serial No. 00-00000
Made in Germany

FED 01/2007 page 10/45
Symbol on the type plate Information
CE conformity marking
Electrical and electronic equipment manufactured / placed on the
market in the EC after 13 August 2005 and be disposed of in
separate collection according to the directive 2002/96/EC on waste
electrical and electronic equipment (WEEE).
The equipment is certified in the GOST R certification system of
GOSTSTANDARD Russia.
LABORATORY EQUIPMENT
43KM
(FED-UL only)
The equipment is certified by Underwriters Laboratories Inc.®
according to standards UL 61010A-1, UL 61010A-2-10, CSA C22.2
No. 1010.1-92, and CSA C22.2 No. 1010.2.010-94.
1.5 General safety instructions on installing and operating the multifunctional
heating/drying oven FED
With regard to operating the multifunctional heating/drying oven FED and to the installation location,
please observe the regulations BGR 120 of the German professional association of the chemical industry
(formerly ZH 1/119 laboratory guidelines of the employers’ liability insurance association) (for Germany).
The BINDER GmbH is responsible for safety-related unit properties only if skilled electricians or qualified
personnel authorized by BINDER perform all maintenance and repair, and if components relating to
chamber safety are replaced in case of failure with original spare parts.
To operate the unit, use only original BINDER accessories or accessories of third-party suppliers
authorized by BINDER. The user is responsible for any risk when using unauthorized accessories.
CAUTION
Danger of overheating.
Damage of the unit.
∅Do NOT install the unit in unventilated recesses.
Ensure sufficient ventilation for carrying-off the heat.
The multifunctional heating/drying oven FED must NOT be operated in hazardous locations.
DANGER
Explosion hazard.
Danger of life.
∅Do NOT operate the unit in potentially explosive areas.
∅NO explosive dust or air-solvent mixture in the ambiance.
The multifunctional heating/drying oven FED does not dispose of any measures of explosion protection.
DANGER
Explosion hazard.
Danger of life.
∅Do NOT introduce any substance combustible or explosive at working temperature into
the heating/drying oven.
∅NO explosive dust or air-solvent mixture in the inner chamber.

FED 01/2007 page 11/45
Any solvent contained in the charging material must not be explosive or inflammable. I.e., irrespective of
the solvent concentration in the steam room, NO explosive mixture with air will form. The temperature
inside the chamber must lie below the flash point or below the sublimation point of the charging material.
Keep informed about the physical and chemical properties of the charging material, as well as the
contained moisture constituent and its behavior under addition of heat energy.
Keep informed about any potential health risks caused by the charging material, the contained moisture
constituent or by reaction products that may arise during the temperature process. Take adequate
measures to exclude such risks prior to putting the multifunctional heating/drying oven into operation.
DANGER
Electrical hazard.
Danger of life.
∅The unit must NOT become wet during operation or maintenance.
The multifunctional heating/drying ovens have been produced in accordance to the VDE regulations and
were routinely tested in accordance to VDE 0411.
CAUTION
The inner chamber, the outgoing air pipe, the door window (option) and the access
ports will become hot during operation.
Danger of burning.
∅Do NOT touch the inner surfaces, the outgoing air pipe, the door window, the access
ports, and the charging material during operation.
1.6 Intended use
The multifunctional heating/drying ovens FED are suitable for drying and heat treatment of solid or
pulverized charging material, as well as bulk material, using the supply of heat. The solvent content must
not be explosive or flammable. A mixture of any component of the charging material with air must NOT be
explosive. The operating temperature must lie below the flash point or below the sublimation point of the
charging material.
Other applications are not approved.
Do NOT use the unit for drying purpose, especially if greater quantities of steam leading to condensation
will be set free.
Due to the special demands of the Medical Device Directive (MDD), these ovens are not
qualified for sterilization of medical devices as defined by the directive 93/42/EWG.
Respecting the instructions in this operating manual and conducting regular maintenance
work (chap. 9) is part of the intended use.

FED 01/2007 page 12/45
2. Unit description
BINDER multifunctional heating/drying ovens FED are equipped with an electronic PID-controller with
digital display. The temperature is indicated with an accuracy of one degree.
BINDER multifunctional heating/drying ovens with forced convection FED are heated electrically and are
ventilated by fan-assisted, forced-air circulation. They FED are equipped with a temperature safety
device according to DIN12880 (chap. 7).
The inner chamber, the pre-heating chamber and the inside of the doors are all made of stainless steal
(material no. 1.4301 in Germany). When operating the unit at temperatures above 150°C, influence of the
oxygen in the air might cause coloration of the metallic surfaces (yellowish-brown or blue) by natural
oxidation processes. These colorations are harmless and will in no way impair the function or quality of
the unit. The housing is RAL 7035 powder-coated. All corners and edges are completely coated.
BINDER multifunctional heating/drying ovens FED are equipped with a serial interface RS 422 for
computer communication, e.g. via the communication software APT-COM™ 3 DataControlSystem
(option, chap. 8.1). For further options, see chap. 11.5.
The models FED 720 are equipped with four castors. Both front castors can be locked by brakes.
The unit can be operated in a temperature range of 5°C above ambient temperature up to +300°C.
If you want to frequently operate the unit at low set-points up to 70°C, the controller
parameters can be optimized accordingly. Please contact the BINDER Service to obtain
detailed instructions how to change the parameters.
2.1 Equipment overview FED
âDisplay
ãSet-point value key
äSelector keys
åTime management key
æSwitch ON/OFF
çLever for ventilation slide
èSafety device
éDoor handle
êSwitch for interior lighting (with
option interior lighting) or
Buzzer switch (with option
acoustic over-temperature
alarm
ëMain switch for sizes 400 and
720
Figure 4: Multifunctional heating/drying oven FED with R3.1 controller
â
ã
ä
å
æ
ç
ê
è
é
ë

FED 01/2007 page 13/45
3. Scope of delivery, transportation, storage, and installation
3.1 Unpacking, and checking equipment and scope of delivery
After having unpacked, please check the unit and its optional accessories, if any, based on the delivery
note for completeness and for transportation damage. If transportation damage has occurred,
immediately inform the carrier.
The final tests of the manufacturer might cause traces of the racks at the inner surfaces. This has no
impact on the function and performance of the unit.
Please remove any transportation protection devices and adhesives in / on the unit and at the doors and
take out the operating manuals and accessory equipment.

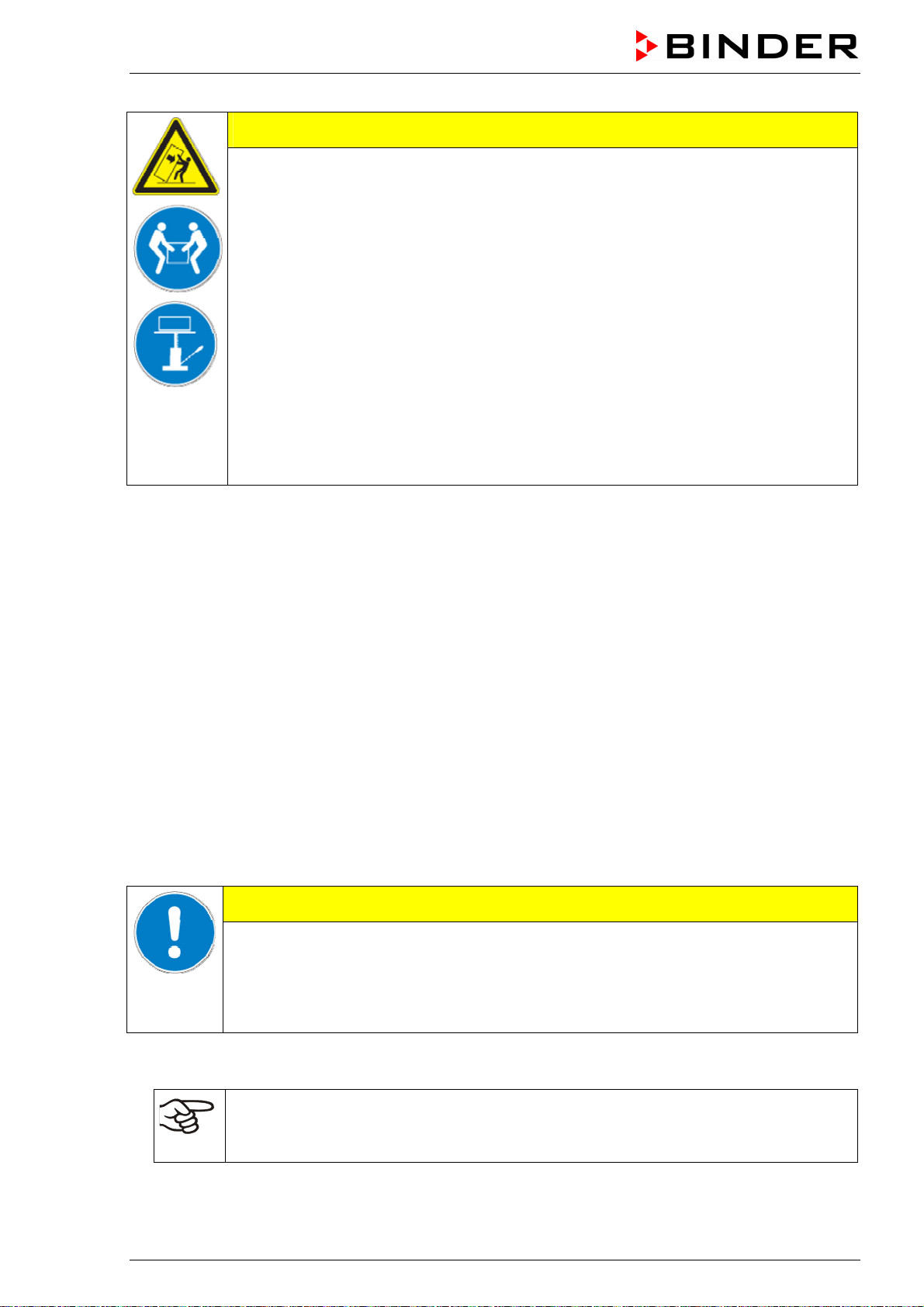

CAUTION
Sliding or tilting of the unit.
Damage of the unit.
∅Do NOT lift or transport the unit using either the door handle or the door.
∅Do NOT lift units size 400 and 720 by hand
Lift units size 53, 115, and 240 near the 4 unit feet from the pallet by aid of 4 persons.
Lift units size 400 and 720 using technical devices (fork lifter) from the pallet. Set the
fork lifter only from the rear in the middle of the unit. Make sure to place all the lateral
supports of the unit on the forks.
If necessary to send back the unit, please use the original packing and respect the advice for safe lifting
and transportation (chap. 3.2).
For disposal of the transport packing, see chap. 10.1.
Note on second-hand units (Ex-Demo-Units):
Second-hand units are units that have been used during a short time for tests or exhibitions. They are
scrupulously tested before resale. BINDER guarantees the technically flawless state of the chamber.
Second-hand units are marked as such with a sticker on the unit door. Please remove the sticker before
commissioning the unit.
3.2 Advice for safe lifting and transportation
The front castors of units size 720 can be blocked by brakes. Respect the advice for temporal
decommissioning (chap. 10.2).

FED 01/2007 page 14/45
CAUTION
Sliding or tilting of the unit.
Damage of the unit.
Transport the unit only in its original packaging.
Secure the unit with transport straps for transport.
∅Do NOT lift or transport the unit using either the door handle or the door.
∅Do NOT lift units size 400 and 720 by hand.
Lift units size 53, 115, and 240 near the 4 unit feet by aid of 4 persons and place it on
a transport pallet with wheels. Push the pallet to the desired site and then lift the unit
near the 4 unit feet from the pallet.
Place units size 400 and 720 using technical devices (fork lifter) on the transport pallet.
Set the fork lifter only from the rear in the middle of the unit. Make sure to place all the
lateral supports of the unit on the forks.
Transport units size 400 and 720 ONLY with the original transport pallet. Set the fork
lifter only to the pallet. Without the pallet the unit is in imminent danger of overturning.
•Permissible ambient temperature range: -10°C to +60°C.
You can order transport packing and pallets for transport purpose at the BINDER Service.
3.3 Storage
Intermediate storage of the unit is possible in a closed and dry room. Respect the advice for temporal
decommissioning (chap. 10.2).
•Permissible ambient temperature range: -10°C to +60°C.
•Permissible ambient humidity: max. 70 % r.H., non-condensing
If following storage in a cold location the unit is transferred to the installation site for start-up,
condensation is possible. Wait at least one hour until the oven has attained ambient temperature and is
completely dry.
3.4 Location of installation and ambient conditions
Set up the multifunctional heating/drying oven FED on a plane and non-flammable surface, free from
vibration at a well-ventilated, dry location and align it using a spirit level. The site of installation must be
capable of supporting the unit’s weight (see technical data, chap. 11.4).
CAUTION
Danger of overheating.
Damage of the unit.
∅Do NOT set up units in non-ventilated recesses.
Ensure sufficient ventilation for carrying-off the heat.
•Permissible ambient temperature range: +18°C up to +40°C. At elevated ambient temperature values,
fluctuations in temperature can occur.
The ambient temperature should not be substantially higher than the indicated ambient
temperature of +25°C to which the specified technical data relate. In the case of different
ambient conditions, deviations from the indicated data are possible.
•Permissible ambient humidity: 70 % r.H. max., non-condensing.
•Installation height: max. 2000 m above sea level.

FED 01/2007 page 15/45
When placing several units of the same size side by side, maintain a minimum distance of 250 mm
between each unit. Wall distances: rear 100 mm, sides 160 mm. Spacing above the unit of at least 100
mm must also be accounted for.
Two devices up to size 115l can be piled on top of each other. For this purpose, place rubber pads under
all four feet of the upper unit to prevent the device from slipping.
CAUTION
Sliding or tilting of the upper unit.
Damage of the units.
When stacking, place rubber pads under all four feet of the upper unit.
The multifunctional heating/drying oven FED must NOT be installed and operated in hazardous locations.
DANGER
Explosion hazard.
Danger of life.
∅Do NOT operate the unit in potentially explosive areas.
∅NO explosive dust or air-solvent mixture in the ambiance.
4. Installation
4.1 Electrical connection
•FED 53, FED 115, FED 240:
Shockproof plug, mains voltage 230 V (1N~) +/- 10 %, 50/60 Hz
Fixed mains connection cable of 1800 mm in length
•FED 400, FED 720:
CEE plug 5 poles, mains voltage 400 V (3N~) +/- 10 %, 50/60 Hz
Fixed mains connection cable of 2700 mm in length
•FED 53-UL, FED 115-UL:
NEMA plug 5-20P, mains voltage 115 V (1N~) +/- 10 %, 60 Hz
Fixed mains connection cable of 1800 mm in length
•FED 240-UL, FED 400-UL, FED 720-UL:
NEMA plug L21-20P, mains voltage 208 V (3N~) +/- 10 %, 60 Hz
Fixed mains connection cable of 2700 mm in length
•Prior to connection and start-up, check the mains voltage. Compare the values to the data specified
on the type plate of the unit (unit front behind the door, bottom left-hand, chap. 1.4).
•When connecting, please observe the regulations specified by the local electricity supply company
and as well as the VDE directives (for Germany)
•Pollution degree (acc. to IEC 1010-1): 2
•Over-voltage category (acc. to IEC 1010-1): II

FED 01/2007 page 16/45
CAUTION
Danger of incorrect mains voltage.
Damage of the equipment.
Check the mains voltage before connection and start-up.
Compare the mains voltage to the data indicated on the type plate.
See also electrical data (chap.11.4).
4.2 Connection to a suction plant (optional)
When directly connecting a suction plant the spatial temperature exactitude, the heating-up and the
recovering times and the maximum temperature will be negatively influenced. So no suction plant should
be directly connected to the outgoing air pipe.
Active suction from the oven must only be effected together with extraneous air. Perforate the
connecting piece to the suction device or place an exhaust funnel at some distance to the
outgoing air pipe.
CAUTION
The exhaust duct will become hot during operation.
Danger of burning.
∅Do NOT touch the exhaust duct during operation.
5. Start up
5.1 Switching on the unit
1. Insert plug into socket (chap. 4.1).
2. Switch on units of sizes 400 and 720 at the main switch (10)
The green “Standby“ LED illuminates.
3. Press until the display lights up.
The controller is now in normal display (actual value display).
If the oven is operating (time functions “Continuous operation”, or “Timer
operation” with the set time just running down chap. 6.3), the actual
temperature value (example: 22°C) is displayed
If the oven is in time function “Timer operation” with no time programmed or the set time run-off (chap.
6.3), the unit is inactive (no heating). The display alternately shows the actual temperature value
(example: 22°C) and “tOff”:

FED 01/2007 page 17/45
5.2 Heating operation display
The heating is active as soon as the red heating control light in the
bottom right corner of the display slowly begins to flash depending on
the heat requirement (example: 70°C):
5.3 Air change
Opening the air flap in the outgoing air pipe serves to
adjust the air change.
Without connecting a suction plant:
•If the air flap is open and the fan is operating, fresh air
comes in via aeration gaps.
•If the air flap is completely open, the spatial temperature
accuracy can be negatively influenced.
Figure 5: Adjusting the air flap
6. Controller setting
6.1 Display / entry of temperature and ventilation set-points (without ramp
function)
The unit is operating, the controller is in normal display (actual value
display). The actual temperature value (example: 22°C) is displayed:
1. Press button
The display shows alternately “SP” and in the entry level the previous temperature set-point
(example: 60°C):
2. With the buttons enter a set-point value between 0 and 300.
The desired temperature set-point can be selected in a temperature range from 5°C above
room temperature up to 300°C.
If you want to frequently operate the unit at low set-points up to 70°C, the controller
parameters can be optimized accordingly. Please contact the BINDER Service to obtain
detailed instructions how to change the parameters.
3. Wait 2 seconds until the entered temperature value is taken over (display flashing once).

FED 01/2007 page 18/45
4. Press button to proceed to the fan speed entry.
The display shows alternately “n” and in the entry level the previous fan speed set-point (example:
100%):
5. Set the desired fan speed with the buttons.
The fan speed can be set to a value between 0% and 100%.
6. Wait 2 seconds until the entered value is taken over (display flashing once).
7. Press button to return to normal display (actual value display) (automatically after 60 seconds).
6.2 Display / entry of temperature and ventilation set-points (with selected
temperature ramp)
If previously a temperature ramp value has been selected (chap. 6.4.2):
Press button in normal display / actual value display during ramp operation to have displayed the
actual temperature set-point changing according to the selected gradient in addition to the entered set-
points for temperature and fan speed.
The oven is operating, the controller is in normal display (actual value
display). The actual temperature value (example: 22°C) is displayed:
1. Press button
The display shows alternately “SPr” and in the entry level the actual temperature set-point
changing according to the selected gradient (example: 42°C):
This ramp set-point is only displayed, not adjustable.
2. Press button
The display shows alternately “SP” and in the entry level the previous temperature set-point
(example: 60°C):
3. With the buttons enter a set-point value between 0 and 300.
The desired temperature set-point can be selected in a temperature range from 5°C above
room temperature up to 300°C.
4. Wait 2 seconds until the entered temperature value is taken over (display flashing once).

FED 01/2007 page 19/45
5. Press button to proceed to the fan speed entry.
The display shows alternately “n” and in the entry level the previous fan speed set-point (example:
100%):
6. Set the desired fan speed with the buttons
The fan speed can be set to a value between 0% and 100%.
7. Wait 2 seconds until the entered value is taken over (display flashing once).
8. Press button to return to normal display / actual value display (automatically after 60 seconds).
6.3 Time functions: Continuous operation and Timer operation
Press the time management button .
The timer indicates its current time function. There are two possible time functions:
Continuous operation
The display shows alternately “t1” (time function) and the time function “Continuous operation” “t inf”:
The heating is permanently active, independent of the timer setting.
Timer operation
The display shows alternately “t1” (time function) and the running-down time or “tOff”:
or
Remaining time (example: 28 Min.) – Timer running
down
Heating activity depending on the entered time value and
the timer function selected in the user menu (chap.6.4.4)
Timer not programmed or run-down “t off”
If the timer has run-down, the unit’s behavior depends on
the pre-selected timer function (chap. 6.4.4).
Press button to return to normal display (actual value display) (automatically after 60 seconds).

FED 01/2007 page 20/45
6.3.1 Switching between Continuous operation and Timer operation
Press the time management button .
The controller displays the actual time function. In time function “Continuous operation”, “t1” and “t inf” are
displayed alternately. In time function “Timer operation”, “t1” is displayed alternately with the running-
down time or “tOff”.
If in time function “Timer operation” the Timer is just running off (“t1”displayed alternately with the
running-down time) the timer must at first be set to Zero (chap. 6.3.3). Now “t1” is displayed alternately
with “tOff”, and the controller can be changed to time function “Continuous operation”.
Continuous operation
2 seconds
2 seconds
Timer operation
Timer not programmed or run-down
Press button to return to normal display / actual value display (automatically after 60 sec).
6.3.2 Continuous operation
1. Press the time management button .The timer indicates its current time function.
2. If necessary, switch to Continuous operation by button .
The display shows alternately “t1” and the time function “Continuous operation” “t inf”:
3. Press button to return to normal display (actual value display) (automatically after 60 seconds).
The actual temperature value (example: 22°C) is displayed:
Now the controller operates with the entered set-points (chap. 6.1) in continuous operation. The heating
is permanently active, independent of the timer setting.
To cancel Continuous operation, proceed accordingly:
1. Press the time management button .
2. Switch to Timer operation by pressing down button for 2 seconds (chap. 6.3.1).
