bintec elmeg be.IP 4isdn User manual

Manual
be.IP 4isdn
Operation as a Media Gateway
Copyright© Version 10.1.27 RC 10/2017 bintec elmeg GmbH
bintec elmeg GmbH Manual
be.IP 4isdn

Legal Notice
Warranty
This publication is subject to change.
bintec elmeg GmbH offers no warranty whatsoever for information contained in this manu-
al. bintec elmeg GmbH is not liable for any direct, indirect, collateral, consequential or any
other damage connected to the delivery, supply or use of this manual.
Copyright © bintec elmeg GmbH.
All rights to the data included, in particular the right to copy and propagate, are reserved by
bintec elmeg GmbH.
Open source software in this product
Along with other components, this product contains open source software that has been
developed by third party suppliers and which is licensed under an open source software li-
cense. These open source software files are subject to copyright. For a current list of the
open source software programs and the open source software licenses, go to
www.bintec-elmeg.com.
GEMA
This product uses internal music for calls on hold for which approval from GEMA (German
Society for Musical Performance and Mechanical Reproduction Rights) is not required. This
has been confirmed by GEMA with the following approval certification. The approval certi-
fication can be viewed at the following web address: www.bintec-elmeg.com. System hold
music: elmeg Song, Hold the line.
Manual bintec elmeg GmbH
be.IP 4isdn

Table of Contents
Chapter1 Introduction...........................1
Chapter2 Introduction...........................2
2.1 be.IP4isdn ............................ 2
2.1.1 Setting up and connecting . . . . . . . . . . . . . . . . . . . . . . 2

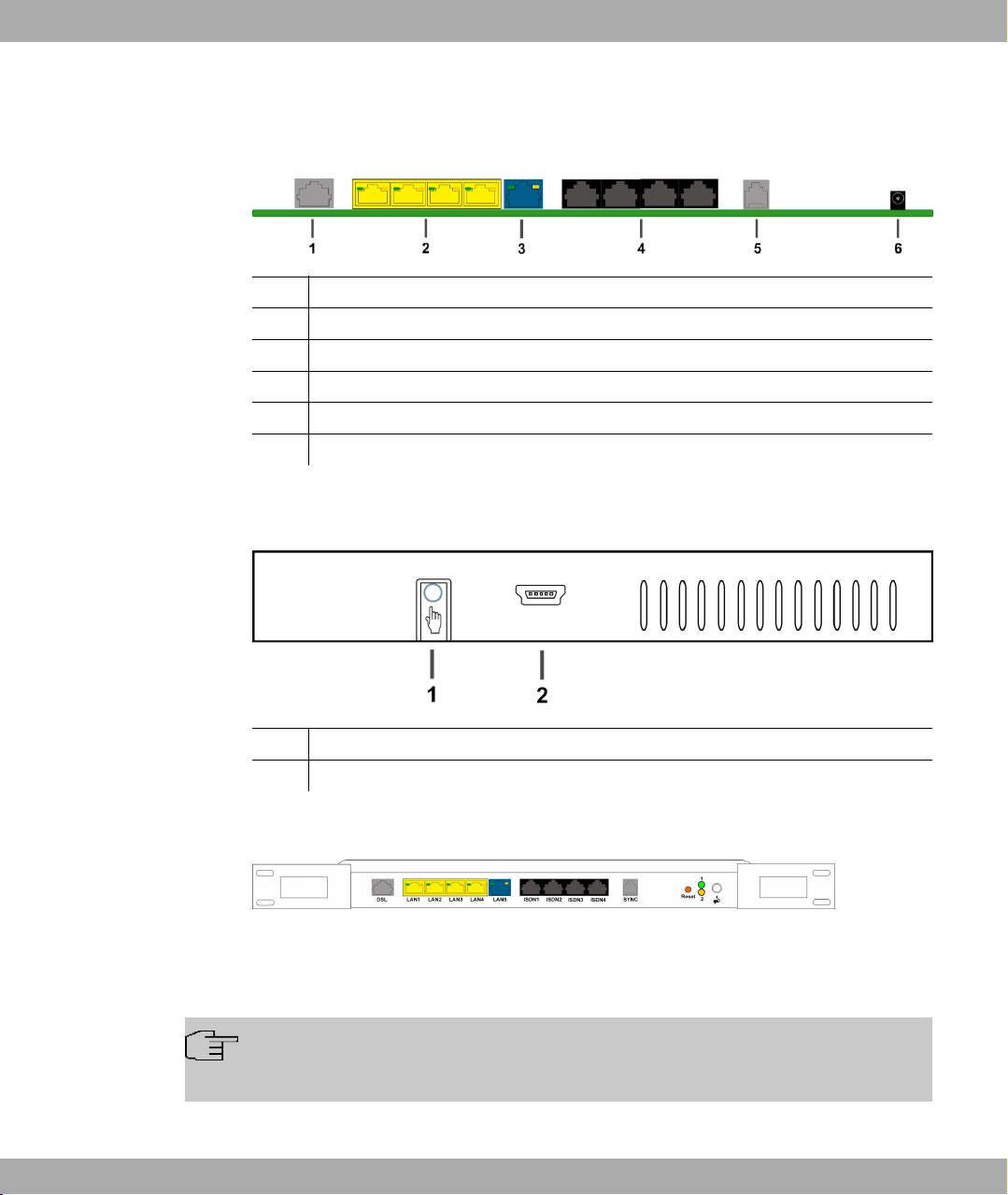

2.1.2 Connectors ............................ 4
2.1.3 Connections (on the side) . . . . . . . . . . . . . . . . . . . . . . 4
2.1.4 Mountingbrackets......................... 4
2.1.5 LEDs............................... 5
2.1.6 Scopeofsupply .......................... 6
2.1.7 General Product Features . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Reset............................... 8
2.3 Presettings ............................ 9
2.4 Support-Information . . . . . . . . . . . . . . . . . . . . . . . . 10
Chapter3 Mounting ........................... 11
3.1 Connecting terminals . . . . . . . . . . . . . . . . . . . . . . . 11
3.1.1 Internal ISDN connection . . . . . . . . . . . . . . . . . . . . . 11
3.2 Resetbutton........................... 11
3.3 Wallmounting.......................... 11
3.4 PinAssignments......................... 12
3.4.1 Ethernet interfaces . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4.2 ISDNinterface.......................... 13
3.4.3 VDSLinterface.......................... 14
3.4.4 Serialinterface.......................... 14
Chapter 4 Basic configuration . . . . . . . . . . . . . . . . . . . . . . 16
bintec elmeg GmbH Table of Contents
be.IP 4isdn i

4.1 Preparations........................... 16
4.1.1 Systemsoftware ......................... 16
4.1.2 System requirements . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.3 Gatheringdata.......................... 17
4.1.4 SettingupaPC ......................... 18
4.2 Configuring the system . . . . . . . . . . . . . . . . . . . . . . 19
4.2.1 Network setting (LAN) . . . . . . . . . . . . . . . . . . . . . . . 20
4.2.2 Enter SIP provider . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 Setting up an internet connection . . . . . . . . . . . . . . . . . . 20
4.3.1 Internet connection via the internal VDSL modem . . . . . . . . . . . 20
4.3.2 Other internet connections . . . . . . . . . . . . . . . . . . . . . 20
4.3.3 Testing the configuration. . . . . . . . . . . . . . . . . . . . . . 21
4.4 Useraccess........................... 21
4.5 Software updates for be.IP 4isdn . . . . . . . . . . . . . . . . . . 22
Chapter 5 Access and configuration. . . . . . . . . . . . . . . . . . . 24
5.1 AccessviaLAN ......................... 24
5.1.1 HTTP/HTTPS.......................... 24
5.2 Configuration........................... 24
5.2.1 Configuration interface . . . . . . . . . . . . . . . . . . . . . . 24
Chapter6 Assistants........................... 35
Chapter 7 System Management . . . . . . . . . . . . . . . . . . . . . 36
7.1 Status.............................. 36
7.2 GlobalSettings ......................... 38
7.2.1 System............................. 38
7.2.2 Passwords ........................... 41
7.2.3 DateandTime.......................... 42
Table of Contents bintec elmeg GmbH
ii be.IP 4isdn

7.2.4 SystemLicences......................... 46
7.3 Interface Mode / Bridge Groups . . . . . . . . . . . . . . . . . . 49
7.3.1 Interfaces............................ 50
7.4 Administrative Access . . . . . . . . . . . . . . . . . . . . . . 53
7.4.1 Access............................. 53
7.4.2 SSH .............................. 54
7.4.3 SNMP ............................. 58
7.5 Remote Authentication . . . . . . . . . . . . . . . . . . . . . . 59
7.5.1 RADIUS ............................ 59
7.5.2 Options............................. 64
7.6 Configuration Access . . . . . . . . . . . . . . . . . . . . . . . 65
7.6.1 AccessProfiles.......................... 65
7.6.2 Users.............................. 68
7.7 Certificates ........................... 69
7.7.1 CertificateList.......................... 70
7.7.2 CRLs.............................. 77
7.7.3 Certificate Servers . . . . . . . . . . . . . . . . . . . . . . . . 78
Chapter 8 Physical Interfaces . . . . . . . . . . . . . . . . . . . . . . 79
8.1 EthernetPorts.......................... 79
8.1.1 Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . 80
8.2 ISDNPorts ........................... 81
8.2.1 ISDN Configuration . . . . . . . . . . . . . . . . . . . . . . . . 82
8.2.2 MSN Configuration . . . . . . . . . . . . . . . . . . . . . . . . 84
8.3 DSLModem........................... 86
8.3.1 DSL Configuration . . . . . . . . . . . . . . . . . . . . . . . . 86
Chapter9 LAN.............................. 90
9.1 IPConfiguration......................... 90
bintec elmeg GmbH Table of Contents
be.IP 4isdn iii

9.1.1 Interfaces............................ 90
9.2 VLAN.............................. 102
9.2.1 VLANs ............................. 102
9.2.2 Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . 103
9.2.3 Administration.......................... 104
Chapter 10 Wireless LAN Controller . . . . . . . . . . . . . . . . . . 105
10.1 Wizard ............................. 105
10.1.1 Wireless LAN Controller Wizard . . . . . . . . . . . . . . . . . . 105
10.1.2 Wireless LAN Controller VLAN Configuration . . . . . . . . . . . . 111
10.2 Controller Configuration . . . . . . . . . . . . . . . . . . . . . . 112
10.2.1 General............................. 112
10.2.2 Slave AP Autoprofile . . . . . . . . . . . . . . . . . . . . . . . 115
10.3 Slave AP configuration . . . . . . . . . . . . . . . . . . . . . . 116
10.3.1 Slave Access Points . . . . . . . . . . . . . . . . . . . . . . . 116
10.3.2 RadioProfiles.......................... 119
10.3.3 Wireless Networks (VSS) . . . . . . . . . . . . . . . . . . . . . 125
10.4 Monitoring............................ 133
10.4.1 WLAN Controller . . . . . . . . . . . . . . . . . . . . . . . . . 133
10.4.2 Slave Access Points . . . . . . . . . . . . . . . . . . . . . . . 134
10.4.3 ActiveClients .......................... 135
10.4.4 Wireless Networks (VSS) . . . . . . . . . . . . . . . . . . . . . 135
10.4.5 Client Management . . . . . . . . . . . . . . . . . . . . . . . . 136
10.5 Neighbor Monitoring . . . . . . . . . . . . . . . . . . . . . . . 136
10.5.1 NeighborAPs.......................... 136
10.5.2 RogueAPs ........................... 137
10.5.3 RogueClients.......................... 137
10.6 Maintenance .......................... 138
10.6.1 Firmware Maintenance . . . . . . . . . . . . . . . . . . . . . . 138
Table of Contents bintec elmeg GmbH
iv be.IP 4isdn

Chapter11 Networking......................... 141
11.1 Routes............................. 141
11.1.1 IPv4 Route Configuration . . . . . . . . . . . . . . . . . . . . . 141
11.1.2 IPv6 Route Configuration . . . . . . . . . . . . . . . . . . . . . 146
11.1.3 IPv4 Routing Table . . . . . . . . . . . . . . . . . . . . . . . . 148
11.1.4 IPv6 Routing Table . . . . . . . . . . . . . . . . . . . . . . . . 149
11.1.5 Options............................. 150
11.2 IPv6 General Prefixes . . . . . . . . . . . . . . . . . . . . . . 151
11.2.1 General Prefix Configuration . . . . . . . . . . . . . . . . . . . . 151
11.3 NAT .............................. 152
11.3.1 NATInterfaces.......................... 153
11.3.2 NAT Configuration . . . . . . . . . . . . . . . . . . . . . . . . 154
11.3.3 NAT - Configuration example. . . . . . . . . . . . . . . . . . . . 160
11.4 LoadBalancing ......................... 162
11.4.1 Load Balancing Groups . . . . . . . . . . . . . . . . . . . . . . 162
11.4.2 Special Session Handling . . . . . . . . . . . . . . . . . . . . . 166
11.4.3 Load balancing - Configuration example . . . . . . . . . . . . . . . 169
11.5 QoS .............................. 172
11.5.1 IPv4/IPv6 Filter . . . . . . . . . . . . . . . . . . . . . . . . . 172
11.5.2 QoS Classification . . . . . . . . . . . . . . . . . . . . . . . . 176
11.5.3 QoS Interfaces/Policies . . . . . . . . . . . . . . . . . . . . . . 178
11.6 AccessRules .......................... 185
11.6.1 AccessFilter .......................... 186
11.6.2 RuleChains........................... 190
11.6.3 Interface Assignment . . . . . . . . . . . . . . . . . . . . . . . 191
Chapter12 Multicast........................... 193
12.1 General............................. 194
12.1.1 General............................. 194
bintec elmeg GmbH Table of Contents
be.IP 4isdn v

12.2 IGMP.............................. 195
12.2.1 IGMP.............................. 195
12.2.2 Options............................. 198
12.3 Forwarding ........................... 199
12.3.1 Forwarding ........................... 199
Chapter13 WAN............................. 200
13.1 Internet+Dialup......................... 200
13.1.1 PPPoE............................. 201
13.1.2 PPTP.............................. 209
13.1.3 PPPoA............................. 214
13.1.4 IPPools ............................ 221
13.2 ATM .............................. 222
13.2.1 Profiles............................. 223
13.2.2 Service Categories . . . . . . . . . . . . . . . . . . . . . . . . 227
13.2.3 OAM Controlling . . . . . . . . . . . . . . . . . . . . . . . . . 229
13.3 Real Time Jitter Control . . . . . . . . . . . . . . . . . . . . . . 233
13.3.1 Controlled Interfaces . . . . . . . . . . . . . . . . . . . . . . . 233
Chapter14 VPN............................. 235
14.1 IPSec.............................. 235
14.1.1 IPSecPeers........................... 236
14.1.2 Phase-1 Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 252
14.1.3 Phase-2 Profiles . . . . . . . . . . . . . . . . . . . . . . . . . 259
14.1.4 XAUTHProfiles ......................... 263
14.1.5 IPPools ............................ 265
14.1.6 Options............................. 266
14.2 be.IP Secure Client . . . . . . . . . . . . . . . . . . . . . . . . 269
14.3 LISPLight............................ 269
Table of Contents bintec elmeg GmbH
vi be.IP 4isdn

14.3.1 Router (ITR/ETR) . . . . . . . . . . . . . . . . . . . . . . . . 271
14.3.2 Local/Remote-Sites . . . . . . . . . . . . . . . . . . . . . . . 273
14.3.3 EID Prefix Segregation (LISP Instances) . . . . . . . . . . . . . . 275
Chapter15 Firewall........................... 277
15.1 Policies............................. 278
15.1.1 IPv4 Filter Rules . . . . . . . . . . . . . . . . . . . . . . . . . 279
15.1.2 IPv6 Filter Rules . . . . . . . . . . . . . . . . . . . . . . . . . 281
15.1.3 Options............................. 283
15.2 Interfaces............................ 285
15.2.1 IPv4Groups........................... 285
15.2.2 IPv6Groups........................... 286
15.3 Addresses ........................... 286
15.3.1 AddressList........................... 286
15.3.2 Groups............................. 287
15.4 Services ............................ 288
15.4.1 ServiceList........................... 288
15.4.2 Groups............................. 290
15.5 Configuration........................... 291
15.5.1 SIF - Configuration example . . . . . . . . . . . . . . . . . . . . 291
Chapter16 VoIP ............................ 296
16.1 Settings............................. 296
16.1.1 Extensions ........................... 296
16.1.2 SIPAccounts .......................... 301
16.1.3 Locations............................ 309
16.1.4 ISDNTrunks .......................... 311
16.1.5 Options............................. 312
16.2 MediaGateway ......................... 315
16.2.1 CallRouting........................... 316
bintec elmeg GmbH Table of Contents
be.IP 4isdn vii

16.2.2 CLID Translation . . . . . . . . . . . . . . . . . . . . . . . . . 319
16.2.3 Call Translation . . . . . . . . . . . . . . . . . . . . . . . . . 320
Chapter 17 Local Services . . . . . . . . . . . . . . . . . . . . . . . 323
17.1 DNS .............................. 323
17.1.1 Global Settings . . . . . . . . . . . . . . . . . . . . . . . . . 324
17.1.2 DNSServers .......................... 327
17.1.3 StaticHosts........................... 329
17.1.4 Domain Forwarding . . . . . . . . . . . . . . . . . . . . . . . 330
17.1.5 DynamicHosts ......................... 331
17.1.6 Cache ............................. 331
17.1.7 Statistics ............................ 332
17.2 HTTPS............................. 332
17.2.1 HTTPSServer.......................... 333
17.3 DynDNSClient ......................... 333
17.3.1 DynDNSUpdate......................... 334
17.3.2 DynDNS Provider . . . . . . . . . . . . . . . . . . . . . . . . 335
17.4 DHCPServer .......................... 337
17.4.1 IP Pool Configuration . . . . . . . . . . . . . . . . . . . . . . . 337
17.4.2 DHCP Configuration . . . . . . . . . . . . . . . . . . . . . . . 338
17.4.3 IP/MACBinding ......................... 342
17.4.4 DHCP Relay Settings . . . . . . . . . . . . . . . . . . . . . . . 343
17.4.5 DHCP - Configuration example . . . . . . . . . . . . . . . . . . . 344
17.5 DHCPv6Server ......................... 347
17.5.1 DHCPv6Server ......................... 349
17.5.2 DHCPv6 Global Options . . . . . . . . . . . . . . . . . . . . . 350
17.5.3 Stateful Clients . . . . . . . . . . . . . . . . . . . . . . . . . 352
17.5.4 Stateful Clients Configuration. . . . . . . . . . . . . . . . . . . . 352
17.6 CAPIServer........................... 353
17.6.1 User .............................. 353
Table of Contents bintec elmeg GmbH
viii be.IP 4isdn

17.6.2 Options............................. 354
17.7 Scheduling ........................... 355
17.7.1 Trigger............................. 355
17.7.2 Actions............................. 361
17.7.3 Options............................. 372
17.7.4 Configuration example - Time-controlled Tasks (Scheduling) . . . . . . 372
17.8 Surveillance........................... 376
17.8.1 Hosts.............................. 376
17.8.2 Interfaces............................ 378
17.8.3 PingGenerator ......................... 379
17.9 UPnP.............................. 380
17.9.1 Interfaces............................ 381
17.9.2 General............................. 381
17.10 HotSpot Gateway . . . . . . . . . . . . . . . . . . . . . . . . 382
17.10.1 HotSpot Gateway . . . . . . . . . . . . . . . . . . . . . . . . 384
17.10.2 Options............................. 387
17.11 Wake-On-LAN.......................... 388
17.11.1 Wake-On-LAN Filter . . . . . . . . . . . . . . . . . . . . . . . 388
17.11.2 WOLRules ........................... 391
17.11.3 Interface Assignment . . . . . . . . . . . . . . . . . . . . . . . 393
17.12 TraceInterface ......................... 394
17.12.1 Trace Interface . . . . . . . . . . . . . . . . . . . . . . . . . 394
17.12.2 TraceVoIP/SIP.......................... 394
Chapter 18 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 395
18.1 LogoutUsers.......................... 395
18.1.1 LogoutUsers.......................... 395
18.2 Diagnostics........................... 396
18.2.1 PingTest............................ 396
18.2.2 DNSTest............................ 396
bintec elmeg GmbH Table of Contents
be.IP 4isdn ix

18.2.3 Traceroute Test . . . . . . . . . . . . . . . . . . . . . . . . . 396
18.3 Software &Configuration . . . . . . . . . . . . . . . . . . . . . 397
18.3.1 Options............................. 397
18.4 Reboot............................. 402
18.4.1 SystemReboot ......................... 402
18.5 FactoryReset.......................... 402
Chapter 19 External Reporting . . . . . . . . . . . . . . . . . . . . . 403
19.1 Syslog ............................. 403
19.1.1 SyslogServers ......................... 403
19.2 IPAccounting.......................... 405
19.2.1 Interfaces............................ 405
19.2.2 Options............................. 406
19.3 AlertService........................... 407
19.3.1 AlertRecipient.......................... 407
19.3.2 AlertSettings .......................... 409
19.4 SNMP ............................. 411
19.4.1 SNMP Trap Options . . . . . . . . . . . . . . . . . . . . . . . 411
19.4.2 SNMP Trap Hosts . . . . . . . . . . . . . . . . . . . . . . . . 412
19.5 SIA............................... 412
19.5.1 SIA............................... 413
Chapter20 Monitoring ......................... 414
20.1 InternalLog........................... 414
20.1.1 System Messages . . . . . . . . . . . . . . . . . . . . . . . . 414
20.2 IPSec.............................. 414
20.2.1 IPSecTunnels.......................... 414
20.2.2 IPSec Statistics . . . . . . . . . . . . . . . . . . . . . . . . . 416
Table of Contents bintec elmeg GmbH
xbe.IP 4isdn

20.3 ISDN/Modem .......................... 417
20.3.1 CurrentCalls .......................... 417
20.3.2 CallHistory ........................... 418
20.4 Interfaces............................ 418
20.4.1 Statistics ............................ 418
20.4.2 NetworkStatus ......................... 420
20.5 Bridges............................. 420
20.5.1 br<x>.............................. 420
20.6 HotSpotGateway ........................ 420
20.6.1 HotSpot Gateway . . . . . . . . . . . . . . . . . . . . . . . . 420
20.7 QoS .............................. 421
20.7.1 QoS .............................. 421
Glossary........................... 422
Index ............................ 460
bintec elmeg GmbH Table of Contents
be.IP 4isdn xi

Table of Contents bintec elmeg GmbH
xii be.IP 4isdn

Chapter 1 Introduction
Important
Read these notes on the application of your be.IP 4isdn carefully. Features not in-
cluded in this manual are not supported!
Our Media Gateway be.IP 4isdn with its integrated business router offers easy entry into
the world of IP technology.
The device has been designed with the migration of existing ISDN PABXs to All-IP connec-
tions in mind. "Migration", in this context, means that you are enabled to continue using
your ISDN PABX with all its connected terminals like telephones and fax devices without
having to change the actual PABX configuration. Since our gateway offers four ISDN ports,
it is suitable for locations with multiple ISDN point-to-multi-point or point-to-point connec-
tions. If the four ports prove to be insufficient, you can link two be.IP 4isdn. The resulting
unit enables you to migrate an ISDN PABX with up to eight ISDN connections and 16 sim-
ultaneously used voice channels to an ALL-IP connection.
If you are in need of voice trans-coding, our Media Gateway be.IP 4isdn is a perfect
choice, as well. Due to the use of additional DSPs the number of simultaneously available
connections is significantly higher than with other devices of the be.IP series - even without
the use of ISDN.
Of course, the device also supports all of the common fax applications through CAPI at the
ISDN port. If your company runs a server-based Email system that a third party CAPI inter-
face expands by fax, voice mail and voice messaging, a be.IP 4isdn operating in Media
Gateway mode enables you to control ISDN interfaces on virtualized server systems, too.
Third party CAPI applications connected directly to an ISDN connection often do no longer
work with All IP connections. For this, be.IP 4isdn offers "Fax mode" operation and hence
the possibility to operate your existing systems directly at a SIP connection through CAPI -
entirely without the use of ISDN. Our CAPI2SIP solution will migrate your CAPI applications
into the ALL IP era.
bintec elmeg GmbH 1 Introduction
be.IP 4isdn 1

Chapter 2 Introduction
2.1 be.IP 4isdn
This chapter will show you how to set your device up, connect it and get it working in just a
few minutes.
We shall then explain, step-by-step, more detail about the configuration. A detailed online
help system gives you extra support.
The PDF version of this document contains a slim version of the manual. It comprises all
information on installation as well as the description of all configuration parameters, but no
screen shots. An HTML-based version containing the screen shots is available as a ZIP file
in the download section of your device. Unpack the ZIP file into a folder of your choice and
call “start.html” in a web browser.
2.1.1 Setting up and connecting
be.IP 4isdn is operated at a purely IP-based connection. Telephony is exclusively VoIP-
based, but your choice of connected devices is not restricted in any way. You can connect
SIP, analogue and ISDN phones as well as PCs.
Caution
Please read the safety instructions carefully before installing and starting up your
device.
2 Introduction bintec elmeg GmbH
2be.IP 4isdn

Caution
Using an incorrect power supply unit may damage your device! You should only use
the power supply unit provided!
Set up and connect in the following sequence:
(1) Installation
When operational, be.IP 4isdn needs to be wall-mounted in an upright position or
well ventilated inside of a device rack (please read chapter Mounting on page 11
carefully).
(2) Mains connection
Connect the network connection on the device with the power supply unit provided
to a 230 V mains socket.
(3) DSL
Connect the DSL connector to the TAE plug using the grey cable.
(4) ISDN telephones
Connect an ISDN telephone at the internal ISDN connector of the be.IP 4isdn. To
do this, use the cable provided with the terminal.
(5) SIP telephones
Connect your SIP telephones to the 10/100/1000 Base-T Ethernet interfaces. In a
last step connect your PC and follow the instructions from the installation poster.
(6) PC
Connect a suitable PC to one of the Ethernet ports of be.IP 4isdn using an Ethernet
cable. Should you run into any problems with the connection between your PC and
your be.IP 4isdn , read the corresponding sections on the basic configuration of
your device.
(7) SYNC
The SYNC connector enables you to connect a second be.IP 4isdn using a SYNC
cable. This provides an additional four ISDN connections.
Note
The additional connections are available in Media Gateway mode only!
(8) VoIP
For a pure IP connection without ISDN refer to the instruction provided by your ser-
vice provider.
bintec elmeg GmbH 2 Introduction
be.IP 4isdn 3

2.1.2 Connectors
1 DSL interface Annex B/J
2 10/100/1000 Base-T Ethernet interface (LAN 1 - LAN4)
3 Etherne WAN interface (LAN5)
4 Interface for ISDN telephones (ISDN1 - ISDN4)
5 SYNC interface
6 Socket for the power supply unit
2.1.3 Connections (on the side)
1 Function key
2 Console
2.1.4 Mounting brackets
Due to the position of the devices in a rack it is recommended to use remote antenna. At-
tach the mounting brackets to the device using the supplied screws. The mounting brackets
and screws are available as an accessory (Part No. MN40285514).
Note
During operation in a rack the ambient temperature must not exceed 40 °C.
2 Introduction bintec elmeg GmbH
4be.IP 4isdn

2.1.5 LEDs
The LEDs provide information on the device's activities and statuses.
The LEDs on your be.IP 4isdn are arranged as follows:
In operation mode, the LEDs display the following status information for your device:
LED status display
LED Status Information
Service on Undergoing automatic maintenance
off No automatic maintenance
DSL on Connection established
slow flashing Synchronisation running
off No synchronisation
flickering Data transfer
TEL on Telephony ready at IP connector (Voice over IP)
off Telephony not configured
ISDN1 to ISDN
4
on ISDN telephone system connected
off On standby or not functioning
Status on After switching on: Device is started
While operation: Fault
slow flashing The device is active
Power on The power supply is connected
off No power supply
The LEDs for the Ethernet sockets LAN 1-4 (LAN) and LAN5 (WAN) show the following
status information:
Ethernet-LEDs
LED Colour Status Information
LAN 1 to 4
(Link/Act)
Green on Ethernet connection established
bintec elmeg GmbH 2 Introduction
be.IP 4isdn 5

LED Colour Status Information
LAN 1 to 4
(Link/Act)
Green flashing Data transmission via Ethernet
LAN 1 to 4
(Link/Act)
off No Ethernet connection
LAN 1 to 4 (Speed) Green on 1000 Mbit/s transfer rate
LAN 1 to 4 (Speed) Orange on 100 Mbit/s transfer rate
LAN 1 to 4 (Speed) off 10 Mbit/s transfer rate
LAN 5 (Link/Act) Green on WAN Ethernet connection established
LAN 5 (Link/Act) Green flashing Data transmission via ETH5t
LAN 5 (Link/Act) off No Ethernet connection
LAN 5 (Speed) Green on 1000 Mbit/s transfer rate
LAN 5 (Speed) Orange on 100 Mbit/s transfer rate
LAN 5 (Speed) off 10 Mbit/s transfer rate
LEDs back view
The LEDs are linked to those on the top of the device and show the identical behavior.
1 Status Yellow
2 Service Yellow
2.1.6 Scope of supply
Your device is supplied with the following parts:
Product Name Cables/Accessories Documentation
be.IP 4isdn One Ethernet LAN cable (yellow)
One Ethernet WAN cable (blue)
One VDSL cable (grey)
Power supply unit
Installation poster
Safety instructions
2 Introduction bintec elmeg GmbH
6be.IP 4isdn
