Biolase Waterlase iPlus User manual

User Manual

PAGE INTENTIONALLY LEFT BLANK

3
Contents
1 OVERVIEW....................................................................................................................... 7
2 INDICATIONS FOR USE .................................................................................................. 8
4SPECIFICATIONS .......................................................................................................... 14
Dimensions.......................................................................................................................................... 14
Electrical.............................................................................................................................................. 14
Air andWater Output........................................................................................................................... 14
Optical ................................................................................................................................................. 14
Waterlase iPlus User Manual
3CONTRAINDICATIONS, WARNINGS, AND PRECAUTIONS ........................................10
Contraindications ................................................................................................................................ 10
Warnings and Precautions .................................................................................................................. 10
Prescription Statement ................................................................................................................... 10
Eyewear.......................................................................................................................................... 10
Training........................................................................................................................................... 10
Anesthesia...................................................................................................................................... 10
Treatment, Technique and Settings................................................................................................ 11
Hard-Tissue Procedures................................................................................................................. 11
Soft-Tissue Procedures .................................................................................................................. 11
Curettage Procedures .................................................................................................................... 11
Fluid Entrapment and Air Embolism ............................................................................................... 11
Root Canal Procedures .................................................................................................................. 12
Root Canal Disinfection Procedures .............................................................................................. 12
Adjacent Structures ........................................................................................................................ 12
Clinical Conditions.......................................................................................................................... 12
Tissue Evaluation ........................................................................................................................... 12
Tissue Contact and Tip Breakage .................................................................................................. 13
Tip Changing .................................................................................................................................. 13
Water Splashing ............................................................................................................................. 13
Plume Removal .............................................................................................................................. 13
Dental Materials.............................................................................................................................. 13
Crown and Veneer Materials.......................................................................................................... 13

Contents
6 SAFETY WITH THE WATERLASE ................................................................................ 21
Precautions ......................................................................................................................................... 21
Safety Instructions............................................................................................................................... 21
Safety Classication............................................................................................................................ 22
7 INSTALLATION .............................................................................................................. 23
Installation Instructions........................................................................................................................ 23
Facility Requirements.......................................................................................................................... 23
Environmental Requirements .............................................................................................................. 23
Set-up Requirements .......................................................................................................................... 24
Connecting the Unit to the Operatory............................................................................................. 24
Filling the Internal Cooling Water Reservoir ................................................................................... 24
Filling the Self-Contained Water System Bottle ............................................................................. 25
Installing the SureFire Delivery System.......................................................................................... 26
Connecting the Handpiece to the Fiber Cable ............................................................................... 28
4Waterlase iPlus User Manual
5EQUIPMENT DESCRIPTION ......................................................................................... 15
System Parts List ................................................................................................................................ 15
General................................................................................................................................................ 15
Main Laser Console Elements ............................................................................................................ 15
Control Panel.................................................................................................................................. 15
Energy Monitor ............................................................................................................................... 16
Front and Back Handles ................................................................................................................. 16
Locking Wheels .............................................................................................................................. 16
Emergency Stop ............................................................................................................................. 16
Keyswitch......................................................................................................................................... 16
Footswitch, Footswitch Connector................................................................................................. 17
Remote Interlock Outlet.................................................................................................................. 17
Power Connection / Circuit Breaker ............................................................................................... 17
Ventilation Channels....................................................................................................................... 17
Air Inlet Connector.......................................................................................................................... 17
Self-Contained Water Bottle........................................................................................................... 17
Water Bottle Release...................................................................................................................... 18
Footswitch Support Bracket............................................................................................................ 18
Telescopic Fiber Cable Support Arm.............................................................................................. 19
Waterlase iPlus Delivery System ................................................................................................... 19
Delivery System Connection on the Laser Console...................................................................... . 20

5
Contents
Disconnecting the Handpiece......................................................................................................... 29
Installing and Changing the Tip in the Handpiece.......................................................................... 29
8 OPERATING INSTRUCTIONS ....................................................................................... 31
Operation............................................................................................................................................. 31
Overview ........................................................................................................................................ 31
Starting the Waterlase iPlus............................................................................................................31
Activating the Waterlase iPlus.........................................................................................................32
Turning the Waterlase iPlus Off ......................................................................................................32
User Interface / General Navigation ............................................................................................... 32
Applications Menu .......................................................................................................................... 33
Changing and Saving the Pre-Sets ................................................................................................ 35
Settings/Memory Menu .................................................................................................................. 36
Functions for the Setting Buttons ................................................................................................... 37
Custom Settings ............................................................................................................................. 37
Description of the Functional Buttons............................................................................................. 38
Other Screens ................................................................................................................................ 38
System Flow Chart ......................................................................................................................... 39
9CLINICAL APPLICATION............................................................................................... 40
Introduction.......................................................................................................................................... 40
Hard-Tissue Cutting ............................................................................................................................ 40
Soft-Tissue Cutting.............................................................................................................................. 41
Laser Parameters................................................................................................................................ .42
10 CLEANING AND STERILIZATION ................................................................................ 45
Handpiece andTip Cleaning andSterilization .................................................................................... 45
Step 1—Cleaning Process ............................................................................................................. 45
Step 2—Handpiece Sterilization Process ...................................................................................... 46
Step 3—Disinfecting the Fiber Cable ............................................................................................. 47
11 MAINTENANCE AND TROUBLESHOOTING ............................................................... 48
Daily Maintenance............................................................................................................................... 48
Mirror Check andCleaning............................................................................................................. 48
Mirror Inspection andCleaning ...................................................................................................... 48
Removing the Handpiece Mirror..................................................................................................... 49
Changing the Handpiece Mirror ..................................................................................................... 49
Waterlase iPlus User Manual
Presets for Soft- and Hard-Tissue Procedures.................................................................................... 42
Waterlase Laser Removal of Porcelain and Ceramic Crowns and Veneers ...........................................43

Contents
Annual Maintenance............................................................................................................................ 52
Delivery System.............................................................................................................................. 52
Laser Console ................................................................................................................................ 52
Calibration Schedule............................................................................................................................ 53
Installation andCalibration Dates................................................................................................... 53
Troubleshooting ................................................................................................................................... 54
Transportation ..................................................................................................................................... 55
Storage................................................................................................................................................ 55
APPENDIX A: LABELS ...................................................................................................... 56
APPENDIX B: ACCESSORIES........................................................................................... 63
Accessories List .................................................................................................................................. 63
APPENDIX C: TIPS............................................................................................................. 64
Tip Types............................................................................................................................................. 64
Tip Ferrule Colors........................................................................................................................... 64
Tip Settings: Waterlase iPlus / Gold Handpieces .......................................................................... ..... 64
Z - Glass Tips ................................................................................................................................. 64
Sapphire Tips ................................................................................................................................. 65
APPENDIX D: TIP INSPECTION ........................................................................................ 66
Tip Inspection Instructions .................................................................................................................. 66
Tip Cleaning Instructions..................................................................................................................... 67
Turbo TipInspection............................................................................................................................ 67
Fiber Tip Inspection............................................................................................................................. 67
APPENDIX E: PROGRAMMED SETTINGS....................................................................... 68
6
NO MODIFICATION OF THIS EQUIPMENT IS ALLOWED.
Mirror Alignment Check.................................................................................................................. 50
Fiber Check .................................................................................................................................... 50
APPENDIX G: ELECTROMAGNETIC COMPATIBILITY .................................................. 77
Waterlase iPlus User Manual
Turbo Tips ...................................................................................................................................... 65

7
1Overview

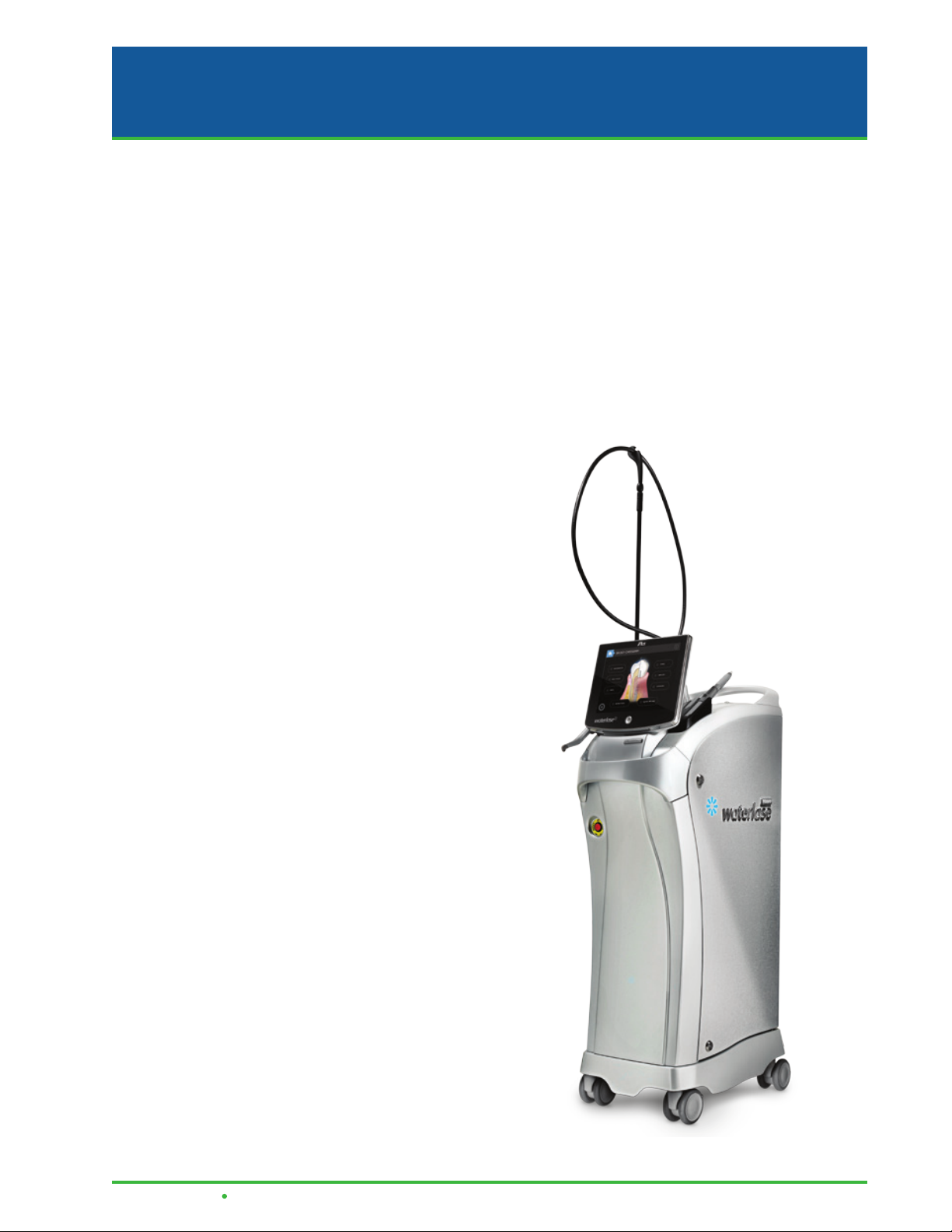

The Waterlase iPlus tissue cutting system is a
unique device with diverse, hard- and soft-tissue
dental applications. It utilizes advanced laser
and water atomization technologies to safely
and effectively cut, shave, contour, roughen,
etch, and resect oral hard-tissue, and direct laser
energy to perform oral soft-tissue removal,
incision, excision, ablation and coagulation.
Waterlase iPlus may also be used for specific
endodontic and periodon-tal applications.
When used for oral hard-tissue procedures, this
YSGG solid-state laser provides optical energy
to a user-controlled distribution of atomized water
droplets and hydrated surface layer of hard-tissue.
Water present in the target tissue absorbs laser ra-
diation, resulting in explosive molecular expansion
and ablation of hard-tissue. The water in the spray
provides cooling and hydration for the target tissue.
For oral soft-tissue procedures, the Waterlase
iPlus laser applies optical energy to the soft-tissue
for tissue removal, incision, excision, ablation,
and coagulation using direct laser energy, either
with water for cooling and hydration, or without
water for coagulation.
A exible Fiber Cable connects at one end to the
laser and at the other to a Handpiece that delivers
laser energy to the target tissue through a Fiber
Tip. A visible light emitted from the Handpiece
head illuminates the area of treatment. The optical
power output and atomized water spray may be
adjusted to specic user requirements for both
soft- and hard-tissue applications.
Waterlase iPlus is indicated for professional use
on adult and pediatric dental patients. Procedures
must be performed only by licensed dental
practitioners in a dental facility. Use of this device
requires proper clinical and technical prociency,
and this User Manual provides instructions for use
for those professionals who have completed the
appropriate training.
When used and maintained properly, the Waterlase
iPlus proves avaluable addition to apractice.
Please contact BIOLASE Customer Service at
1-800-321-6717 in the U.S and Canada for any
service needs; if the user is located outside the
U.S., please contact the BIOLASE-authorized
representative.
This device must be installed, operated, and
maintained according to the guidelines of
CAN/CSA-Z386-14, Safe Use of Lasers in
Healthcare.
Waterlase iPlus User Manual

2 Indications for Use
WATERLASE IPLUS IS INDICATED FOR:
HARD-TISSUE
GENERAL INDICATIONS*
• Class I, II, III, IV and V cavity preparation
•Caries removal
• Hard-tissue surface roughening or etching
•Enameloplasty, excavation of pits and ssures
for placement of sealants
* For use on adult and pediatric patients
ROOT CANAL HARD-TISSUE INDICATIONS
• Tooth preparation to obtain access to root
canal
•Root canal preparation including enlargement
• Root canal debridement and cleaning
ENDODONTIC SURGERY (ROOT
AMPUTATION) INDICATIONS
• Flap preparation – incision of soft-tissue to
prepare a ap and expose the bone.
• Cutting bone to prepare a window access to
the apex (apices) of the root(s)
• Apicoectomy – amputation of the root end
•Root-end preparation for retroll amalgam or
composite
• Removal of pathological tissues (i.e., cysts,
neoplasm or abscess) and hyperplastic
tissues (i.e., granulation tissue) from around
the apex
BONE SURGICAL INDICATIONS
• Cutting, shaving, contouring and resection of
oral osseous tissues (bone)
•Osteotomy
LASER PERIODONTAL PROCEDURES
•Full thickness ap
•Partial thickness ap
•Split thickness ap
• Laser soft-tissue curettage
•Laser removal of diseased, infected,
inamed and necrosed soft-tissue within the
periodontal pocket
•Removal of highly inamed edematous tissue
affected by bacteria penetration of the pocket
lining junctional epithelium
• Removal of granulation tissue from bony
defects
• Sulcular debridement (removal of diseased,
infected, inamed or necrosed soft-tissue
in the periodontal pocket to improve clinical
indices including gingival index, gingival
bleeding index, probe depth, attachment loss
and tooth mobility)
• Osteoplasty and osseous recontouring
(removal of bone to correct osseous defects
and create physiologic osseous contours)
•Ostectomy (resection of bone to restore bony
architecture, resection of bone for grafting, etc.)
NOTE: Any tissue growth (i.e., cyst, neoplasm or other lesions) must be submitted to a
qualied laboratory for histopathological evaluation.
IMPORTANT: Review all Contraindications, Warnings and Precautions presented in Section
5 before proceeding with using this device on patients.
8Waterlase iPlus User Manual

9
2 Indications for Use
LASER PERIODONTAL
PROCEDURES (CONTINUED)
•Osseous crown lengthening
•Waterlase Er,Cr:YSGG assisted new
attachment procedure (cementum-mediated
periodontal ligament new-attachment to the
root surface in the absence of long junctional
epithelium).
•Removal ofsubgingival calculi in periodontal
pockets with periodontitis by closed or open
curettage.
SOFT-TISSUE INDICATIONS
INCLUDING PULPAL TISSUES*
• Incision, excision, vaporization, ablation and
coagulation of oral soft-tissues, including:
• Excisional and incisional biopsies
• Exposure of unerupted teeth
• Fibroma removal
• Flap preparation – incision of soft-tissue to
prepare a ap and expose the bone.
•Flap preparation – incision ofhard- andsoft-
tissue to prepare a ap and expose unerupted
teeth (soft-tissue impactions).
• Frenectomy and frenotomy
• Gingival troughing for crown impressions
•Gingivectomy
•Gingivoplasty
•Gingival incision andexcision
•Hemostasis
•Implant recovery
• Incision and drainage of abscesses
• Laser soft-tissue curettage of the post-
extraction tooth sockets and the periapical
area during apical surgery
• Leukoplakia
•Operculectomy
•Oral papillectomies
•Pulpotomy
•Pulp extirpation
• Pulpotomy as an adjunct to root canal therapy
• Root canal debridement and cleaning
•Reduction of gingival hypertrophy
• Removal of pathological tissues (i.e., cysts,
neoplasm or abscess) and hyperplastic
tissues (i.e., granulation tissue) from around
the apex
• Soft-tissue crown lengthening
• Treatment of canker sores, herpetic and
aphthous ulcers of the oral mucosa
•Vestibuloplasty
* For use on adult and pediatric patients
ROOT CANAL DISINFECTION
•Laser root canal disinfection after endodontic
instrumentation.
Waterlase iPlus User Manual
CROWN AND VENEER REMOVAL
•Waterlase laser removal of porcelain and
ceramic crowns and veneers.

10
3Contraindications, Warnings, and Precautions
CONTRAINDICATIONS
All clinical procedures performed with the Waterlase iPlus must be subjected to the same clinical judgment
and care as with traditional techniques. Patient risk must always be considered and fully under stood
before clinical treatment. The clinician must completely understand the patient’s medical history prior to
treatment. Exercise caution for general medical conditions which might contraindicate a local procedure.
Such conditions may include, but are not limited to, allergy to local or topical anesthetics, heart disease
(e.g. pacemakers, implantable defribulators), lung disease, bleeding disorders, or an immune system defi-
ciency. Medical clearance from the patient’s physician is advisable when doubt exists regarding treatment.
WARNINGS AND PRECAUTIONS
PRESCRIPTION STATEMENT
Federal Law restricts this device to sale by or on the order of a dentist or other licensed dental
practitioner.
EYEWEAR
Doctor, patient, assistant, and all others inside or entering the operatory must always wear
appropriate laser protection eyewear for the 2780nm wavelength, OD4 (DI LB4) or greater. Always
check the eyewear specifications imprinted on the frame of the glasses to ensure they offer the
required protection for the specific laser wavelength. Prior to use, inspect eyewear for pitting a cracking.
Replace if damaged; do not use.
TRAINING
Only licensed professionals who have reviewed and understood this user manual, and have been
trained on how to correctly operate the system should use this device. Surgical procedures related to
soft-tissue, osseous, endodontic, or periodontal surgery should only be performed by clinicians who
have training and experience in Oral Maxillofacial, Periodontal, or Endodontic Surgery.
ANESTHESIA
Although in most cases anesthesia may not be required, patients should be closely monitored for
signs of pain or discomfort. If such signs are present, adjust settings, apply anesthesia or cease
treatment, if required.
TREATMENT, TECHNIQUE AND SETTINGS
Only licensed professionals who have reviewed and understood this user manual should use this
device. Always start treatment at the lowest power setting for the specific tissue and increase as
required. Observe clinical effects and use judgment to determine the aspects of the treatment
(technique, proper power, pulse mode, air and water settings, tip type and duration of operation) and
make appropriate power, air and water adjustments to compensate for varying tissue composition,
density and thickness.
Waterlase iPlus User Manual

3Contraindications, Warnings, and Precautions
HARD-TISSUE PROCEDURES
All hard-tissue (i.e. enamel, dentin, cementum and bone) procedures must be performed using air and
water spray at appropriate settings. Failure to use the spray will result in tissue thermal damage. The
long pulse settings (700 µs) are indicated only for soft-tissue applications. Do not use long pulse settings
to perform hard-tissue procedures.
SOFT-TISSUE PROCEDURES
Soft-tissue procedures can be performed using two pulse duration settings: (H) short pulse (60 µs) and
(S) long pulse (700 µs). However, the long pulse (S) range is indicated ONLY for soft-tissue applications.
CURETTAGE PROCEDURES
Exercise extreme caution when using this device in areas where critical structures (i.e., nerves and
vessels) could be damaged, such as in the apical third of the 3rd molar socket. Do not proceed with
using the laser if visibility is limited in these areas.
FLUID ENTRAPMENT AND AIR EMBOLISM
Do not direct air or spray toward tissues that may trap air or water. For example, when performing
surgical procedures, the clinician should be aware of adjacent soft-tissue pockets, cavities, or channels
that may collect or entrap air. Always use high-speed suction to remove any excess uid and avoid
directing the spray into deep pockets, cavities or channels such as the crevice resulting from the
extraction of a molar. Also, for example, avoid working through soft-tissues adjacent to the roots
of molars, especially the third inferior molars, which communicate directly with the sublingual and
submandibular spaces. Do not use the Waterlase iPlus if it is not possible to access the treatment
site without directing air into an area that may collect or entrap air. In general, the same care and
precautions should be taken when using the Waterlase iPlus as are taken when using any air and water
emitting cutting device, including the high speed drill.
ROOT CANAL PROCEDURES
The Waterlase iPlus is better suited for straight and slightly curved canals. Great care should be taken
during instrumentation of curved canals as the endodontic Fiber Tip may break or perforate through the
wall of these types of canals. If during insertion the Fiber Tip does not advance easily into the canal, do
not force the Fiber Tip inside. If necessary, pull the Fiber Tip out and use an endodontic hand file or a
broach to open the path. Do not force the Fiber Tip and/or activate the laser while moving the Fiber Tip
inside a narrow or curved canal, or through the apex. Place the end of the Fiber Tip ~2mm from the
apex or from being in contact with the wall of a curved canal. Activate the laser and spray only during
the outward stroke when the Fiber Tip is pulled towards the coronal portion of the canal.
11
Waterlase iPlus User Manual

12
3Contraindications, Warnings, and Precautions
ROOT CANAL DISINFECTION PROCEDURES
The same precautions and warnings stated above are applicable to root canal disinfection procedures.
The Fiber Tips designed for this indication are the radial emitting RFT2 and RFT3, which have a 200µm
and a 300µm diameter, respectively, and come in various lengths to accommodate different root canal
lengths. Effective laser root canal disinfection is performed with air and no water spray. Do not exceed
the maximum air setting for this procedure (10%).
ADJACENT STRUCTURES
Waterlase iPlus can remove both hard- and soft-tissues. Therefore, always be aware of adjacent
structures and substructures during treatments. Be extremely careful not to inadvertently penetrate
or ablate through the apex, the root canal wall, or underlying/adjacent tissues. Also, be aware and
use extreme caution working on tissue (i.e., bone, root apex, etc.) adjacent to the following structures:
maxillary sinus, mental foramen andmandibular canal, oranyother major anatomical structures
(i.e., nerves). Exercise extreme caution when using this device in areas such as pockets, cavities, or
channels, where critical structures (i.e. nerves, vessels) could be damaged. Do not proceed with using
the laser if visibility is limited in these areas.
CLINICAL CONDITIONS
Use a sterile eld and aseptic technique with all procedures, especially for surgical interventions.
TISSUE EVALUATION
Any tissue growth (i.e. cyst, neoplasm and other lesions), whether removed with Waterlase iPlus or
conventionally, must be submitted to a qualied laboratory for histopathology assessment.
TISSUE CONTACT AND TIP BREAKAGE
Do not contact hard-tissues with the Fiber Tip. Hard-tissue cutting occurs in non-contact mode with the
Tip ~0.5 mm to 3 mm off the surface (3 to 5 mm for Turbo Handpiece). Tips are very brittle and fragile,
and could break if pressed against tooth or bone tissues or if forced through a narrow or curved path or
root canal. Use a bite block to prevent breakage or swallowing of the Tip from biting. High-speed suction
is required to remove any excess uid and materials resulting from accidental Tip breakage.
TIP CHANGING
Failure to correctly replace the Tip could result in damage to the Fiber Tip, Handpiece, or affect the
emission of laser energy around the Tip. A careful review of the instructions on how to replace the Tip is
recommended.
Waterlase iPlus User Manual

3Contraindications, Warnings, and Precautions
WATER SPLASHING
Water from spray may splash during treatment. Use protective eyewear and/or a face shield to protect
from splashing. Use high-speed suction, as needed, to maintain a clear field of vision during treatment.
Do not use the Waterlase iPlus if the user cannot clearly see the treatment site.
PLUME REMOVAL
Laser plume may contain viable tissue particulates. Special care must be taken to prevent infection from
the laser plume generated by vaporization of virally or bacterially infected tissue during procedures done
with the laser and minimal or no water spray. Ensure that all appropriate protective equipment (including
high-speed suction to remove the plume, appropriate masks, and other protective equipment) is used at
all times during procedures with this laser device.
DENTAL MATERIALS
Do not direct laser energy towards amalgam, gold, or other metallic surfaces;doing so may damage the
Waterlase iPlus delivery system.
CROWN AND VENEER MATERIALS
Do not use on crowns that are made from porcelain fused to high noble metals (PFM), or made from
gold or other metallic materials.
13
Waterlase iPlus User Manual

4Specications
DIMENSIONS (W X L X H)
• Laser Console
• Laser Console with Fiber Cable
• Weight
ELECTRICAL
•Class I Medical Electrical (ME) Equipment
• Operating Voltage:
• Frequency:
• Current rating:
• Main control:
• On / Off control:
• Remote interruption:
AIR AND WATER OUTPUT
• Water type:
• External air source:
• Water:
• Air:
• Interaction zone:
OPTICAL
•Laser classification:
•Medium:
• Wavelength:
• Frequency:
• Average power:
•Power accuracy:
• Pulse energy:
• Pulse duration for “H” mode:
• Pulse duration “S” mode:
• Handpiece head angles:
• Gold HP Tip diameter range:
•Turbo Tip focal diameter range:
•Output divergence:
• Mode:
•Aiming Beam:
•Nominal Ocular Hazard Distance (NOHD):
• Maximum Permissible Exposure (MPE):
11 x 19 x 33 in (28 x 48 x 84cm)
11 x 19 x 40 in (28 x 48 x 102 cm)
75 lbs. (34 kg)
100 - 230 VAC
50 / 60 Hz
8A / 15A
Circuit breaker
Keyswitch
Remote interlock connector
Distilled or De-Ionized only
60 - 120 psi. (4.1 - 8.2 bar)
0 - 100%
0 - 100%
0.5 - 5.0 mm from Handpiece Tip to target
IV (4)
Er,Cr:YSGG
(Erbium, Chromium:Yttrium, Scandium,Gallium, Garnet)
2.78 µm (2780nm)
5 – 100 Hz
0.1 – 10.0 W
±20%
0 – 600 mJ
60 µs
700 µs
70° contra-angle
200 – 1200 µm
500-1100 µm
≥ 8° per side
Multimode
625-670 nm (red) laser, 1mW max (Laser Class 1)
5cm
3.46 X 10⁵W/m²
14Waterlase iPlus User Manual

5 Equipment Description
15
Waterlase iPlus User Manual
SYSTEM PARTS LIST

GENERAL


 555
 555

MAIN LASER CONSOLEELEMENTS
555
CONTROL PANEL


Safety Features



 





 







*Additional accessories, including extra Handpieces, Tips, and screen protectors may be ordered
separately from the BIOLAS online store: https://store.biolase.com

16
5 Equipment Description
Waterlase iPlus User Manual
Safety Features
Power deviations of more than 20% from the selected value will cause the display to show an
error message; the laser console will not operate until the system is reset by pressing the "Next"
arrow at the top of the touch screen. If the error message persists, please contact BIOLASE
Service or the authorized BIOLASE representative for your area.
FRONT AND BACK HANDLES

CAUTION: 
            

LOCKING WHEELS


EMERGENCY STOP

Safety Features

Standby
Ready
Ready
KEYSWITCH



ENERGY MONITOR
The energy monitor measures and verifies power output

5 Equipment Description
17
Waterlase iPlus User Manual
FOOTSWITCH, FOOTSWITCH CONNECTOR



Safety Features


REMOTE INTERLOCK OUTLET


Safety Features





POWER CONNECTION / CIRCUIT BREAKER
Located on the back panel, allows the power cord to be attached to the laser console. The circuit
breaker serves as a line switch to separate the laser console from the main power supply (O = OFF,
1 = ON). The power cable can be wrapped over the holding plate above the connector when the system
is not in use or when it is being transported.
VENTILATION CHANNELS
These provide an air flow path to cool the system; do not cover or block.
AIR INLET CONNECTOR
Connects the laser to a compressed dry air outlet at 80-120 psi (5.5 - 8.2 bar) using the tubing provided.
SELF-CONTAINED WATER BOTTLE
Located on the rear of the laser, this detachable bottle provides the water supply for Handpiece
atomiza-tion spray. Fill the self-contained water bottle with only distilled or de-ionized water. DO NOT
USE TAP OR FILTERED WATER, which can leave deposits that may damage the fiber cable or
Handpiece.

18
5 Equipment Description
5 5
Waterlase iPlus User Manual



































WATER BOTTLE RELEASE
A push button release on the top of the self-contained water bottle that allows its removal from the
console for refilling.
FOOTSWITCH SUPPORT BRACKET
This bracket on the rear bottom of the laser console is designed to hold the closed Footswitch clamshell
when storing or moving the laser system. Wrap the Footswitch cable around the wrap plate above the
bracket.

5 Equipment Description
19
Waterlase iPlus User Manual








5
TELESCOPIC FIBER CABLE SUPPORT ARM



NOTE:


WATERLASE IPLUS DELIVERY SYSTEM


20
5 Equipment Description
Waterlase iPlus User Manual
DELIVERY SYSTEM CONNECTION ON THE LASER CONSOLE


HANDPIECE HOLDER

FIBER CABLE



HANDPIECE
 or

