TZ77B/TZ75B/T77 UEFI BIOS Manual
i
UEFI BIOS Setup...................................................................................... 1
1 Main Menu ............................................................................................. 3
2 Advanced Menu...................................................................................... 4
3 Chipset Menu ....................................................................................... 18
4 Boot Menu............................................................................................. 27
5 Security Menu ...................................................................................... 30
6 O.N.E Menu.......................................................................................... 31
7 Exit Menu ............................................................................................. 38

TZ77B/TZ75B/T77 UEFI BIOS Manual
1
UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a
disk. This system controls most of the input and output devices such as keyboard,
mouse, s erial ports and disk drives. BIOS ac tivates at the first stage of the booting
process, loading and executing the operating system. Some additional features, such
as virus and password protection or chipset fine-tuning options are also included in
UEFI BIOS.
The rest of this manual will to guide you through the options and settings in UEFI
BIOS Setup.
Plug and Play Support
This AMI UEF I BIOS supports the P lug and Play Vers ion 1.0A spec ific ation.
EPA Green PC Support
This AMI UEF I BIOS s upports Vers ion 1. 03 of the EPA Green PC specification.
ACPI Support
AMI ACPI UEFI BIOS support Version 1.0/2.0 of Advanced Configuration and
Power interface sp ecification (ACPI). It provides ASL code for power
management and device configuration capabilities as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also supports Version 2.3 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

TZ77B/TZ75B/T77 UEFI BIOS Manual
2
Supported CPUs
This AMI UEF I BIOS s uppo rts the Intel CPU.

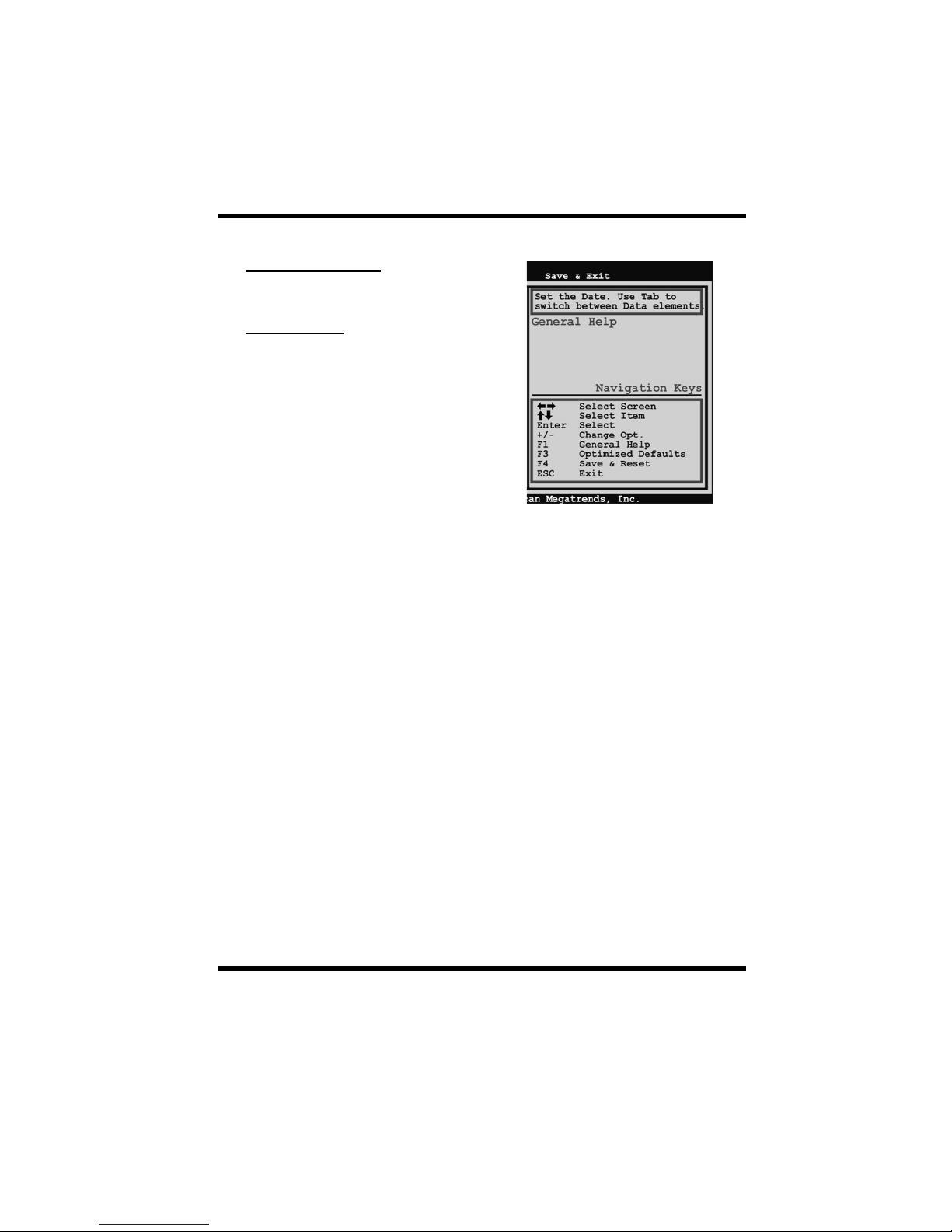

Using Setup
When starting up the computer, press <Del>
during the Power-On Self-Test (POST) to
enter the UEFI BIOS setup utility.
In the UEFI BIOS setup utility, you will see
General Help description at the top right
corner, and this is providing a brief description
of the selected item. Navigation Keys for
that particular menu are at the bottom right
corner, and you can use these keys to select
item and change the settings.
Notice
The default UEFI BIOS settings apply for most conditions to ensure optimum
performance of the motherboard. If the system b ecomes unstable after
changing any settings, please load the default settings to ensure system’s
compatibility and stability. Use Load Setup Default under the Exit Menu.
For better system performance, the UEFI BIOS firmware is being
continuously updated. The UEFI BIOS informatio n described in this manual
is for your reference only. The actual UEFI BIOS information and settings on
board may be slightly different from this manual.
The content of this manual is s ubject to be changed without notice. We will
not be responsible for any mistakes found in this us er’s manual and any
system damage that may be caused by wrong-settings.

TZ77B/TZ75B/T77 UEFI BIOS Manual
3
1 Main Menu
Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the
screen providing an overview of the basic system information.
BIOS Information
Shows s ystem information including UEFI BIOS version, model name, marketing
name, built date, etc.
Total Memor y
Shows s ystem memory size, VGA shard memory will be excluded.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.
System Time
Set the system internal clock.
Access Level
Shows the access level of current user.

TZ77B/TZ75B/T77 UEFI BIOS Manual
4
2 Advanced Menu
The Advanced Menu allows yo u to configure the settings of CPU, Super I/O, Po wer
Management, and other system devices.
Notice
Beware of that setting inappropriate values in items of this menu may cause system
to malfunction.
PCI Subs ystem Settings

TZ77B/TZ75B/T77 UEFI BIOS Manual
5
PCI ROM Priority
In case of multiple option ROMs (Legacy and EFI Compatib le), this item specifies
what PCI Optio n ROM to launch
Options: Legacy ROM (Default) / EFI Compatible ROM
PCI Latency Timer
This item sets the value to be programmed into PCI Latency Timer Register.
Options: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Clocks
/ 128 PCI Bus Cloc ks / 160 PCI Bus Cloc ks / 192 PCI Bus Clocks / 224 PCI Bus
Clocks / 248 PCI Bus Clocks
No Snoop
This item enables or disables PCI Express Device No Snoop option.
Options: Enabled (Default) / Disabled
Maximum Payload
This item s ets Maximum Payload of PCI Express Device or allows System BIOS to
select the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes
Maximum Read Request
This item s ets Maximum Read Request Size of PCI Express Device or allows
System BIOS to select the value.
Options: Auto (Default) / Dis abled / Enabled
ASPM
This item sets the ASPM (Active State Power Management Settings) Level: Force
L0 – Force all links to LO State; Auto – BIOS auto configures; Disabled – Disables
ASPM.
Options: Disabled (Default) / Auto / Force L0s

TZ77B/TZ75B/T77 UEFI BIOS Manual
6
ACPI Settings
Enable ACPI Auto Configuration
This item enables or disables BIOS ACPI Auto Configuration.
Options: Disabled (Default) / Enabled
Enable Hibernation
This item enables or disables system ability to hibernate (OS/S4 Sleep State). This
option may be not effective with some OSes.
Options: Enabled (Default) / Disabled
ACPI Sleep State
This item selects the highest ACPI sleep state the system will enter when the
SUSPEND button is pressed.
Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to
RAM)
Ring-In Wake up from S5
This item enables the system to wake from S5 using Ring-In event.
Options: Disabled (Default) / Enabled

TZ77B/TZ75B/T77 UEFI BIOS Manual
7
PS2 Keyboard PowerOn
This item allows you to control the keyboard power on function.
Options: Disabled (Default) / Any Key / Stroke Key / Specific Key
Stroke Keys Selected
This item will show only when Keyboard PowerOn is set “Stroke Key.”
Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specific Key Enter
This item will show only when Keyboard PowerOn is set “Specific Key.” Press
Enter to set Specific key.
PS2 Mouse PowerOn
This item allo ws you to control the mouse power on function.
Options: Disabled (Default) / Enabled
Restore AC Power Loss
This setting sp ecifies how your system should behave after a power fail or interrupts
occurs. Power Off: Leaving the system in power-off status after power recovers.
Power ON: Powering on the system immediately when power returns. Last State: 1.
Leaving the system in power-off if the system shuts down at DC off status; 2.
Powering on the system immediately if the system shuts down at DC on status.
Optio ns: Power Off (Default) / Power On / Last State
PME Wake up from S5
The item enab les the system to wake from S5 using PME event.
Options: Disabled (Default) / Enabled
Wake system with Fixed Time
This item enables or disables the system to wake on by alarm event. When this item
is enabled, the system will wake on the hr::min::sec specified.
Options: Disabled (Default) / Enabled

TZ77B/TZ75B/T77 UEFI BIOS Manual
8
Wake up date
You can choose which date the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can choose the system boot up time, inp ut ho ur, minute and second to specify.
USB Device Wakeup from S3/S4
This item allows you to enable or disabled the USB res ume fro m S3/S4 function.
Options: Disabled (Default) / Enabled

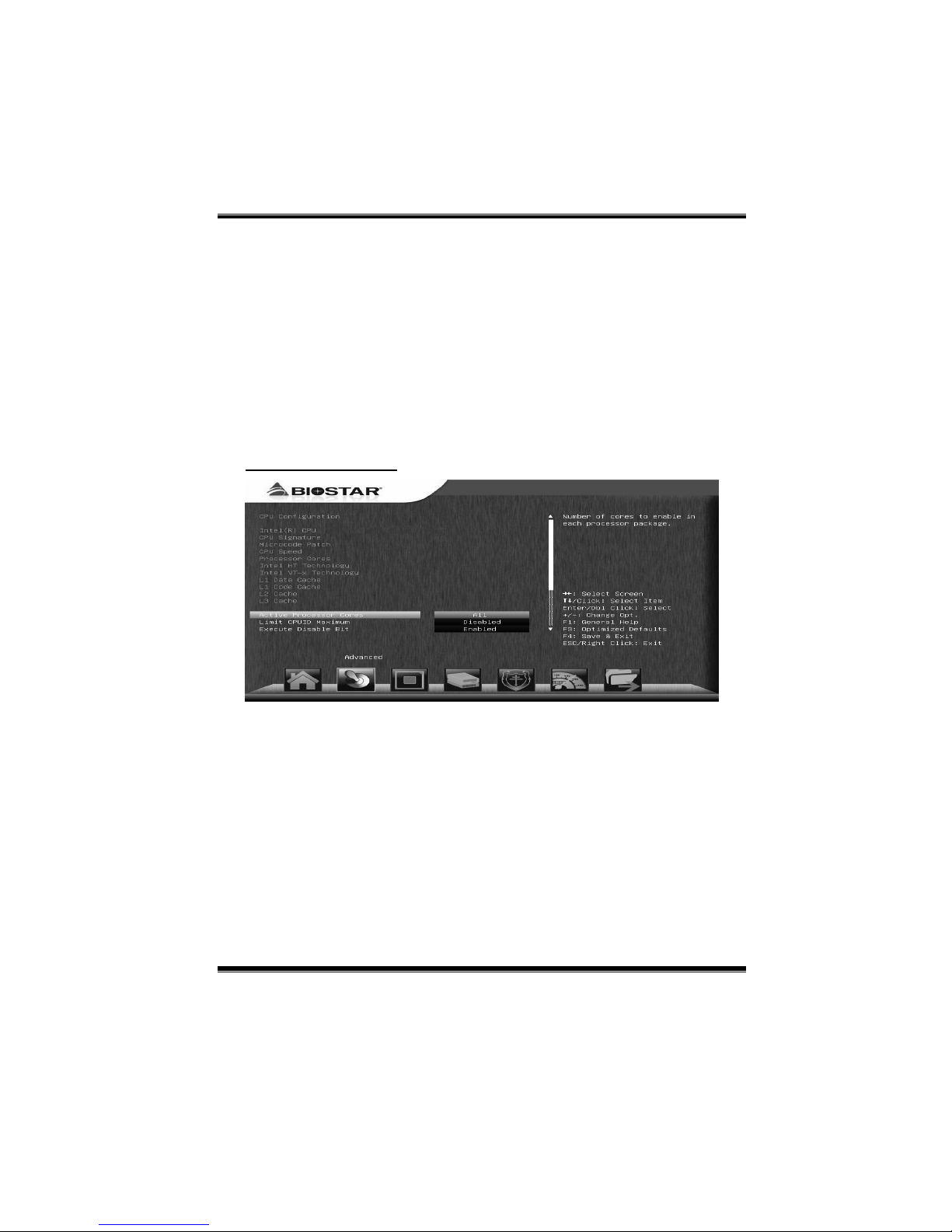

CPU Configuration
Active Processor Cores
This item sets number of cores to enable in each processor package.
Options: All (Default) / 1 / 2 / 3
Limit CP UID Max imum
When the computer is booted up, the operating sys tem executes the CPUID
instruction to identify the processor and its capabilities. Before it can do so, it must
first query the processor to find out the highest input value CPUID recognizes. This
determines the kind of basic information CPUID can provide the operating system.
Options: Disabled (Default) / Enabled

TZ77B/TZ75B/T77 UEFI BIOS Manual
9
Execute-Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, RedHat Enterpris e 3 Update 3. ).
Options: Enabled (Default) / Disabled
Intel Virtualization Technology
Virtualization Technology can virtually separate your system resource into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options: Disabled (Default) / Enabled
Hardware Prefetcher
The processor has a hardware prefetcher that automatically analyzes its
requirements and prefetches data and instructions from the memory into the Level 2
cache that are likely to be required in the near future. This reduces the latency
assoc iated with memory reads.
Options: Enabled (Default) / Disabled
Adjacent Cache Line Prefetch
The proc essor has a hardware adjacent cache line prefetch mec hanism that
automatically fetches an extra 64-byte cache line whenever the processor requests
for a 64-byte cache line. This reduc es cac he latency b y making the next cache line
immediately available if the processor requires it as well.
Options: Enabled (Default) / Disabled
CPU C3 Report
This item enables or disables CPU C3 (ACPI C2) repost to OS .
Options: Enabled (Default) / Disabled
CPU C6 Report
This item enables or disables CPU C3 (ACPI C3) repost to OS .
Options: Enabled (Default) / Disabled

TZ77B/TZ75B/T77 UEFI BIOS Manual
10

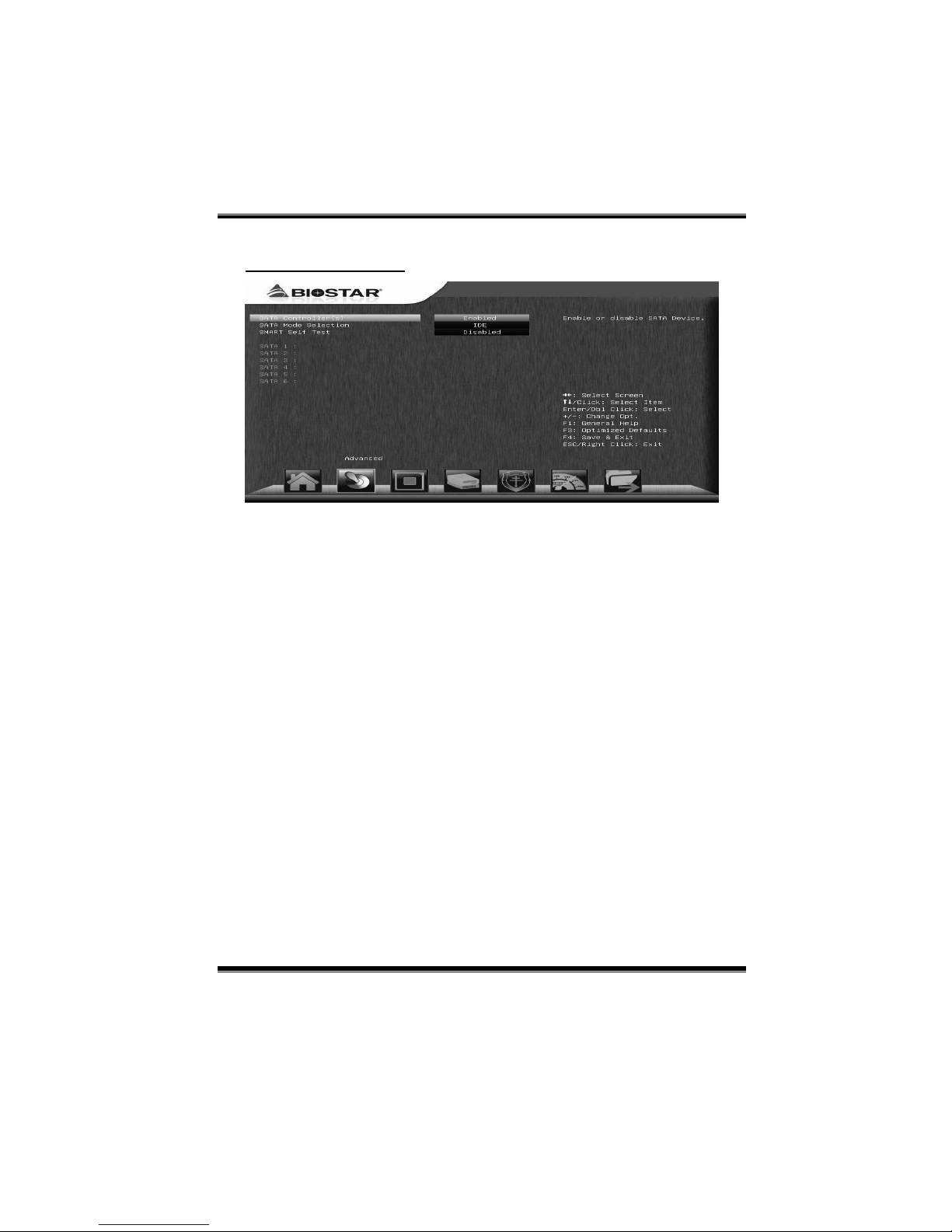

SATA Configuration
SATA Controller(s)
This item enables/disables Serial ATA Device.
Options: Enabled (Default) / Disabled
SATA Mode Selection
This item determines how SATA controller(s) operate.
Options : IDE (Default) / AHCI / RAID
SMART Self Test
This item runs SMART Self Test on all HDDs during POST.
Options: Disabled (Default) / Enabled
Aggressive LPM Support
This item enables PCH to aggressively enter link power state.
Options: Enabled (Default) / Disabled
SATA Controller Speed
This item indicates the maximum speed the SATA controller can support.
Options: Gen3 (Default) / Gen1 / Gen2

TZ77B/TZ75B/T77 UEFI BIOS Manual
11
Intel(R) Rapid Start Technology
Intel(R) Rapid Start Technology
This item enables/disables Intel(R) Rapid Start Technology.
Options: Disabled (Default) / Enabled
Entry on S3 RTC Wake
This item sets iFFS invocation upon S3 RTC wake .
Options: Enabled (Default) / Disabled
Entry After
This item enables RTC wake timer at S3 entry.
Options: 10 minutes (Default) / Immediately / 1 minute / 2 minutes / 5 minutes /
15 minutes / 30 minutes / 1 hour / 2 hours
Active Page Threshold Support
This item allows system to support RST with small partition.
Options: Disabled (Default) / Enabled

TZ77B/TZ75B/T77 UEFI BIOS Manual
12
Active Memory Threshold
This item allows system to try to support RST when partition size > Active Page
Threshold size in MB. When set to zero, the item will be in AUTO mode and check
if partition size is enough at S3 entry.
Optio ns: 0 (Default)
USB Configuration
Legacy USB Support
This item determines if the BIOS should provide legacy support for USB devices
like the keybo ard, mous e, and USB drive. This is a useful feature when us ing such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled / Auto
USB3.0 Support
This item enables or disables USB3.0 (XHCI) Controller support.
Options: Enabled (Default) / Disabled
XHCI Hand-Off
This is a workaro und for OSes witho ut XHCI hand-off support. The XHCI
ownership change should be claimed by XHCI driver.
Options: Enabled (Default) / Disabled

TZ77B/TZ75B/T77 UEFI BIOS Manual
13
EHCI Hand-Off
This is a workaround for OSes without EHCI hand-off support. The EHCI
ownership change should be claimed by EHCI driver.
Options: Disabled (Default) / Enabled
Port 60/6 4 Emulation
This items enables I/O port 60h/64h emulation support. This should be enabled for
the complete USB keyboard legacy s upport fo r non-USB aware OSes.
Options: Enabled (Default) / Disabled
USB transfer time-out
The time-out value for Control, Bulk, and Interrupt transfers.
Options: 20 sec (Default) / 1 sec / 5 sec / 10 sec
Device reset time-out
The item sets USB mass storage device Start Unit command time-out.
Options: 20 sec (Default) / 10 sec / 30 sec / 40 sec
Device power-up delay
“Auto ” uses default value: for a Roo t port it is 100ms, for a Hub port the delay is
taken from Hub descriptor.
Options: Auto (Default) / Manual
Device power-up delay in seconds
Delay range is 1 ~ 40 seconds, in one second increments.
Optio ns : 5 (Default)

TZ77B/TZ75B/T77 UEFI BIOS Manual
14

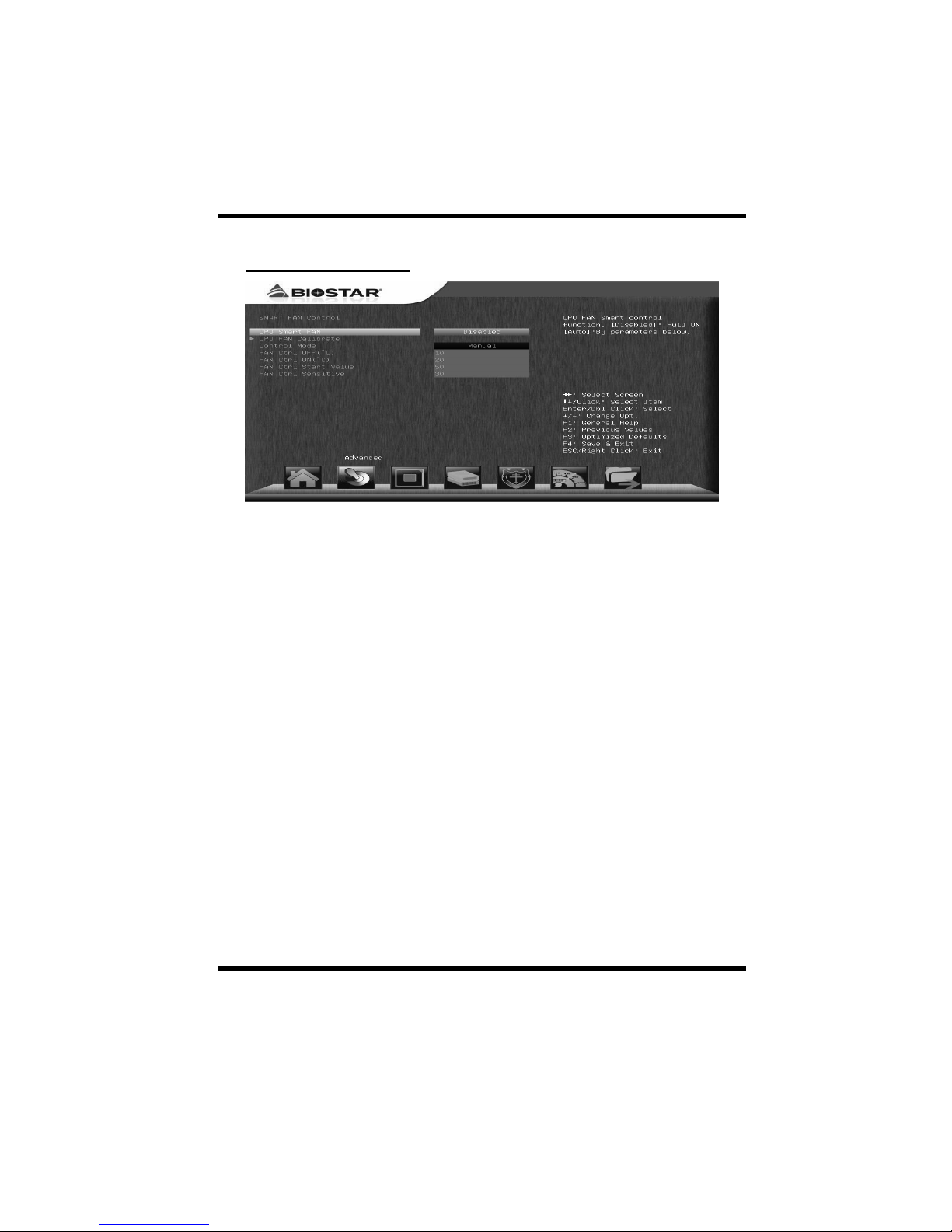

SMART FAN Control
CPU Smart FAN
This item allows you to control the CPU Smart Fan function.
Options: Disabled (Default) / Auto
CPU FAN Calibrate
Press [ENTER] to calibrate CPU FAN.
Control Mode
This item provides several operation modes of the fan.
Options: Quiet / Aggressive / Manual
Fan Ctrl OFF(℃)
When CPU temperature is lower than this value, the CPU fan will keep lowest
RPM.
Options: 10 (℃) (default)
Fan Ctrl On(℃)
When CPU temperature is higher than this value, the CPU fan controller will turn
on.
Options: 20 (℃) (Default)

TZ77B/TZ75B/T77 UEFI BIOS Manual
15
Fan Ctrl Start Value
This item sets CPU FAN Start Speed Value.
Options: 50 (Default)
Fan Ctrl Sensitive
The bigger the numeral is, the higher the FAN speed is.
Options: 30 (Default)
Super IO Configuration
Serial Port Configuration

TZ77B/TZ75B/T77 UEFI BIOS Manual
16
Serial Port
This item enab les o r dis ables S erial Port (COM).
Options: Enabled (Default) / Disabled
Change Settings
This item selects an optimal setting for Super IO devic e.
Options: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h;
IRQ=3,4,5, 6,7, 9,10,11, 12 / IO=2F8h; IRQ=3,4,5, 6,7,9,10,11,12 / IO=3E8h;
IRQ=3,4,5, 6,7, 9,10,11, 12 / IO=2E8h; IRQ=3,4,5,6,7, 9,10, 11,12

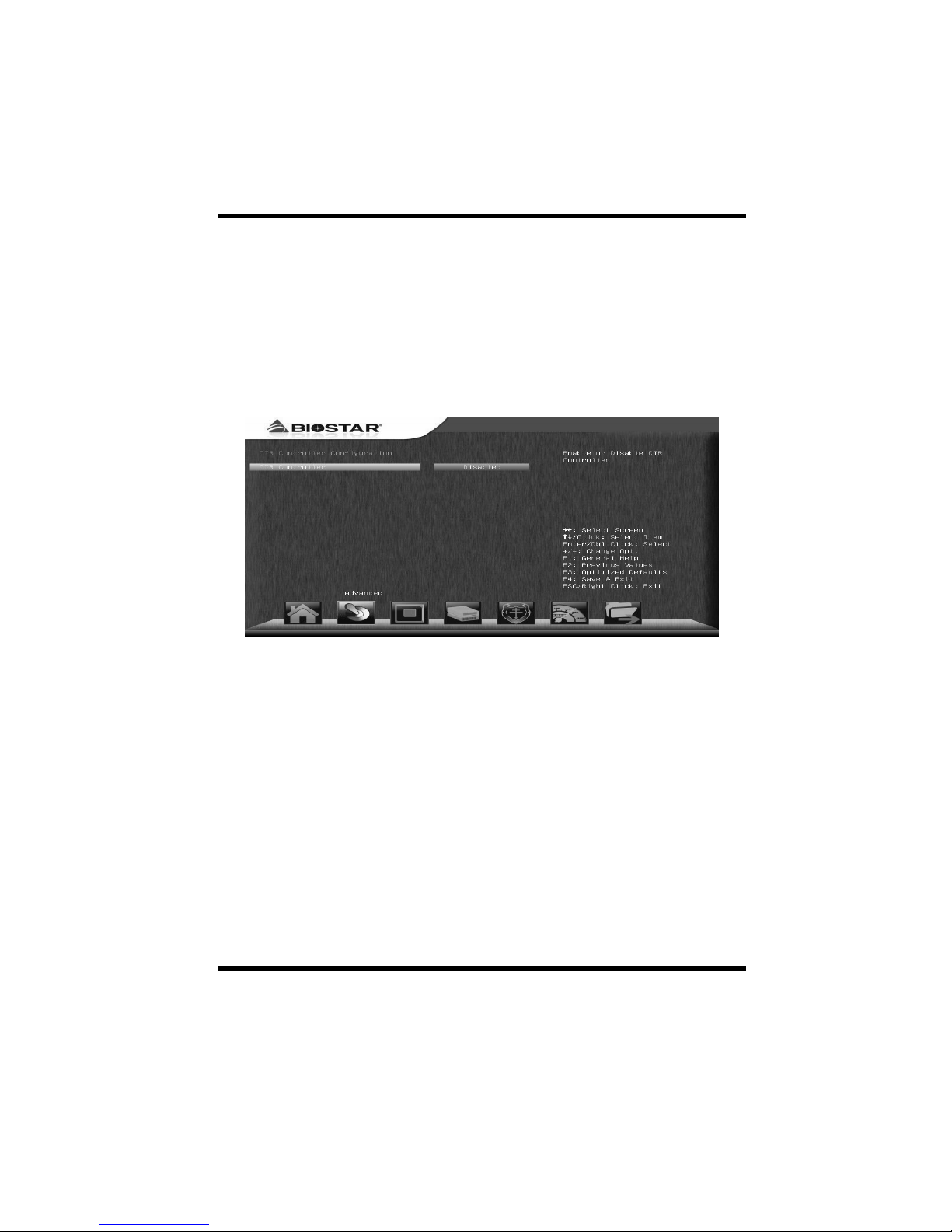

CIR Controller Configuration
CIR Controller
This item enables or disables CIR Controller.
Options: Disabled (Default) / Enabled
Change Settings
This item selects an optimal setting for Super IO devic e.
Options: Auto (Default) / IO=3E0h; IRQ=3 / IO=3E0h;
IRQ=3,4,5,6,7,9,10,11,12 / IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12 / IO=298h;
IRQ=3,4,5, 6,7, 9,10,11, 12

TZ77B/TZ75B/T77 UEFI BIOS Manual
17

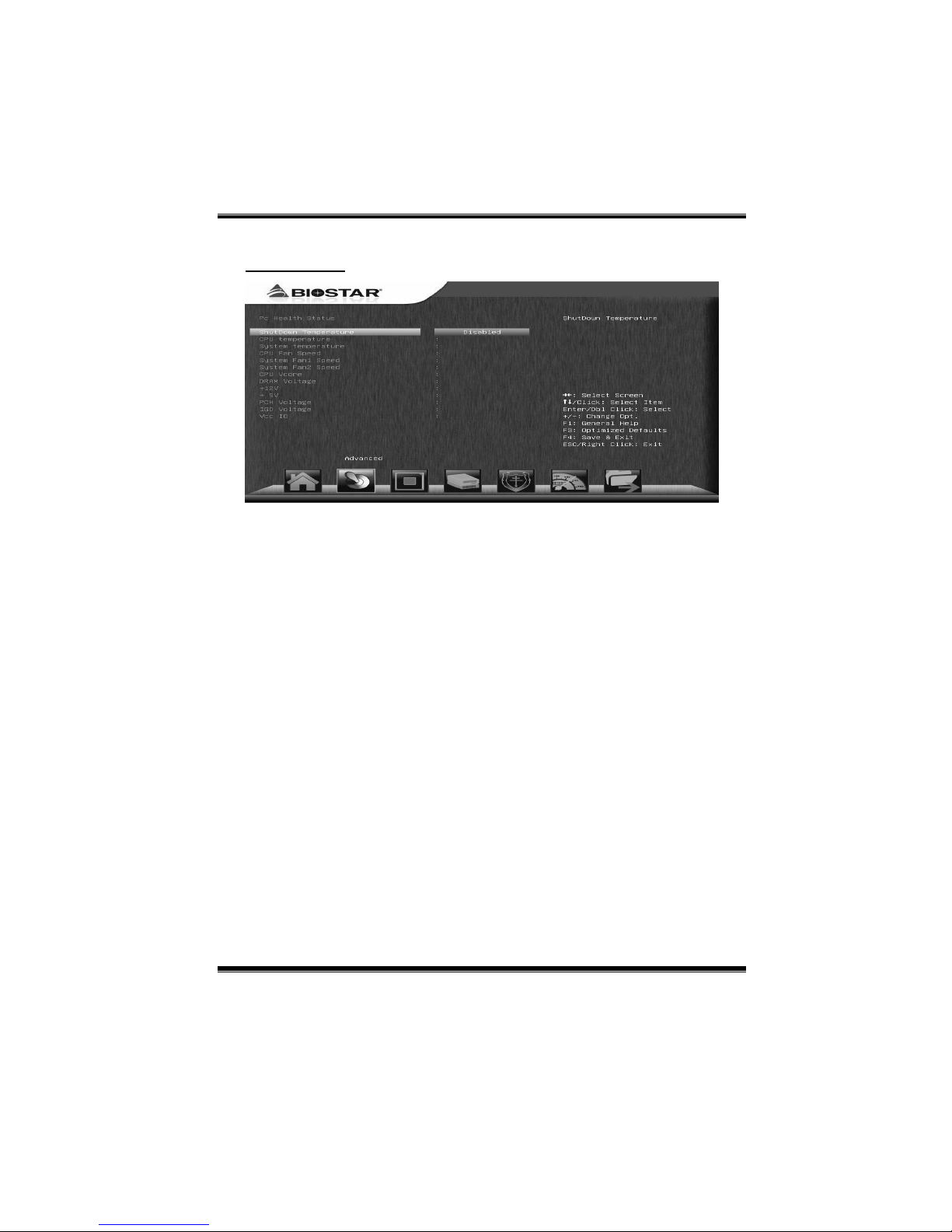

H/W Monitor
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature.
Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 /℃℉℃℉℃℉
85 /185 / 90 /194℃℉℃℉

TZ77B/TZ75B/T77 UEFI BIOS Manual
18
3 Chipset Menu
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the
speed of the CPU itself uses when communicating with its own special components.
Notice
Beware of that setting inappropriate values in items of this menu may cause system
to malfunction.
PCH-IO Configuration

TZ77B/TZ75B/T77 UEFI BIOS Manual
19

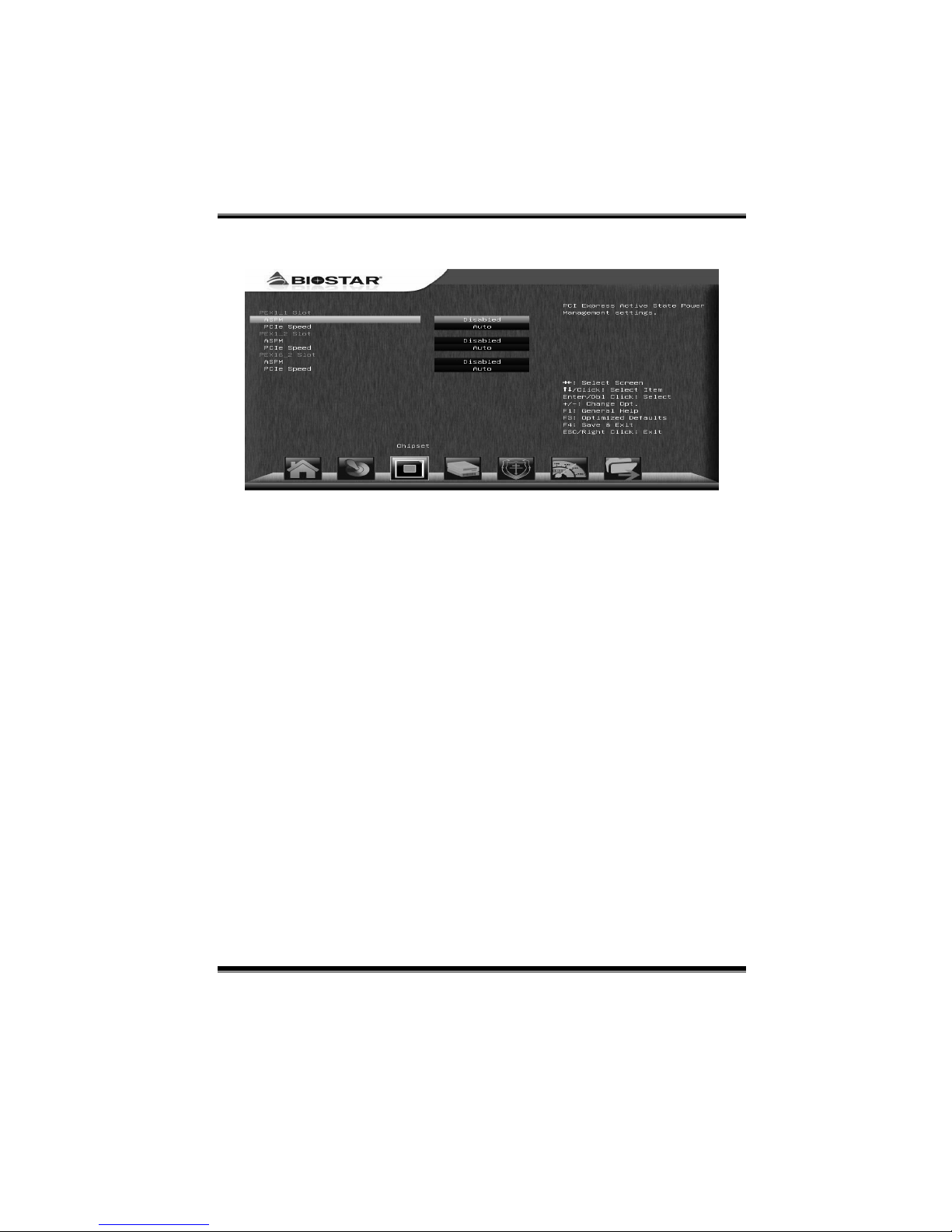

PCI Express Configuration
PEX1_1/1_2 /16_2 Sl ot
This item controls the PCI Express Root Port.
Options: Enabled (Default) / Disabled
ASPM
This item sets PCI Express Active State Power Management settings.
Options: Disabled (Default) / L0s / L1 / L0sL1 / Auto
PCIe Speed
This item selects PCI Express port speed.
Options: Auto (Default) / Gen1 / Gen2
