Operating Instructions
Thank you for purchasing our product. If there are any questions, please contact your authorized dealer.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Copyright
Copyright 2019 BirdDog Australia all rights reserved. No part of this manual may be copied, reproduced, translated, or distrib-
uted in any form or by any means without prior consent in writing from our company.
Trademark Acknowledgement
and other BirdDog’s trademarks and logos are the property of BirdDog Australia. Other trademarks, company
names and product names contained in this manual are the property of their respective owners.
• Trademarks and Registered Trademark Acknowledgement
• Microsoft, Windows, ActiveX, and Internet Explorer are registered trademarks of Microsoft Corporation in the U.S. and/or
other countries.
• HDMI, the HDMI logo and High-Denition Multimedia Interface are the trademarks or registered trademarks of HDMI Li-
censing, LLC in the United States and other countries.
• Other trademarks, company names and product names contained in this manual are the property of their respective owners.

4
IMPORTANT INFORMATION
Legal Notice
Attention:
To ensure account security, please change the password af-
ter your rst login. You are recommended to set a strong
password (no less than eight characters).
The contents of this document are subject to change without
prior notice. Updates will be added to the new version of this
manual. We will readily improve or update the products or
procedures described in the manual.
Best effort has been made to verify the integrity and correct-
ness of the contents in this document, but no statement, in-
formation, or recommendation in this manual shall constitute
formal guarantee of any kind, expressed or implied. We shall
not be held responsible for any technical or typographical
errors in this manual.
The product appearance shown in this manual is for refer-
ence only and may be different from the actual appearance
of your device.
Due to uncertainties such as physical environment, discrep-
ancy may exist between the actual values and reference val-
ues provided in this manual.
Use of this document and the subsequent results shall be en-
tirely on the user’s own responsibility.
WARNING!
Installation and removal of the unit and its accesso-
ries must be carried out by qualied personnel. You
must read all of the Safety Instructions supplied with
your equipment before installation and operation.
Warnings:
• If the product does not work properly, please contact your
dealer. Never attempt to disassemble the camera your-
self. (We will not assume any responsibility for problems
caused by unauthorized repair or maintenance.)
• This installation should be made by a qualied service per-
son and should conform to all the local codes.
• When shipping, the camera should be packed in its origi-
nal packaging.
• Make sure the power supply voltage is correct before us-
ing the camera.
• Do not drop the camera or subject it to physical shock.
• Do not touch sensor modules with ngers. If cleaning is
necessary, use a clean cloth with a bit of ethanol and wipe
it gently. If the camera will not be used for an extended
period of time, put on the lens cap to protect the sensor
from dirt.
• Do not aim the camera lens at the strong light such as sun
or incandescent lamp. The strong light can cause fatal
damage to the camera.
Maintenance Precautions:
• If there is dust on the front glass surface, remove the dust
gently using an oil-free brush or a rubber dust blowing
ball.
• If there is grease or a dust stain on the front glass surface,
clean the glass surface gently from the center outward us-
ing anti-static gloves or an oil-free cloth. If the grease or
the stain still cannot be removed, use anti-static gloves or
an oil-free cloth dipped with detergent and clean the glass
surface gently until it is removed.
• Do not use organic solvents, such as benzene or ethanol
when cleaning the front glass surface.
Regulatory Compliance
FCC Part 15
This equipment has been tested and found to comply with
the limits for digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable pro-
tection against harmful interference when the equipment is
operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communi-
cations. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This product complies with Part 15 of the FCC Rules. Opera-
tion is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including
interference that may cause undesired operation.
LVD/EMC Directive
This product complies with the European Low
Voltage Directive 2006/95/EC and EMC Directive
2004/108/EC.
WEEE Directive–2002/96/EC
The product this manual refers to is covered by the
Waste Electrical & Electronic Equipment (WEEE)
Directive and must be disposed of in a responsible
manner.

5
WHAT’S IN THE BOX
Note: The camera color may be in white or black per the
item that is purchased.
Accessories (Optional)
OVERVIEW
This user guide is suitable for the following models:
BirdDog Eyes P100
Features
• Resolution: Up to 1080P60, 1080i59.94
• NDI®Resolution: Up to 1080P60, 1080P30
• Zoom: Optical 10X
• Image stabilizer and true WDR 130dB
• Video Output: HDMI, 3G-SDI, NDI®, CVBS simultaneously
• ±350-degree continuous pan, ±120-degree continuous tilt
• 128 presets, Speed up to 150 degrees/sec
• Standard mounting and ceiling mounting with E-Flip func-
tion
• Control supports RS-232 control, RS-422/485 control, VIS-
C A - o ve r- I P, NDI®Control, IR Remote Controller
• Presets store camera directions and image parameters.
(Up to 6 presets on remote controller or 128 presets via
protocol programming)
• Image parameter setting restore with presets and quick
access operation
• Supports Audio input, Audio output with NDI®streaming.
• Power: DC 12V, PoE+(IEEE802.3at)
• Firmware upgrade via USB2.0 or IP.

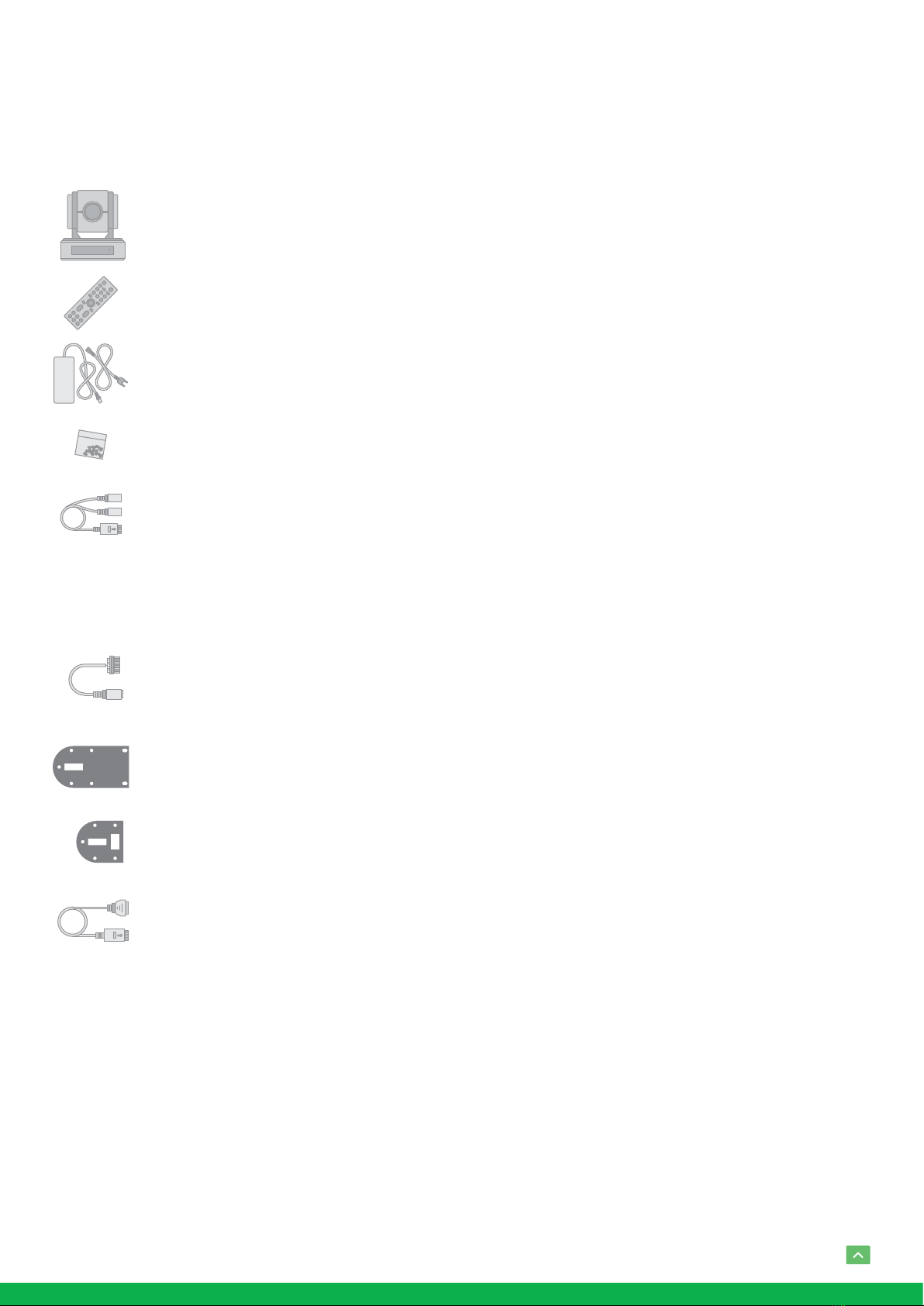

1x BirdDog Eyes P100
1x IR Remote Controller
(3V CR2032 Coin Lithium Battery Required)
1x Camera Power Adaptor & Power Cord
1x Bag of Mounting Screws
1x USB port to 3.5mm audio jack adapter
1x RS232 8 Pin Mini DIN
to Phoenix Terminal Block
1x Wall Mount
1x Ceiling Mount
1x RJ45 to RS422 Extension Cable

6
Camera Diagrams

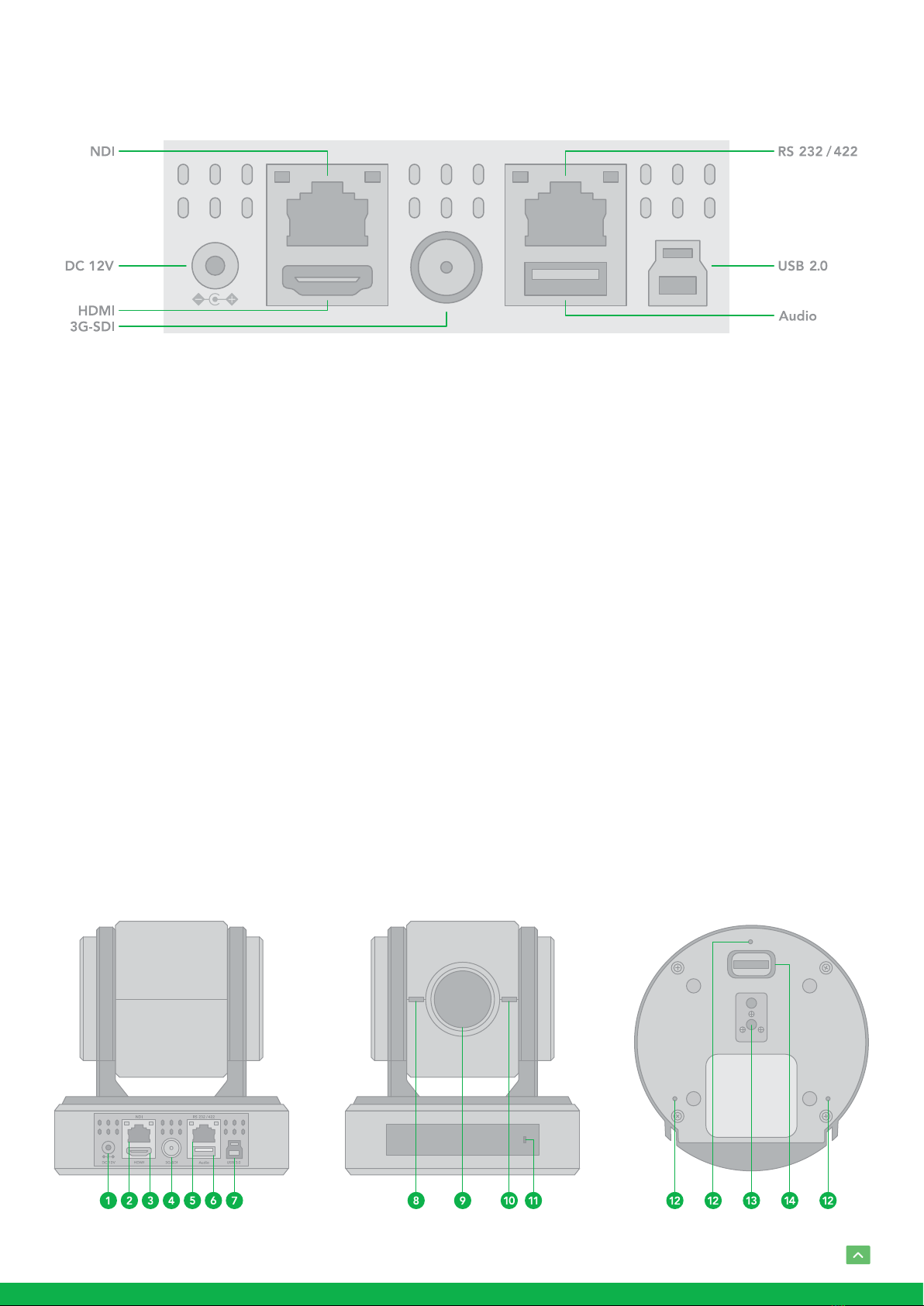

9. Lens
This is a 10X magnication optical zoom lens
10. Communication LED Indicator
Flashes orange when the camera receives commands
from the infrared remote controller.
11. Mic
Built-in microphone. Range of sensitivity is within 15
feet.
12. Tripod mounting holes
13. Fix Mounting Holes
For original wall/ceiling mount bracket
14. Bottom DIP Switch
Used for setting the camera conguration. For details,
refer to the Bottom DIP Switch Settings.
1. 12V DC Power Port
Connect the supplied DC power adaptor and cord.
2. NDI®Ethernet Port
3. HDMI Port (HDMI 1.4)
4. 3G-SDI Video Output
5. RS-232/422 Control Port (RJ45)
RJ45 to RS-232/422 convertor cable is provided.
6. USB Port
• For rmware upgrade.
• Used for audio in/out, USB port to 3.5mm audio jack
adaptor included.
7. USB Connector (TYPE B) USB 2.0 video output.
8. Power LED Indicator
Turns green when the camera is connected to power
outlet. When the power is turned on, it takes about 15
to 30 seconds to display the image after LED turns on.

7

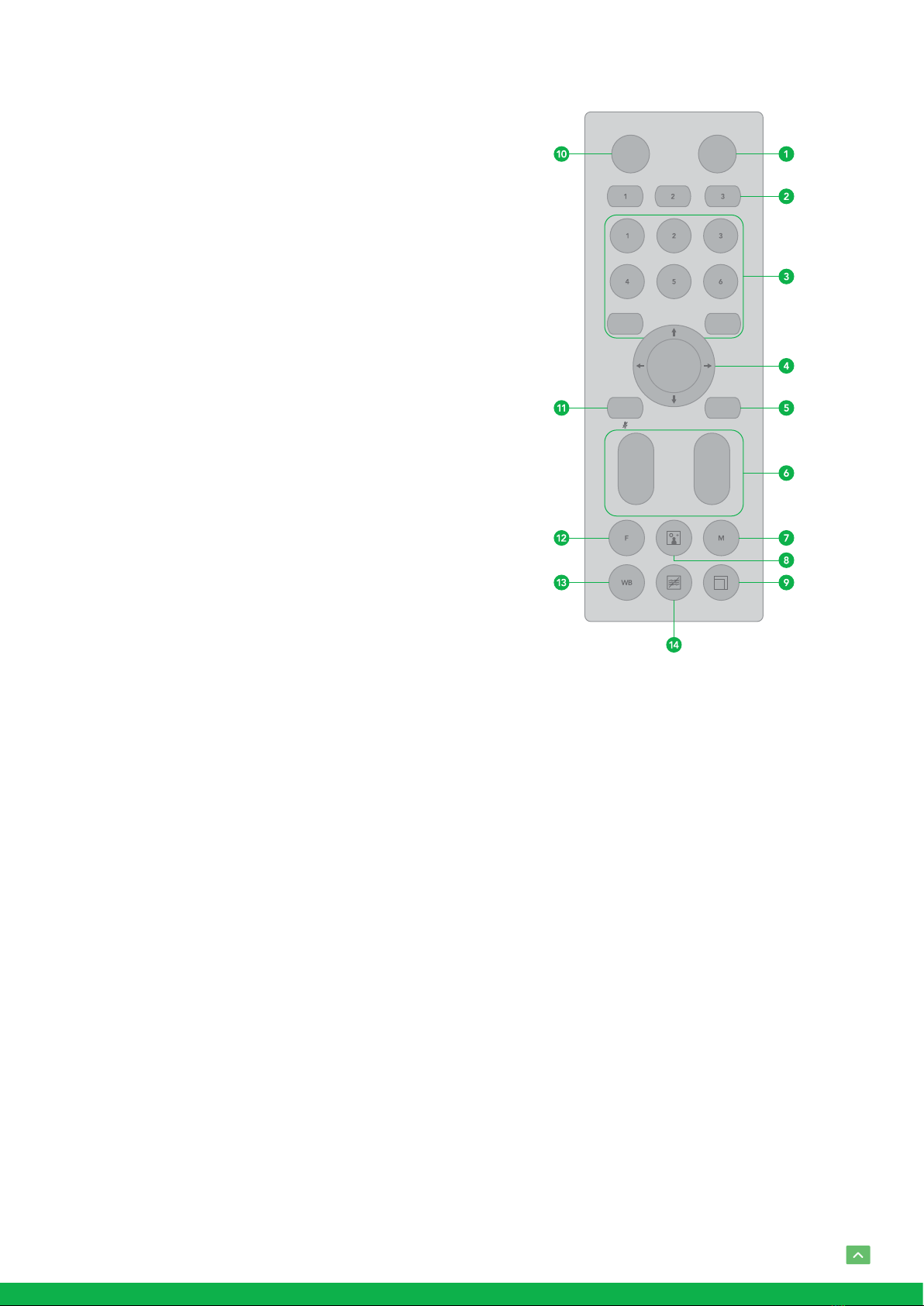

Remote Controller

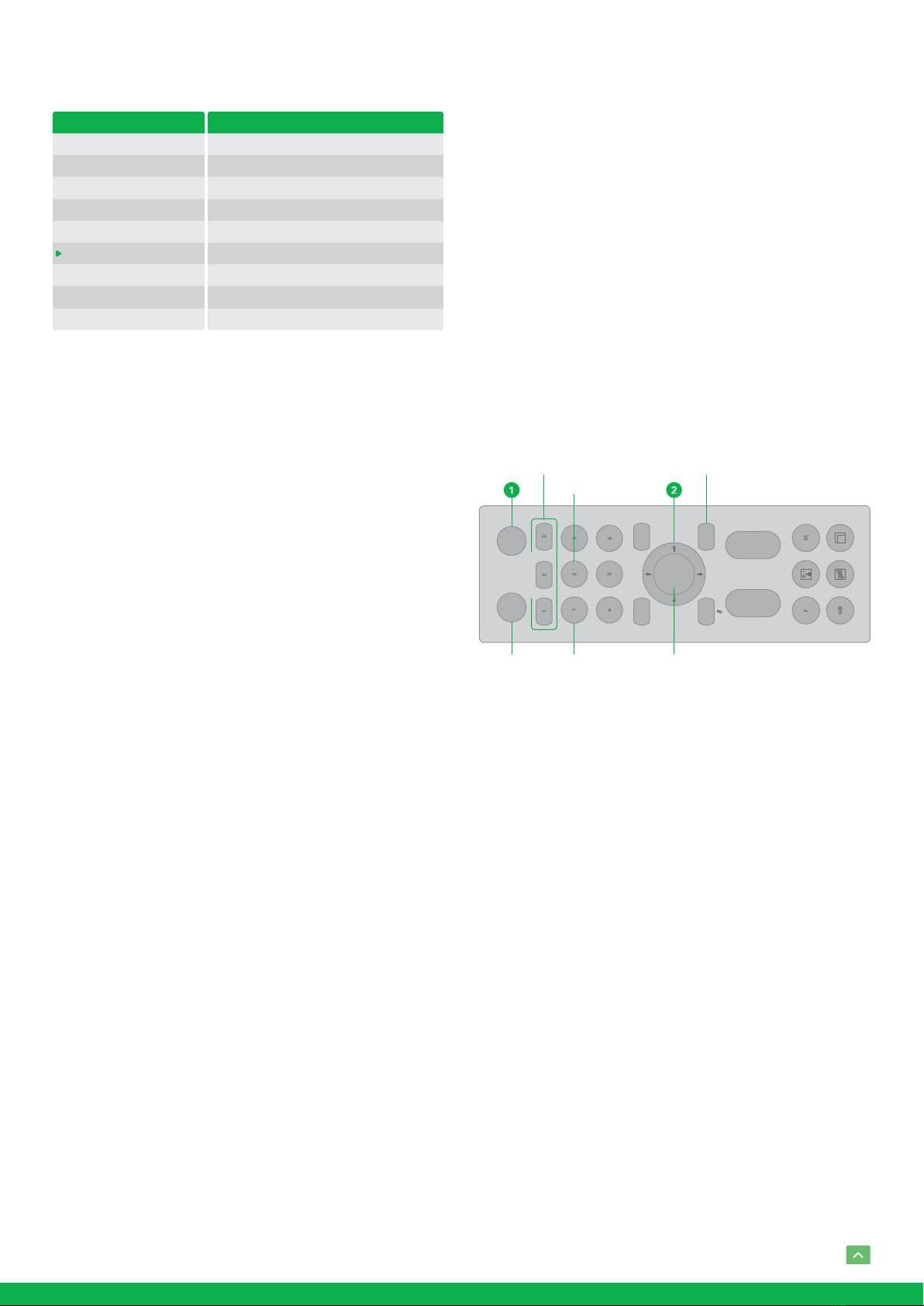

1. Power
• Power ON the camera to turn the camera in operation
status.
• Power OFF the camera to turn the camera in standby
status.
• When the camera is powered OFF, the camera turns to
the back and would be on standby mode.
• When the camera is powered ON, the camera turns to
the front.
• Powering the camera ON/OFF would not restart the
camera.
2. Camera ID (Total 3) Selector
3. Preset Position (Total 6) Calling and Setting
4. PAN-TILT
• Pan and Tilt direction control
• HOME: Home position, Resolution reset
5. L/R Direction Set
• Left and right orientation setting
6. ZOOM/FOCUS
• Far
• Near
7. Auto/Manual Focus
8. Back Light
9. Video Format Switching
• You can change the video format by keep pressing the
button. (When video format is changed, the camera
would restart and the screen turns black for few sec-
onds.)
10. MENU
• On screen menu display ON/OFF
11. Audio Switch
• You can turn the Mic built in the camera Off/ON by
pressing the button once.
12. Fast/Slow Zooming Speed Switching
13. White Balance
• Change the White Balance setting by pressing the but-
ton.
14. De-Flicker
• When you nd the video icking, press the button once
to eliminate the ickers.
Notes:
• 3V CR2032 Coin lithium Battery is not included with the
remote controller.
• 3V CR2032 Coin lithium batteries are not re-changeable.
L/R DIRECTION SET
MENU
CAMERA SELECT
POWER
STD
PRESET
T
W
FAR
NEAR
RESET
REV
ZOOM FOCUS
HOME

8
System Conguration
Connection
When the camera is connected to a computer and joystick
keyboard with a VISCA cable (cross type, RS-232), you can
operate the camera with the computer and the joystick key-
board.
When the camera is connected to a joystick keyboard a con-
trol cable (cross type, RS-422/485), you can operate the cam-
era’s pan, tilt, zoom with the joystick keyboard.
In this connection conguration, HDMI cable, SDI video ca-
ble, data cable, Network cable is required. To obtain these
third-party components or accessories, consult the dealer
where you bought your camera.
Obtain Video Signal
The camera can simultaneously have SDI video output, HDMI
video output and NDI®video output.
HDMI HD Video signal
Connect the camera to a HD monitor/TV using HDMI cable.
1. Turn on the camera, video will display on the monitor af-
ter running initializing.
2. Information of the camera initial setting status will dis-
play for 5 seconds.
3. You can set the video format of the camera to the one
you want to display.
SDI Video Signal
The camera can simultaneously stream SDI video output with
HDMI video output.
1. Connect SDI cable in between the camera your SDI De-
vice/display.
2. You now have SDI video output.
Power
• Use only the DC power adaptor (JEITA type4) supplied
with the unit. Do not use any other DC power adaptor.
• If using POE to power the camera, PoE+(IEEE802.3at) is
supported
• Ensure that the POE power source has sufcient power
budget to power the camera, or some features may not
function properly.
NDI Video Signal
Audio Input & Output
Audio Comms
NDI & VISCA Over IP Control
AC Power
Adaptor
12V DC
SDI Cable*SDI Video Signal
Network Cable
Remote Control Signal (VISCA/RS232)
Remote Control Signal (RS422/RS485)
Control Cable*
HDMI Video Signal
3. SDI video only supports 1080P.
IP Video Signal
The camera can simultaneously stream NDI®video output
and SDI video output and HDMI video output.
1. Connect the camera to the network using Cat5/Cat6 net-
work cable.
2. You need to have a web browser for product congura-
tion.
3. PELCO address and Baud Rate setting on the camera
must be as same as the setting on camera IP WEB inter-
face.
4. To obtain NDI® video and congure NDI®video, please
refer to Network Camera User Manual Part Two.
USB Video Signal
This camera supports USB 2.0 only.

9
System Requirements for your PC
1. Operating System: Microsoft Windows 10/Windows 8/
Windows 7, Linux Ubuntu 16.04LTS, macOS Sierra, Mic-
rosoft Windows 7 (32-bit) or above is recommended.
2. CPU: 2.0 GHz or higher, dual-core. Intel i3 CPU or higher
are recommended.
3. Memory: At least 1 GB. 2 GB (or higher) is recommend-
ed.
4. Graphic Card: At least 128 MB display memory. Main-
stream discrete graphics with more than 1 GB display
memory are recommended. Make sure that the latest
driver is installed on graphic card.
5. Sound Card: The intercom and voice broadcast require
the latest driver on sound card.
6. Network Card: Gigabit Ethernet network cards (or high-
er) are recommended.
USB2.0 Video Signal
1. Install video client software on the computer that you
want to use the camera on.
2. Use the USB cable to connect the camera to the comput-
er. Connect the power adapter to the camera and the
power outlet.
3. Power on the camera, wait for a while, the camera will be
recognized and installed automatically by the computer.
USB2.0 drivers are not required for the camera.
4. Open the video client software (Here, we use VLC Media
Player for example), under “Media”, select “Capture De-
vice”. Under Video device name, “USB Video Camera”
will be listed. Under the Audio device name, “Digital Au-
dio Interface” will be listed. Select both devices to use.
5. Check the box “show more options”, Select Caching to
500ms.
6. Interface of the setting page and terminology of the set-
ting items may vary according to the video client soft-
ware you are using.
7. Click “Play” or “Apply” the selections and the video will
be displayed on the screen.
The camera is compatible with USB2.0 port. The camera USB
port will output at the lower resolution while connecting PC
USB2.0 port. The following tables are list all available output
format for USB2.0.
• When the camera setting HDMI video format at
1080P60/1080P30/720P60, USB2.0 resolution with frame
rate are available as following list.
•
•
•
•
• When the camera setting HDMI video format at
1080P50/1080P25/750P50, USB2.0 resolution with frame
rate are available as following list.
HDMI FORMAT
1080p60/1080p30/720p60
USB 2.0 RES.
1920x1080
1280x720
1024x768
960x540
850x480
800x600
768x448
720x576
720x540
720x480
720x404
640x480
640x360
352x288
FRAME RATE
10P
25P / 15P
30P / 15P
60P /30P / 15P
HDMI FORMAT
1080p50/1080p25/720p50
USB 2.0 RES.
1920x1080
1280x720
1024x768
960x540
850x480
800x600
768x448
720x576
720x540
720x480
720x404
640x480
640x360
352x288
FRAME RATE
10P
25P / 10P
50P /25P / 10P

10
Camera Initial setting status Information
Information of the camera initial setting status will display for
5 seconds.
1. Camera PELCO ID for RS-485 control
2. Camera ID for IR Remote Controller
3. IR remote control signal receive current setting
4. Baud Rate current setting
5. Control COMM Port current setting
6. Video format current setting
7. HDMI current setting
8. Model number
9. Firmware version
Audio IN / OUT
• A microphone can be connected to the Audio IN port,
which feeds audio into the camera.
• A speaker can be connected to the Audio OUT port,
which will output any audio that is captured on the Audio
In port.
CAMERA STATUS INFO DISPLAY
PELCO ID
IR ID
IR-RECEIVE
BAUD RATE
COMM TYPE
FORMAT
HDMI OUT
MODEL TYPE
SV
001
01
ON
9600
422
1080p29.97
YUV
EYES P200
V0B1100S36[...]

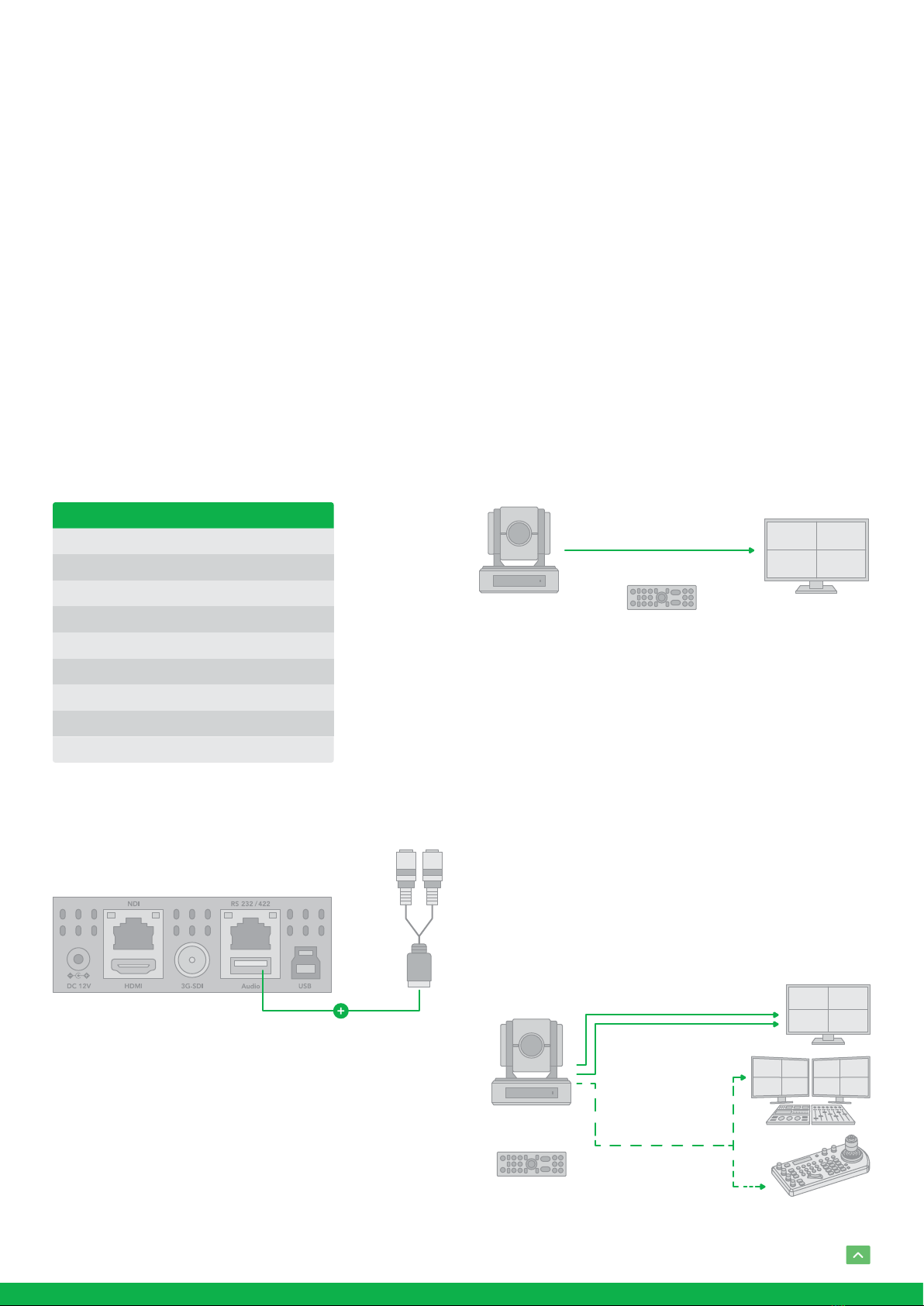

USB port to 3.5mm
audio jack adaptor
Camera Control Methods and
System Congurations
This unit has multiple ways of controlling the camera and
various system conguration capabilities using optional
products. This section describes the ways of controlling and
typical system examples with the required components and
usage of each system.
1. Use the Infrared Remote Controller
2. Use RS-232 (VISCA)
3. Use RS-422/485 (VISCA/PELCO P/D)
4. NDI®Control (See Network Camera User Manual)
Use the Infrared Remote Controller
To operate the camera from a short distance.
For IR remote control details, refer to Operation Using the
Infrared Remote Controller.
Use RS-232 (VISCA)
You can use RS-232 port to connect to optional controllers,
such as joystick control keyboard, control PC station, to op-
erate the camera.
To perform pan/tilt and zoom operations using the joystick
of the control keyboard, and to perform the Preset operation
using the control buttons.
An application software that supports this unit is needed if
you use PC station.
IR Remote Controller
Video Signal
HDMI Video Signal
SDI Video Signal
Remote Control Signal
(VISCA / RS232)
IR Remote Controller

11

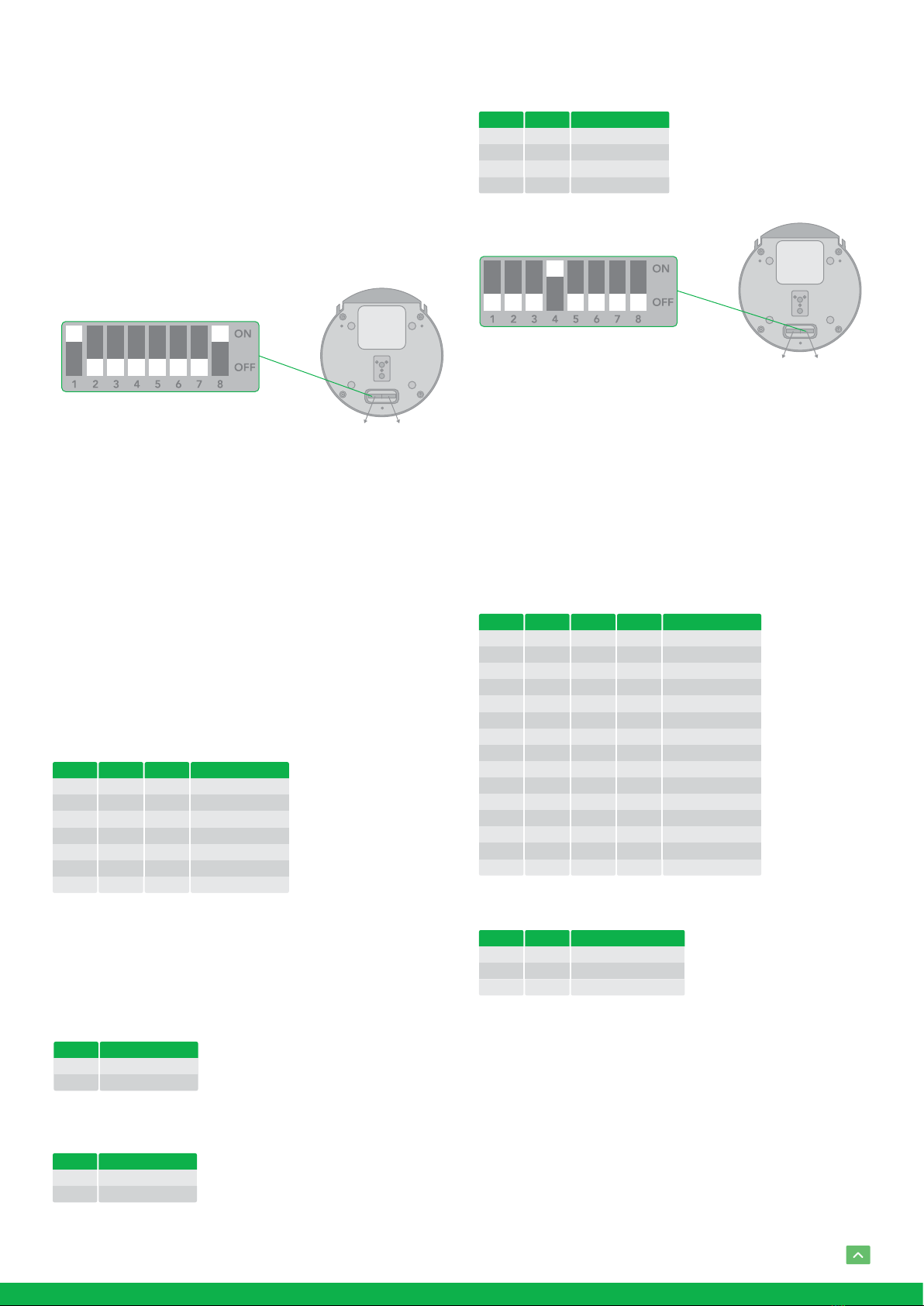

RS232 Connection
1. Set RS232 control method on Bottom Dip Switch.
2. Set Baud Rate on Bottom Dip Switch to the same as Baud
Rate setting on the keyboard you are using.
3. Set specic camera address that you want to control the
camera for on Bottom Dip Switch.
4. If you want to have the camera address to be automati-
cally assigned by VISCA controller, set camera Dip Switch
address to 0.
5. Reboot the camera by turning it Off/On after the Bottom
Dip Switch has been set up correctly.
6. Camera supports Daisy Chain connection up to 7 cam-
eras.
7. Use the RJ45 to RS232 (VISCA) control cable. The con-
troller must be VISCA compatible.
8. Or you can use CAT5/6 network cable (T-568B standard
pinout) to make RS232 connection by following the pin
denition below:
9. How to make RS232 Daisy Chain multiple camera connec-
tion with standard RS232 serial port controller as below:
CAT5/6
Network Cable
1. --- (Orange/White)
2. --- (Orange)
3. GND (Green/White)
4. TX (Blue)
5. RX (Blue/White)
6. --- (Green)
7. --- (Brown/White)
8. --- (Brown)
18
RS232 Serial port
connection
on controller side.
RS232
1. ---
2. ---
3. GND
4. TX
5. RX
6. ---
7. ---
8. ---
GND
TXD
RXD
1. ---
2. ---
3. GND
4. TX
5. RX
6. ---
7. ---
8. ---
10. Use RS422(VISCA) / RS485 (PELCO P/D)
You can use RS422/485 port connect to optional controllers,
such as joystick control keyboard, control PC station, to op-
erate the camera.
To perform pan/tilt and zoom operations using the joystick
of the control keyboard, and to perform the Preset operation
using the control buttons.
An application software that supports this unit is needed if
you use PC station.
RS422 (VISCA) connection
1. Set RS422 control method on Bottom Dip Switch.
2. Set Baud Rate on Bottom Dip Switch to the same as Baud
Rate setting on the keyboard you are using.
3. Set specic camera address that you want to control the
camera for on Bottom Dip Switch.
4. If you want to have the camera address to be automati-
cally assigned by VISCA controller, set camera Dip Switch
address to 0.
5. Reboot the camera by turning it Off/On after the Bottom
Dip Switch has been set up correctly.
6. Use the RJ45 to RS422 control cable. The controller must
be VISCA compatible.
7. Camera supports Daisy Chain connection up to 7 cam-
eras.
8. The connection of SONY keyboard is different than other
VISCA (Non-Sony) keyboard.
HDMI Video Signal
SDI Video Signal
Remote Control Signal
(RS422 (VISCA)
or RS485 (Pelco P/D))
IR Remote Controller

12
9. How to make RS422 connection and RS422 Daisy Chain
multiple cameras connection with SONY controller as
below:
SONY Keyboard RS422 Connection
10. How to make RS422 connection and RS422 Daisy Chain
multiple cameras connection with Non-Sony controller
as below:
VISCA (Non-Sony) Keyboard RS422 Connection
11. Use extension cables RJ45 to RS422 Phoenix connect-
er adaptor included to make RS422 connection for your
control device.
Camera
5. GND
4. T +
3. T –
2. R +
1. R –
Keyboard
1. ---
2. ---
3. ---
4. ---
5. GND
6. RXD IN –
7. RXD IN +
8. TXD IN –
9. TXD IN +
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(SONY Keyboard)
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX – TX +TX – GND
KEYBOARD
CAM 1
CAM 2
CAM 7
SONY Keyboard
Connection
Camera
5. GND
4. TXD IN +
3. TXD IN –
2. RXD IN +
1. RXD IN –
Keyboard
1. GND
2. RXD IN –
3. RXD IN +
4. TXD IN –
5. TXD IN +
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(VISCA Keyboard)
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
KEYBOARD
CAM 1
CAM 2
CAM 7
VISCA Keyboard
Connection
Multicore
Control
Cable PTZ Keyboard
RS422 Serial Port
connection on
controller side
VCC-CC45RS
Extension cable RS422
adaptor included
5. R –
4. R +
3. T –
2. T +
1. GND
12. Or you can use CAT5/6 T-568B Standard Ethernet cable
direct connect between the camera and the controller to
make RS422 connection by following the pin denition
below:
13. How to make RS422 Daisy Chain multiple camera con-
nection with RS422 standard serial port controller:
CAT5/6
Network Cable
RS422
Port
1. RX – (Orange/White)
2. RX + (Orange)
3. GND (Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX + (Brown)
1 8
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
RX +
RX –
TX +
TX –
GND
RS422
RS422 SERIAL PORT
ON CONTROLLER SIDE

13
PELCO P/D Keyboard RS485 Connection
NOTE: Use RS422 ports for RS485 connection. Only use
TX+ and TX- for RS485 connection.
• Set RS422 control method on Bottom Dip Switch.
• Set Baud Rate on Bottom Dip Switch to the same as Baud
Rate setting on the keyboard you are using.
• Set the camera ID on OSD menu by remote controller
• Reboot the camera by turning it Off/On after the Bottom
Dip Switch has been set up correctly.
• Use PELCO P/D compatible keyboard.
• Use preset 95# on the keyboard to bring up/exit camera
OSD menu.
• Use joystick and Button “OPEN” or “CLOSE” to navigate
OSD menu.
• To operate keyboard, please refer to the user manual of
the keyboard you are using.
PELCO RS485 Connection
• Use extension cables included RJ45 to RS422 Phoenix
connecter adaptor to make RS485 connection for your
control device.
Camera
1. TXD IN –
2. TXD IN +
Keyboard
6. RS485 +
7. RS485 –
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(VISCA Keyboard)
RS485
PELCO P/D Keyboard
Connection
RX +RX – TX +TX – GND
RX +RX – TX +TX – GND
RX +RX – TX +TX – GND
1. TDX IN –2 . TDX IN +
CAM 1
KEYBOARD
CAM 2
CAM 255
Multicore
Control
Cable PTZ Keyboard
RS485 Serial Port
connection on
controller side
VCC-CC45RS
Extension cable RS422
adaptor included
5. R –
4. R +
3. T –
2. T +
1. GND
• Or you can use CAT5/6 T-568B Standard Ethernet cable
direct connect between the camera and the controller to
make RS485 connection by following the pin denition
below:
• How to make RS485 multiple cameras connection with
RS485 standard serial port controller:
NOTE: For RS-232 VISCA control, this unit supports daisy
chain connection for using multiple cameras.
For control details, refer to Operating Instructions of control
keyboard/station software.
• You need to match the communication speed (Baud Rate)
CAT5/6
Network Cable
RS485
Port
1. RX – (Orange/White)
2. RX + (Orange)
3. GND (Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX + (Brown)
1 8
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
RX +
RX –
TX +
TX –
GND
RS422
RS422 SERIAL PORT
ON CONTROLLER SIDE

14
between the camera and the joystick controller.
• You cannot use the RS-232 connections while you are us-
ing the RS422/485 connection.
Operating Multiple Cameras
Using RS-232,422/485
• Using RS-232 (VISCA), you can connect to 7 cameras.
• Using RS-422 (VISCA), you can connect to 7 cameras.
• Using RS-485 (PELCO), you can connect to 255 cameras.
• Using RS-485 (PELCO), all camera addresses must be
set up before the connection. You can set the camera
address by operating OSD menu, or by setting the Dip
Switch on the bottom of the camera. In this case, you can
use multiple control keyboards.
VISCA over IP Control
With VISCA over IP function, you can control the camera us-
ing VISCA protocol on a controller equipped with IP commu-
nication capabilities via LAN.
The communication specications of VISCA over IP are fol-
lowings:
• Interface: RJ-45 10/100M
• Interface protocol: IPv4
• Transport protocol: UDP
• IP address: 192.168.100.100 By default
• Port: 52381
HDMI Video Signal
SDI Video Signal
Remote Control Signal
(RS422 (VISCA)
or RS485 (Pelco P/D))
IR Remote Controller
VISCA over IP Network Conguration
Re-assign the camera
The default information of the IP camera is following:
• Static IP: 192.168.0.13
• Subnet mask: 255.255.255.0
• Gateway: 192.168.0.1
• VISCA over IP control port: 52381.
The camera IP address needs to be assigned to the IP ad-
dress that works with your local network.
Controlling via VISCA over IP
• Connect the network port on the camera to the network
switch.
• Set the IP address and other network information appro-
priately to communicate on your network
• Connect the VISCA over IP-compatible controller to the
network
• Congure the controller to access the camera’s IP ad-
dress and VISCA over IP port
• The IP port within on your control must be set to 52381
to communicate with the camera.
• Select VISCA protocol on your IP control device.
DIP SWITCH SETTINGS
The Dip switches are for setting the camera conguration for
following items:
1. Camera ID Address for RS-485 PELCO protocol
2. Video output / Video color space
3. RS-232 / RS-422/485 selection
4. RS-232 / RS-422/485 baud rate
5. Video resolutions selection
6. IR remote controller ID
Setting of the BOTTOM DIP Switches
Turn off power to the camera before changing the DIP switch
settings. Power on the camera to have the new Dip Switch
setting activated.

15
From the above list, No.1 Camera ID address and NO.2 Video
resolution settings can be set in camera OSD menu as well.
The camera takes either the way of OSD menu setting or the
way of bottom DIP switch setting. They override each oth-
er. After the camera is turned on, the camera takes the last
setting before it is turned on, either set through the OSD or
bottom DIP switch.
The Bottom DIP Switch Settings
SW1 Factory Default Setting:
ON, OFF, OFF, OFF, OFF, OFF, OFF, ON.
Bit 1~3: Camera Address setting for VISCA protocol
Bit 4: Video Output/Video Color Space
Bit 5: Reserve
Bit 6: RS-232/RS-422
Bit 7~8: RS-232/RS-422 Baud Rate
1. Camera Address setting for VISCA protocol.
2. Video Output/Video Color Space
When using HDMI output to display on HDMI device, set
the Dip switch B4 to OFF. When using HDMI to DVI con-
vertor to have DVI video output, set the Dip switch B4
to ON.
3. RS-232 / RS-422 Setting
BOTTOM
LEFT RIGHT
LEFT:
VISCA Address
1
2
3
4
5
6
7
1
ON
OFF
ON
OFF
ON
OFF
ON
2
OFF
ON
ON
OFF
OFF
ON
ON
3
OFF
OFF
OFF
ON
ON
ON
ON
Colour Space Setting
YUV Output
RGB Output
4
OFF
ON
Control Mode
RS-232
RS-422
6
OFF
ON
4. RS-232 / RS-422 Baud Rate Setting
SW2 Factory Default Setting:
OFF, OFF, OFF, ON, OFF, OFF, OFF, OFF.
Bit 1~4: Video Resolution Setting
Bit 5~6: Reserve
Bit 7~8: IR Remote Controller ID Setting
1. VIdeo Resolution Setting
2. IR Remote Controller ID Setting
Baud Rate Setting
2400 bps
4800 bps
9600 bps (Default)
38400 bps
7
OFF
ON
OFF
ON
8
OFF
OFF
ON
ON
BOTTOM
LEFT RIGHT
RIGHT:
Video Resolution
1080i59.94
1080p29.97
720p59.94
1080p59.94
Empty
1080i60
1080p30
1080p60
1080i50
1080p25
720p50
1080p50
Empty
Empty
720p60
1
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
2
OFF
OFF
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
3
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
4
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
IR Remote Controller ID
1
2
3
7
OFF
ON
OFF
8
OFF
OFF
ON

16
Adjusting and Setting with Menus
About On-Screen Menus
You can change various settings, such as shooting conditions
and system setup of the camera, while observing menus dis-
played on a connected computer screen.
This section explains how to read the on-screen menus be-
fore starting menu operations.
The menu parameters may vary according to the different
product model numbers.
For a complete congurations menu, see “Menu Congura-
tion” (page 25).
NOTE: You cannot perform pan/tilt operations while the
menu is displayed.
Main Menu
To display the main menu, press the DATA SCREEN button on
the supplied infrared remote controller.
1. Selected Items
Selects a setting menu.
The selected item is shown by the cursor. The cursor
moves up or down by pressing the “↑, ↓” button on the
infrared remote controller.
2. Menu Items
To display a setting menu, select one using the “↑, ↓”
button on the infrared remote controller and press the
HOME button on the infrared remote controller.
Setting Menus
The setting menu selected on the main menu is displayed.
1. Setting Menu
The name of the setting menu currently selected is dis-
played here.
2. Selected Item
Selects a setting item.
The selected item is shown by the cursor.
Move the cursor up or down by pressing the “↑, ↓” button
on the infrared remote controller.
3. Setting Items
The setting items for this setting menu are displayed.
Select the setting item using the “↑, ↓” button on the
infrared remote controller.
4. Set Value
The currently set values are displayed.
To change a set value, use the “←, →” button on the infra-
red remote controller.
NOTE: In some product models, only use “←” button on the
infrared remote controller to change the value. To conrm
the value, you can use either “→” button or HOME button.
Control Button
You can select the item by pressing “↑, ↓, ←, →” and HOME
button.
1. You can select a menu item by “↑, ↓” button on the infra-
red remote controller. The selected item is shown by the
cursor (Color change). You can change the value of the
item by pressing “←, →” button.
2. You can move to the next layer by pressing the HOME
button.
3. You can return to the normal display by pressing the
DATA SCREEN button.
NOTE: When you are operating the menu using the infra-
red remote controller, you cannot set IR- RECEIVE in the
SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the
appropriate VISCA command.
EXPOSURE Menu
The EXPOSURE menu is used to set the items related to ex-
posure.
MODE (Exposure Mode)
FULL AUTO: The exposure is adjusted automatically using
the values set for SLOW SHUTTER, S. SHUTTER LIMIT, AE
RESPONSE, GAIN LIMIT, and EX-COMP.
MANUAL: Adjust the GAIN, GAIN LIMIT, electronic shutter
speed (SPEED), iris (IRIS), and HIGH SENSITIVITY manually.
IRIS PRI: Iris Priority mode. The exposure is adjusted auto-
matically using the values manually set for iris (IRIS), GAIN
LIMIT, and EX-COMP.
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: FULL AUTO
MODE
SLOW SHUTTER
S. SHUTTER LIMIT
AE RESPONSE
GAIN LIMIT
EX COMP
FULL AUTO
OFF
1/4
01
21.4dB
OFF
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: MANUAL
MODE
GAIN
GAIN LIMIT
SPEED
IRIS
HIGH SENSITIVITY
MANUAL
12dB
21.4dB
1/60
F1.6
OFF
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: IRIS PRI
MODE
IRIS
GAIN LIMIT
EX COMP
IRIS PRI
F1.6
21.4dB
OFF

17
NOTE: In some product models, only use “←” button on the
infrared remote controller to change the value. To conrm
the value, you can use either “→” button or HOME button.
Control Button
You can select the item by pressing “↑, ↓, ←, →” and HOME
button.
1. You can select a menu item by “↑, ↓” button on the infra-
red remote controller. The selected item is shown by the
cursor (Color change). You can change the value of the
item by pressing “←, →” button.
2. You can move to the next layer by pressing the HOME
button.
3. You can return to the normal display by pressing the
DATA SCREEN button.
NOTE: When you are operating the menu using the infra-
red remote controller, you cannot set IR- RECEIVE in the
SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the
appropriate VISCA command.
EXPOSURE Menu
The EXPOSURE menu is used to set the items related to ex-
posure.
MODE (Exposure Mode)
FULL AUTO: The exposure is adjusted automatically using
the values set for SLOW SHUTTER, S. SHUTTER LIMIT, AE
RESPONSE, GAIN LIMIT, and EX-COMP.
MANUAL: Adjust the GAIN, GAIN LIMIT, electronic shutter
speed (SPEED), iris (IRIS), and HIGH SENSITIVITY manually.
IRIS PRI: Iris Priority mode. The exposure is adjusted auto-
matically using the values manually set for iris (IRIS), GAIN
LIMIT, and EX-COMP.
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: FULL AUTO
MODE
SLOW SHUTTER
S. SHUTTER LIMIT
AE RESPONSE
GAIN LIMIT
EX COMP
FULL AUTO
OFF
1/4
01
21.4dB
OFF
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: MANUAL
MODE
GAIN
GAIN LIMIT
SPEED
IRIS
HIGH SENSITIVITY
MANUAL
12dB
21.4dB
1/60
F1.6
OFF
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: IRIS PRI
MODE
IRIS
GAIN LIMIT
EX COMP
IRIS PRI
F1.6
21.4dB
OFF
SHUTTER PRI: Shutter Priority mode. The exposure is adjust-
ed automatically using the values manually set for electronic
shutter speed (SPEED), GAIN LIMIT, and EX-COMP.
When you select one from various exposure modes, some of
the following setting items that are required for the selected
mode will appear.
GAIN: Select the gain from the following:
0dB, 3.6 dB, 7.1 dB, 10.7 dB, 14.3 dB, 17.8 dB, 21.4 dB, 25 dB,
28.6 dB, 32.1 dB, 35.7 dB, 39.3 dB, 42.8 dB, 46.4 dB, 50 dB
GAIN LIMIT: The gain limit can be set at Full Auto, Shutter
Priority, Iris Priority, Bright, Spot Exposure and Manual in AE
mode. Use this setting when you want to obtain images with
a focus on the signal-to-noise ratio
HIGH SENSITIVITY: This function increases the max gain to
allow bright output in darker environments. However, with a
strong gain (up to 10×), the captured image will contain a lot
of noise
SPEED: Select the electronic shutter speed from the following:
When video format is set to 720P25, 1080P50, 1080i50,
1080P25, 720P50, ‘speed’ can be selected from the follow-
ing: 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120,
1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750,
1/2500, 1/3500, 1/6000, 1/10K.
When video format is set to 720P30, 1080i59.94, 1080P29.97,
720P59.94, 1080P59.94, 1080I60, 1080P30, 1080P60, 720P60,
‘speed’ can be selected from the following: 1/1, 1/2, 1/4,
1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350,
1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000,
1/6000, 1/10K.
IRIS: Select the iris the following: CLOSE, F14, F11, F9.6, F8.0,
F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6
SLOW SHUTTER: When set to “On,” the slow shutter func-
tions automatically when the light darkens. This setting is
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: SHUTTER PRI
MODE
SPEED
GAIN LIMIT
EX COMP
SHUTTER PRI
1/60
21.4dB
OFF
available only when the AE mode is set to “Full Auto.” The
initial setting is “Auto Slow Shutter Off.”
S. SHUTTER LIMIT: When the subject becomes dark, the
shutter speed becomes slow and the gain is increased. This
is a function to put a limit on the shutter speed. It prevents
the camera shake when you shoot a moving subject in a dark
place.
AE Response: The slow AE Response function allows you to
reduce the exposure response speed. Usually the camera is
set up so that the optimum exposure can be obtained auto-
matically within about 1 second. However, using the slow AE
response function allows you to lengthen the auto exposure
response speed from the initial setup speed
EX-COMP (Exposure Compensation): When MODE is set to
one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item
to ON to enable exposure compensation. When you set EX-
COMP to ON, LEVEL appear and you can select the expo-
sure compensation level from the following: –10.5, –9, –7.5,
–6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5
If you set the level to 0, exposure compensation will be dis-
abled. Level +10.5 is the brightest and –10.5 is the darkest
compensation value.
When EX-COMP is set to OFF, exposure compensation does
not function.
WHITE BALANCE Menu
The WHITE BALANCE menu is used to select the white bal-
ance mode.
MODE (white balance mode)
Select the white balance mode from the following:
AUTO: This mode computes the white balance value output
using color information from the entire screen. It outputs
the proper value using the color temperature radiating from
a black subject based on a range of values from 2500K to
7500K. This mode is the initial setting.
INDOOR: 3200K Base Mode
OUTDOOR: 5800K Base Mode
OPW (One Push White Balance): The One Push White Bal-
ance mode is a xed white balance mode that may be au-
tomatically readjusted only at the request of the user (One
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
WHITE BALANCE MENU
WB MODE AUTO

18
Push Trigger), assuming that a white subject, in correct light-
ing conditions, and occupying more than 1/2 of the image,
is submitted to the camera. One Push White Balance data is
lost when the power is turned off. If the power is turned off,
reset One Push White Balance.
NOTE: When you select the OPW (One Push White Balance)
Perform the following operations:
1. Place an image of white subject (For example: A piece of
white paper) in the center of the screen.
2. Press the HOME button of the infrared remote control-
ler. The one-push white balance adjustment is activated.
ATW (Auto Tracking White Balance): Auto Tracking White
balance (2000K to 10000K), allows the camera to adjust the
tone according to the temperature of the light source illumi-
nating the subject.
USER: This is a mode that enables you to manually set the
control of R and B gain up to 256 steps.
NOTE: When you select USER, R. GAIN (red gain) and B.
GAIN (blue gain) appear. You can select each item in the
range from 0 to 255.
OUTDOOR AUTO: This is an auto white balance mode spe-
cically for outdoors. It allows you to capture images with
natural white balance in the morning and evening.
SL AUTO: Sodium Vapor Lamp Auto: This is an auto white
balance mode that is compatible with sodium vapor lamps.
SL: Sodium Vapor Lamp: This is a xed white balance mode
specically for sodium vapor lamps.
SLO AUTO: Sodium Vapor Lamp Outdoor Auto: This is an
auto white balance mode specically for outdoors, which is
compatible with sodium vapor lamps.
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
WHITE BALANCE MENU
WB MODE
R GAIN
B GAIN
USER
106
217
PICTURE1 Menu
SHARPNESS: Picture sharpness value ranges from 0 to 15.
You can enjoy emphasized edge and high-resolution images.
EFFECT: (Picture Effect). It consists of the following func-
tions:
B&W: Monochrome Image
Image effect from Off, B&W
NOISE REDUCTION: Noise reduction - you can enjoy clearer
images by removing unnecessary noise. You can select 6 lev-
els from OFF (MIN), 1 to 5 (MAX).
FLIP: Image E-Flipper – Used when ceiling mounting or up-
right mounting. Set to OFF is upright mode, set to ON is for
ceiling mount.
MIRROR: You can have the image as seen in a mirror, with
the right side as though it were the left.
DE-FLICKER: You can turn it ON if the Video output format
frame rate is difference from your country’s electricity Fre-
quency.
WDR: (Wide dynamic range mode): WDR feature is avail-
able on certain product models.
Wide Dynamic: ON, OFF. The camera distinguishes light and
dark areas within the same scene, adjusts the brightness for
dark areas, and also controls the blown-out highlights. You can
select the wide dynamic range mode between ON and OFF.
COLOR: You can congure the color gain from 1-15. Use this
setting when bright color is particularly important.
HUE: You can adjust color phase from 1-15.
CONTRAST: You can adjust the contrast level in the range
from 0 (00h) to 255 (FFh). The initial setting is 128 (80h). The
smaller the value is, the lower the contrast becomes, and the
larger the value is, the higher the contrast becomes.
PICTURE 1 MENU
SHARPNESS
EFFECT
NOISE REDUCTION
FLIP
MIRROR
DE-FLICKER
WDR
COLOR
HUE
CONTRAST
3
OFF
3
OFF
OFF
OFF
OFF
5
6
128
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM

19
PICTURE2 Menu
CHROMA: You can set the brightness from OFF, LOW, MID,
HIGH in each mode of the variable gamma mode.
HLC MODE: HLC (Highlight Light Compensation) is a func-
tion to adjust AE and AF, and to perform the masking of light
area as required when a high intensity spot light is detected.
BACKLIGHT COM.: When the background of the subject is
too bright, or when the subject is too dark due to shooting in
the AE mode, back light compensation will make the subject
appear clearer.
STABILIZER: (Available on 30X, not available on 20X)
When the image stabilizer function is set to ON, you can
obtain the image with less screen blur caused by shaking.
The correction effect can be achieved at the vibration fre-
quency around 10 Hz. The image stabilizer function uses the
digital zoom method. Although there are changes in the an-
gle of view and resolution, the sensitivity is maintained.
NOTE: The image stabilizer function may not work under
the environment of high frequency vibration components.
When using the camera under such environment, set the im-
age stabilizer function to Off.
STABLE ZOOM: (Available on 30X, not available on 20X)
Stable Zoom is a function to perform correction using the im-
age stabilizer function according to the zoom magnication
and zoom the image up to approx. 24× smoothly by com-
bining the optical zoom with the digital zoom. By zooming
the image furthermore using the digital zoom, the image is
zoomed up to 288×. On the wide side, the image without the
deterioration in resolution can be obtained because the digi-
tal zoom is not used. On the other hand, the correction effect
by the image stabilizer function is maximized on the tele side,
reducing the blur.
GAMMA: In this mode, the gamma can be set to value from
0 to 1.
PICTURE 2 MENU
CHROMA
HLC MODE
BACKLIGHT COM.
STABILIZER
STABLE ZOOM
GAMMA
OFF
OFF
OFF
OFF
OFF
0
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
PAN TILT ZOOM Menu
The PAN TILT ZOOM menu is used to select the pan/tilt/
zoom mode.
DIGITAL ZOOM: Set to DIGITAL ZOOM ON, 12X digital zoom
is activated. You can set digital zoom to ON or OFF. When set
to OFF, digital zoom does not operate, and only optical zoom
is available. When set to ON, digital zoom takes over after
optical zoom reaches MAX (20X/30X). Up to 200X/300X can
be zoomed digitally. When digital zoom is available, the res-
olution decreases
ZOOM RATIO OSD (Zoom times display): Set Ratio OSD to
ON, the number of the zoom ratio that you are operating
displays on screen.
AF SEN: NORMAL: Reaches the highest focus speed quick-
ly. Use this when shooting a subject that moves frequently.
LOW: Improves the stability of the focus. When the lighting
level is low, the AF function does not take effect, even though
the brightness varies, contributing to a stable image.
MF SPEED: Manual Focus variable speed, that has eight
speed levels.
NEAR LIMIT: Can be set in a range from OVER, 1cm, 11cm,
30cm, 80cm, 1.2m, 1.4m, 1.6m, 2.0m, 2.5m, 3.1m, 4.2m, 6m,
10m, 20m.
ADAPTIVE P/T: Set to ON, Pan Tilt speed would be adaptive
with the zoom range. Turn ON to automatically adjust the
Pan and Tilt speed with various zoom ratios. For example, the
higher zoom ratio you use, the slower the speed of P/T.
P/T SPEED: Set P/T Speed value to from 0 to 5 (The speed
from low to high), to change the speed of P/T on remote con-
troller.
PRESET SPEED: Set preset speed value from 0 to 5 to change
the preset speed.
PAN DIR: Camera horizontal Left and right orientation set-
ting, option: Normal/Invert.
TILT DIR: Camera tilt up and down orientation setting, op-
tion: Normal/Invert.
PAN TILT ZOOM MENU
DIGITAL ZOOM
ZOOM RATIO OSD
AF SEN
MF SPEED
NEAR LIMIT
ADAPTIVE PT
P/T SPEED
PRESET SPEED
PAN DIR
TILT DIR
OFF
OFF
LOW
2
30cm
ON
3
5
NORMAL
NORMAL
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM

20
SYSTEM Menu
PELCO ID: When using RS485 (PELCO P/D) control, Set Cam-
era ID to the address that you want to control to. This value
is from 001-255.
IR-RECEIVE (Infrared Signal Reception): When this is set to
OFF, the camera does not receive the signal from the infrared
remote controller. Be sure to keep it set to ON when you use
the infrared remote controller.
NOTE: You cannot set IR-RECEIVE to OFF when you oper-
ate the menu using the infrared remote controller. To set it
to OFF, use the appropriate VISCA controller.
DISPLAY INFO: When this item is set to ON, the message of
the camera conguration appears for about 3 seconds on the
screen, after the camera is powered on or rebooted.
PRESET MEMORY: This feature allows you to save the image
parameter to PRESET memory, turn it on to save most image
parameters like as picture, white balance, exposure, focus
mode, zoom positions when you call the preset.
FACTORY RESET: You can select this item to set camera back
to Factory Default setting by pressing HOME button to con-
rm the action. All data of the camera that have been set will
be deleted.
RELOAD PRESET 1: When this item is set to ON, preset 1
is set to Home position. The camera goes to Home position
when it is powered on or reset.
AUTO FOCUS: Set speed of auto-focusing from Low to Normal.
VIDEO FORMAT: You can change the video format by adjust-
ing this item. Select the item, press “←” button to choose the
video format you want to set to, then press “→” (Pressing “→”
button changes value on some product models) or HOME
button to conrm it. After you conrm your choice, press
HOME button again to restore it. The camera will reboot by
itself. The new video format is activated.
You can cancel it by pressing the DATA SCREEN button.
Depending on the video client software you are using, some
video software may need to be restarted to obtain the new
video format.
SYSTEM MENU
PELCO ID
IR-RECEIVE
DISPLAY INFO
PRESET MEMORY
FACTORY RESET
RELOAD PRESET 1
AUTO FOCUS
FORMAT
SV
001
ON
ON
ON
ON
NORMAL
1080p29.97
V0B1100S36[...]
OSD
EXPOSURE
WHITE BALANCE
PICTURE 1
PICTURE 2
PAN TILT ZOOM
SYSTEM
The video formats that you can select from are:
1080P:60/59.94/50/30/29.97/25,1080I:60/59.94/50,
720P:60/59.94/50/30/25
SV: Software Version Number that is currently running on the
camera, you may need this information for technical support.
NOTE: The camera video format can be changed by setting
bottom DIP switch as well.
Operation Using the Infrared
Remote Controller
Pan/Tilt and Zoom Operation
L/R DIRECTION SET
MENU POWER
STD
PRESET
T
W
FAR
NEAR
RESET
REV
ZOOM FOCUS
HOME
CAMERA SELECT
CAMERA SELECT
REV
STD HOMEMENU
L/R DIRECTION SET
Panning and Tilting
1. Press the POWER switch. The camera will turn on and
perform the pan/tilt reset operation automatically.
2. Press the arrow button to pan or tilt the camera. While
checking the picture on the screen, press the desired ar-
row button.
To move the camera in short increments, press the button
just for a moment.
To move the camera in long increments, press and hold the
button.
To move the camera diagonally, press the “←, →” button
while holding down the “↑, ↓” button.
Restore to starting position
Press the HOME button.
If the camera moves in a different direction from the one
that you intended
The camera is preset so that the image output from the cam-
era is rotated toward the right whenever you press the “←,
→” button.
To face the camera toward the opposite direction
You might wish to face the camera toward the opposite direc-
tion from that of the button you pressed, for example, when
