birddog P4K User manual

USER MANUAL
P4K
THE HIGHEST QUALITY FULL NDI®
CAMERA ON THE PLANET.
PART 1

2
Contents
4. IMPORTANT INFORMATION
5. WHAT’S IN THE BOX
5. OVERVIEW
5. Features
6. Camera Diagrams
7. System Conguration
7. Obtain Video Signal
8. Audio IN / OUT
8. Camera Control Methods and System Congurations
8. Use the Infrared Remote Controller
8. Use RS-232 (VISCA)
10. Use RS-422(VISCA) / RS485 (PELCO P/D)
10. RS422 (VISCA) connection
11. PELCO P/D Keyboard RS485 Connection
12. Operating Multiple Cameras
12. VISCA over IP Control
13. DIP SWITCH SETTINGS
14. Adjusting and Setting with Menus
14. EXPOSURE Menu
16. WHITE BALANCE Menu
17. DETAIL Menu
18. PICTURE Menu
18. GAMMA Menu
19. NETWORK Menu
19. PAN TILT ZOOM Menu
20. SYSTEM Menu
21. True Dual Output - Video format setting
21. FIRMWARE UPGRADE
21. Upgrading MCU Firmware
21. Upgrading IP Encoder Firmware
21. Upgrading FPGA Firmware
22. Remote Controller
23. Operation Using the Infrared Remote Controller
23. Pan/Tilt and Zoom Operation
23. Operating Multiple Cameras with the IR Controller
23. Adjusting the Camera Focus
23. Storing the Camera settings in memory - Preset Feature
24. Adjusting the Camera
25. AI Feature Mode
26. Dimensions

3
Operating Instructions
Thank you for purchasing our product. If there are any questions, please contact your authorized dealer.
Before operating the unit, please read this manual thoroughly and retain it for future reference.
Copyright
Copyright 2020 BirdDog Australia all rights reserved. No part of this manual may be copied, reproduced, translated, or distrib-
uted in any form or by any means without prior consent in writing from our company.
Trademark Acknowledgement
and other BirdDog’s trademarks and logos are the property of BirdDog Australia. Other trademarks, company
names and product names contained in this manual are the property of their respective owners.
• Trademarks and Registered Trademark Acknowledgement
• Microsoft, Windows, ActiveX, and Internet Explorer are registered trademarks of Microsoft Corporation in the U.S. and/or
other countries.
• HDMI, the HDMI logo and High-Denition Multimedia Interface are the trademarks or registered trademarks of HDMI Li-
censing, LLC in the United States and other countries.
• Other trademarks, company names and product names contained in this manual are the property of their respective owners.

4
IMPORTANT INFORMATION
Legal Notice
Attention:
To ensure account security, please change the password af-
ter your rst login. You are recommended to set a strong
password (no less than eight characters).
The contents of this document are subject to change without
prior notice. Updates will be added to the new version of this
manual. We will readily improve or update the products or
procedures described in the manual.
Best effort has been made to verify the integrity and correct-
ness of the contents in this document, but no statement, in-
formation, or recommendation in this manual shall constitute
formal guarantee of any kind, expressed or implied. We shall
not be held responsible for any technical or typographical
errors in this manual.
The product appearance shown in this manual is for refer-
ence only and may be different from the actual appearance
of your device.
Due to uncertainties such as physical environment, discrep-
ancy may exist between the actual values and reference val-
ues provided in this manual.
Use of this document and the subsequent results shall be en-
tirely on the user’s own responsibility.
WARNING!
Installation and removal of the unit and its accesso-
ries must be carried out by qualied personnel. You
must read all of the Safety Instructions supplied with
your equipment before installation and operation.
Warnings:
• If the product does not work properly, please contact your
dealer. Never attempt to disassemble the camera your-
self. (We will not assume any responsibility for problems
caused by unauthorized repair or maintenance.)
• This installation should be made by a qualied service per-
son and should conform to all the local codes.
• When shipping, the camera should be packed in its origi-
nal packaging.
• Make sure the power supply voltage is correct before us-
ing the camera.
• Do not drop the camera or subject it to physical shock.
• Do not aim the camera lens at the strong light such as sun
or incandescent lamp. The strong light can cause fatal
damage to the camera.
Maintenance Precautions:
• If there is dust on the front glass surface, remove the dust
gently using an oil-free brush or a rubber dust blowing
ball.
• If there is grease or a dust stain on the front glass surface,
clean the glass surface gently from the center outward us-
ing anti-static gloves or an oil-free cloth. If the grease or
the stain still cannot be removed, use anti-static gloves or
an oil-free cloth dipped with detergent and clean the glass
surface gently until it is removed.
• Do not use organic solvents, such as benzene or ethanol
when cleaning the front glass surface.
Regulatory Compliance
FCC Part 15
This equipment has been tested and found to comply with
the limits for digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable pro-
tection against harmful interference when the equipment is
operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communi-
cations. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
This product complies with Part 15 of the FCC Rules. Opera-
tion is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including
interference that may cause undesired operation.
LVD/EMC Directive
This product complies with the European Low
Voltage Directive 2006/95/EC and EMC Directive
2004/108/EC.
WEEE Directive–2002/96/EC
The product this manual refers to is covered by the
Waste Electrical & Electronic Equipment (WEEE)
Directive and must be disposed of in a responsible
manner.

5
WHAT’S IN THE BOX
Note: The camera color may be in white or black per the
item that is purchased.
Accessories (Optional)
OVERVIEW
This user guide is suitable for the following models:
BirdDog Eyes P4K
Features
• 1 Inch “Exmor R” CMOS sensor, Effective pixel number:
14.4 Megapixels.
• Resolution: Up to 2160P29.97, 1080P60, 1080i59.94; sup-
ports 23.98 frame rate.
• NDI®Resolution: Up to 2160P30, 1080P60
• IP Resolution: Up to 2160P30, 1080P60
• Zoom: Optical 12X, Digital 12X; SRZ - Super-Resolu-
tion-Zoom expends zoom range to 18X zoom at 4K, or 24X
zoom at FHD
• Black Level, Color Matrix and Image stabilizer and true
WDR 130dB
• Video Output: HDMI(4K), 6G-SDIx2, Dual-Link 3G-SDIx2,
NDI (4K) simultaneously
• Support Black Level, Genlock, Tally Light.
• ±350-degree continuous pan, ±120-degree continuous tilt
• 128 presets, Speed up to 150 degrees/sec
• Wall and ceiling mounting with E-Flip function
• Control supports RS-232 control, RS-422/485 control, VIS-
CA-over-IP, IP-Onvif, IP control software, IR Remote Con-
troller.
• Image parameter setting restore with presets and quick
access operation
• RTMP for online video streaming.
• Supports Audio input, Audio output with HDMI, SDI, IP
streaming.
• Power: DC 12V, PoE (IEEE802.3bt)
• Firmware upgrade via USB2.0 or IP
1x BirdDog P4K
1x IR Remote Controller
(3V CR2032 Coin Lithium Battery Required)
1x Camera Power Adaptor & Power Cord
1x Bag of Mounting Screws
1x RJ45 to RS232 Extension Cable
1x RJ45 to RS422 Extension Cable
1x User Manual
1x Wall Mount
1x Ceiling Mount

6

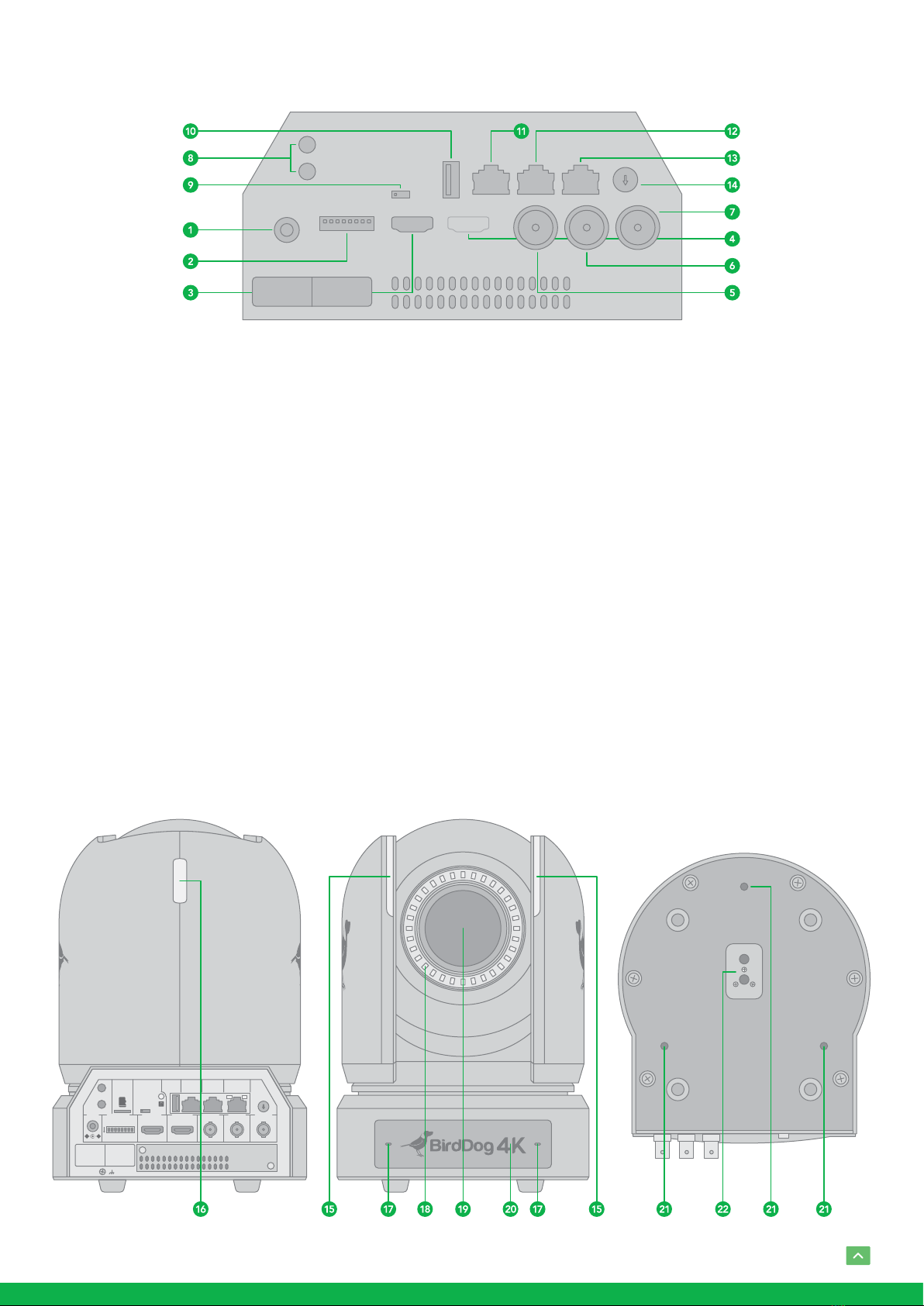

Camera Diagrams
12. RJ45 port for RS-422/485 Control Port
13. Ethernet Port for NDI Video Output and POE power
14. Video Format Selector (For video format selection)
15. Tally Lamps (front)
16. Tally Lamp (rear)
17. Audio Mics
18. Led Operation Indicators
19. Lens - with 12X optical zoom
20. IR Receivers
21. Fixed Mounting Holes
22. Tripod Mounting Holes
1. 12V DC Power Port
2. DIP Switch
3. Main HDMI1.4 (4K) Video Output
4. Sub HD HDMI Video Output
5. 6G-SDI Video Output, Dual Link 3G-SDI Video Output
combine with 6#
6. 6G-SDI Video Output, Dual Link 3G-SDI Video Output
combine with 5#
7. BNC Connector for Genlock
8. Audio Line-in / Line-out, 3.5mm Audio Input
9. IR Remote ID Selector
10. USB2.0 (Firmware upgrade only)
11. RJ45 port for RS232 Control Port
DC-12V Dip Switch
OFF
ON
HDMI Main HDMI Sub
Panorama
Inactive
6G/3G-SDI 1 6G/3G-SDI 2 Genlock
RS-422 NDI / PoE Video
Format
RS-232USB 2.0IR Select
1 2 3
MicroSD
OUT
IN
Audio
(FW Upgrade Only)
1-3:
4:
5:
6:
VISCA Address
YUV Output
RGB Output
Reserved
RS-232
RS-422
7-8:
2400 bps
4800 bps
9600 bps
38400 bps
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
ON
ON

7

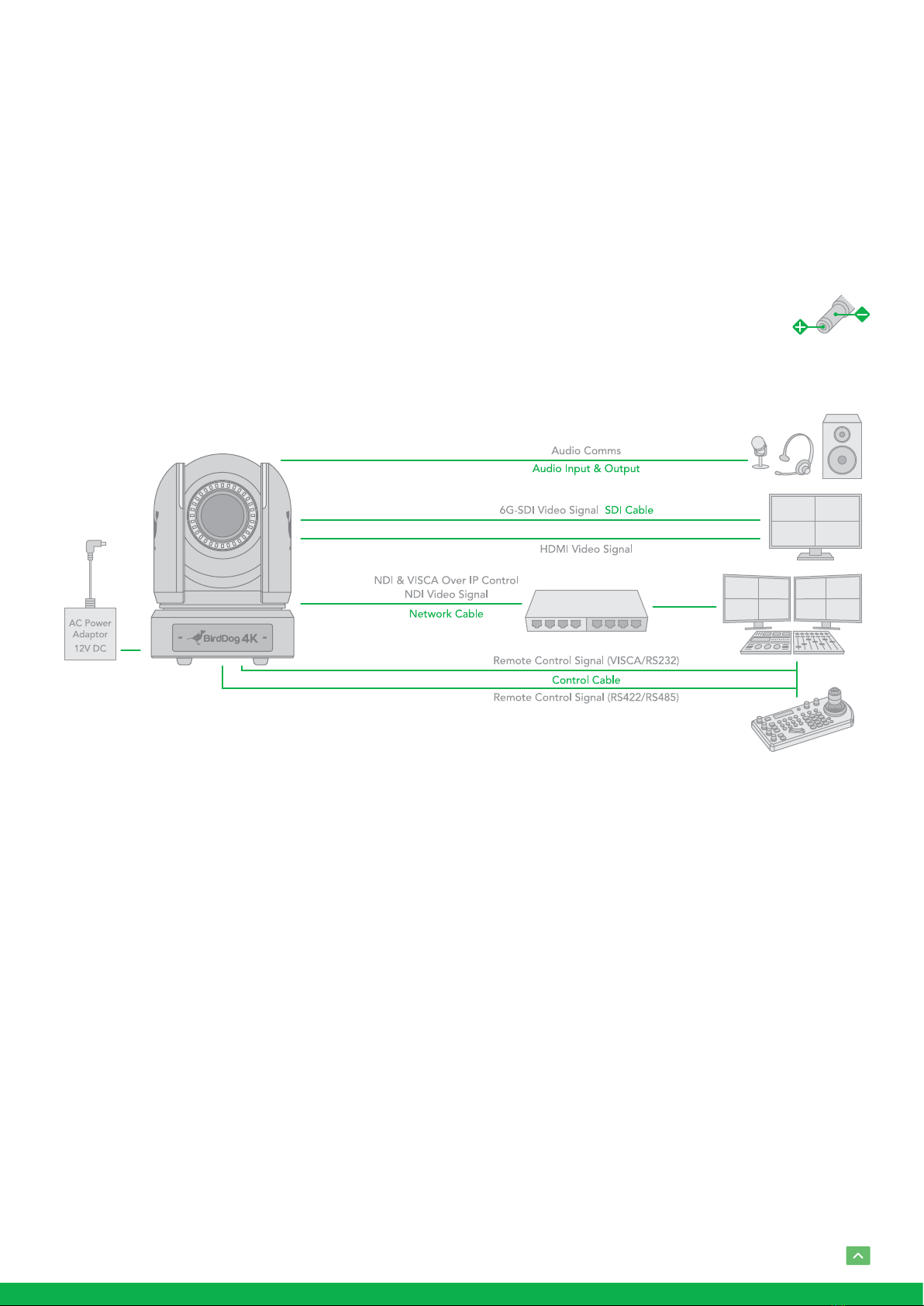

System Conguration
Connection
When the camera is connected to a computer and joystick
keyboard with a VISCA/NDI cable, you can operate the cam-
era with the computer and the joystick keyboard.
When the camera is connected to a joystick keyboard a con-
trol cable (cross type, RS-422/485), you can operate the cam-
era’s pan, tilt, zoom with the joystick keyboard.
In this connection conguration, HDMI cable, SDI video ca-
ble, data cable, Network cable is required. To obtain these
third-party components or accessories, consult the dealer
where you bought your camera.
Obtain Video Signal
The camera can simultaneously have SDI video output, HDMI
video output and NDI®video output.
HDMI Video signal
Connect the camera to a monitor/TV using HDMI cable.
1. Turn on the camera, video will display on the monitor af-
ter initializing.
2. Information of the camera initial setting status will dis-
play for 5 seconds.
3. You can set the video format of the camera to the one
you want to display.
SDI Video Signal
The camera can simultaneously stream SDI video output with
HDMI video output.
1. Connect SDI cable in between the camera your SDI De-
vice/display.
2. 2. If you use Dual Link 3G-SDI device, please connect two
Power
• Use only the DC power adaptor (JEITA type4) supplied
with the unit. Do not use any other DC power adaptor.
• If using POE to power the camera, PoE+(IEEE802.3at) is
supported
• Ensure that the POE power source has sufcient power
budget to power the camera, or some features may not
function properly.
3G-SDI cable to the camera 2x 3G-SDI connectors. And
go to camera OSD menu to set the video format for Dual
Link 3G-SDI use.
3. If you use single 6G-SDI device, please connect 6G-SDI
cable to the camera 6G-SDI connector. The other 6G-SDI
is the looping signal from the rst one, they are the same
6G-SDI signal. And go to camera OSD menu to set the
video format for single 6G-SDI use.
4. You now have SDI video output (supports up to 2160P).
IP Video Signal
The camera can simultaneously stream NDI®video output
and SDI video output and HDMI video output.
1. Connect the camera to the network using Cat5/Cat6 net-
work cable.
2. You need a web browser for product conguration.
3. VISCA address and Baud Rate setting on the camera
must be as same as the setting on camera IP WEB inter-
face.

8
4. To obtain NDI® video and congure NDI®video, please
refer to User Manual Part 2 - NDI®.
Audio IN / OUT
• A microphone can be connected to the Audio IN port,
which feeds audio into the camera.
• A speaker can be connected to the Audio OUT port,
which will output any audio that is captured on the Audio
In port.
• See Manual part 2 for more information about Audio
capture.
Camera Initial setting status Information
Information of the camera initial setting status will display for
5 seconds.
1. Camera PELCO ID for RS-485 control
2. Camera VISCA ID for RS-422/RS-232 control
3. Camera ID for IR Remote Controller
4. IR remote control signal receive current setting
5. Baud Rate current setting
6. Control COMM Port current setting
7. Video format current setting
8. HDMI current setting
9. Model number
10. Firmware version
Camera Control Methods and
System Congurations
This unit has multiple ways of controlling the camera and
various system conguration capabilities using optional
products. This section describes the ways of controlling and
typical system examples with the required components and
usage of each system.
1. Use the Infrared Remote Controller
2. Use RS-232 (VISCA)
3. Use RS-422/485 (VISCA/PELCO P/D)
4. NDI®Control (See Network Camera User Manual)
5. VISCA IP
Use the Infrared Remote Controller
To operate the camera from a short distance.
For IR remote control details, refer to Operation Using the
Infrared Remote Controller.
Use RS-232 (VISCA)
You can use RS-232 port to connect to optional controllers,
such as joystick control keyboard, control PC station, to op-
erate the camera.
To perform pan/tilt and zoom operations using the joystick
of the control keyboard, and to perform the Preset operation
using the control buttons.
An application software that supports this unit is needed if
you use PC station.
CAM STATUS INFO DISPLAY
PELCO ID
VISCA ID
IR ID
IR-RECEIVE
BAUD RATE
1
1
1
ON
9600
COMM TYPE
FORMAT
HDMI OUT
MODEL TYPE
MCU FW
FPGA FW
422
2160p29.97
YUV
P4K
V0K1100S[...]
V011
IR Remote Controller
Video Signal
HDMI Video Signal
SDI Video Signal
Remote Control Signal
(RS422 (VISCA)
or RS485 (Pelco P/D))
IR Remote Controller

9
10. Use extension cables included RJ45 to RS422/232 Phoe-
nix terminal contact adaptor to make RS232 connection
for your control device.
11. Or you can use CAT5/6 network cable (T-568B standard
pinout) to make RS232 connection by following the pin
denition below:
12. How to make RS232 Daisy Chain multiple camera connec-
tion with standard RS232 serial port controller as below:
RS232 Connection
1. Set RS232 control method on Rear panel Dip Switch.
2. Set Baud Rate on Dip Switch to the same as Baud Rate
setting on the keyboard you are using.
3. Set specic camera address that you want to control the
camera for on Dip Switch.
4. If you want to have the camera address to be automati-
cally assigned by VISCA controller, set camera Dip Switch
address to 0.
5. Reboot the camera by turning it Off/On after the Dip
Switch has been set up correctly.
6. Camera supports Daisy Chain connection up to 7 cam-
eras.
7. Use the RJ45 to RS232 (VISCA) control cable. The con-
troller must be VISCA compatible.
8. You can make RS232 connection cable if you have the
following applications:
9. Use extension cables included RJ45 to RS232 8 pin Mini
Din adaptor to make RS232 connection for your control
device.
RS-232
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
8. N.C.
Camera or
Mini DIN
8 pin serial
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
7. OREN
8. OREN
RS-232
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
8. N.C.
Win. DB-9
1. CD
2. RXD
3. TXD
4. DTR
5. GND
6. DSR
7. RTS
8. CTS
9. RI
RS-232
1. DTR
2. DSR
3. TXD
4. GND
5. RXD
6. GND
8. N.C.
Win. DB-25
1. FG
2. TXD
3. RXD
4. RTS
5. CTS
6. DSR
7. GND
20. DTR
8 pin Mini DIN
cable connector PTZ Keyboard
RS232
Daisy Chain Control
RS232 Serial Port
connection on
controller side
1. DTR
3. TX
4. GND
5. RX
7. IR_OUT
2. DSR
3. TX
4. GND
5. RX
Extension cable
RS232 adaptor
included
Multicore Control Cable
PTZ Keyboard
RS232 Serial Port
connection on
controller side
VCC-CC45RS
RJ45 TO RS422 / 232
CONTROL CAMBLE ADAPTER
RS232
1. GND
2. RXD
3. TXD
RS232
1. GND
2. RXD
3. TXD
CAT5/6
Network Cable
1. IR_OUT (Orange/White)
2. DTR (Orange)
3. GND (Green/White)
4. DSR (Blue)
5. TX_OUT (Blue/White)
6. RX_OUT (Green)
7. TX_IN (Brown/White)
8. RX_IN (Brown)
18
1
2
3
4
5
6
7
8
VCC - CC45232
RJ45 TO RS232
CONTROL CABLE
ADAPTER
1. DSR
2. DTR
3. RXD
4. GND
5. TXD
6. NC
7. NC
8. NC
(Orange/White)
(Orange)
(Green/White)
(Blue)
(Blue/White)
(Green)
(Brown/White)
(Brown)
GND
TXD
RXD
Daisy Chain up to 7 cameras
RS232 Connection
with standard RS232 Serial Port
PTZ Keyboard Controller

10
9. How to make RS422 connection and RS422 Daisy Chain
multiple cameras connection with SONY controller as
below:
SONY Keyboard RS422 Connection
10. How to make RS422 connection and RS422 Daisy Chain
multiple cameras connection with Non-Sony controller
as below:
VISCA (Non-Sony) Keyboard RS422 Connection
11. Use extension cables RJ45 to RS422 Phoenix connect-
er adaptor included to make RS422 connection for your
control device.
Use RS422(VISCA) / RS485 (PELCO P/D)
You can use RS422/485 port connect to optional controllers,
such as joystick control keyboard, control PC station, to op-
erate the camera.
To perform pan/tilt and zoom operations using the joystick
of the control keyboard, and to perform the Preset operation
using the control buttons.
An application software that supports this unit is needed if
you use PC station.
RS422 (VISCA) connection
1. Set RS422 control method on Dip Switch.
2. Set Baud Rate on Dip Switch to the same as Baud Rate
setting on the keyboard you are using.
3. Set specic camera address that you want to control the
camera for on Dip Switch.
4. If you want to have the camera address to be automati-
cally assigned by VISCA controller, set camera Dip Switch
address to 0.
5. Reboot the camera by turning it Off/On after the Dip
Switch has been set up correctly.
6. Use the RJ45 to RS422 control cable. The controller must
be VISCA compatible.
7. Camera supports Daisy Chain connection up to 7 cam-
eras.
8. The connection of SONY keyboard is different than other
VISCA (Non-Sony) keyboard.
Camera
5. GND
4. T +
3. T –
2. R +
1. R –
Keyboard
1. ---
2. ---
3. ---
4. ---
5. GND
6. RXD IN –
7. RXD IN +
8. TXD IN –
9. TXD IN +
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(SONY Keyboard)
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX – TX +TX – GND
KEYBOARD
CAM 1
CAM 2
CAM 7
SONY Keyboard
Connection
Camera
5. GND
4. TXD IN +
3. TXD IN –
2. RXD IN +
1. RXD IN –
Keyboard
1. GND
2. RXD IN –
3. RXD IN +
4. TXD IN –
5. TXD IN +
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(VISCA Keyboard)
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
RX +RX –T X +TX – GND
KEYBOARD
CAM 1
CAM 2
CAM 7
VISCA Keyboard
Connection
HDMI Video Signal
SDI Video Signal
Remote Control Signal
(RS422 (VISCA)
or RS485 (Pelco P/D))
IR Remote Controller
Multicore
Control
Cable PTZ Keyboard
RS422 Serial Port
connection on
controller side
VCC-CC45RS
Extension cable RS422
adaptor included
5. R –
4. R +
3. T –
2. T +
1. GND

11
PELCO P/D Keyboard RS485 Connection
NOTE: Use RS422 ports for RS485 connection. Only use
TX+ and TX- for RS485 connection.
• Set RS422 control method on Bottom Dip Switch.
• Set Baud Rate on Bottom Dip Switch to the same as Baud
Rate setting on the keyboard you are using.
• Set the camera ID on OSD menu by remote controller
• Reboot the camera by turning it Off/On after the Bottom
Dip Switch has been set up correctly.
• Use PELCO P/D compatible keyboard.
• Use preset 95# on the keyboard to bring up/exit camera
OSD menu.
• Use joystick and Button “OPEN” or “CLOSE” to navigate
OSD menu.
• To operate keyboard, please refer to the user manual of
the keyboard you are using.
PELCO RS485 Connection
• Use extension cables included RJ45 to RS422 Phoenix
connecter adaptor to make RS485 connection for your
control device.
12. Or you can use CAT5/6 T-568B Standard Ethernet cable
direct connect between the camera and the controller to
make RS422 connection by following the pin denition
below:
13. How to make RS422 Daisy Chain multiple camera con-
nection with RS422 standard serial port controller:
Camera
1. TXD IN –
2. TXD IN +
Keyboard
6. RS485 +
7. RS485 –
RS422 (VISCA) Daisy Chain
Multiple Cameras Connection
(VISCA Keyboard)
RS485
PELCO P/D Keyboard
Connection
RX +RX – TX +TX – GND
RX +RX – TX +TX – GND
RX +RX – TX +TX – GND
1. TDX IN –2 . TDX IN +
CAM 1
KEYBOARD
CAM 2
CAM 255
CAT5/6
Network Cable
1. RX – (Orange/White)
2. RX + (Orange)
3. GND (Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX + (Brown)
18
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
RX +
RX –
TX +
TX –
GND
RS422
RS422 SERIAL PORT
ON CONTROLLER SIDE
Multicore
Control
Cable PTZ Keyboard
RS485 Serial Port
connection on
controller side
VCC-CC45RS
Extension cable RS422
adaptor included
5. R –
4. R +
3. T –
2. T +
1. GND

12
between the camera and the joystick controller.
• You cannot use the RS-232 connections while you are us-
ing the RS422/485 connection.
Operating Multiple Cameras
Using RS-232,422/485
• Using RS-232 (VISCA), you can connect to 7 cameras.
• Using RS-422 (VISCA), you can connect to 7 cameras.
• Using RS-485 (PELCO), you can connect to 255 cameras.
• Using RS-485 (PELCO), all camera addresses must be
set up before the connection. You can set the camera
address by operating OSD menu, or by setting the Dip
Switch on the bottom of the camera. In this case, you can
use multiple control keyboards.
VISCA over IP Control
With VISCA over IP function, you can control the camera us-
ing VISCA protocol on a controller equipped with IP commu-
nication capabilities via LAN.

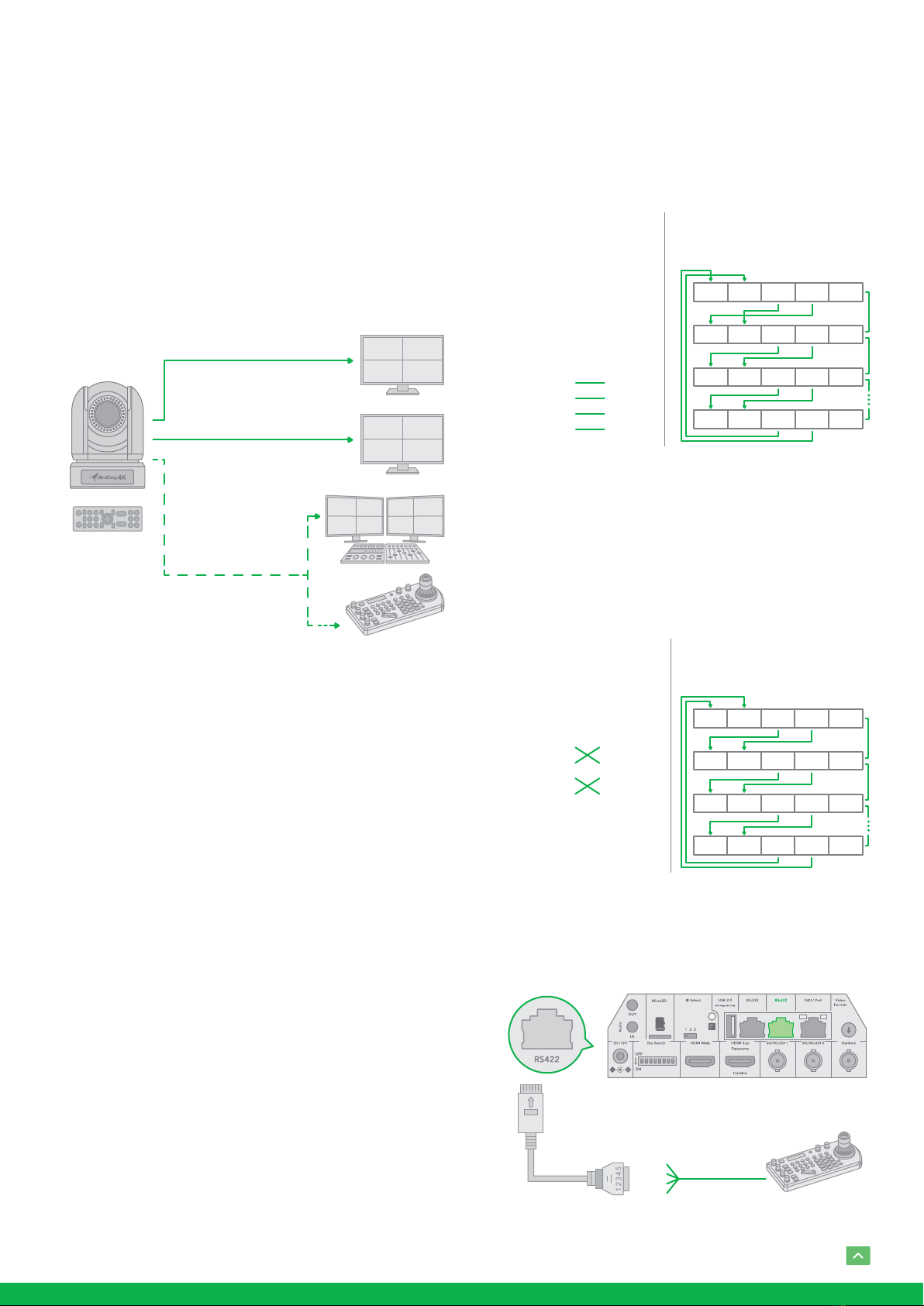

The communication specications of VISCA over IP are fol-
lowings:
• Interface: RJ-45 10/100M
• Interface protocol: IPv4
• Transport protocol: UDP
• IP address: 192.168.100.100 By default
• Port: 52381
• Or you can use CAT5/6 T-568B Standard Ethernet cable
direct connect between the camera and the controller to
make RS485 connection by following the pin denition
below:

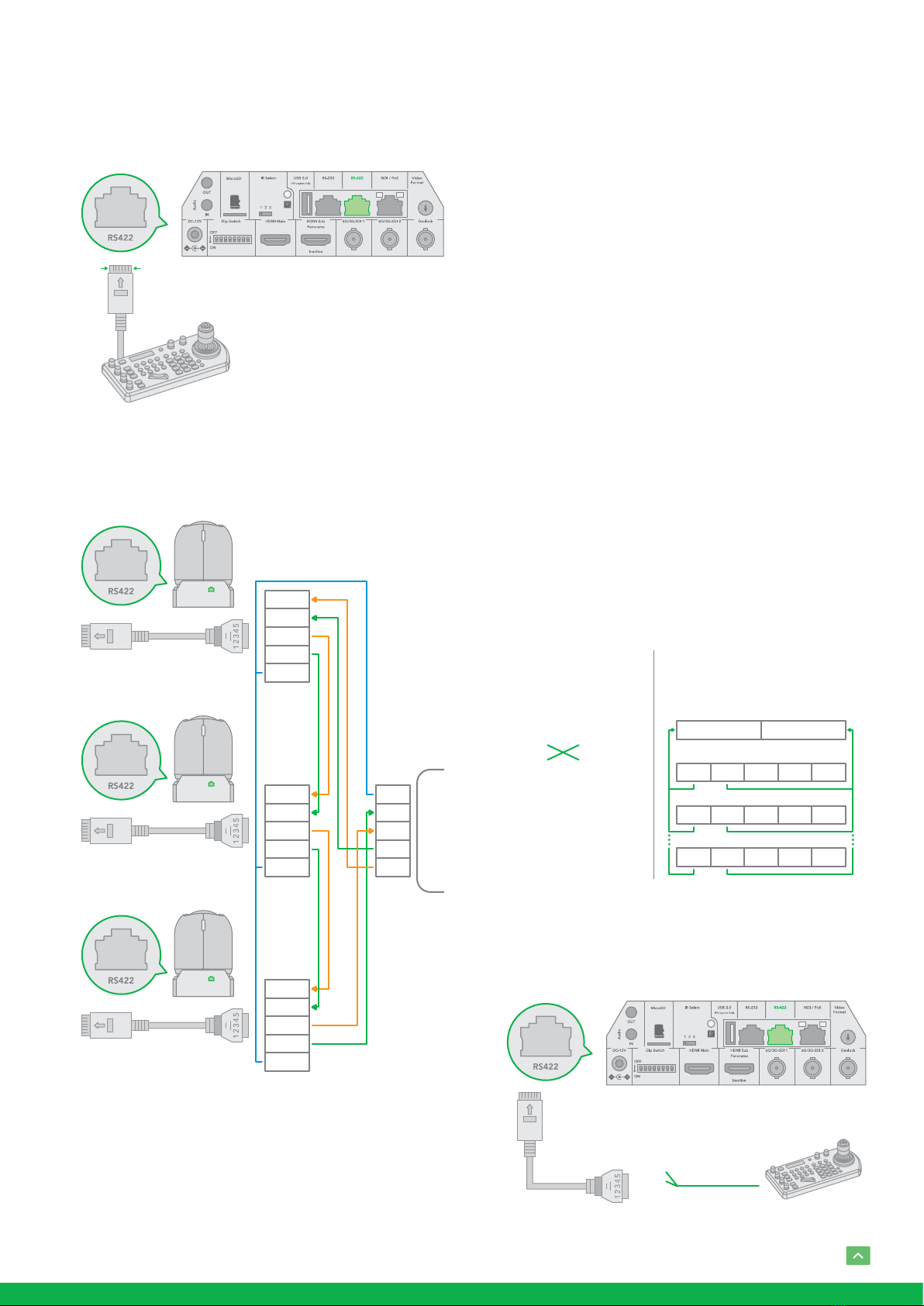

• How to make RS485 multiple cameras connection with
RS485 standard serial port controller:
NOTE: For RS-232 VISCA control, this unit supports daisy
chain connection for using multiple cameras.
For control details, refer to Operating Instructions of control
keyboard/station software.
• You need to match the communication speed (Baud Rate)
CAT5/6
Network Cable
RS422
Port
1. RX – (Orange/White)
2. RX + (Orange)
3. GND (Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX + (Brown)
1 8
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
RX +
RX –
TX +
TX –
GND
RS422
RS422 SERIAL PORT
ON CONTROLLER SIDE

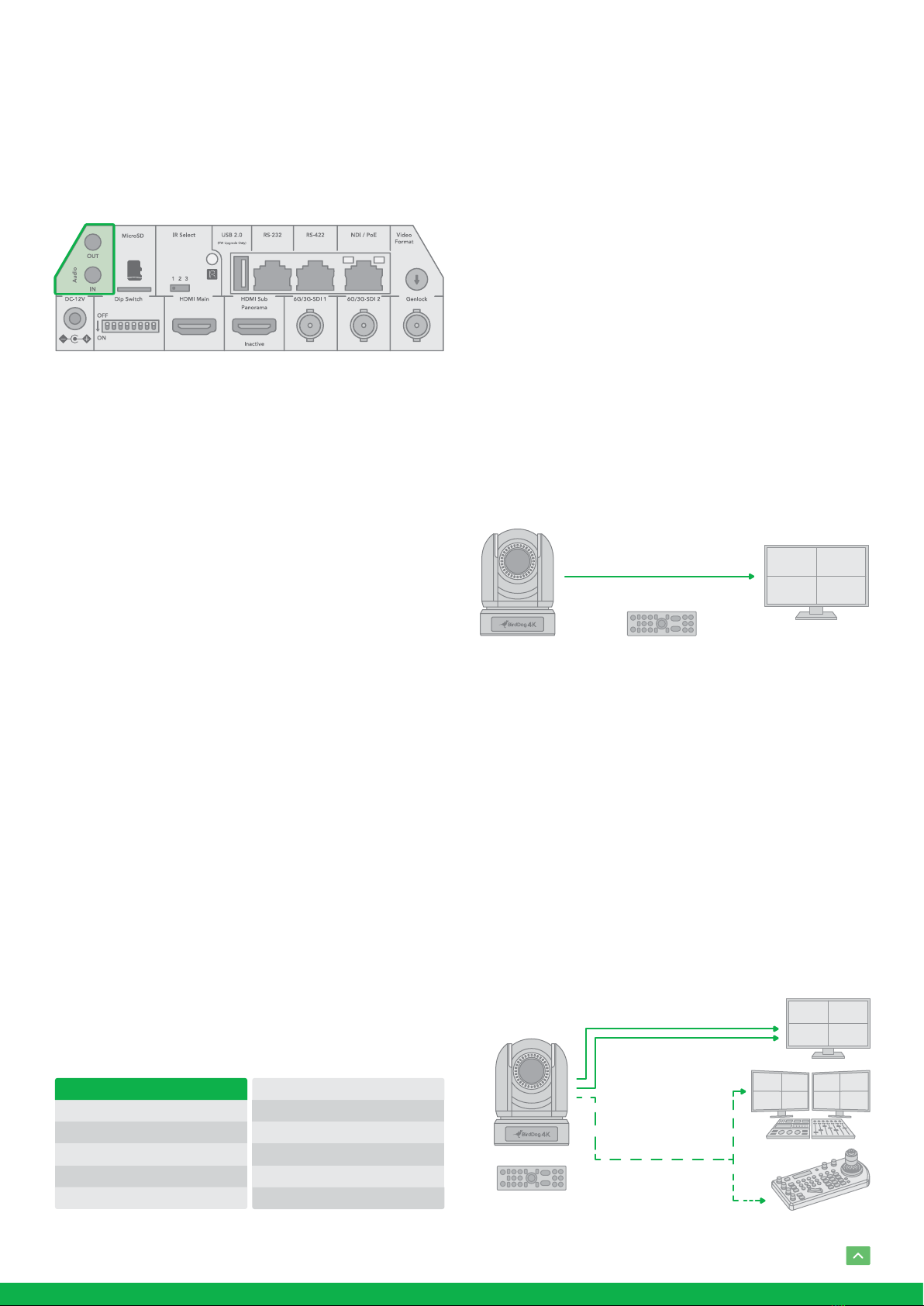

HDMI Video Signal
3G-SDI Video Signal
VISCA Over IP ControlPoE Power

13
Controlling via VISCA over IP
• Connect the network port on the camera to the network
switch.
• Set the IP address and other network information appro-
priately to communicate on your network
• Connect the VISCA over IP-compatible controller to the
network
• Congure the controller to access the camera’s IP ad-
dress and VISCA over IP port
• The IP port within on your control must be set to 52381
to communicate with the camera.
• Select VISCA protocol on your IP control device.
DIP SWITCH SETTINGS
The Dip switches are for setting the camera conguration for
following items:
1. Camera ID Address for VISCA protocol
2. Video color space
3. RS-232 / RS-422 control method selection
4. RS-232 / RS-422 baud rate selection
Setting of the DIP Switches
Turn off power to the camera before changing the DIP switch
settings. Power on the camera to have the new Dip Switch
setting activated.
From the above list, No.1 Camera ID address, NO.2 Video
color space, NO.5 Baud rate setting can be set in camera
OSD menu as well. The camera takes either the way of OSD
menu setting or the way of DIP switch setting. They override
each other. After the camera is turned on, the camera takes
the last setting before it is turned on, either set through the
OSD or Rear DIP switch.
The DIP Switch Settings
Bit 1~3: Camera Address setting for VISCA protocol
Bit 4: Video Color Space
Bit 5: Reserve
Bit 6: RS-232/RS-422
Bit 7~8: RS-232/RS-422 Baud Rate
Setting of the back panel Rotate DIP Switches
The Rotate Dip Switch is for setting video format.
Use small screw driver to turn the switch, the arrow points to
the Numbers or the Letters. The video format that the Num-
ber or Letter stands for refer to the video format as the chart
following:
IR Remote Controller ID Setting
Set the IR SELECT switch on the back panel of the camera
to 1, 2 or 3, which is the camera ID number that you want to
operate on the Remote Controller.
VISCA Address
1
2
3
4
5
6
7
1
ON
OFF
ON
OFF
ON
OFF
ON
2
OFF
ON
ON
OFF
OFF
ON
ON
3
OFF
OFF
OFF
ON
ON
ON
ON
Colour Space Setting
YUV Output
RGB Output
4
OFF
ON
MODE
Operation
Firmware Upgrade
5
OFF
ON
Control Mode
RS-232
RS-422
6
OFF
ON
Baud Rate Setting
2400 bps
4800 bps
9600 bps
38400 bps
7
OFF
ON
OFF
ON
8
OFF
OFF
ON
ON
Numbers & Letters
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Video Resolution
1080i 59.94
1080p 29.97
720p 59.94
1080p 59.94
2160p 29.97
1080i 60
1080p 23.98
1080p 30
1080p 60
1080i 50
1080p 25
720p 50
1080p 50
2160p 25
720p 60
2160p 23.98
DC-12V Dip Switch
OFF
ON
HDMI MainHDMI Sub
Panorama
Inactive
6G/3G-SDI 16G/3G-SDI 2 Genlock
RS-422 NDI / PoEVideo
Format
RS-232USB 2.0IR Select
1 2 3
MicroSD
OUT
IN
Audio
(FW Upgrade Only)
1-3:
4:
5:
6:
VISCA Address
YUV Output
RGB Output
Reserved
RS-232
RS-422
7-8:
2400 bps
4800 bps
9600 bps
38400 bps
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
ON
ON
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
MENU
CAMERA SELECT
POWER
IR Remote Controller

14
Adjusting and Setting with Menus
About On-Screen Menus
You can change various settings, such as shooting conditions
and system setup of the camera, while observing menus dis-
played on a connected computer screen.
This section explains how to read the on-screen menus be-
fore starting menu operations.
The menu parameters may vary according to the different
product model numbers.
For a complete congurations menu, see “Menu Congura-
tion” (page 25).
NOTE: You cannot perform pan/tilt operations while the
menu is displayed.
Main Menu
To display the main menu, press the DATA SCREEN button on
the supplied infrared remote controller.
1. Selected Items
Selects a setting menu.
The selected item is shown by the cursor. The cursor
moves up or down by pressing the “↑, ↓” button on the
infrared remote controller.
2. Menu Items
To display a setting menu, select one using the “↑, ↓”
button on the infrared remote controller and press the
HOME button on the infrared remote controller.
Setting Menus
The setting menu selected on the main menu is displayed.
1. Setting Menu
The name of the setting menu currently selected is dis-
played here.
2. Selected Item
Selects a setting item.
The selected item is shown by the cursor.
Move the cursor up or down by pressing the “↑, ↓” button
on the infrared remote controller.
3. Setting Items
The setting items for this setting menu are displayed.
Select the setting item using the “↑, ↓” button on the
infrared remote controller.
4. Set Value
The currently set values are displayed.
To change a set value, use the “←, →” button on the infra-
red remote controller.
NOTE: In some product models, only use “←” button on the
infrared remote controller to change the value. To conrm
the value, you can use either “→” button or HOME button.
Control Button
You can select the item by pressing “↑, ↓, ←, →” and HOME
button.
1. You can select a menu item by “↑, ↓” button on the infra-
red remote controller. The selected item is shown by the
arrow cursor . You can change the value of the item by
pressing “←, →” button.
2. You can move to the next layer by pressing the HOME
button.
3. You can return to the normal display by pressing the
MEN button.
NOTE: When you are operating the menu using the infra-
red remote controller, you cannot set IR- RECEIVE in the
SYSTEM menu to OFF. To set IR- RECEIVE to OFF, use the
appropriate VISCA command.
EXPOSURE Menu
The EXPOSURE menu is used to set the items related to ex-
posure.
MODE (Exposure Mode)
FULL AUTO: Iris, Gain and Shutter Speed can be set auto-
matically. The exposure is adjusted automatically using the
values set for SLOW SHUTTER, S. SHUTTER LIMIT, AE SPEED,
GAIN LIMIT, GAIN POINT, HIGH SENSITIVITY, MAX SPEED,
MIN SPEED, BACK LIGHT, SPOT LIGHT and EX-COMP.
EXPOSURE MENU: FULL AUTO
MODE
SLOW SHUTTER
S. SHUTTER LIMIT
AE SPEED
GAIN LIMIT
GAIN POINT
POINT POSITION
HIGH SENSITIVITY
MAX SPEED
MIN SPEED
BACK LIGHT
SPOT LIGHT
EX-COMP.
FULL AUTO
OFF
1/12
01
30dB
OFF
0dB
OFF
1/1750
1/50
OFF
OFF
OFF
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM

15
MANUAL: Adjust the GAIN, GAIN LIMIT, electronic shutter
speed (SPEED), iris (IRIS), and HIGH SENSITIVITY manually.
IRIS PRI: Iris Priority mode. The iris can be set freely by the
user. The gain and shutter speed are set automatically ac-
cording to the brightness of the subject. The exposure is
adjusted automatically using the values manually set for iris
(IRIS), GAIN LIMIT, GAIN POINT, AE SPEED, MAX SPEED,
MIN SPEED, BACK LIGHT, SPOT LIGHT and EX-COMP.
SHUTTER PRI: Shutter Priority mode. The shutter speed can
be set freely by the user, the iris and gain are set automatical-
ly, according to the brightness of the subject.
The exposure is adjusted automatically using the values man-
ually set for electronic shutter speed (SPEED), GAIN LIMIT,
AE SPEED, BACK LIGHT, SPOT LIGHT and EX-COMP.
BRIGHT: Bright mode. The bright control function adjusts
both gain and iris using an internal algorithm, according to a
brightness level freely set by the user. Exposure is controlled
by gain when dark, and by iris when bright. As both gain and
iris are xed, this mode is used when exposing at a xed
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: MANUAL
MODE
GAIN
SPEED
IRIS
HIGH SENSITIVITY
MANUAL
12dB
1/60
F2.8
OFF
EXPOSURE MENU: IRIS PRI
MODE
IRIS
GAIN LIMIT
GAIN POINT
POINT POSITION
AE SPEED
MAX SPEED
MIN SPEED
BACK LIGHT
SPOT LIGHT
EX-COMP.
IRIS PRI
F2.8
30dB
OFF
0dB
01
1/1750
1/50
OFF
OFF
OFF
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: SHUTTER PRI
MODE
SPEED
GAIN LIMIT
AE SPEED
BACK LIGHT
SPOT LIGHT
EX COMP
SHUTTER PRI
1/50
30dB
01
OFF
OFF
OFF
camera sensitivity. When switching from Full Auto or Shutter
Priority Mode to Bright Mode, the current status will be re-
tained for a short period of time.
The exposure is adjusted automatically using the values man-
ually set for the bright level (LEVEL) and HIGH SENSITIVITY.
GAIN PRI: Gain Priority mode. Adjust with Variable Gain,
Auto Iris and Shutter speed. Adjust the GAIN, GAIN POINT,
AE SPEED, HIGH SENSITIVITY, MAX SPEED, MIN SPEED,
BACK LIGHT, SPOT LIGHT and EX-COMP.
When you select one from various exposure modes, some of
the following setting items that are required for the selected
mode will appear.
GAIN: Select the gain from the following: 0dB, 3dB, 6dB,
9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB
GAIN LIMIT: The gain limit can be set at Full Auto, Iris Prior-
ity, Shutter Priority mode. Use this setting when you want to
obtain image in which signal-to-noise ratio is particularly im-
portant. Select the gain limit from the following: 9dB, 12dB,
15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB
GAIN POINT: Set the Gain Point in the middle between 0dB
and gain limit. The shutter speed can be changed from the
point when the set gain value is reached. When you want to
obtain the motion-priority image, use this setting.
HIGH SENSITIVITY: In this mode, the maximum gain increas-
es, enabling to obtain a brighter output even in a darker en-
vironment. However, if the gain reaches high level, the image
will have a large amount of noise.
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: BRIGHT
MODE
LEVEL
HIGH SENSITIVITY
BRIGHT
24
OFF
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
EXPOSURE MENU: GAIN PRI
MODE
GAIN
GAIN POINT
POINT POSITION
AE SPEED
HIGH SENSITIVITY
MAX SPEED
MIN SPEED
BACK LIGHT
SPOT LIGHT
EX COMP
GAIN PRI
9dB
OFF
30dB
01
OFF
1/1750
1/50
OFF
OFF
OFF

16
IRIS: Select the iris from the following: F11, F10, F9.6, F8.7,
F8.0, F7.3, F6.8, F6.2, F5.6, F5.2, F4.8, F4.4, F4.0, F3.7, F3.4,
F3.1, F2.8
SLOW SHUTTER: When set to “On,” the slow shutter func-
tions automatically when the light darkens. This setting is
available only when the Exposure mode is set to “Full Auto.”
The initial setting is “Slow Shutter Off.”
S. SHUTTER LIMIT: When the subject becomes dark, the
shutter speed becomes slow and the gain is increased. This
is a function to put a limit on the shutter speed. It prevents
the camera shake when you shoot a moving subject in a dark
place. Select the S. Shutter limit from the following: 1/30,
1/20, 1/15, 1/10, 1/8, 1/6, 1/4, 1/3, 1/2, 2/3, 1/1.
AE SPEED: The AE Speed function allows you to reduce the
exposure response speed. Usually the camera is set up so
that the optimum exposure can be obtained automatically
within about 1 second. However, using the slow AE Speed
function allows you to lengthen the auto exposure response
speed from the initial setup speed.
Maximum SPEED (Maximum Shutter Limit): The brighter
the object is, the shutter speed will increase. This is the func-
tion to set the upper limitation on the shutter speed. This will
help to make images smooth with less inconsistent motions
when you shoot bright objects.
Minimum SPEED (Minimum Shutter Limit): When the sub-
ject becomes dark, the shutter speed becomes slow and the
gain is increased. This is a function to put a limit on the shut-
ter speed. It prevents the camera shake when you shoot a
moving subject in a dark place.
BACKLIGHT: When the background of the subject is too
bright, or when the subject is too dark due to shooting in
the AE mode, back light compensation will make the subject
appear clearer.
SPOT LIGHT: This menu allows you to enable/disable spot-
light compensation by adjusting the exposure darker when
a part of the object is bright, such as a person’s face in spot-
light. You can choose either ON or OFF. This setting is en-
abled when MODE is FULL AUTO, SHUTTER PRI, IRIS PRI, or
GAIN PRI. SPOT LIGHT becomes disabled when BACK LIGHT
is ON.
EX-COMP: (Exposure Compensation) When MODE is set to
one of FULL AUTO, IRIS PRI, SHUTTER PRI or GAIN PRI, set
this item to ON to 40 enable exposure compensation. When
you set EX-COMP to ON, LEVEL appear and you can select
the exposure compensation level from the following: –10.5,
–9, –7.5, –6, –4.5, –3, –1.5, 0, +1.5, +3, +4.5, +6, +7.5, +9, +10.5
If you set the level to 0, exposure compensation will be dis-
abled. Level +10.5 is the brightest and –10.5 is the darkest
compensation value.
When EX-COMP is set to OFF, exposure compensation does
not function.
MODE (white balance mode)
Select the white balance mode from the following:
AUTO: This mode computes the white balance value output
using color information from the entire screen. It outputs
the proper value using the color temperature radiating from
a black subject based on a range of values from 2500K to
7500K. This mode is the initial setting.
SPEED (white balance speed): You can adjust the speed at
which the camera reaches the white convergence point when
AUTO1 or AUTO2 is chosen. Choose a value from 1, 2, 3, 4,
and 5. 5 is the fastest and 1 is the slowest.
OFFSET: The white convergence point can be shifted when
WHITE BALANCE mode is AUTO1, AUTO2, or ONE PUSH.
The range is from –7 to 0 to +7. White balance is shifted to-
ward blue when a negative value is chosen, and it is shifted
toward red when a positive value is chosen.
INDOOR: 3200K Base Mode.
OUTDOOR: 5800K Base Mode.
MATRIX (Color Matrix): You can emphasize or weaken a spe-
cic color region while keeping the white convergence point
unchanged. When you turn this ON, the following items are
displayed for adjustment.
SELECT: You can choose an internal preset matrix for matrix
calculation. You can choose from STD, HIGH SAT, FL LIGHT,
MOVIE, STILL, CINEMA, PRO, ITU709, and B/W. This be-
comes disabled when MATRIX is turned OFF.
LEVEL (color level): You can adjust the color density of the
picture. Choose a value in the range from 0 to 14. The greater
the number, the denser the colors, and vice versa. This be-
comes disabled when MATRIX is turned OFF.
PHASE: You can adjust the color tone of the entire picture.
Choose a value from –7 to 0 to +7. This becomes disabled
when MATRIX is turned OFF.
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
WHITE BALANCE MENU
WB MODE
SPEED
OFFSET
MATRIX
SELECT
LEVEL
PHASE
R-G
R-B
G-R
G-B
B-R
B-G
AUTO
3
0
ON
STD
4
0
00
00
00
00
00
00

17
R-G, R-B, G-R, G-B, B-R, B-G: You can set a coefcient for
each combination of RGB individually, to adjust the hue of
the entire picture. Choose a value from –99 to 0 to +99. This
becomes disabled when MATRIX is turned OFF.
OPW (One Push White Balance): The One Push White Bal-
ance mode is a xed white balance mode that may be au-
tomatically readjusted only at the request of the user (One
Push Trigger), assuming that a white subject, in correct light-
ing conditions, and occupying more than 1/2 of the image,
is submitted to the camera. One Push White Balance data is
lost when the power is turned off. If the power is turned off,
reset One Push White Balance.
NOTE: When you select the OPW, perform the following
operations:
1. Place an image of white subject (For example: A piece of
white paper) in the center of the screen.
2. Press the HOME button of the infrared remote control-
ler.The one-push white balance adjustment isactivated.
ATW (Auto Tracking White Balance): Auto Tracking White
balance (2000K to 10000K), allows the camera to adjust the
tone according to the temperature of the light source illumi-
nating the subject
USER: This is a mode that enables you to manually set the
control of R and B gain up to 256 steps.
NOTE: When you select USER, R. GAIN (red gain) and B.
GAIN (blue gain) appear. You can select each item in the
range from 0 to 255.
OUTDOOR AUTO: This is an auto white balance mode spe-
cically for outdoors. It allows you to capture images with
natural white balance in the morning and evening.
SVL AUTO: Sodium Vapor Lamp Auto: This is an auto white
balance mode that is compatible with sodium vapor lamps.
SVL: Sodium Vapor Lamp: This is a xed white balance mode
specically for sodium vapor lamps.
SVLO AUTO: Sodium Vapor Lamp Outdoor Auto: This is an
auto white balance mode specically for outdoors, which is
compatible with sodium vapor lamps.
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
WHITE BALANCE MENU
WB MODE
R GAIN
B GAIN
USER
106
217
DETAIL Menu
MODE: When you choose AUTO, contour correction signal
is automatically added. When you want to make adjustment
by yourself, choose MANUAL. Only LEVEL will be displayed
when you choose AUTO.
LEVEL: You can set the volume of the contour correction sig-
nal. Choose a value from 0 to 15. The greater the value, the
stronger the contour correction signal.
BANDWIDTH: You can set the bandwidth for signals under-
going contour emphasis. You can choose from DEFAULT,
LOW, MIDDLE, HIGH, and WIDE. For example, when you
choose MIDDLE, the middle range of the signals is elevated,
and contours in that middle range are emphasized.
CRISPENING: You can choose the neness of the objects
subject to contour correction with contour correction signals.
Choose a value from 0 to 7. When you choose a higher val-
ue, minute contour correction signal elements are removed,
and only the high level contour correction signals are left,
which reduces noise. When you choose a lower value, minute
contour correction signal elements are added to the picture,
increasing noise.
H/V BALANCE: You can choose the ratio for horizontal and
vertical contour correction signal elements. Choose a value
from –2 to 0 to +2. When you choose a higher value, the hor-
izontal contour correction elements become greater com-
pared to the vertical elements.
B/W BALANCE: You can adjust the balance between con-
tours in black on the low brightness side of the spectrum and
contours in white on the high brightness side. Choose from
TYPE1 to TYPE5. The ratio of contours in black is higher for
TYPE1 while the ratio of contours in white is higher for TYPE5.
LIMIT: You can set the maximum value for the amount of
contour emphasis in black on the low brightness side of the
spectrum and in white on the high brightness side. Choose a
value from 0 to 7.
HIGHLIGHT DETAIL: You can adjust the level of contour add-
ed to brightly-lit objects. Choose a value from 0 to 4. Adjust
this when you want to emphasize the contour of a brightly-lit
object in a bright background.
SUPER LOW: Emphasizes contours in the super low range.
Choose a value from 0 to 7. The greater the value,
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
DETAIL MENU
DETAIL MODE
BANDWIDTH
CRISPENING
H/V BALANCE
B/W BALANCE
LIMIT
HIGHLIGHT DETAIL
SUPER LOW
MANUAL
DEFAULT
0
-2
TYPE 1
3
0
0

18
the greater the contour emphasis. Contrast and resolution
increase.
PICTURE Menu
Noise Reduction (NR): The NR function removes noise (both
random and non-random) to provide clearer images. This
function has six steps: levels 1 to 5, plus off. The NR effect is
applied in levels based on the gain, and this setting value de-
termines the limit of the effect. In bright conditions, changing
the NR level will not have an effect. When it is set to level 7Fh,
you can set NR of 2D/3D individually.
2D NR: 2D Noise Reduction is a method of reducing noise
within an image by comparing frame-to-frame, removing the
variations that do not appear in each frame.
3D NR: 3D Noise Reduction is a method of reducing noise by
comparing variances within the same frame, as well as com-
paring frame-to-frame. This will reduce noise without leaving
trails behind a moving object.
FLIP: Image E-Flipper – Used when ceiling mounting or up-
right mounting. Set to OFF is upright mode, set to ON is for
ceiling mount.
MIRROR: You can have the image as seen in a mirror, with the
right side as though it were the left.
COLOR: You can congure the color gain from 1-15. Use this
setting when bright color is particularly important.
HUE: You can adjust color phase from 1-15.
ND FILTER: The ND Filter installed in front of the CMOS im-
age sensor can be engaged or disengaged by the mechanical
structure. The adjustable range of Iris and shutter speed are
increased by using the ND Filter. There are 2 types of ND Fil-
ters, and by combining them, the light quantity can be used
at 1× (Filter Off), 1/4×, 1/16×, or 1/64×.
IR CUT FILTER: An infrared (IR) Cut-Filter can be disengaged
from the image path for increased sensitivity in low light en-
vironments. The ICR will automatically engage depending
on the ambient light, allowing the camera to be effective in
day/night environments. When the auto ICR mode is set to
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
PICTURE MENU
2D NR
3D NR
FLIP
MIRROR
COLOR
HUE
ND FILTER
IR CUT FILER
CHROMA SUPPRESS
HLC MODE
STABILIZER
2
2
OFF
OFF
5
8
OFF
DAY
OFF
OFF
OFF
NIGHT, the image becomes black and white.
CHROMA SUPPRESS (Low-Illumination Chroma Suppress
Mode): You can congure a Chroma suppress mode for low
illumination conditions. This can be useful when color noise
is particularly noticeable in such conditions. Four levels (dis-
abled and three levels) are available for the low-illumination
Chroma suppress mode. You can set the brightness from
OFF, LOW, MID, HIGH
HLC MODE: HLC (Highlight Light Compensation) is a func-
tion to adjust AE and AF, and to perform the masking of light
area as required when a high intensity spot light is detected.
STABILIZER: When the image stabilizer function is set to ON,
you can obtain the image with less screen blur caused by
shaking. The correction effect can be achieved at the vibra-
tion frequency around 10 Hz. The image stabilizer function
uses the digital zoom method. Although there are changes in
the angle of view and resolution, the sensitivity is maintained.
Note: The image stabilizer function may not work under the
environment of high frequency vibration components. When
using the camera under such environment, set the image sta-
bilizer function to Off.
GAMMA Menu
You can choose the type of basic curve for GAMMA correc-
tion.
STANDARD: Standard setting (same as the MOVIE setting on
the camera).
STRAIGHT: This selects a straight GAMMA curve.
PATTERN: You can choose a gamma curve from 512 patterns
stored in the camera. You can specify the pattern out of 512
patterns using PATTERN and PATTERN FINE. PATTERN de-
nes the upper two digits of the pattern, and PATTERN FINE
denes the last digit.
PATTERN: Choose a value from 0 to 51. This can be chosen
When SELECT is PATTERN.
PATTERN FINE: Choose a value from 0 to 9. When PATTERN
is 0, 0 cannot be chosen for PATTERN FINE. When PATTERN
is 51, a value larger than 2 cannot be chosen for PATTERN
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
GAMMA MENU
GAMMA
PATTERN
PATTERN FINE
OFFSET
LEVEL
BLACK GAMMA
BLACK GAMA RANG
BLACK LEVEL
VISIBILTY ENHANCER
STANDARD
51
2
0
0
0
LOW
0
OFF

19
FINE. This can be chosen when SELECT is PATTERN.
OFFSET: You can choose the offset of the output level of
gamma curves. Choose a value from –64 to 0 to +64.
LEVEL: Gamma level, you can choose a level value from -7 to
0 to +7.
BLACK GAMMA: You can adjust the black gamma level to
recreate gradation in the dark areas of the picture or to sup-
press noise with black-out. Choose a value from –7 to 0 to +7.
BLACK GAMMA RANGE: You can adjust the brightness
range for which BLACK GAMMA becomes effective. Choose
from LOW, MIDDLE, and HIGH. The range becomes small
when LOW is chosen, and it becomes large when HIGH is
chosen.
BLACK LEVEL: You can adjust the master BLACK LEVEL.
Choose a value from –48 to 0 to +48.
VISIBILITY ENHANCER (VE): Depending on the imaging
scene, the Visibility Enhancer function makes the darker part
of a camera image brighter, and automatically correct bright-
ness and contrast to show bright parts clearly.
NETWORK Menu
It may take a short while to display the network information
after you select the NETWORK menu.
The network menu is for displaying IP conguration informa-
tion of the IP encoder that is built-in with the camera.
The IP conguration is currently not available to be modied
via OSD menu. You need to use your PC internet browser to
congure the IP network setting of the camera.
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
NETWORK MENU
IPv4
SUBNET MASK
GATEWAY
MAC ADDRESS
192.168.002.234
255.255.255.0
192.168.002.001
00:26:G2:01:02:EE
PAN TILT ZOOM Menu
The PAN TILT ZOOM menu is used to select the pan/tilt/
zoom mode.
DIGITAL ZOOM: Set to DIGITAL ZOOM ON, 12X digital
zoom (with SRZ feature,18X zoom at 4K, or 24X zoom at FHD)
is activated.
You can set digital zoom to ON or OFF. When set to OFF,
digital zoom does not operate, and only optical zoom is avail-
able. When set to ON, digital zoom takes over after optical
zoom reaches MAX (12X). Up to 200X/300X can be zoomed
digitally.
When digital zoom is available, the resolutiondecreases.
ZOOM RATIO OSD (Zoom times display): Set Ratio OSD to
ON, the number of the zoom ratio that you are operating
displays on screen.
AF SENSITIVITY: NORMAL: Reaches the highest focus speed
quickly. Use this when shooting a subject that moves fre-
quently. LOW: Improves the stability of the focus. When the
lighting level is low, the AF function does not take effect,
even though the brightness varies, contributing to a stable
image.
MF SPEED: Manual Focus variable speed, that has eight
speed levels.
NEAR LIMIT: Can be set in a range from OVER, 8cm, 10cm,
14cm, 18cm, 25cm, 35cm, 55cm, 80cm, 1m, 1.2m, 1.5m, 2.0m,
3m, 5m.
ADAPTIVE PT: Set to ON, Pan Tilt speed would be adaptive
with the zoom range. Turn ON to automatically adjust the
Pan and Tilt speed with various zoom ratios. For example, the
higher zoom ratio you use, the slower the speed of P/T.
P/T SPEED: Set P/T Speed value to from 0 to 5 (The speed
from low to high), to change the speed of P/T on remote con-
troller.
PRESET SPEED: Set preset speed value from 0 to 5 to change
the preset speed.
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
PAN TILT ZOOM MENU
DIGITAL ZOOM
ZOOM RATIO OSD
AF SENSITIVITY
MF SPEED
NEAR LIMIT
ADAPTIVE PT
P/T SPEED
PRESET SPEED
PAN DIRECTION
TILT DIRECTION
OFF
OFF
LOW
2
30cm
ON
3
5
NORMAL
NORMAL

20
PAN DIRECTION: Camera horizontal Left and right orienta-
tion setting, option: Normal/Invert
TILT DIRECTION: Camera tilt up and down orientation set-
ting, option: Normal/Invert
SYSTEM Menu
PELCO ID: When using RS485 (PELCO P/D) control, Set Cam-
era ID to the address that you want to control to. This value
is from 1-255.
IR-RECEIVE (Infrared Signal Reception): When this is set to
OFF, the camera does not receive the signal from the infrared
remote controller.
Be sure to keep it set to ON when you use the infrared re-
mote controller.
Note: You cannot set IR-RECEIVE to OFF when you operate
the menu using the infrared remote controller. To set it to
OFF, use the appropriate VISCAcontroller.
DISPLAY INFO: When this item is set to ON, the message of
the camera conguration appears for about 10 seconds on
the screen, after the camera is powered on or rebooted.
PRESET MEMORY: This feature allows you to save the image
parameter to PRESET memory, turn it on to save most image
parameters like as picture, white balance, exposure, focus
mode, zoom positions when you call the preset.
FACTORY RESET: You can select this item to set camera back
to Factory Default setting by pressing HOME button to con-
rm the action. All data of the camera that have been set will
be deleted.
TALLY MODE: When the tally mode is set to ON, the tally
light on the camera will be turned on. If you connect the cam-
era with BirdDog PTZ Keyboard, you can set the GPI I/O to
Output mode in Keyboard Setting, then you can do tally con-
trol via the keyboard directly.
OSD
EXPOSURE
WHITE BALANCE
DETAIL
GAMMA
NETWORK
PAN TILT ZOOM
SYSTEM
SYSTEM MENU
PELCO ID
IR-RECEIVE
DISPLAY INFO
PRESET MEMORY
FACTORY RESET
TALLY MODE
OPERATING LED
LED BRIGHTNESS
AUDIO
RELOAD PRESET 1
VIDEO FMT
SDI
MCU FW
FPGA FW
001
ON
ON
ON
OFF
ON
NORMAL
OFF
ON
2160p29.97
SINGLE 6G-SDI
V0B1100S36[...]
V115
OPERATING LED: This item is set to OFF by default. You can
turn it on and select different color for the operating LED
which is surround the camera Lens.
You can select Red, Green, Blue and White color to display
on the operating LED. While the operating LED is on, if you
make any operation sending commands to the camera via
keyboard or IR controller, the LED will be ashing indicating
command receiving.
LED BRIGHTNESS: LED brightness level: LOW, MID and
HIGH.
AUDIO: This item is set to OFF by default, user can set it to
ON to enable camera MIC to capture audio signal.
RELOAD PRESET 1: When this item is set to ON, preset 1
is set to Home position. The camera goes to Home position
when it is powered on or reset.
VIDEO FORMAT: This Video Format selection will determine
the video format of both SDI and HDMI. You can change the
video format by adjusting this item. Select the item, press
“←” button to choose the video format you want to set to,
then press “→” (Pressing “→” button changes value on some
product models) or HOME button to conrm it. After you
conrm your choice, press HOME button again to restore it.
The camera will reboot by itself. The new video format is acti-
vated. You can cancel it by pressing the MENU button.
The video formats that you can select from are:
• 2160p: 29.97/25/23.98/24
• 1080p: 60/59.94/50/30/29.97/25/23.98/24
• 1080i: 60/59.94/50
• 720p: 60/59.94/50
When you select 4K video format 2160P, it will show extra
selection for you to make for selecting SDI output format:
• Dual-Link 3G-SDI mode. In this mode, you can use Du-
al-Link 3G-SDI with two SDI BNC connectors device to
display video.
• Single 6G-SDI mode. In this mode, you can use single
6G-SDI with one SDI BNC connector device to display
video.
You can make the selection according to your backend video
switcher equipment.
MCU FW: Software Version Number of MCU that is currently
running on the camera, you may need this information for
technical support.
FPGA FW: Software Version Number of FPGA that is current-
ly running on the camera, you may need this information for
technical support.
