BJM Pumps XP-JX Series Instruction manual

Version 3/25/17
INSTALLATION, OPERATION & MAINTENANCE MANUAL
XP-JX SERIES - (PUMP END ONLY)
EXPLOSION PROOF SUBMERSIBLE
SHREDDER PUMPS
(CLASS 1, DIVISION 1, GROUPS C&D): FM APPROVED
Three Phase
208V, 230V, 460V & 575V
CAST IRON MOTOR WITH CAST 316SS WET END
THREE PHASE
XP-JX15SS
XP-JX22SS
XP-JX37SS
XP-JX15HSS
XP-JX22HSS
XP-JX37HSS
The first half of this manual covers the PUMP END (also called wet end) and general
pump operation.
The second half of this manual covers the XP-SK/XP-SKX/XP-JX Series motor.
*** See the EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation
& Maintenance on the EMQY Series submersible motors.
Read both sections of this manual carefully before installing, operating or servicing
these pump models. Observe all safety information. Failure to comply with instructions
may result in personal injury and/or property damage. Please retain these instructions.

TABLE OF CONTENTS
INTRODUCTION............................................................................................................................................................4
SAFETY.........................................................................................................................................................................5
INSPECTION.................................................................................................................................................................5
PRE-INSTALLATION INSPECTION .........................................................................................................................6
POSITIONING THE PUMP .......................................................................................................................................7
WIRING INSTRUCTIONS.........................................................................................................................................8
PUMP ROTATION ....................................................................................................................................................8
PUMP OPERATION.......................................................................................................................................................9
STOPPING..............................................................................................................................................................10
TROUBLE SHOOTING................................................................................................................................................10
PUMP WILL NOT RUN ...........................................................................................................................................10
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY...............................................................................10
SERVICING YOUR SUBMERSIBLE PUMP............................................................................................................10
MAINTAINING YOUR PUMP..................................................................................................................................10
CHANGING SEAL OIL............................................................................................................................................11
EXPLODED VIEW OF XP-JX15SS, XP-JX15HSS (2HP)............................................................................................12
BJM STAINLESS STEEL WET END ASSEMBLY FOR EIM FM MOTOR...................................................................12
EXPLODED VIEW OF XP-JX22SS, XP-JX37SS, XP-JX22HSS, XP-JX37HSS (3 & 5HP) .........................................13
BJM STAINLESS STEEL WET END ASSEMBLY FOR EIM FM MOTOR...................................................................13
XP-JX PARTS LIST .....................................................................................................................................................14
XP-JX DIMENSIONAL DRAWING...............................................................................................................................15
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH ........................................................................................15
WARRANTY AND LIMITATION OF LIABILITY............................................................................................................19
START-UP REPORT FORM........................................................................................................................................20
NOTES:........................................................................................................................................................................23
EIM MANUAL FOR EMQY SUBMERSIBLE MOTORS……………………………………………………………………27

4
INTRODUCTION
This Installation, Operation and Maintenance manual located in the front half of this
manual only covers the pump end (wet end) of the XP-JX Series pumps.
Refer to EIM ELECTRIC CO., LTD Instruction Manual located in the second half of this
manual for Installation, Operation and Maintenance for the Explosion Proof Submersible
Motors (EMQY Series; FM Approved for Class I, Division 1, Group C & D).
This manual provides important information on safety and the proper inspection;
disassembly, assembly and testing of the BJM Pumps® JX Series Wet End attached to
EIM Electric Co., LTD. EMQY Series Explosion Proof Submersible Motors. This manual
also contains information to optimize performance and longevity of your BJM Pumps
submersible pump end.
The submersible XP-JX Series pumps are designed to pump water with some
solids. The pump motor housing is made of cast iron with a special industrial
epoxy coating, and the pump wet end is made of cast 316SS. Consult chemical
resistance chart for compatibility between pump materials and liquid before
operating pump.
If you have any questions regarding the inspection, disassembly, and assembly or
testing please contact your BJM Pumps distributor, or BJM Pumps, LLC.
Note: All service work on the FM Approved motor by EIM Electric Co., needs to be done
by an FM Approved repair facility.
BJM Pumps, LLC Phone: [phone]
123 Spencer Plain Rd. Phone: [phone]
Old Saybrook, CT 06475, USA Fax: [phone]
Information, including pump data sheets and performance curves, is also available on
our web site: www.bjmpumps.com
For assistance with your electric power source, please contact a certified electrician.
Please pay attention to the following alert notifications. They are used to notify
operators and maintenance personnel to pay special attention to procedures, to avoid
causing damage to the equipment, and to avoid situations that could be dangerous to
personnel.
Immediate hazards that WILL result in severe personal injury or
death. These instructions describe the procedure required and the injury which will
result from failure to follow the procedure.

5
Hazards or unsafe practices that COULD result in severe personal
injury or death. These instructions describe the procedure required, and the injury which
could result from failure to follow the procedure.
Hazards or unsafe practices which COULD result in personal injury
or product or property damage. These instructions describe the procedure required and
the possible damage which could result from failure to follow the procedure.
SAFETY
Pump installations are seldom identical. Each installation and application can vary due
to many different factors. It is the owner/service mechanics responsibility to repair,
service, and test to ensure that the pump integrity is not compromised according to this
manual.
Risk of electric shock –this pump has not been investigated for use
in swimming pool areas.
Before attempting to open or service the pump:
1) Familiarize yourself with this manual & the EIM ELECTRIC CO., LTD Instruction
Manual for Installation, Operation and Maintenance for the EMQY Series FM approved
submersible pump motor.
2) Disconnect the pump power cable to ensure that the pump will remain inoperative.
3) Allow the pump to cool if overheated.
After the pump has been installed, make sure that the pump and all
piping are secure before operation.
Do not lift the pump by the power cable piping or discharge hose.
Attach proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do
not suspend the pump by the power cable.
Pumps and related equipment must be installed and operated
according to all national, local and industry standards.
INSPECTION
Review all safety information before servicing pump.
The following are recommended installation practices/procedures for the pump. If there
are questions in regards to your specific application, contact your local BJM Pumps
distributor or BJM Pumps, LLC.

6
Lifting:
Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of
the pump.
Do not lift the pump by the power cable or discharge hose/piping.
Proper lifting equipment (rope/chain) must be used.
PRE-INSTALLATION INSPECTION
1) Check the pump for damage that may have occurred during shipment.
2) Inspect the pump for any cracks, dents, damaged threads, etc.
3) Check power cord (and Seal Leak Detector cord, if installed) for any cuts or
damage.
4) Check for, and tighten any hardware that appears loose.
5) Carefully read all tags, decals and markings on the pump.
6) Important: Always verify that the pump nameplate amps, voltage, phase, and HP
ratings match your control panel and power supply.
Record the model numbers and serial numbers from the pumps and control panel on
the front of this instruction manual for future reference. Give it to the owner or affix it to
the control panel when finished with the installation.
If anything appears to be abnormal, contact your BJM Pumps distributor or BJM
Pumps, LLC. If damaged, the pump may need to be repaired before use. Do not install
or use the pump until appropriate action has been taken.
BJM Pumps Recommended Storage Procedures
Storage Environment
The storage environment must be between 40°F - 120°F. DO NOT allow the
pump to freeze.
The pump must be stored in a dry location
Avoid storing the pump in direct sunlight
For Storage Periods of 3 Years or Less
Rotate the impeller shaft by hand every 6 months and again prior to start up
oKeeps seal faces from sticking
oKeeps bearing grease from settling
Check the oil in seal chambers prior to startup to ensure oil is moisture free and
has not broken down.
Megger the motor prior to startup. The reading should be above 100 MΩ.

7
Remove the air check screw on the motor housing. Using an air compressor,
pressurize the motor chamber to 13 psi and check for leaks using a spray bottle.
Repeat this procedure to check the seal chamber for leaks.
Inspect the power cable for any damage.
For Storage Periods longer than 3 Years
Disassemble the pump and replace all of the O-rings, the Mechanical Seal, Seal
Chamber Oil, and the Lip Seal. Repack the Bearings.
Remove the air check screw on the motor housing. Using an air compressor,
pressurize the motor chamber to 13 psi and check for leaks using a spray bottle.
Repeat this procedure to check the seal chamber for leaks.
Rotate the impeller shaft by hand prior to startup.
POSITIONING THE PUMP
BJM Pumps, J & JX Series pumps are designed to operate fully or partially submerged.
Do not run the pump dry. Refer to data sheet for minimum submersion depth for your
particular model. Data sheets can be obtained online at HHUUwww.bjmpumps.comUUHH or by
calling BJM Pumps, LLC at 860-399-5937. As a general rule, J and JX Series side
discharge pumps can pump down to a level above the suction screen. Pumping lower
than screen will permit air to enter the pump and cavitate, lose prime or become air
bound.
BJM Pumps, XP-JX Series pumps are designed to operate fully or partially submerged.
Avoid running the pump dry for extended periods of time. Refer to data sheet for
minimum submersion depth for your particular model. Data sheets can be obtained
online at www.bjmpumps.com or by calling BJM Pumps, LLC at 860-399-5937. For
minimum submergence requirements, refer to EIM ELECTRIC CO., LTD Instruction
Manual for Installation, Operation and Maintenance for the Explosion Proof Submersible
Motors (EMQY Series; FM Approved for Class I, Division 1, Group C & D).
Do not run pump dry.
Pump liquid should not exceed a maximum temperature of 104°F.
Never place the pump on loose or soft ground. The pump may sink, preventing
water from reaching the impeller. Place on a solid surface or suspend the pump
with a lifting rope/chain.
For maximum pumping capacity, use the proper size non-collapsible hose or rigid
piping. A check valve may be installed after the discharge to prevent back flow
when the pump is shut off (recommended if static head is 30’ or greater).
Take stand off of pump when using slide rail. Keep stand and reattach when
transporting or handling the pump.

8
WIRING INSTRUCTIONS
Electrical wiring and protection must be in accordance with the National Electrical Code
per NEC articles 500 through 503 for installation in Class I, Division 1, Group C & D
Hazardous Locations, and any other applicable state and local electrical requirements.
For motor specifications, motor technical data, design features, power supply, electrical
wiring, operation, inspecting & maintenance, replacing shaft seals, replacing cables,
replacing bearings and other parts, repairing, storing and troubleshooting the
submersible electric motor, refer to EIM ELECTRIC CO., LTD Instruction Manual for
Installation, Operation and Maintenance for the Explosion Proof Submersible Motors
(EMQY Series; FM Approved for Class I, Division 1, Group C & D).
Note: All service work on the FM approved motor by EIM Electric Co., needs to be done
by an FM Approved repair facility.

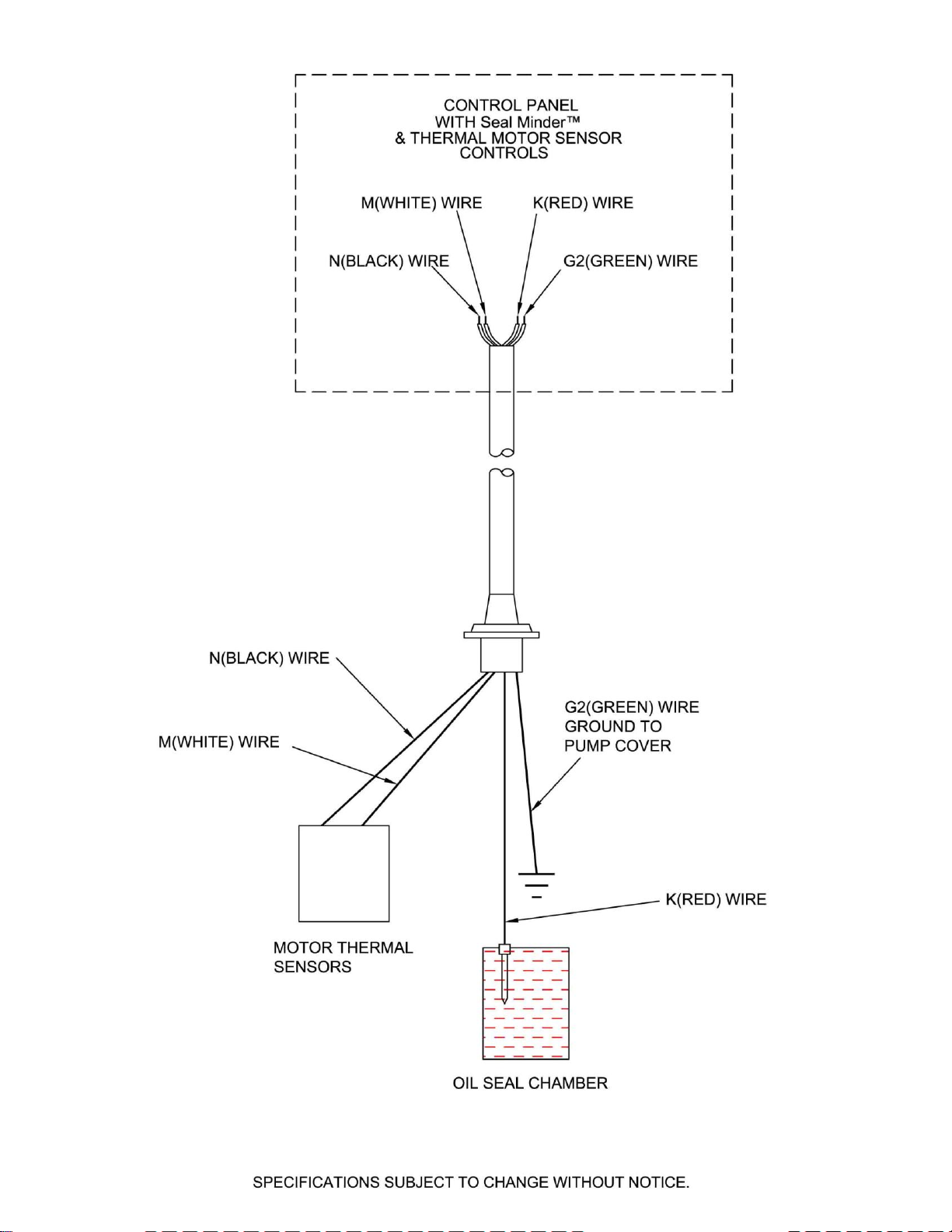

The XP-SKX Series motors have a separate sensor cable for the motor thermal sensors
and Seal Minder. See Seal Minder - Thermal Motor Sensor Switch section in this
manual for proper connection method
PUMP ROTATION
DO NOT PLACE HANDS IN PUMP SUCTION WHILE CHECKING
MOTOR ROTATION. TO DO SO WILL CAUSE SEVERE PERSONAL INJURY.

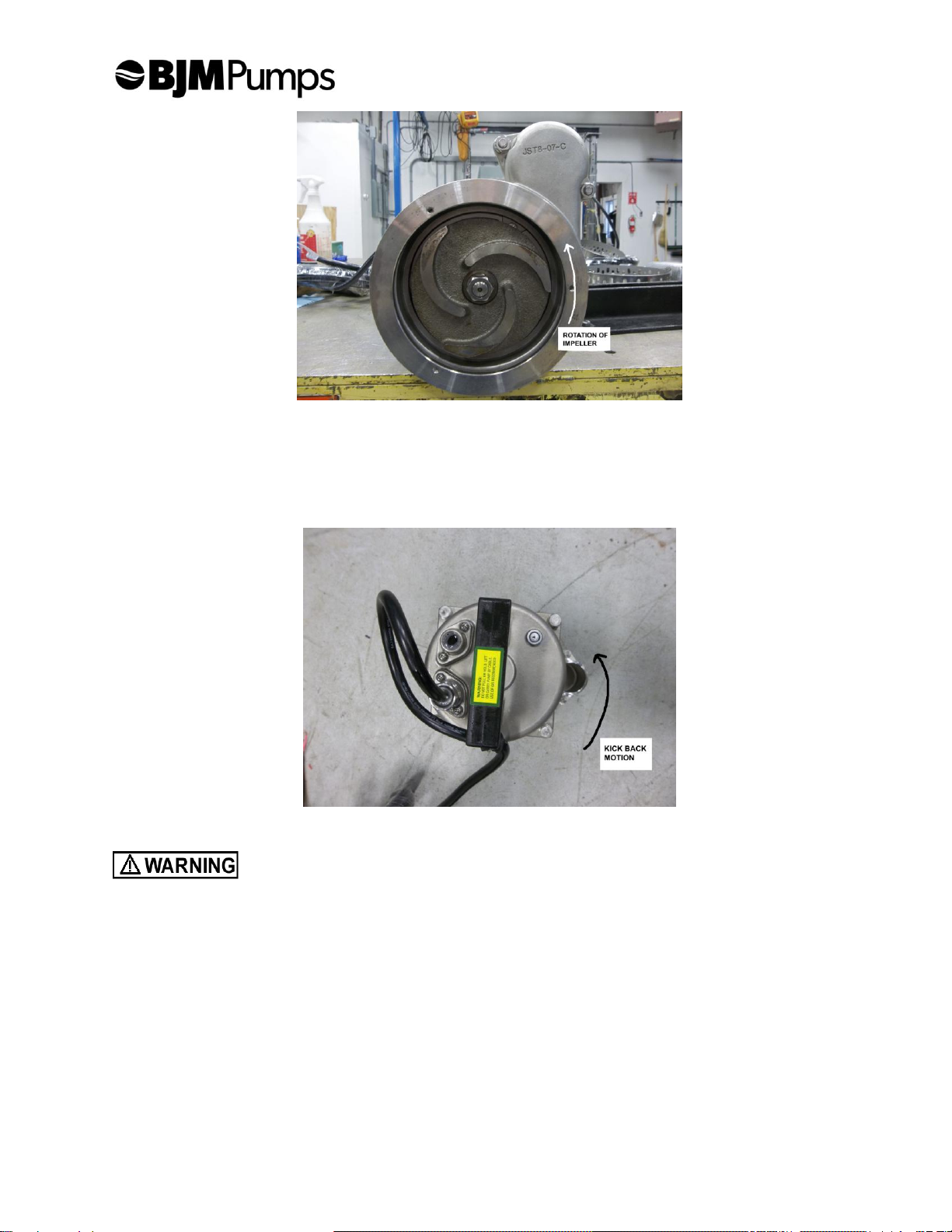

Before installing a pump, check the pump rotation to insure that wiring has been
connected properly to power source, and that the green lead of power cord (See wiring
diagram), is connected to a valid ground, momentarily energize the pump, observing the
directions of kick back due to starting torque. Rotation is correct if kick back is in the
opposite direction of rotation arrow on the pump casing. If rotation is not correct,
switching of any two power leads other than ground will provide the proper rotation.
Two ways to check the correct pump rotation:
1. By looking at the impeller; the rotation of the impeller should be counter
clockwise as shown in the picture below.

9
2. By looking from the top of the pump. Since the impeller cannot be seen, the best
way to check the rotation is to check the kick back motion of the pump when the
pump just starts. The kick back motion of the pump should be counter clockwise
as shown in the picture below.
PUMP OPERATION
This pump is designed to handle dirty water that contains some
solids. Do not attempt to pump any liquids which may damage the pump or endanger
personnel as a result of pump failure.
Consult EIM ELELCTRIC Co., LTD. Instruction Manual for Installation, Operation
and Maintenance before connecting, operating or conducting maintenance on the
Explosion Proof Submersible Motor.

10
STOPPING
To stop the pump (manual and automatic mode) turn off the breaker, or turn the
electrical power source off (generator).
TROUBLE SHOOTING
Disconnect the electrical power source to the pump BEFORE
attempting any type of trouble shooting, service or repair.
PUMP WILL NOT RUN
Refer to EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation and
Maintenance for the Explosion Proof Submersible Motors (EMQY Series; FM Approved
for Class I, Division 1, Group C & D).
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY
1. Discharge line clogged, restricted or hose kinked. Check discharge hose/pipe.
2. Worn impeller and/or suction cover. Inspect and replace as necessary.
3. Pump overloaded due to liquid pumped being too thick.
4. Pumping air. Check liquid level and position of pump.
5. Excessive voltage drops due to long cables.
6. Pump running backwards, check rotation.
SERVICING YOUR SUBMERSIBLE PUMP
Pump should be disconnected from the electric power supply before proceeding to do
any service or maintenance.
Service on submersible electric motor should only be performed by a qualified
electrician. Refer to EIM ELECTRIC CO., LTD Instruction Manual for Installation,
Operation and Maintenance for the Explosion Proof Submersible Motors (EMQY Series;
FM Approved for Class I, Division 1, Group C & D).
MAINTAINING YOUR PUMP
Pump should be disconnected from the electric power supply before proceeding
to do any service or maintenance.
Pump should be inspected at regular intervals.
More frequent inspections are required if the pump is used in a harsh
environment.
Preventative maintenance should be performed to reduce the chance of
premature failure.
Worn impellers and lip seals should be replaced.

11
Cut or cracked power cords must be replaced. (Never operate a pump with a
cut, cracked or damaged power cord.)
Maintenance should always be done when taking a pump out of service before
storage.
The impeller to suction cover clearance should be adjusted to between 0.01” to
0.02” for optimal pumping. Shim kits are available if adjustment is required.
1) Clean pump of dirt and other build up.
2) Check condition of oil around the shaft seals.
3) Check hydraulic parts: check for wear.
4) Inspect power cable. Make sure that it is free of nicks or cuts.
CHANGING SEAL OIL
Refer to EIM ELECTRIC CO., LTD Instruction Manual for Installation, Operation and
Maintenance for the Explosion Proof Submersible Motors (EMQY Series; FM Approved
for Class I, Division 1, Group C & D).

12
EXPLODED VIEW OF XP-JX15SS, XP-JX15HSS (2HP)
BJM STAINLESS STEEL WET END ASSEMBLY FOR EIM FM MOTOR

13
EXPLODED VIEW OF XP-JX22SS, XP-JX22HSS, XP-JX37SS,
XP-JX37HSS (3 & 5HP)
BJM STAINLESS STEEL WET END ASSEMBLY FOR EIM FM MOTOR

14
XP-JX PARTS LIST
Pump Model JX15SS JX15HSS JX22SS JX22HSS JX37SS JX37HSS
Pos. No. Part Description Item # Item # Item # Item # Item # Item #
01 Strainer with Bottom Plate 201971 201971 201974 201974 201974 201974
02 Suction Cover 202028 202027 202010 202012 202010 202012
03 Impeller Nut 202894 202894 202894 202894 202894 202894
04 Lock Washer 202907 202907 202907 202907 202907 202907
05 Impeller 202068 202070 202071 202073 202075 202077
06 Impeller Key 202140 202140 202140 202140 202140 202140
07 Pump Housing 202166 202164 202168 202168 202168 202168
09 Lip Seal, FKM 202232 202232 202235 202235 202235 202235
38F Discharge Flange 205035 205035 205035 205035 205035 205035
38F-1 Gasket, Discharge Flange 202660 202660 202660 202660 202660 202660
50-01 Screw 203215 203215 203297 203297 203297 203297
50-02 Screw 203216 203216 203220 203220 203220 203220
50-38F Bolt - Discharge Flange - - 203253 203253 203253 203253
XP-JX Wet End Parts List

15
XP-JX & XP-JXH DIMENSIONAL DRAWING

16
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH
Seal Minder:
Also known as a seal failure circuit (or moisture detection circuit) is designed to inform the pump
operator that there is moisture within the oil chamber. This early warning can allow the operator to
schedule repair & inspection on the pump. The Seal Minder sensor probe is inside the oil chamber.
(The oil chamber houses the mechanical seals that are cooled & lubricated by oil). The Seal Minder,
when properly connected to a control panel, can help indicate seal failure. The Seal Minder cord
requires a seal fail circuit in control panel for warning signal.
Along, with the Seal Minder, the XP-JX Series pumps also feature thermal temperature sensor
switches that are imbedded into the motor stator windings. Two switches are imbedded into the stator
windings and wired in series. The leads are connected to the pump control panel through the sensor
cable. If the windings would see a temperature above 300 degrees F, then the switch(s) would open
and cut power to the pump. Once the temperature dropped below 300 degrees F, the switch(s) would
reset, and the pump would be returned to a state of operation. This feature is designed to prevent
damage to the stator winding and allow for longer pump life.
The sensor cable consists of four leads, two are connected to the Seal Minder, and two are
connected to the thermal sensor switches located in the stator windings. These four leads run to the
pump control panel and connect to the proper connections points for seal alarm and thermal cut off.
The G2(Green) and K(Red) wires are for the Seal Minder connections and the thermal sensors will

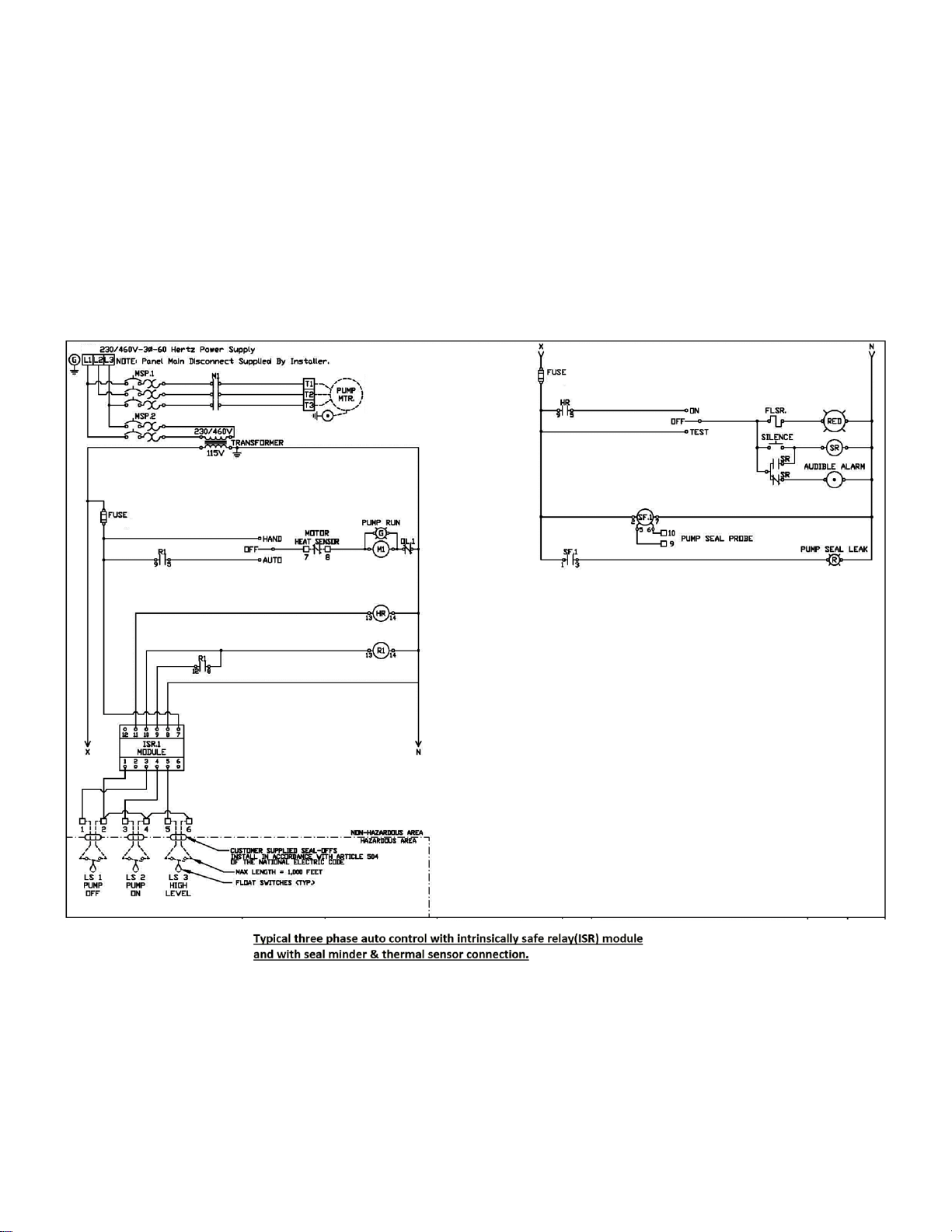

be connected to the m(White) and N(Black) wires. The three phase automatic wiring diagram shown
earlier in the manual will give a guide to the connections in the control panel. The manual for the
control panel should be consulted for the exact connections.
The sensor cable with Seal Minder and thermal sensor switch connections is standard on all XP-JX
Series pumps. The proper replacement part can be found parts list found in this manual. BJM Pumps,
can supply a control with the Seal Minder and Thermal sensor switch option. Separate stand alone
Seal Minder alarm panels are also available. Consult your BJM Pumps representative for part
numbers and ordering details. BJM Pumps requires the Seal Minder and thermal sensor
switches be used. Failure to connect or misuse of these devices will void warranty.

17

18

19
BJM PUMPS, LLC
BJM PUMPS, LLC
123 Spencer Plain Road
Old Saybrook, CT 06475, U.S.A.
WARRANTY AND LIMITATION OF LIABILITY
Unless otherwise expressly authorized in writing, specifying a longer or shorter period, BJM Pumps,LLC
warrants for a period of eighteen (18) months from the date of shipment from the Point of Shipment, or one (1)
year from the date of installation, whichever occurs first, that all products or parts thereof furnished by BJM
Pumps,LLC under the brand name BJM Pumps, hereinafter referred to as the “Product” are free from defects
in materials and workmanship and conform to the applicable specification.
BJM Pumps,LLC’s liability for any breach of this warranty shall be limited solely to replacement or repair, at the
sole option of BJM Pumps,LLC, of any part or parts of the Product found to be defective during the warranty
period, provided the Product is properly installed and is being used as originally intended. Any breach of this
warranty must be reported to BJM Pumps,LLC or BJM Pumps,LLC’s authorized service representative within
the aforementioned warranty period, and defective Product or parts thereof must be shipped to BJM
Pumps,LLC or BJM Pumps,LLC’s authorized representative, transportation charges prepaid. Any cost
associated with removal or installation of a defective Product or part is excluded.
IT IS EXPRESSLY AGREED THAT THIS SHALL BE THE SOLE AND EXCLUSIVE REMEDY OF BJM
PUMPS, LLC’S DISTRIBUTORS AND CUSTOMERS. UNDER NO CIRCUMSTANCES SHALL BJM PUMPS,
LLC BE LIABLE FOR ANY COSTS, LOSS, EXPENSE, DAMAGES, SPECIAL DAMAGES, INCIDENTAL
DAMAGES OR CONSEQUENTIAL DAMAGES ARISING DIRECTLY OR INDIRECTLY FROM THE DESIGN,
MANUFACTURE, SALE, USE OR REPAIR OF THE PRODUCT, WHETHER BASED ON WARRANTY,
CONTRACT, NEGLIGENCE, OR STRICT LIABILITY. IN NO EVENT WILL LIABILITY EXCEED THE
PURCHASE PRICE OF THE PRODUCT.
THE WARRANTY AND LIMITS OF LIABILITY CONTAINED HEREIN ARE IN LIEU OF ALL OTHER
WARRANTIES AND LIABILITIES, EXPRESSED OR IMPLIED. ALL IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED BY BJM
PUMPS, LLC AND EXCLUDED FROM THIS WARRANTY.
BJM Pumps,LLC neither assumes, nor authorizes any person to assume for it, any other warranty obligation in
connection with the sale of the Product. This warranty shall not apply to any Product or parts of Product which
have (a) been repaired or altered outside of BJM Pumps,LLC’s facilities unless such repair was authorized in
advance by BJM Pumps,LLC or by its authorized representative; or (b) have been subject to misuse,
negligence or accident; or (c) have been used in a manner contrary to BJM Pumps,LLC’s instruction.
In any case of products not manufactured and sold under the BJM Pumps,LLC brand name, there is no
warranty from BJM Pumps,LLC; however BJM Pumps,LLC will extend any warranty received from BJM
Pumps,LLC’s supplier of such products.

START-UP REPORT FORM
START-UP REPORT FORM
This form is designed to record the initial installation, and to serve as a guide for troubleshooting at a
later date (if needed). BJM Pumps, LLC
123 Spencer Plain Road
Old Saybrook, CT. 06475
Pump Owner’s Name
Location of Installation
Date of Installation:
Dealer
Dealer Phone ( )
Date of Purchase
Model
Serial No
Voltage
Phase
Hertz
HP
Does impeller turn freely by hand?
Yes No
Condition of Equipment
New Good Fair Poor
Condition of Cable Jacket
New Good Fair Poor
Rotation: Direction of Impeller Rotation (viewed from bottom)
(Use C/W for clockwise, CC/W for counterclockwise):
Resistance of cable and Pump Motor (measured at pump control)
Red-Black ohms
Red-White ohms
White-Black ohms
Resistance of ground circuit between control panel and outside of pumps
Ohms
MEG OHM CHECK OF INSULATION
Red to ground White to ground Black to ground
Condition of location at start-up
Dry Wet Muddy
Was equipment stored
If YES, length of storage:
Yes No.
Liquid being pump
Debris in bottom of station?
Yes No
