BJM Pumps FAHRENHEIT SK-F Series Instruction manual

Version 9/18/2018
INSTALLATION, OPERATION & MAINTENANCE MANUAL
FAHRENHEIT®
SK-F & SKX-F SERIES
SHREDDER PUMPS
Electric Submersible Pumps
Single Phase
208V & 230V
CAST IRON
SINGLE PHASE
SK1500C-F
316 STAINLESS STEEL
SINGLE PHASE
SKX750CSS-F
SKX1500CSS-F
Read this manual carefully before installing, operating or servicing these pump models.
Observe all safety information. Failure to comply with instructions may result in personal
injury and/or property damage. Please retain these instructions.

TABLE OF CONTENTS
INTRODUCTION...........................................................................................................................................4
SAFETY ........................................................................................................................................................5
INSPECTION ................................................................................................................................................5
PRE-INSTALLATION INSPECTION ........................................................................................................6
OIL FILL QUANTITY/TYPE......................................................................................................................7
PUMP INSTALLATION.............................................................................................................................7
POSITIONING THE PUMP.......................................................................................................................7
PUMP ROTATION....................................................................................................................................9
PUMP OPERATION....................................................................................................................................10
TYPICAL MANUAL WASTEWATERING INSTALLATION.........................................................................10
TYPICAL AUTOMATIC DEWATERING INSTALLATION...........................................................................11
STOPPING .............................................................................................................................................11
CONTROL PANELS CONNECTION OPTIONS.........................................................................................11

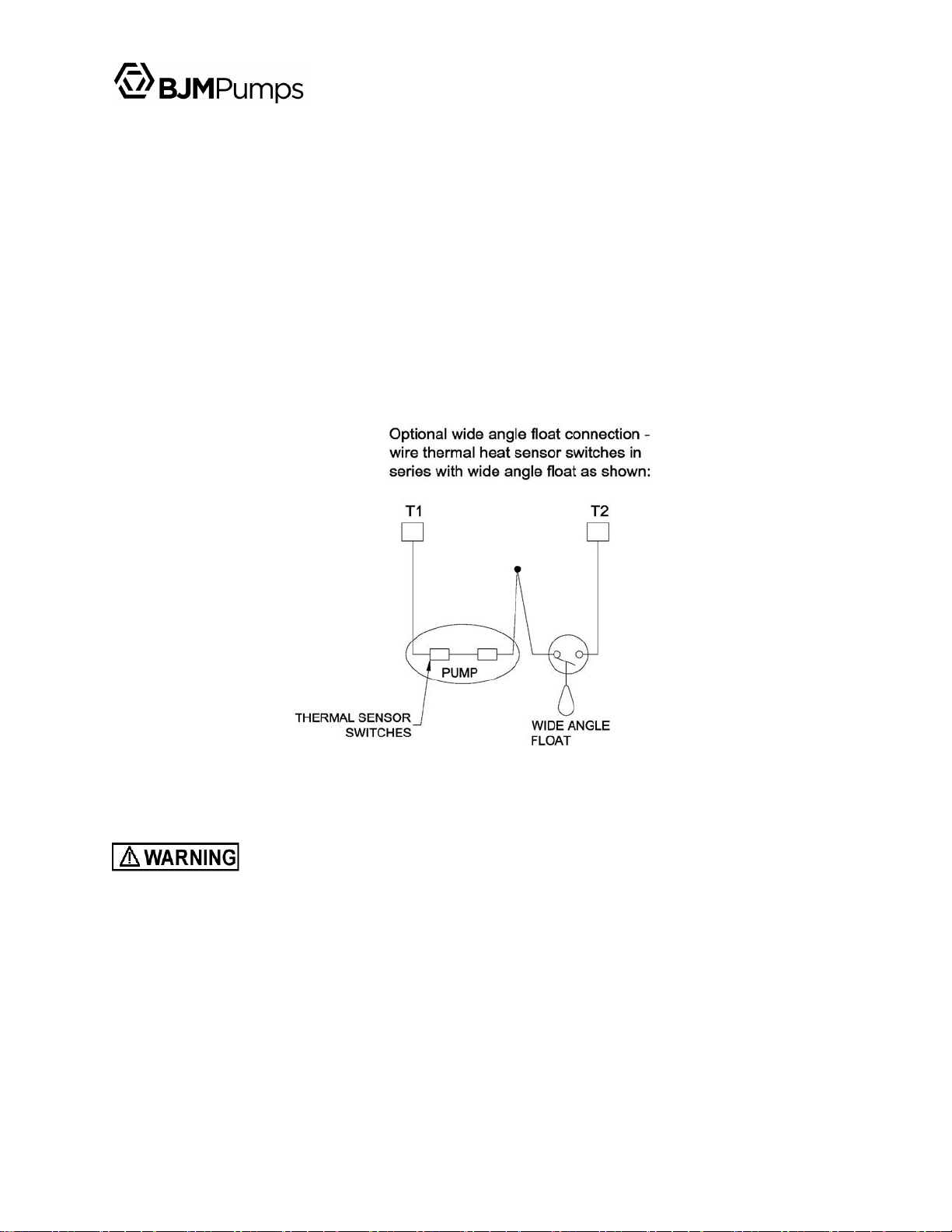

OPTIONAL FLOAT CONNECTION........................................................................................................13
TROUBLE SHOOTING...............................................................................................................................13
PUMP WILL NOT RUN...........................................................................................................................13
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY.............................................................14
SERVICING YOUR SUBMERSIBLE PUMP ..........................................................................................14
MAINTAINING YOUR PUMP .................................................................................................................14
CHANGING SEAL OIL ...........................................................................................................................15

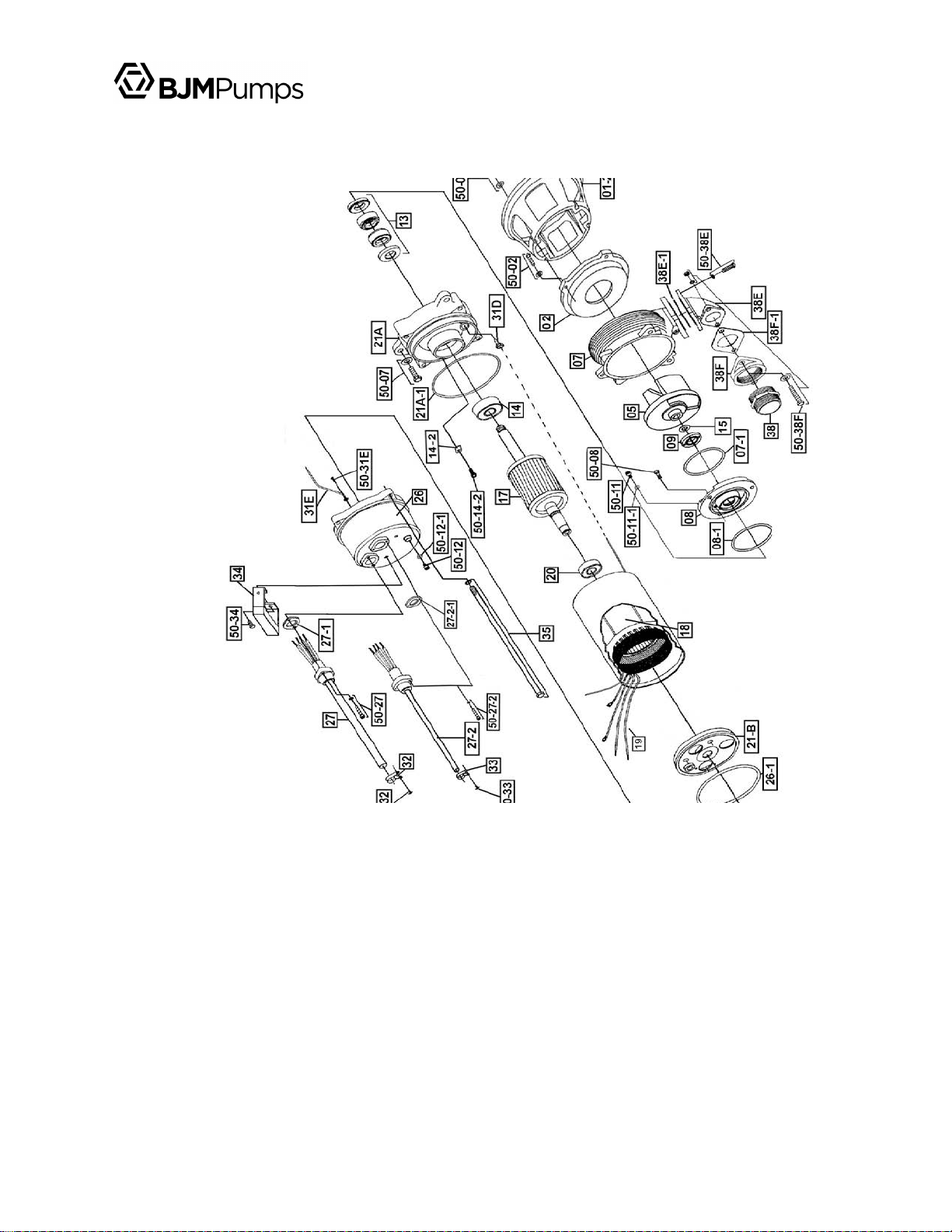

EXPLODED VIEW OF SK1500C-F........................................................................................................16

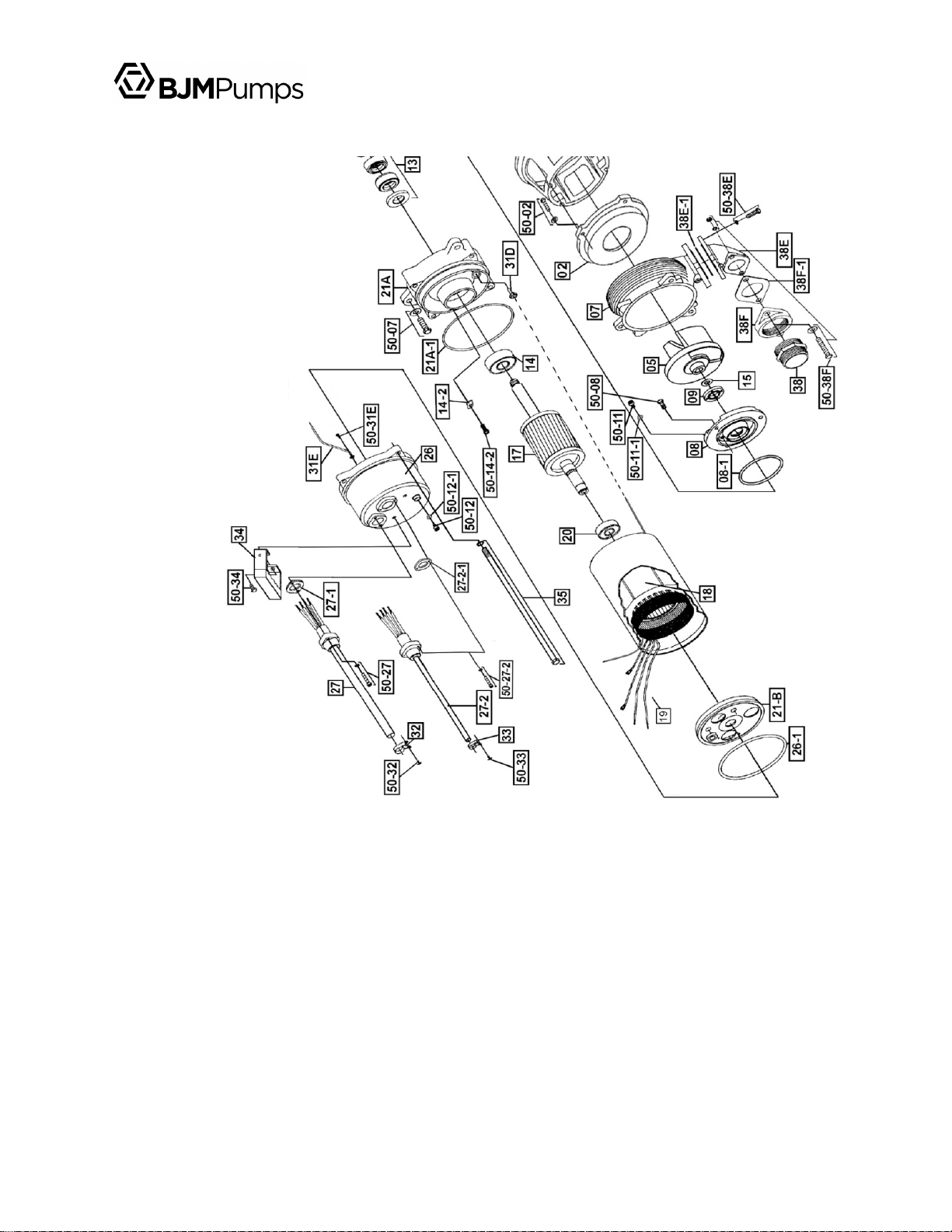

EXPLODED VIEW OF SKX750CSS-F, SKX1500CSS-F.......................................................................17
SK-F SERIES PARTS LIST........................................................................................................................18
SKX-F SERIES PARTS LIST......................................................................................................................19

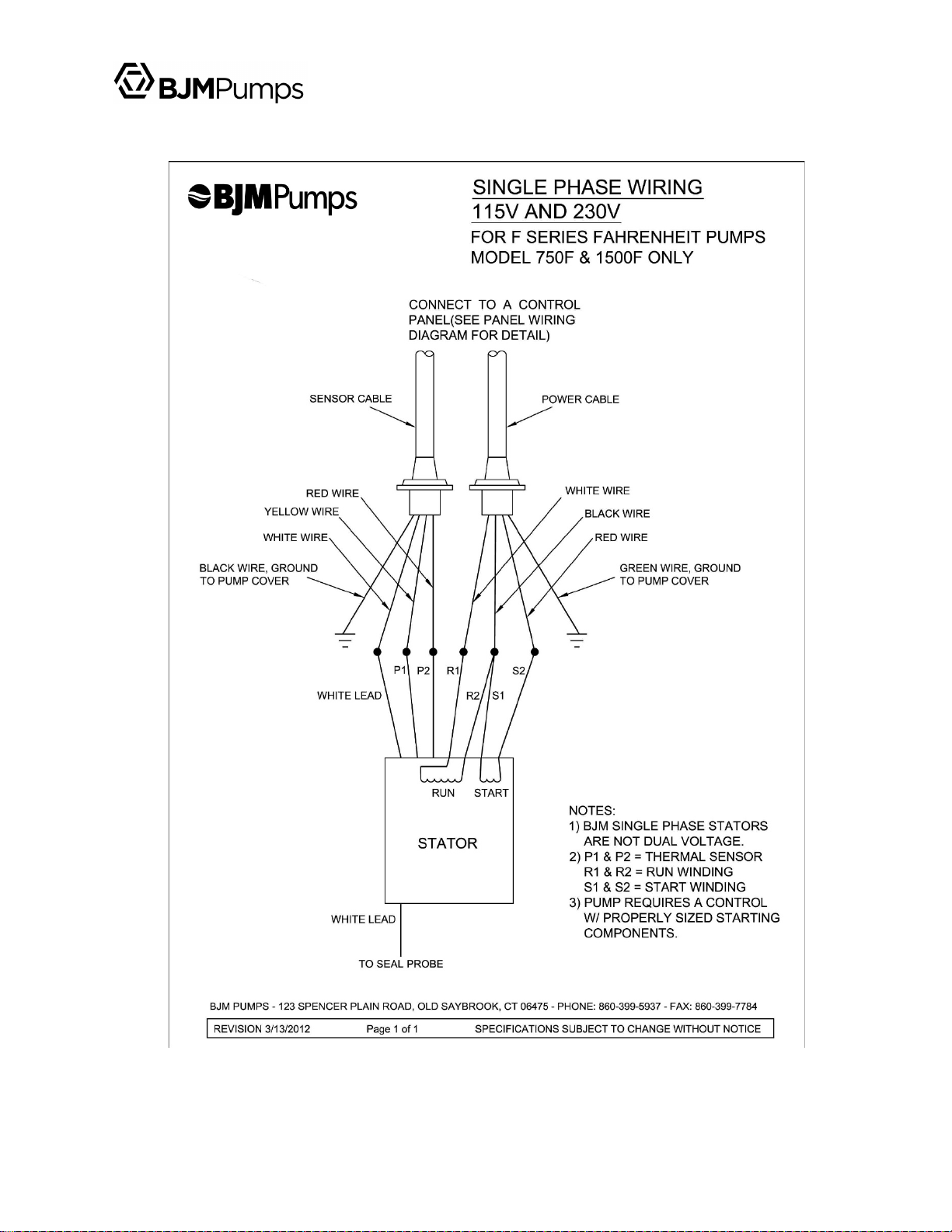

SINGLE PHASE WIRING DIAGRAM ............................................. ERROR! BOOKMARK NOT DEFINED.
115V & 230V............................................................................... ERROR! BOOKMARK NOT DEFINED.
MODELS SK1500CF, SKX750CSS-F & SKX150CSS-F....... ERROR! BOOKMARK NOT DEFINED.
SEAL MINDER® - THERMAL MOTOR SENSOR SWITCH........................................................................21
WARRANTY AND LIMITATION OF LIABILITY..........................................................................................22
START-UP REPORT FORM.......................................................................................................................23
NOTES:.......................................................................................................................................................26

4
INTRODUCTION
This Installation, Operation and Maintenance manual provides important information on safety
and the proper inspection, disassembly, assembly and testing of the BJM Pumps® SK-
F &SKX-F Series submersible pump. This manual also contains information to
optimize performance and longevity of your BJM Pumps®submersible pump. The F-Series
Fahrenheit® pumps are engineered to pump water based liquids up to 200° Fahrenheit (93°
C).
The submersible SK-F Series pumps are designed to pump water, wastewater, and
industrial wastewater that includes up to 10% by volume of solids. The SKX-F Series
pumps are designed to pump corrosive liquids along with some solids in
concentrations chemically compatible with 316SS and FKM. The SK-F &SKX-F Series
pumps are not explosion-proof. They are not designed to pump volatile or flammable
liquids.
Note: Consult achemical resistance chart for compatibility between pump
materials and liquid before operating pump. Consult BJM Pumps® engineering if there
is a question on chemical compatibility.
If you have any questions regarding the inspection, disassembly, and assembly or testing
please contact your BJM Pumps®distributor, or Industrial Flow Solutions Operating, LLC.
Industrial Flow Solutions Operating, LLC
104 John W Murphy Drive
New Haven, CT 06513, USA
Phone: [phone]
Fax: [phone]
Information, including pump data sheets and performance curves, is also available on
our web site: www.bjmpumps.com
For assistance with your electric power source, please contact a certified electrician.
Please pay attention to the following alert notifications. They are used to notify
operators and maintenance personnel to pay special attention to procedures, to avoid
causing damage to the equipment, and to avoid situations that could be dangerous to
personnel.
NOTE: Instructions to aid in installation, operation, and maintenance or which
clarify a procedure.
Immediate hazards that WILL result in severe personal injury or
death. These instructions describe the procedure required and the injury which will
result from failure to follow the procedure.
Hazards or unsafe practices that COULD result in severe personal
injury or death. These instructions describe the procedure required, and the injury which
could result from failure to follow the procedure.
Hazards or unsafe practices which COULD result in personal injury
or product or property damage. These instructions describe the procedure required and
the possible damage which could result from failure to follow the procedure.

5
SAFETY
Pump installations are seldom identical. Each installation and application can vary due
to many different factors. It is the owner/service mechanics responsibility to repair,
service, and test to ensure that the pump integrity is not compromised according to this
manual.
Risk of electric shock – this pump has not been investigated for use
in swimming pool areas.
Do not pump flammable or volatile liquids. Death or serious
injury will result.
Before attempting to open or service the pump:
1) Familiarize yourself with this manual.
2) Unplug or disconnect the pump power cable to ensure that the pump will remain
inoperative.
3) Allow the pump to cool if overheated.
Do not operate the pump with a worn or damaged electric power
cable. Death or serious injury could occur.
Never attempt to alter the length or repair any power cable with a
splice. The pump motor and pump motor and cable must be completely waterproof.
Damage to the pump or personal injury may result from alterations.
After the pump has been installed, make sure that the pump and all
piping are secure before operation.
Do not lift the pump by the power cable piping or discharge hose.
Attach proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do
not suspend the pump by the power cable.
Obtain the services of a qualified electrician to troubleshoot, test
and/or service the electrical components of this pump.
Pumps and related equipment must be installed and operated
according to all national, local and industry standards.

6
INSPECTION
Review all safety information before servicing pump.
The following are recommended installation practices/procedures for the pump. If there
are questions in regards to your specific application, contact your local BJM
Pumps®distributor or Industrial Flow Solutions Operating, LLC.
PRE-INSTALLATION INSPECTION
1) Check the pump for damage that may have occurred during shipment.
2) Inspect the pump for any cracks, dents, damaged threads, etc.
3) Check power cable and sensor cable for any cuts or damage.
4) Check for, and tighten any hardware that appears loose.
5) Carefully read all tags, decals and markings on the pump.
6) Important: Always verify that the pump nameplate amps, voltage, phase, and HP
ratings match your control panel and power supply.
Warranty does not cover damage caused by connecting pumps and controls to an
incorrect power source (voltage/phase supply).
Record the model numbers and serial numbers from the pumps and control panel on
the front of this instruction manual for future reference. Give it to the owner or affix it to
the control panel when finished with the installation.
If anything appears to be abnormal, contact your BJM Pumps®distributor or
Industrial Flow Solutions Operating, LLC. If damaged, the pump may need to be
repaired before use. Do not install or use the pump until appropriate action has been
taken.

7
Lubrication:
No additional lubrication is necessary. The shaft seal and bearings are fully lubricated
from the factory. Seal oil should be checked once per year. See table: Oil Fill Quantity /
Type.
OIL FILL QUANTITY/TYPE
OIL IN SEAL CHAMBER
MODEL U.S. FL. OZ. CC. TYPE OF OIL
SK1500C-F
7.8
230
ISO 32 NSF Food Grade Mineral Oil
OIL IN SEAL CHAMBER
MODEL U.S. FL. OZ. CC. TYPE OF OIL
SKX750CSS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
SKX1500CSS-F
10.1
300
ISO 32 NSF Food Grade Mineral Oil
NOTE: The stator on this model isoilfilled. This needs to be changed annually
when the seal oilis changed. With the power cable entry removed, fill the motor
chamber with oilto a level that insures the oil is covering the motor windings by
½”, and that will be above the upper bearing. Do not overfill, an air gap of 10-15%
must be maintained for heat expansion.
PUMP INSTALLATION
SK-F & SKX-F Series pumps have been evaluated for use with water or water based
solutions with some solids. Please contact the manufacturer for additional information.
The BJM Pumps®Shredder Pumps (7.5 HP and larger) are designed to
handle unscreened sewage.
Risk of electric shock. Pump models; All three phase pumps do
not come with electric plug connectors. To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding-type receptacle.
Lifting:
Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of
the pump. Do not lift the pump by the power cable or discharge hose/piping.
Proper lifting equipment (rope/chain) must be used.

8
BJM Pumps®SK-F &SKX-F Series pumps are designed to operate fully
submerged. Data sheets can be obtained online at www.flowsolutions.com or by
calling Industrial Flow Solutions Operating, LLC at 860-399-5937.
•Do not run pump dry.
•Pump liquid should not exceed a maximum temperature of 200°F (93°C).
•Never place the pump on loose or soft ground. The pump may sink, preventing
water from reaching the impeller. Place on a solid surface or suspend the pump
with a lifting rope/chain. The SK-F & SKX-F Series pumps are provided with a
suction strainer to prevent large solids from clogging the impeller. Any spherical
solids which pass through the strainer should pass through the pump.
•For maximum pumping capacity, use the proper size non-collapsible hose or rigid
piping. A check valve may be installed after the discharge to prevent back flow
when the pump is shut off.
•Take stand off of pump when using slide rail. Keep stand and reattach when
transporting or handling the pump.
POSITIONING THE PUMP

9
PUMP ROTATION
If wired properly to the control, the single phase BJM Pumps®SK-F and SKX-F
Series pump should operate with the correct pumping rotation. Verification is
recommended prior to installing into the sump basin.
Two ways to check the correct pump rotation:
1. By looking at the impeller; the rotation of the impeller should be counter
clockwise as shown in the picture below.
2. By looking from the top of the pump. Since the impeller cannot be seen, the best
way to check the rotation is to check the kick back motion of the pump when the
pump just starts. The kick back motion of the pump should be counter clockwise
as shown in the picture below.

10
PUMP OPERATION
This pump is designed to handle dirty water that contains some
solids. It is not designed to pump volatile or flammable liquids. Do not attempt to pump
any liquids which may damage the pump or endanger personnel as a result of pump
failure.
Do not operate this pump where explosive vapors or
flammable material exist. Death or Serious injury may result.
TYPICAL MANUAL WASTEWATERING INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
All SK-F & SKX-F Models are provided with a 50’ (15 m) power cable. NEVER splice
the power cable due to safety and warranty considerations. Always keep the lead end
dry.
Do not alter the length or repair any power cable with a splice. The
pump motor and cable must be completely waterproof. Damage to the pump or
personal injury may result from alterations.
The BJM Pumps® SK-F and SKX-F series pumps require a special control that
contains the starting components, thermal sensor and Seal Minder®connections.
These pumps cannot be directly connected to a power source.

11
TYPICAL AUTOMATIC DEWATERING INSTALLATION
NOTE: Maximum recommended starts should not exceed 10 times per hour.
STOPPING
To stop the pump (manual and automatic mode), turn the pump off at the control, turn
off the breaker, and/or turn the power source off (generator).
CONTROL PANELS CONNECTION OPTIONS
Use with approved motor control that matches motor input in full
load amperes. “UTILLISER UN DÉMARREAR APPROUVÉ CONVENANT AU
COURANT Á PLEINE CHARGE DU MOTEUR.”
BJM Pumps has been evaluated for use with water or water based solutions. Please
contact the manufacturer for additional information.

12
Figure 1 SKX750F-115 control
Figure 2 SKX750F-230, SK1500-230 and SKX1500-230 control

13
OPTIONAL FLOAT CONNECTION
BJM Pumps®utilizes a control for all of the single phase “F” series pumps. The wiring
diagram included in this manual (and with the control) should be followed to properly
connect the pump power and sensor leads to the control, and the power supply to the
control. Care should be taken to make sure all of the connections are proper and that
the system isproperly grounded. The control can be utilized as a portable control or as
a permanently mounted control enclosure. All Connections should be done to meet the
National Electric Code and all applicable local codes and ordinances.
The BJM Pumps®control issupplied as a manual ON/OFF control. A wide angle float
can be wired in series with the thermal sensors to allow the pumps to operate in an
automatic mode. See the wiring diagram provided in this manual for proper connection.
Aseparate alarm control with float isavailable as an option from BJM Pumps®.
TROUBLE SHOOTING
Disconnect the power source to the pump BEFORE attempting
any type of trouble shooting, service or repair.
PUMP WILL NOT RUN
1. Check power supply (fuses, breaker). Reset power.
2. Blocked impeller. Remove strainer, check and clean.
3. Defective cable or incorrect wiring.
4. Strainer clogged. Check and clean as necessary.
5. Float switch tangled/obstructed. Clean and free float switch from obstruction.
6. Float switch defective. Replace float switch.
7. Capacitor or start relay in control failed.

14
8. Thermal sensor switch is open/or failed.
PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY
1. Discharge line clogged, restricted or hose kinked. Check discharge hose/pipe.
2. Worn impeller and/or suction cover. Inspect and replace as necessary.
3. Pump overloaded due to liquid pumped being too thick.
4. Pumping air. Check liquid level and position of pump.
5. Excessive voltage drops due to long cables.
6. Pump running backwards, check rotation.
SERVICING YOUR SUBMERSIBLE PUMP
Pump should be disconnected from the electric power supply before proceeding to do
any service or maintenance.
The design of the “F” series high temperature pump models is unique and
requires specific knowledge to perform the proper assembly. BJM
Pumps®recommends that all electrical service work be performed at the
factory or by a factory trained and certified repair technician to insure that
the materials and assembly methods meet BJM Pumps® standards.
MAINTAINING YOUR PUMP
•Pump should be disconnected from the electric power supply before proceeding
to do any service or maintenance.
•Pump should be inspected at regular intervals (At least 2 times per year).
•More frequent inspections are required if the pump is used in a harsh
environment.
•Preventative maintenance should be performed to reduce the chance of
premature failure.
•Worn impellers and lip seals should be replaced.
•Cut or cracked power cables must be replaced. (Never operate a pump with a
cut, cracked or damaged power cable.)
•Seal oil should be checked once per year.
•Maintenance should always be done when taking a pump out of service before
storage.
1) Clean pump of dirt and other build up.
2) Check condition of oil around the shaft seals.
3) Check hydraulic parts: check for wear.
4) Inspect power cable. Make sure that it is free of nicks or cuts.

15
CHANGING SEAL OIL
Changing the seal oil in the SK-F & SKX-F series pumps is very easy.
1) Make sure that the pump is de-energized and locked out for service.
2) Lay the pump down on its side.
3) Remove the screws that hold the bottom plate in place.
4) Remove bottom plate.
5) Remove screws holding the suction cover.
6) Remove the suction cover.
7) Remove the impeller.
8) Remove the inspection screw for the oil chamber (pos#50-08). Pour
out a small sample of the oil. If it is milky white, or contains water, then
the oil and possible, the mechanical seal, should be changed. If an oil
change is needed.
9) Remove the screws that hold the oil chamber cover in place & remove
the oil.
10)Replace the mechanical seal if necessary.
11)Replace the oil.
12)Assemble the pump.
STATOR REPLACEMENT OR ELECTRICAL REPAIR
The BJM Pumps®“F” Series designed pumps utilize unique construction methods and
materials. The interconnection of allwiring requires the use of a BJM Pumps® wire
connection kit. Included in this kit are specific instructions on how a qualified factory
trained and certified repair technician can perform this work properly. No other materials
or methods should be used on this product.

16
EXPLODED VIEW OF SK1500C-F

17
EXPLODED VIEW OF SKX750CSS-F, SKX1500CSS-F

18
SK-F SERIES PARTS LIST
Pump Model SK1500CF
Pos. No. Part Description Item #
01-2 Stand Only 202858
02 Suction Cover, Hi-Chrome 202046
05 Impeller, Heat Treated DI* 204565
07 Pump Housing 203008
08 Oil Chamber Cover 202213
08-1 O-Ring (Kit Only) Kit
09 Lip Seal FKM 202232
13 Mechanical Seal FKM 204240
14 Lower Ball Bearing 200958
14-2 Lower Bearing Retainer 202279
15 Impeller Shim Kit (Required) 200481
17 Rotor w/ Shaft 230V, 1PH 204734
18 Stator w/ Casing 230V, 1PH (High-Temp) 201040
19 Wire Connection Kit* 204211
20 Upper Ball Bearing 200967
21A Oil Chamber/Motor Housing 202196
21A-1 O-Ring (Kit Only) Kit
21B Motor Cover Upper 202368
26 Pump Top Cover (w/ Sensor Opening) 202433
26-1 O-Ring Kit Only Kit
27 Power Cable w/ Gland- 230V,1PH (High-Temp) 202783
27-1 O-Ring Kit Only Kit
27-2 Seal Minder Cable (High-Temp) 204455
27-2-1 O-Ring Kit Only Kit
31D Seal Minder Probe 202408
31E Ground Wire w/Ring Term. 203145
32 Power Cord Line Clip / Strain Relief 203161
33 Seal Minder Cable Line Clip 203163
34 Handle / Chain Handle 202517
35 Rod Bolts 202668
38 Discharge Nipple 3" 202534
38E Discharge Elbow 202558
38E-1 Gasket, Disch. Elbow FKM 203209
38F Discharge Flange 3" 202545
38F-1 Gasket, Disch. Flange FKM 202660
50-01-2 Bolt for Strainer/Stand 203228
50-02 Bolt for Suction Cover 203228
50-07 Screw for Oil Chamber/Motor Housing 203228
50-08 Screw for Oil Chamber Cover 203219
50-11 Bolt - Suction Cover 203218
50-11-1 O-Ring (Kit Only) Kit
50-12 Screw for Pressure Check 203218
50-12-1 O-Ring (Kit Only) Kit
50-14-2 Screw for Brg. Retainer 203219
50-27 Screw for Power Cord 203216
50-27-2 Screw for Seal Minder Cable 203216
50-31E Screw for Ground Wire 202692
50-32/50-33 Screw for Line Clip 203214
50-34 Screw for Handle 203219
50-38E Bolt for Discharge Elbow 203255
50-38F Bolt for Discharge Flange 203289
203197
O-Ring Kit - FKM
*"F" Series High Temperature Pumps Only
*New Rotor WithShaft Required WhenUpgrading From 202953 Impeller to204565 Impelle

19
SKX-F SERIES PARTS LIST
Pump Model SKX750CSSF SKX1500CSSF
Pos. No. Part Description Part # Part #
01-2 Stand Only 201988 201995
02 Suction Cover, Hi-Chrome
05 Impeller 202951 204628**
07 Pump Housing 202176 202172
07-1 O-Ring (Kit Only) Kit Kit
08 Oil Chamber Cover 202214 202214
08-1 O-Ring (Kit Only) Kit Kit
09 Lip Seal FKM 202232 202232
13 Mechanical Seal FKM 204240 204240
14 Lower Ball Bearing (*=qty 2 Needed) 200958 200958
14-2 Lower Bearing Retainer 202279 202279
15 Impeller Shim Kit (Required) 200481 200481
17 Rotor w/ Shaft 115/230V, 1PH 204061 204735
18 Stator w/ Casing 115V, 1PH (High-Temp) 201038 -
18 Stator w/ Casing 230V, 1PH (High-Temp) 201039 201041
19 Wire Connection Kit* 204211 204211
20 Upper Ball Bearing 200967 200967
21A Oil Chamber/Motor Housing 202197 202197
21A-1 O-Ring (Kit Only) Kit Kit
21B Motor Cover Upper 202368 202368
26 Pump Top Cover (w/ Sensor opening) 202434 202434
26-1 O-Ring (Kit Only) Kit Kit
27 Power Cable w/ Gland- 115V, 1PH (High-Temp) 202783 -
27 Power Cable w/ Gland- 230V, 1 PH (High-Temp) 202784 202783
27-1 O-Ring (Kit Only) Kit Kit
27-2 Seal Minder Cable (High-Temp) 201743 201743
27-2-1 O-Ring Kit Only Kit Kit
31D Seal Minder Probe 202408 202408
31E Ground Wire w/Ring Term. 203145 203145
32 Power Cord Line Clip / Strain Relief 203166 203166
33 Seal Minder Cable Line Clip 203163 203163
34 Handle / Chain Handle 202517 202517
35 Rod Bolts 202682 202683
38 Discharge Nippple 2" 202532 -
38 Discharge Nipple 3" -202535
38E Discharge Elbow 202571 202559
38E-1 O-Ring, Discharge Elbow FKM 203326 203327
38F Discharge Flange 2" 202563 -
38F Discharge Flange 3" -202546
38F-1 Bolt - Suction Cover 202723 -
38F-1 O-Ring, 3" Discharge Flange FKM -202724
50-01-2 Bolt for Strainer/Stand 203228 203228
50-02 Bolt for Suction Cover 203228 203228
50-07 Screw for Oil Chamber/Motor Housing 203296 203296
50-08 Screw for Oil Chamber Cover 203219 203219
50-11 Screw for Oil Fill 203218 203218
50-11-1 O-Ring (Kit Only) Kit Kit
50-12 Screw for Pressure Check 203218 203218
50-12-1 O-Ring (Kit Only) Kit Kit
50-14-2 Screw for Bearing Retainer Plate 203219 203219
50-27 Screw for Power Cord 203295 203295
50-27-2 Screw for Seal Minder Cable 203295 203295
50-31E Screw for Ground Wire 202692 202692
50-32/50-33 Screw for Line Clip 203214 203214
50-34 Screw for Handle 203219 203219
50-38E Bolt for Discharge Elbow 203294 203271
50-38F Bolt for Discharge Flange 203229 203294
202630 202630
O-Ring Kit - FKM
*"F" Series High Temperature Pumps Only
** New Rotor With Shaft Required WhenUpgradingFrom 202125 Impeller to204628 Impeller.

20
SINGLE PHASE WIRING DIAGRAM
115V & 230V
MODELS SK1500CF, SKX750CSS-F & SKX1500CSS-F

21
Seal Minder® - Thermal Motor Sensor Switch
(For high temperature single phase pump models)
Seal Minder:
Also known as a seal failure circuit (or moisture detection circuit) isdesigned to inform the pump
operator that there is moisture within the oil chamber. This early warning can allow the operator to
schedule repair & inspection on the pump. The Seal Minder sensor probe is inside the oil chamber.
(The oil chamber houses the mechanical seals that arecooled & lubricated by oil). The Seal Minder,
when properly connected to a control panel,can help indicate seal failure. The Seal Minder cable
requires a seal fail circuit in control panelfor warning signal.
Along, with the Seal Minder,the Fahrenheit® Series high temperature pumps also feature thermal
temperature sensor switches that are imbedded into the motor stator windings. Two switches are
imbedded into the stator windings and wired in series. The leads are connected to the pump control
panel through the sensor cable. Ifthe windings would see a temperature above 300 degrees F, then
the switch(s) would open and cut power to the pump. Once the temperature dropped below 300
degrees F, the switch(s) would reset, and the pump would be returned to a state of operation. This
feature is designed to prevent damage to the stator winding and allow for longer pump life.
The sensor cable consists of four leads, two are connected to the Seal Minder,and two are
connected to the thermal sensor switches located in the stator windings (Note on 400 models the
sensor and power are in a single cable).These four leads run to the pump control panel and connect
to the proper connections points for seal alarm and thermal cut off. The black and white wires on
750-1500 models, black with white stripes and white with black stripes on 400 models; are for the
Seal Minder connections and the thermal sensors will be connected to the yellow and red wires on
750-1500 models, yellow and red with yellow stripes on 400 models (see details on wiring diagram).
The single phase wiring diagram shown earlier in the manual will give a guide to the connections in
the control panel. The manual for the control panel should be consulted for the exact connections.
The sensor cable with Seal Minder and thermal sensor switch connections isstandard on all
Fahrenheit® Series high temperature pumps (Note the 400 models have a different wire color code in
the single cable design). The cable is designed for a high temperature environment. The proper
replacement partcan be found parts list found in this manual. BJM Pumps, can supply a control with
the Seal Minder and Thermal sensor switch option. BJM Pumps requires the Seal Minder and
thermal sensor switches be used. Failure to connect or misuse of these devices will void warranty.
